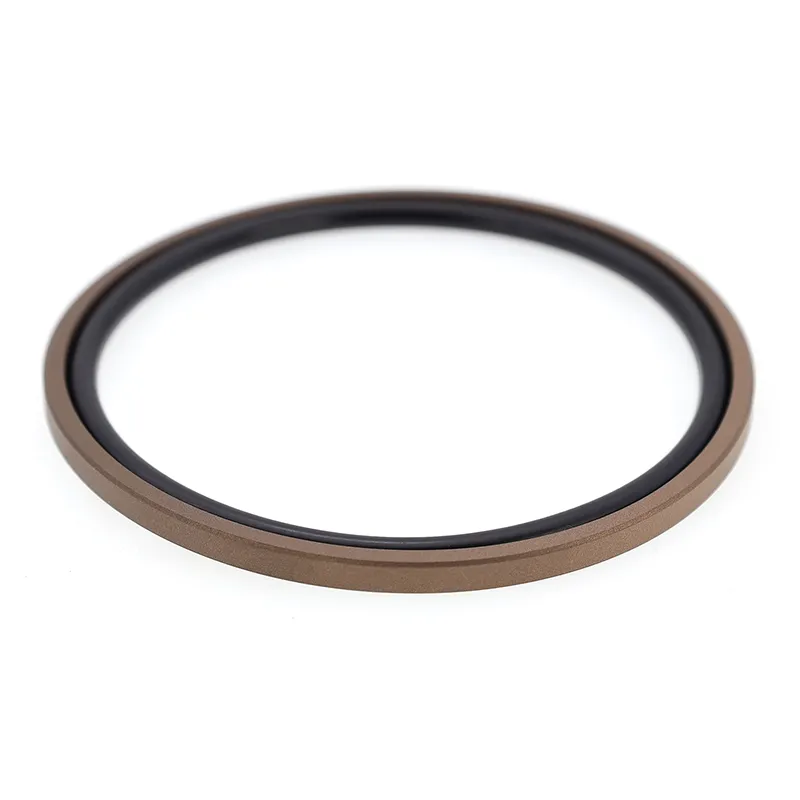

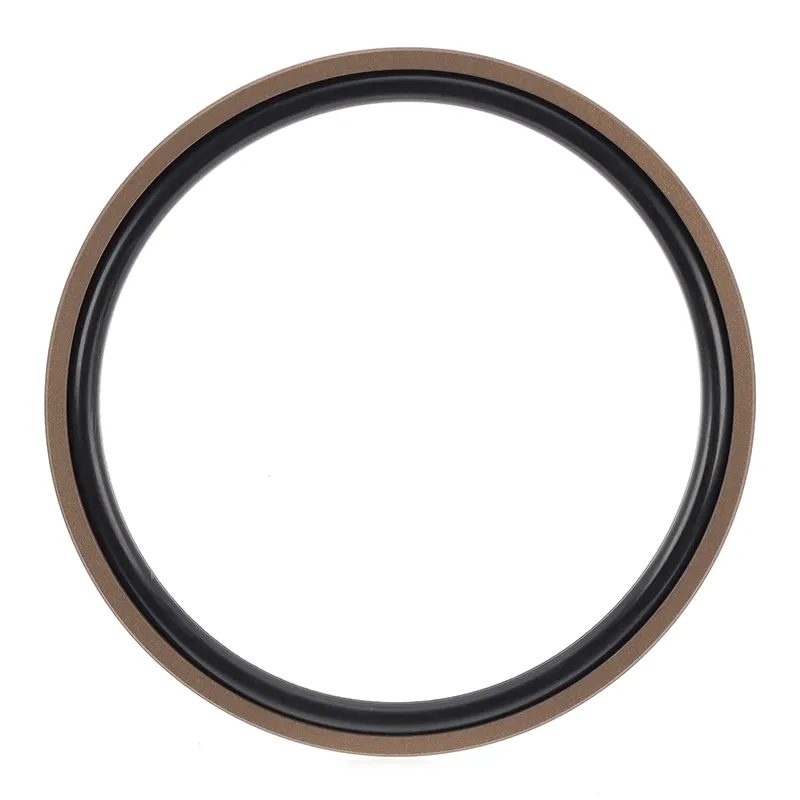

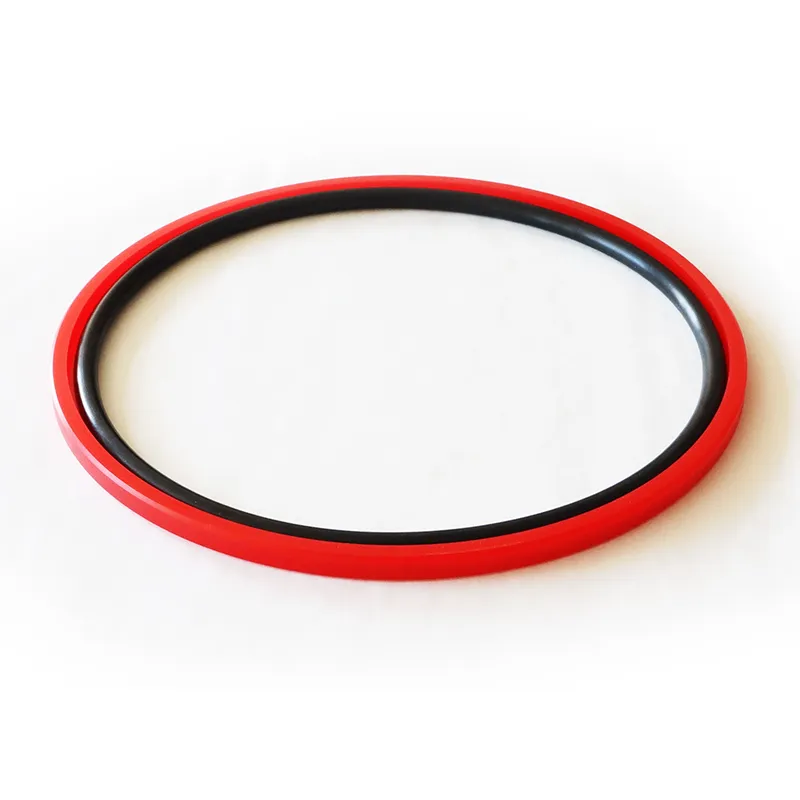

Segel kombinasi alun (GLYD Cincin Seal) kanggo pistons (bolongan) kalebu ring sealing sealing ptfe sing diisi lan ring o-ring. Cocog kanggo panyegel tekanan bidirectional ing gerakan hidraulis timbal balik. O-ring nyedhiyakake kekuwatan radial lan menehi ganti rugi kanggo nyandhang cincin segel. Umume digunakake magepokan karo tuntunan cincin. Kanggo silinder diameter kurang saka 30mm, desain pamisah (mbukak) kudu digunakake.
1. Gesekan rendah, resistensi wiwitan, gerakan lancar, geseran dinamis lan statis padha, lan ora ana creep;
2. Stabilitas tekanan tinggi ing ngisor tekanan lan kahanan sing angel;
3 .. Urip Long, Cocog kanggo Lubrication Gratis tanpa Minyak;
4. Cocog kanggo nyolong media viskositas sithik kayata banyu.
|
Tekanan MPA |
Suhu ℃ |
Kacepetan m / s |
Medium |
|
≤60 |
-35 ~ + 100 (o-ring nbr) |
≤6 |
Minyak Hidraulik berbasis Mineral, cairan retaring geni (HFA / HFB), banyu, lsp. |
|
-20 ~ + 200 (o-ring fkm) |
1. Bahan O-Ring sing kasedhiya: R01 Nitrile-Butadiene Karet (NBR), R02 Fluororubber (FKM), lsp.
2. SEALING RING BATER: Bahan standar: ptfe3; Bahan liyane kalebu PTFE2, PTFE4, lan PU.
Model Pesenan: RC61-40x29x4.2-PTFE3-R01; Model Pesenan: RC61-B-40X29x4.2-PTFE3-R02
RC61 - Cincin Glyd; Rc61-b - bolongan segel; DXDXL - Kode Bahan
