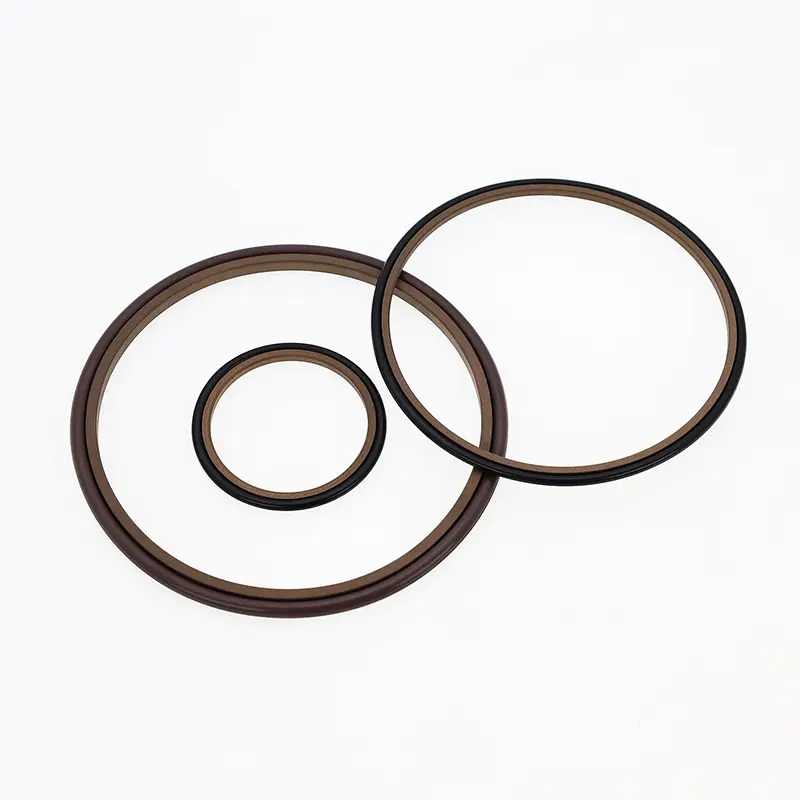

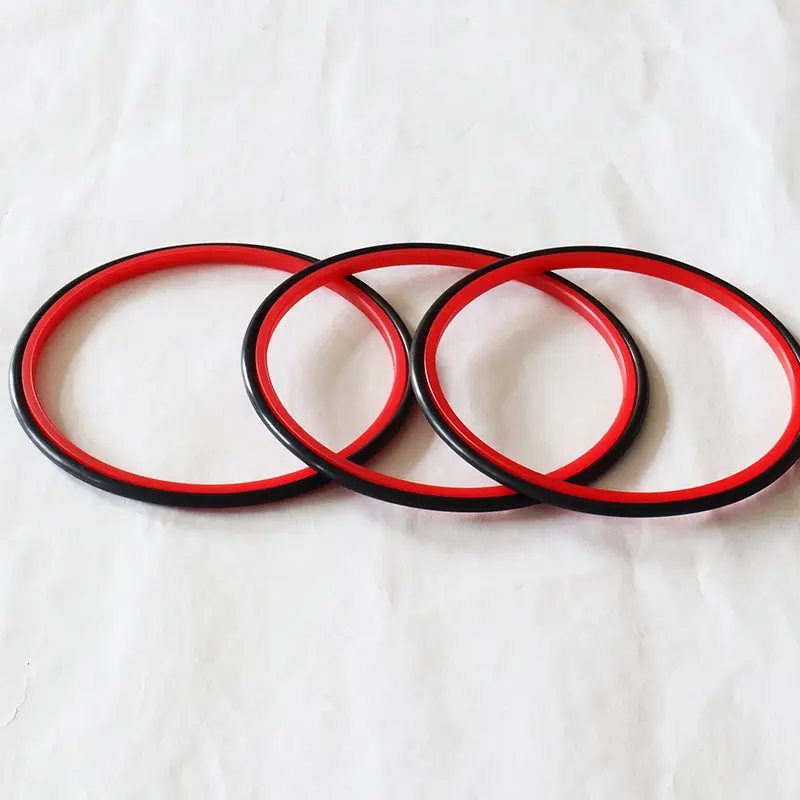

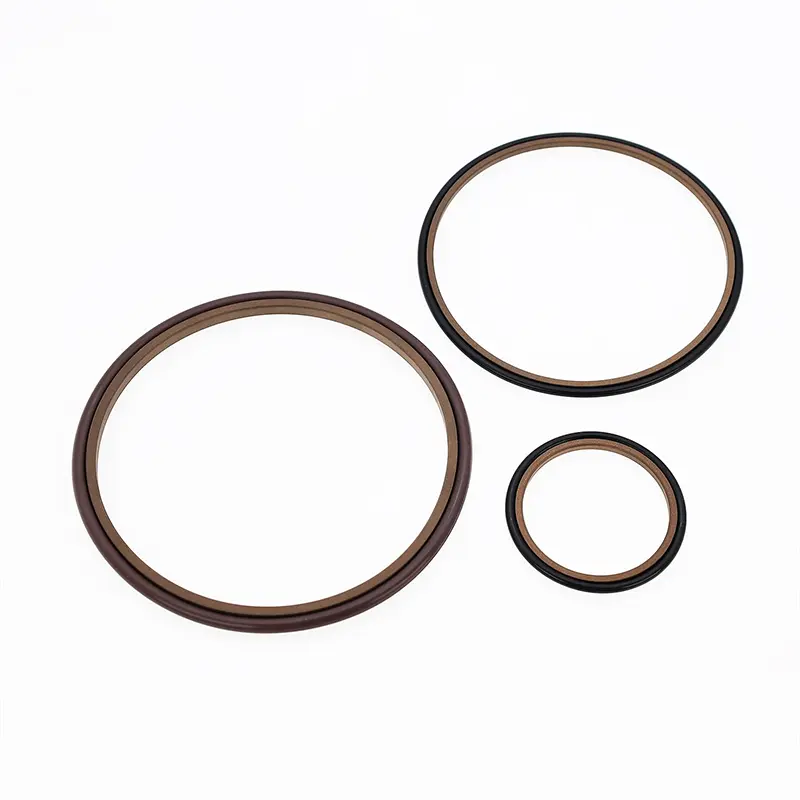

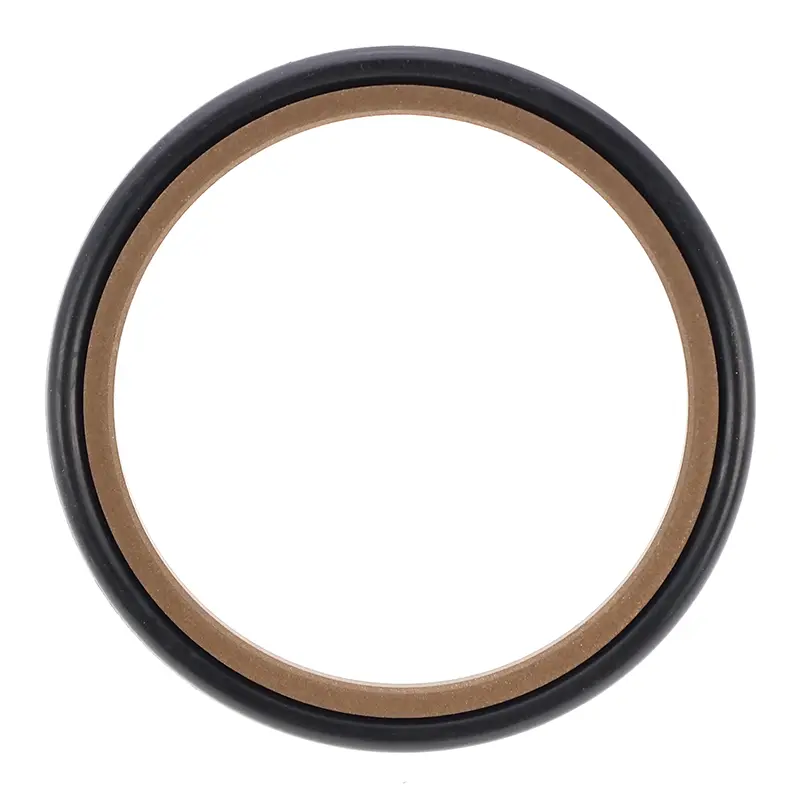

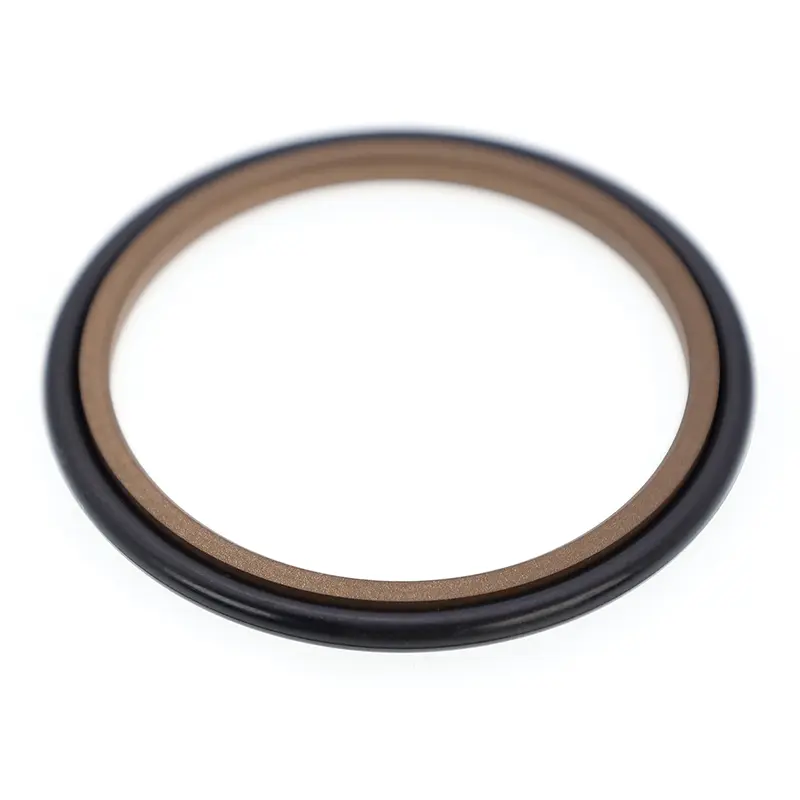

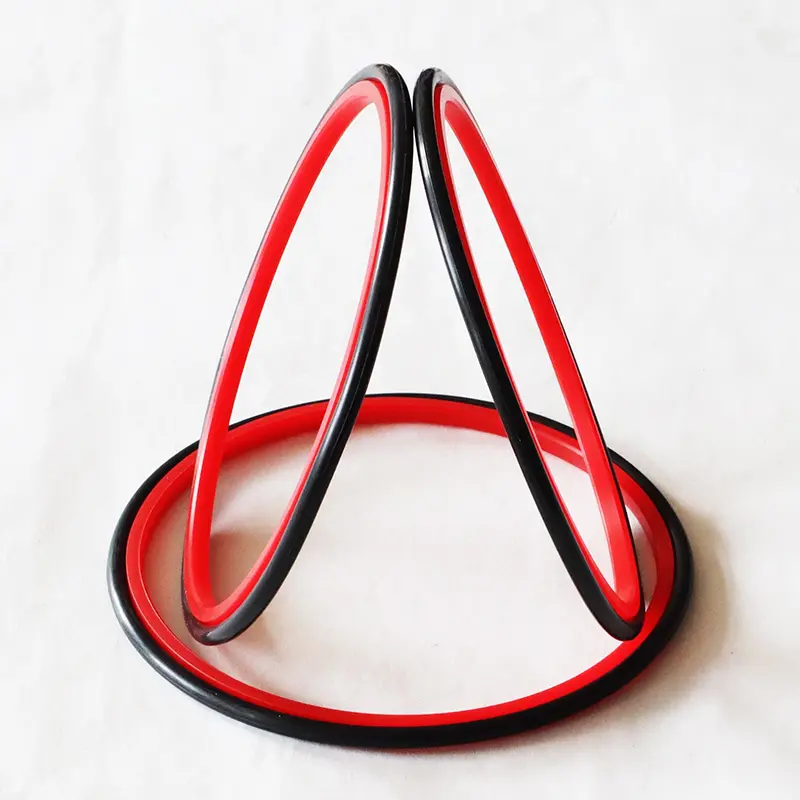

Glyd dering kanggo shafts kalebu ring sealing persegi panjang ptfe lan o-ring, cocog kanggo panyegel tekanan bidirectional ing aplikasi hidrolik. O-ring nyedhiyakake kekuwatan radial lan menehi ganti rugi kanggo nyandhang cincin segel. Dheweke umume digunakake magepokan karo tuntunan cincin. Grooves pamisah (mbukak) kudu digunakake kanggo rod diameter kurang saka 30mm.
Fitur:
1. Gesekan rendah, resistensi wiwitan, gerakan lancar, geseran dinamis lan statis padha, lan ora ana creep;
2. Tekanan sing stabil banget ing sangisoré tekanan lan kahanan sing angel;
3 .. Urip Long, Cocog kanggo Sealing Gratis Minyak;
4. Cocog kanggo nyolong media viskositas sithik kayata banyu;
Kahanan kerja sing ditrapake (watesan nilai ora katon ing wektu sing padha))
|
Tekanan MPA |
Suhu ℃ |
Kacepetan m / s |
Medium |
|
≤60 |
-35 ~ + 100 (Cocokake O-ring NBR) |
≤6 |
Minyak Hidraulik berbasis Mineral, cairan retaring geni (HFA / HFB), banyu, lsp. |
|
-20 ~ + 200 (cocog o-ring fkm) |
Pilihan material
1. Bahan O-ring kasedhiya: R01 Nitrile-Butadiene Karet (NBR), RO2 Fluororubber (FKM), lsp.
Bahan-bahan SEALING: PTFE2, PTFE2, PTFE4, PU, lsp.
Conto conto
Model Pesenan: RC11-40x55.1x6.3-PTFE3-R01

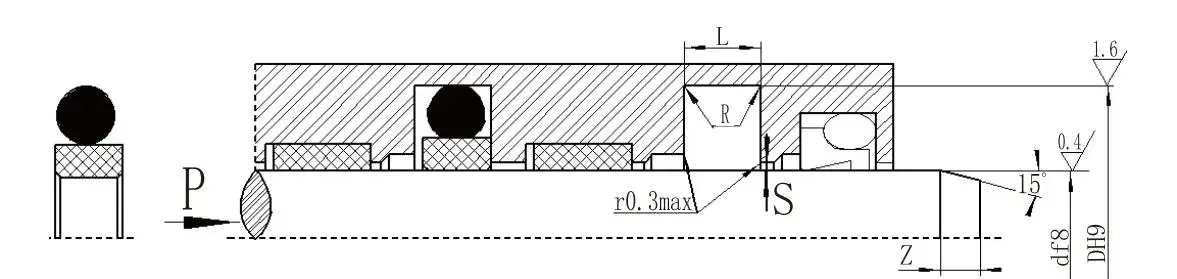

Model Order: Model RC11-B-40X55.12.3-PTFE3-RO2: Groove Diameter X Groove Width Ptfe) Kode Ptfe): R01, R02 - Kode Bahan O-R02
