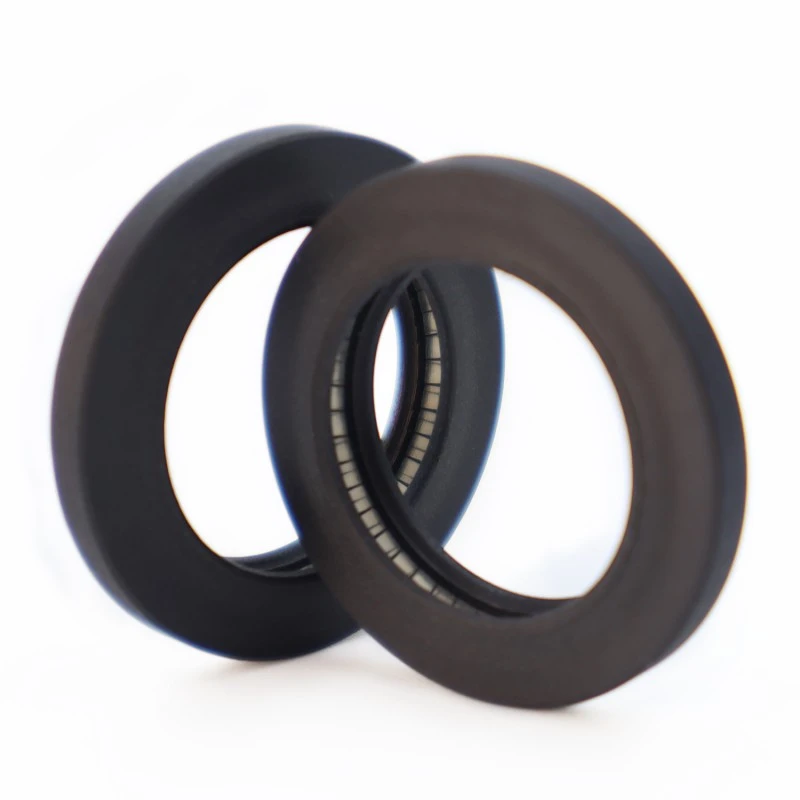

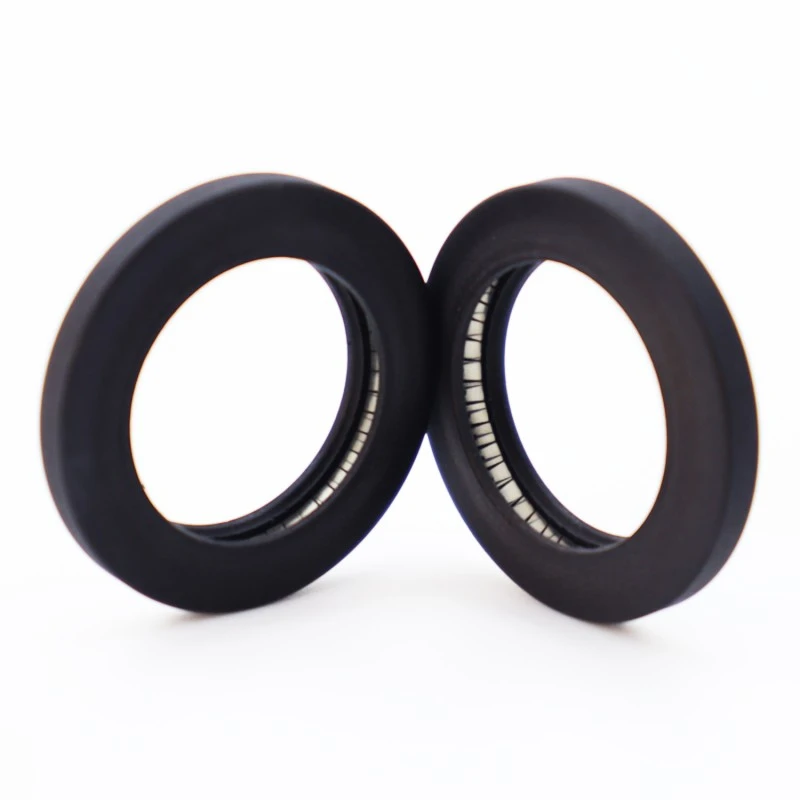

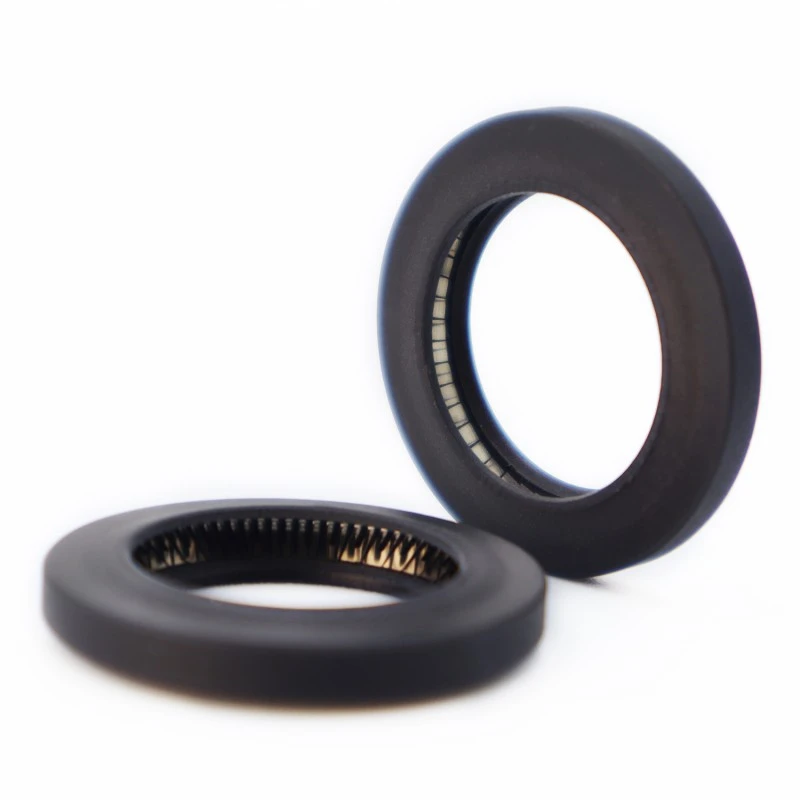

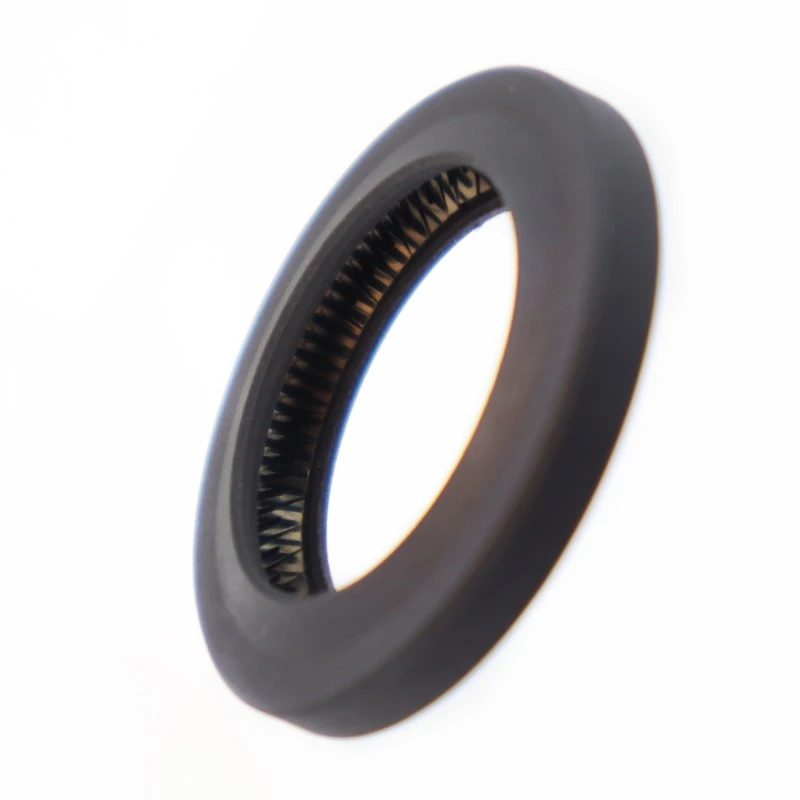

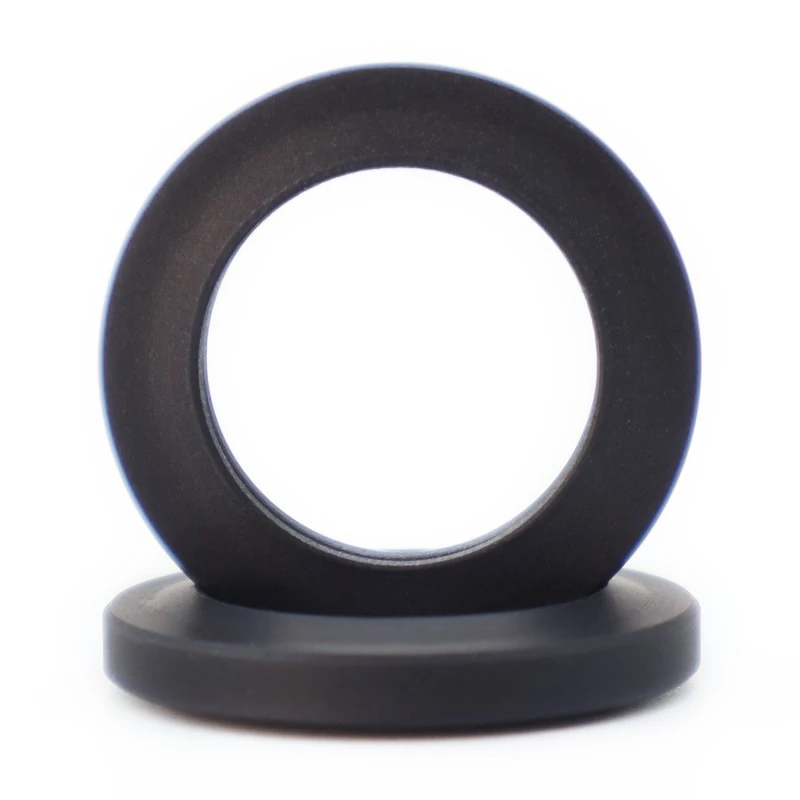

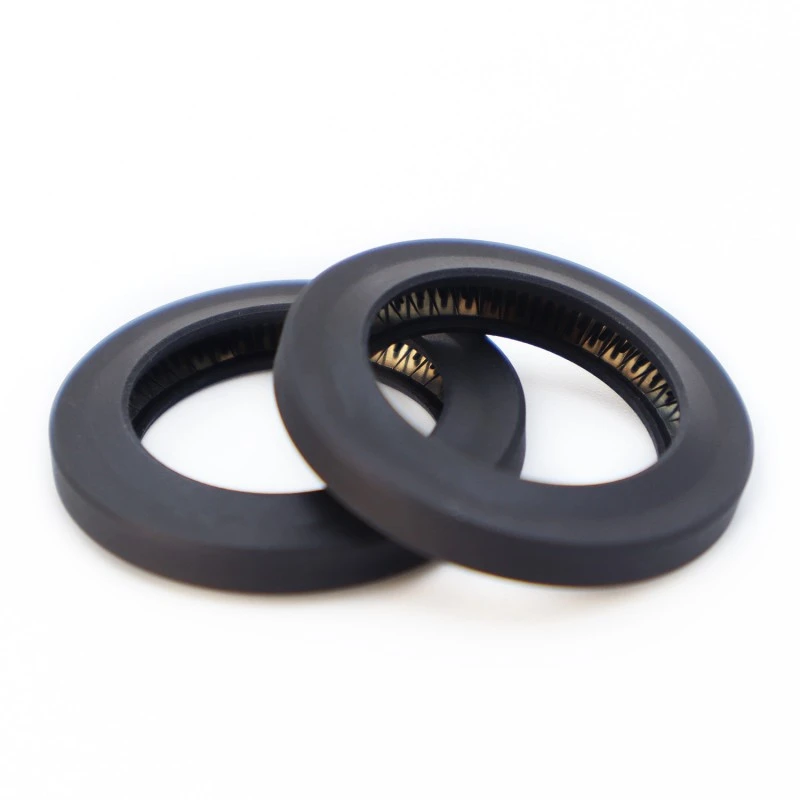

Segel RC2876 kasusun saka spring stainless steel lan plastik kinerja dhuwur. Spring stainless steel bisa dadi salah siji spring V-shaped utawa O-shaped. Nalika nggunakake RC2876-B, bahan elastomer sing cocog kudu dipilih.
Kahanan operasi sing ditrapake (nilai ekstrim ora kudu kedadeyan bebarengan)
|
Tekanan (MPa) |
Kacepetan (m/s) |
Suhu (°C) |
Sedheng |
||
|
RC2876 |
RC2876-B |
- |
RC2876 |
RC2876-B |
Kabeh cairan, kimia, lan gas |
|
<40 |
<80 |
-200~+250 |
-35~+250 |
||
Pemilihan Bahan
1. Bahan O-ring tambahan bisa dipilih saka: R01 Nitrile rubber (NBR), R02 Fluororubber (FKM), etc.
2. Bahan ring sealing: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, lsp.
3. Springs stainless steel bisa dipilih saka spring O-shaped lan springs V-shaped.
Tuladha pesenan
RC2876-40-PTFE4 + V: Inner meksa alur diameteripun njaba 40, sealing materi ring PTFE4, spring punika V-shaped spring.
RC2876-B-40-PTFE4 + R02: Inner meksa alur diameteripun njaba 40, materi ring sealing PTFE4, cocog O-ring digawe saka fluororubber.
Cathetan: Yen perlu luwih akeh, gunakake nomer seri.
Tabel Spesifikasi (Kabeh spesifikasi ing kisaran parameter kasedhiya)
|
nomer seri |
nomer seri |
Range standar DH11 |
Lingkup lengkap DH11 |
ambane alur h-0.05 |
Jembaré alur L+0.2 |
sudhut bunder Rmax |
|
RC2876-0 |
RC2876-B-0 |
10~13.9 |
10~40 |
1.45 |
2.4 |
0.4 |
|
RC2876-1 |
RC2876-B-1 |
14~24.9 |
13~200 |
2.25 |
3.6 |
0.4 |
|
RC2876-2 |
RC2876-B-2 |
25~45.9 |
18~400 |
3.1 |
4.8 |
0.6 |
|
RC2876-3 |
RC2876-B-3 |
46~124.9 |
28~700 |
4.7 |
7.1 |
0.8 |
|
RC2876-4 |
RC2876-B-4 |
125~999.9 |
45~1000 |
6.1 |
9.5 |
0.8 |
|
RC2876-5 |
RC2876-B-5 |
≥1000 |
≥100 |
9.5 |
15.0 |
0.8 |
