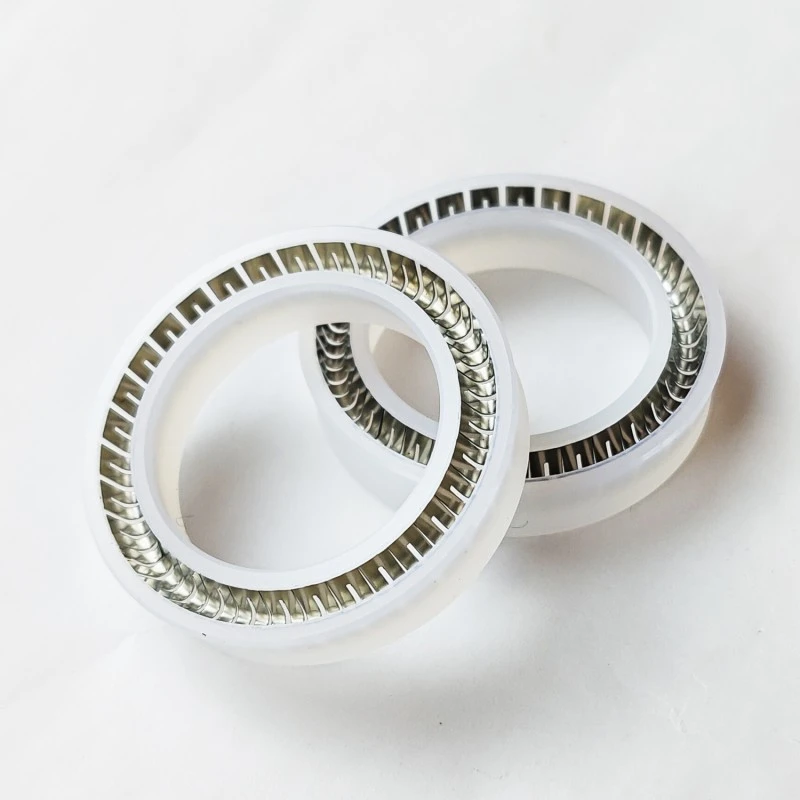

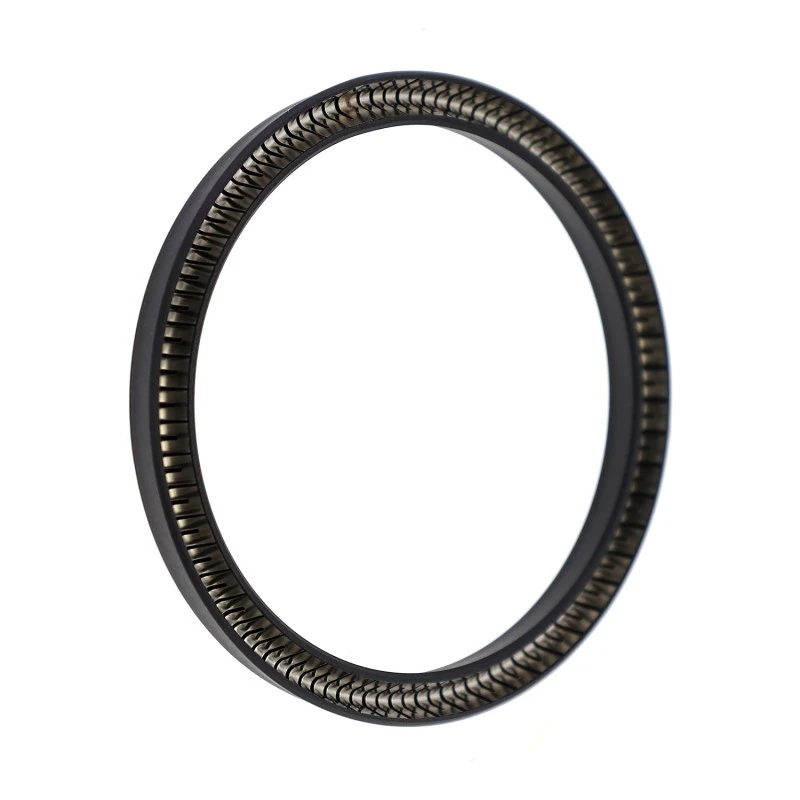

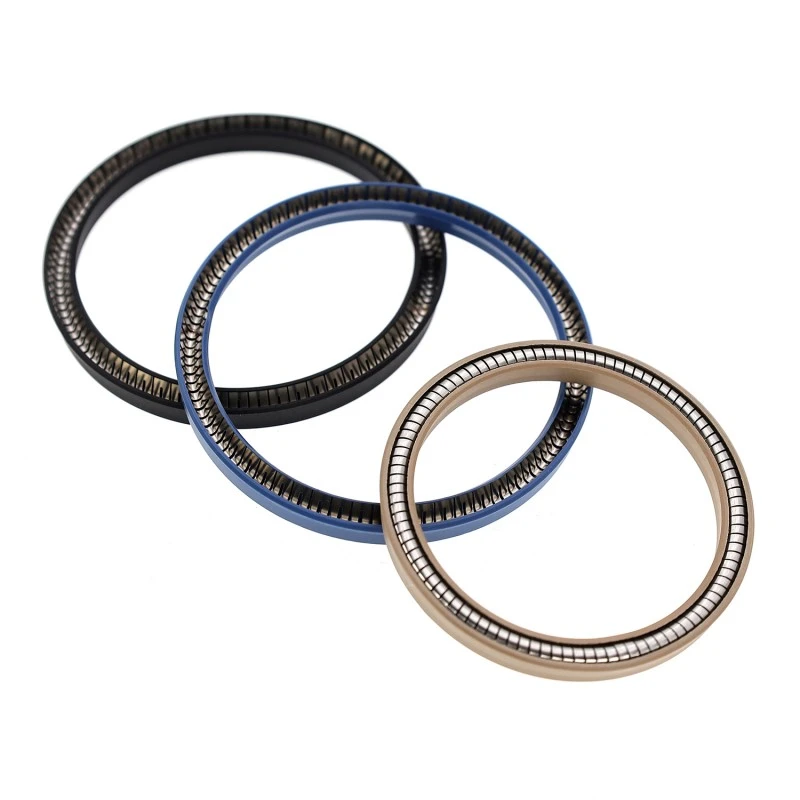

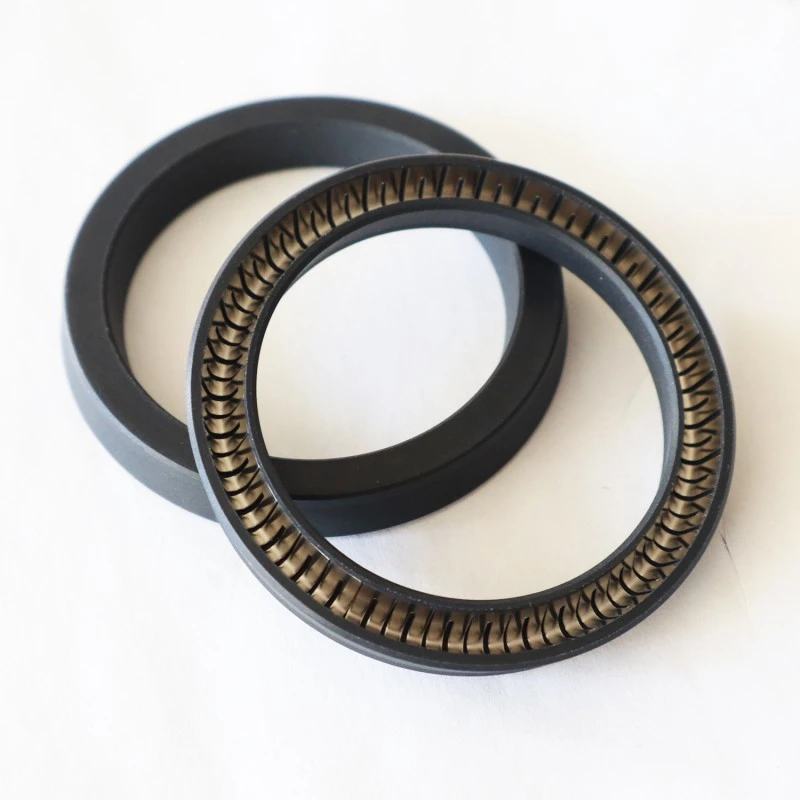

Segel spring-energized RC65 kasusun saka spring stainless steel lan plastik kinerja dhuwur. Spring stainless steel bisa salah siji spring V-shaped utawa spring O-shaped.
Kahanan operasi sing ditrapake (nilai ekstrim ora kudu kedadeyan bebarengan)
|
Tekanan (MPa) |
Kacepetan (m/s) |
Suhu (°C) |
Sedheng |
||
|
RC65<40 |
RC65-B<80 |
<10 |
RC65-200~250 |
RC65-B -35~250 |
几乎所有介质 |
Pemilihan Bahan
1. Bahan O-ring bisa dipilih saka: R01 Nitrile rubber (NBR), R02 Fluororubber (FKM), etc.
2. Bahan ring segel kalebu: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, etc.
3. Stainless spring spring bisa dipilih saka spring O-shaped lan V-shaped springs.
Tuladha pesenan
RC65-40-PTFE4 + V: diameteripun bore 40, bahan ring sealing PTFE4, spring stainless steel punika V-shaped spring.
RC65-B-40-PTFE4 + R02: Bore diameteripun 40, sealing ring materi PTFE4, O-ring digawe saka fluororubber.

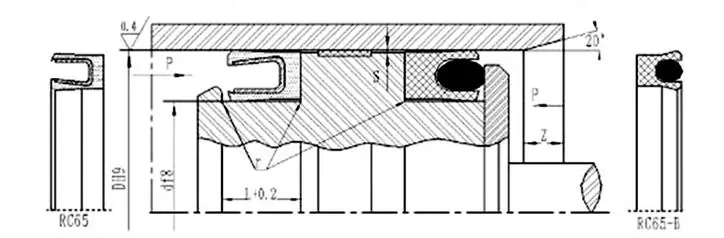

Tabel Spesifikasi lan Parameter (ukuran apa wae ing kisaran sing ditemtokake kasedhiya)
|
DH9 |
df8 |
L+0.2 |
Smax(<20MPA) |
Smax(<40MPA) |
Zmin |
rmax |
|
6~13.9 |
D-2.9 |
2.4 |
0.08 |
0.05 |
0,8L |
0.4 |
|
14~24.9 |
D-4.5 |
3.6 |
0.10 |
0.07 |
0.4 |
|
|
25~45.9 |
D-6.2 |
4.8 |
0.15 |
0.08 |
0.6 |
|
|
46~124.9 |
D-9.4 |
7.1 |
0.20 |
0.10 |
0.8 |
|
|
125~999.9 |
D-12.2 |
9.5 |
0.25 |
0.12 |
0.8 |
Tabel spesifikasi lan dimensi (Yen spesifikasi sing dibutuhake ora kadhaptar ing tabel iki, hubungi perusahaan kita; kita bisa nyedhiyakake produk nganti 1600mm).
|
D |
d |
L |
|
D |
d |
L |
|
D |
d |
L |
|
D |
d |
L |
|
D |
d |
L |
|
15 |
10.5 |
3.6 |
42 |
35.8 |
4.8 |
75 |
65.6 |
7.1 |
160 |
147.8 |
9.5 |
320 |
307.8 |
9.5 |
||||
|
16 |
11.5 |
3.6 |
45 |
38.8 |
4.8 |
80 |
70.6 |
7.1 |
180 |
167.8 |
9.5 |
350 |
337.8 |
9.5 |
||||
|
18 |
13.5 |
3.6 |
48 |
38.6 |
7.1 |
85 |
75.6 |
7.1 |
190 |
177.8 |
9.5 |
400 |
387.8 |
9.5 |
||||
|
20 |
15.5 |
3.6 |
50 |
40.6 |
7.1 |
90 |
80.6 |
7.1 |
200 |
187.8 |
9.5 |
420 |
407.8 |
9.5 |
||||
|
22 |
17.5 |
3.6 |
52 |
42.6 |
7.1 |
95 |
85.6 |
7.1 |
210 |
197.8 |
9.5 |
450 |
437.8 |
9.5 |
||||
|
25 |
18.8 |
4.8 |
55 |
45.6 |
7.1 |
100 |
90.6 |
7.1 |
220 |
207.8 |
9.5 |
480 |
467.8 |
9.5 |
||||
|
28 |
21.8 |
4.8 |
56 |
46.6 |
7.1 |
110 |
100.6 |
7.1 |
230 |
217.8 |
9.5 |
500 |
487.8 |
9.5 |
||||
|
30 |
23.8 |
4.8 |
60 |
50.6 |
7.1 |
120 |
110.6 |
7.1 |
240 |
227.8 |
9.5 |
600 |
587.8 |
9.5 |
||||
|
32 |
25.8 |
4.8 |
63 |
53.6 |
7.1 |
125 |
112.8 |
9.5 |
250 |
237.8 |
9.5 |
700 |
687.8 |
9.5 |
||||
|
35 |
28.8 |
4.8 |
65 |
55.6 |
7.1 |
130 |
117.8 |
9.5 |
280 |
267.8 |
9.5 |
800 |
787.8 |
9.5 |
||||
|
40 |
33.8 |
4.8 |
70 |
60.6 |
7.1 |
150 |
137.8 |
9.5 |
300 |
287.8 |
9.5 |
900 |
887.8 |
9.5 |
Ing lapangan apa produk sealing Ruichen bisa digunakake?
Kita minangka perusahaan terkemuka ing China ing bidang sealing tekanan dhuwur lan tekanan ultra-dhuwur, kanthi sukses ngrampungake akeh tantangan industri.
• Kapabilitas tekanan Ultra-dhuwur: Produk sealing kita duwe rating tekanan nganti 600 MPa, lan kita duwe kasus aplikasi sing sukses saka pelanggan sing operasi ing kondisi ekstrim 720 MPa, nyetel pathokan kanggo teknologi sealing ing China.
• Kondisi kerja gabungan tekanan dhuwur lan suhu dhuwur: Kita wis sukses ngatasi kemacetan teknis operasi simultan ing tekanan 300 MPa lan suhu dhuwur 200 ℃, lan kinerja produk kita wis tekan tingkat internasional.
