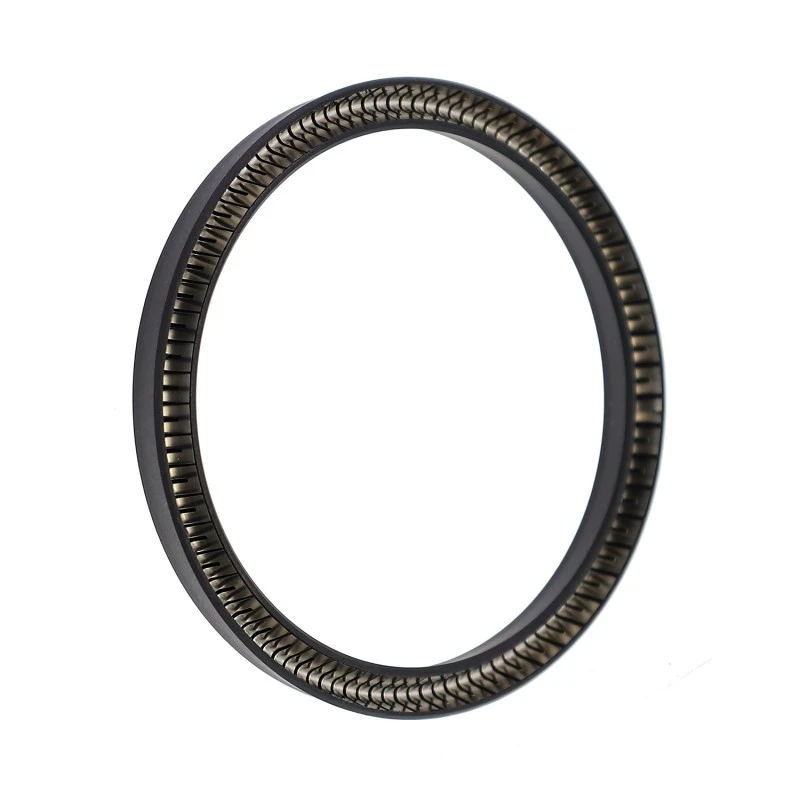

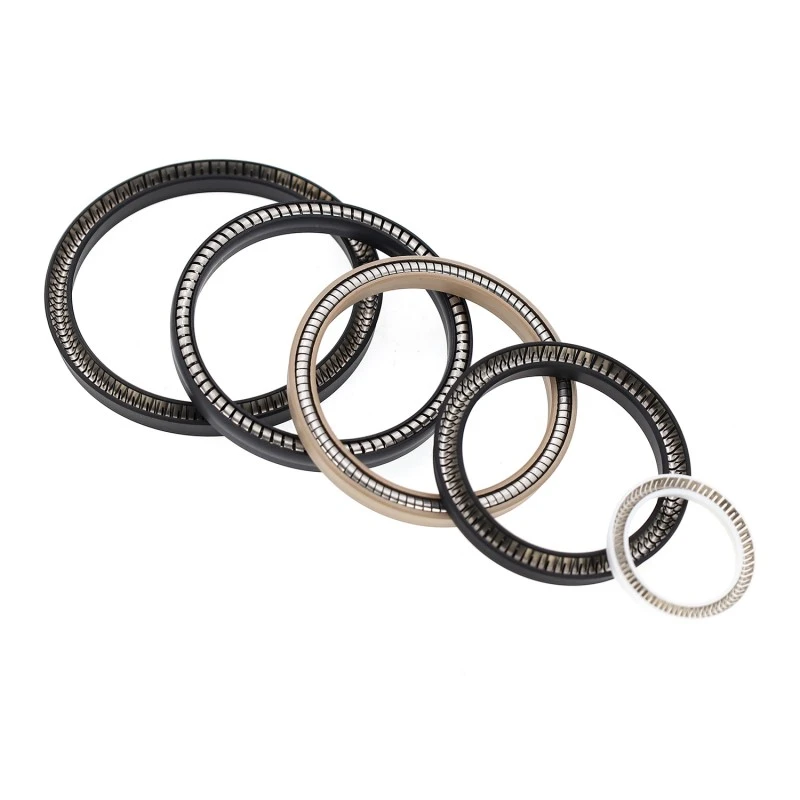

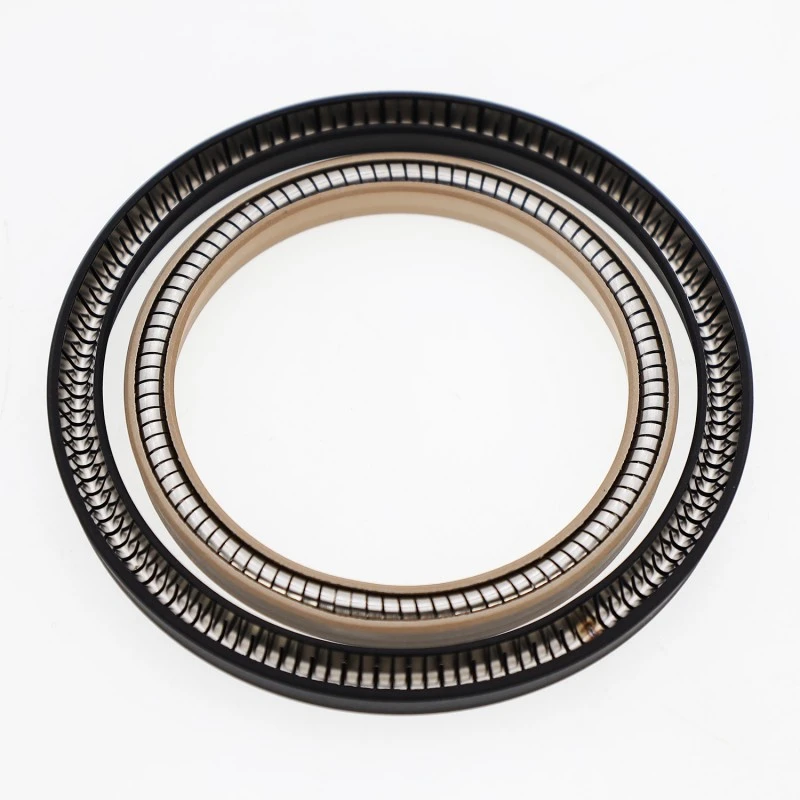

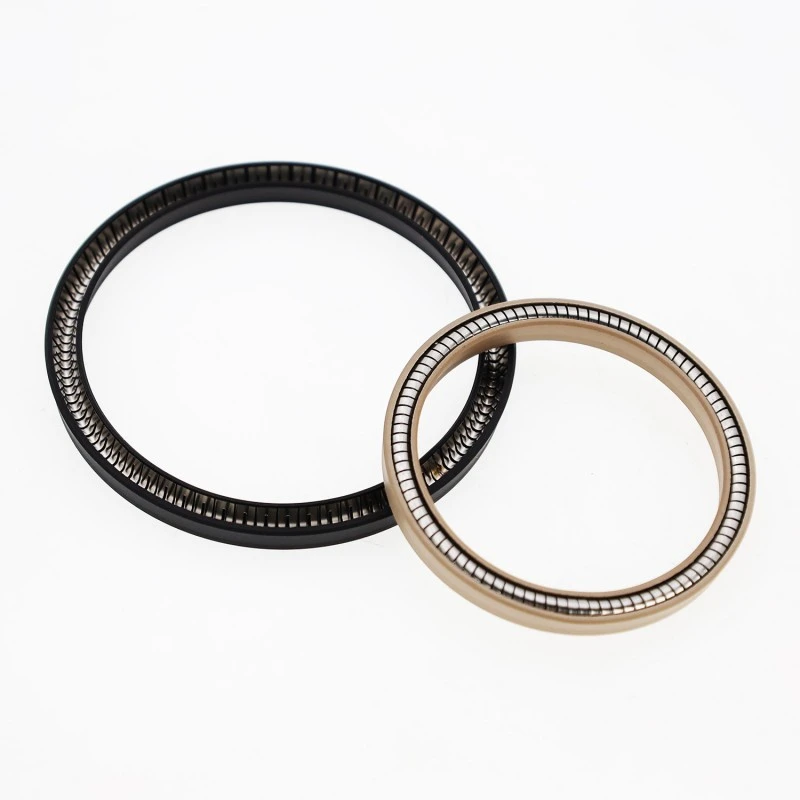

Segel spring-energized RC16 kasusun saka spring stainless steel lan plastik kinerja dhuwur. Spring stainless steel bisa dadi salah siji spring V-shaped utawa O-shaped. Nalika nggunakake RC16-B, bahan elastomer sing cocog kudu dipilih.
|
Tekanan MPa |
Kacepetan m/s |
Suhu °C |
Sedheng |
||
|
RC16<40 |
RC16-B<80 |
<10 |
RC16-200~+250 |
RC16-B-35~+250 |
Meh kabeh media |
Pemilihan Bahan
1. Bahan O-ring bisa dipilih saka: R01 Nitrile rubber (NBR), R02 Fluororubber (FKM), etc.
2. Bahan ring sealing kalebu: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, lsp.
3. Springs stainless steel bisa salah siji O-shaped utawa V-shaped.
Tuladha pesenan
RC16-40-PTFE4 + V: diameteripun poros 40, bahan ring sealing PTFE4, spring stainless steel punika V-shaped spring.
RC16-B-40-PTFE4 + R02: diameteripun poros 40, materi ring sealing PTFE4, cocog O-ring digawe saka fluororubber.

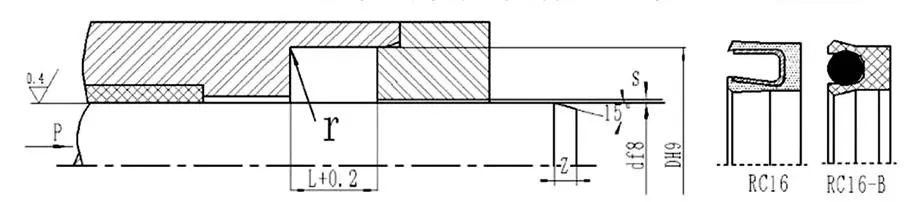

Tabel spesifikasi lan parameter (ukuran apa wae ing kisaran sing ditemtokake kasedhiya)
|
df8 |
DH9 |
L+0.2 |
Smax(<20MPA) |
Smax(<40MPA) |
Zmin |
rmax |
|
4~9.9 |
d+2.9 |
2.4 |
0.08 |
0.05 |
0,8L |
0.4 |
|
10~19.9 |
d+4.5 |
3.6 |
0.10 |
0.07 |
0.4 |
|
|
20~39.9 |
d+6.2 |
4.8 |
0.15 |
0.08 |
0.6 |
|
|
40~119.9 |
d+9.4 |
7.1 |
0.20 |
0.10 |
0.8 |
|
|
120~1000 |
d+12.2 |
9.5 |
0.25 |
0.12 |
0.8 |
Instalasi segel PTFE: Open grooves umume digunakake; kanggo instalasi ing grooves ditutup, waca kaca 160 instruksi instalasi segel PTFE.
Tabel spesifikasi lan dimensi (Yen spesifikasi sing dibutuhake ora kadhaptar ing tabel iki, hubungi perusahaan kita; kita bisa nyedhiyakake produk nganti 1600mm.)
|
d |
D |
L |
|
d |
D |
L |
|
d |
D |
L |
|
d |
D |
L |
|
d |
D |
L |
|
10 |
14.5 |
3.6 |
32 |
38.2 |
4.8 |
60 |
69.4 |
7.1 |
120 |
132.2 |
9.5 |
230 |
242.2 |
9.5 |
||||
|
12 |
16.5 |
3.6 |
35 |
41.2 |
4.8 |
63 |
72.4 |
7.1 |
130 |
142.2 |
9.5 |
240 |
252.2 |
9.5 |
||||
|
14 |
18.5 |
3.6 |
36 |
42.2 |
4.8 |
65 |
74.4 |
7.1 |
140 |
152.2 |
9.5 |
250 |
262.2 |
9.5 |
||||
|
15 |
19.5 |
3.6 |
40 |
49.4 |
7.1 |
70 |
79.4 |
7.1 |
150 |
162.2 |
9.5 |
280 |
292.2 |
9.5 |
||||
|
16 |
20.5 |
3.6 |
42 |
51.4 |
7.1 |
75 |
84.4 |
7.1 |
160 |
172.2 |
9.5 |
300 |
312.2 |
9.5 |
||||
|
18 |
22.5 |
3.6 |
45 |
54.4 |
7.1 |
80 |
89.4 |
7.1 |
170 |
182.2 |
9.5 |
320 |
332.2 |
9.5 |
||||
|
20 |
26.2 |
4.8 |
48 |
57.4 |
7.1 |
85 |
94.4 |
7.1 |
180 |
192.2 |
9.5 |
350 |
362.2 |
9.5 |
||||
|
22 |
28.2 |
4.8 |
50 |
59.4 |
7.1 |
90 |
99.4 |
7.1 |
190 |
202.2 |
9.5 |
360 |
372.2 |
9.5 |
||||
|
25 |
31.2 |
4.8 |
52 |
61.4 |
7.1 |
100 |
109.4 |
7.1 |
200 |
212.2 |
9.5 |
400 |
412.2 |
9.5 |
||||
|
28 |
34.2 |
4.8 |
55 |
64.4 |
7.1 |
110 |
119.4 |
7.1 |
210 |
222.2 |
9.5 |
500 |
512.2 |
9.5 |
||||
|
30 |
36.2 |
4.8 |
56 |
65.4 |
7.1 |
115 |
124.4 |
7.1 |
220 |
232.2 |
9.5 |
600 |
612.2 |
9.5 |
