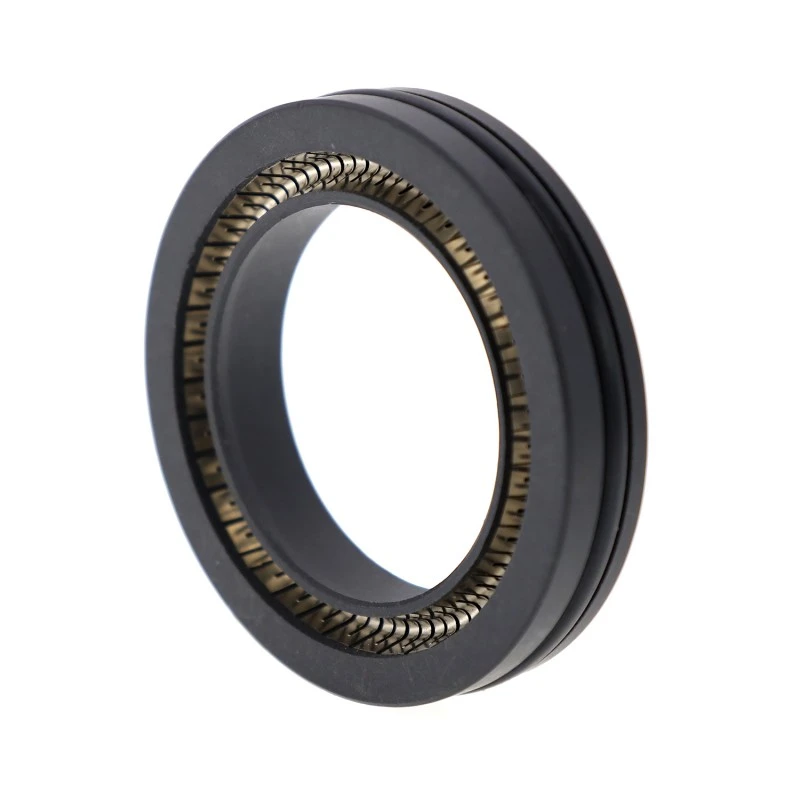

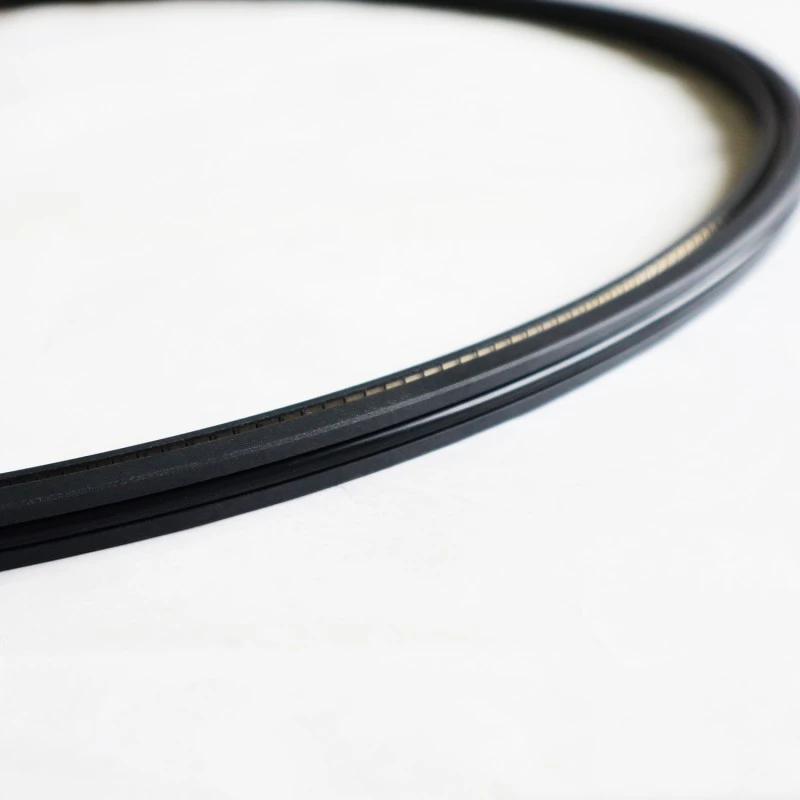

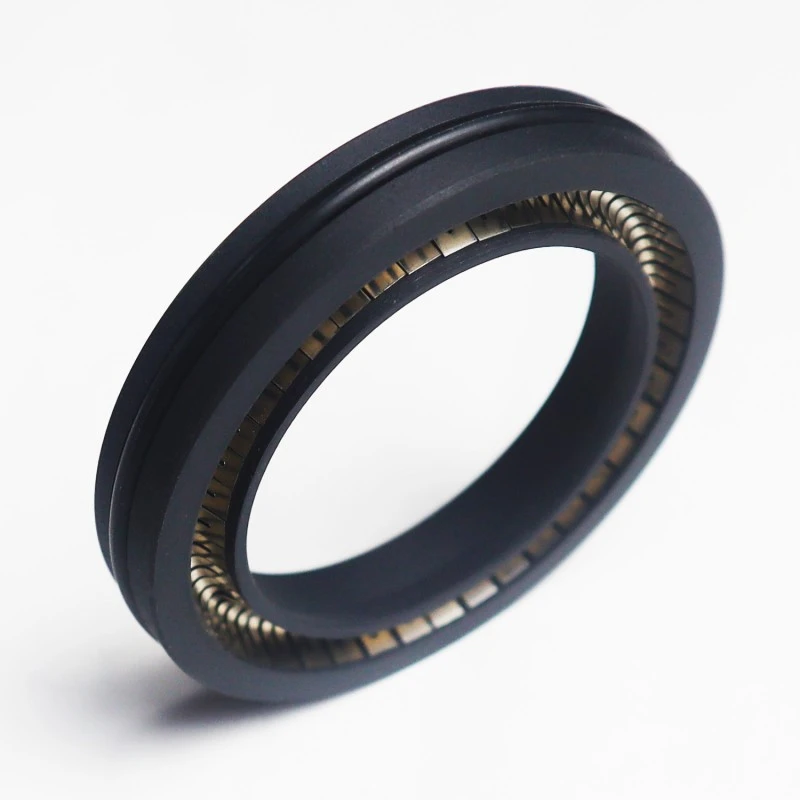

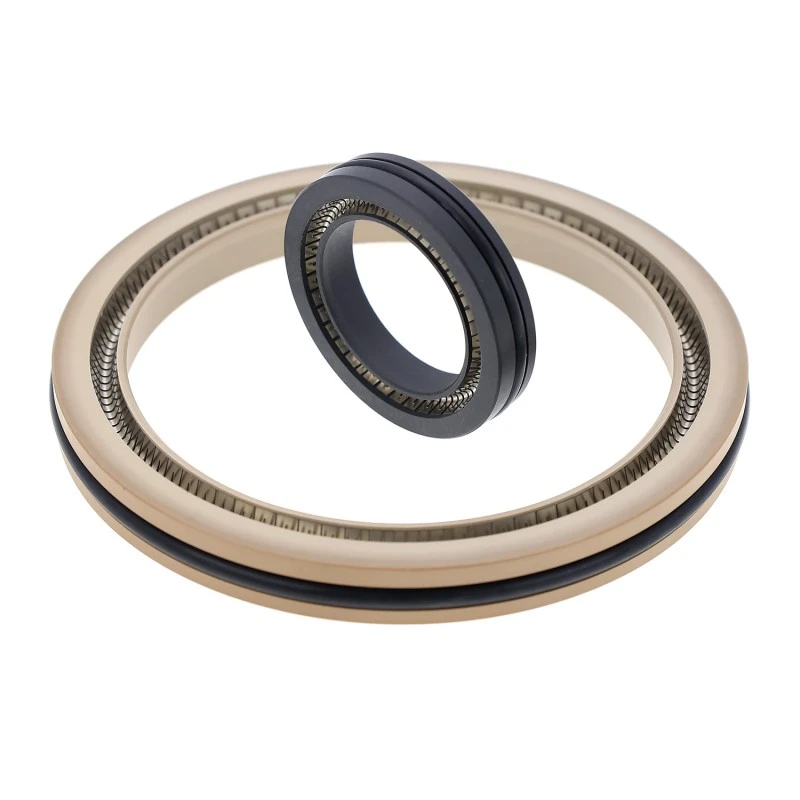

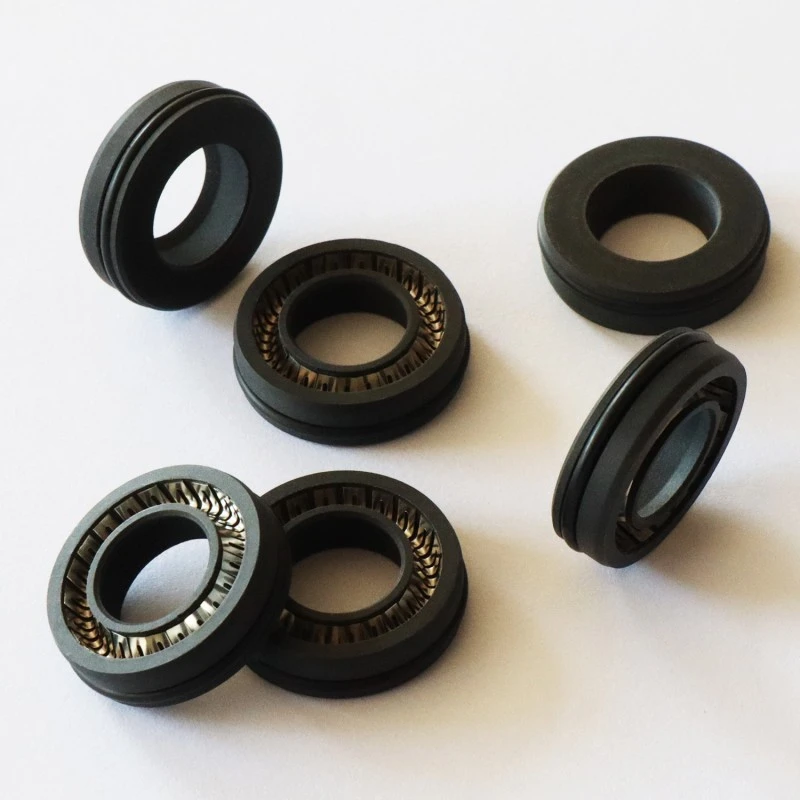

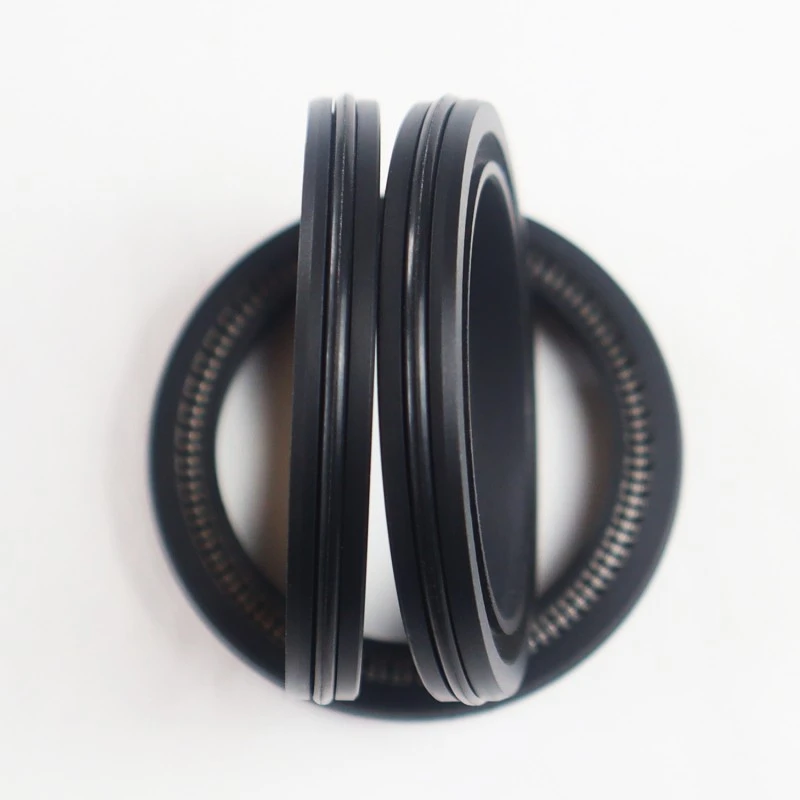

Ruichen Sealing minangka produsen profesional, lan segel lambe rotary RC2056 kita kasusun saka spring stainless steel lan plastik kinerja dhuwur.
Kahanan operasi sing ditrapake (nilai ekstrim ora kudu kedadeyan bebarengan)
|
Tekanan/MPa |
Suhu/°C |
Kacepetan /m/s |
Sedheng |
||
|
≤2 |
RC2056 -200~+250 |
RC2056-B -35~+250 |
RC2056 <14M/S |
RC2056-B <6M/S |
Meh kabeh media cair lan gas |
1. Bahan O-ring sing cocog kalebu: R01 karet nitril (NBR), R02 fluororubber (FKM), lsp.
2. Bahan ring segel: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, lsp.
3. Pegas baja tahan karat: pegas berbentuk V.

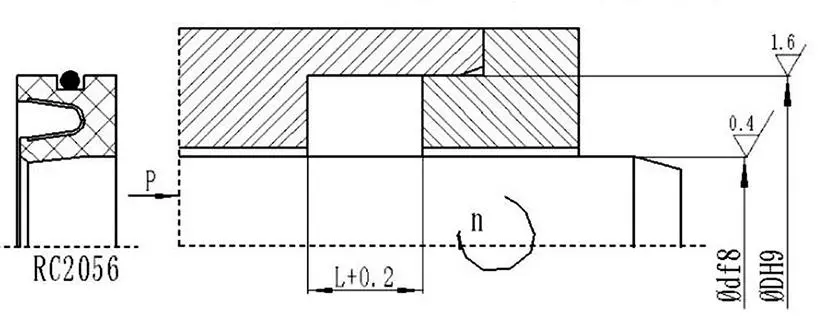

RC2056-40*62*8-PTFE4+V d*D*L, bahan ring segel PTFE4, pegas stainless steel yaiku pegas berbentuk V
RC2056-B-40*62*8-PTFE4+R02 d*D*L, bahan ring segel PTFE4, ring O sing cocog digawe saka fluororubber
|
Dhiameter njero * Dhiameter njaba * Dhuwur |
Dhiameter njero * Dhiameter njaba * Dhuwur |
Dhiameter njero * Dhiameter njaba * Dhuwur |
Dhiameter njero * Dhiameter njaba * Dhuwur |
Dhiameter njero * Dhiameter njaba * Dhuwur |
Dhiameter njero * Dhiameter njaba * Dhuwur |
|
7*20*6 |
14*26*6 |
17*35*7 |
20*35*8 |
25*37*6 |
30*42*6 |
|
7*20*7 |
14*28*7 |
17*35*8 |
20*40*7 |
25*38*8 |
30*42*7 |
|
8*18*7 |
14*30*8 |
18*30*6 |
20*40*7 |
25*40*7 |
30*42*8 |
|
8*20*6 |
15*25*6 |
18*30*7 |
20*40*10 |
25*40*8 |
30*45*8 |
|
8*22*6 |
15*30*7 |
18*32*6 |
20*40*11 |
25*40*10 |
30*50*11 |
|
8*22*7 |
15*30*8 |
18*32*8 |
22*32*6 |
25*42*6 |
30*52*7 |
|
10*22*6 |
15*32*7 |
18*35*6 |
22*35*6 |
25*42*10 |
32*44*8 |
|
10*22*7 |
15*32*8 |
18*35*8 |
22*35*8 |
25*45*11 |
32*47*6 |
|
10*25*7 |
15*35*6 |
19*35*6 |
22*38*8 |
25*47*6 |
32*47*8 |
|
12*22*6 |
16*26*7 |
19*35*8 |
22*42*11 |
26*40*6 |
32*48*7 |
|
12*22*7 |
16*30*7 |
20*30*7 |
24*40*6 |
28*40*8 |
32*50*8 |
|
12*24*6 |
16*35*8 |
20*32*7 |
24*40*7 |
28*40*9 |
32*52*6 |
|
12*25*8 |
16*40*10 |
20*32*8 |
24*40*8 |
28*45*8 |
32*52*11 |
|
12*32*7 |
17*30*6 |
20*35*6 |
25*35*6 |
28*48*11 |
34*54*11 |
|
Dhiameter njero * Dhiameter njaba * Dhuwur |
Dhiameter njero * Dhiameter njaba * Dhuwur |
Dhiameter njero * Dhiameter njaba * Dhuwur |
Dhiameter njero * Dhiameter njaba * Dhuwur |
Dhiameter njero * Dhiameter njaba * Dhuwur |
Dhiameter njero * Dhiameter njaba * Dhuwur |
|
35*47*6 |
45*65*8 |
60*75*8 |
80*100*10 |
105*130*12 |
140*180*12 |
|
35*47*8 |
45*65*10 |
60*75*10 |
80*105*7.5 |
105*135*14 |
150*180*8.5 |
|
35*50*7 |
47*62*7 |
60*80*7 |
80*105*13 |
110*135*12 |
150*180*12 |
|
35*50*8 |
48*65*10 |
60*80*10 |
85*105*7.5 |
110*140*14 |
150*180*14 |
|
35*52*6 |
48*70*12 |
60*82*12 |
85*105*10 |
110*150*8 |
160*185*8.5 |
|
35*54*6 |
50*65*7 |
60*85*8 |
85*110*8 |
115*145*14 |
160*185*12 |
|
35*55*11 |
50*65*8 |
60*85*10 |
85*110*12 |
120*140*7.5 |
160*190*15 |
|
38*50*6 |
50*68*7 |
62*85*7 |
85*110*13 |
120*140*10 |
160*200*10 |
|
38*52*8 |
50*68*8 |
62*85*10 |
85*120*8 |
120*145*12 |
170*195*12 |
|
38*58*11 |
50*70*10 |
62*85*12 |
90*110*7.5 |
120*150*10 |
170*200*12 |
|
40*52*7 |
50*72*7 |
65*85*10 |
90*110*10 |
120*150*12 |
170*200*14 |
|
40*52*8 |
50*72*12 |
65*90*7 |
90*110*12 |
120*150*14 |
170*200*16 |
|
40*55*6 |
52*68*10 |
65*90*12 |
90*115*10 |
125*150*12 |
180*205*12 |
|
40*55*7 |
52*70*10 |
65*90*13 |
90*115*12 |
125*155*14 |
180*210*8.5 |
|
40*55*8 |
52*75*12 |
70*85*10 |
90*115*13 |
130*150*7.5 |
190*215*12 |
|
40*58*8 |
55*70*7 |
70*90*7 |
90*120*10 |
130*155*12 |
190*225*16 |
|
40*62*6 |
55*72*7 |
70*90*10 |
95*115*10 |
130*160*14 |
200*225*12 |
|
40*62*8 |
55*72*8 |
70*95*13 |
95*120*12 |
135*160*12 |
200*230*13 |
|
40*62*12 |
55*75*7 |
75*95*7 |
95*120*13 |
135*165*14 |
240*265*12 |
|
42*62*7 |
55*75*10 |
75*95*10 |
100*120*7.5 |
140*160*10 |
240*270*8.5 |
|
42*65*12 |
55*78*12 |
75*100*11 |
100*120*10 |
140*160*12 |
260*280*10 |
|
45*58*7 |
55*83*7 |
75*100*13 |
100*125*12 |
140*165*12 |
260*285*12 |
|
45*62*10 |
58*80*12 |
80*95*10 |
100*125*13 |
140*170*14 |
300*330*15 |
|
45*65*7 |
60*72*7 |
80*100*7 |
105*130*7.5 |
140*170*15 |
300*340*20 |
Cathetan: Produk kanthi ukuran maksimal 1600mm kasedhiya; hubungi perusahaan kita kanggo rincian.
Kita duwe kustomisasi jero lan kemampuan pangembangan kolaborasi. Akeh pesaing utamane nawakake katalog produk standar. Nanging, kita percaya yen nilai sejatine ana ing ngrampungake masalah unik sampeyan.
Ruichen duwe tim insinyur berpengalaman sing bisa kerja bareng karo departemen teknis sampeyan, wiwit saka tahap desain. Kita nganalisa kahanan panyegelan, koefisien gesekan, kompatibilitas media, lan liya-liyane, nyedhiyakake solusi sing digawe khusus. Apa ukuran non-standar, komposit materi khusus, utawa syarat kinerja sing tantangan banget, kita seneng nampa tantangan kasebut lan dadi crita sukses.
