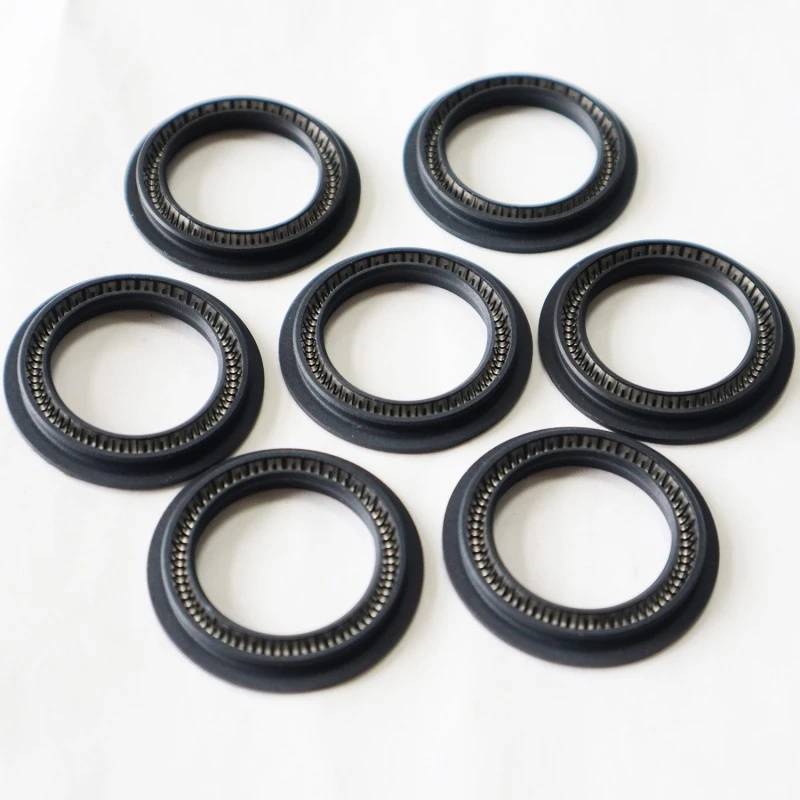

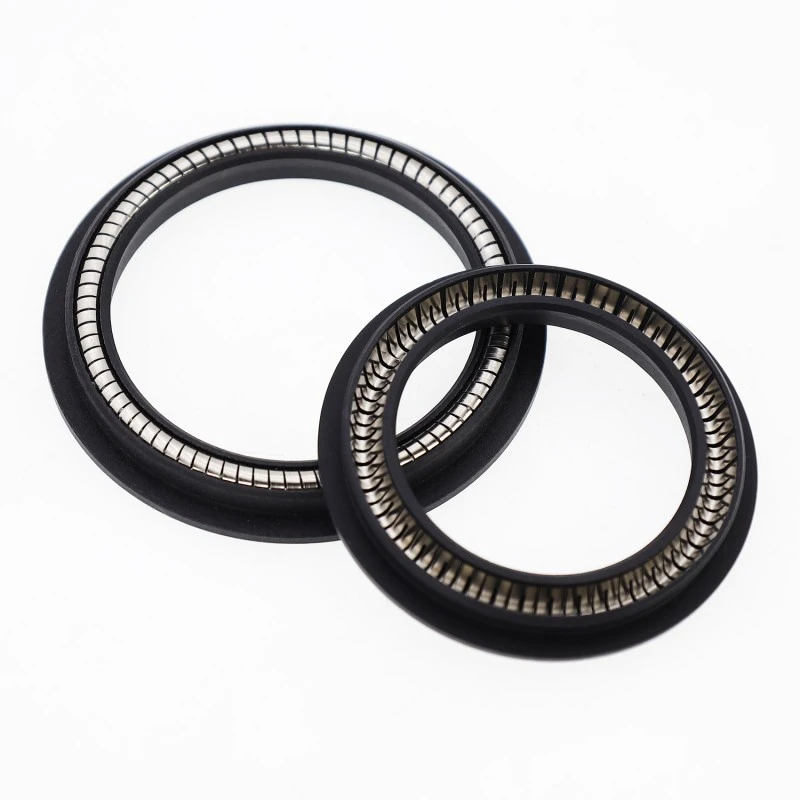

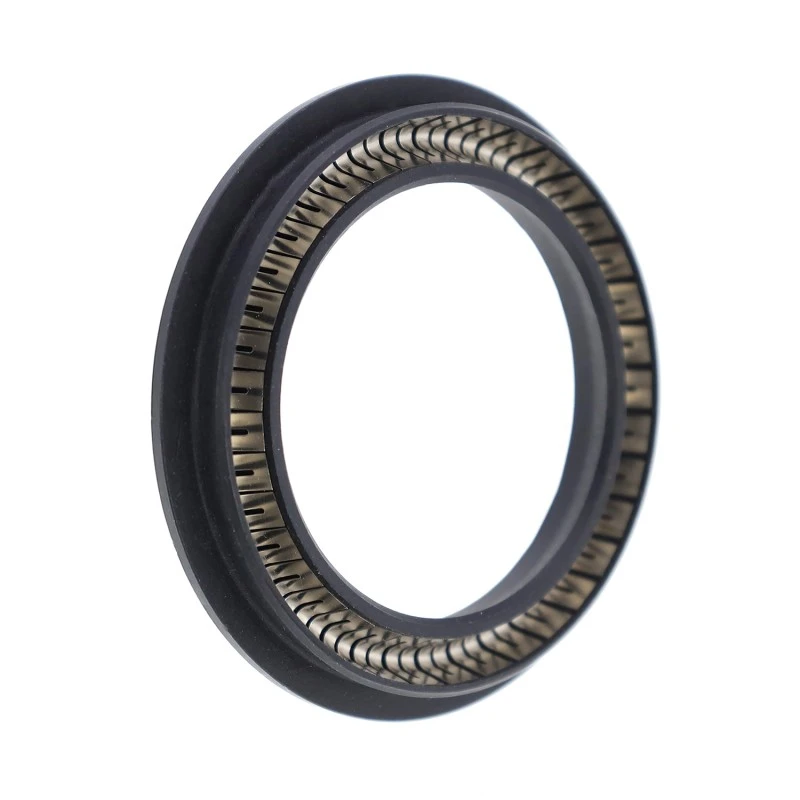

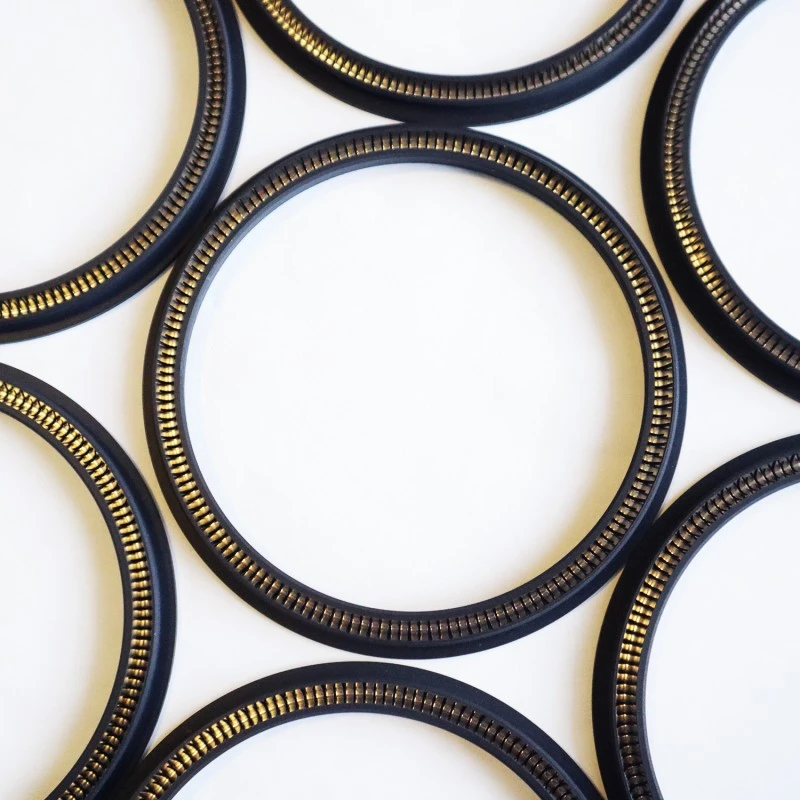

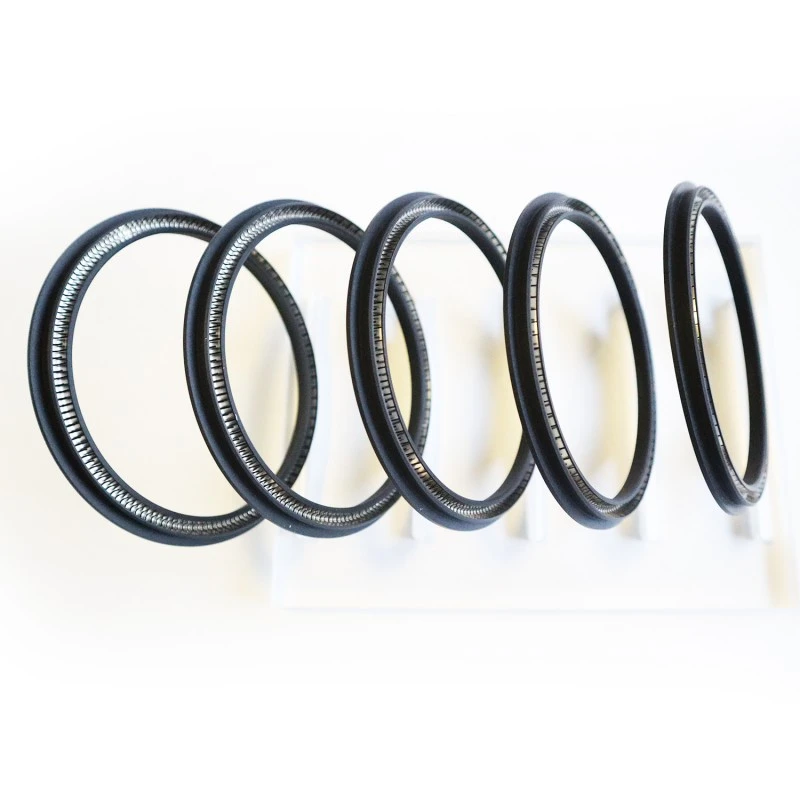

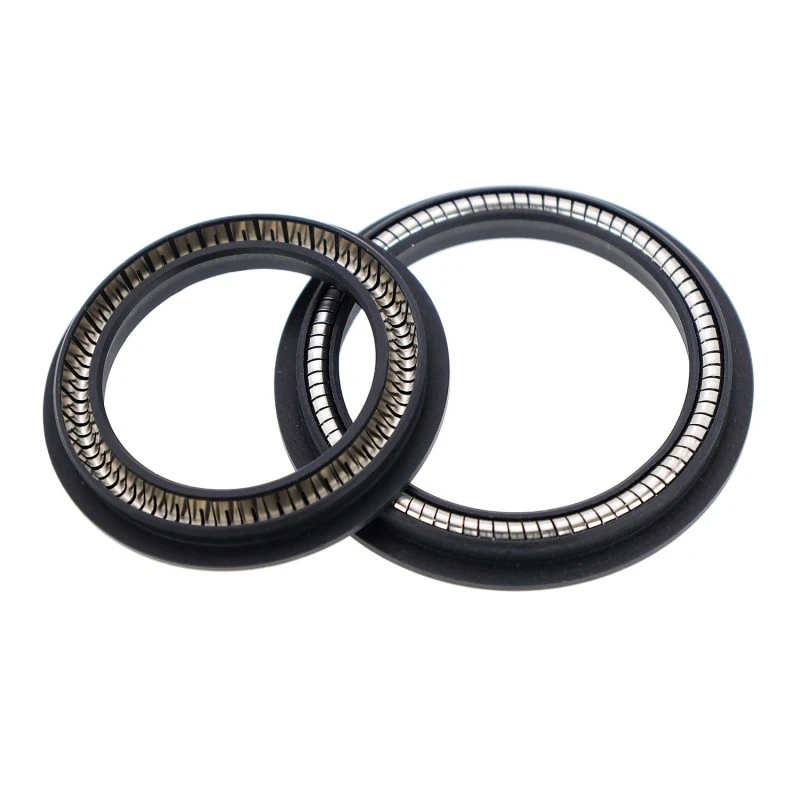

Segel spring-energized kanggo rotary shafts kinerja dhuwur, segel tekanan unidirectional digunakake ing aplikasi poros rotary. Seal rotary RC2055 kasusun saka spring stainless steel lan plastik kinerja dhuwur. Nalika nggunakake RC2055-B lan RC2055-C, bahan elastomer sing cocog kudu dipilih kanthi teliti.
Kahanan operasi sing ditrapake (nilai ekstrim ora kudu kedadeyan bebarengan)
|
Tekanan/MPa |
Suhu / °C |
Kacepetan /m/s |
Sedheng |
|||
|
≤35 |
RC2055 |
RC2055-B/C |
RC2055 |
RC2055-B |
RC2055-C |
Meh kabeh media cair lan gas |
|
-200~+250 |
-35~+250 |
<2M/S |
<6M/S |
<2M/S |
||
Pemilihan Bahan
1. Bahan O-ring sing kasedhiya kalebu: R01 Nitrile rubber (NBR), R02 Fluororubber (FKM), etc.
2. Bahan ring segel: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, lsp.
3. Pegas baja tahan karat: pegas berbentuk V.
Kontrol Proses Produksi
Basis produksi modern RuiChen dilengkapi mesin cetakan injeksi kanthi tliti dhuwur, mesin vulkanisasi vakum otomatis, lan peralatan mesin presisi CNC. Sajrone proses produksi, kita nggunakake metode SPC (Statistical Process Control) kanggo ngawasi paramèter proses utama kayata suhu, tekanan, lan wektu kanthi nyata, kanggo mesthekake yen saben produk sing dicetak nuduhake konsistensi lan stabilitas sing dhuwur.
Kanggo produk kritis, kita ngleksanakake sistem inspeksi 100%, tinimbang sampling acak, kanggo mesthekake yen saben segel sing dikirim menyang pelanggan kita nduweni kualifikasi.
Tuladha pesenan
RC2055-40-PTFE4+V: Diameter poros 40, bahan ring sealing PTFE4, pegas stainless steel berbentuk V.
RC2055-B-40-PTFE4 + R02: diameteripun poros 40, bahan ring sealing PTFE4, cocog O-ring punika fluororubber.
RC2055-C-40-PTFE4 + R02: diameteripun poros 40, bahan ring sealing PTFE4, cocog O-ring punika fluororubber.

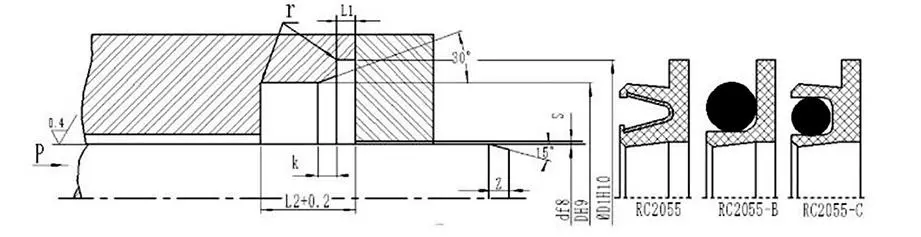

Tabel Spesifikasi (Kabeh spesifikasi ing kisaran parameter kasedhiya)
|
Range diameteripun rod d f8 |
diameteripun alur DH9 |
diameteripun alur D1H10 |
ambane pinggir L1 |
Jembaré alur L |
Talang impor k |
Reresik radial Smax |
dawa Chamfer |
r maks |
|
|
10 MPA |
20 MPA |
||||||||
|
5~19.9 |
d+5 |
d+9 |
0.85-0.1 |
3.6 |
0.3 |
0.15 |
0.1 |
Zmin = 0,8 L |
0.8 |
|
20~39.9 |
d+7 |
d+12.5 |
1.35-0.15 |
4.8 |
0.4 |
0.20 |
0.15 |
1.1 |
|
|
40~400.9 |
d+10.5 |
d+17.5 |
1.8-02 |
7.1 |
0.5 |
0.25 |
0.20 |
1.4 |
|
|
401~1500 |
d+14 |
d+22 |
2.8-02 |
9.5 |
0.5 |
0.30 |
0.25 |
1.6 |
|
Cathetan: Disaranake kekerasan permukaan poros puteran yaiku HRC ≥ 58.
Tabel spesifikasi lan dimensi (Tabel iki ditrapake kanggo RC2055-B lan RC2055-C, sing duwe spesifikasi sing padha)
|
Model |
d |
D |
D1 |
L |
L1 |
|
Model |
d |
D |
D1 |
L |
L1 |
|
RC2055-5 |
5 |
10 |
14 |
3.6 |
0.85 |
RC2055-28 |
28 |
35 |
40.5 |
4.8 |
1.35 |
|
|
RC2055-6 |
6 |
11 |
15 |
3.6 |
0.85 |
RC2055-30 |
30 |
37 |
42.5 |
4.8 |
1.35 |
|
|
RC2055-8 |
8 |
13 |
17 |
3.6 |
0.85 |
RC2055-32 |
32 |
39 |
44.5 |
4.8 |
1.35 |
|
|
RC2055-10 |
10 |
15 |
19 |
3.6 |
0.85 |
RC2055-35 |
35 |
42 |
47.5 |
4.8 |
1.35 |
|
|
RC2055-12 |
12 |
17 |
21 |
3.6 |
0.85 |
RC2055-36 |
36 |
43 |
48.5 |
4.8 |
1.35 |
|
|
RC2055-15 |
15 |
20 |
24 |
3.6 |
0.85 |
RC2055-40 |
40 |
50.5 |
57.5 |
7.1 |
1.8 |
|
|
RC2055-18 |
18 |
23 |
27 |
3.6 |
0.85 |
RC2055-45 |
45 |
55.5 |
62.5 |
7.1 |
1.8 |
|
|
RC2055-20 |
20 |
27 |
32.5 |
4.8 |
1.35 |
RC2055-50 |
50 |
60.5 |
67.5 |
7.1 |
1.8 |
|
|
RC2055-22 |
22 |
29 |
34.5 |
4.8 |
1.35 |
RC2055-55 |
55 |
65.5 |
72.5 |
7.1 |
1.8 |
|
|
RC2055-25 |
25 |
32 |
37.5 |
4.8 |
1.35 |
RC2055-56 |
56 |
66.5 |
73.5 |
7.1 |
1.8 |
|
Model |
d |
D |
D1 |
L |
L1 |
|
Model |
d |
D |
D1 |
L |
L1 |
|
RC2055-60 |
60 |
70.5 |
77.5 |
7.1 |
1.8 |
RC2055-210 |
210 |
220.5 |
227.5 |
7.1 |
1.8 |
|
|
RC2055-63 |
63 |
73.5 |
80.5 |
7.1 |
1.8 |
RC2055-220 |
220 |
230.5 |
237.5 |
7.1 |
1.8 |
|
|
RC2055-65 |
65 |
75.5 |
82.5 |
7.1 |
1.8 |
RC2055-230 |
230 |
240.5 |
247.5 |
7.1 |
1.8 |
|
|
RC2055-70 |
70 |
80.5 |
87.5 |
7.1 |
1.8 |
RC2055-240 |
240 |
250.5 |
257.5 |
7.1 |
1.8 |
|
|
RC2055-80 |
80 |
90.5 |
97.5 |
7.1 |
1.8 |
RC2055-250 |
250 |
260.5 |
267.5 |
7.1 |
1.8 |
|
|
RC2055-90 |
90 |
100.5 |
107.5 |
7.1 |
1.8 |
RC2055-260 |
260 |
270.5 |
277.5 |
7.1 |
1.8 |
|
|
RC2055-100 |
100 |
110.5 |
117.5 |
7.1 |
1.8 |
RC2055-280 |
280 |
290.5 |
297.5 |
7.1 |
1.8 |
|
|
RC2055-110 |
110 |
120.5 |
127.5 |
7.1 |
1.8 |
RC2055-300 |
300 |
310.5 |
317.5 |
7.1 |
1.8 |
|
|
RC2055-115 |
115 |
125.5 |
132.5 |
7.1 |
1.8 |
RC2055-320 |
320 |
330.5 |
337.5 |
7.1 |
1.8 |
|
|
RC2055-120 |
120 |
130.5 |
137.5 |
7.1 |
1.8 |
RC2055-350 |
350 |
360.5 |
367.5 |
7.1 |
1.8 |
|
|
RC2055-125 |
125 |
135.5 |
142.5 |
7.1 |
1.8 |
RC2055-380 |
380 |
390.5 |
397.5 |
7.1 |
1.8 |
|
|
RC2055-130 |
130 |
140.5 |
147.5 |
7.1 |
1.8 |
RC2055-400 |
400 |
410.5 |
417.5 |
7.1 |
1.8 |
|
|
RC2055-140 |
140 |
150.5 |
157.5 |
7.1 |
1.8 |
RC2055-420 |
420 |
434 |
442 |
9.5 |
2.8 |
|
|
RC2055-150 |
150 |
160.5 |
167.5 |
7.1 |
1.8 |
RC2055-450 |
450 |
464 |
472 |
9.5 |
2.8 |
|
|
RC2055-160 |
160 |
170.5 |
177.5 |
7.1 |
1.8 |
RC2055-480 |
480 |
494 |
502 |
9.5 |
2.8 |
|
|
RC2055-170 |
170 |
180.5 |
187.5 |
7.1 |
1.8 |
RC2055-500 |
500 |
514 |
522 |
9.5 |
2.8 |
|
|
RC2055-180 |
180 |
190.5 |
197.5 |
7.1 |
1.8 |
RC2055-600 |
600 |
614 |
622 |
9.5 |
2.8 |
|
|
RC2055-190 |
190 |
200.5 |
207.5 |
7.1 |
1.8 |
RC2055-700 |
700 |
714 |
722 |
9.5 |
2.8 |
|
|
RC2055-200 |
200 |
210.5 |
217.5 |
7.1 |
1.8 |
RC2055-800 |
800 |
814 |
822 |
9.5 |
2.8 |
Cathetan: Yen spesifikasi sing dibutuhake ora kadhaptar ing tabel iki, hubungi perusahaan kita. Kita bisa nyedhiyakake produk nganti ukuran 1600mm.
