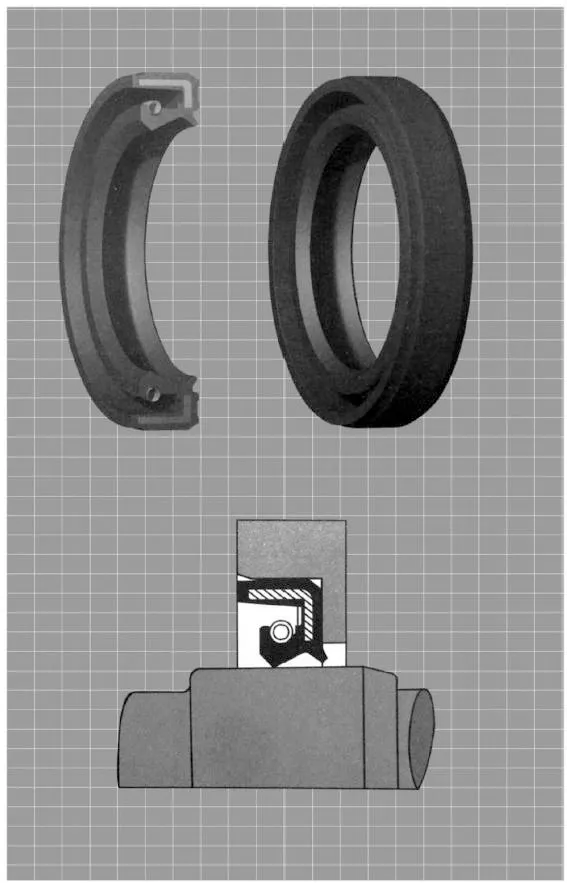

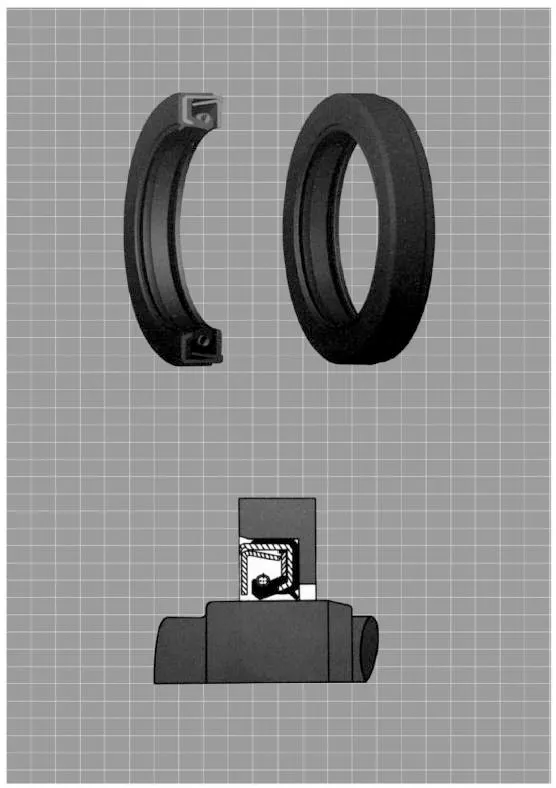

A segel lenga balung kasusun saka telung bagean: awak sealing, balung penguat, lan spring helical tightening dhewe. Awak sealing luwih dipérang dadi ngisor, pinggul, pinggiran nglereni, lan lambe sealing, gumantung ing lokasi. Biasane, ing negara bebas, diametere segel minyak balung luwih cilik tinimbang diameter poros, nuduhake "interferensi pas" tartamtu.
Mulane, nalika segel lenga dilebokake menyang jog segel lan poros, elastisitas pinggiran nglereni segel lan pasukan kontraksi saka spring helical tightening poto-tightening ngasilake pasukan clamping radial ing batang, asil ing kinerja sealing optimal.
Bahan
NBR (Nitrile Butadiene Rubber)
Sedheng
Minyak hidrolik adhedhasar
Suhu operasi
-25°C nganti +100°C
Kacepetan
-
Tekanan Operasi
0,3 MPa
Kekerasan Material
-
|

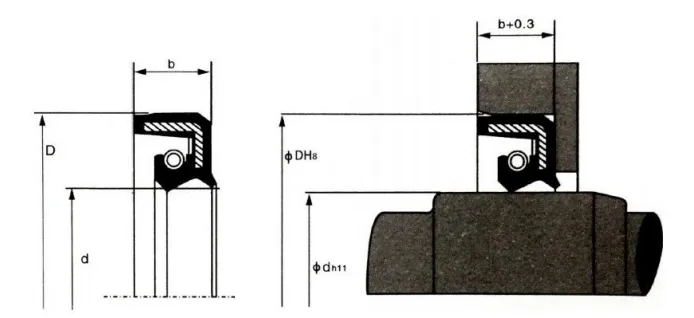

Model |
d |
D |
b |
Model pesenan |
|
RCTCV |
7 |
20 |
7 |
RCTCV-7 |
|
RCTCV |
8 |
18 |
7 |
RCTCV-8 |
|
RCTCV |
8 |
22 |
7 |
RCTCV-8A |
|
RCTCV |
10 |
25 |
7 |
RCTCV-10 |
|
RCTCV |
12 |
25 |
7 |
RCTCV-12 |
|
RCTCV |
13 |
28 |
7 |
RCTCV-13 |
|
RCTCV |
14 |
28 |
7 |
RCTCV-14 |
|
RCTCV |
15 |
30 |
7 |
RCTCV-15 |
|
RCTCV |
16 |
30 |
7 |
RCTCV-16 |
|
RCTCV |
17 |
35 |
8 |
RCTCV-17 |
|
RCTCV |
18 |
35 |
8 |
RCTCV-18 |
|
RCTCV |
19 |
35 |
8 |
RCTCV-19 |
|
RCTCV |
20 |
32 |
8 |
RCTCV-20 |
|
RCTCV |
20 |
40 |
11 |
RCTCV-20A |
|
RCTCV |
22 |
35 |
8 |
RCTCV-22 |
|
RCTCV |
22 |
42 |
11 |
RCTCV-22A |
|
RCTCV |
23 |
42 |
11 |
RCTCV-23 |
|
RCTCV |
24 |
40 |
8 |
RCTCV-24 |
|
RCTCV |
25 |
40 |
8 |
RCTCV-25 |
|
RCTCV |
25 |
45 |
11 |
RCTCV-25A |
|
RCTCV |
26 |
42 |
8 |
RCTCV-26 |
|
RCTCV |
27 |
47 |
11 |
RCTCV-27 |
|
RCTCV |
28 |
48 |
11 |
RCTCV-28 |
|
RCTCV |
30 |
42 |
7 |
RCTCV-30 |
|
RCTCV |
30 |
50 |
11 |
RCTCV-30A |
|
RCTCV |
32 |
52 |
11 |
RCTCV-32 |
|
RCTCV |
34 |
54 |
11 |
RCTCV-34 |
|
RCTCV |
35 |
55 |
11 |
RCTCV-35 |
|
RCTCV |
38 |
58 |
11 |
RCTCV-38 |
|
RCTCV |
40 |
62 |
11 |
RCTCV-40 |
|
RCTCV |
42 |
65 |
12 |
RCTCV-42 |
|
RCTCV |
45 |
68 |
12 |
RCTCV-45 |
|
RCTCV |
48 |
70 |
12 |
RCTCV-48 |
|
RCTCV |
50 |
72 |
12 |
RCTCV-50 |
|
RCTCV |
52 |
75 |
12 |
RCTCV-52 |
|
RCTCV |
55 |
78 |
12 |
RCTCV-55 |
|
RCTCV |
58 |
80 |
12 |
RCTCV-58 |
|
RCTCV |
60 |
82 |
12 |
RCTCV-60 |
|
RCTCV |
62 |
85 |
12 |
RCTCV-62 |
RCTCN Double-lip High-Pressure Oil Seal
Ringkesan: Desain kerangka tahan tekanan sakabèhé nyuda deformasi lambe, saéngga cocog kanggo nutup poros puteran ing aplikasi bertekanan.
Bahan: NBR (Nitrile Butadiene Rubber)
Media: Minyak hidrolik basis petroleum
Suhu Operasi (°C): -25 nganti +100
Kacepetan: -
Tekanan operasi: 1 MPa
Kekerasan Bahan: -
Kenapa Pilih Ruichen?
Sistem Pengujian Komprehensif: Kita duwe bahan lengkap lan laboratorium uji produk, kalebu:
● Pengujian properti mekanik material (mesin uji tarik, lsp).
● Bangku pengujian khusus kanggo kinerja segel hidrolik, umur, lan segel rotary.
● Kapabilitas testing khusus kanggo segel tekanan dhuwur, bisa nindakake tes resistance, kinerja, lan daya tahan wiwitan ing tekanan sing ngluwihi 200 MPa.
Kualifikasi lan Kehormatan Wewenang: Kita minangka perusahaan teknologi tinggi nasional lan perusahaan "Specialized, Refined, lan Inovatif" tingkat provinsi, nyekel luwih saka 40 paten nasional (kalebu sawetara paten penemuan).
Kontribusi Industri: Kita minangka anggota Asosiasi Industri Segel Hidrolik lan Pneumatik China lan melu nyusun standar nasional, dadi unit penawaran ing industri kasebut.
