Kinerja lan aplikasi

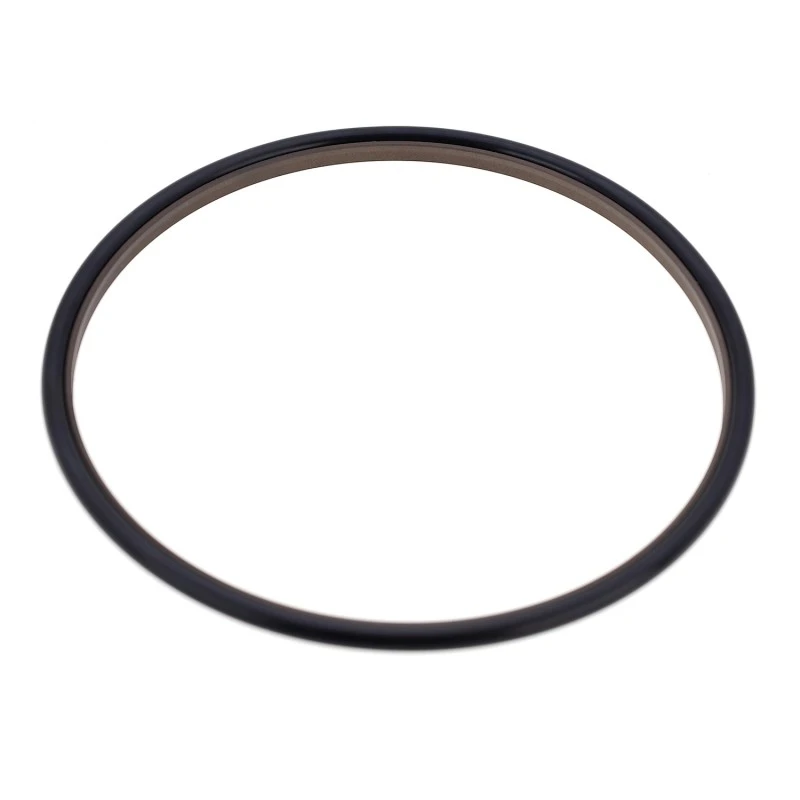

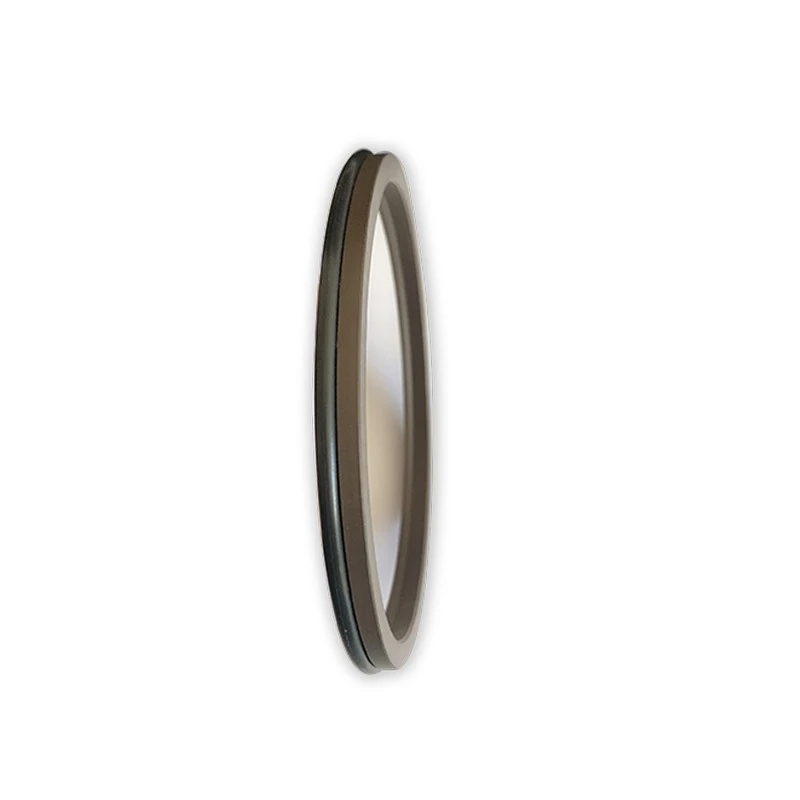

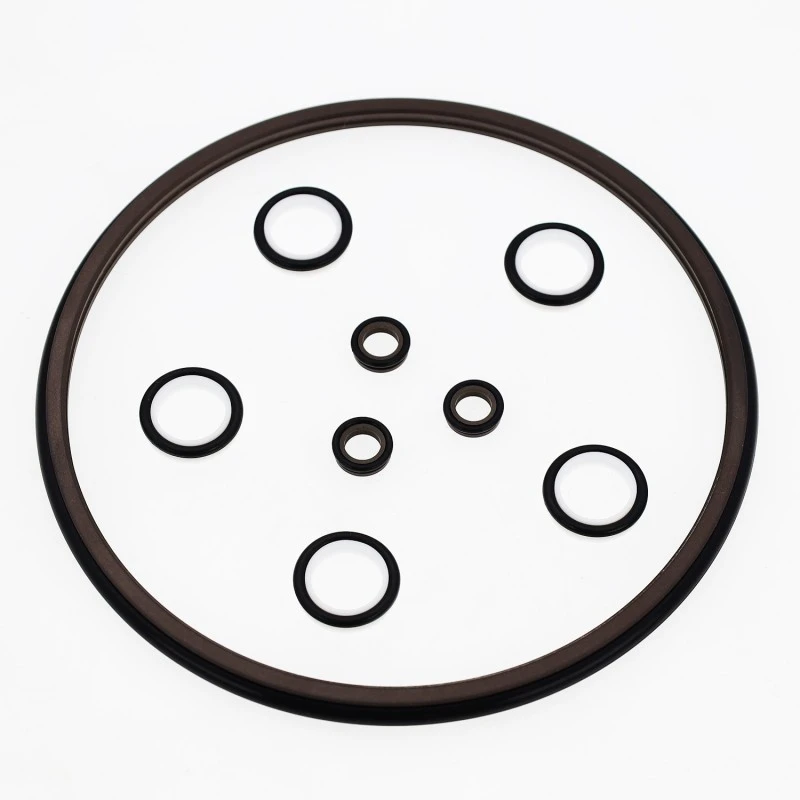

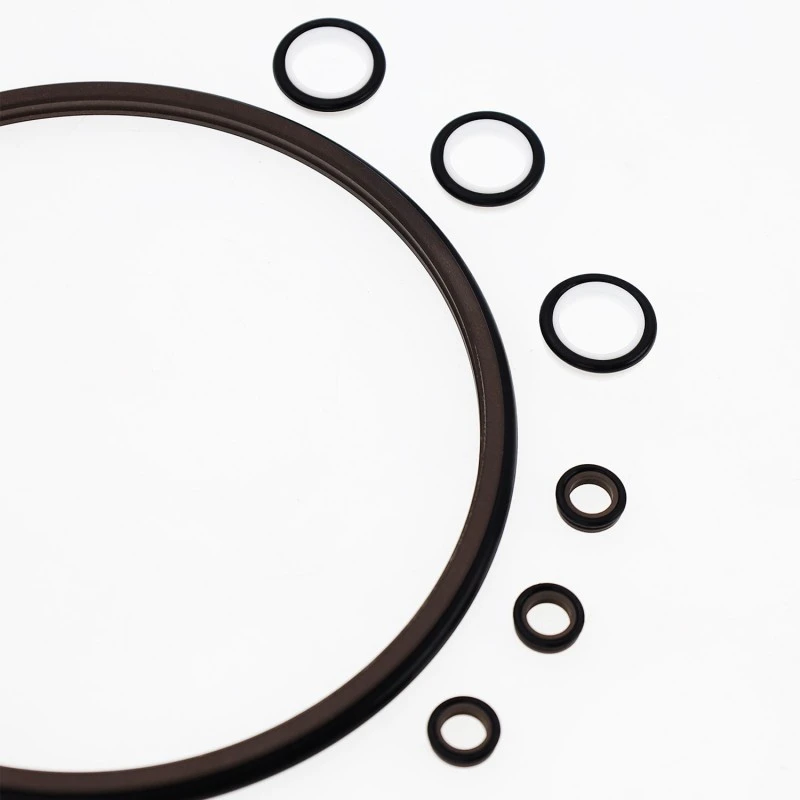

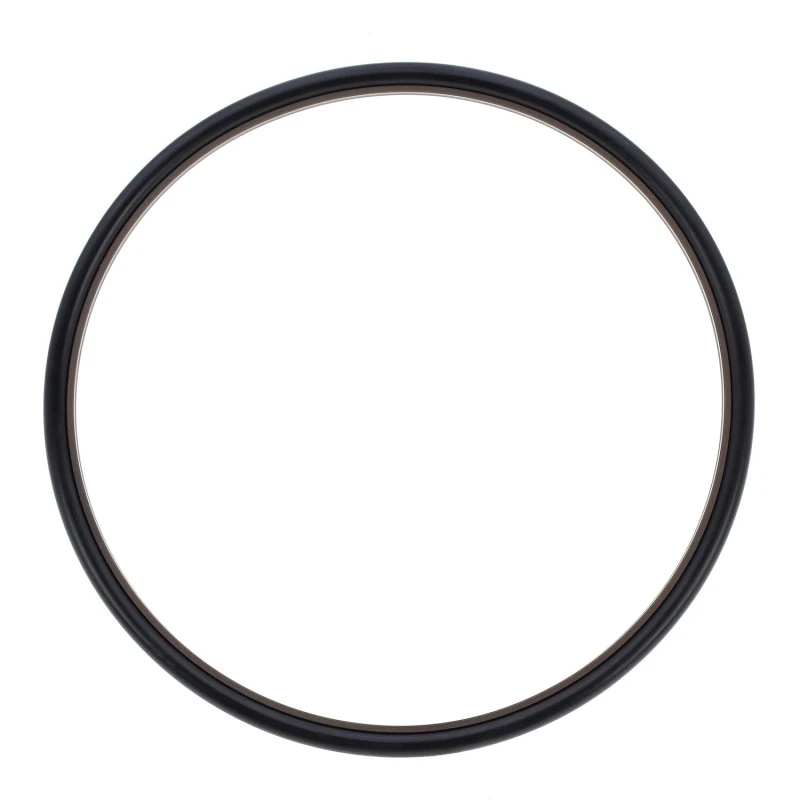

Wirperi gabungan dobel yaiku segel wiper bidirectional sing kalebu cincin wiper dobel dobel dobel dobel lan-ring. O-ring nyedhiyakake preload, ganti rugi kanggo nyandhang ing cincin PTFE. Cocog kanggo timbal balik, osilasi, utawa gerakan spiral.
Kahanan operasi
|
Tekanan MPA |
Suhu ° C |
Kacepetan m / s |
Medium |
|
- |
-35 ~ + 100 (Cocokake O-ring NBR) |
6 |
Minyak Hidrolik, Emulsion, Banyu, lsp. |
|
-20 ~ + 200 (cocog o-ring fkm) |
Conto conto
Model Order RCF02-80-PTFE3-R01
Rcf02 - model 80 - shaft diameter ptfe3 - tujuan-tujuan diowahi PTFE RO1 - Cocog Kode Bahan Karet
Nitrile (NBR) - R01, Fluorarocarbon (FKM) - RO2

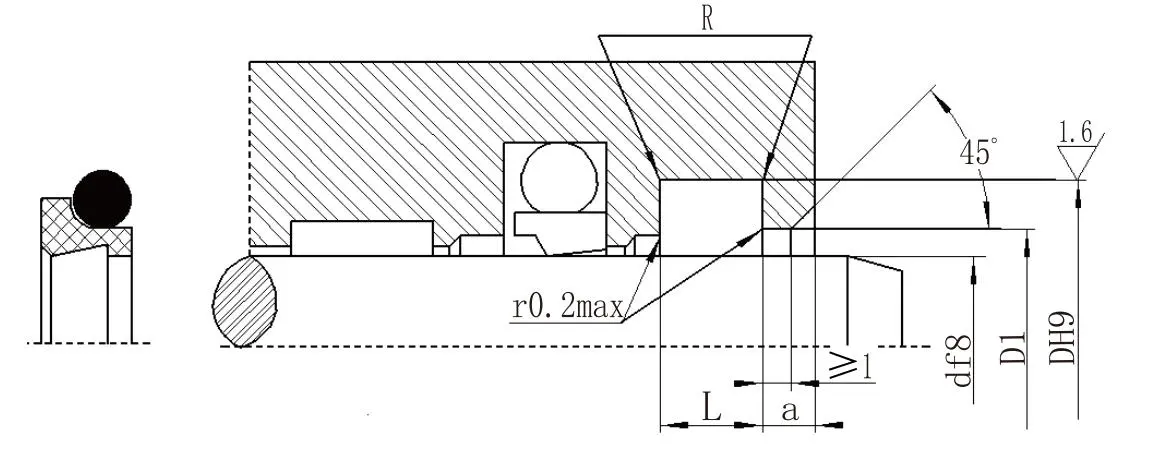

Tabel parameter spesifikasi (produk apa wae ukuran ing macem-macem parameter bisa diwenehake)
|
Range Diameter Shaft D F8 |
Diameteripun alur D h9 |
Jembaré alur L+0.2 |
Diameter bolongan mbukak D1H11 |
Ambane bolongan mbukak A≥ |
Sudhut bunder R≤ |
Diameter kabel o-ring d0 |
|
4 ~ 11 |
D + 4.8 |
3.7 |
D + 1.5 |
2 |
0.4 |
1.80 |
|
12 ~ 64 |
D + 6.8 |
5.0 |
D + 1.5 |
2 |
0.7 |
2.65 |
|
65 ~ 250 |
D + 8.8 |
6.0 |
D + 1.5 |
3 |
1.0 |
3.55 |
|
251 ~ 420 |
D + 12.2 |
8.4 |
D + 2.0 |
4 |
1.5 |
5.30 |
|
421 ~ 650 |
D + 16.0 |
11.0 |
D + 2.0 |
4 |
1.5 |
7.00 |
|
651 ~ 1500 |
D + 20.0 |
14.0 |
D + 2.5 |
5 |
2.0 |
8.60 |
