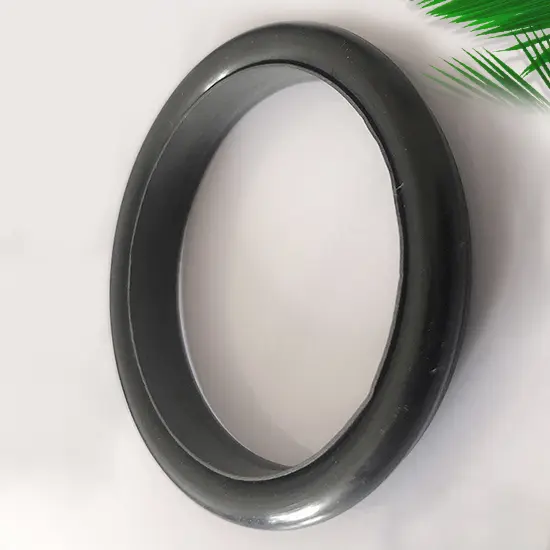

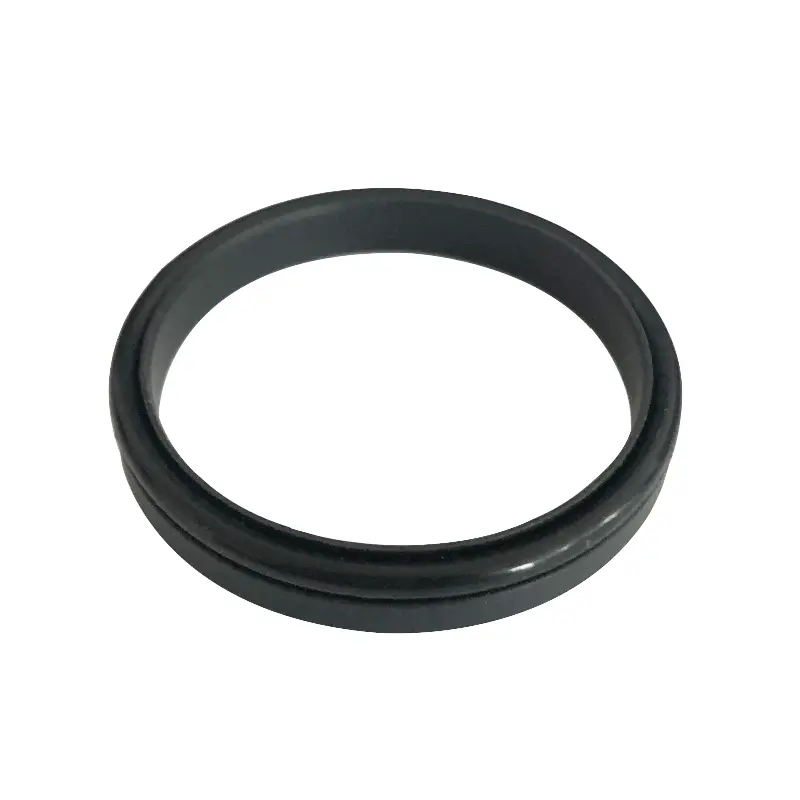

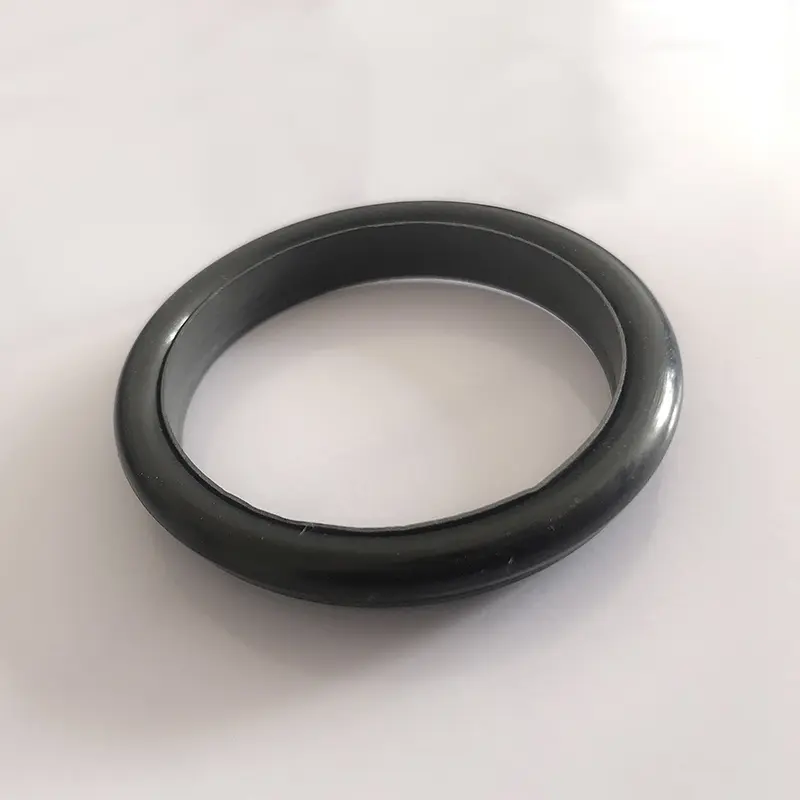

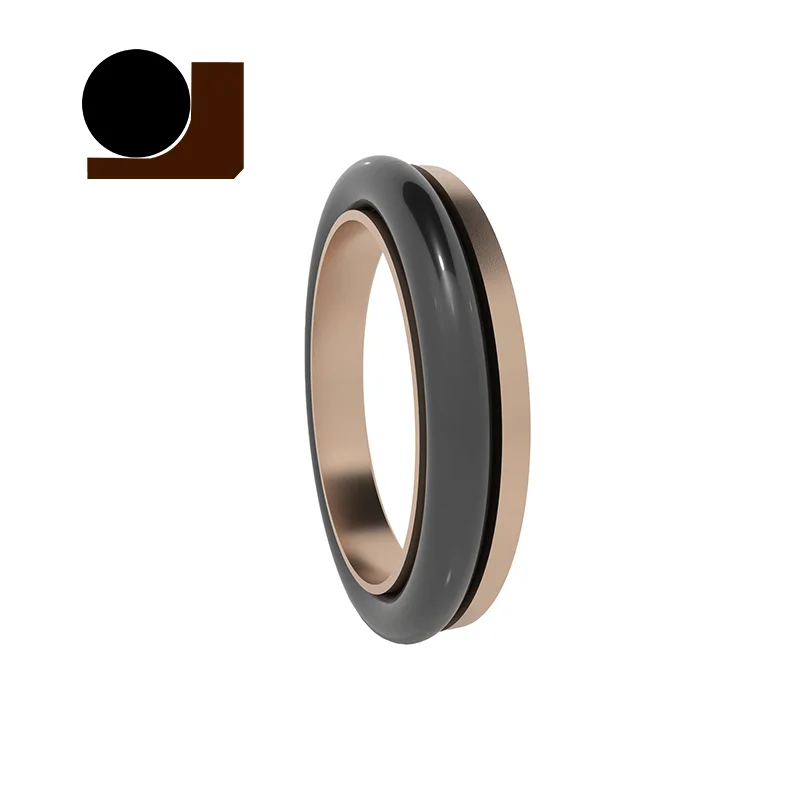

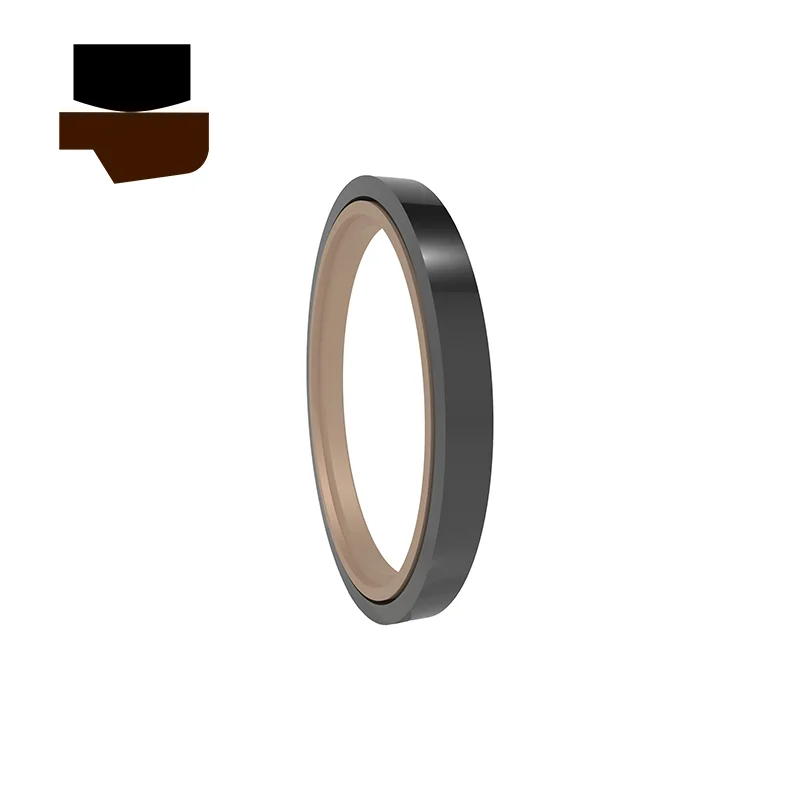

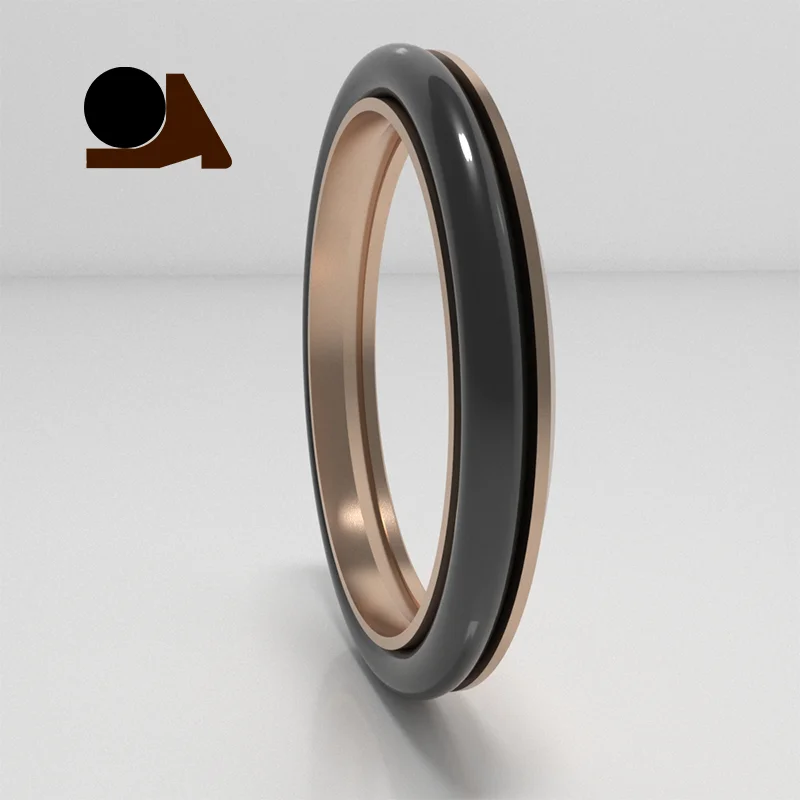

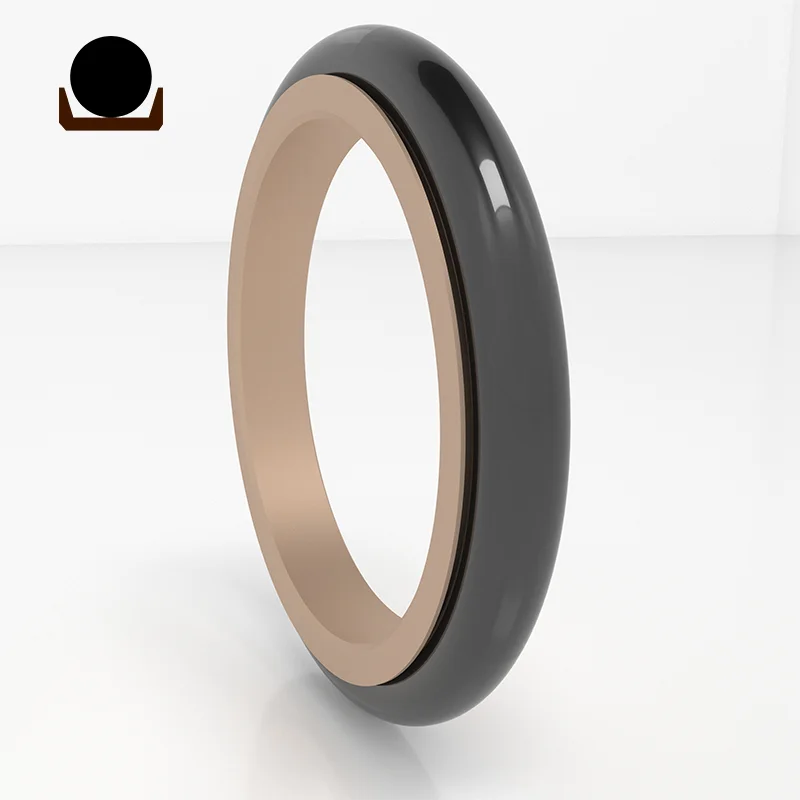

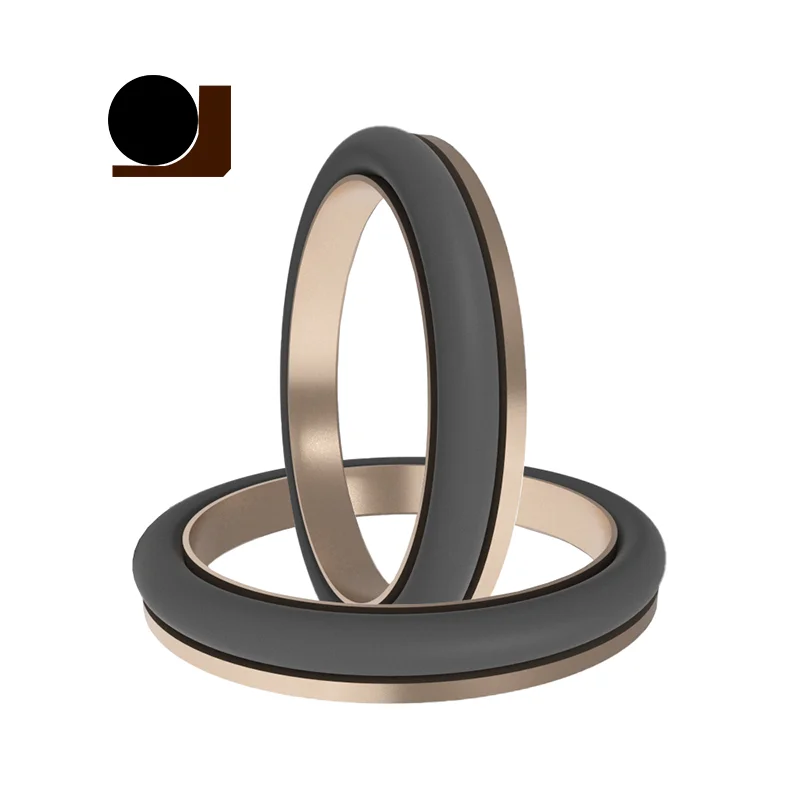

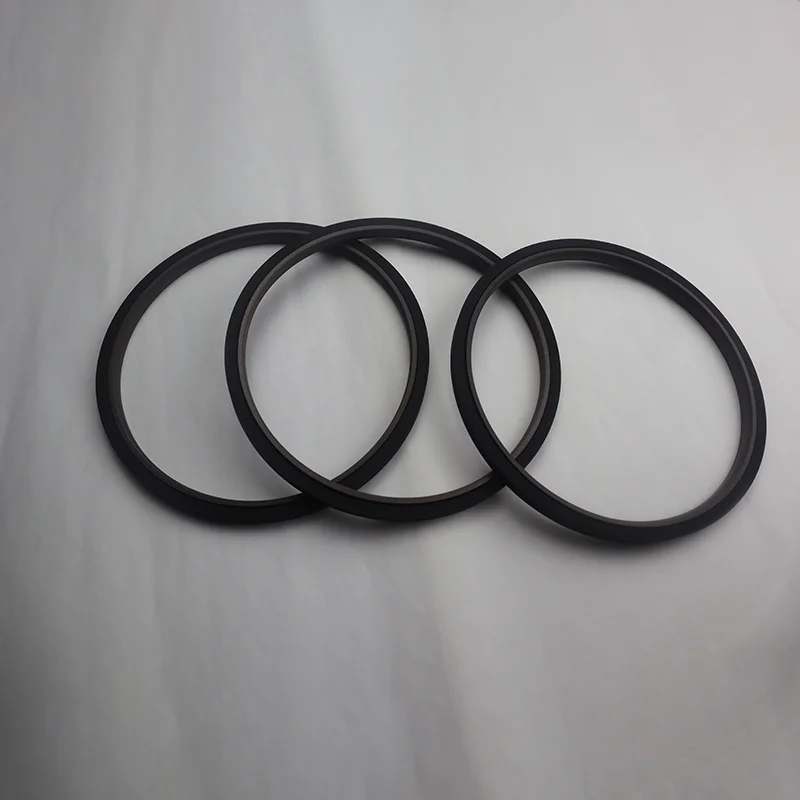

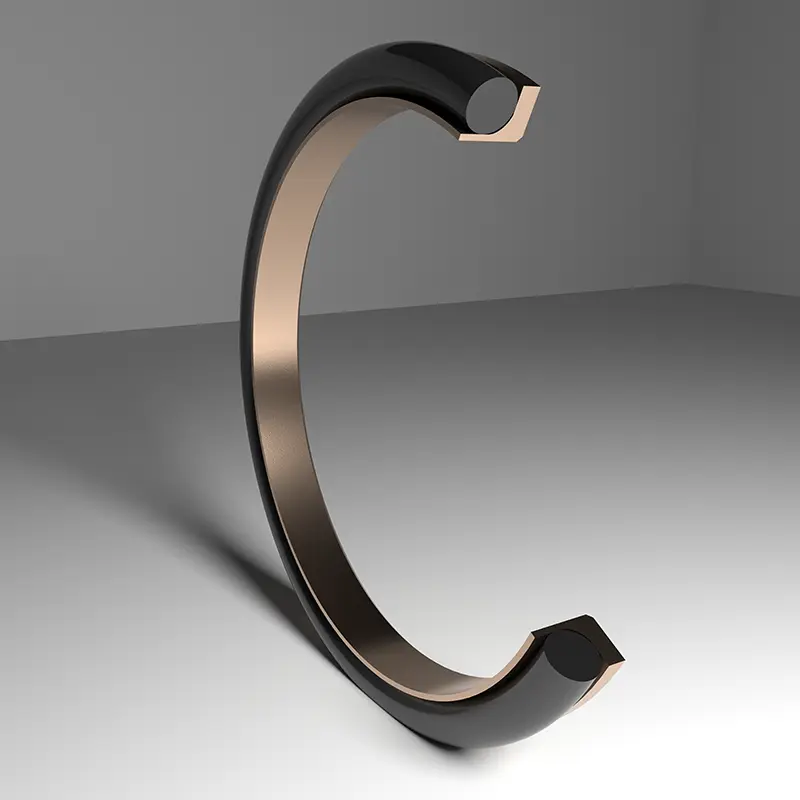

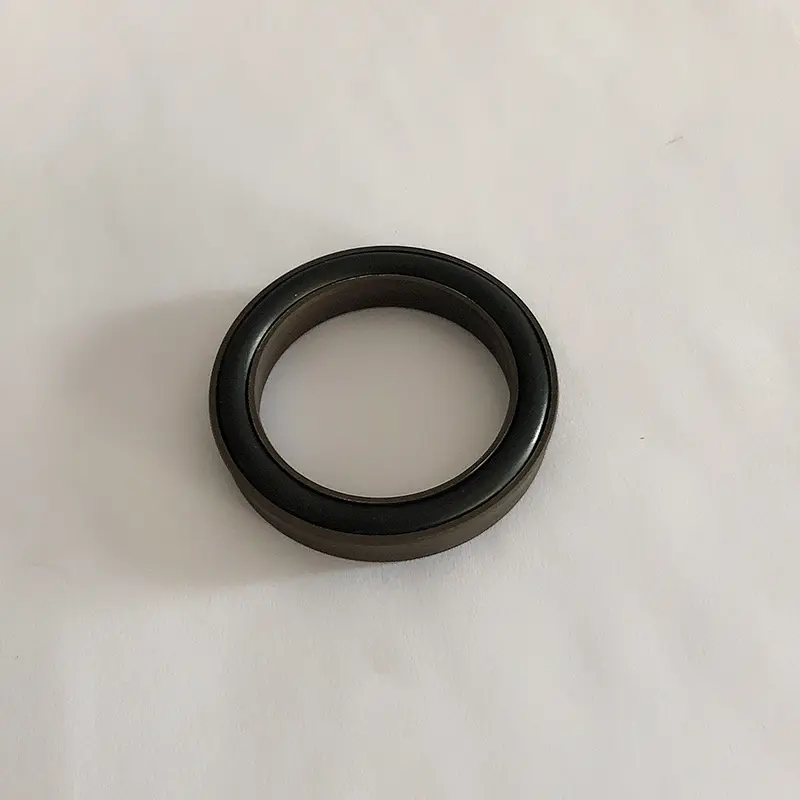

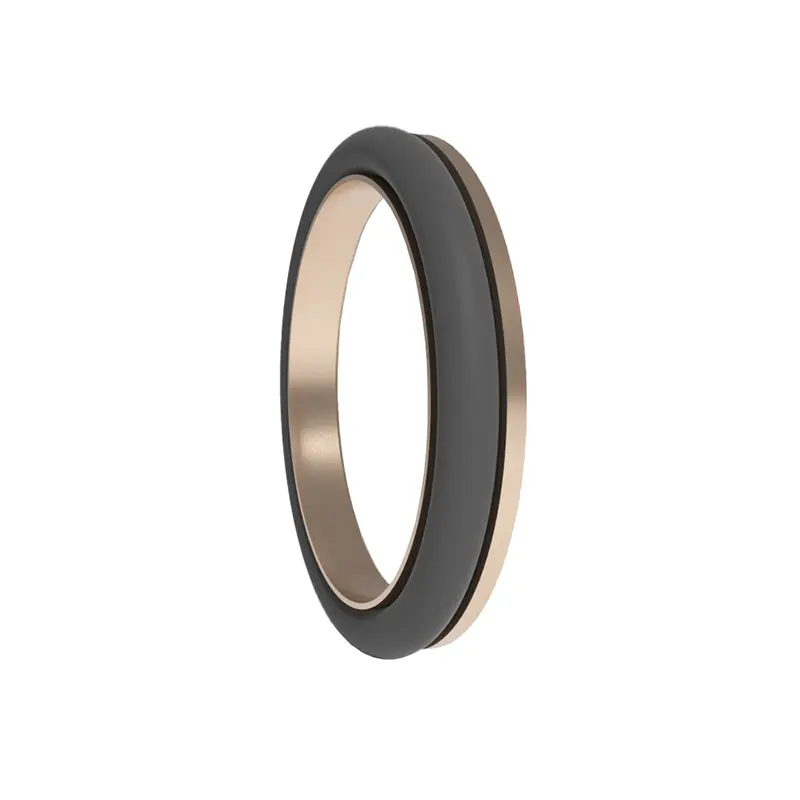

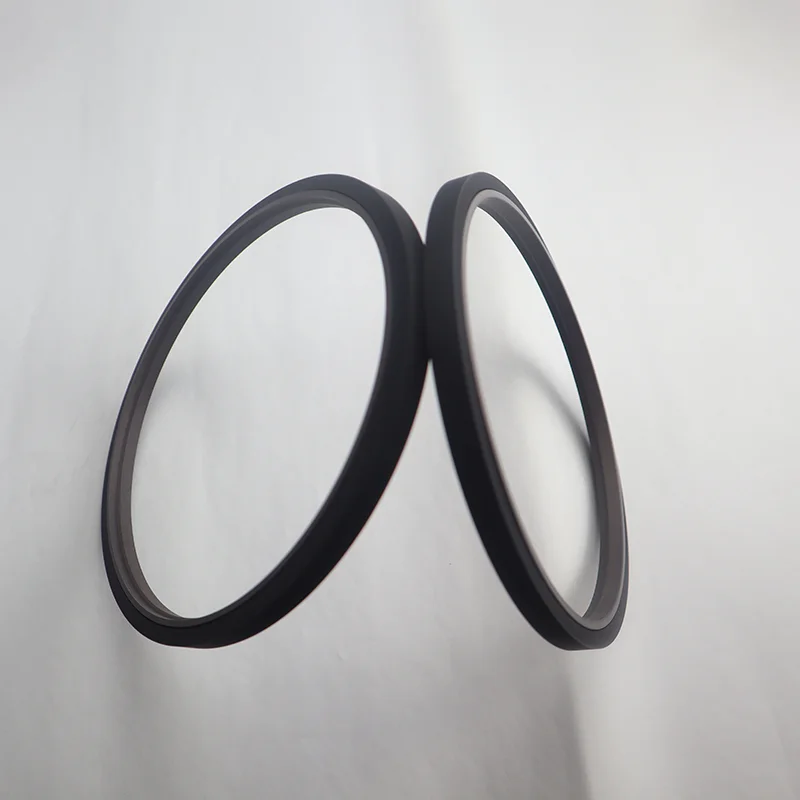

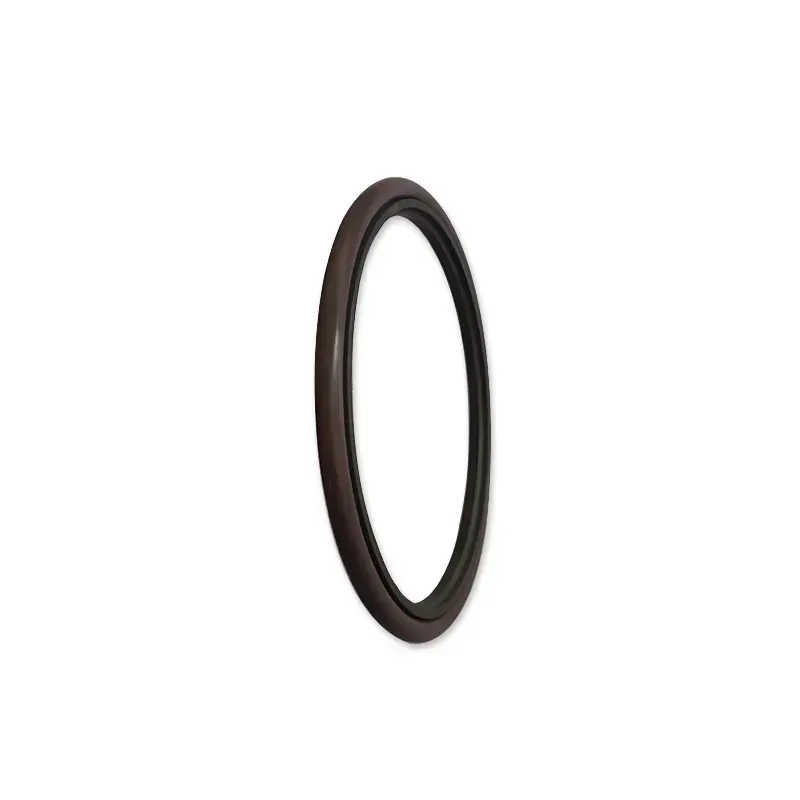

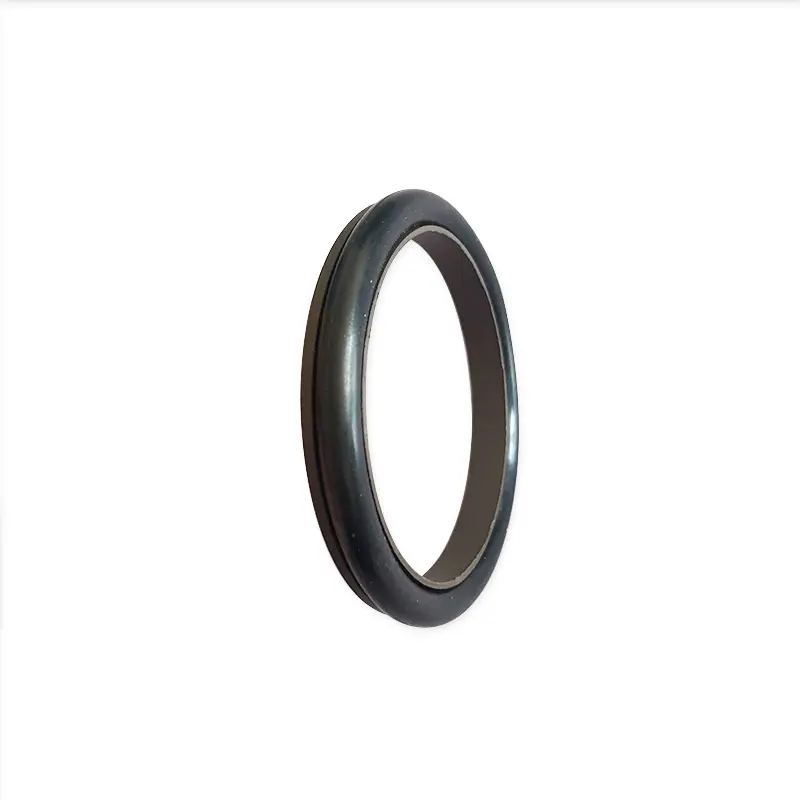

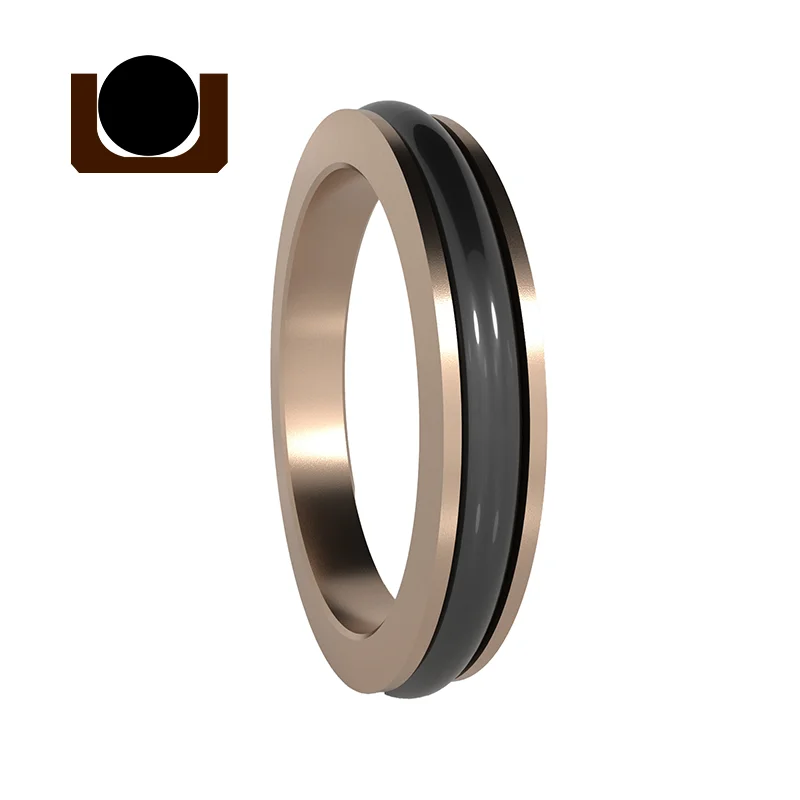

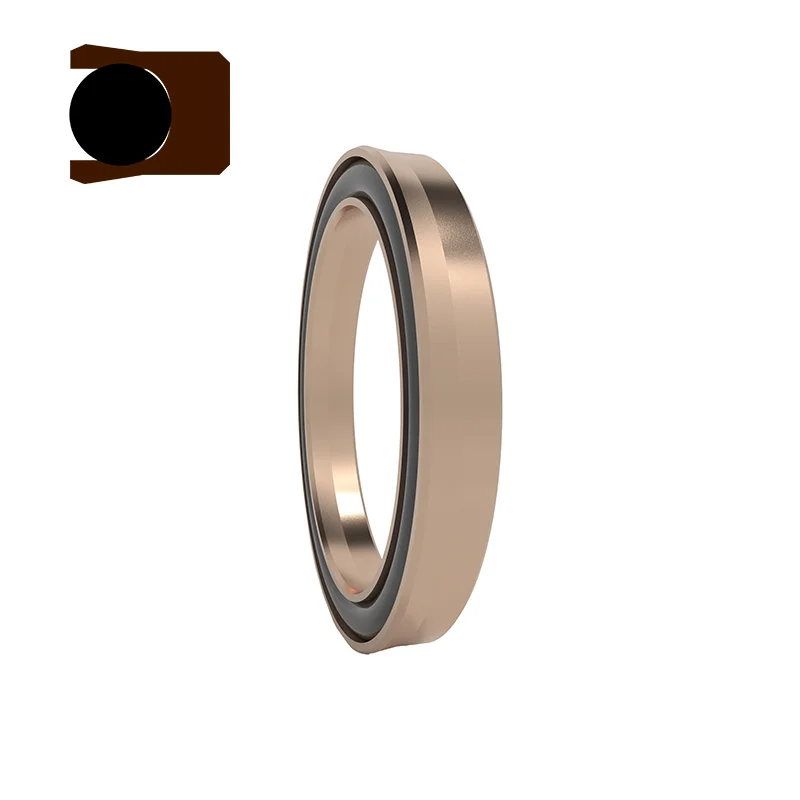

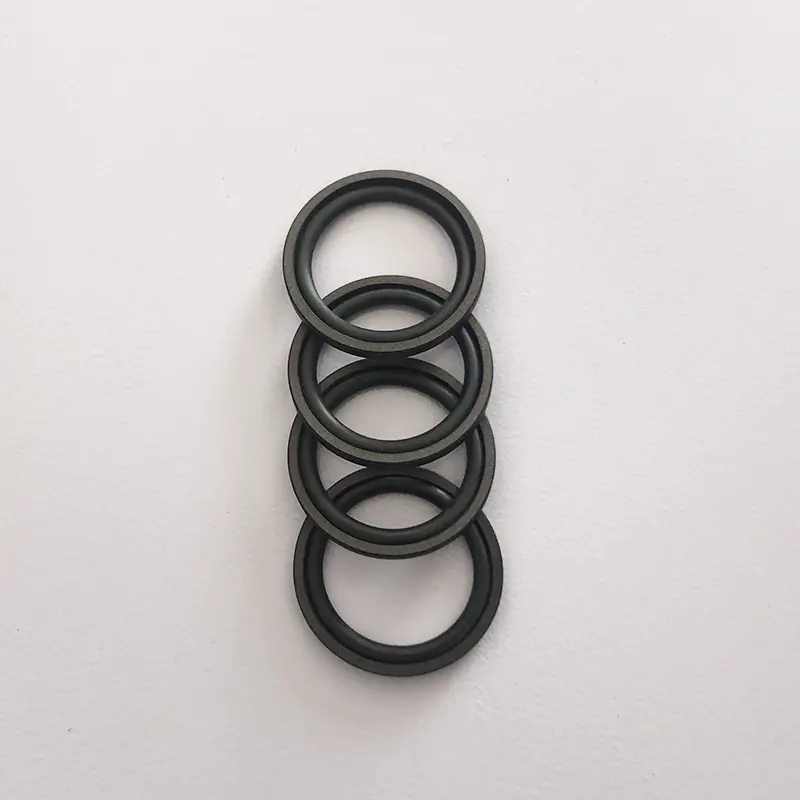

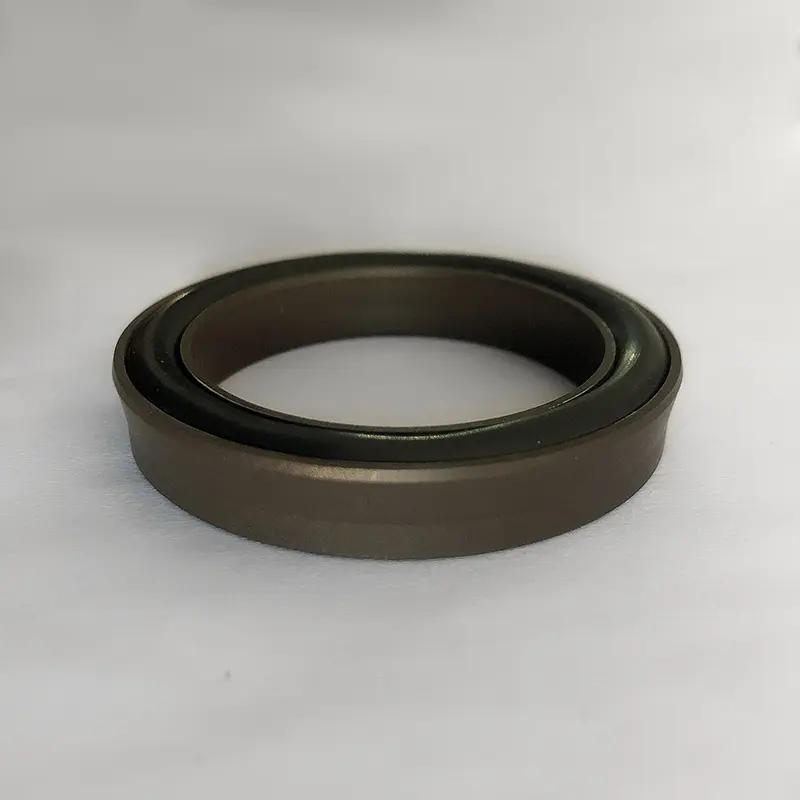

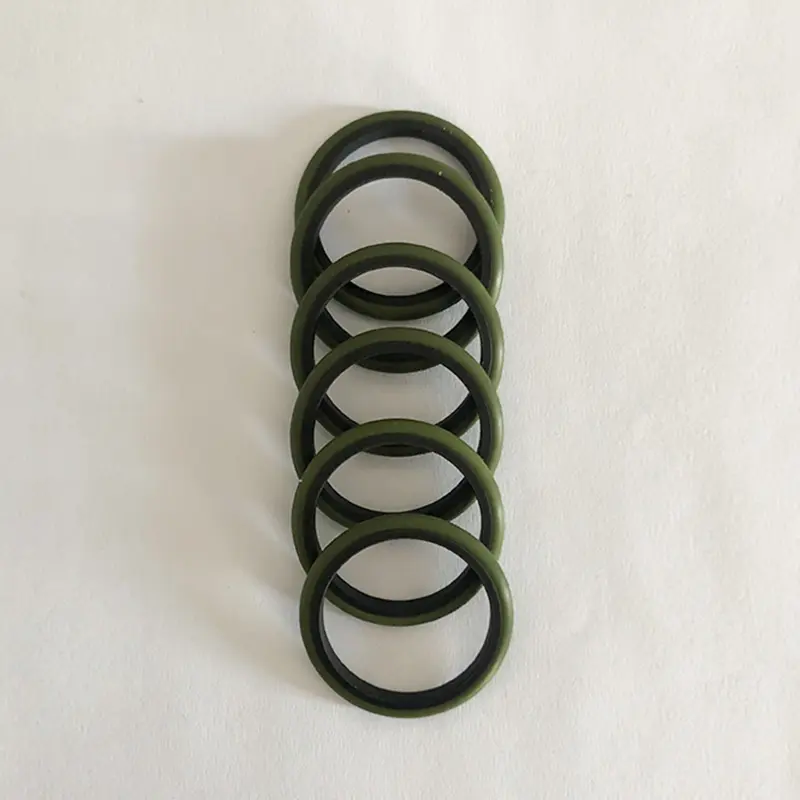

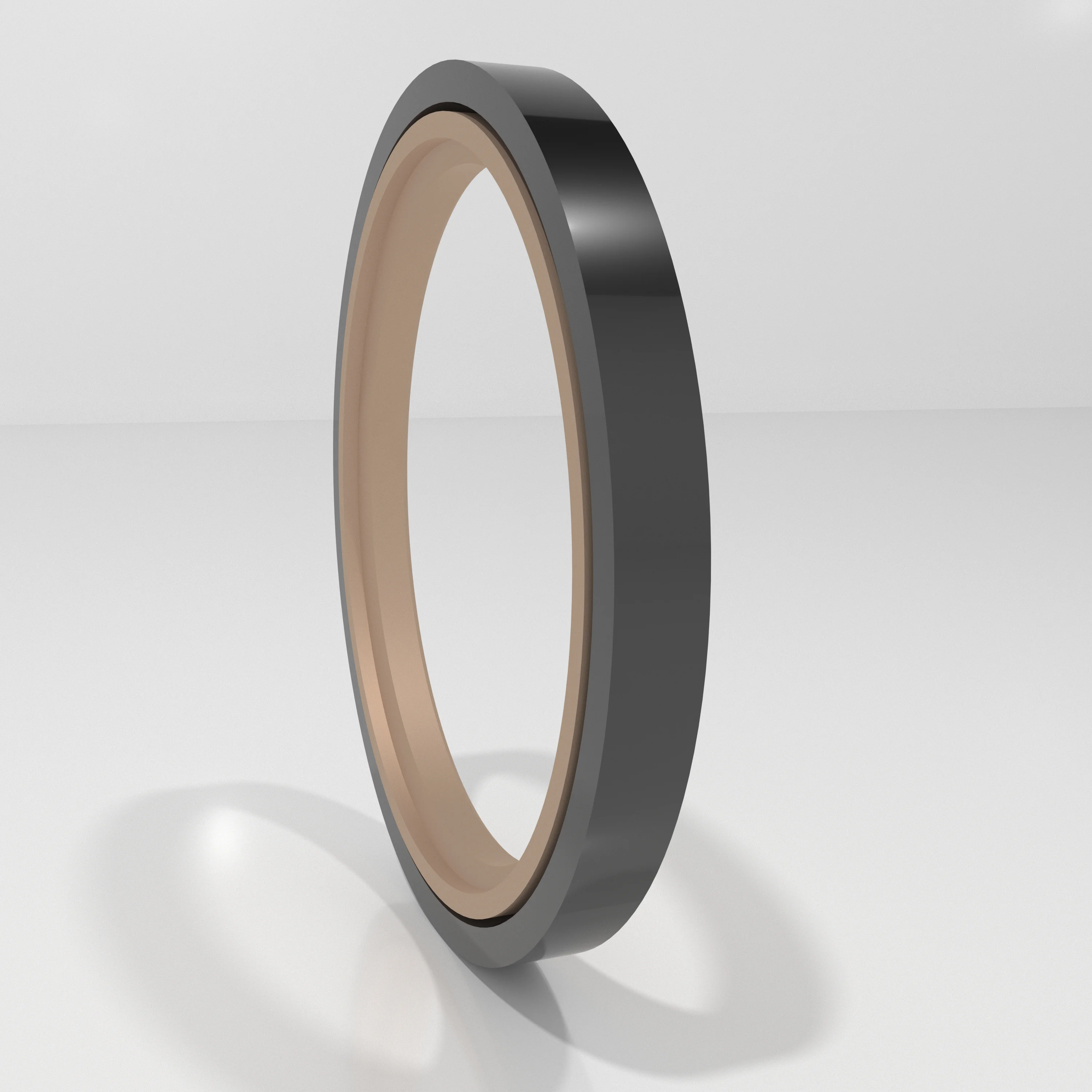

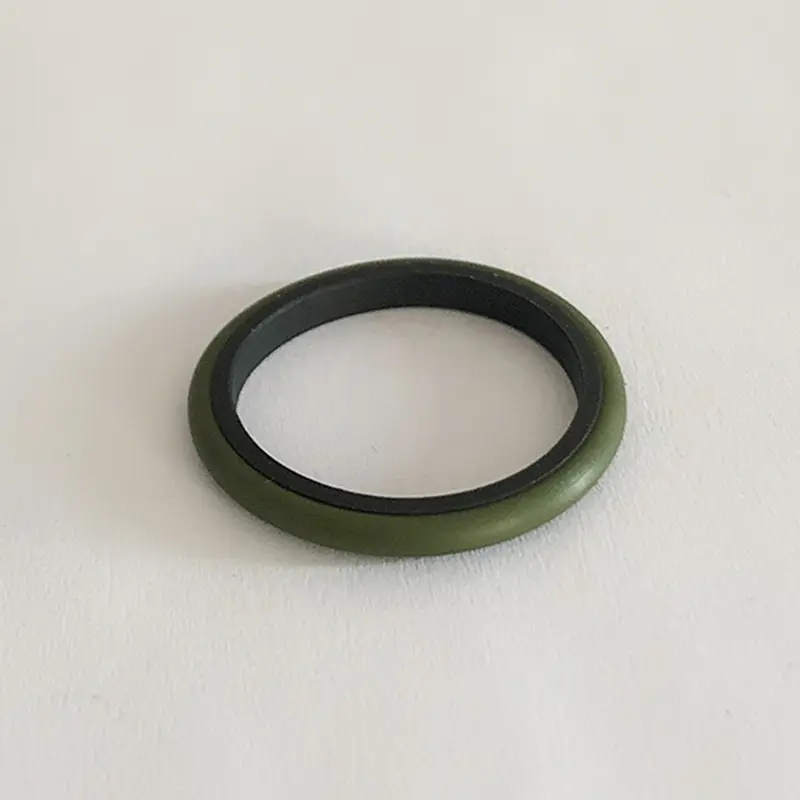

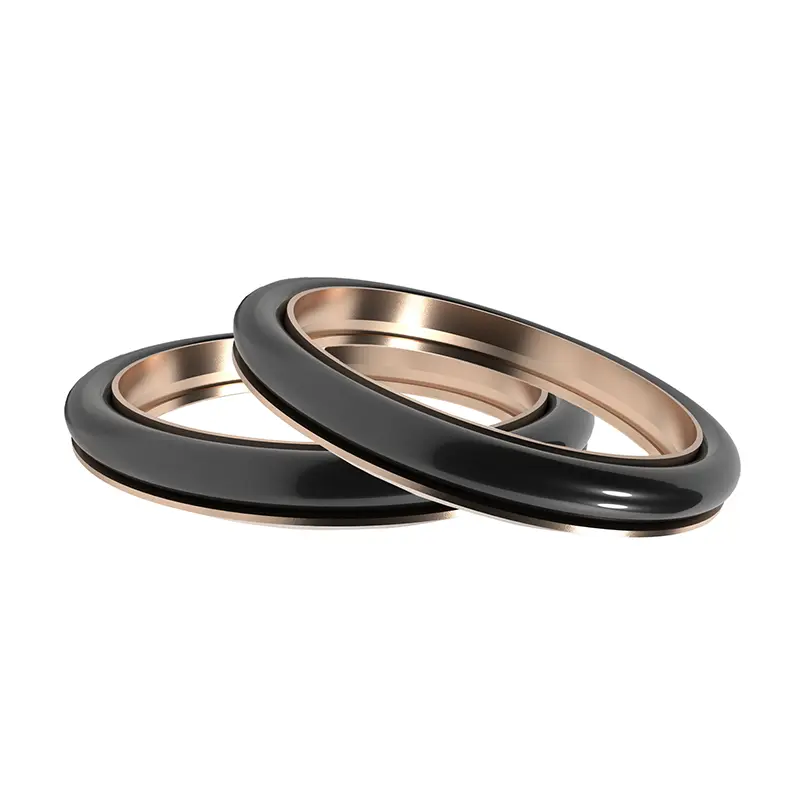

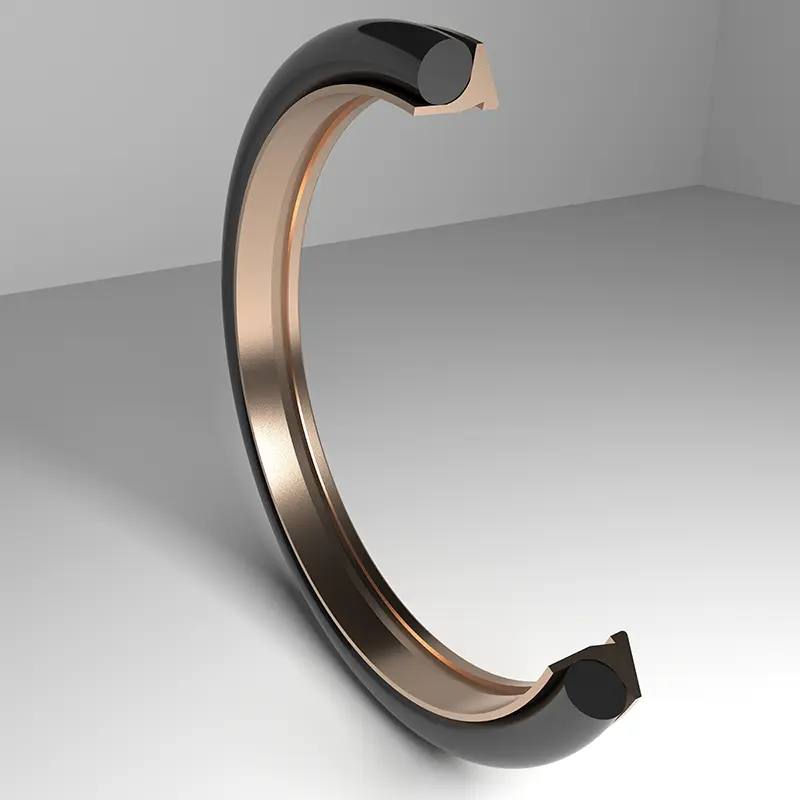

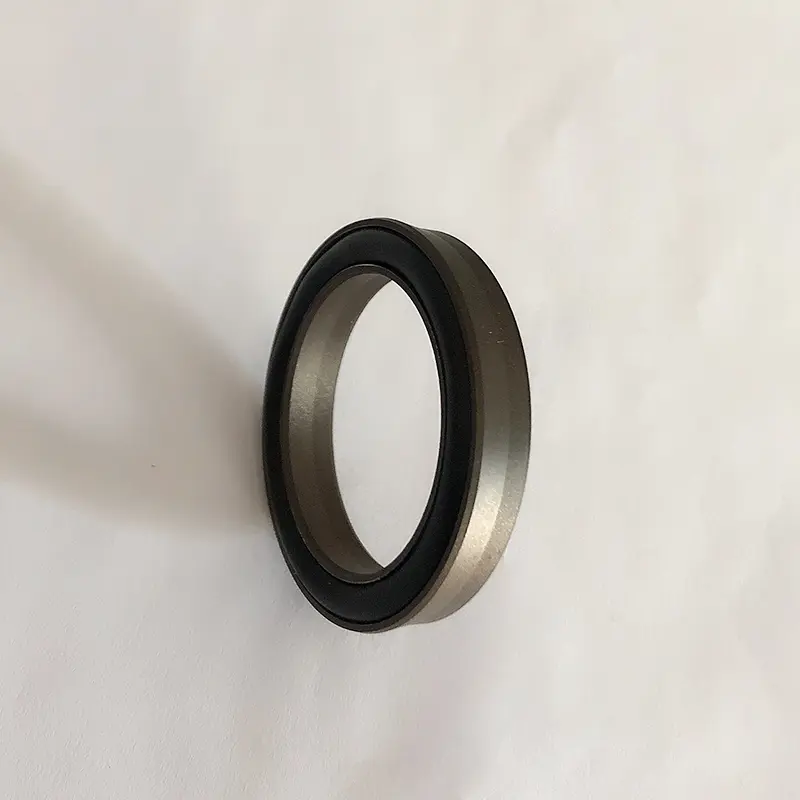

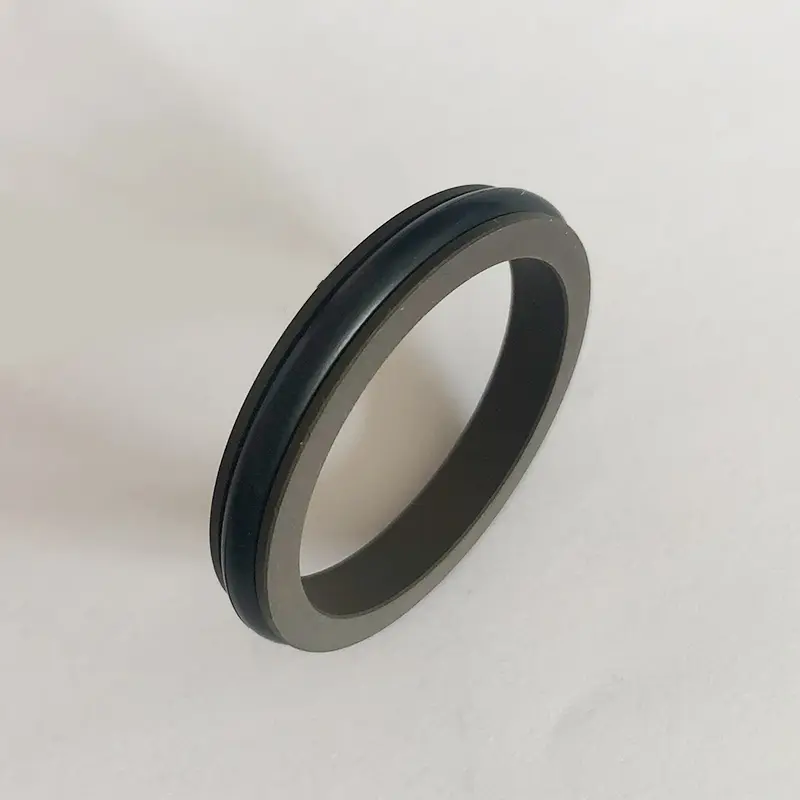

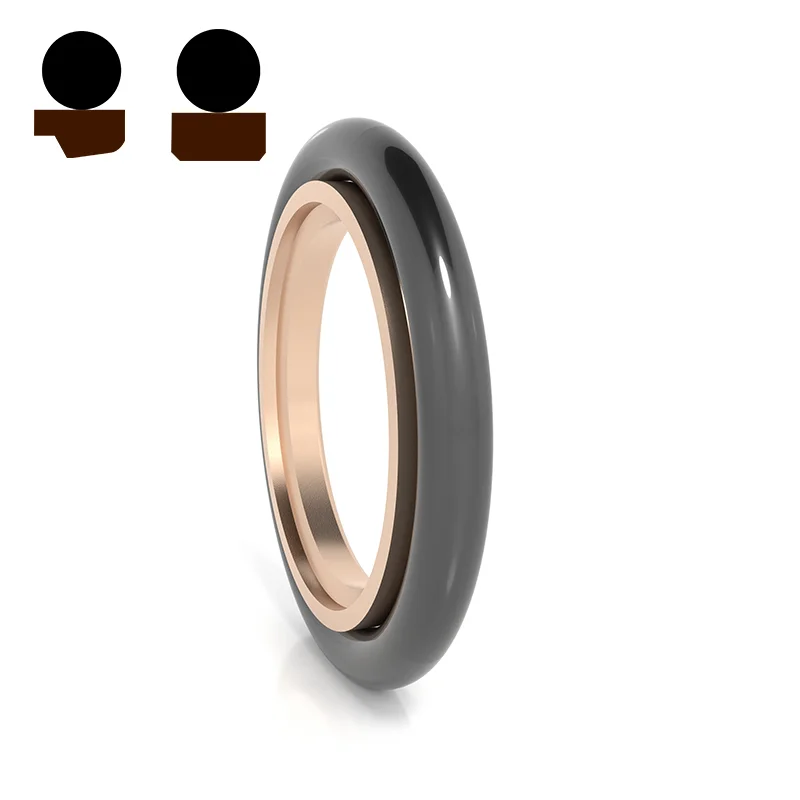

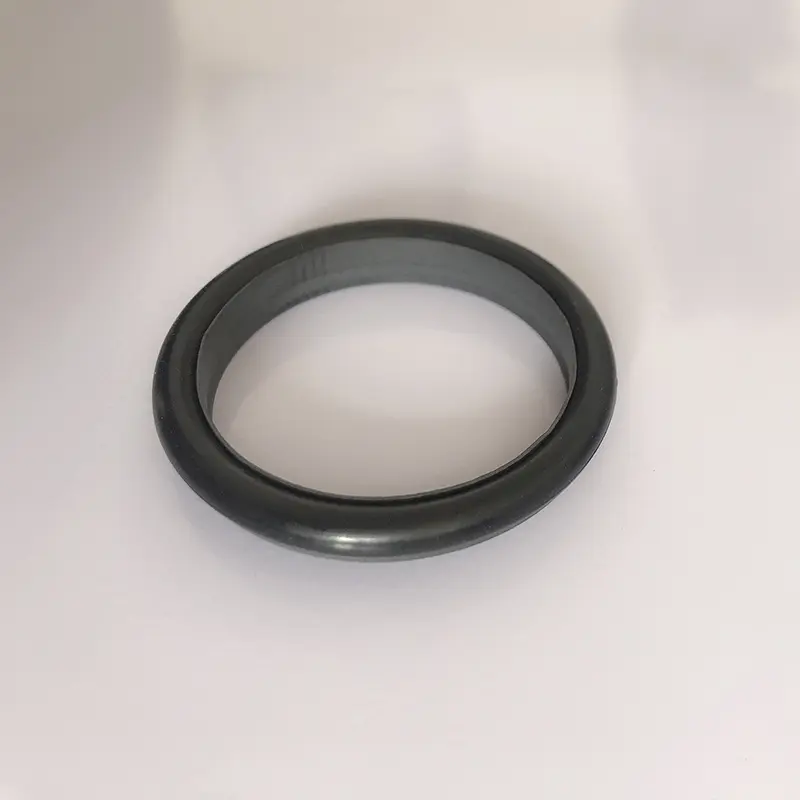

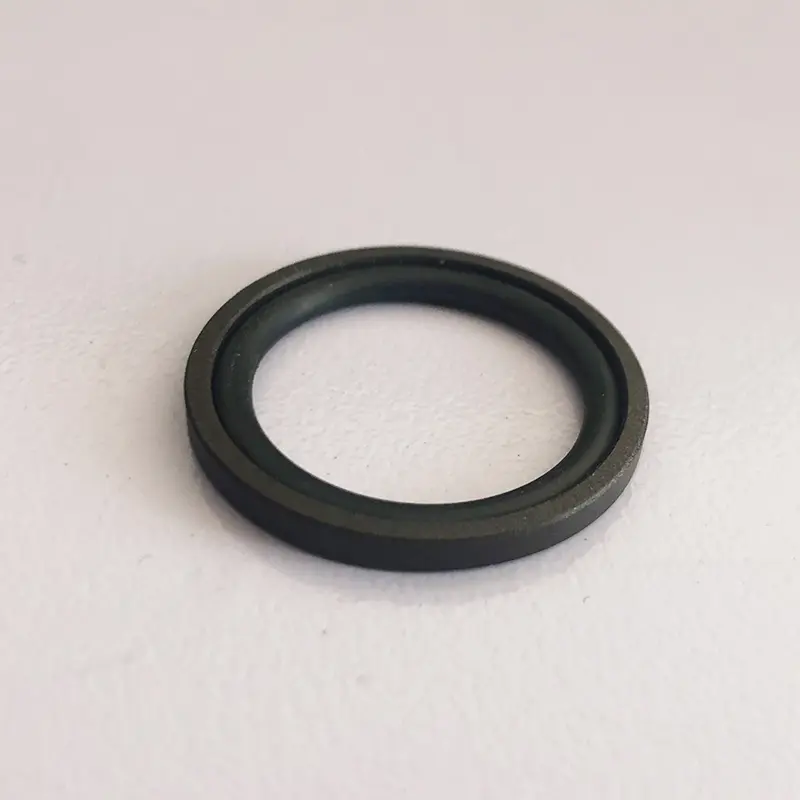

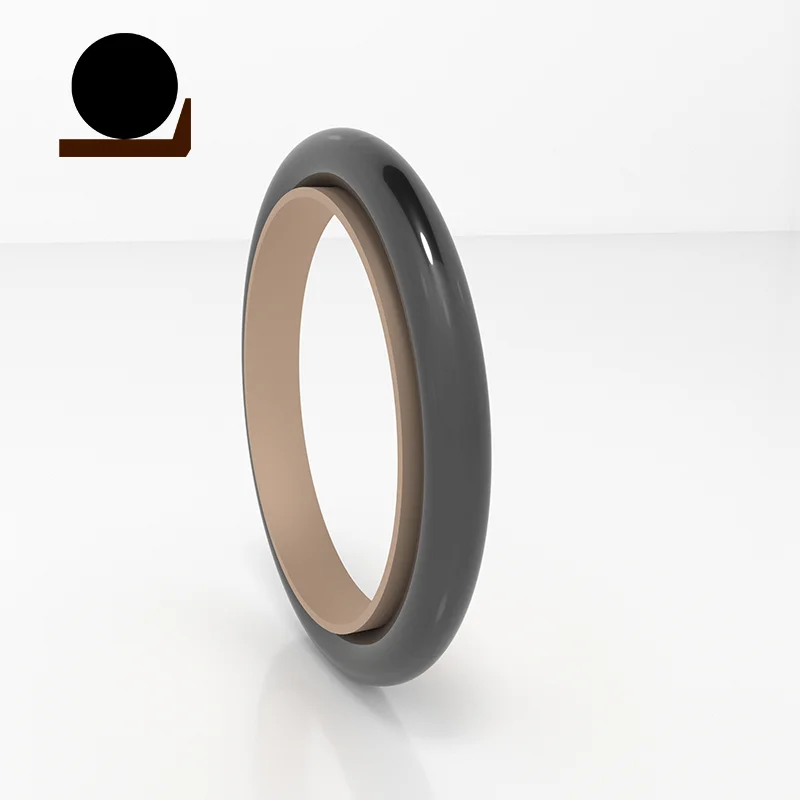

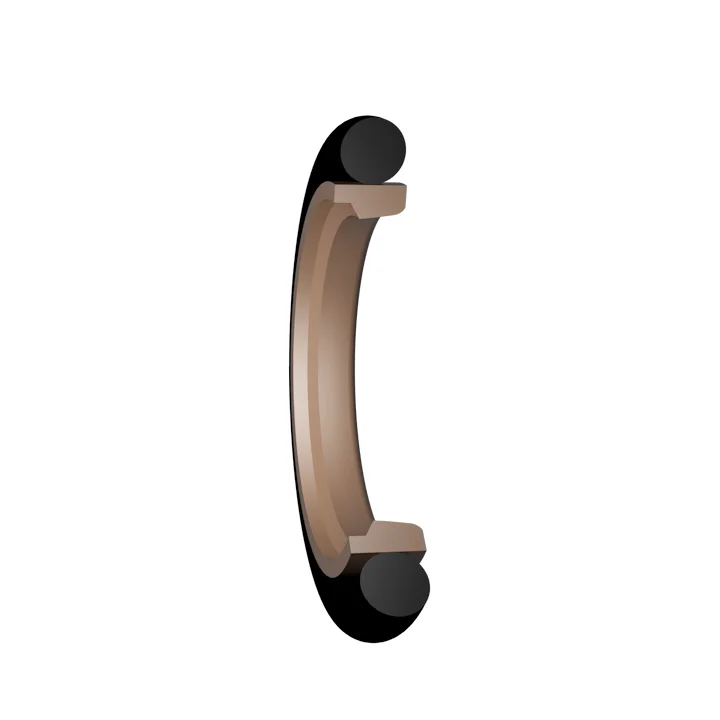

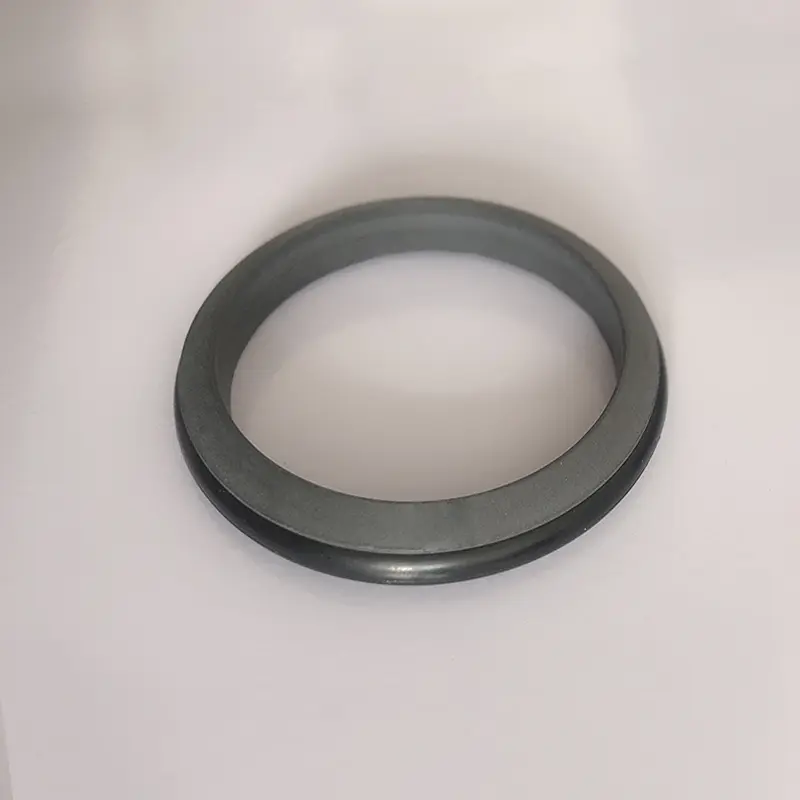

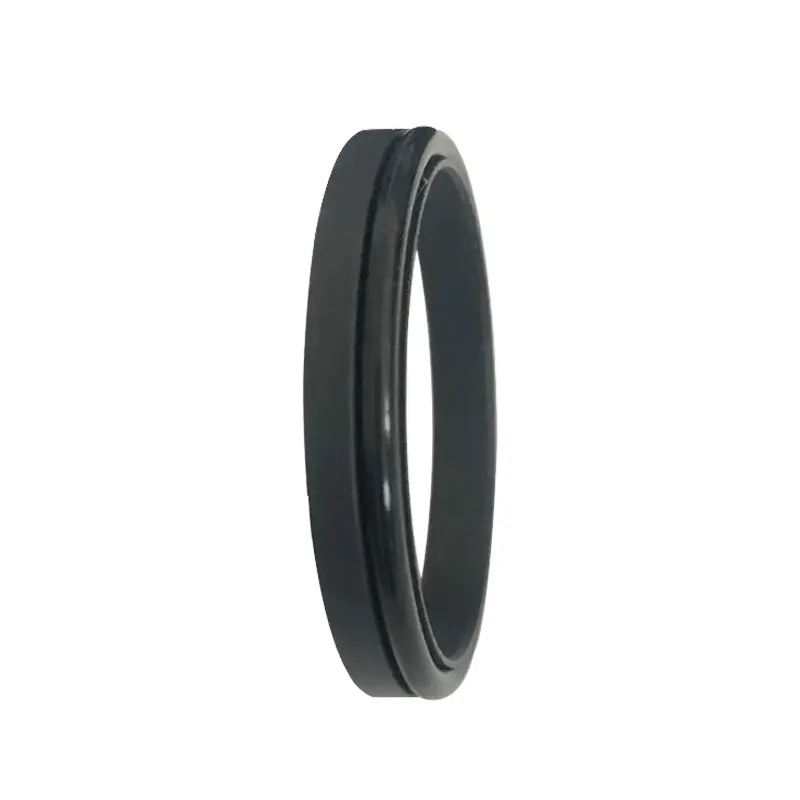

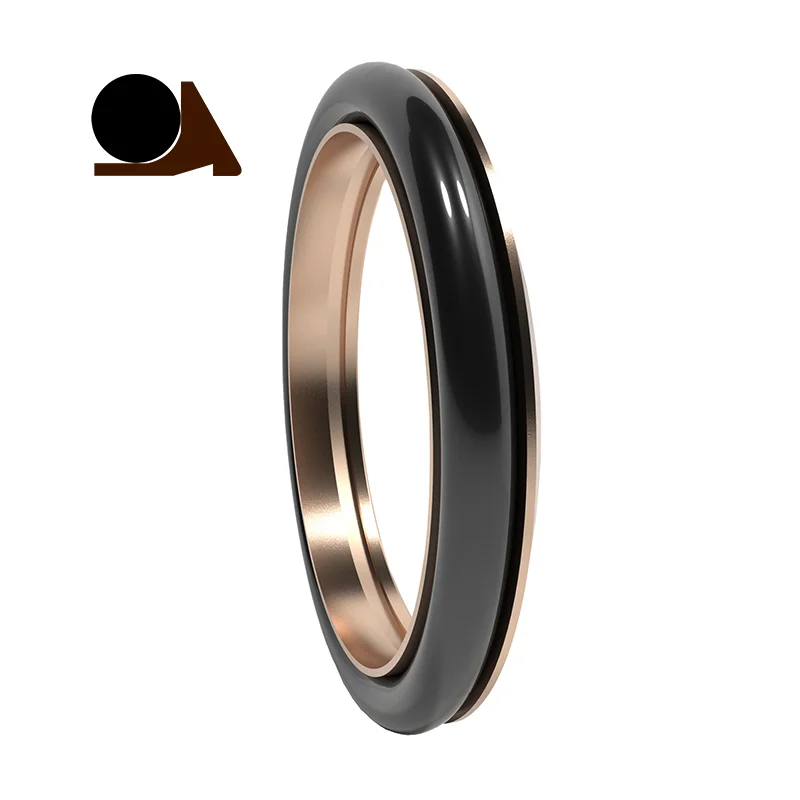

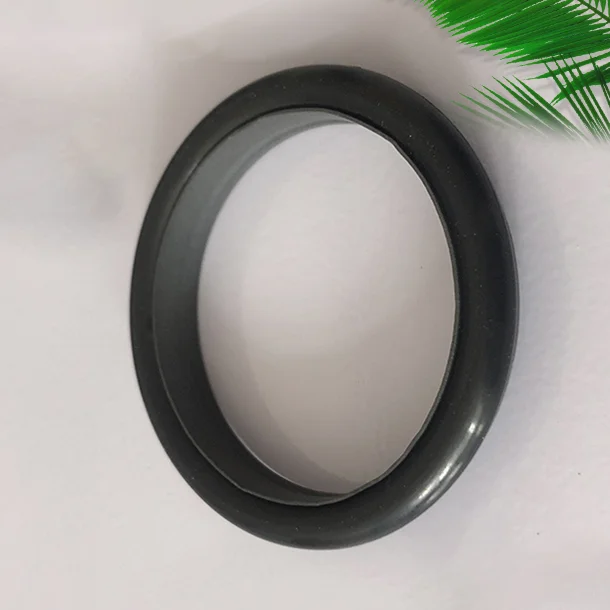

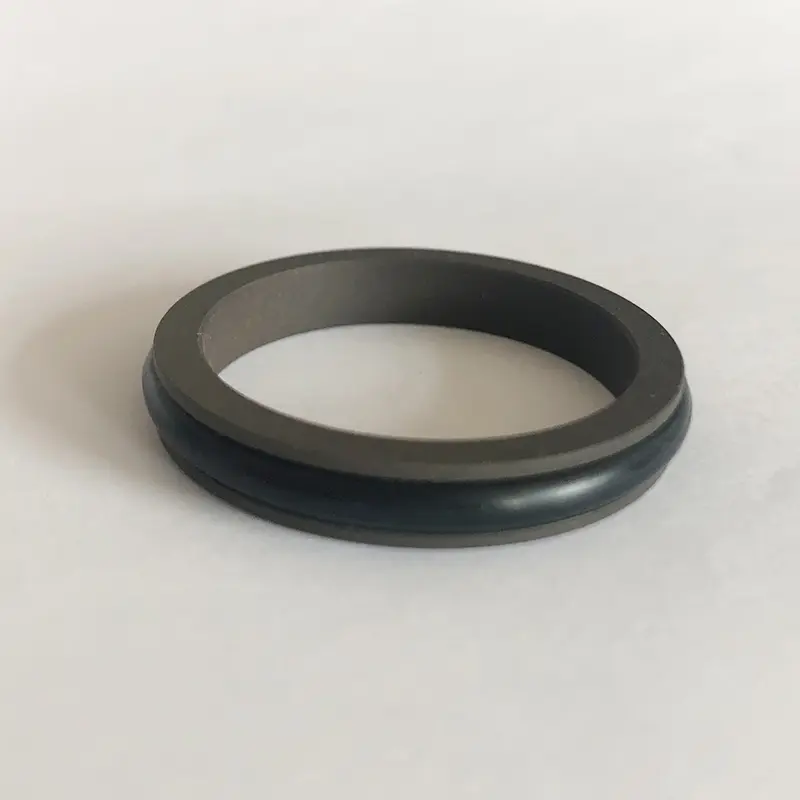

Segera rod piston tekanan tinggi sing diwenehake dening Ruichen dumadi saka ptfe Sealing Rings lan cincin karet o-berbentuk O-khusus, sing digunakake khusus kanggo segel siji-cara hidraulik. Dheweke dipérang dadi seri RC01-RC14 miturut pemeran O-Cincin. Nalika nyambut gawe, O-ring nyedhiyakake kekuwatan radial kanggo menehi ganti rugi kanggo nyandhang cincin sealing, lan desain lambe cincin tipis nduweni pas. Loro kerja sama kanggo nggawe efek panyusun sing apik.
Segera Rod Tekan Piston sing dhuwur digunakake ing mesin cetakan injeksi lan mesin casting ing sistem hidrolik industri, bagean landing ing aeroangkasa, lan garang engineulik lan angin sing ana ing omah. Dheweke bisa kanthi efektif njamin operasi sistem hidrolik stabil lan nyingkirake bocor.
Fitur lan Aplikasi Produk:
Fitur:
1. Seals rod tekanan tekanan tinggi bisa digunakake kanggo aplikasi hydraulic lan pneumatik.
2 .. Kinerja panyimpangan mesthi apik apa kahanan panyusun tekanan sing dhuwur.
3. Gesekan rendah, resistensi wiwitan cilik, gerakan lancar, gesekan dinamis lan statis padha, ora ana sing creeping.
4. Segel duwe umur dawa, cocog kanggo nyolong pelumas minyak tanpa minyak.
5. Spasi struktural cilik lan instalasi gampang lan perawatan.
Kahanan sing ditrapake:
Kahanan sing ditrapake kanggo segel rod tekanan tekanan tinggi (watesan nilai ora katon ing wektu sing padha)
| Profil | Model | Meksa (MPA) | Suhu (℃) | Kacepetan (m / s) | Media |
 |
RC01 / RC02 | ≤70 | -35 ~ + 100 (Cocokake O-ring NBR) | ≤6 | Minyak hidraulik, cairan retadant geni (HFA / HFB), Gas, lsp. |
| -20 ~ + 180 (cocog o-ring fkm) | |||||
 |
RC03 / RC04 | ≤100 | -35 ~ + 100 (Cocokake O-ring NBR) | ≤6 | Minyak hidraulik, cairan retadant geni (HFA / HFB), Gas, lsp. |
| -20 ~ + 180 (cocog o-ring fkm) | |||||
 |
Rc05 | ≤200 | -35 ~ + 100 (Cocokake O-ring NBR) | ≤6 | Minyak Hidraulik berbasis Mineral, cairan retaring geni (HFA / HFB), banyu, lsp. |
| -20 ~ + 180 (cocog o-ring fkm) | |||||
 |
RC06 / RC07 | ≤100 | -35 ~ + 100 (Cocokake O-ring NBR) | ≤6 | Minyak hidraulik berbasis Mineral, cairan mundur geni (HFA / HFB), Gas, lsp. |
| -20 ~ + 180 (cocog o-ring fkm) | |||||
 |
RC08 / RC09 | ≤200 | -35 ~ + 100 (Cocokake O-ring NBR) | ≤6 | Minyak Hidraulik berbasis Mineral, cairan retaring geni (HFA / HFB), banyu, lsp. |
| -20 ~ + 180 (cocog o-ring fkm) | |||||
 |
RC10 | ≤260 | -35 ~ + 100 (Cocokake O-ring NBR) | ≤6 | Minyak Hidraulik berbasis Mineral, cairan retaring geni (HFA / HFB), banyu, lsp. |
| -20 ~ + 180 (cocog o-ring fkm) | |||||
 |
Rc11 | ≤60 | -35 ~ + 100 (Cocokake O-ring NBR) | ≤6 | Minyak Hidraulik berbasis Mineral, cairan retaring geni (HFA / HFB), banyu, lsp. |
| -20 ~ + 180 (cocog o-ring fkm) | |||||
 |
Rc11-b | ≤60 | -35 ~ + 100 (Cocokake O-ring NBR) | ≤6 | Minyak Hidraulik berbasis Mineral, cairan retaring geni (HFA / HFB), banyu, lsp. |
| -20 ~ + 180 (cocog o-ring fkm) | |||||
 |
Rc12 | ≤60 | -35 ~ + 100 (Cocokake O-ring NBR) | ≤6 | Minyak Hidraulik berbasis Mineral, cairan retaring geni (HFA / HFB), banyu, lsp. |
| -20 ~ + 180 (cocog o-ring fkm) | |||||
 |
RC13 | ≤20 | -35 ~ + 100 (Cocokake O-ring NBR) | ≤6 | Minyak hidraulik berbasis Mineral, cairan mundur geni (HFA / HFB), Gas, lsp. |
| -20 ~ + 180 (cocog o-ring fkm) | |||||
 |
RC14 | ≤20 | -35 ~ + 100 (Cocokake O-ring NBR) | ≤6 | Minyak hidraulik berbasis Mineral, cairan mundur geni (HFA / HFB), Gas, lsp. |
| -20 ~ + 180 (cocog o-ring fkm) |

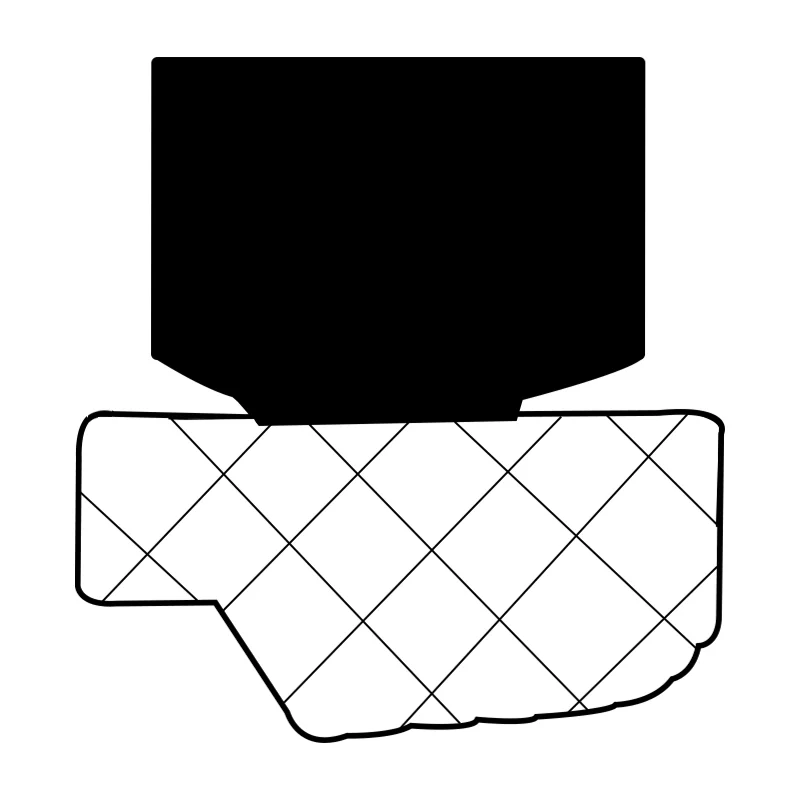

Pilihan Bahan:

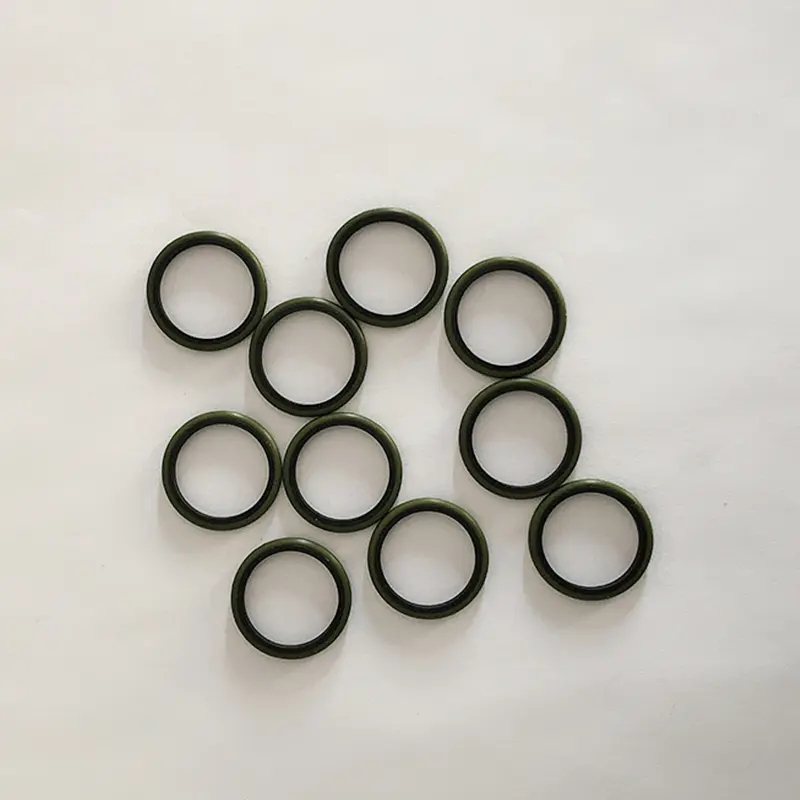

1. Bahan-bahan O-ring sing cocog bisa dipilih: R01 Nitrile Karet (NBR), Fluororubber RO2 (FKM), lsp.

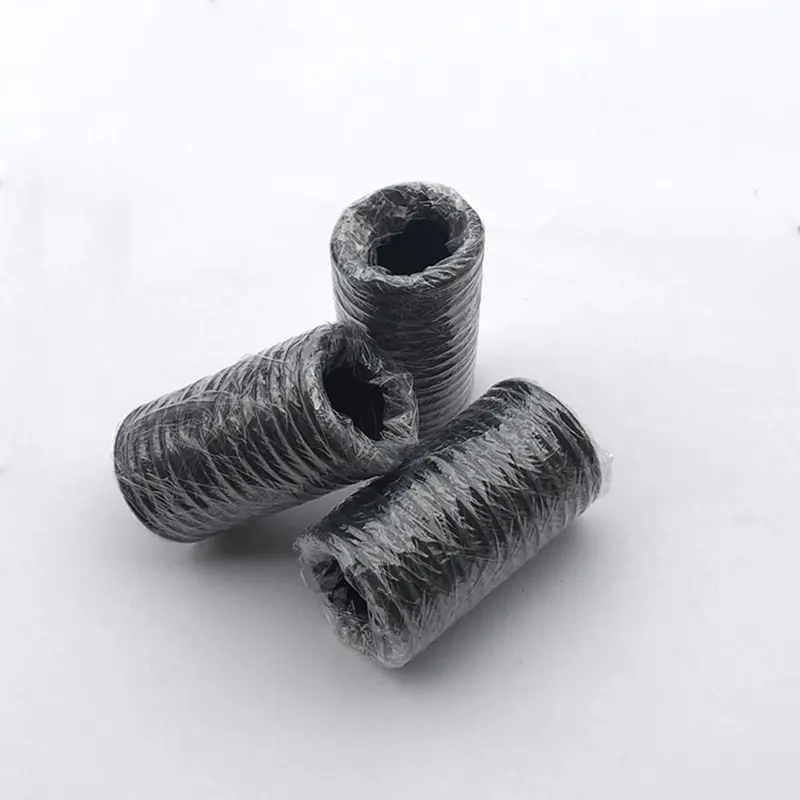

Bahan-bahan Sehat 2: PTFE1, PTFE2, PTFE2, PTFE4, PU, lsp.
Conto pesenan: (mung sawetara model sing ditampilake, hubungi kita kanggo model pesenan tartamtu)
Model Order RC01-8089.6x7.8-PTFE3-R01
Groove-rod Diameter X Dilamer Aliran PTFE3-Modified Code Material PTFE R01 Kode Bahan O-RING
Model Order RC03-80X89X10-PTFE3-R01
Dandani Model X Diameter X Groove Width PTFE3-Modified Code Material PTFE R01-O-RING
Model Order RC06-80X89.9x9.2-PTFE3-R01
Groove-rod Diameter X Dilamer Aliran PTFE3-Modified Code Material PTFE R01 Kode Bahan O-RING
Model Order RC08-80X90.2x11.2-PTFE3-Rod Diameter X Groove Diameter X Groove Width-Material Code
Spesifikasi:
(Mung sawetara model sing ditampilake, hubungi kita kanggo model pesenan tartamtu)

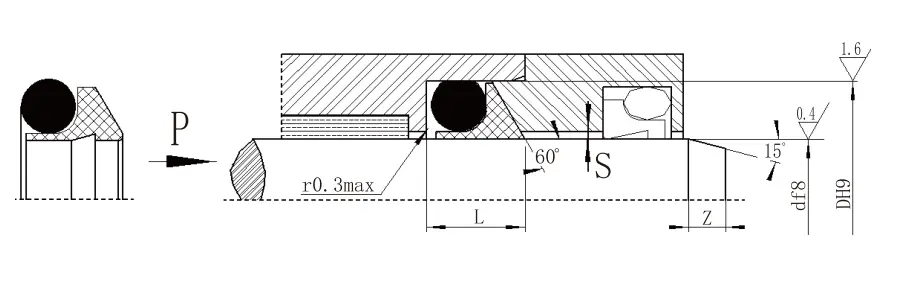

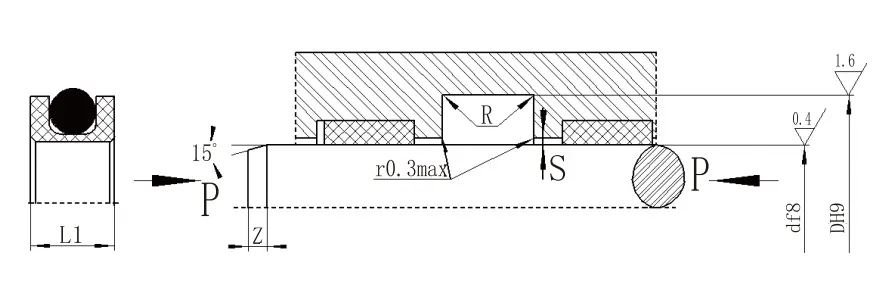

| 4.1 Spesifikasi RC01 (produk ukuran apa wae ing tabel spesifikasi bisa diprodhuksi) | ||||||||||
| DF8 Jinis standar Rc01 |
DF8 Cahya mbukak Rc01-q |
DF8 Beban abot Rc01-z |
D h9 | L+0.2 | L1 | RMax | SMax | Zmin | d0 | |
| <20MPA | <40Mpa | |||||||||
| - | 5 ~ 17.9 | - | D + 3,5 | 3.2 | 2.8 | 0.3 | 0.2 | 0.15 | 3 | 1.8 |
| 5 ~ 17.9 | 18 ~ 39.9 | - | D + 5.0 | 4.2 | 3.8 | 0.4 | 0.25 | 0.15 | 4 | 2.65 |
| 18 ~ 39.9 | 40 ~ 108.9 | 5 ~ 17.9 | D + 6.6 | 5.2 | 4.7 | 0.4 | 0.25 | 0.2 | 5 | 3.55 |
| 40 ~ 108.9 | 109 ~ 629 | 18 ~ 39.9 | D + 9.6 | 7.8 | 7 | 0.5 | 0.3 | 0.2 | 7 | 5.3 |
| 109 ~ 629 | 630 ~ 999 | 40 ~ 108.9 | D + 12.5 | 9.8 | 8.8 | 0.6 | 0.35 | 0.25 | 10 | 7.00 |
| 630 ~ 999 | 1000 ~ 1599 | 109 ~ 629 | D + 15.2 | 11.6 | 10.6 | 0.7 | 0.5 | 0.3 | 12 | 8.6 |
| 1000 ~ 1599 | ≥1600 | 630 ~ 999 | D + 17.8 | 14.8 | 13.5 | 0.8 | 0.6 | 0.4 | 15 | 10.0 |
| ≥1600 | - | 1000 ~ 1599 | D + 21.2 | 17.8 | 16.3 | 1 | 0.7 | 0.6 | 20 | 12.0 |
| Cathetan: 1. Kanggo ≤30mm, dianjurake kanggo nggunakake alur sing mbukak. | ||||||||||
| 2 .. Kanggo instalasi Groove Groove Groove Sealove, waca pandhuan instalasi perusahaan. 3. Kanggo tekanan> 40Mpa, area oyod saka segel nggunakake toleransi H8 / F8. | ||||||||||

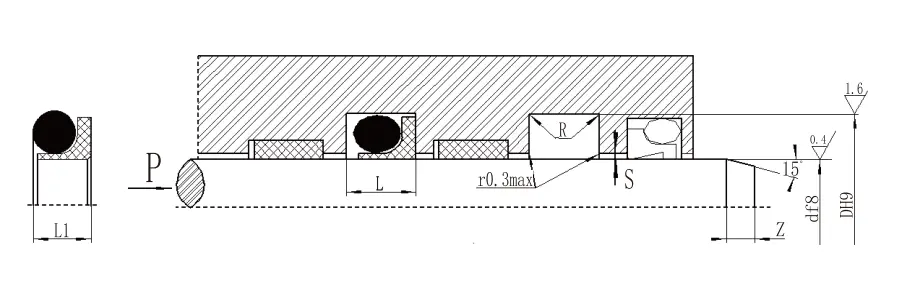

| 4.1 Tabel Paramalan Spesifikasi RC03 (produk ukuran apa wae ing tabel spesifikasi bisa diprodhuksi) | |||||||
| D F8 | D h9 | L+0.2 | SMax | Zmin | d0 |
|
|
| <40Mpa | <60mpa |
|
|||||
| 5 ~ 17 | D + 4.7 | 5.2 | 0.25 | 0.15 | 4 | 2.65 |
|
| 18 ~ 39 | D + 6.2 | 6.6 | 0.25 | 0.2 | 5 | 3.55 |
|
| 40 ~ 108 | D + 9.0 | 10 | 0.3 | 0.2 | 7 | 5.3 |
|
| 109 ~ 670 | D + 12.0 | 13.2 | 0.35 | 0.25 | 10 | 7 |
|
| 671 ~ 999 | D + 14.6 | 15.8 | 0.5 | 0.3 | 12 | 8.6 |
|
| 1000 ~ 1600 | D + 18 | 17.4 | 0.6 | 0.4 | 15 | 10 |
|
| > 1600 | D + 21.2 | 22 | 0.7 | 0.6 | 20 | 12 |
|
| CATETAN: 1 .. Kanggo Tekanan> 60Mpa, area segel Root nggunakake toleransi H8 / F8, lan segel tekanan ultra dhuwur <0.05. | |||||||
| 2 .. Tulung konsultasi perusahaan nalika struktur alur alit kudu digunakake. | |||||||
| 4.1 Spesifikasi RC06 (produk ukuran apa wae ing tabel spesifikasi bisa diprodhuksi) | ||||||||||
| D F8 Jinis standar Rc06 |
D F8 Cahya mbukak RC06-Q |
D F8 Beban abot Rc06-z |
D h9 | L+0.2 | L1 | RMax | SMax | Zmin | d0 | |
| <20MPA | <40Mpa | |||||||||
| - | 4 ~ 17.9 | - | D + 3.6 | 4 | 3.6 | 0.3 | 0.2 | 0.15 | 3 | 1.8 |
| 4 ~ 17.9 | 18 ~ 39.9 | - | D + 5.0 | 5 | 4.6 | 0.4 | 0.25 | 0.15 | 4 | 2.65 |
| 18 ~ 39.9 | 40 ~ 106.9 | 4 ~ 17.9 | D + 6.6 | 6.2 | 5.6 | 0.4 | 0.25 | 0.2 | 5 | 3.55 |
| 40 ~ 106.9 | 107 ~ 630.9 | 18 ~ 39.9 | D + 9.9 | 9.2 | 8.5 | 0.5 | 0.3 | 0.2 | 7 | 5.30 |
| 107 ~ 630.9 | 631 ~ 999 | 40 ~ 106.9 | D + 13.0 | 12.3 | 10.6 | 0.6 | 0.35 | 0.25 | 10 | 7.00 |
| 631 ~ 999 | 1000 ~ 1600 | 107 ~ 630.9 | D + 15.2 | 13.6 | 12 | 0.7 | 0.5 | 0.3 | 12 | 8.6 |
| 1000 ~ 1600 | ≥1600 | 631 ~ 999 | D + 18.5 | 16 | 14.5 | 0.8 | 0.6 | 0.4 | 15 | 10 |
| ≥1600 | - | 1000 ~ 1600 | D + 22 | 19 | 17 | 1 | 0.7 | 0.6 | 20 | 12.0 |
| Cathetan: 1. Kanggo diameter shaft ≤70mm, disaranake nggunakake alur mbukak. Kanggo instalasi Groove Integrasi (Ditutup), waca pandhuan instalasi. | ||||||||||
| 2 .. Kanggo Tekanan> 40Mpa, area oyod saka segel nggunakake toleransi H8 / F8. | ||||||||||
| 4.1 Spesifikasi RC08 (produk ukuran apa wae ing tabel spesifikasi bisa diprodhuksi) | ||||||||||
| Jinis standar DF8 RC08 | Cahya mbukak DF8 RC08-Q | Beban abot df8 rc08-z | Diameteripun alur D h9 | Jembaré alur L + 0.2 |
SEAL HEOP L1 | Sudhut bunder rMax | Reres radial sMax | Chamfer Zmin |
Kawat O-ring Diamete d0 | |
| <20MPA | <60mpa | |||||||||
| - | 5 ~ 17.9 | - | D + 3.6 | 4.7 | 4.2 | 0.3 | 0.2 | 0.15 | 3 | 1.8 |
| 5 ~ 17.9 | 18 ~ 39.9 | - | D + 5.2 | 6.1 | 5.5 | 0.4 | 0.25 | 0.15 | 4 | 2.65 |
| 18 ~ 39.9 | 40 ~ 108.9 | 5 ~ 17.9 | D + 6.8 | 8 | 7 | 0.4 | 0.25 | 0.2 | 5 | 3.55 |
| 40 ~ 108.9 | 109 ~ 629 | 18 ~ 39.9 | D + 10.2 | 11.2 | 10 | 0.5 | 0.3 | 0.2 | 7 | 5.30 |
| 109 ~ 629 | 630 ~ 999 | 40 ~ 108.9 | D + 13.4 | 14.2 | 12.7 | 0.6 | 0.35 | 0.25 | 10 | 7.00 |
| 630 ~ 999 | 1000 ~ 1599 | 109 ~ 629 | D + 16.0 | 16.2 | 14.5 | 0.7 | 0.5 | 0.3 | 12 | 8.6 |
| 1000 ~ 159 | ≥1600 | 630 ~ 999 | D + 18.8 | 18.6 | 16.8 | 0.8 | 0.6 | 0.4 | 15 | 10.0 |
| ≥1600 | - | 1000 ~ 1599 | d + 22.8 | 21.8 | 19.8 | 1.0 | 0.7 | 0.6 | 20 | 12.0 |
| CATETAN: 1 .. Tulung konsultasi perusahaan nalika alur tertutup dibutuhake. | ||||||||||
| 2. Tekanan> 60Mpa, ROOT H8 / F8 sing cocog karo toleransi, Segel Tekanan Tinggi Ultra-High <0,05. | ||||||||||
