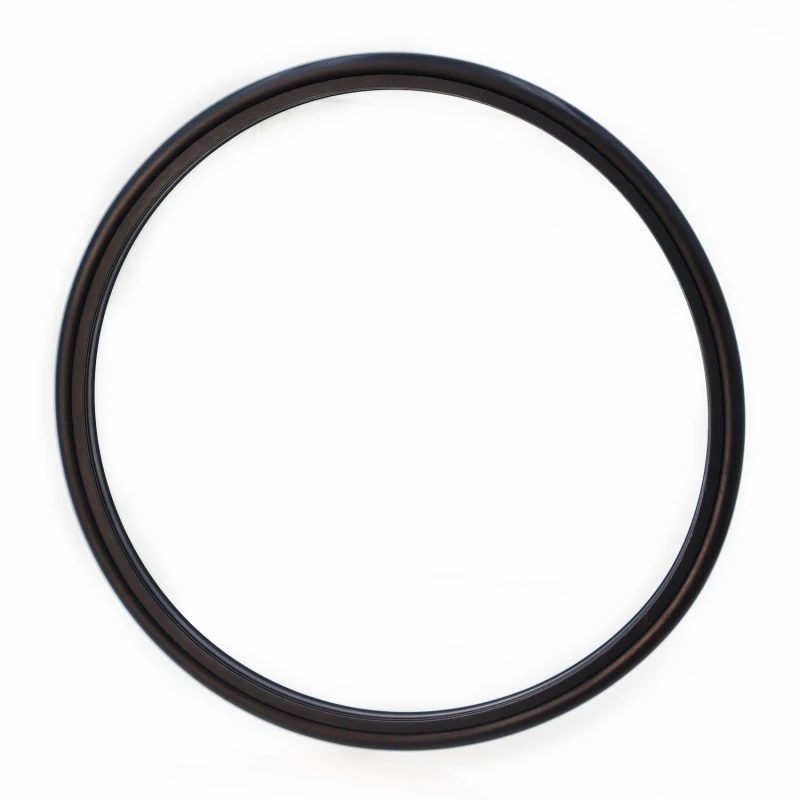

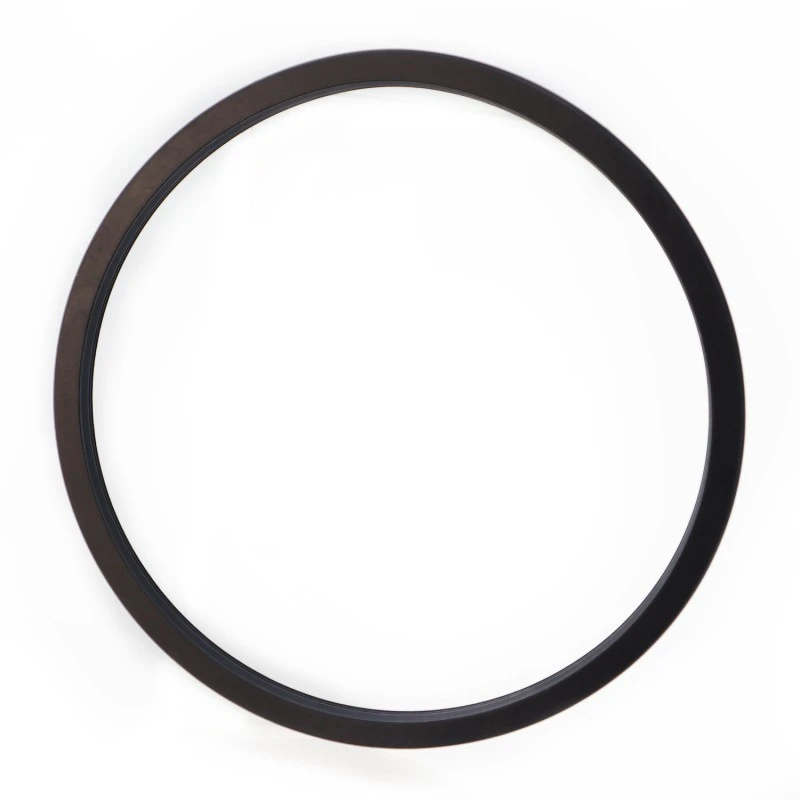

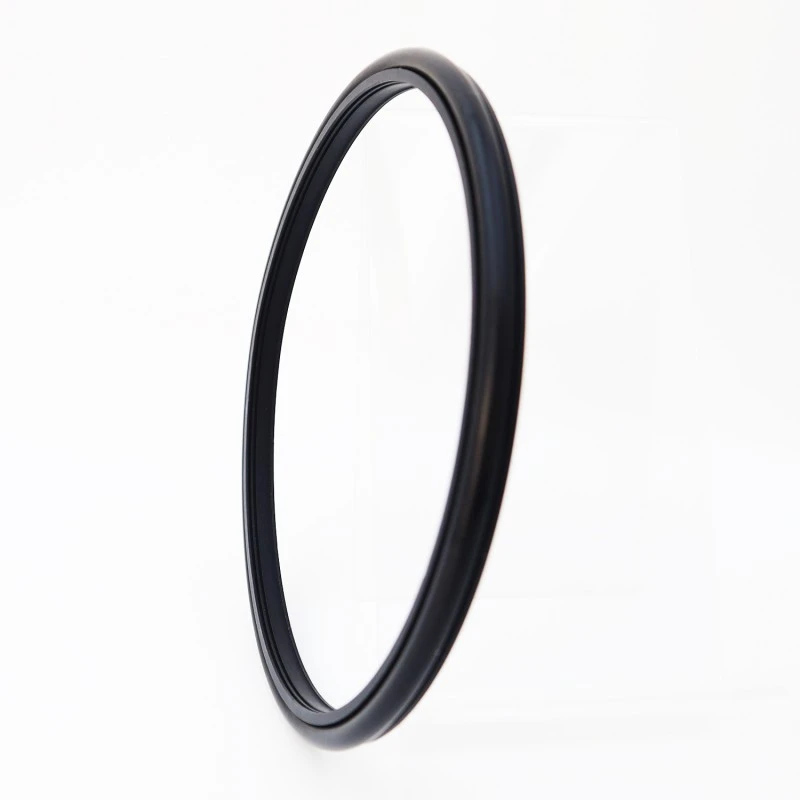

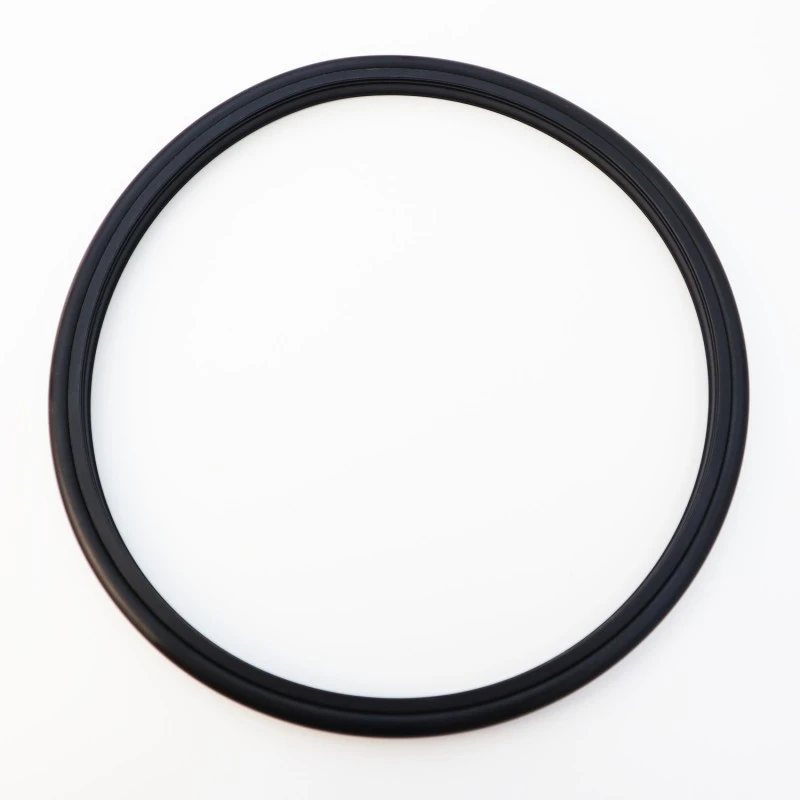

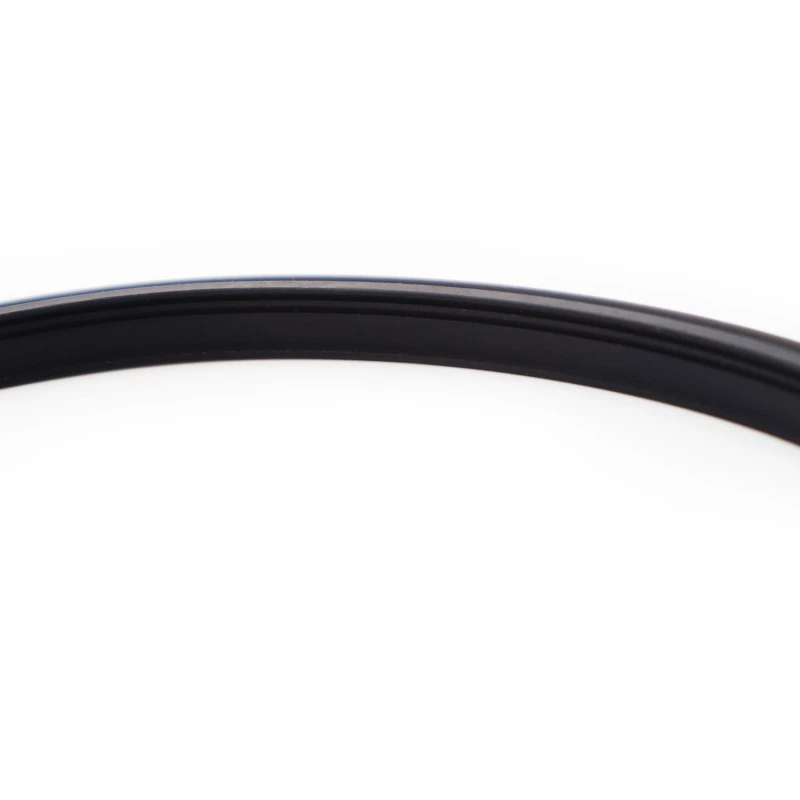

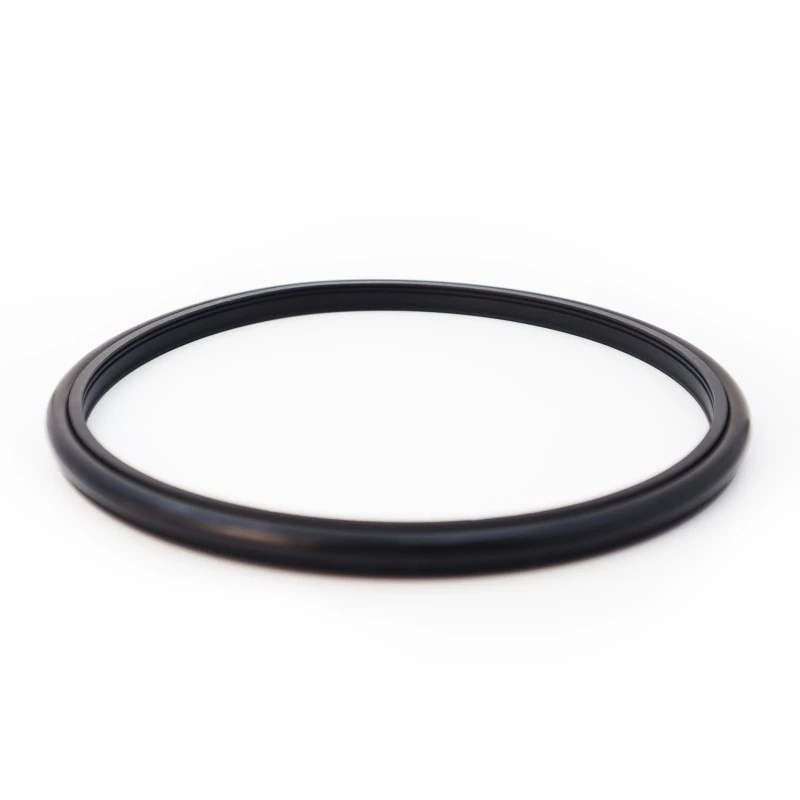

Shaft Seal kanggo High-Pressure Cement Slurry: Umur dhuwur, gesekan kurang, kinerja sealing banget, desain kompak, lan gampang instalasi, nggunakake, lan pangopènan. Lambe sealing khusus lan desain kekandelan sing dioptimalake nyedhiyakake panyegelan sing apik sanajan ing media sing kasar kayata slurry semen. Nalika digunakake kanggo nutup media kaya lendhut, disaranake pelumasan pelumas ing antarane rong (utawa luwih) segel.
Kahanan operasi sing ditrapake (nilai watesan ora kudu kedadeyan bebarengan)
|
Tekanan/MPa |
Suhu / °C |
Kacepetan / m/s |
Sedheng |
|
|
Gerakan timbal balik |
Gerakan rotasi |
|||
|
≤100 |
-35~+100 (kanthi NBR O-rings sing cocog) |
≤6 |
≤2 |
Banyu, lendhut, lenga mentah, lenga hidrolik, emulsi |
|
-20~+200 (kanthi O-ring FKM sing cocog) |
||||
Yen sampeyan nemoni pitakon utawa kahanan darurat sajrone nggunakake produk, sampeyan bisa ngubungi Ruichen sawayah-wayah. Kita nyedhiyakake hotline konsultasi teknis 7 x 24 jam kanggo nangani masalah teknis sing penting.
Yen ana kebocoran segel, nyandhang ora normal utawa kegagalan kinerja, tim dhukungan teknis bakal langsung miwiti proses respon kanthi telpon utawa email. Kita bisa menehi sampeyan pengadilan lan solusi awal liwat diagnosis video remot, analisis gambar lan cara liyane. Kanggo masalah sing rumit, kita janji bakal menehi laporan analisis awal sajrone 48 jam, lan yen perlu, ngirim insinyur menyang situs kasebut kanggo menehi dhukungan teknis, lan bareng-bareng neliti masalah kasebut karo sampeyan nganti masalah rampung.
Pilihan materi
1. Bahan O-ring sing cocog kalebu: R01 Nitrile Butadiene Rubber (NBR), R02 Fluororubber (FKM), etc.
2. Bahan ring Sealing: Bahan standar PTFE4, bahan pilihan liyane kalebu PTFE2 / PTFE3 / PTFE5 / UPE / PK1 / PK2, lsp.
Tuladha Pesenan
Model pesenan RC2061-80*91.7*7.6-PTFE4-R01 Model - Diameter Poros * Diameter Alur * Jembar Alur - Kode Bahan

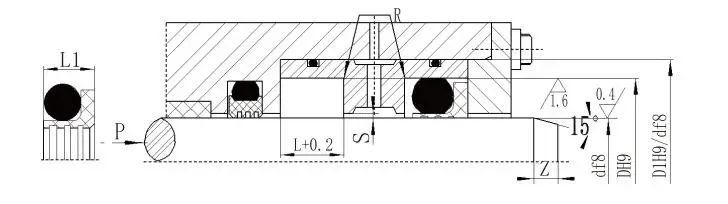

(a) Struktur terbuka

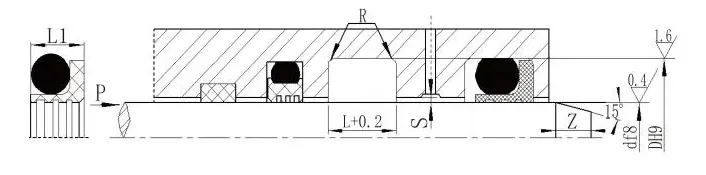

(b) Struktur tertutup
Spesifikasi (ukuran apa wae ing kisaran sing ditemtokake kasedhiya)
|
Kisaran diameter poros Tipe standar d f8 RC2061 |
Kisaran diameteripun poros Jinis beban abot d f8 RC2061-Z |
diameteripun alur DH9 |
Jembaré alur L+0.2 |
Jembaré segel L1 |
sudhut bunder Rmax |
Reresik radial Smax |
Chamfer Zmin |
diameteripun kabel O-ring |
||
|
<10MPA |
<20MPA |
<40MPA |
||||||||
|
5~15.9 |
- |
d+6.3 |
4.0 |
3.65 |
0.4 |
0.4 |
0.25 |
0.15 |
4 |
2.65 |
|
16~38.9 |
5~15.9 |
d+8.2 |
5.2 |
4.55 |
0.4 |
0.4 |
0.25 |
0.2 |
5 |
3.55 |
|
39-107.9 |
16-38.9 |
d+11.7 |
7.6 |
6.80 |
0.5 |
0.5 |
0.3 |
0.2 |
7 |
5.30 |
|
108-670.9 |
39~107.9 |
d+15.5 |
9.6 |
8.50 |
0.6 |
0.6 |
0.35 |
0.25 |
8 |
7.00 |
|
671~1600 |
108-670.9 |
d+19.4 |
12.1 |
11.1 |
0.7 |
0.7 |
0.5 |
0.3 |
10 |
8.60 |
Cathetan: 1. Kanggo diameter batang ≤ 30mm, desain alur mbukak dianjurake.
2. Nalika digunakake kanggo segel rotary, atose lumahing HRC ≥ 58 kanggo poros puteran dianjurake.
3. Kanggo tekanan luwih saka 30MPa, pas H8 / 8 dianjurake kanggo longkangan extrusion.
