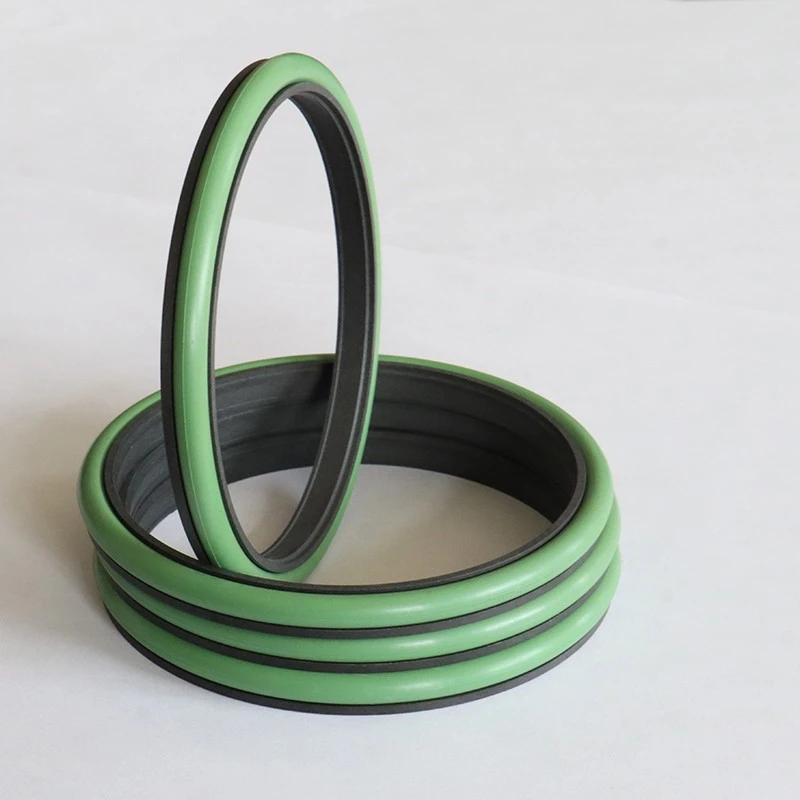

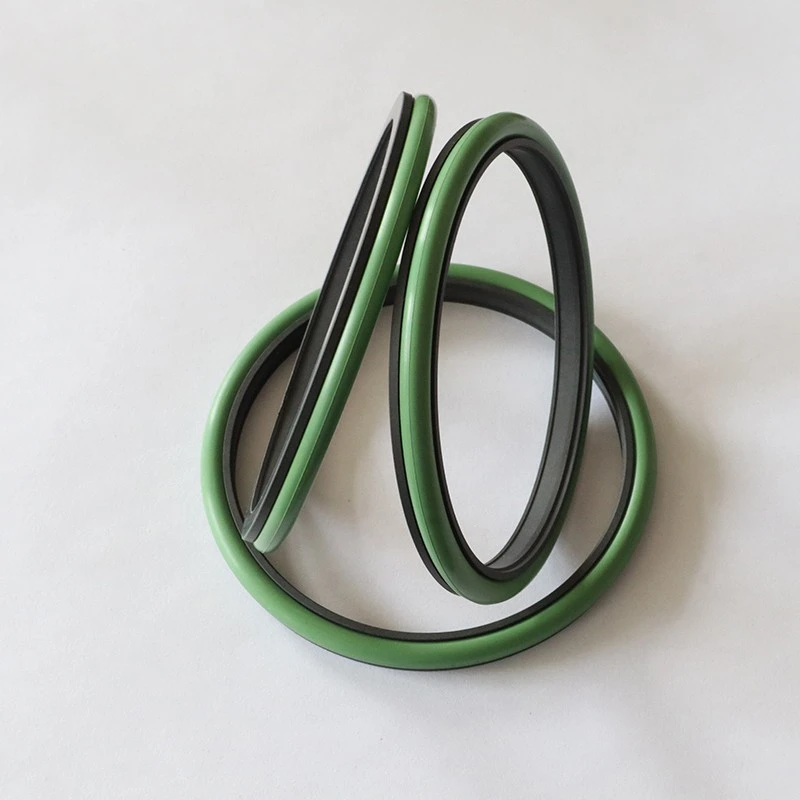

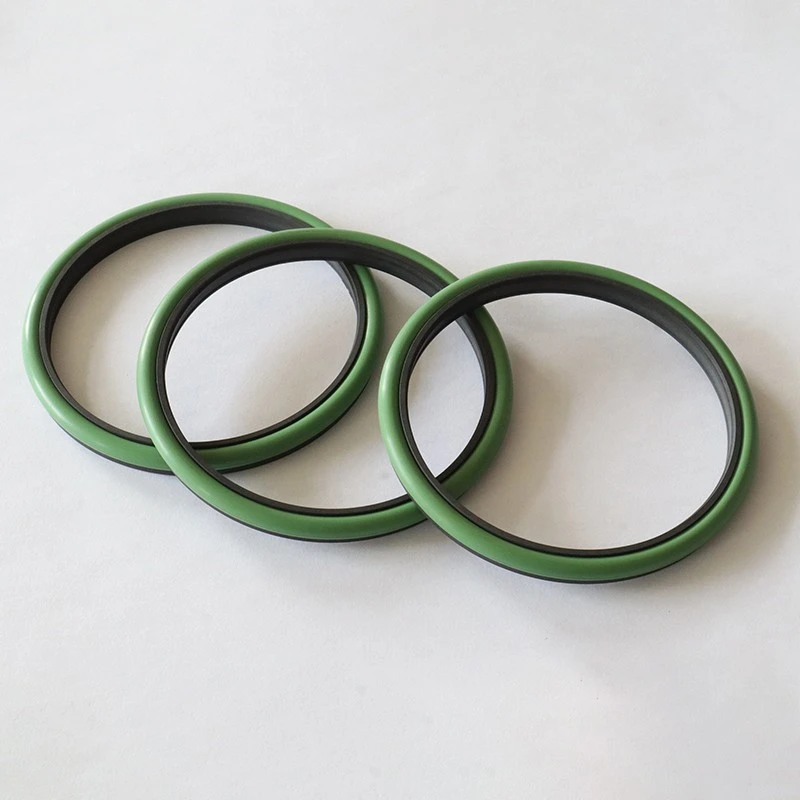

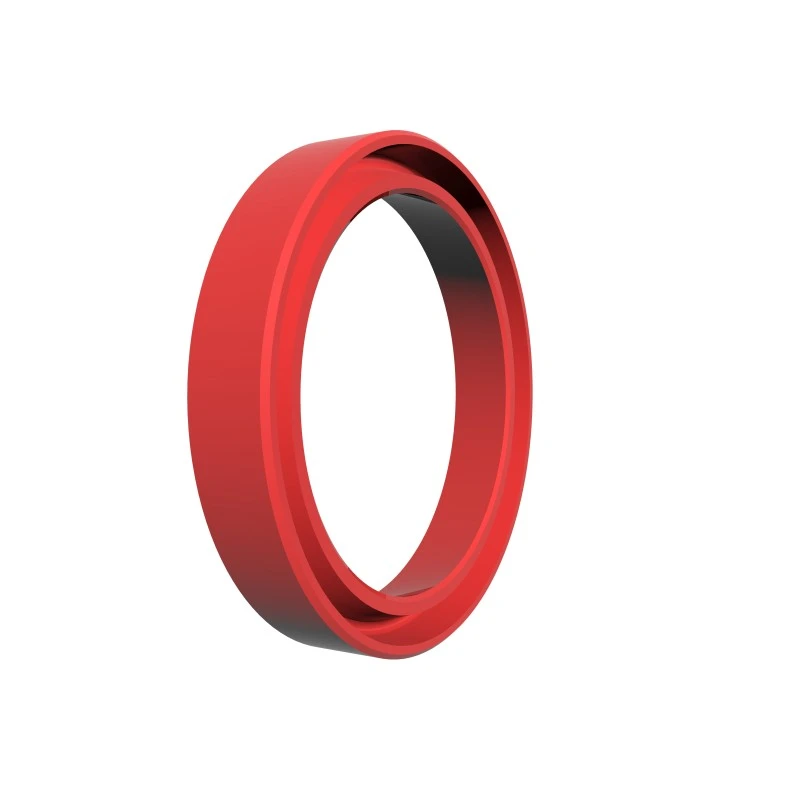

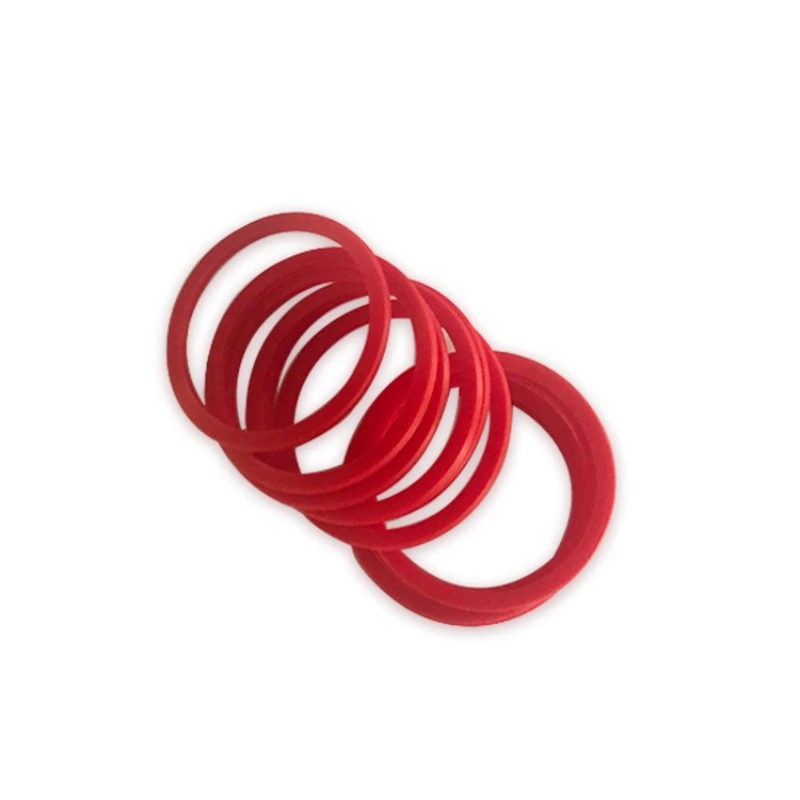

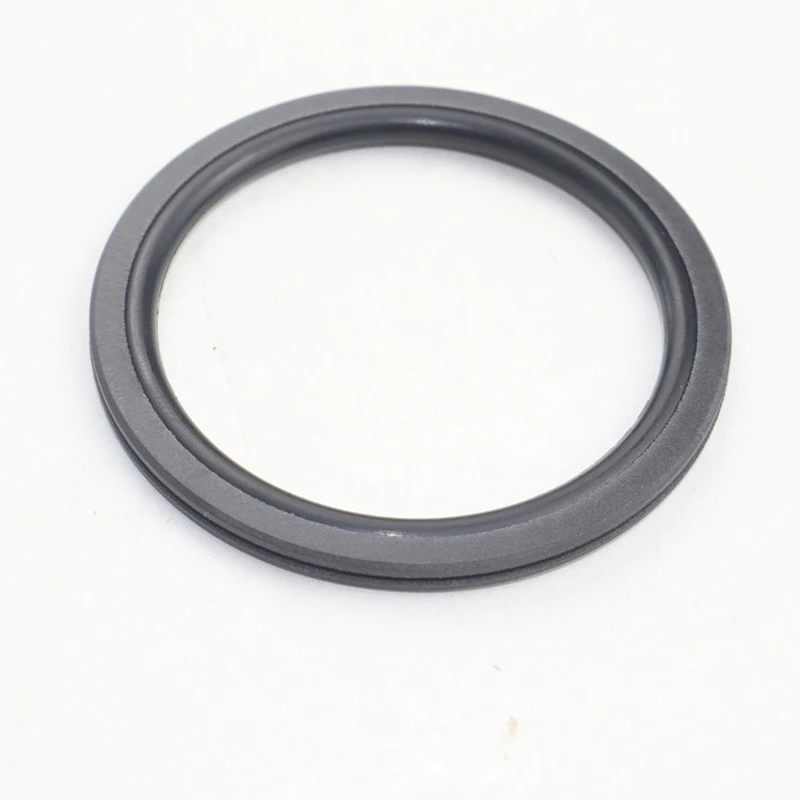

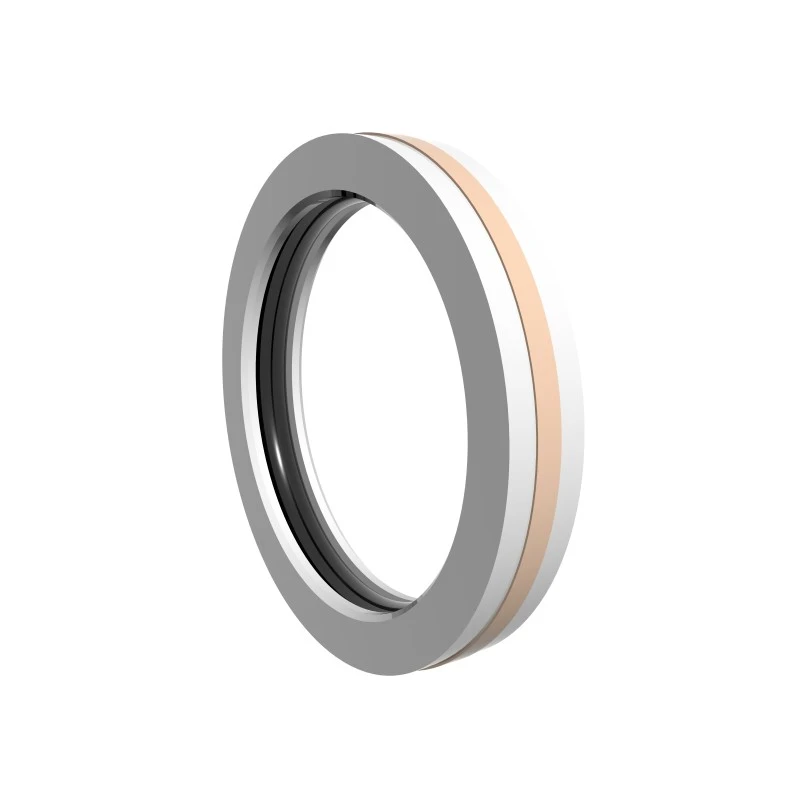

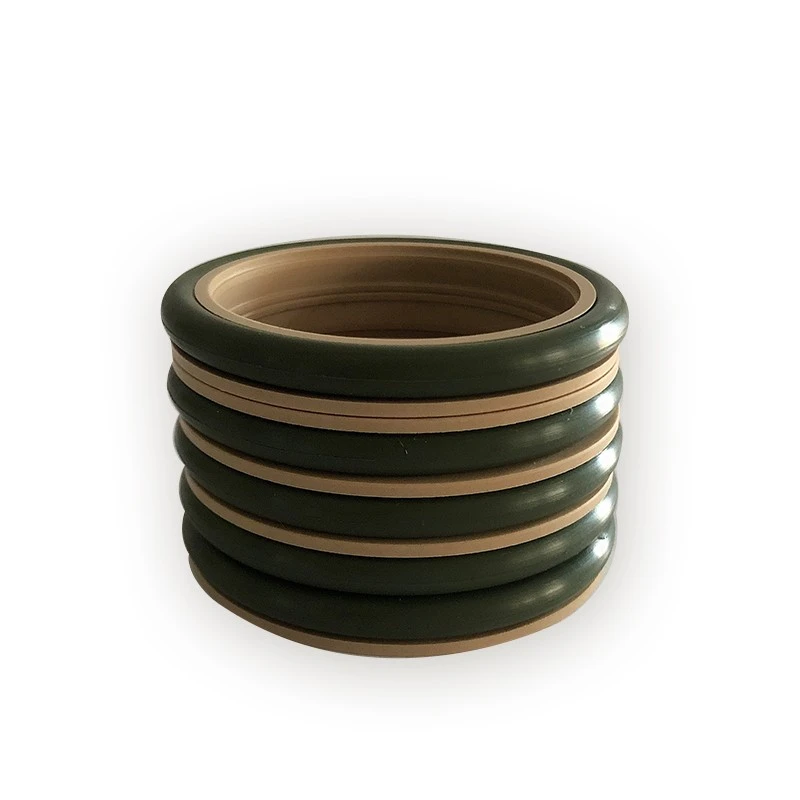

Seri Kulitasi tekanan tinggi sing dhuwur kalebu macem-macem produk kinerja dhuwur, kalebu RC2052, RC2054, RC2054, RCX18, sing dirancang kanggo lingkungan rcxp3, pneumatik lan lingkungan tekanan banyu.

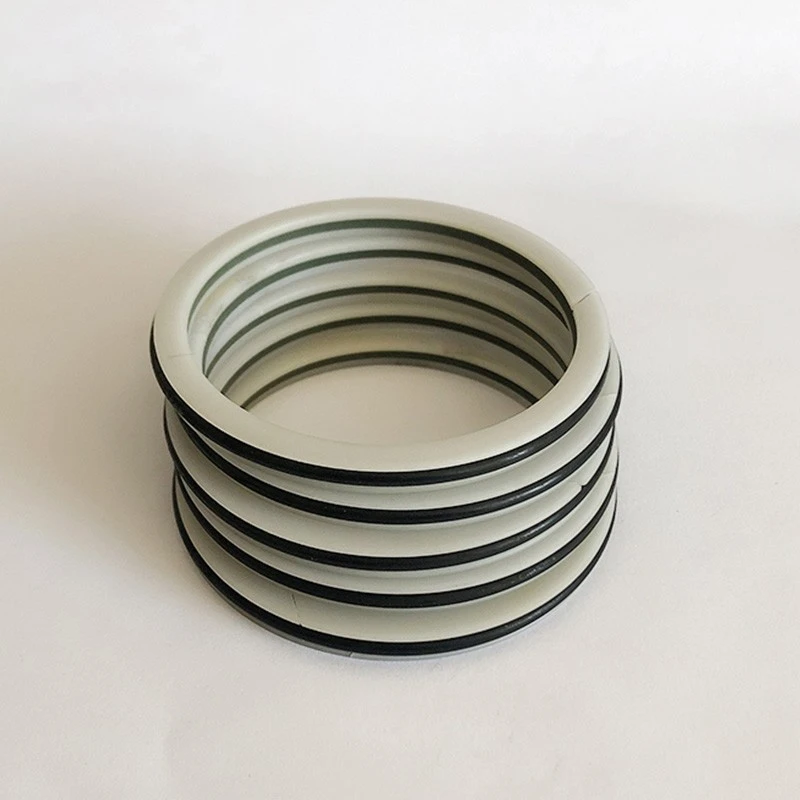

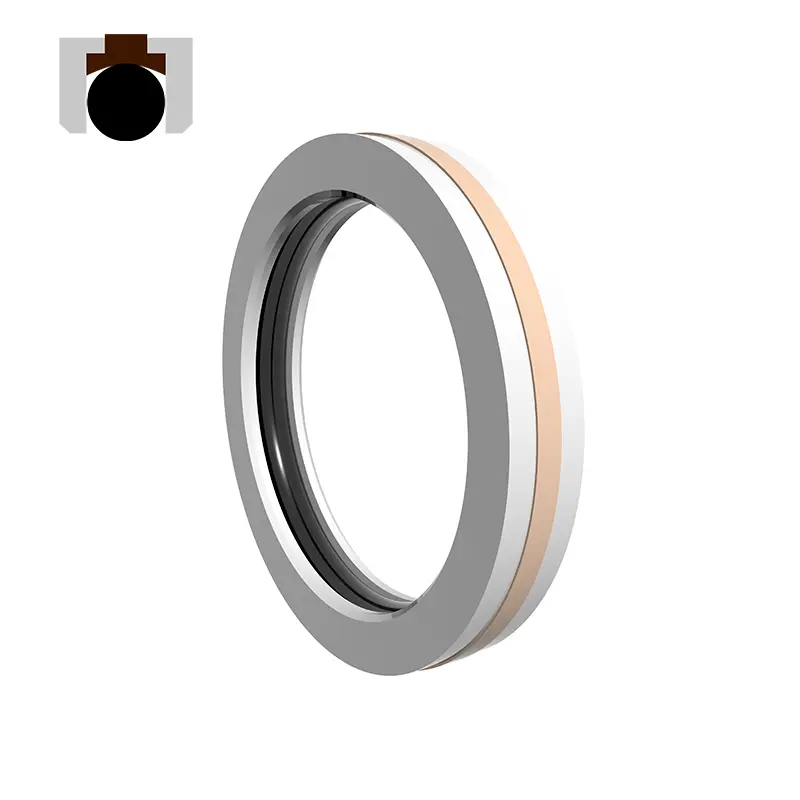

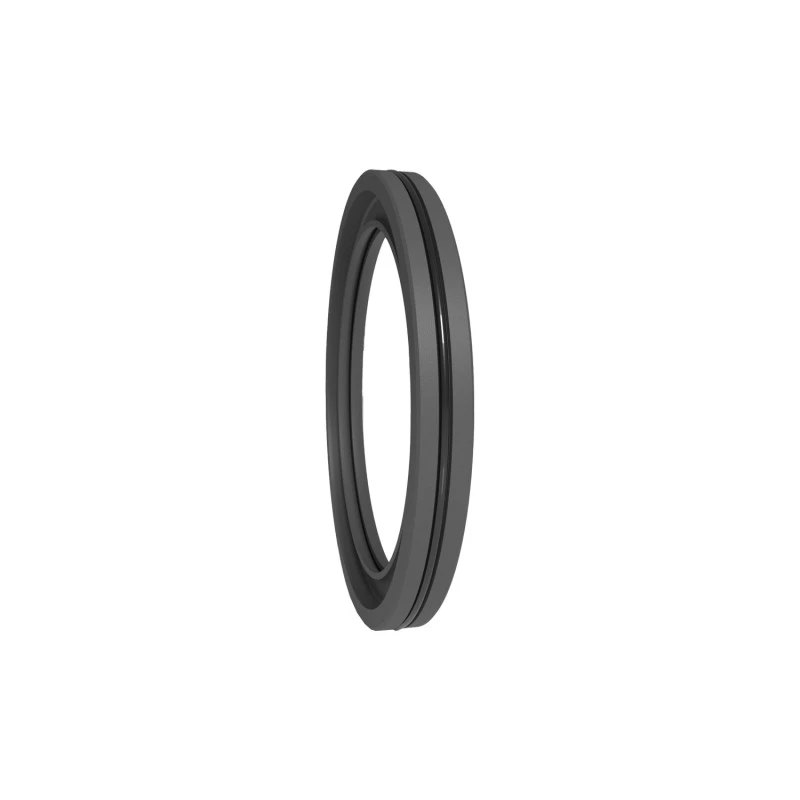

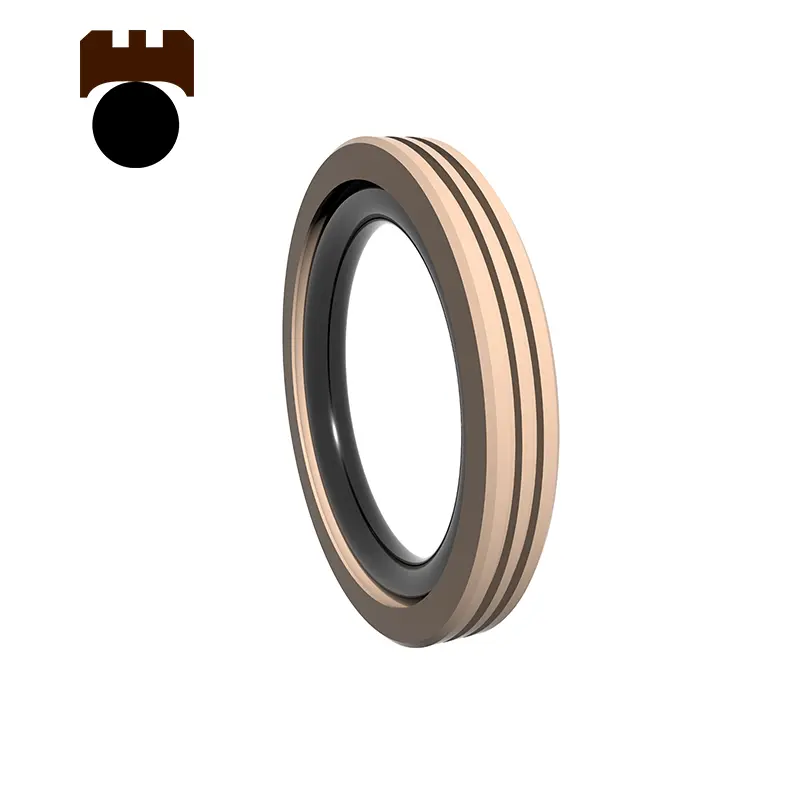

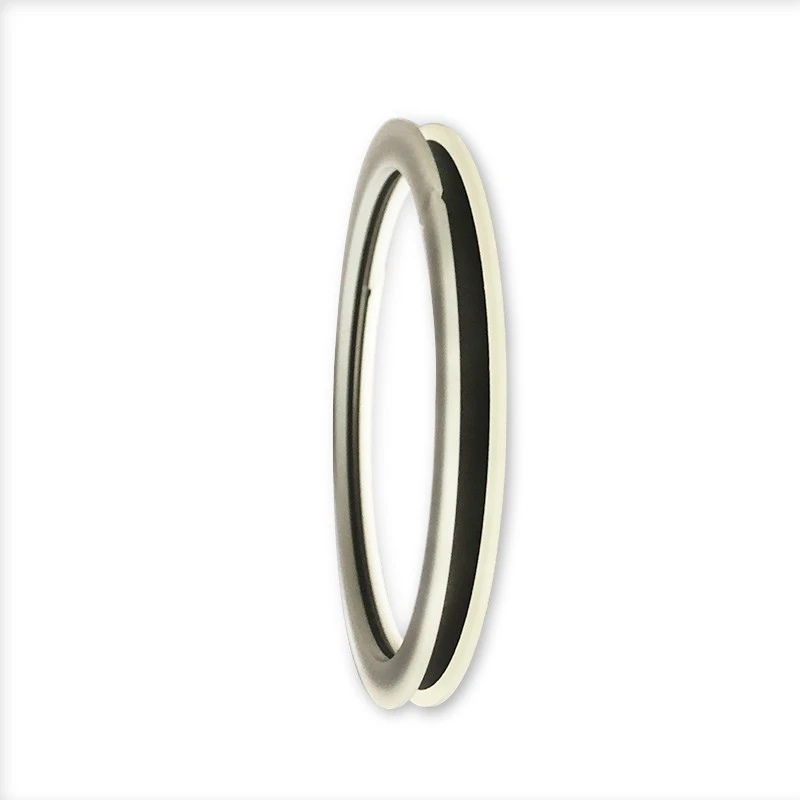

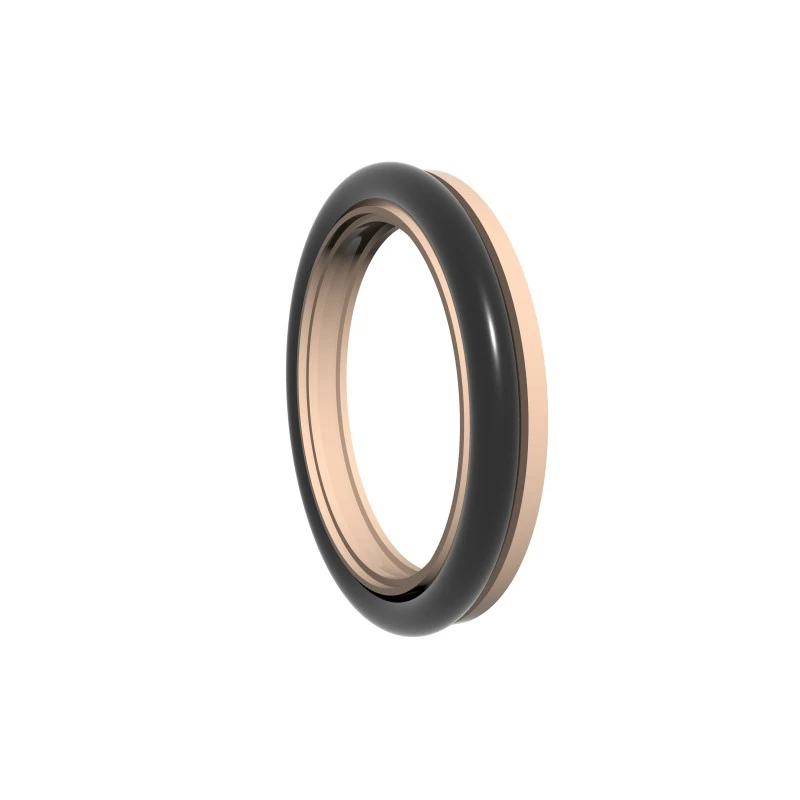

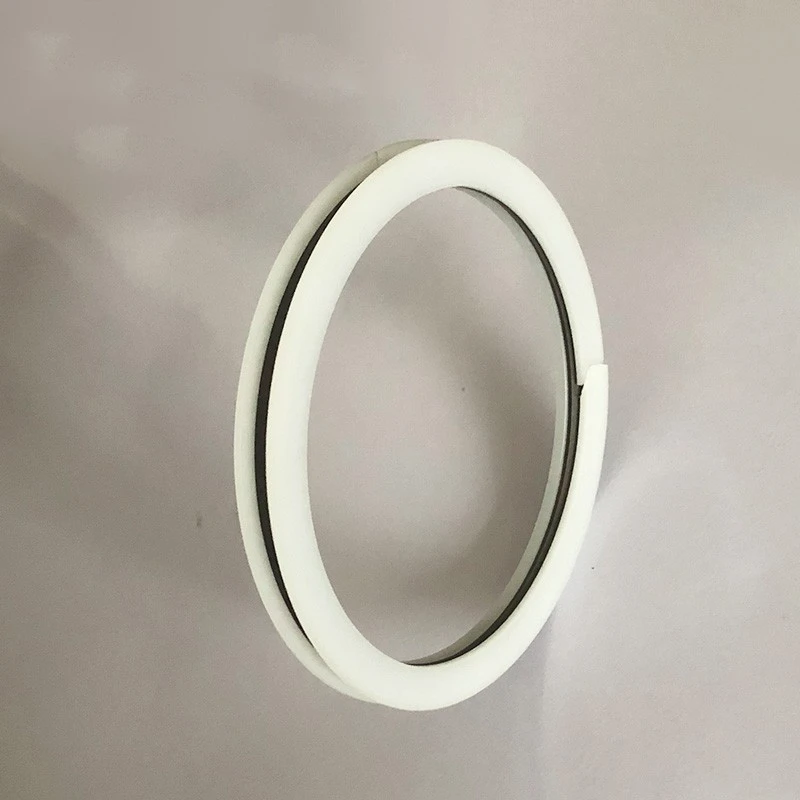

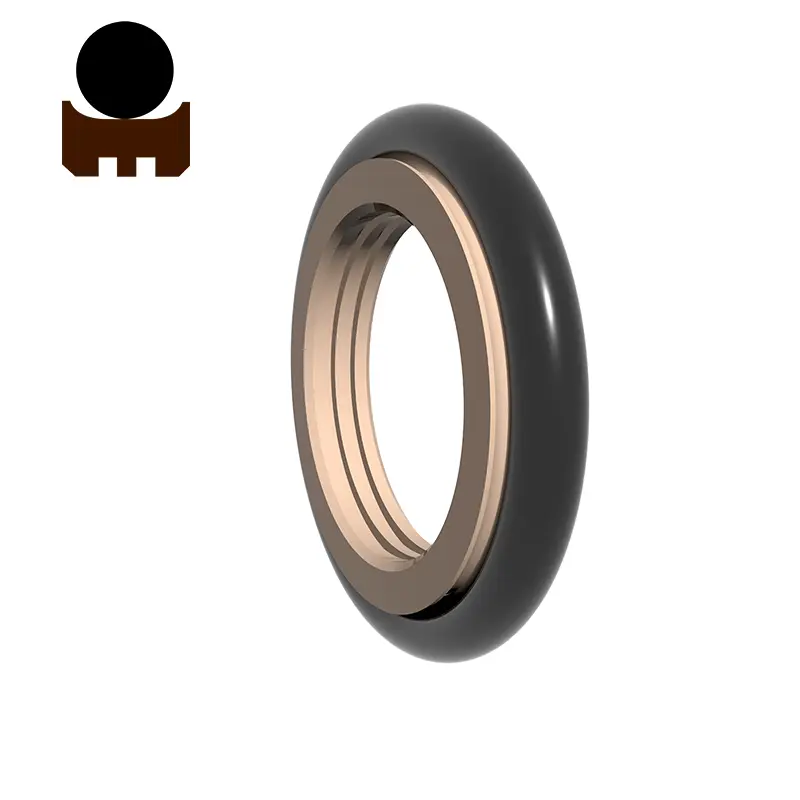

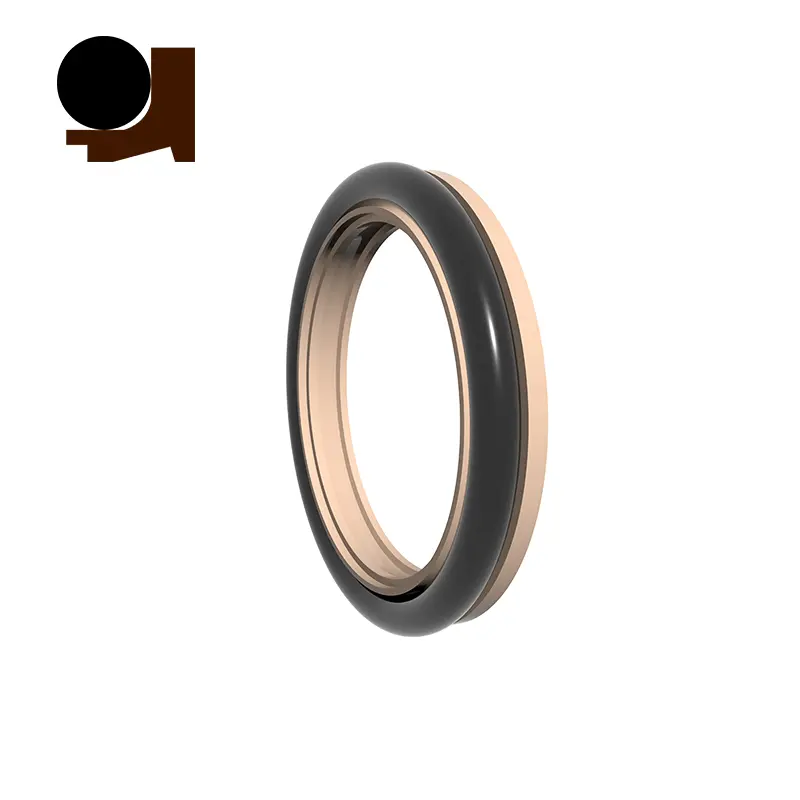

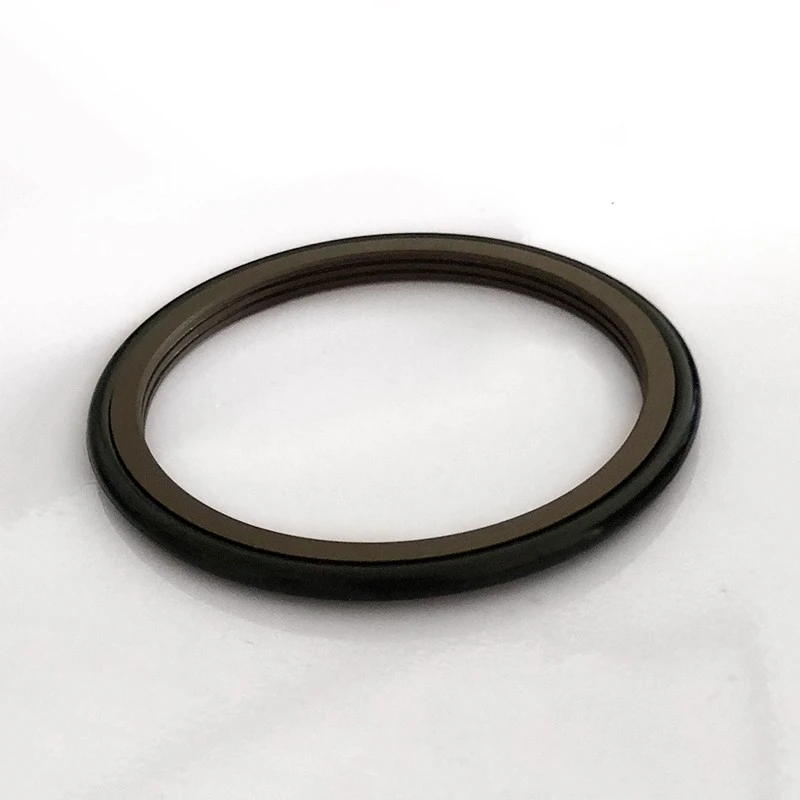

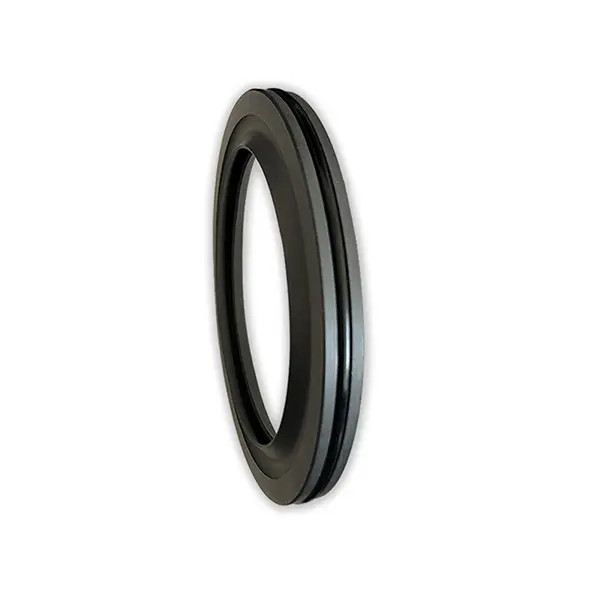

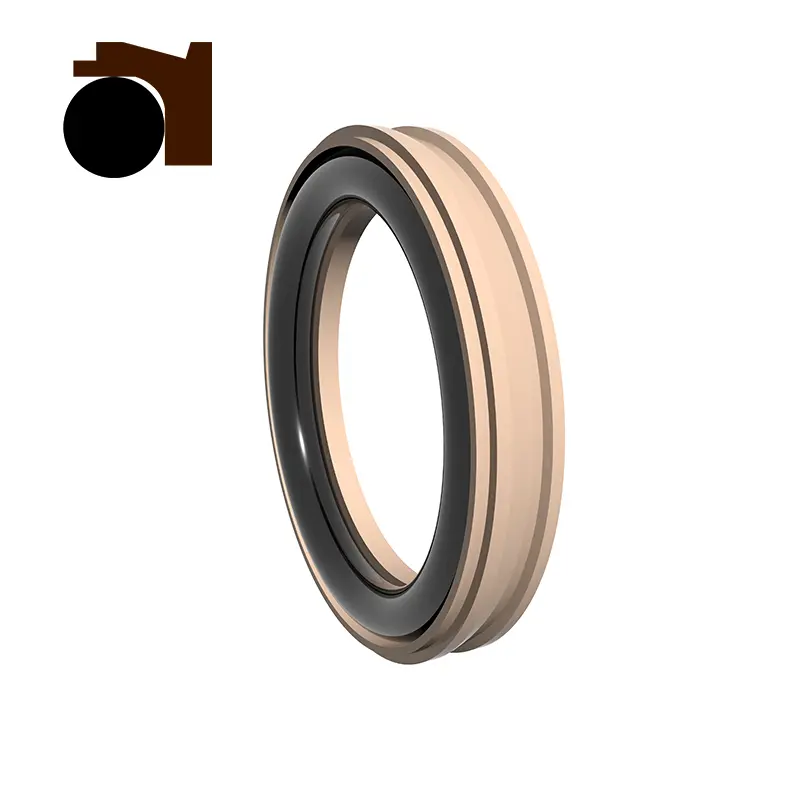

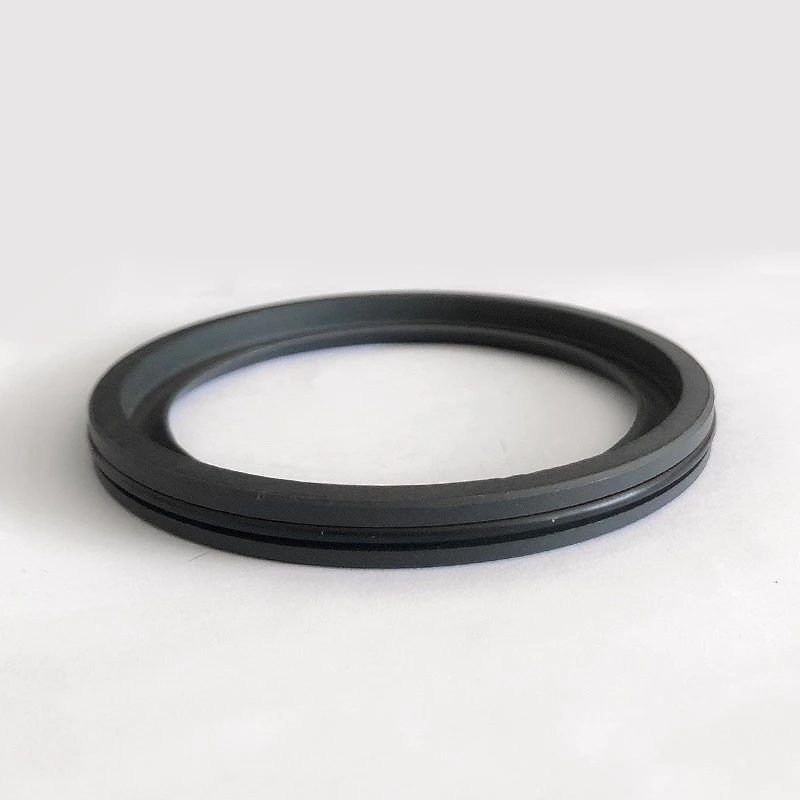

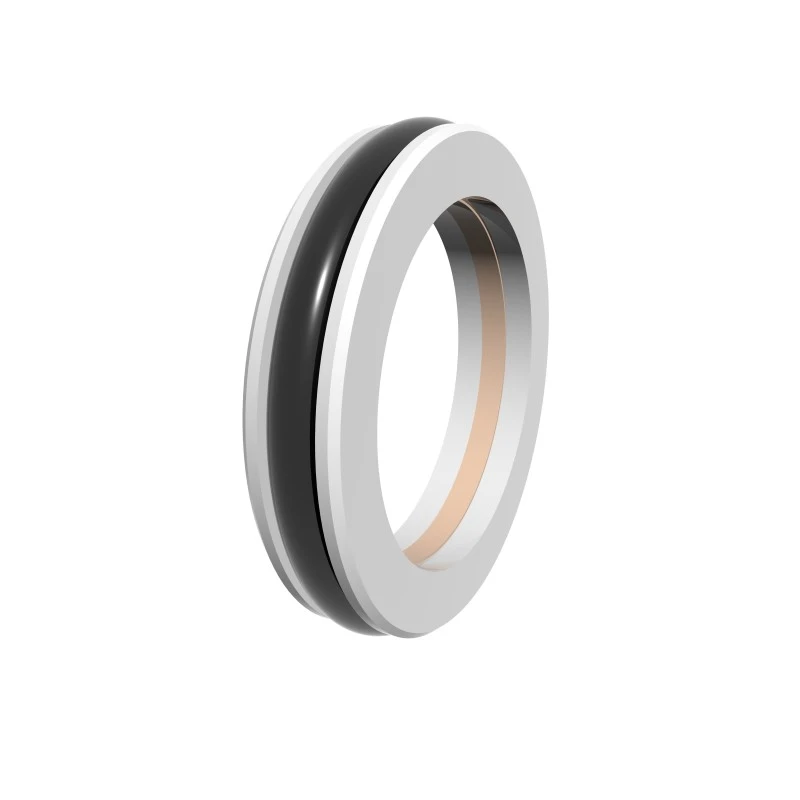

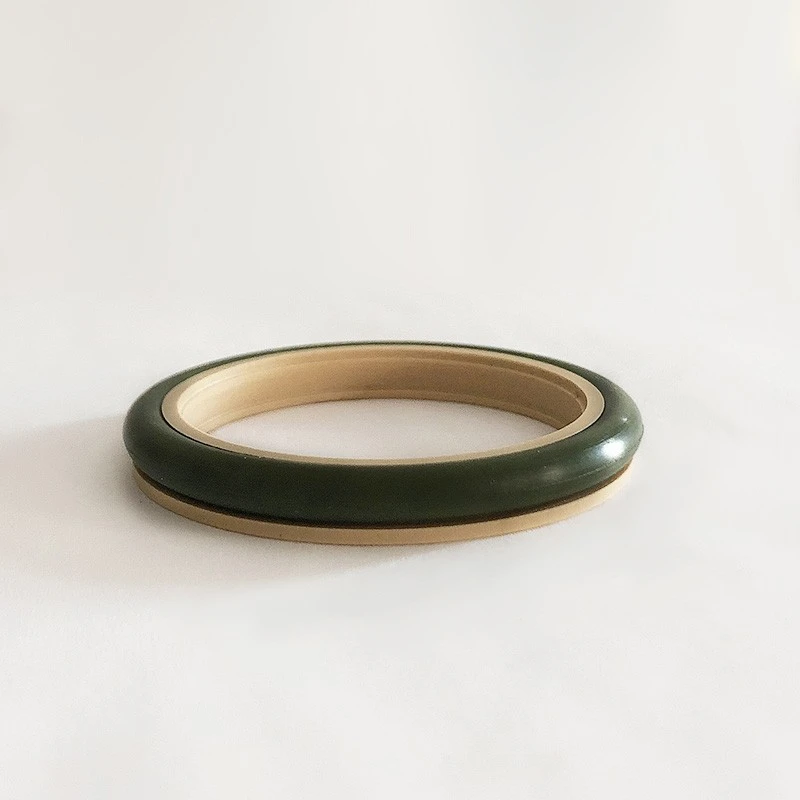

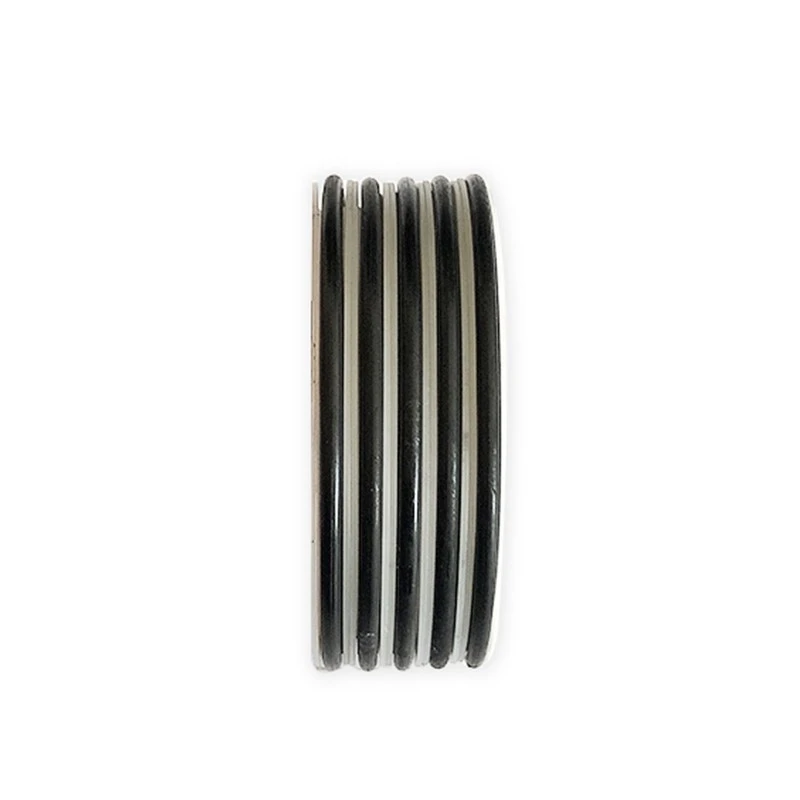

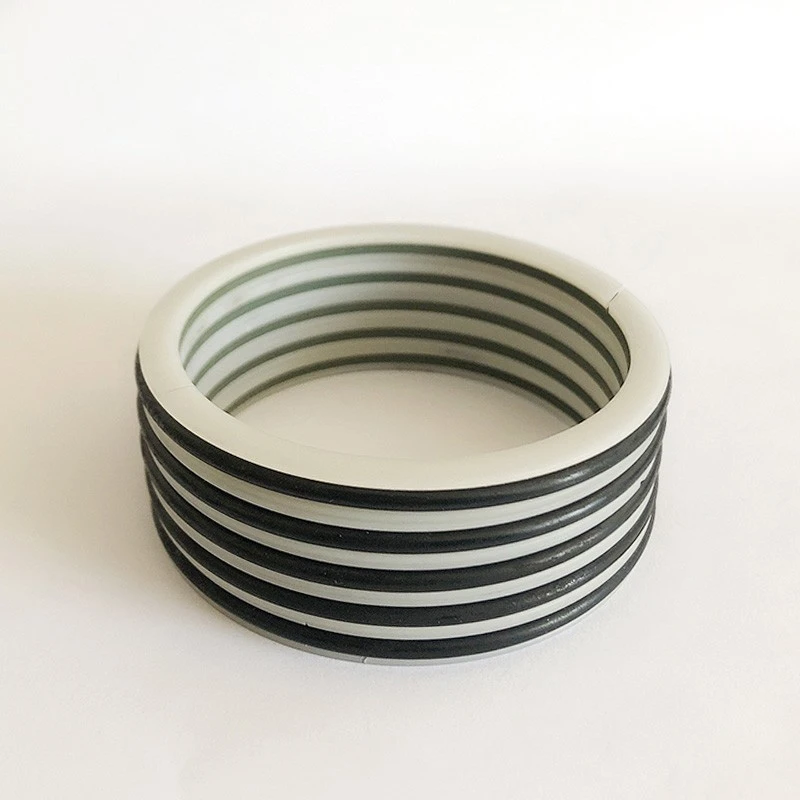

Seri RC2051 nggunakake gabungan dering segel ptfe lan dering kanggo nutup segel siji-arah. Nduwe gesekan rendah lan karakteristik penyusangan dhuwur lan dipérang dadi jinis standar (RC2051-B) lan jinis kacepetan dhuwur (RC2051-G).

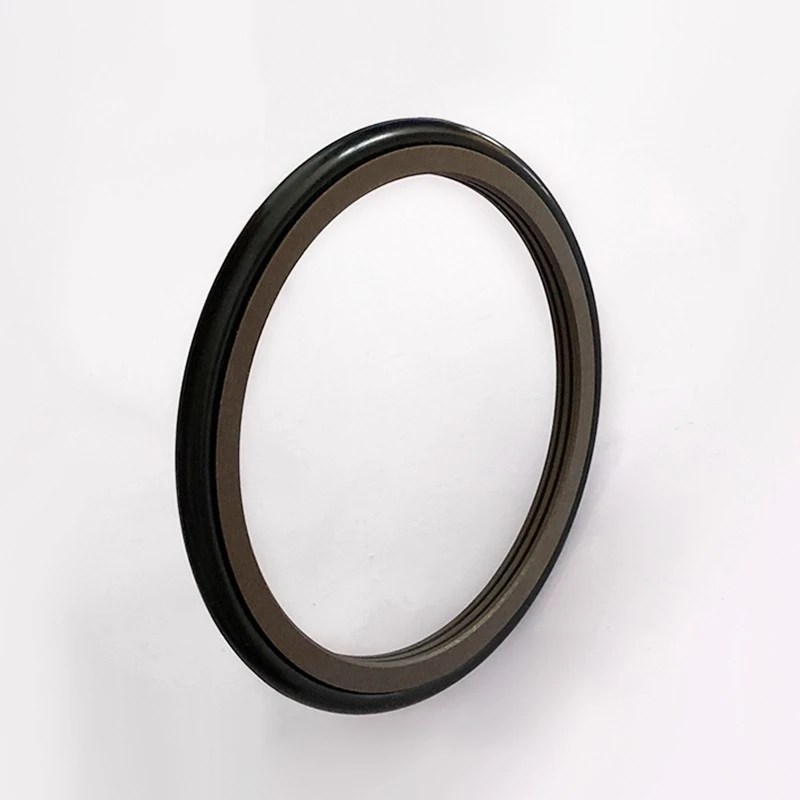

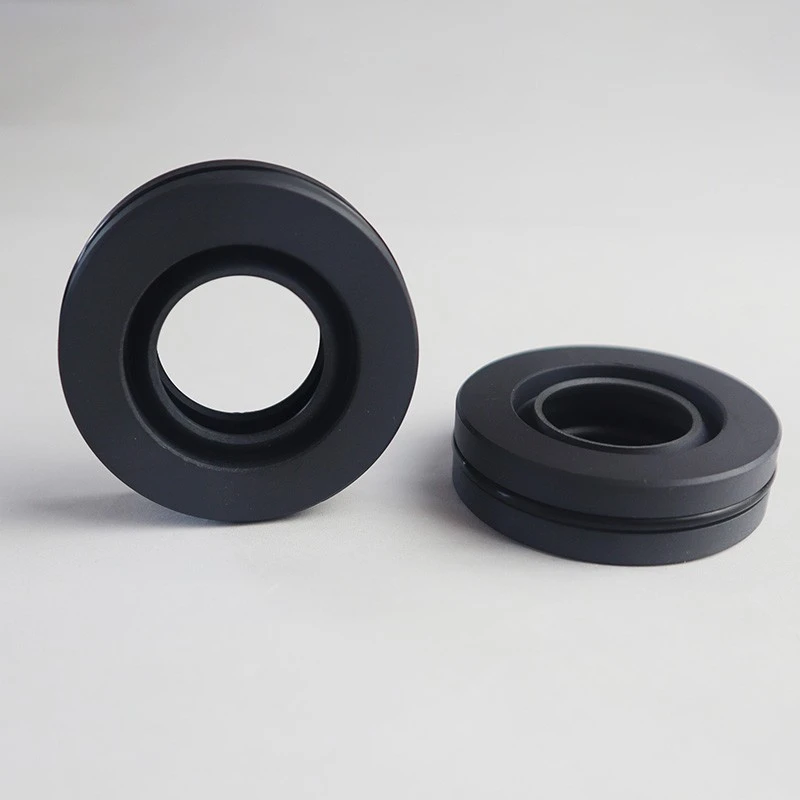

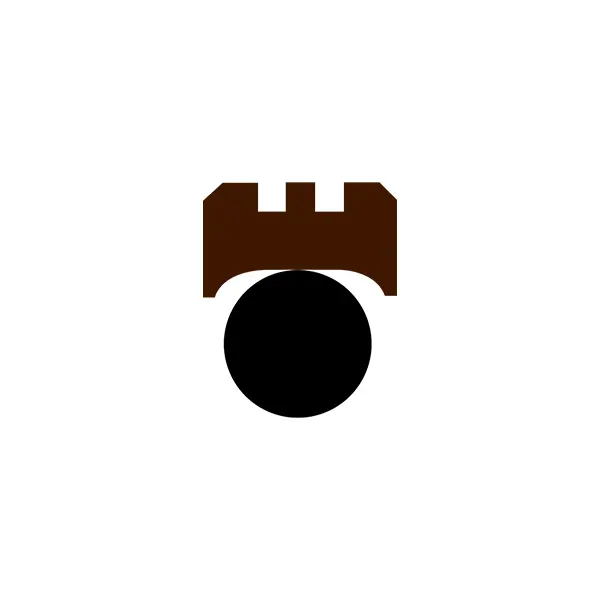

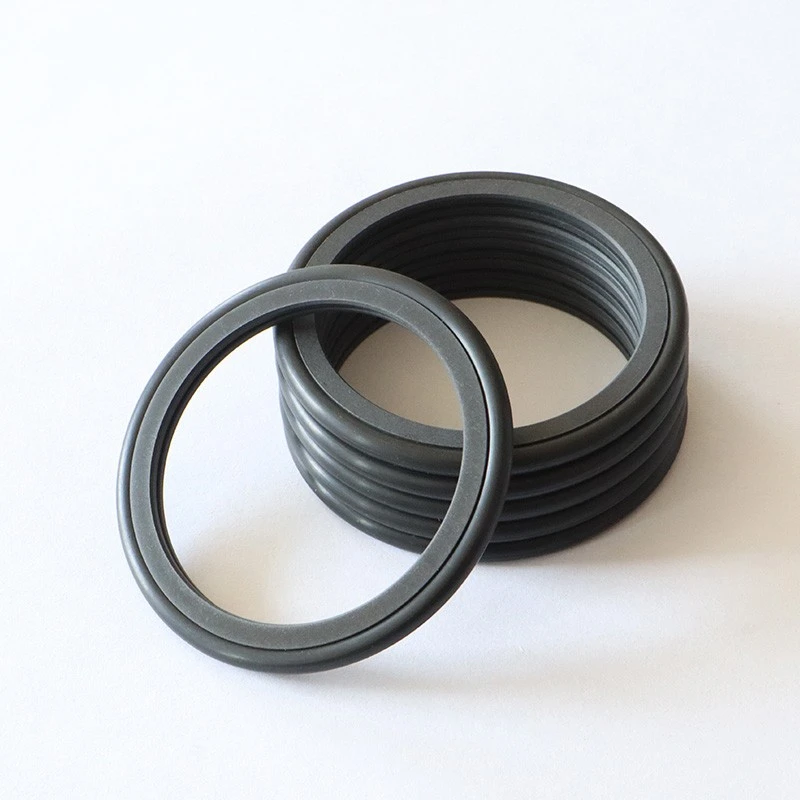

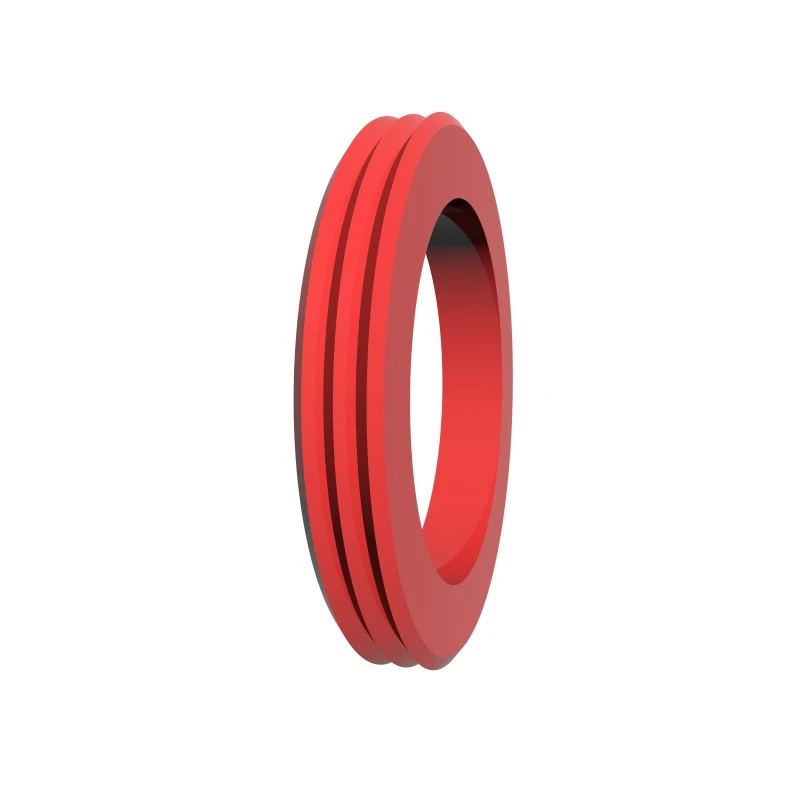

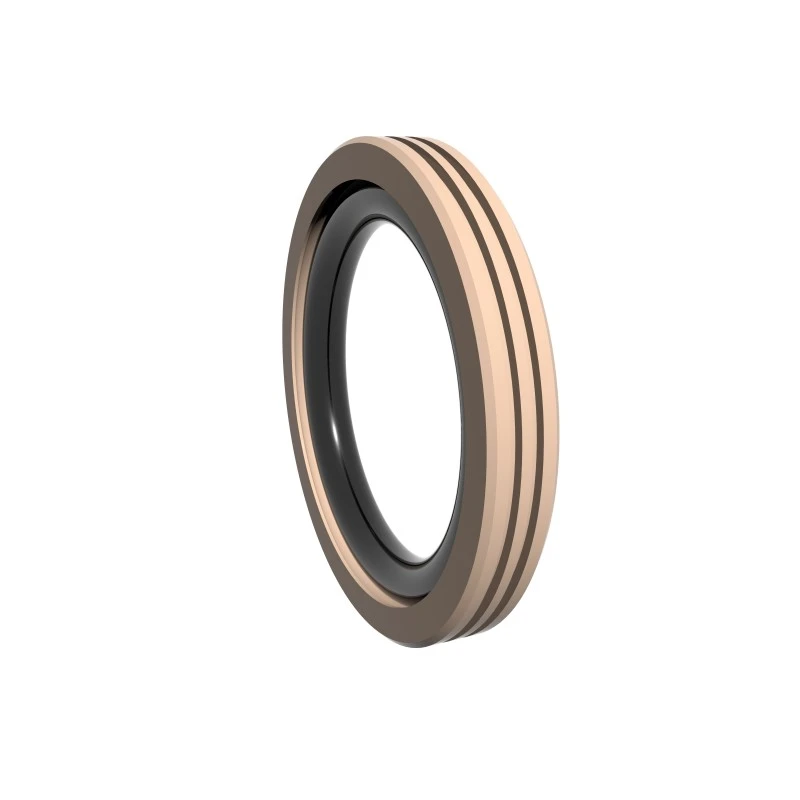

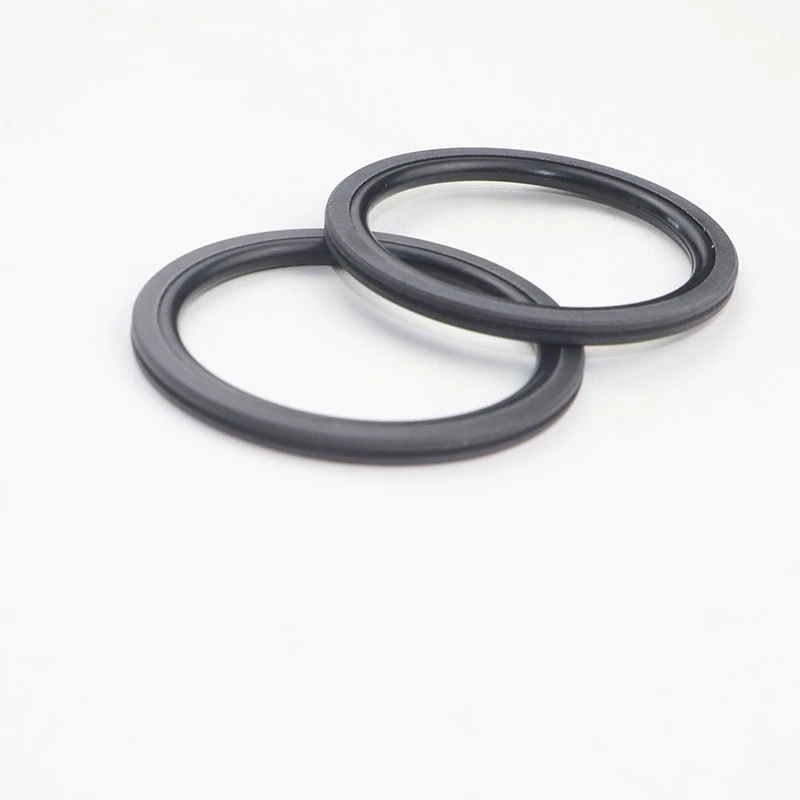

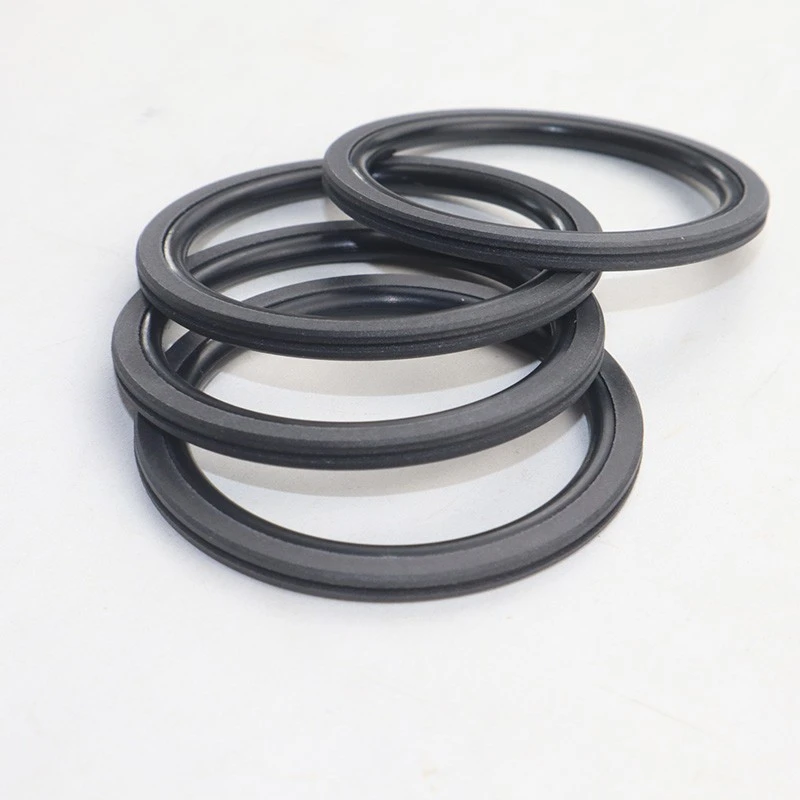

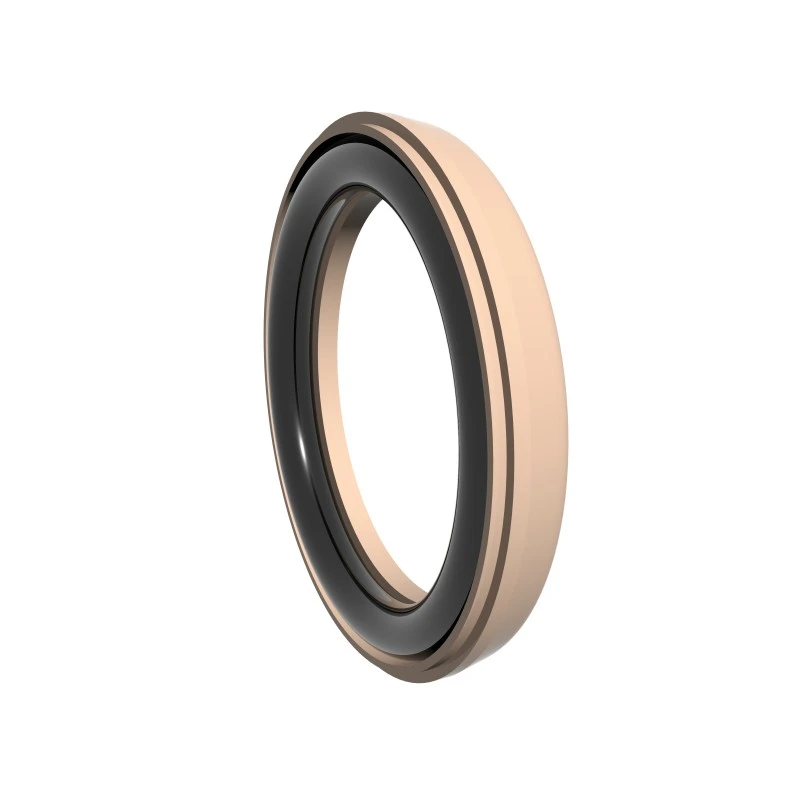

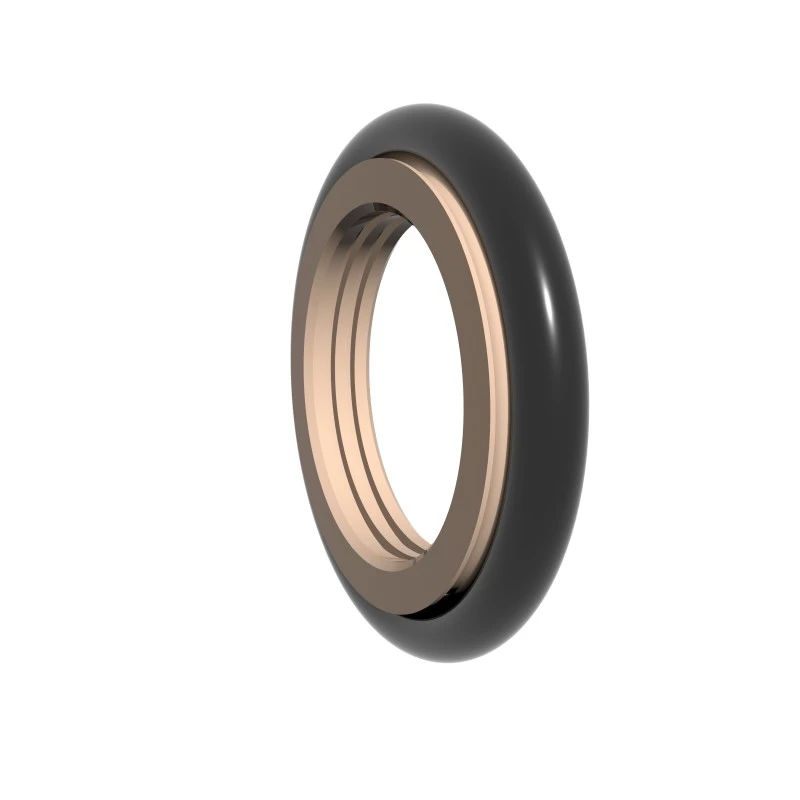

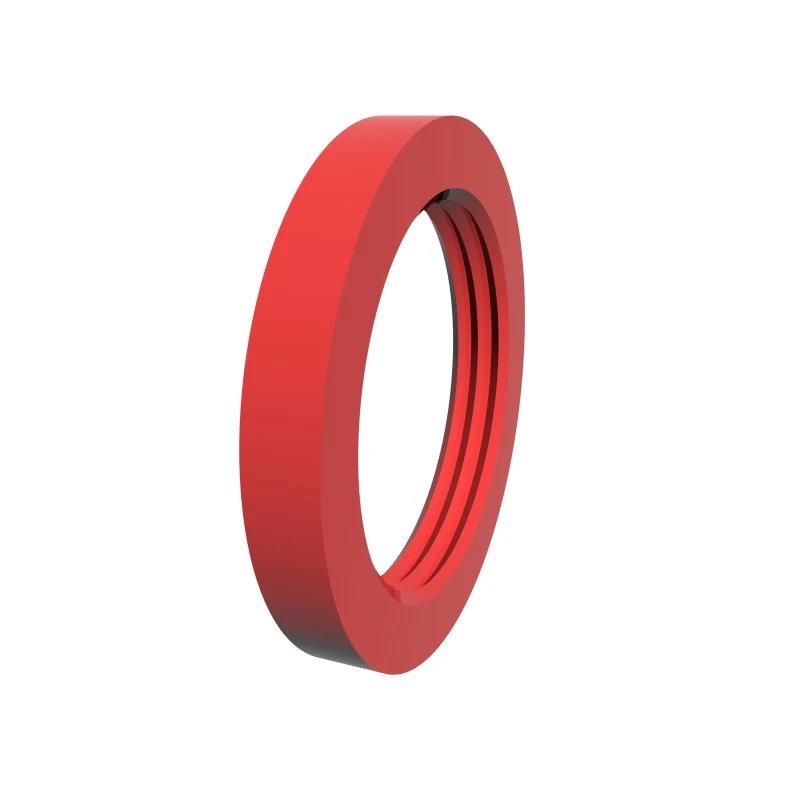

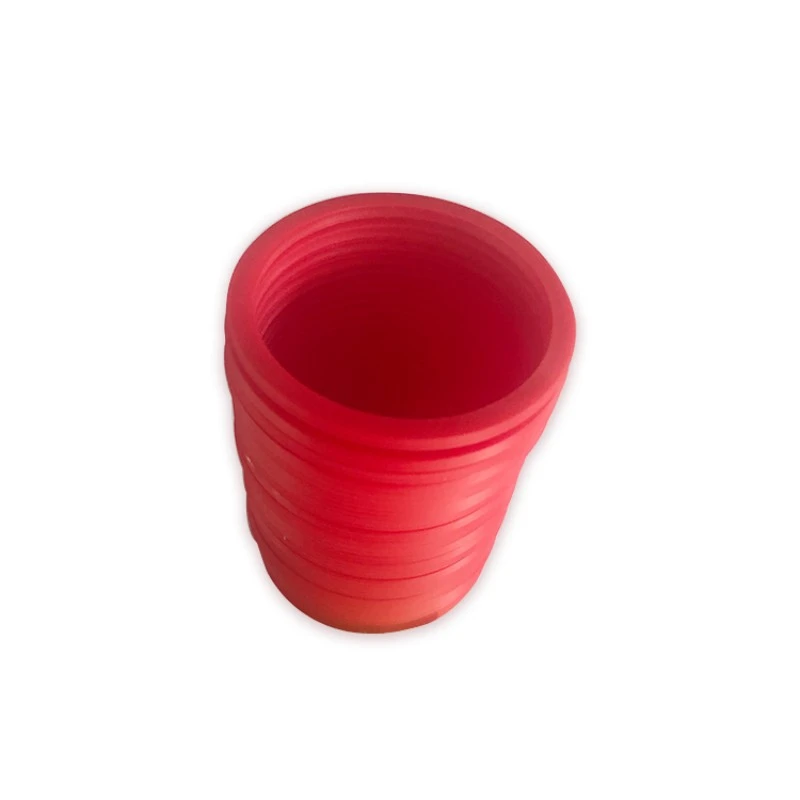

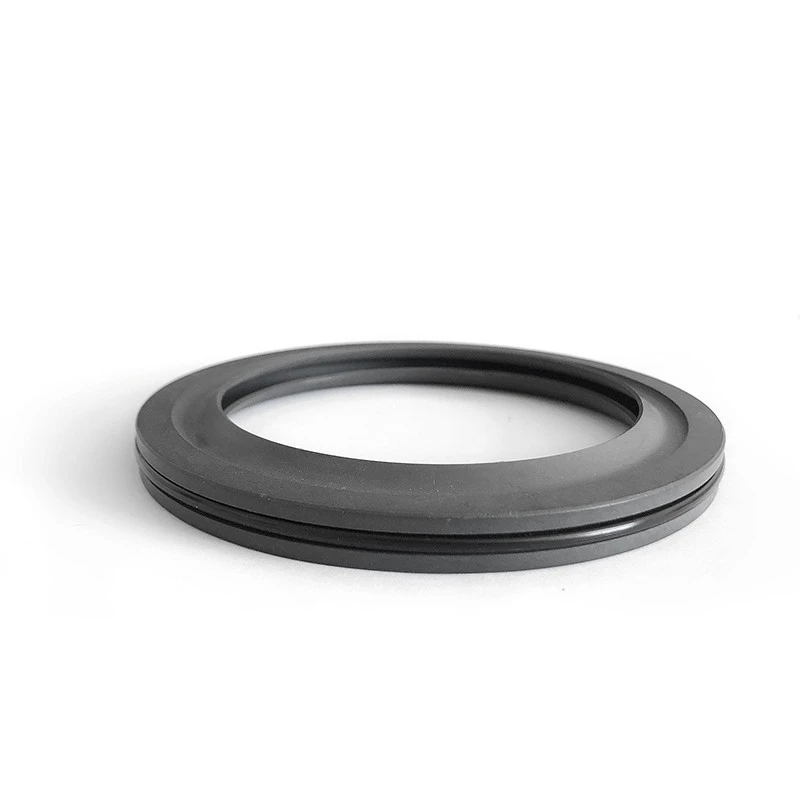

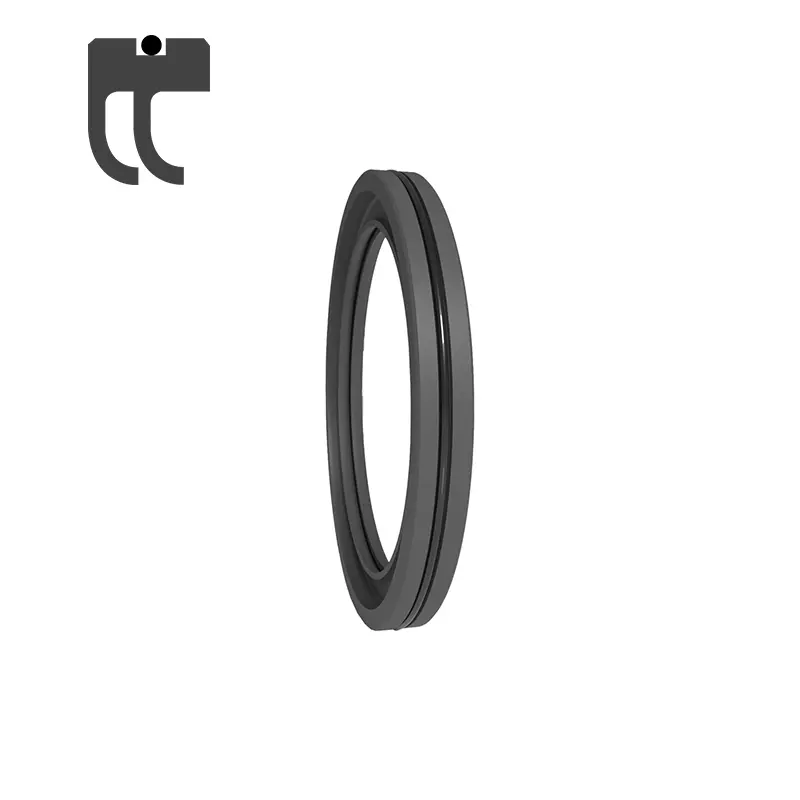

Seri RC2052 lan RC2054 dilengkapi dering segel alun kanthi alur panyimpenan minyak, sing cocog kanggo Sealing Bidiroulik Rotary Hidraulic. Struktur kasebut kompak lan ndhukung lingkungan tekanan banyu.

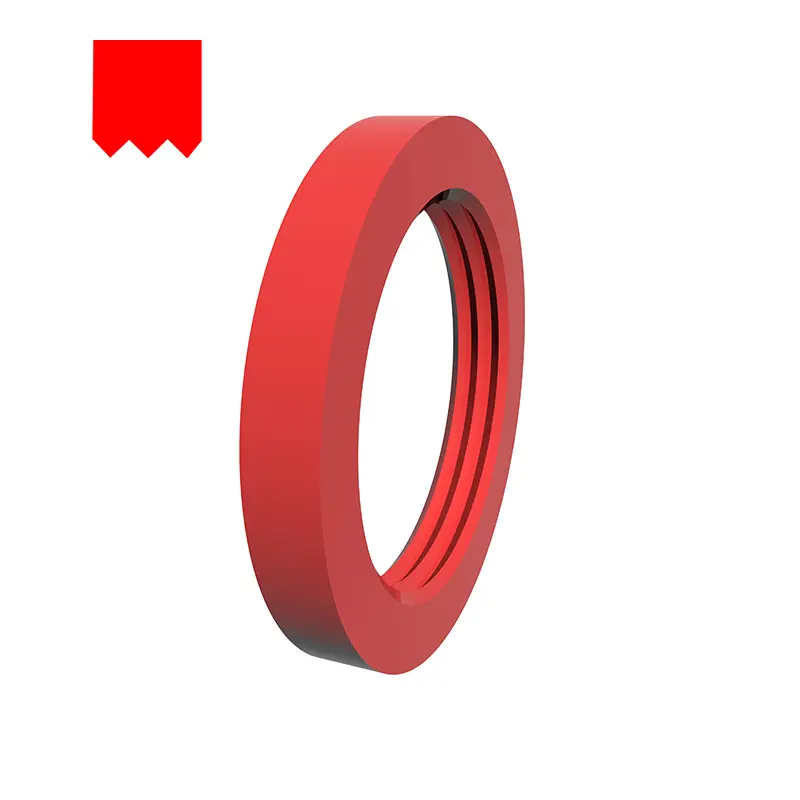

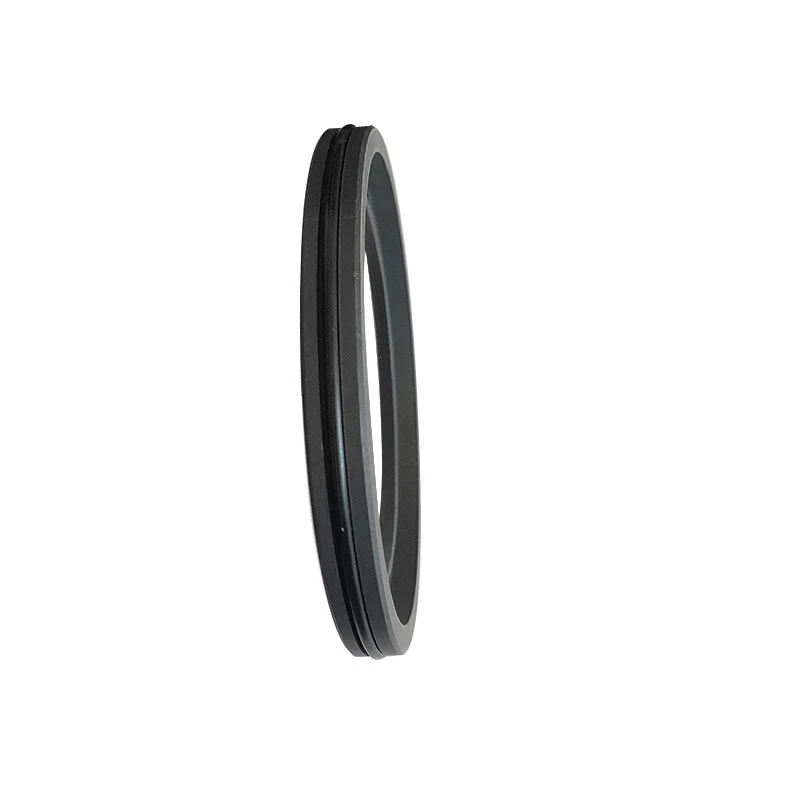

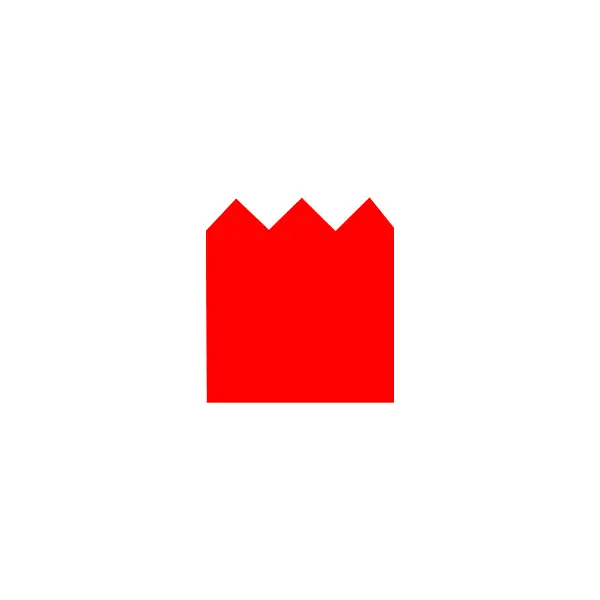

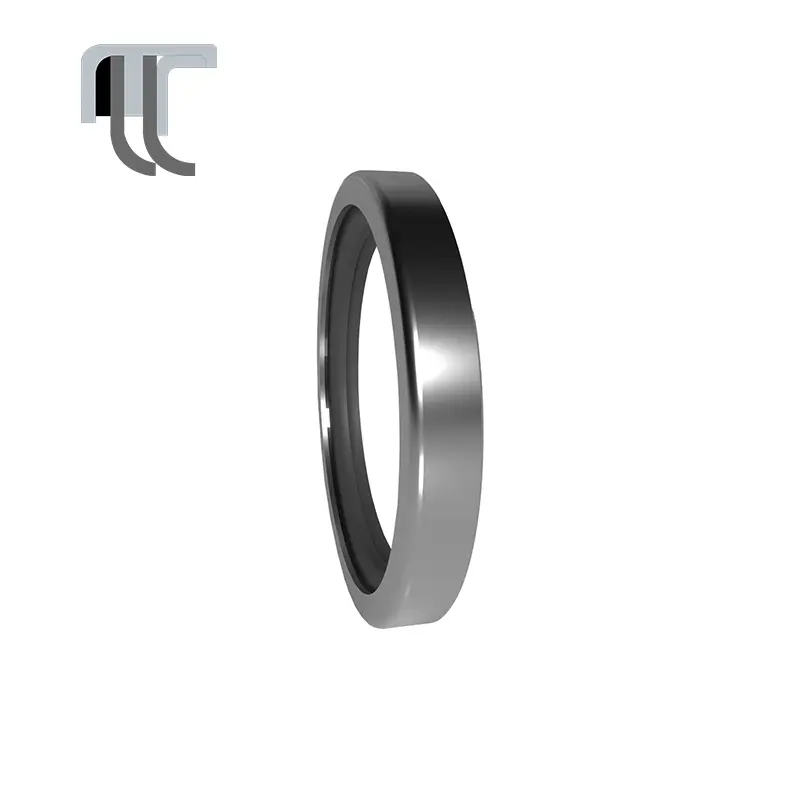

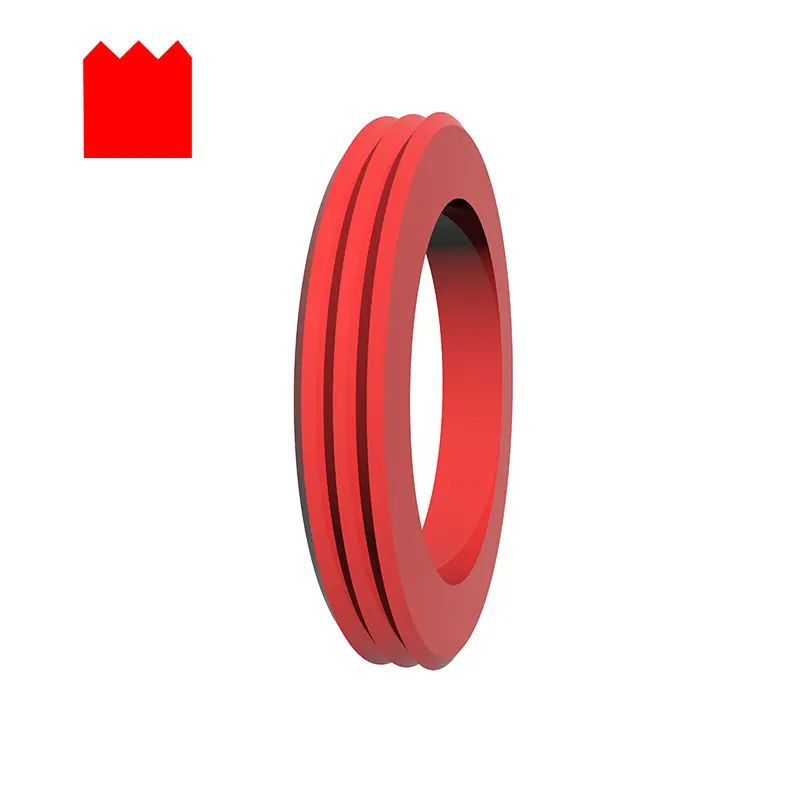

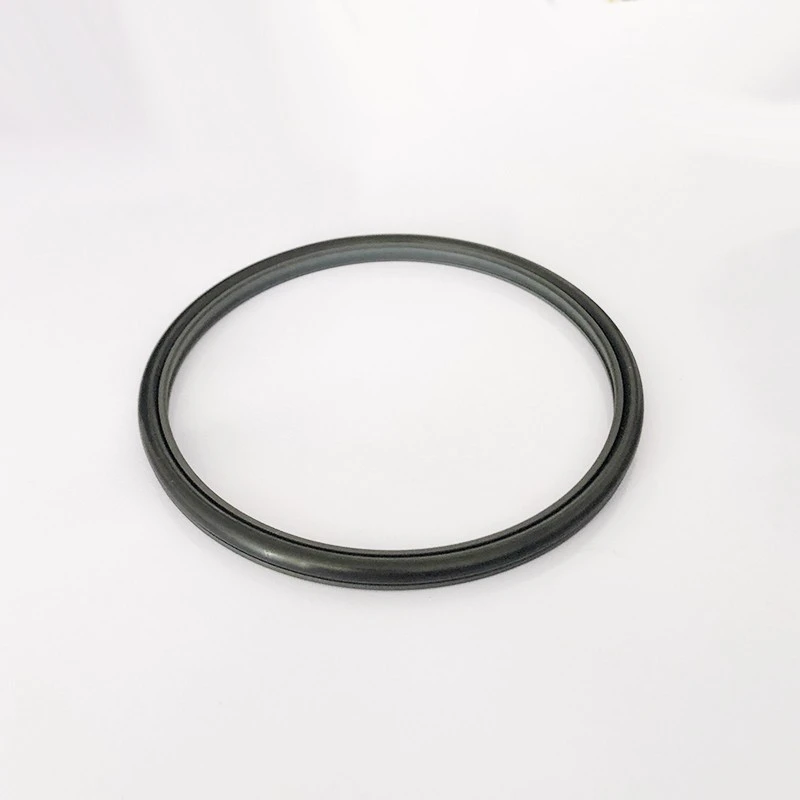

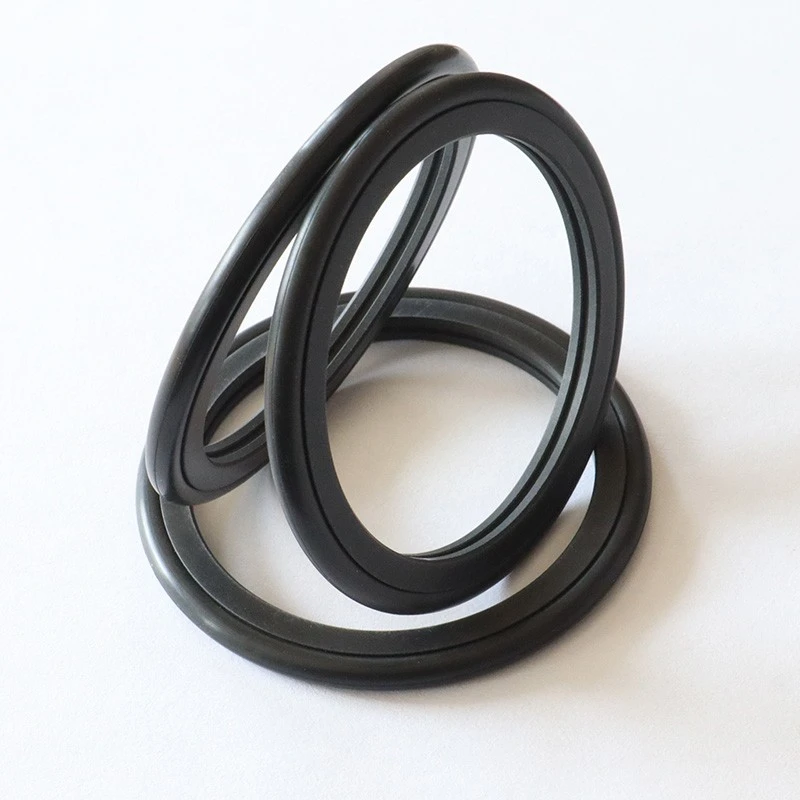

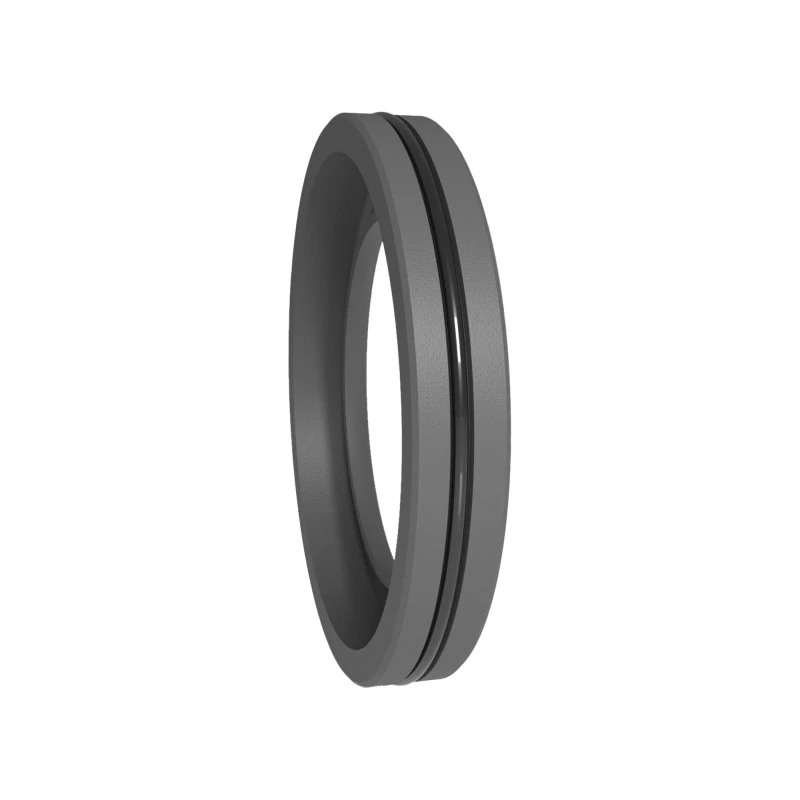

Seri RCX17 lan RCX18 digawe saka bahan-bahan kinerja sing dhuwur, kanthi desain salib-bagean supaya gampang instalasi. Dheweke cocog kanggo poros puteran lan saling bolongan puteran, lan desain alur bisa diowahi.

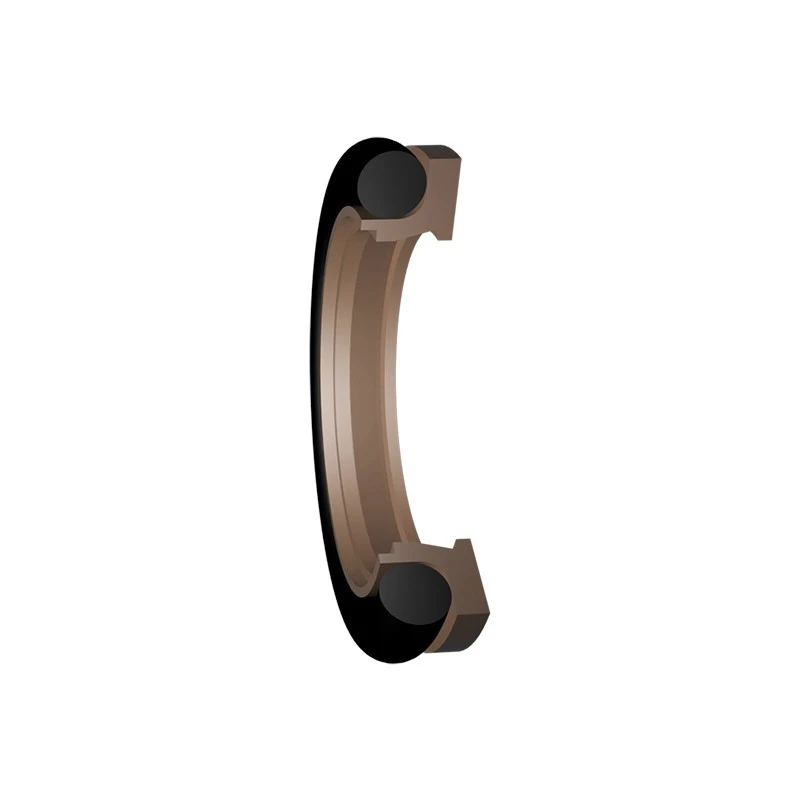

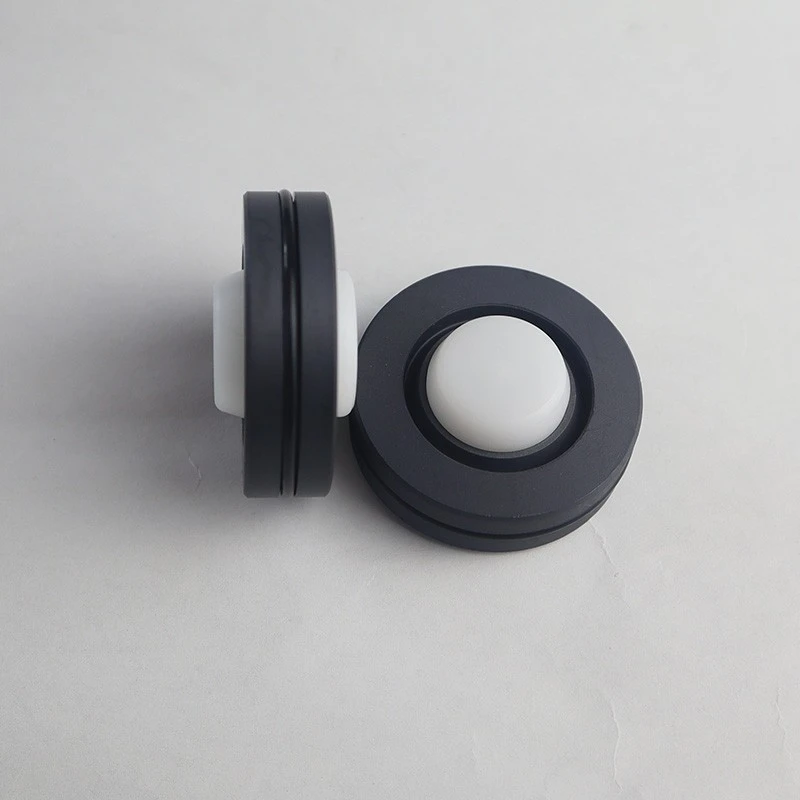

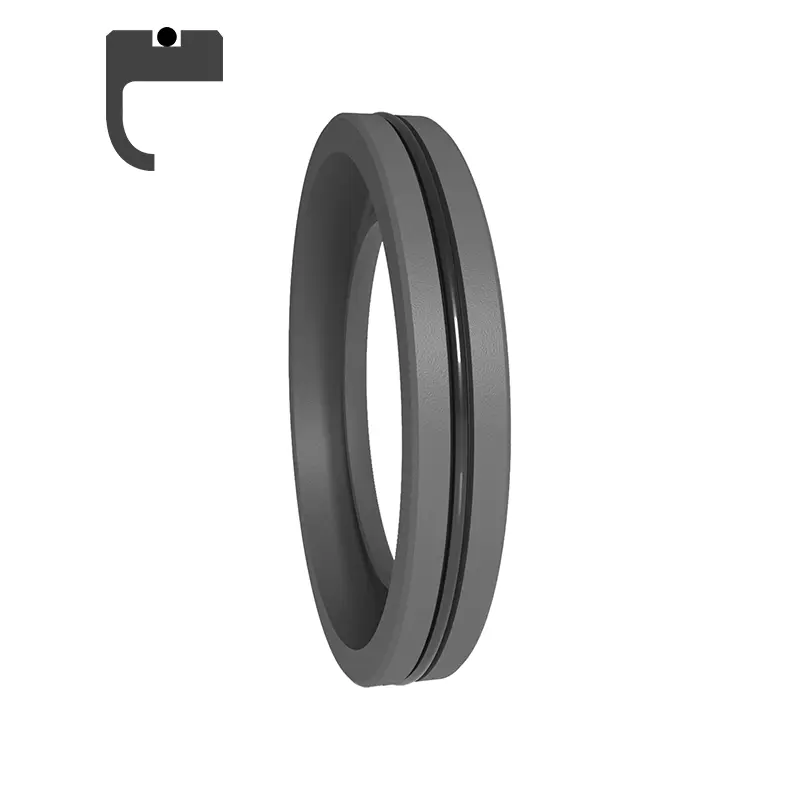

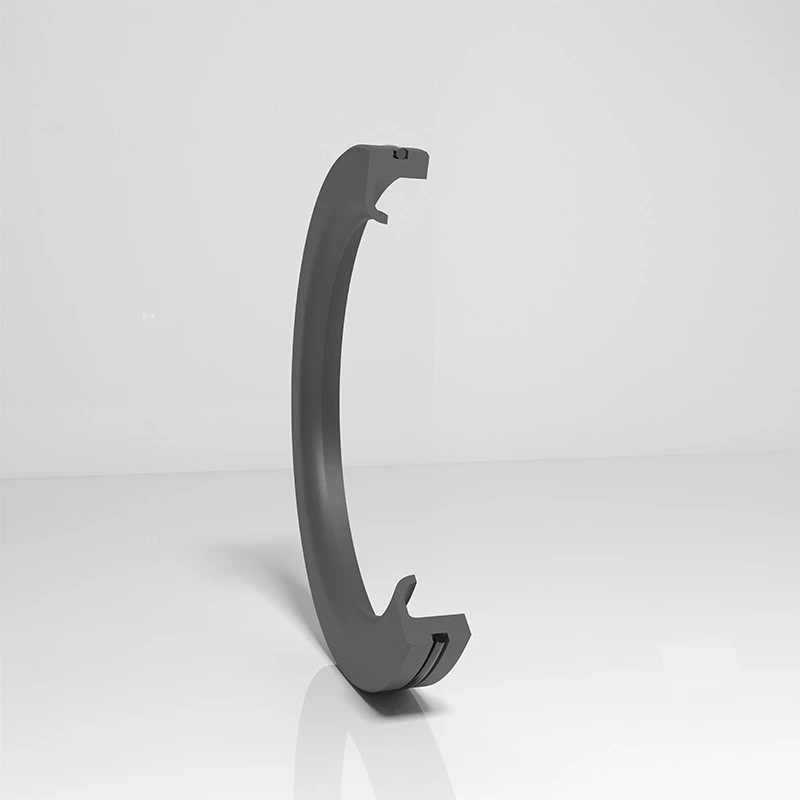

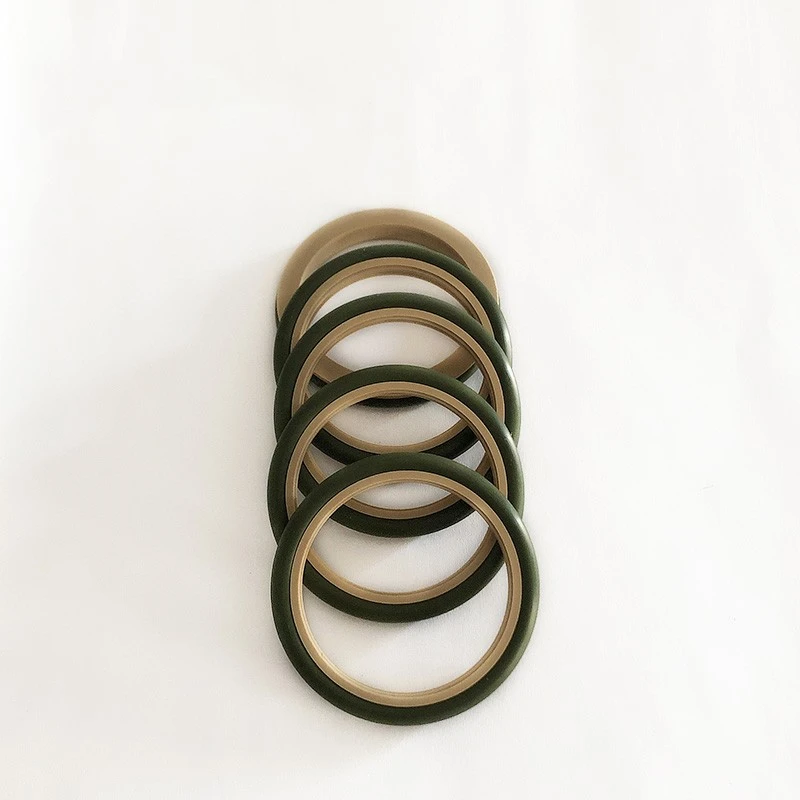

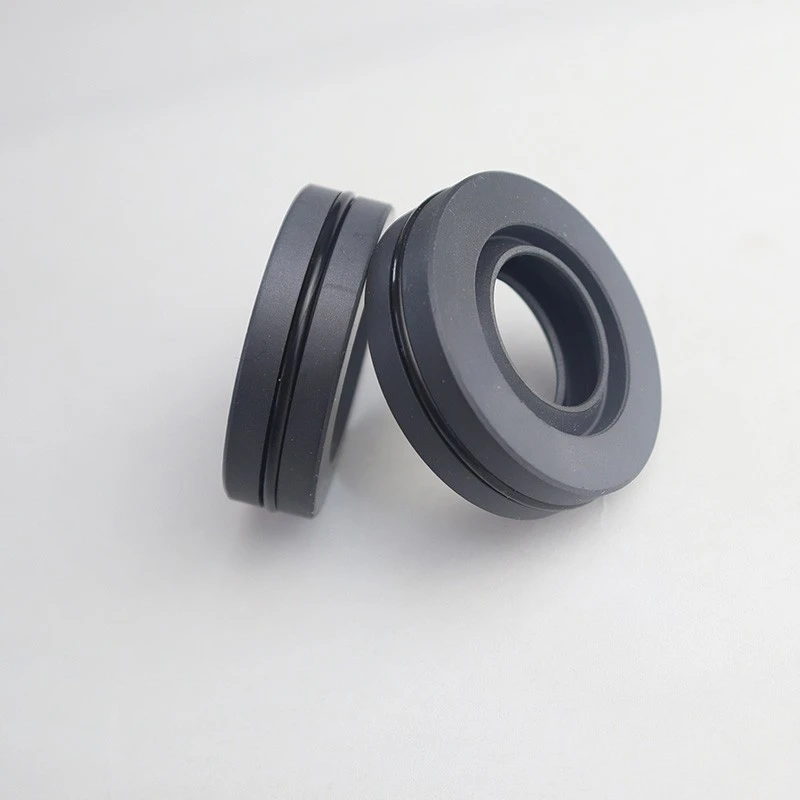

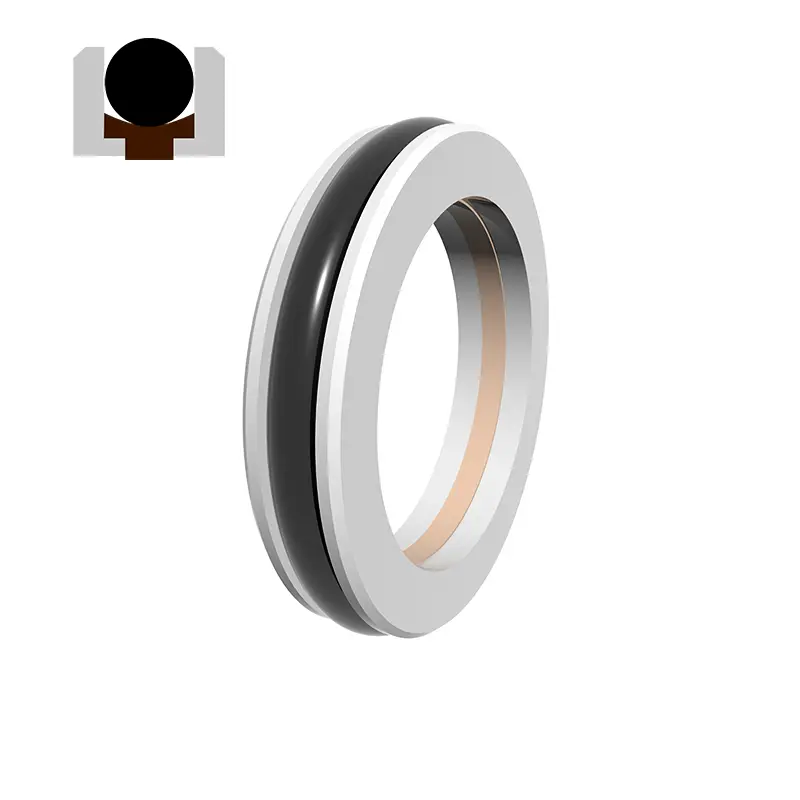

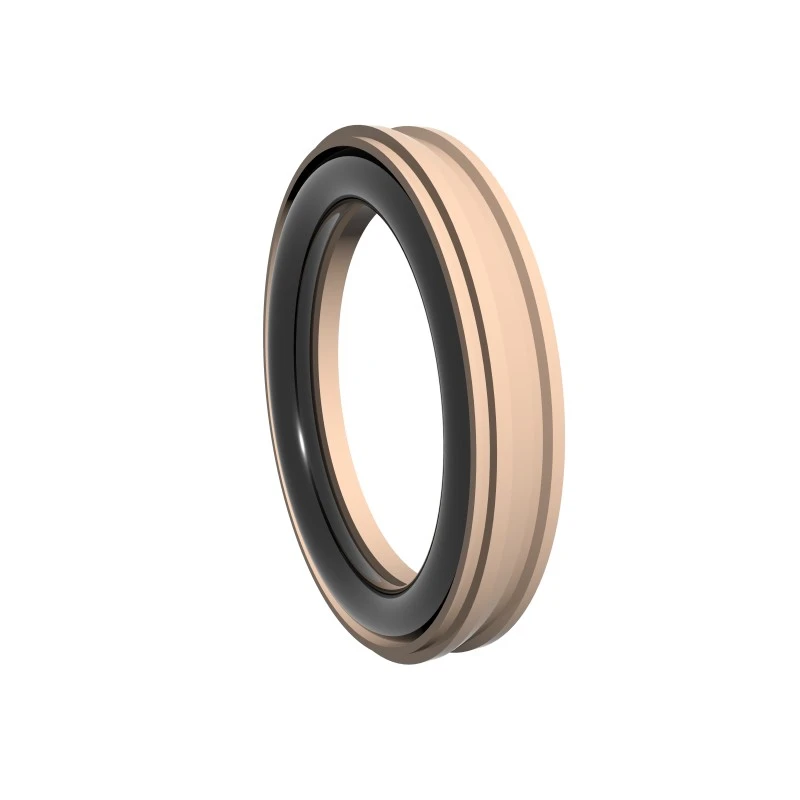

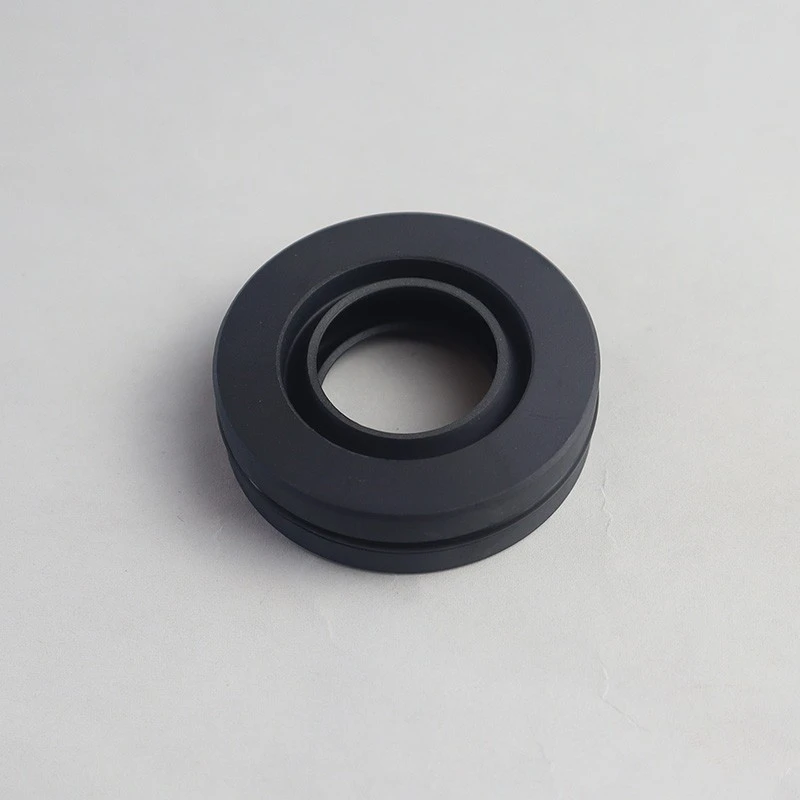

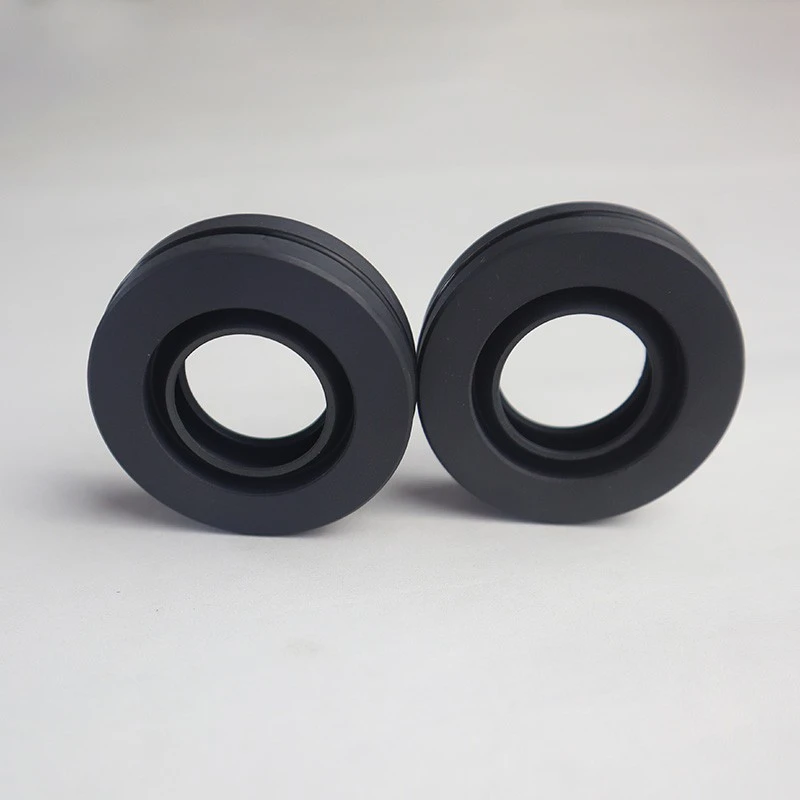

Seri RDI lan RDA dumadi saka dering sealing PTE, dering dhukungan l-berbentuk lan o-cincang, reregetan, reresik bidirirectional, reresik tekanan tinggi, gesekan sing kurang tekanan, gesekan rerektif lan dawa.

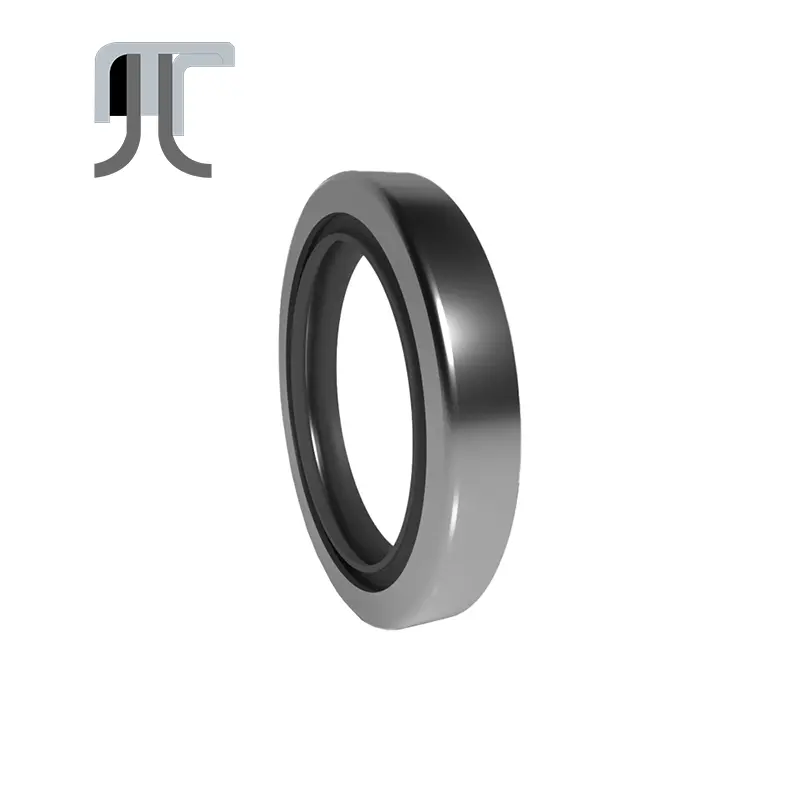

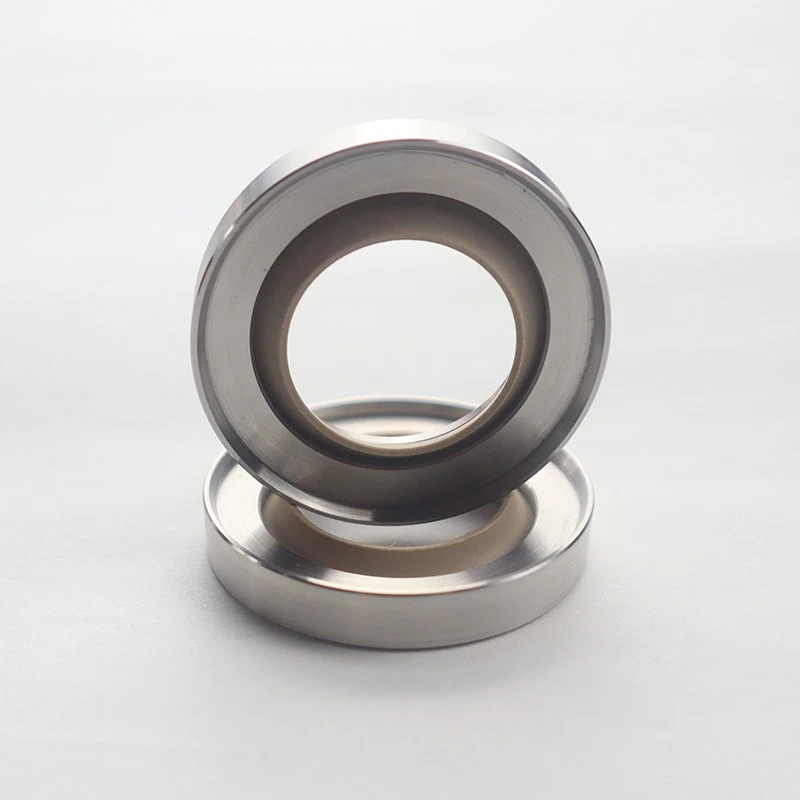

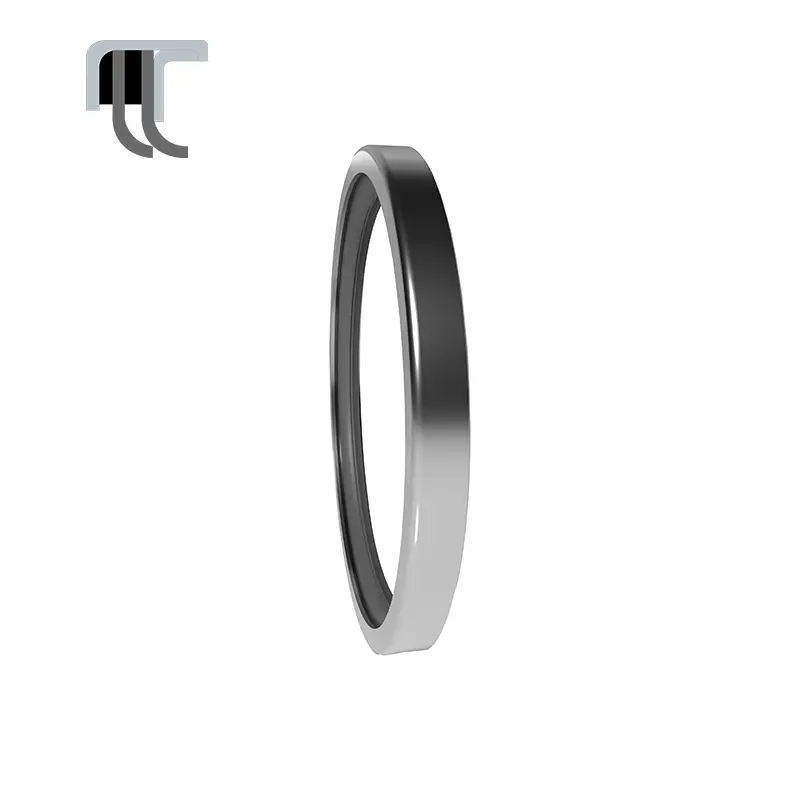

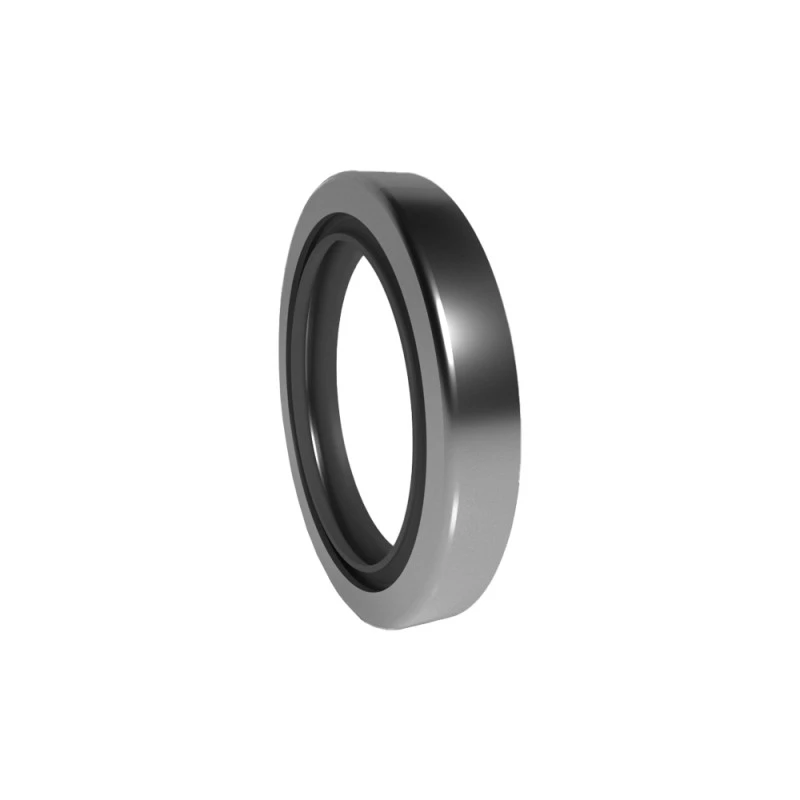

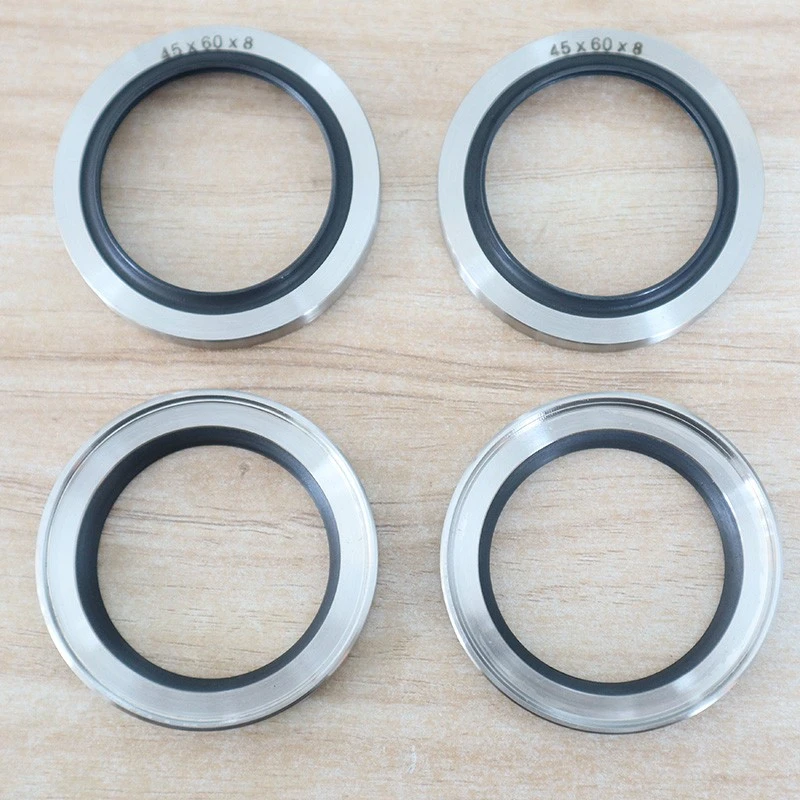

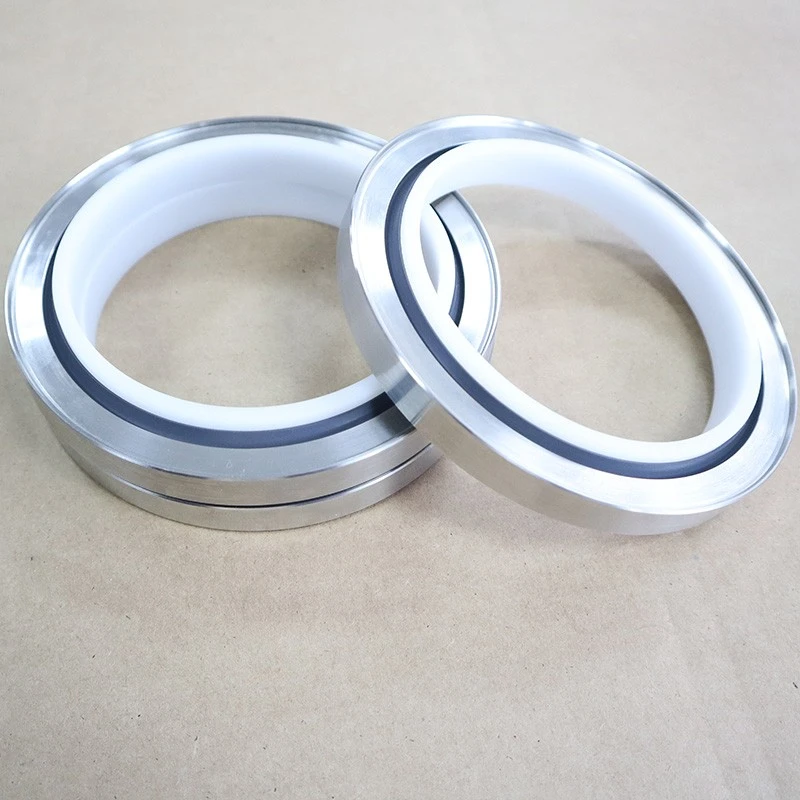

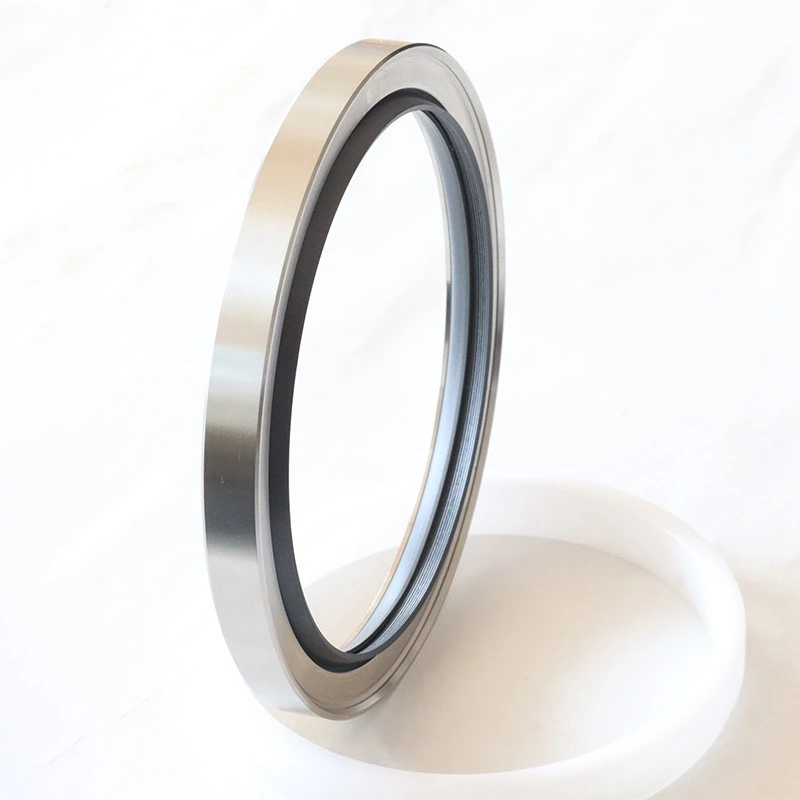

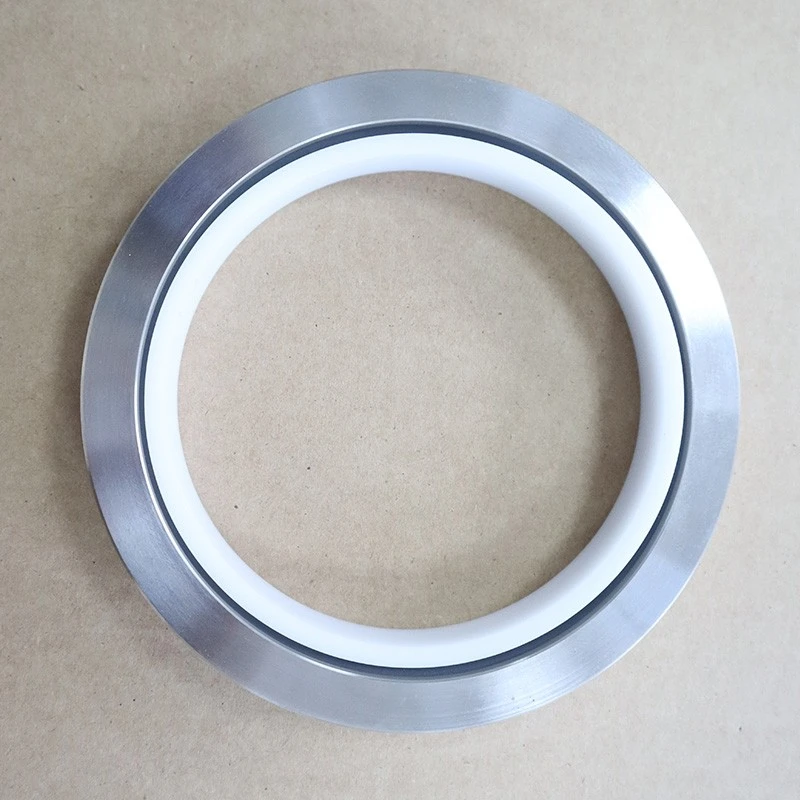

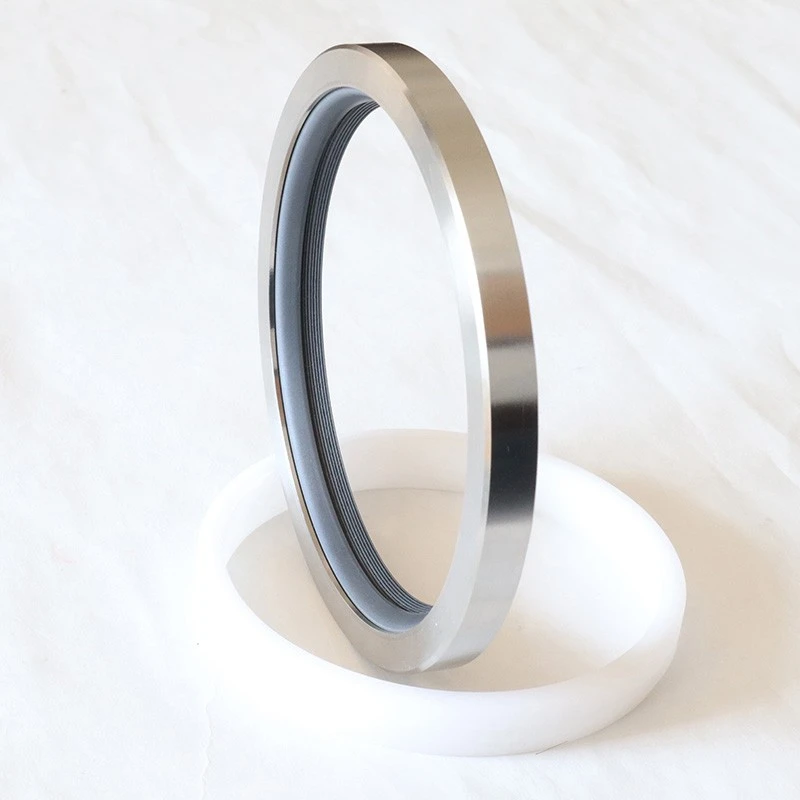

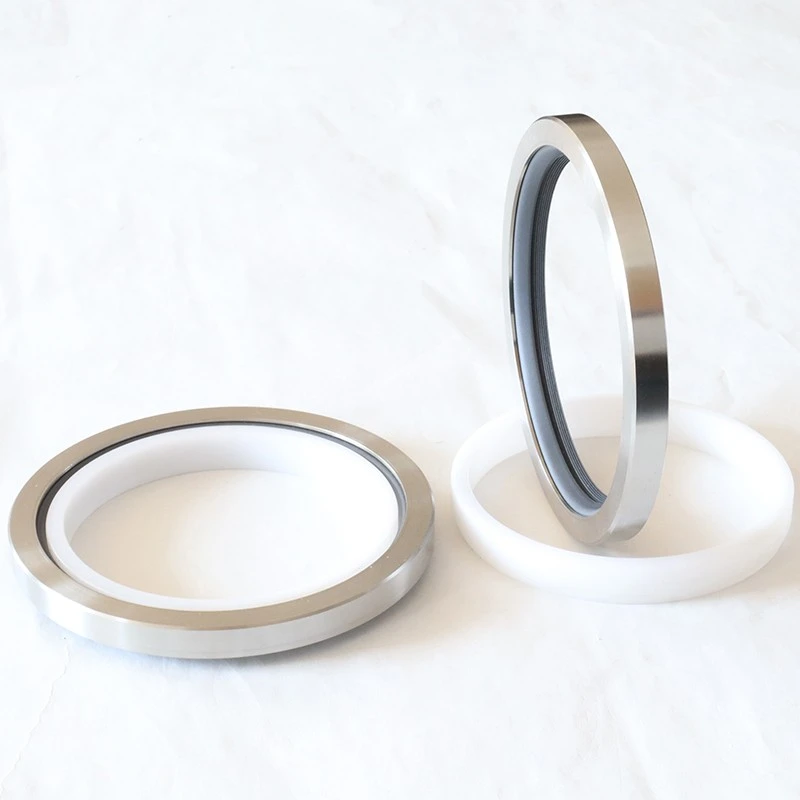

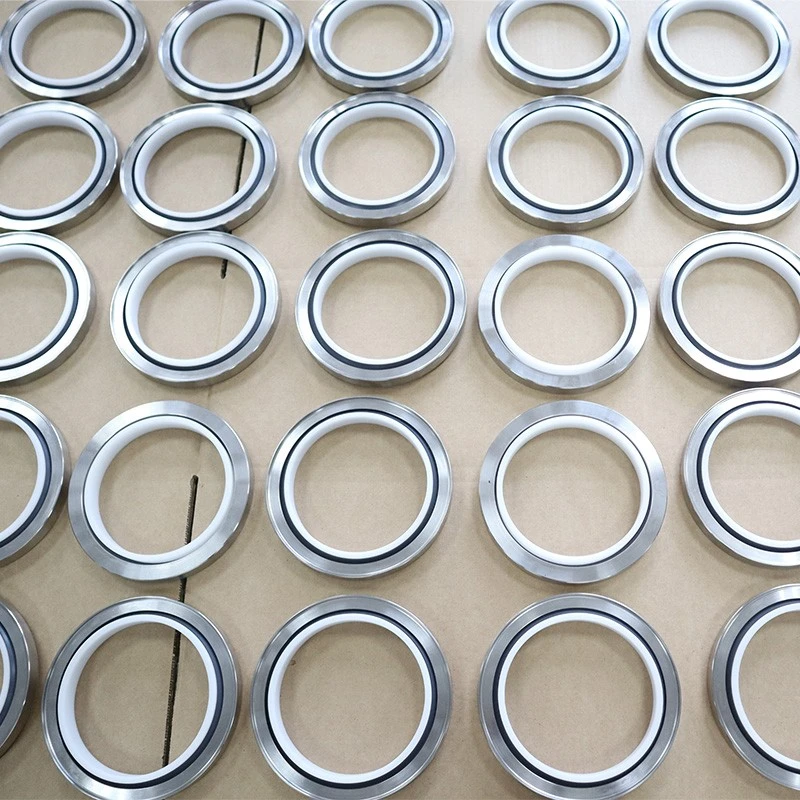

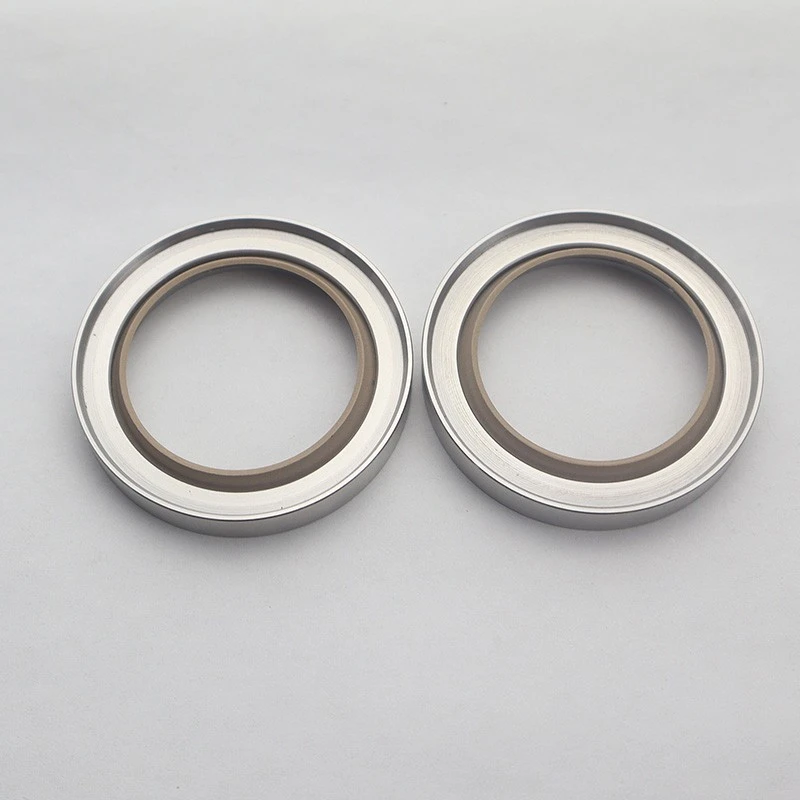

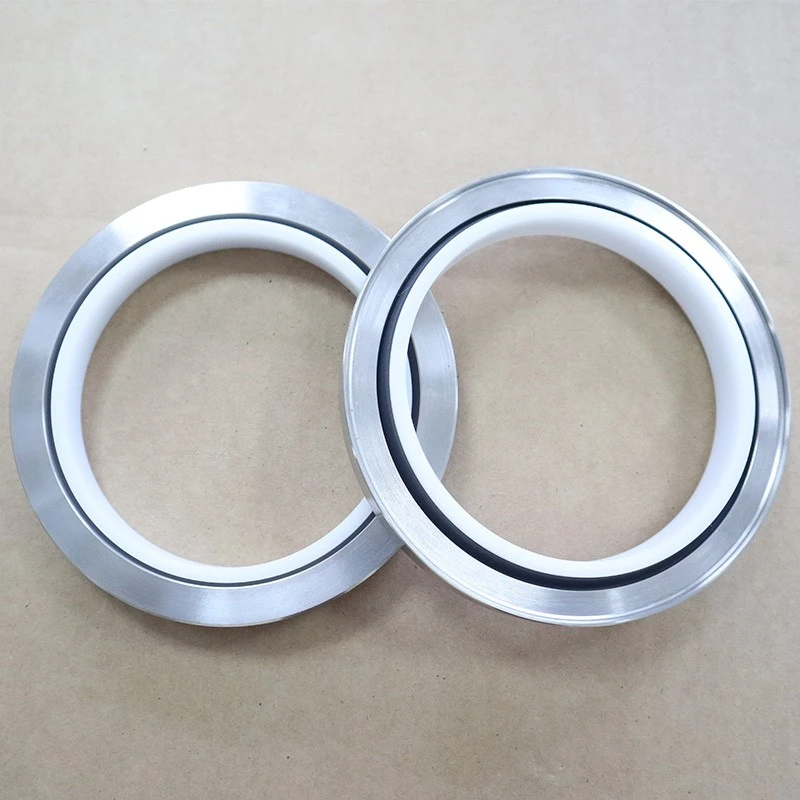

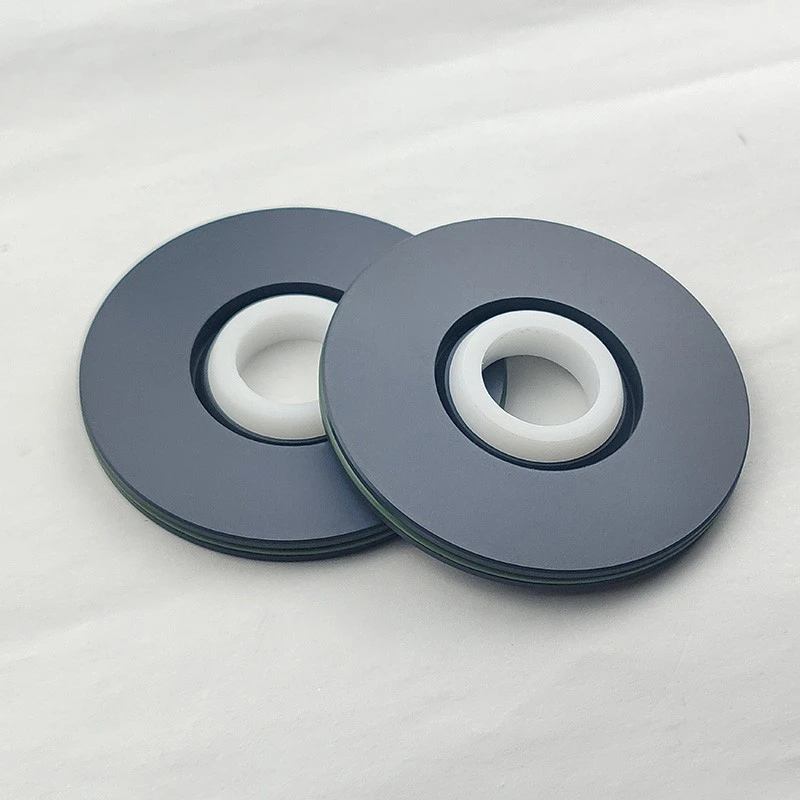

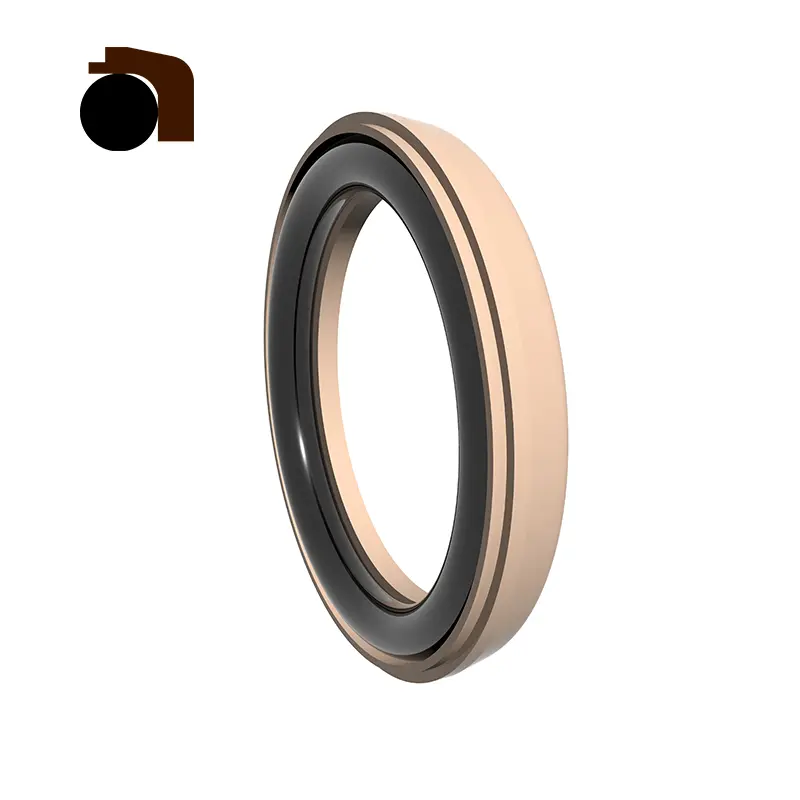

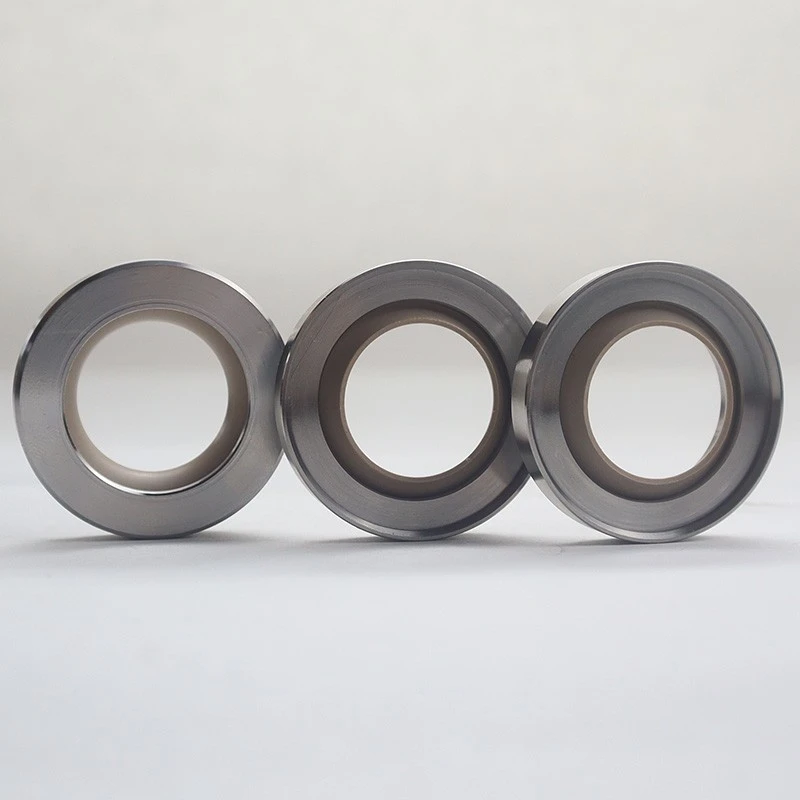

Seri RCS PTFE Power Seal minyak ngemot kerangka logam lan lip sealing ptfe, sing cocog kanggo kahanan kerja sing kompleks.

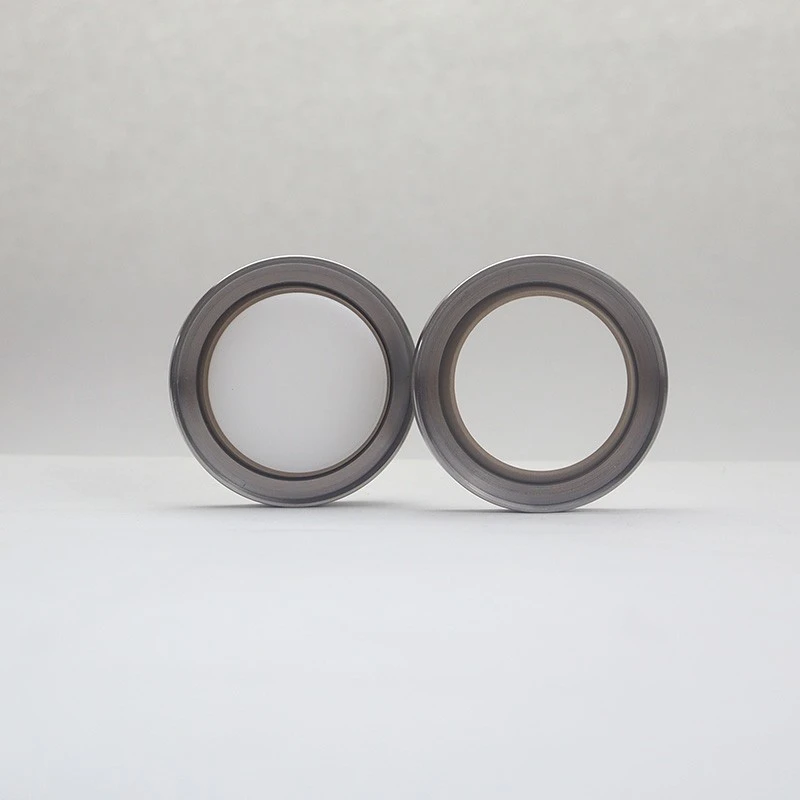

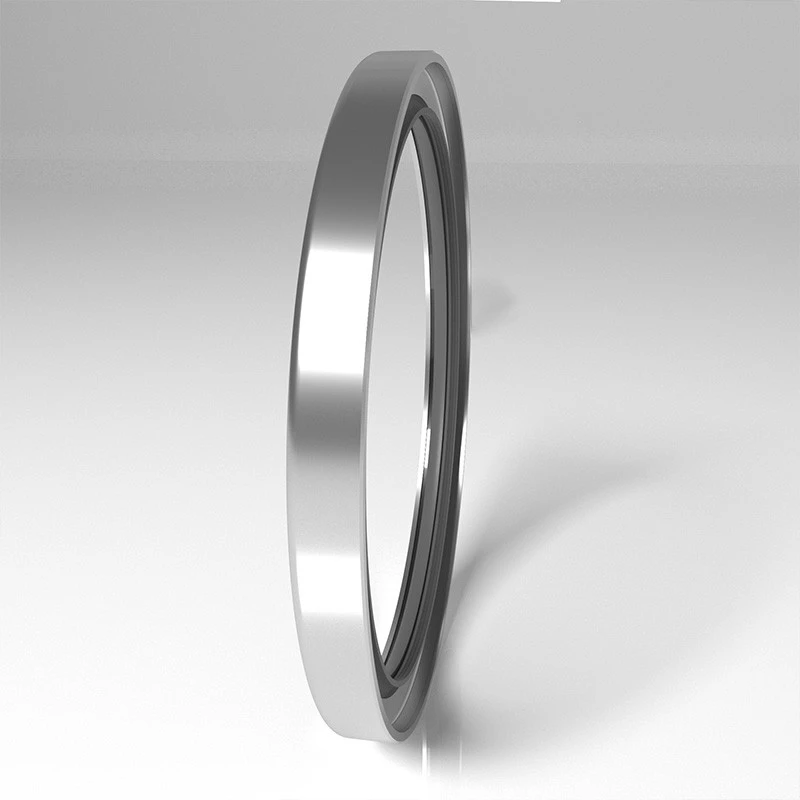

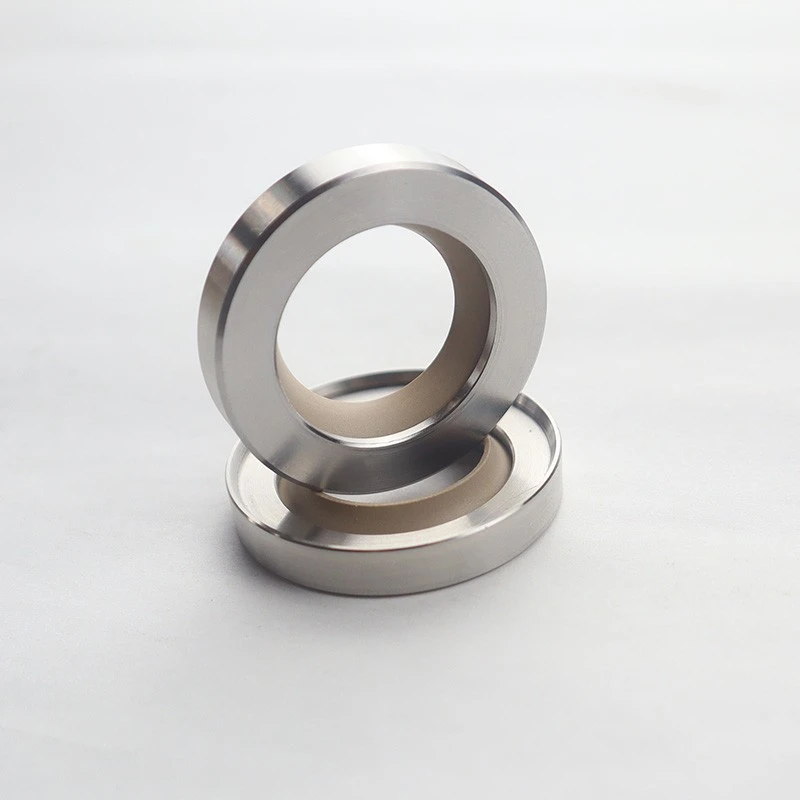

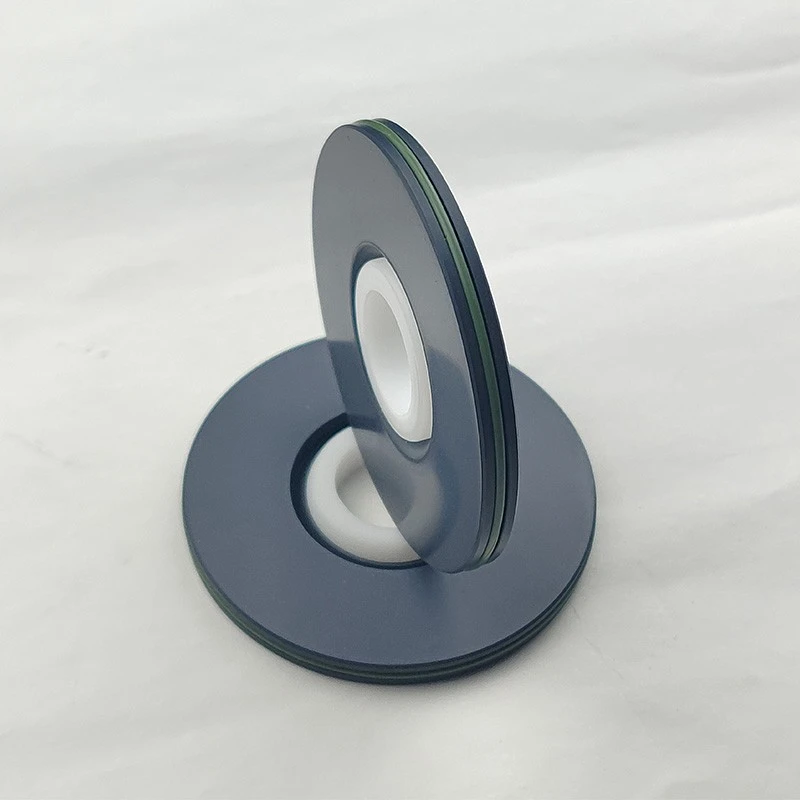

Seri RC2057 Full PTFE OIL PTFE dirancang kanggo acara khusus sing segel minyak tradisional ora bisa ketemu.

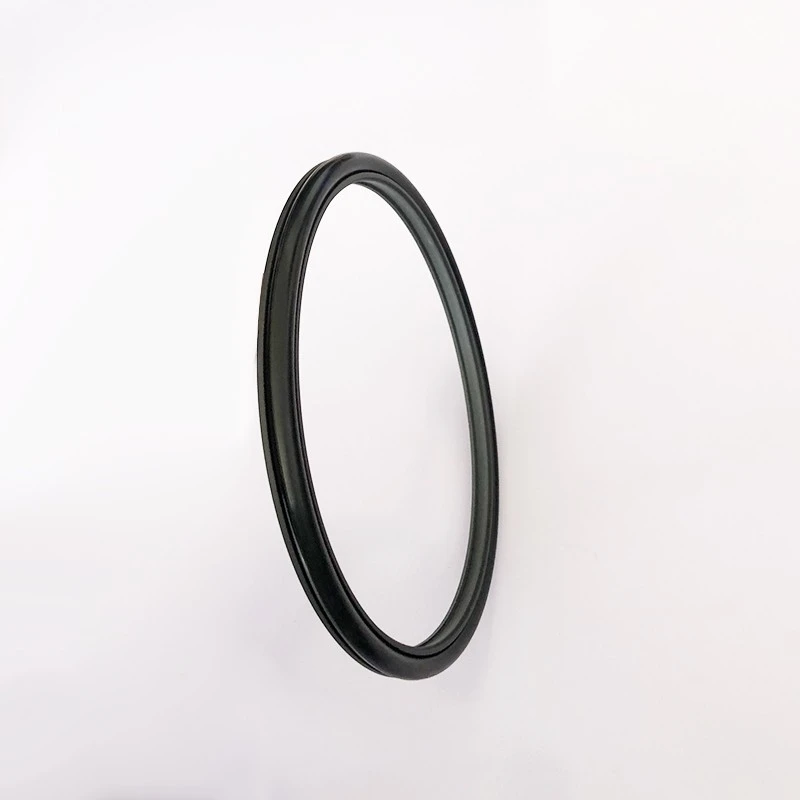

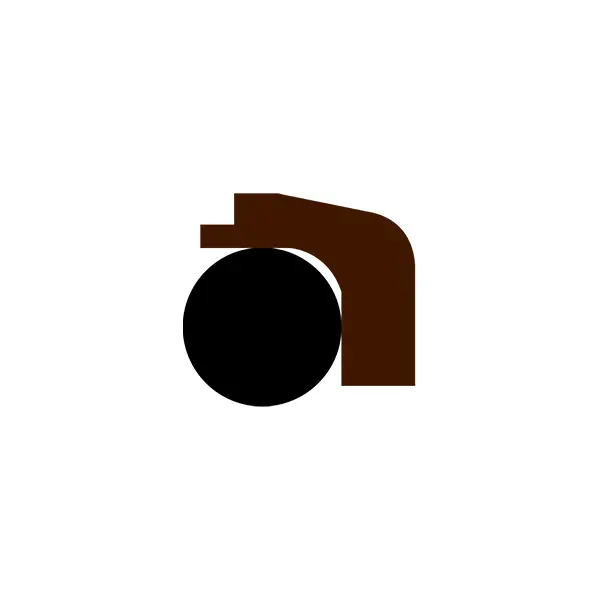

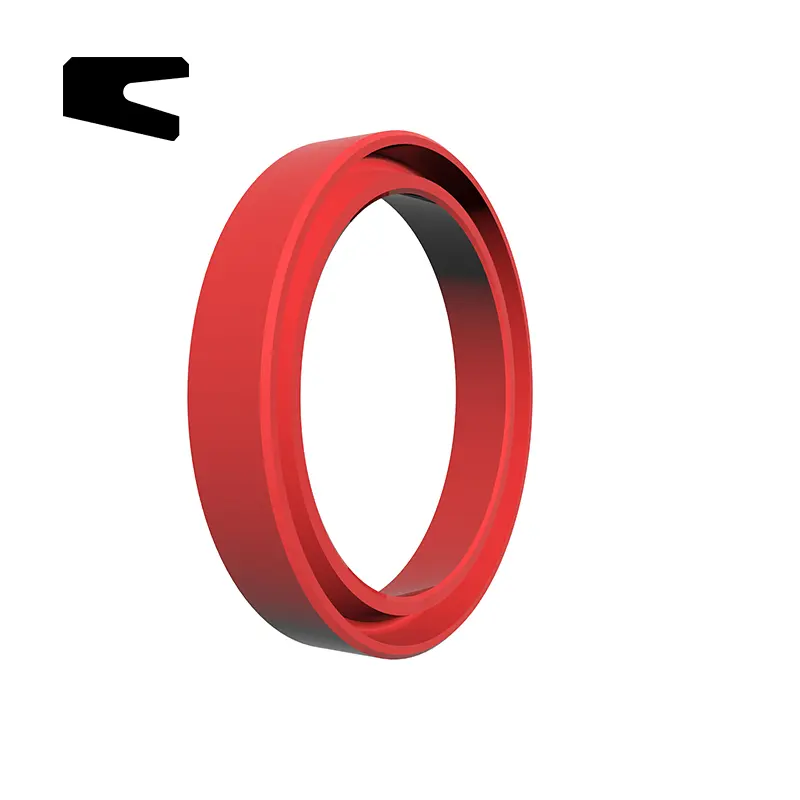

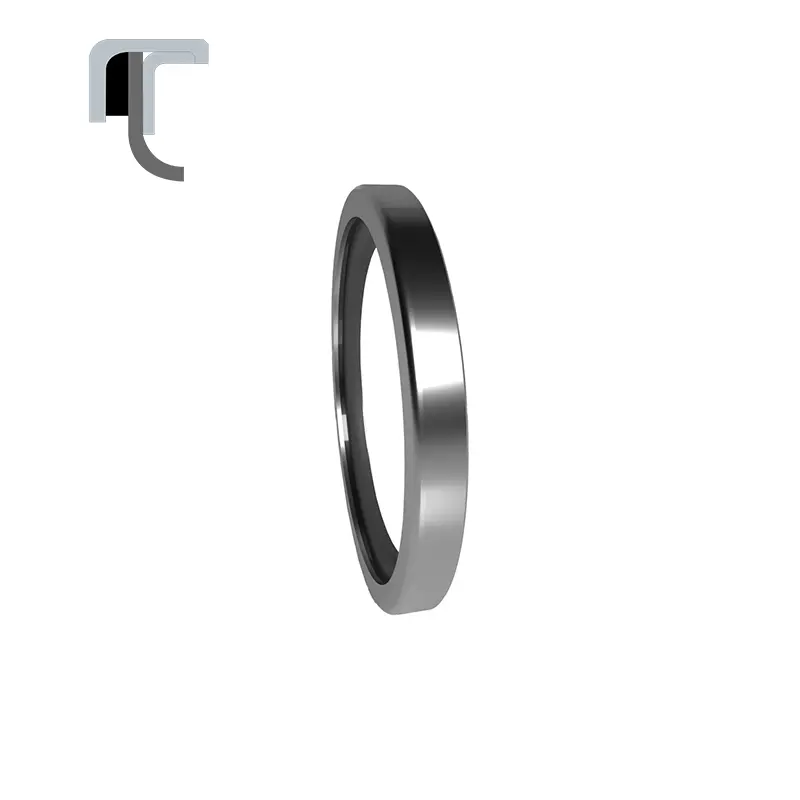

Seri RC2065 nyedhiyakake segel tekanan siji-cara kanggo puteran puteran, kanthi struktur sing gampang lan instalasi gampang. Bahan kasebut bisa dadi karet nitrile (nbr) utawa fluorororubber (FKM).
Ruichen Seal, macem-macem segel duwe karakteristik dhuwur, gesekan rendah, segel lan struktur kompak sing apik. Dheweke digunakake ing sistem hidraulik, peralatan pneumatik, peralatan tekanan banyu, mesin puteran banyu, peralatan puteran dhuwur lan peralatan industri, lan sapiturute, nyedhiyakake sampeyan kanthi solusi sealing kinerja dhuwur.
Fitur lan Aplikasi Produk:
Fitur Produk:
Urip dawa: bahan bermutu lan desain kualitas tinggi ngluwihi urip.
Friction rendah: PTFE lan PU bahan bisa nyuda resistansi sing mlaku lan nambah efisiensi.
Sealing Good: Lip lip lip lan desain minyak desain njamin kinerja panyusing sing apik.
Struktur kompak: desain ruang cilik, cocog kanggo macem-macem lingkungan instalasi.
Ditrapake kanthi akeh: cocog kanggo tekanan hydraulic, banyu lan tekanan dhuwur, kacepetan dhuwur, kecepatan sing kurang lan kahanan liyane.
Wilayah aplikasi:
Sistem hidraulik, peralatan pneumatik, peralatan tekanan banyu.
Mesin puteran sing dhuwur-tekanan, peralatan beban sing kurang murah.
Peralatan Industri, Mesin Teknik, Mobil lan Aeroangkasa lan lapangan liyane.
Pilihan Bahan:
1. Bahan-bahan O-RING sing cocog bisa dipilih: R01 Nitrile Karet (NBR), R02 Fluororubber (FKM), lsp.
2. SEALING RING BATTER: PTFE STANDARDATIONAL PTFE4, Bahan opsional liyane PTFE1, PTFE2, PTFE5, PTFE5.
CATETAN RCX18: HPU.

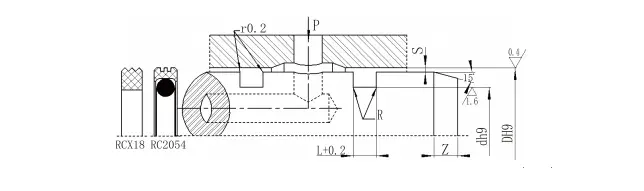

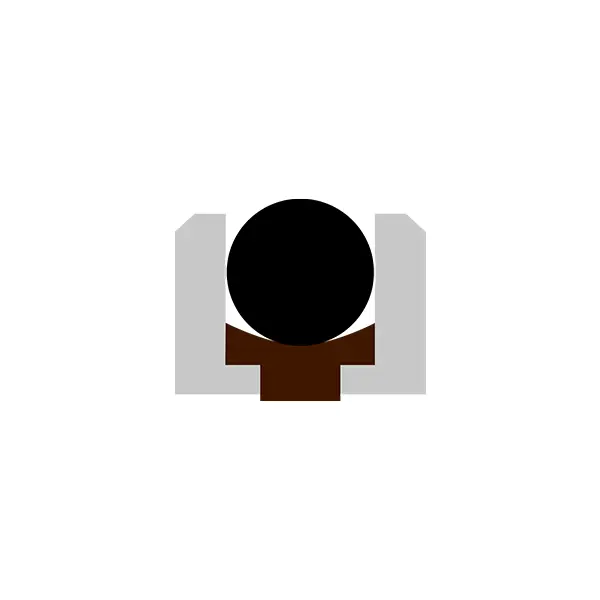

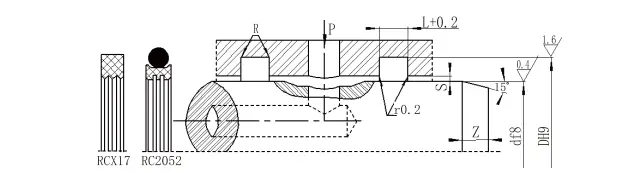

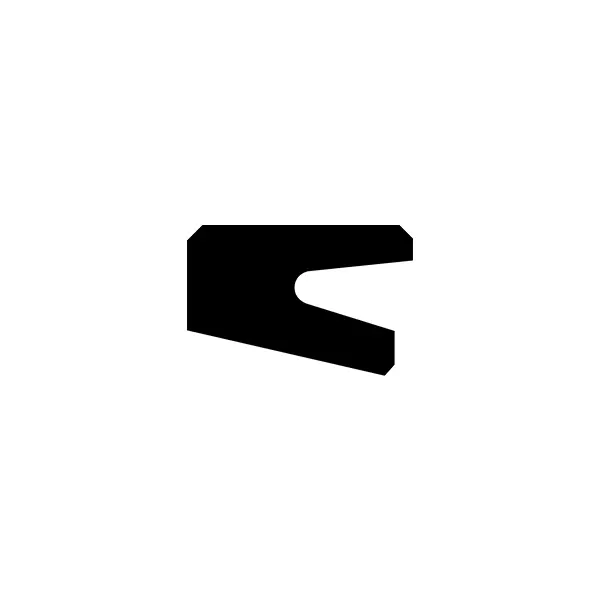

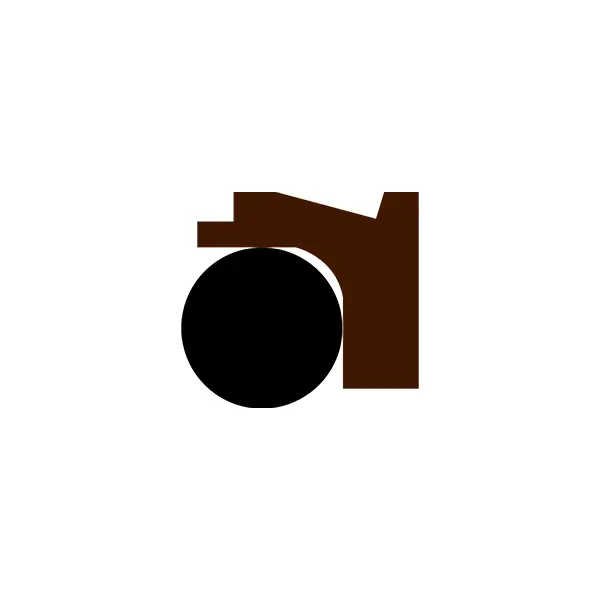

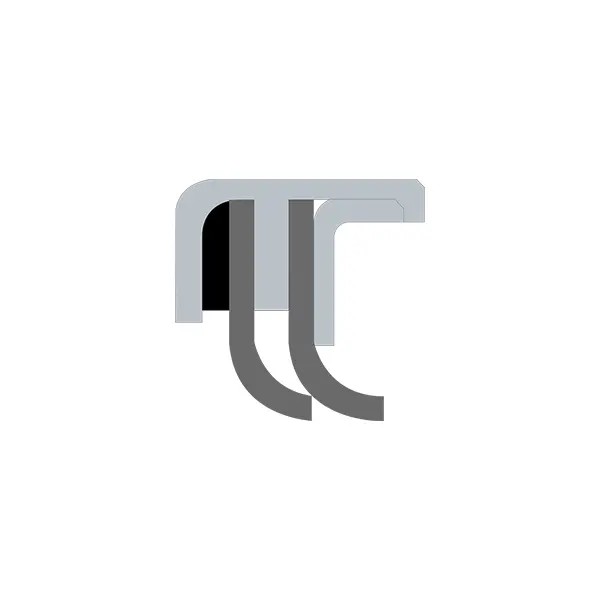

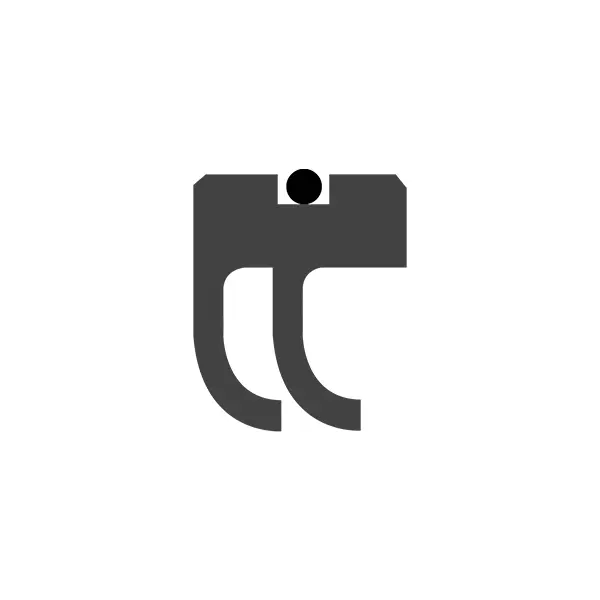

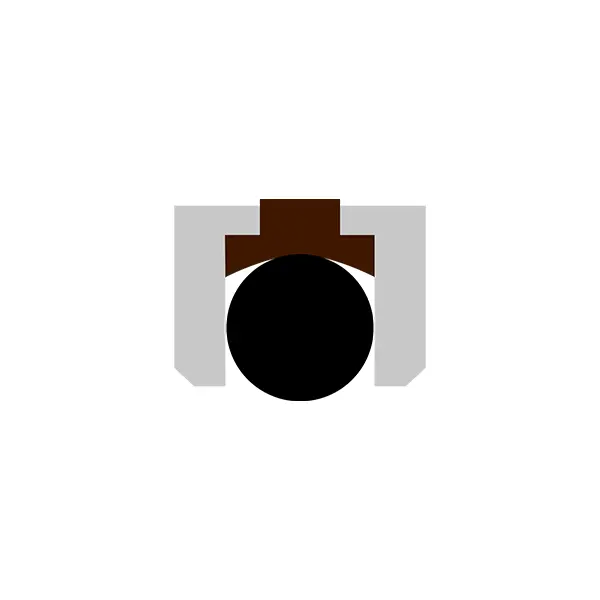

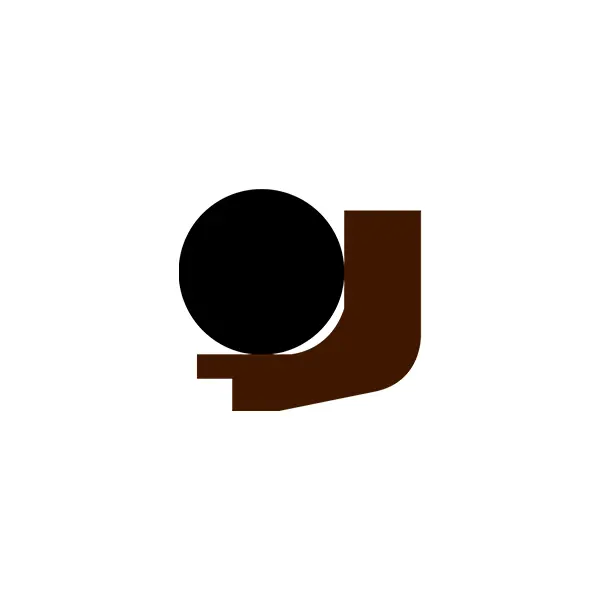

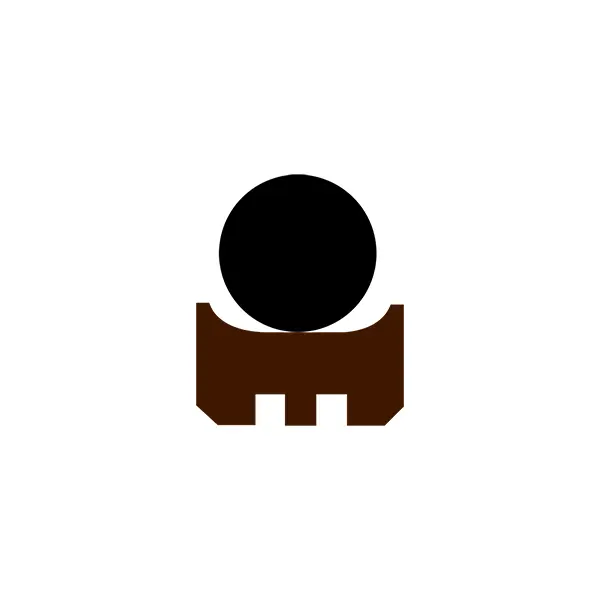

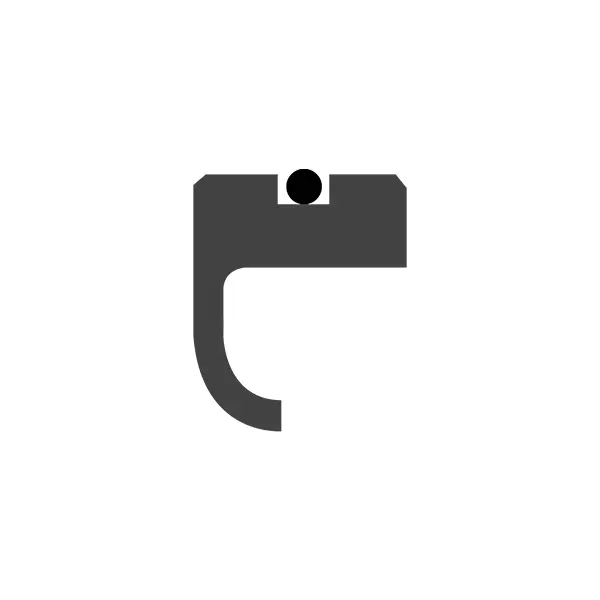

Diagram struktural
Model Order RC2052-80X91x4.2-PTFE2.2-PTFE2-ro1 model model-bahan RCX17-80x91x4.2-HPU Model-DXDXL-materi-DXDXL-Materi
Model Orde RC2054-80x69x4.2-PTFE2.2-PTFE2-Ro1 model-D * L-Material Modifikasi RCX18-80X69x4.2.2-Model-D * D * L-Material

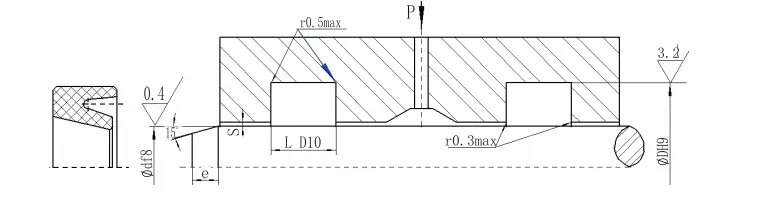

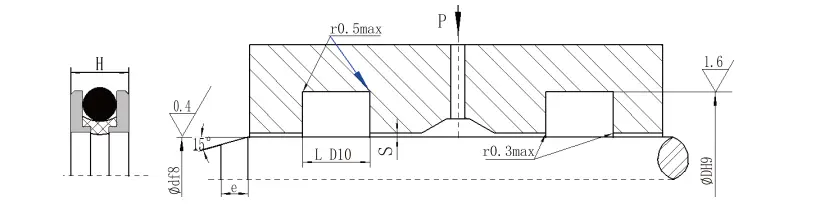

Ukuran instalasi RDI
| DF8 | DH9 | L d10 | H | Gap s | |
| 0-1cingga | 10-36Mpa | ||||
| 50-79 | D + 10 | 5 | 4.5 | 0.4-0.3 | 0.3-0.25 |
| 80-109 | D + 13.8 | 7.5 | 7 | 0.45-0.35 | 0.35-0.3 |
| 110-299 | D + 20 | 10 | 9.5 | 0.55-0.45 | 0.45-0.35 |
| 300-600 | D + 24 | 13 | 12.5 | 0,6-0.55 | 0.55-0.45 |
| > 600 | Mangga takon karo perusahaan kita | ||||
Dawane Chamfer
| Rod Diameter | Panjarwa Chamfer E≥ |
| 50-56 | 6 |
| 57-100 | 7 |
| 101-290 | 10 |
| 291-600 | 15 |

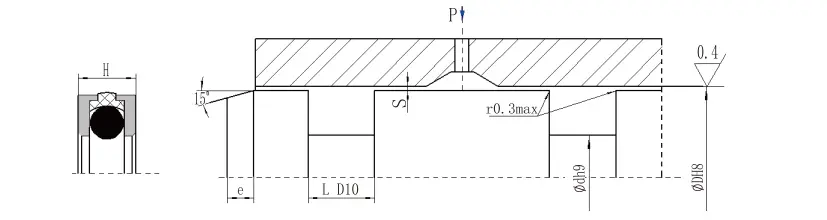

RDA Ukuran Instalasi
| DH8 | DH9 | L d10 | H | Gap s | |
| 0-1cingga | 10-36Mpa | ||||
| 50-124 | D-16 | 8 | 7.5 | 0.45-0.35 | 0.35-0.3 |
| 125-199 | D-20 | 10 | 9.5 | 0.55-0.45 | 0.45-0.35 |
| 200-600 | D-26 | 13 | 12.5 | 0,6-0.55 | 0.55-0.45 |
Dawane Chamfer
| Rod Diameter | Panjarwa Chamfer E≥ |
| 50-95 | 7 |
| 96-190 | 10 |
| 191-300 | 12 |
| 301-600 | 15 |

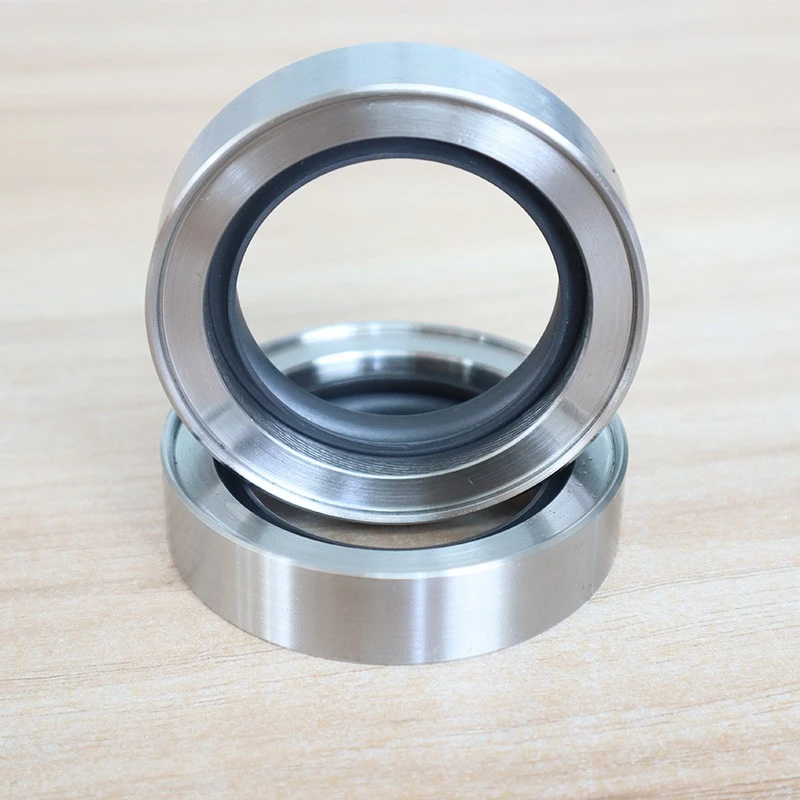

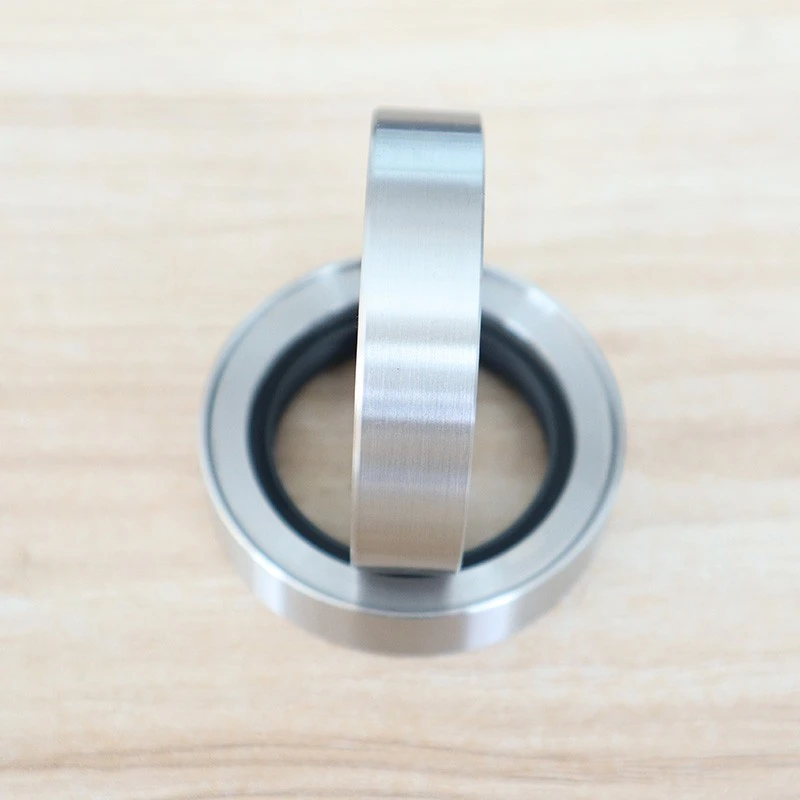

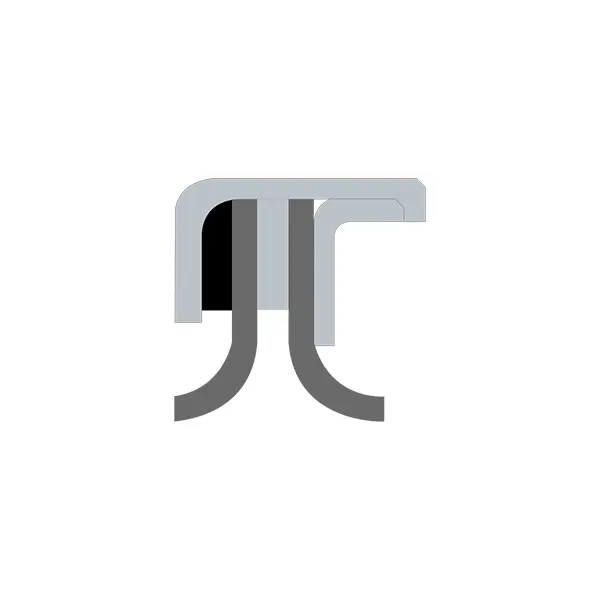

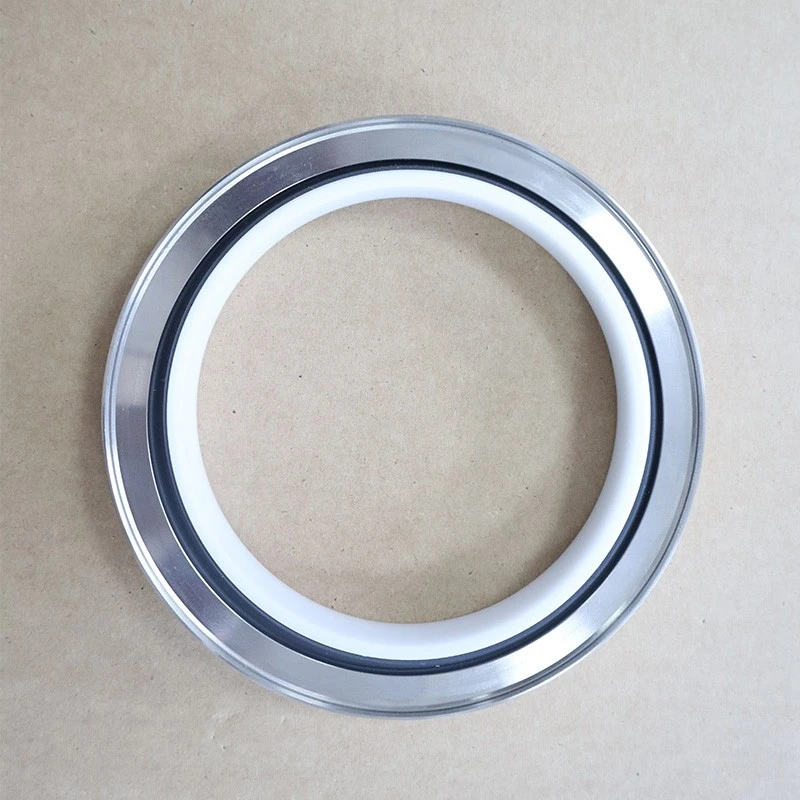

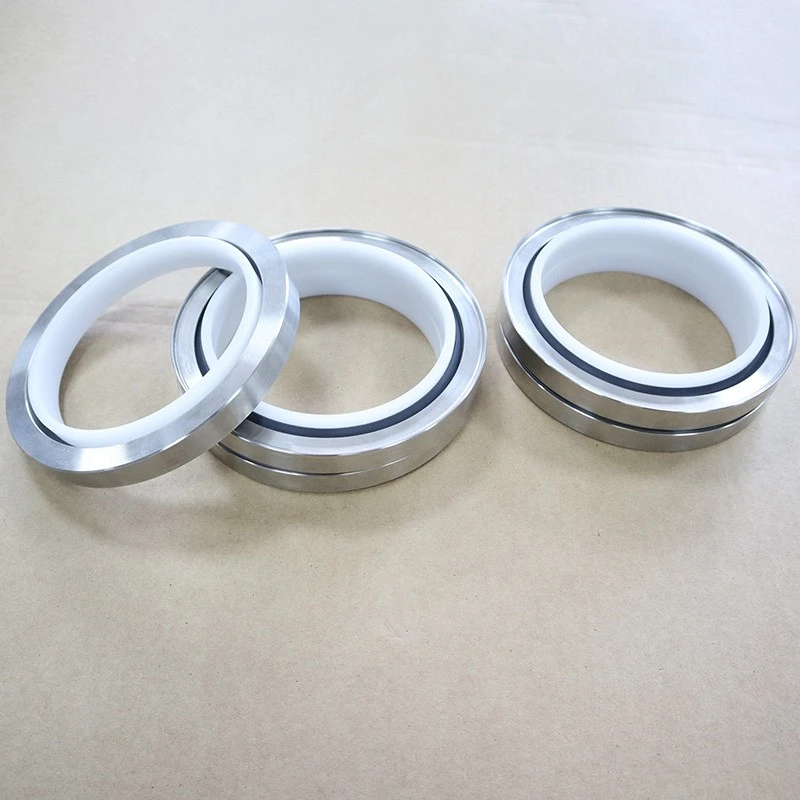

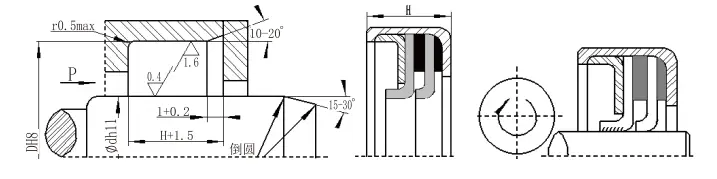

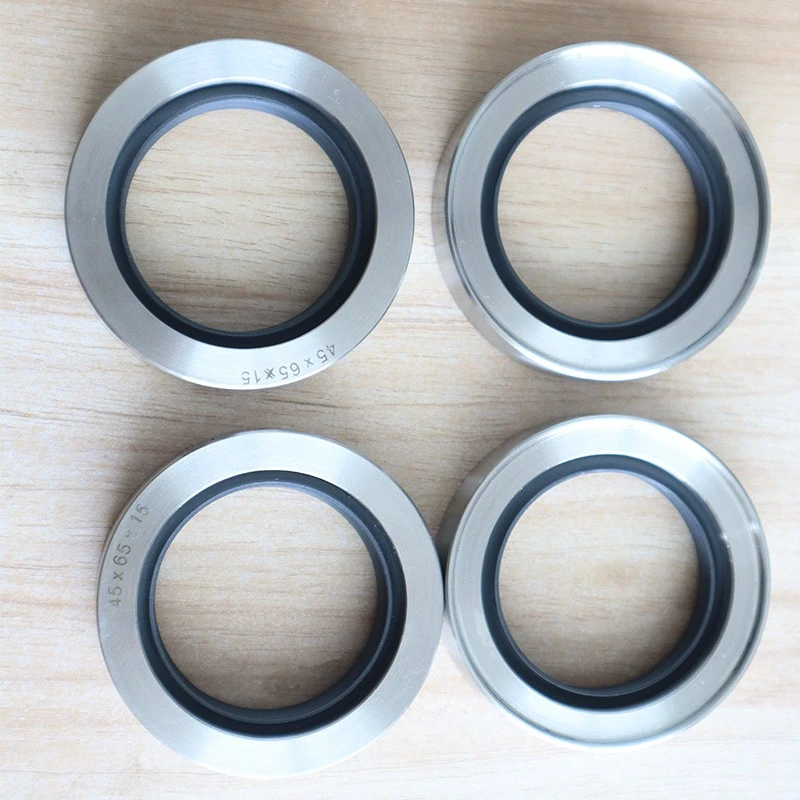

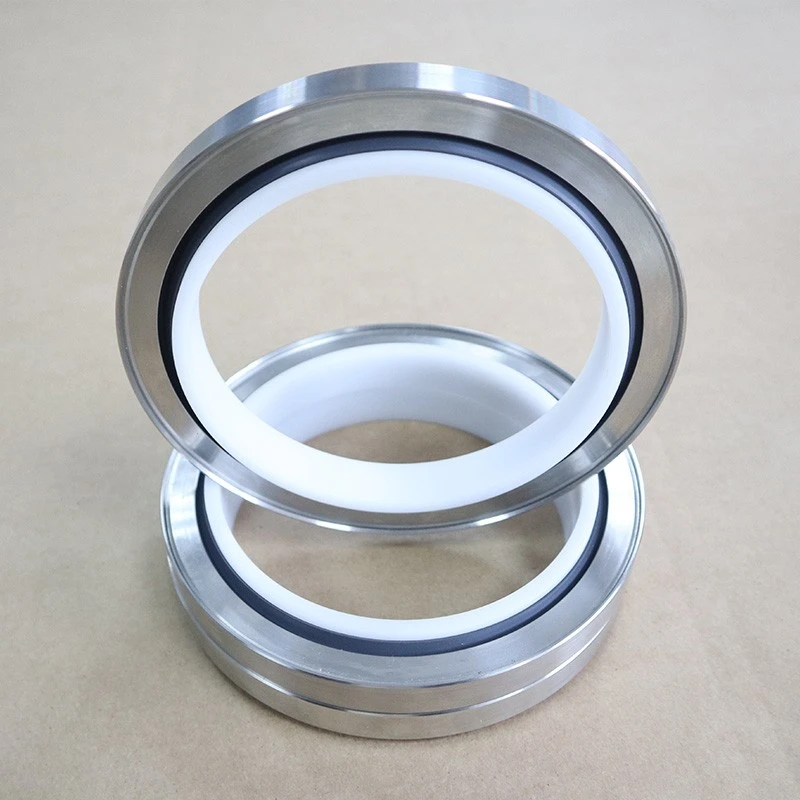

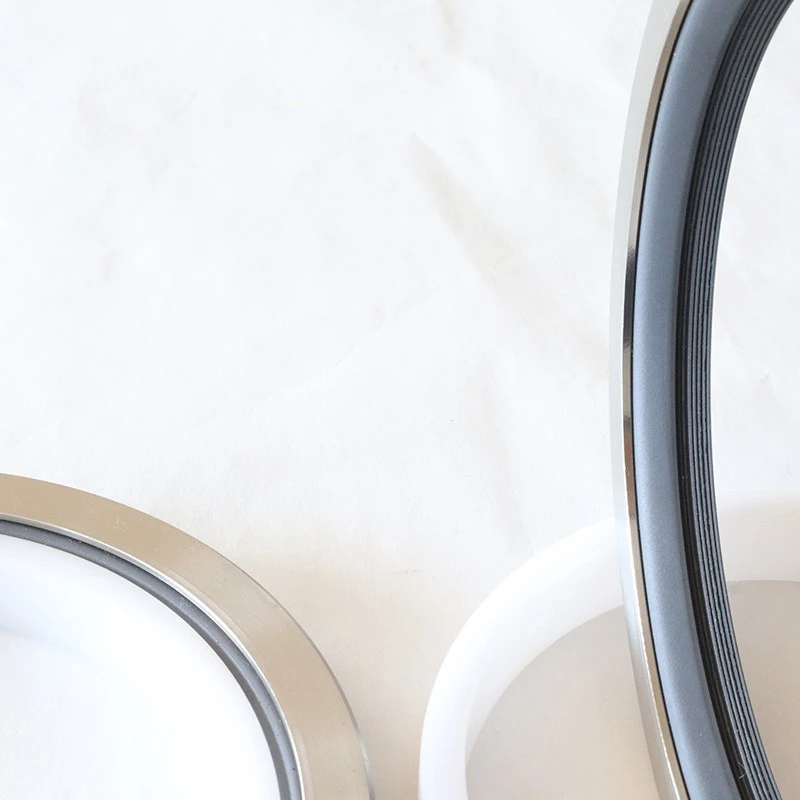

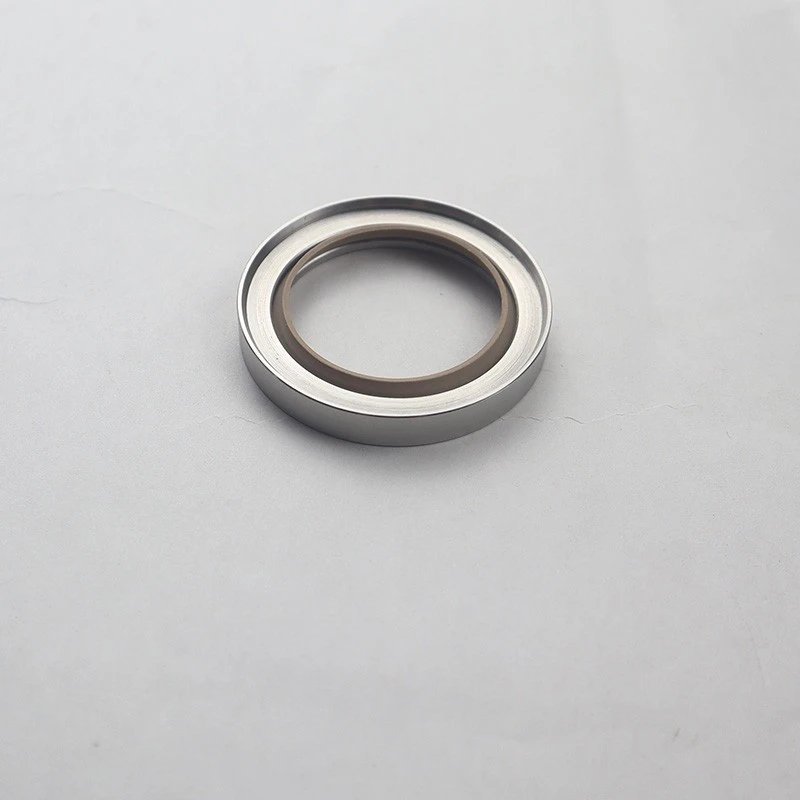

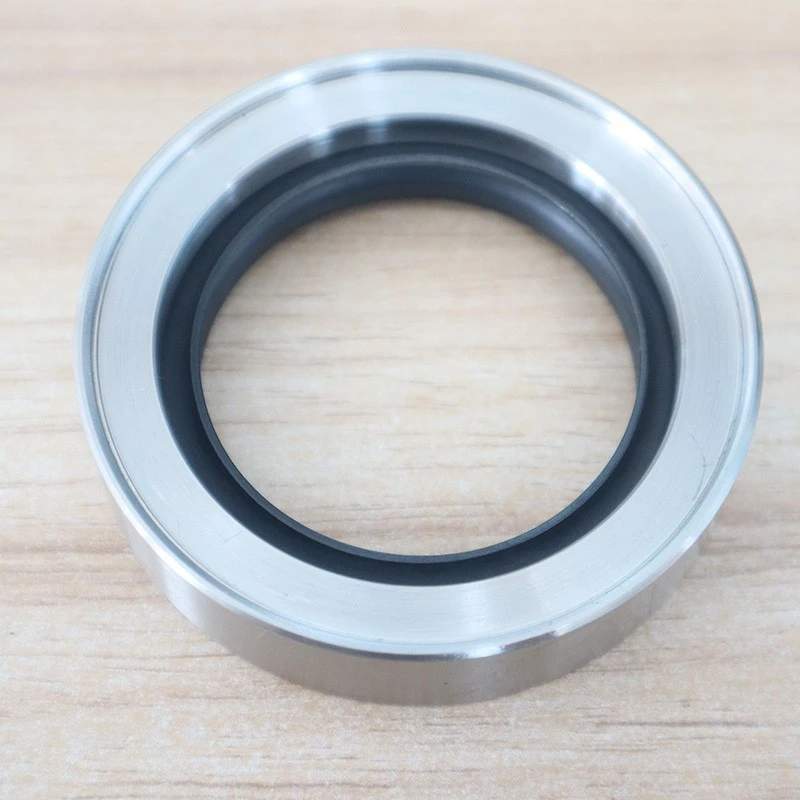

RCS Tipe Minyak Minyak Minyak Pt FCS (PTFE OIL SEAL)

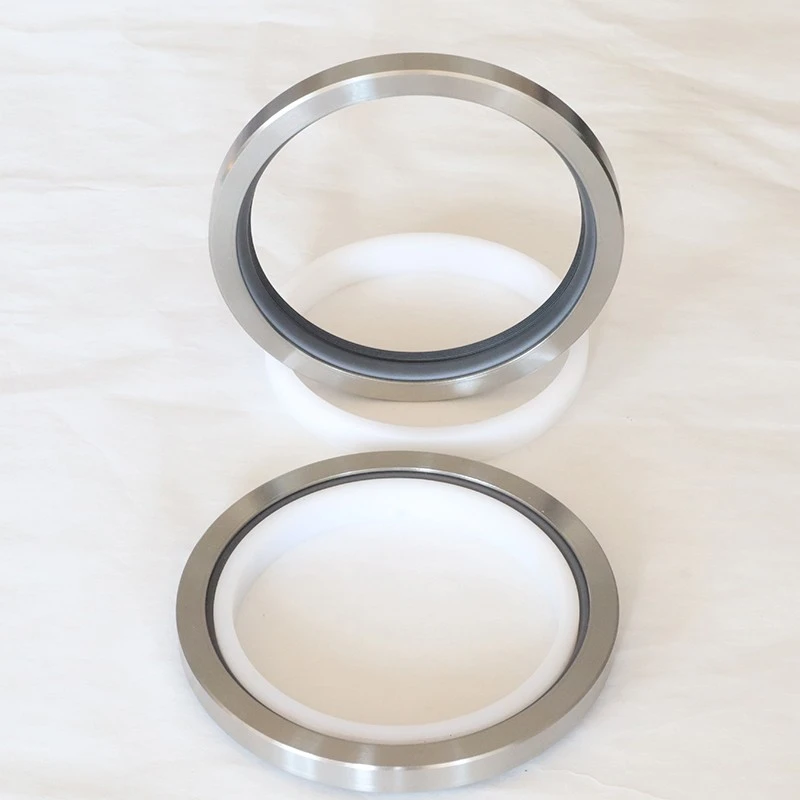

RC2057 Tipe Full Pt Full Pt Fit Full

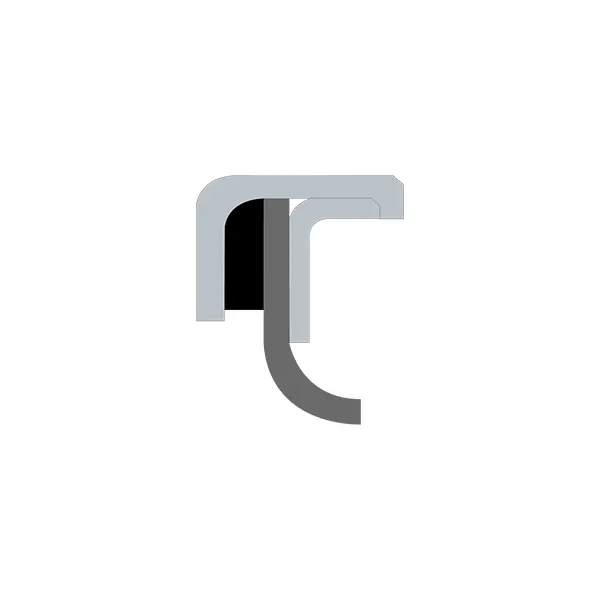

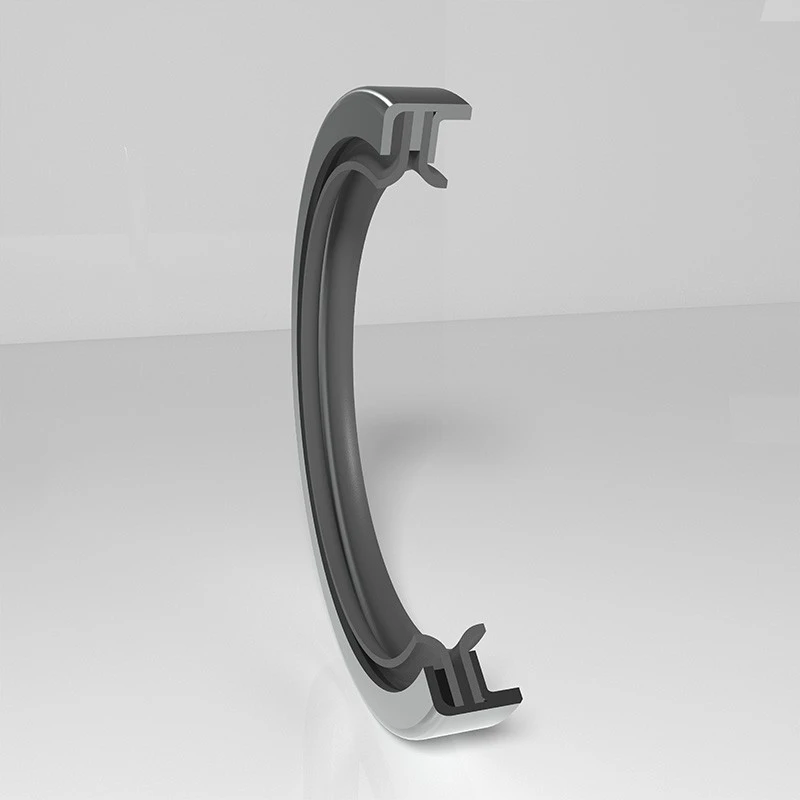

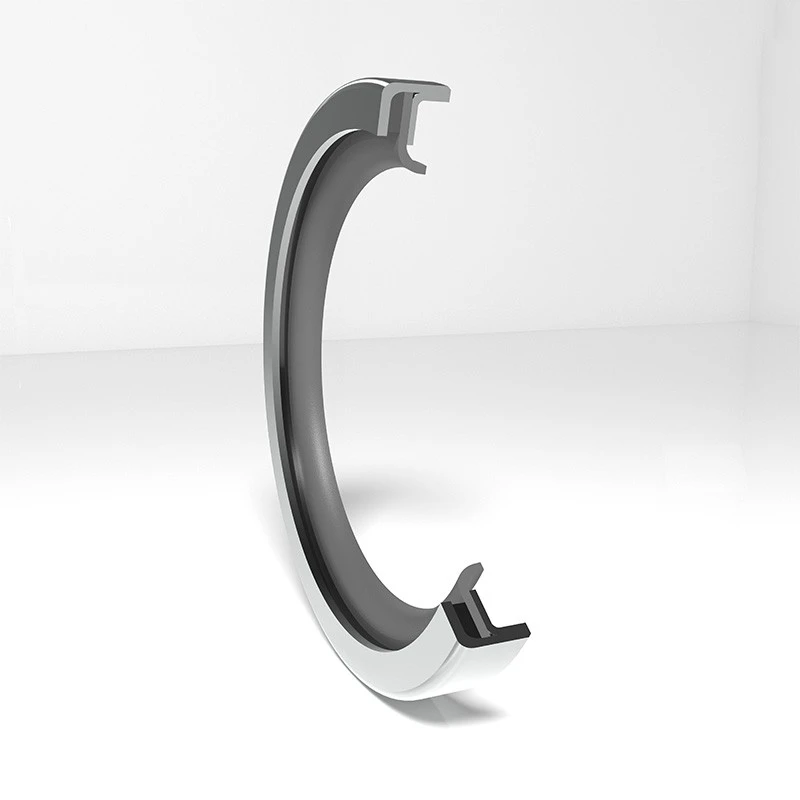

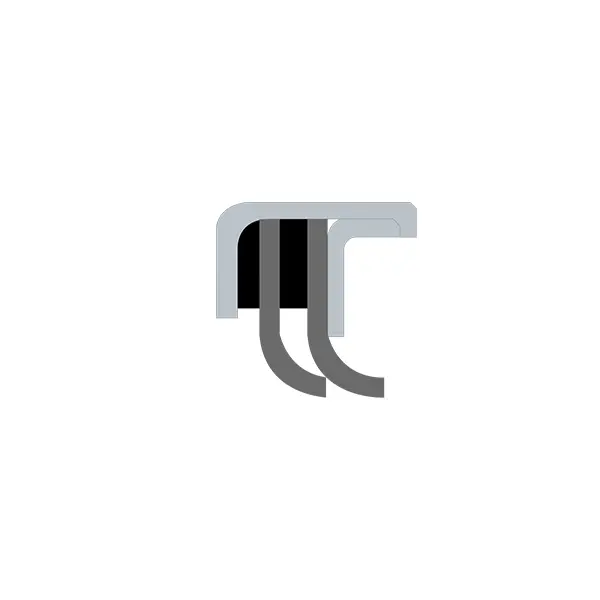

Tipe Tipe Minyak Minyak segel Power PTFE dumadi saka pigura logam, lambe sealing PTE lan segel statis internal. Iki dipérang dadi jinis, jinis C, d, dll. Fitur:
1. Rintangan Korosisi Kimia
2. Range Suhu Suhu
3. Cocog kanggo lubrication rendah lan lubrication gratis minyak
4. Gesekan murah kanggo entuk konsumsi tenaga minimal
5. Cocog kanggo kacepetan baris sing dhuwur
6 .. Ora ana tilak, resistensi murah kanggo miwiti sawise mati jangka panjang
7. Cocog kanggo puteran puteran sing durung dirasakake (pilihan cukup lip ptfe)
8. Cocog kesempatan kanthi tekanan sing luwih dhuwur
Ⅰ. Aplikasi Khas:
Kompresor Rotes, kompresor skru, transmisi / gearbox, blowers, mesin, alat mesin pompa pompa pompa, centrifugis, centrifuges, dll.
Ⅱ. Keperluan keras kanggo permukaan kawin
Kekayaan sing Disaranake: HRC ≥ 58. Kekerasan sing dibutuhake ana gandhengane karo akeh faktor. Shafts puteran alus uga ditrapake ing kahanan tekanan lan kecepatan rendah. Plate lambe PTFE6 dianjurake kanggo logam sing alus.
Ⅲ. Syarat kualitas kanggo permukaan kawin
RA = 0.2-0.63 a rz = 1-3um rmax = 1-4um
| Bentuk salib | Model | Meksa (MPA) | Suhu (℃) | Kacepetan (m / s) | Medium |
|
Rcs-a | 0.5 | -35 ~ + 200 | 40 | Lenga, gas, banyu, lsp. |
|
Rcs-b | 2 | -35 ~ + 200 | 20 | Lenga, gas, banyu, lsp. |
|
Rcs-c | 1 | -35 ~ + 200 | 20 | Lenga, gas, banyu, lsp. |
|
RCS-D | 2 | -35 ~ + 200 | 20 | Lenga, gas, banyu, lsp. |
|
Rc2057-a | 0.5 | -35 ~ + 200 | 30 | Meh kabeh media |
|
Rc2057-b | 2 | -35 ~ + 200 | 20 | Meh kabeh media |
Ⅳ. Pola Aliran Aliran Spiral Spiral:
Tipe RCS-D ngetrapake piring lambe kanthi struktur pola aliran spiral kanggo nambah kemampuan penata. Shaft rotasi mung diidini nganggo siji arah.
RC20658 Ukuran Instalasi
| Model | DF8 | DH9 | L d10 | SMax |
| Rc2065A | 400-3000 | D + 16.8 | 15.1 | 1.2 |
| RC2065 | 400-3000 | D + 17.5 | ||
| > 3000 | Mangga takon karo perusahaan kita | |||
Dawane Chamfer
| Rod Diameter | Panjarwa Chamfer E≥ |
| 400-1000 | 15 |
| 1001-2000 | 20 |
| 2001-3000 | 25 |
Spesifikasi lan Ukuran:
| D F8 Standar RC2051 | D F8 Cahya mbukak RC2051-Q | D F8 Beban abot Rc2051-z | D h9 | L+0.2 | L1 | RMax | SMax | Zmin | d0 | ||
| <10pa | <20MPA | <40Mpa | |||||||||
| - | 5 ~ 15.9 | - | D + 4.5 | 3 .. 1 | 2.8 | 0.3 | 0.3 | 0.2 | 0. 15 | 3 | 1.8 |
| 5 ~ 15.9 | 16 ~ 38.9 | - | D + 6.3 | 4.0 | 3.7 | 0.4 | 0.4 | 0.25 | 0. 15 | 4 | 2.65 |
| 16 ~ 38.9 | 39 ~ 107.9 | 5 ~ 15.9 | D + 8.2 | 5.2 | 4.7 | 0.4 | 0.4 | 0.25 | 0.2 | 5 | 3.55 |
| 39 ~ 107.9 | 108 ~ 670.9 | 16 ~ 38.9 | D + 11.7 | 7.6 | 7. 1 | 0.5 | 0.5 | 0.3 | 0.2 | 7 | 5.30 |
| 108 ~ 670.9 | 671 ~ 999 | 39 ~ 107.9 | D + 15.5 | 9.6 | 8.9 | 0.6 | 0.6 | 0.35 | 0.25 | 10 | 7.00 |
| 671 ~ 999 | 1000 ~ 1599 | 108 ~ 670.9 | D + 19.4 | 12. 1 | 11.3 | 0.7 | 0.7 | 0.5 | 0.3 | 12 | 8.60 |
| 1000 ~ 1599 | ≥1600 | 671 ~ 999 | D +22 | 14.8 | 13.5 | 0.8 | 0.8 | 0.6 | 0.4 | 15 | 10.0 |
| ≥1600 | - | 1000 ~ 1599 | D + 26 | 17.8 | 16.3 | 1.0 | 1.0 | 0.7 | 0.6 | 20 | 12.0 |
CATETAN: 1. Kanggo diameter shaft ≤30mm, dianjurake kanggo nggunakake alur mbukak. Jinis load Cahya luwih gampang diinstal ing alur sing ditutup.
2 .. Apike yen lumahing kekerasan batang puteran yaiku HRC> 58.

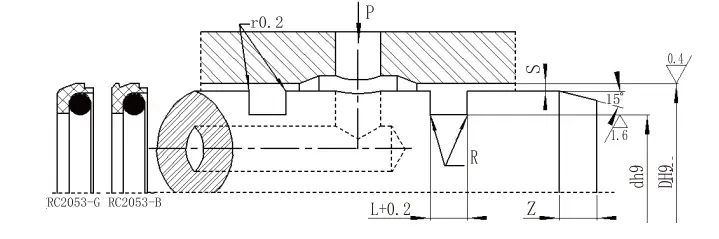

RC2053
| Apenture kisaran D h9 | Diameteripun alur D h9 | Jembaré alur L + 0.2 | Dhuwur segel L1 | Sudhut bunder RMax | Reres radial s | Chamfer Zmin | Diameter kabel o-ring d0 | ||
| <10pa | <20MPA | <40Mpa | |||||||
| 8 ~ 12 | D-4,5 | 3.1 | 2.8 | 0.3 | 0.3 | 0.2 | 0.15 | 3 | 1.8 |
| 13 ~ 24 | D-6.3 | 4 | 3.7 | 0.4 | 0.4 | 0.25 | 0.15 | 4 | 2.65 |
| 25 ~ 51 | D-8.2 | 5.2 | 4.7 | 0.4 | 0.4 | 0.25 | 0.2 | 5 | 3.55 |
| 52 ~ 127 | D-11.7 | 7.6 | 7.1 | 0.5 | 0.5 | 0.3 | 0.2 | 7 | 5.30 |
| 128 ~ 500 | D-15.5 | 9.6 | 8.9 | 0.6 | 0.6 | 0.35 | 0.25 | 10 | 7.00 |
| 501 ~ 1600 | D-19.4 | 12.1 | 11.3 | 0.7 | 0.7 | 0.5 | 0.3 | 12 | 8.6 |
CATETAN: 1. Kanggo diameter shaft ≤ 30 mm, alur mbukak disaranake.
Rc2052
| Range Diameter Shaft D F8 | Diameteripun alur D h9 | Jembaré alur L+0.2 | Reres radial sMax | Sudhut bunder RMax | Chamfer Zmin | |
| 0 ~ 10pa | 10 ~ 20MPA | |||||
| 6 ~ 18 | D + 4.9 | 2.2 | 0.15 | 0.1 | 0.4 | 2 |
| 19 ~ 37 | D + 7.5 | 3.2 | 0.2 | 0.15 | 0.6 | 3 |
| 38 ~ 199 | D + 11.0 | 4.2 | 0.25 | 0.2 | 1.0 | 4 |
| 200 ~ 255 | D + 15.5 | 6.3 | 0.3 | 0.25 | 1.3 | 5 |
| 256 ~ 649 | D + 21.0 | 8.1 | 0.3 | 0.25 | 1.8 | 7 |
| 650 ~ 1500 | D + 28.0 | 9.5 | 0.45 | 0.3 | 2.0 | 8 |
CATETAN: 1. Kanggo diameter shaft ≤ 30 mm, alur mbukak disaranake.
2 .. Kanggo metures> 30 MPA, area Root SEAL nggunakake toleransi H8 / F8.
RC2054| Apenture kisaran D h9 | Diameteripun alur D h9 | Jembaré alur L+0.2 | Reres radial sMax | Sudhut bunder RMax | Chamfer Zmin | |
| 0 ~ 10pa | 10 ~ 20MPA | |||||
| 8 ~ 39 | D-4.9 | 2.2 | 0.15 | 0.1 | 0.4 | 2 |
| 40 ~ 79 | D-7.5 | 3.2 | 0.2 | 0.15 | 0.6 | 3 |
| 80 ~ 132 | D-11.0 | 4.2 | 0.25 | 0.2 | 1.0 | 4 |
| 133 ~ 329 | D-15.5 | 6.3 | 0.3 | 0.25 | 1.3 | 5 |
| 330 ~ 669 | D-21.0 | 8.1 | 0.3 | 0.25 | 1.8 | 7 |
| 670 ~ 1500 | D-28.0 | 9.5 | 0.45 | 0.3 | 2.0 | 8 |
| Profil | Model | Meksa (MPA) | Suhu (℃) | Kacepetan referensi (m / s) |
Referensi Nilai PV MPA.m / s | Media |
|
Rc2051-b | ≤70 (standar) | -35 ~ + 100 (Cocokake O-ring NBR) | <2 | ≤5 | Minyak hidrolik, emulsi, banyu, gas, lsp. Minyak hidrolik, emulsi, banyu, gas, lsp. |
| ≤30 (kacepetan dhuwur) | -20 ~ + 200 (cocog o-ring fkm) | <6 | ||||
|
Rc051-g | ≤70 (standar) | -35 ~ + 100 (Cocokake O-ring NBR) | <2 | ≤5 | Minyak hidrolik, emulsi, banyu, gas, lsp. Minyak hidrolik, emulsi, banyu, gas, lsp. |
| ≤30 (kacepetan dhuwur) | -20 ~ + 200 (cocog o-ring fkm) | <6 | ||||
|
Rc2053-b | ≤70 (standar) | -35 ~ + 100 (Cocokake O-ring NBR) | <2 | ≤5 | Minyak hidrolik, emulsi, banyu, gas, lsp. Minyak hidrolik, emulsi, banyu, gas, lsp. |
| ≤30 (kacepetan dhuwur) | -20 ~ + 200 (cocog o-ring fkm) | <6 | ||||
|
Rc2053-g | ≤70 (standar) | -35 ~ + 100 (Cocokake O-ring NBR) | <2 | ≤5 | Minyak hidrolik, emulsi, banyu, gas, lsp. Minyak hidrolik, emulsi, banyu, gas, lsp. |
| ≤30 (kacepetan dhuwur) | -20 ~ + 200 (cocog o-ring fkm) | <6 | ||||
|
Rc2052 | ≤40 | -35 ~ + 100 (Cocokake O-ring NBR) | ≤2 | ≤2.5 | Minyak hidrolik, emulsi, banyu, gas, lsp. Minyak hidrolik, emulsi, banyu, gas, lsp. |
| -20 ~ + 200 (cocog o-ring fkm) | ||||||
|
Rcx17 | ≤20 | -35 ~ + 100 | ≤0.5 | - | Minyak hidrolik, emulsi, banyu, gas, lsp. |
|
RC2054 | ≤40 | -35 ~ + 100 (Cocokake O-ring NBR) | ≤2 | - | Minyak hidrolik, emulsi, banyu, gas, lsp. Minyak hidrolik, emulsi, banyu, gas, lsp. |
| -20 ~ + 200 (cocog o-ring fkm) | ||||||
|
Rcx18 | ≤20 | -35 ~ + 100 | ≤0.5 | - | Minyak hidrolik, emulsi, banyu, gas, lsp. |
|
RDI | <36 | -35 ~ + 100 | <0,5 | - | Minyak hidrolik, emulsi, banyu, gas, lsp. |
|
RDA | <36 | -35 ~ + 100 | <0,5 | - | Minyak hidrolik, emulsi, banyu, gas, lsp. |
|
Rcs-a | 0.5 | -35 ~ + 200 | 40 | ≤6 | Minyak, banyu, gas, lsp. |
|
Rcs-b | 2 | -35 ~ + 200 | 20 | ≤1 | Minyak, banyu, gas, lsp. |
|
Rcs-c | 1 | -35 ~ + 200 | 20 | ≤6 | Minyak, banyu, gas, lsp. |
|
RCS-D | 2 | -35 ~ + 100 | 20 | ≤6 | Minyak, banyu, gas, lsp. |
|
Rc2057-a | 0.5 | -35 ~ + 200 | 30 | ≤6 | Meh kabeh media |
|
Rc2057-b | 2 | -35 ~ + 200 | 20 | ≤6 | Meh kabeh media |
|
RC2065 | 1 | -35 ~ + 200 | 6 | ≤1 | Minyak hidrolik, emulsi, banyu, grease, lsp. |
