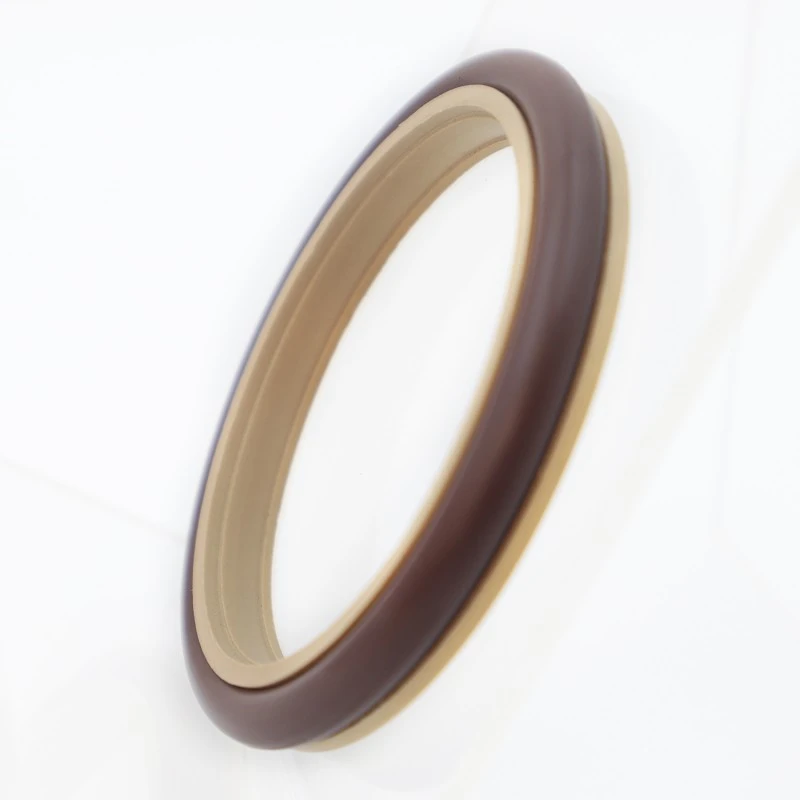

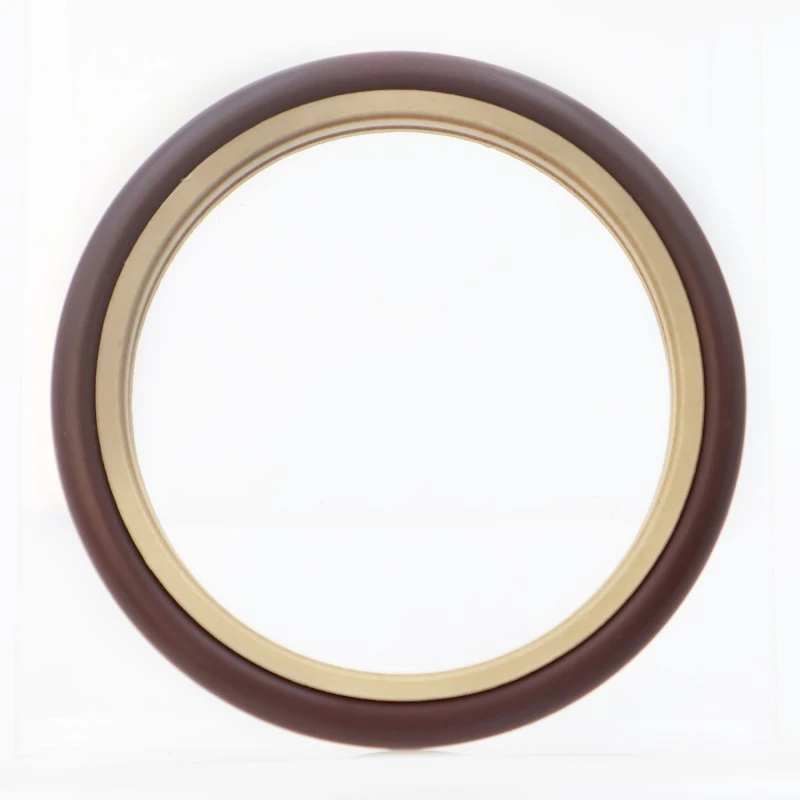

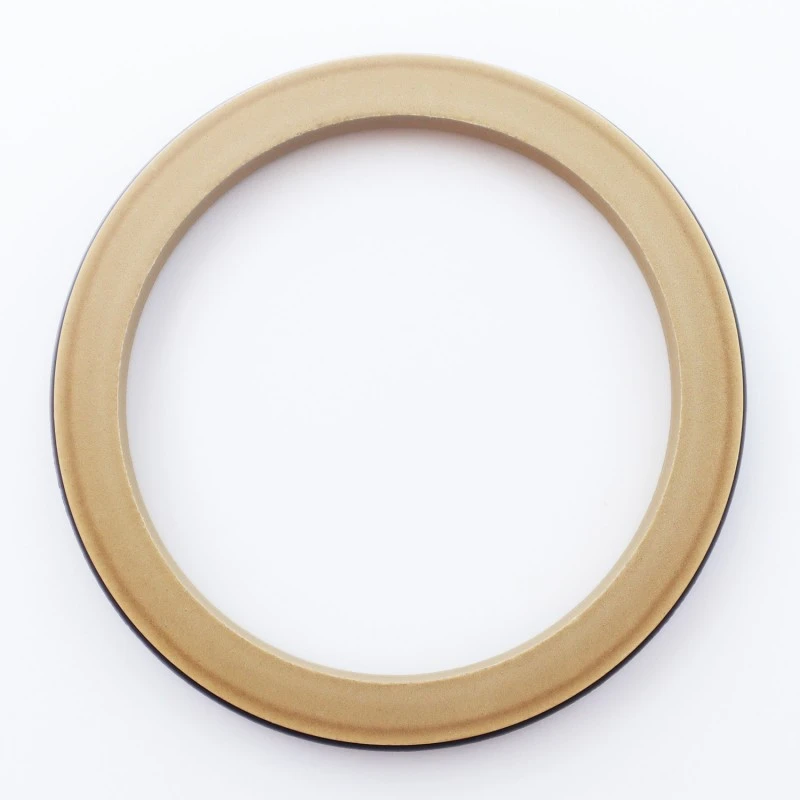

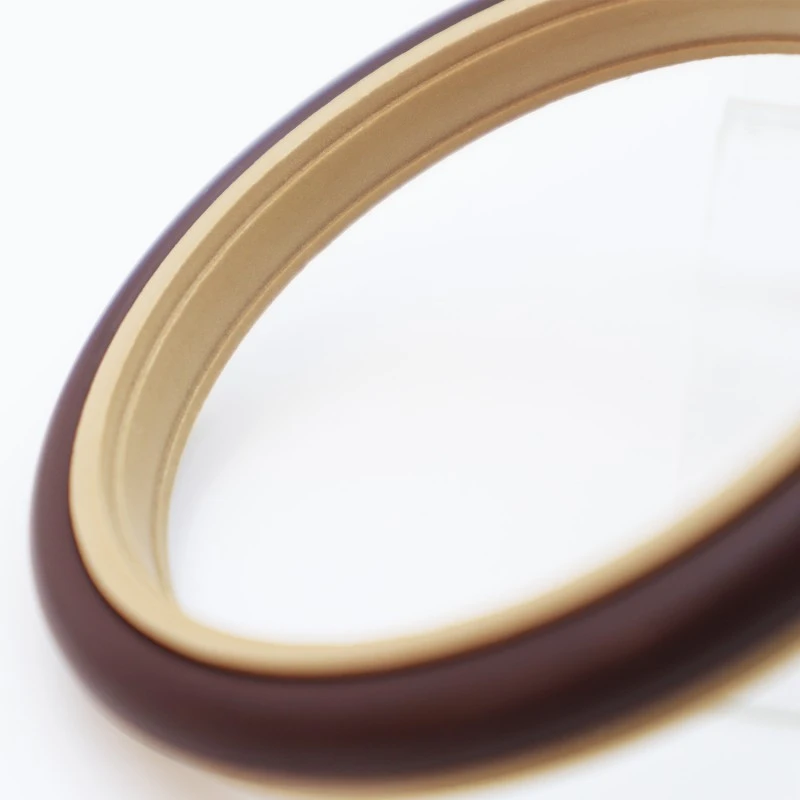

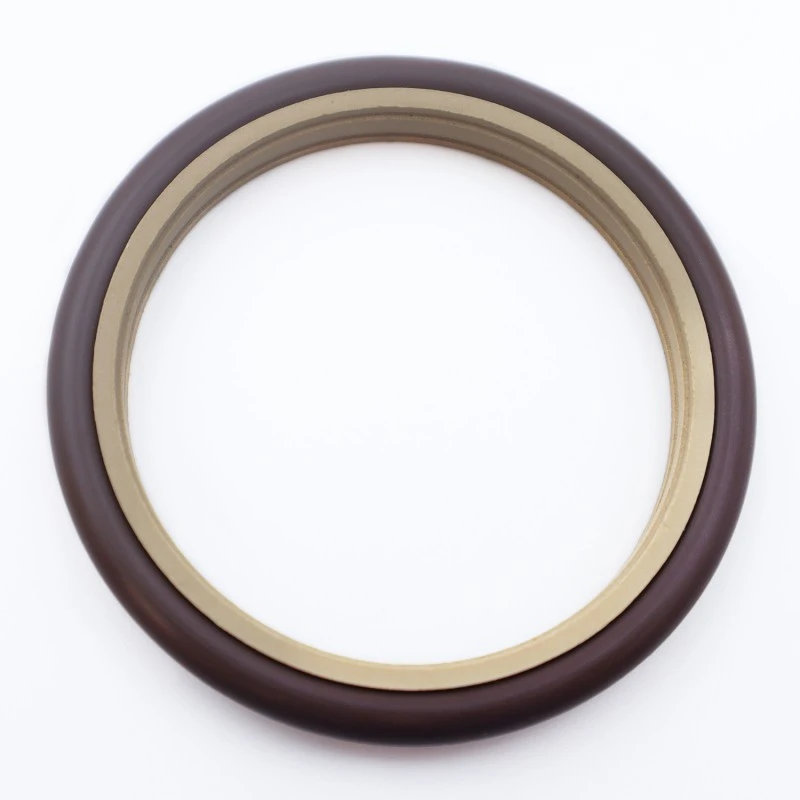

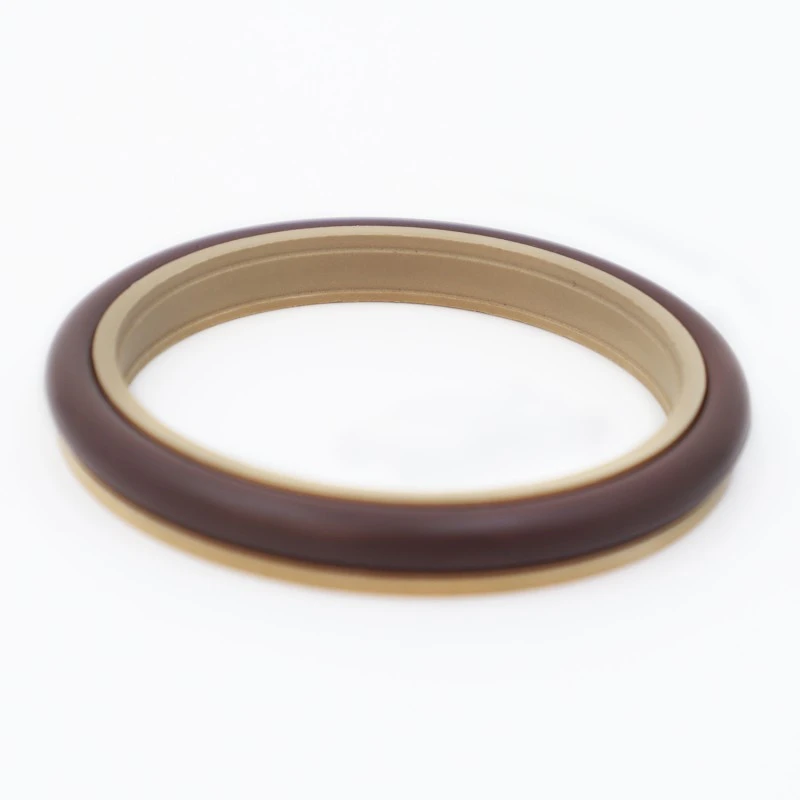

Ruichen mrodhuksi Labyrinth-Type Compound Seal kanggo Rotary Shafts, kasedhiya ing RC2051-B (jinis standar) lan RC2051-G (jinis kacepetan dhuwur). Desain lambe unik RC2051 nyedhiyakake kinerja panyegelan sing apik lan resistensi gesekan sing sithik banget, sanajan digunakake kanggo reciprocating pneumatic utawa sealing rotary.
|
Tekanan/MPa |
Suhu / °C |
Nilai Pv referensi /Mpa.m/s |
kacepetan referensi /m/s |
Sedheng |
|
≤70 (Model Standar) |
-35~+100 (NBR O-ring) |
≤10 |
<2 |
Minyak hidrolik, emulsi, banyu, gas, lsp. |
|
≤30 (Model Kacepetan Dhuwur) |
-20~+200 (O-ring FKM) |
<6 |
Pilihan materi
1. Bahan O-ring kasedhiya: R01 Nitrile Butadiene Rubber (NBR), R02 Fluororubber (FKM), etc.
2. Bahan ring sealing: Bahan standar PTFE4, bahan opsional liyane kalebu PTFE1, PTFE2, PTFE3, lan PTFE5.
Ruichen ora mung bisa nyedhiyani sampeyan karo produk, nanging uga sawetara lengkap saka support profesional saka produk kanggo teknologi. Saran pilihan profesional, analisis kegagalan lan Q&A teknis Iki sing bisa diwenehake kanggo sampeyan. Yen sampeyan nemoni masalah panyegelan, kita bakal cepet ngatur sumber daya teknis kanggo mbantu sampeyan nemokake panyebab kegagalan liwat analisis metalografi, analisis spektral lan liya-liyane. Lan bantuan kita ora bakal mandheg, nanging uga bakal ngusulake program perbaikan sing efektif kanggo sampeyan.
Tuladha Pesenan
Model Pesenan: RC2051—80x91.7x7.6—PTFE3—R01
Model: DxL-
Kode Bahan:

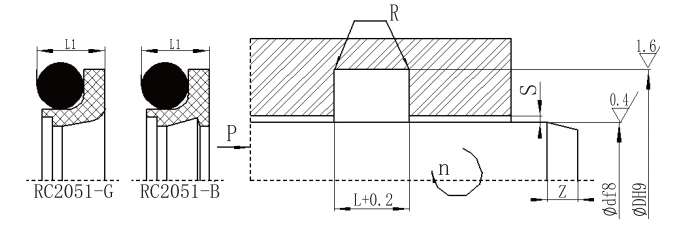

Tabel spesifikasi lan parameter (spesifikasi apa wae ing kisaran parameter kasedhiya)
|
d f8 Tipe standar RC2051 |
d f8 Jinis beban entheng RC2051-Q |
d f8 Jinis beban abot RC2051-Z |
DH9 |
L+⁰.2 |
LI |
Rmax |
Sm |
Znin |
nindakake |
||
|
<10MPa |
<20MPa |
<40MPa |
|||||||||
|
. |
5~15.9 |
-- |
d+4.5 |
3.1 |
2.8 |
0.3 |
0.3 |
0.2 |
0.15 |
3 |
1.8 |
|
5~15.9 |
16~38.9 |
--- |
d+6.3 |
4.0 |
3.7 |
0.4 |
0.4 |
0.25 |
0.15 |
4 |
2.65 |
|
16~38.9 |
39~107.9 |
5~15.9 |
d+8.2 |
5.2 |
4.7 |
0.4 |
0.4 |
0.25 |
0.2 |
5 |
3.55 |
|
39~107.9 |
108~670.9 |
16~38.9 |
d+11.7 |
7.6 |
7.1 |
0.5 |
0.5 |
0.3 |
0.2 |
7 |
5.30 |
|
108~670.9 |
671~999 |
39~107.9 |
d+15.5 |
9.6 |
8.9 |
0.6 |
0.6 |
0.35 |
0.25 |
10 |
7.00 |
|
671~999 |
1000-1599 |
108~670.9 |
d+19.4 |
12.1 |
11.3 |
0.7 |
0.7 |
0.5 |
0.3 |
12 |
8.60 |
|
1000-1599 |
≥1600 |
671~999 |
d+22 |
14.8 |
13.5 |
0.8 |
0.8 |
0.6 |
0.4 |
15 |
10.0 |
|
≥1600 |
- |
1000-1599 |
d+26 |
17.8 |
16.3 |
1.0 |
1.0 |
0.7 |
0.6 |
20 |
12.0 |
Cathetan: 1. Kanggo diameter batang ≤ 30mm, alur mbukak dianjurake.
2. Kekerasan lumahing poros puteran kudu HRC> 58.
