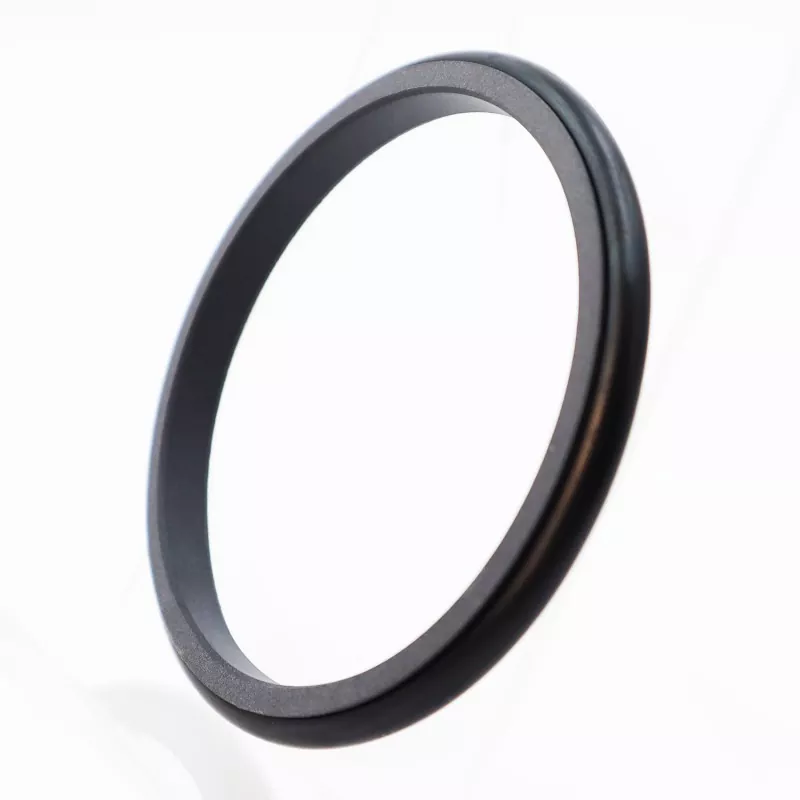

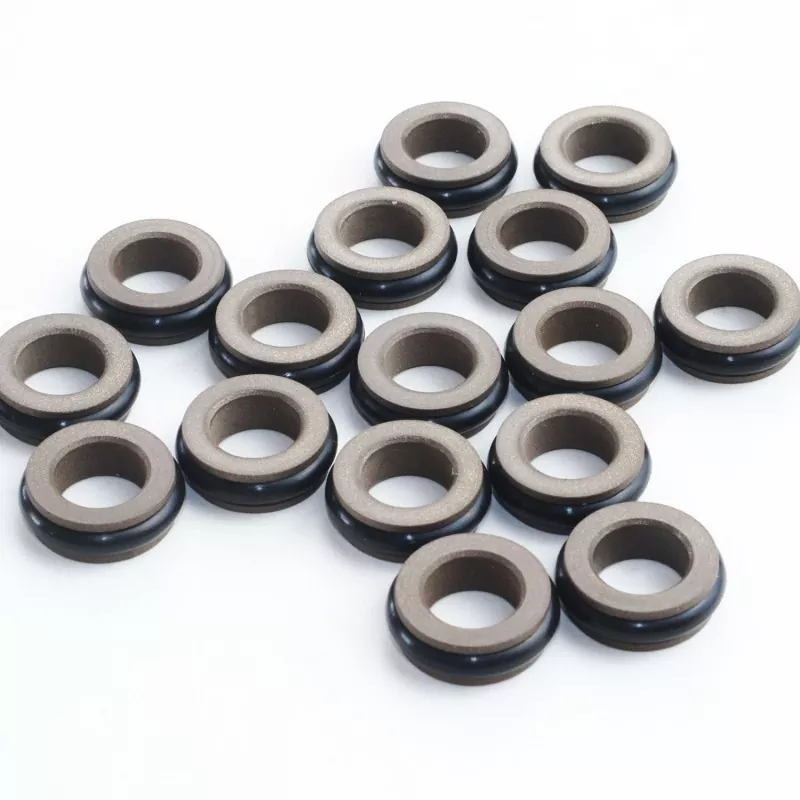

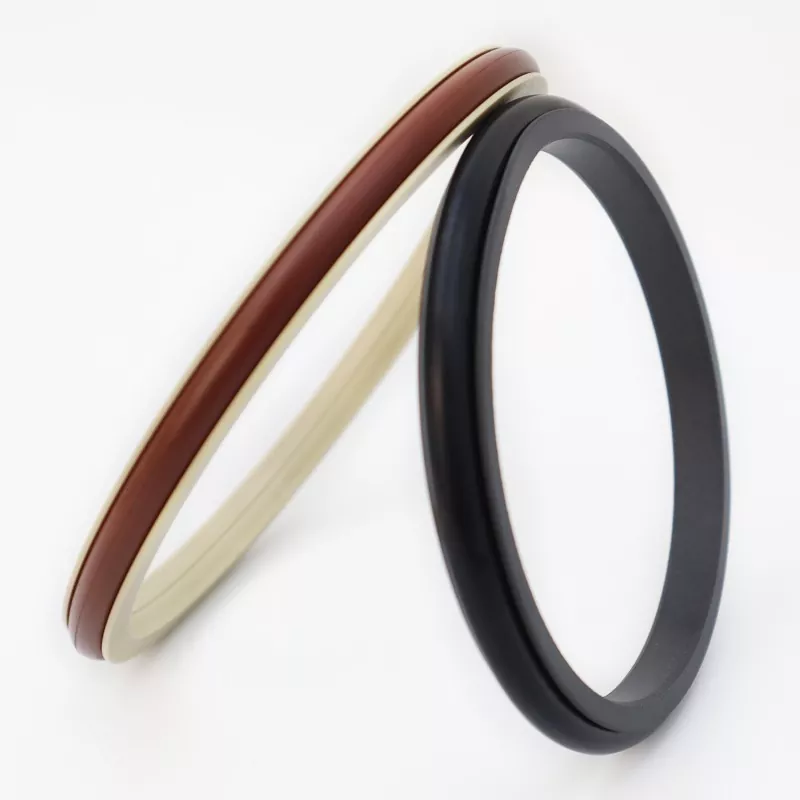

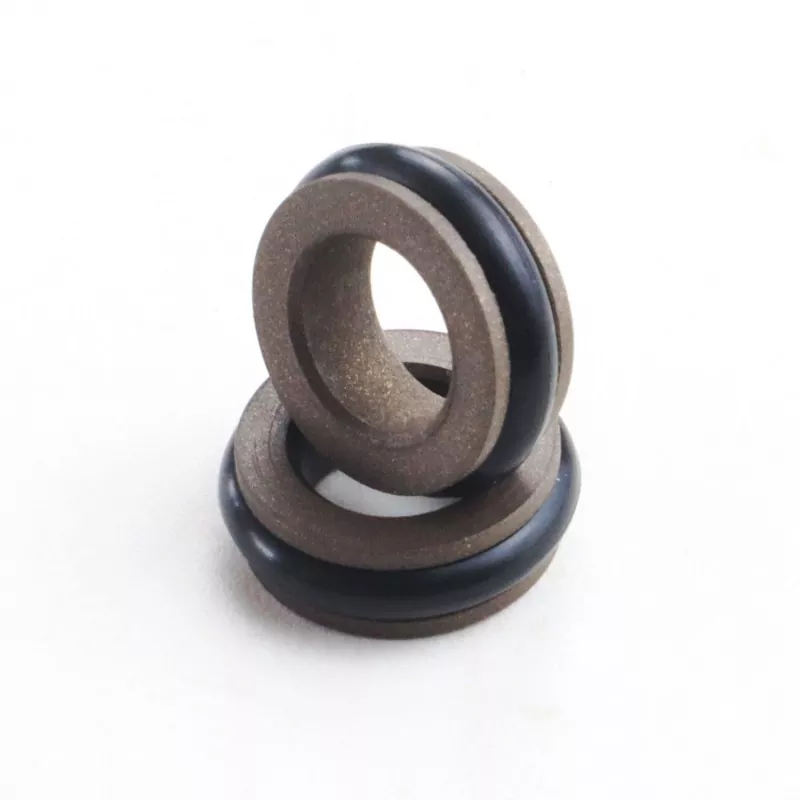

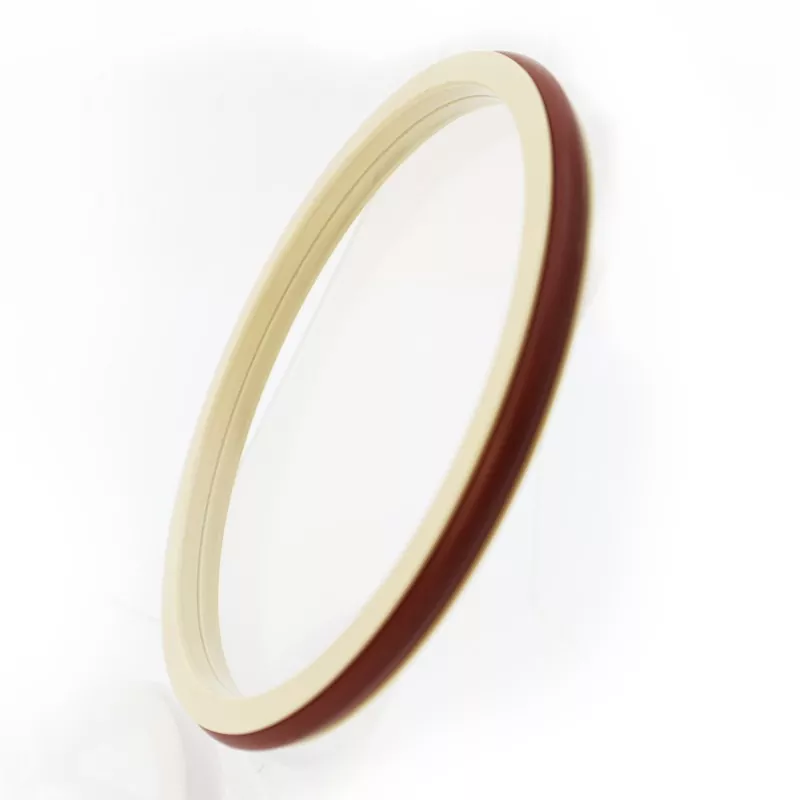

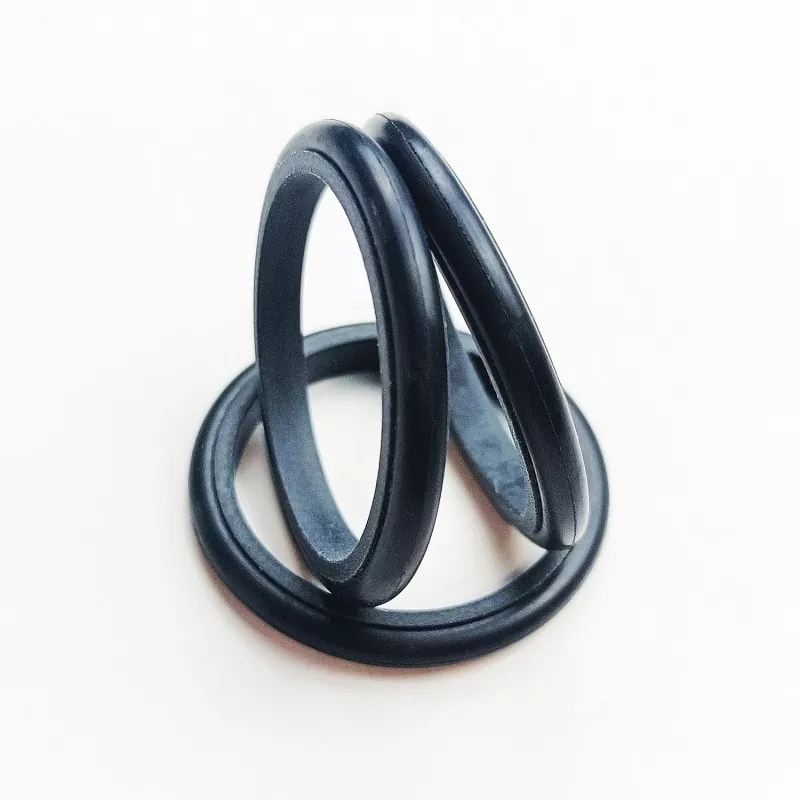

Seal Gabungan C-jinis kasusun saka ring sealing C-shaped digawe saka PTFE lan materi gabungan, lan O-ring. Cocog kanggo sealing tekanan bidirectional ing gerakan reciprocating hidrolik lan pneumatik. Kasedhiya ing seri RC06 lan RC07 (kompatibel karo O-ring seri GB1235) gumantung ing O-ring sing cocog. Amarga desain tipis-lip saka ring sealing, iku nduweni kemampuan tindakake-kompensasi apik, asil ing kinerja sealing banget. Struktur simetris saka segel C-jinis ngidini kanggo sealing ing tekanan bidirectional.
1. Cocog kanggo aplikasi hidrolik lan pneumatik.
2. Kinerja sealing banget kanggo aplikasi tekanan dhuwur lan kurang.
3. Gesekan kurang, resistance wiwitan kurang, operasi Gamelan, padha gesekan dinamis lan statis, lan ora creep.
4. urip dawa layanan; cocok kanggo sealing lubrication free lenga.
5. Cocog kanggo sealing tekanan bidirectional.
Nilai ekstrim ngirim ora kedadeyan bebarengan.
|
Tekanan (MPa) |
Suhu (°C) |
Kacepetan (m/s) |
Media |
|
≤100 |
-35 nganti +100 (karo NBR O-ring) |
≤6 |
Minyak hidrolik, cairan tahan geni (HFA/HFB), gas, lsp. |
|
-20 nganti +180 (karo FKM O-ring) |
1. Bahan O-ring sing cocog: RO1 Nitrile Butadiene Rubber (NBR), RO2 Fluororubber (FKM), etc.
2. Bahan ring sealing: Bahan standar PTFE3, bahan opsional liyane kalebu PTFE2, PTFE4, lan bahan kinerja dhuwur liyane.
Pesenan Model RC06-80x89.9x9.2-PTFE3—R01
Model-Rod Diameter x Groove Diameter x Groove Jembar PTFE3 - Modified PTFE Material Kode R01 O-ring Material

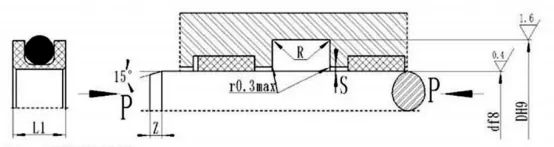

Bisa ngasilake produk saka ukuran apa wae sing kadhaptar ing tabel spesifikasi.
|
d f8 Standar RC06 |
d f8 Cahya-tugas RC06-Q |
d f8 Tugas abot RC06-Z |
D H9 |
L+0.2 |
L1 |
Rmax |
Smax |
Zmin |
d0 |
|
|
<20MPA |
<40MPA |
|||||||||
|
-- |
4~17.9 |
-- |
d+3.6 |
4 |
3.6 |
0.3 |
0.2 |
0.15 |
3 |
1.8 |
|
4~17.9 |
18~39.9 |
-- |
d+5.0 |
5.0 |
4.6 |
0.4 |
0.25 |
0.15 |
4 |
2.65 |
|
18~39.9 |
40~106.9 |
4~17.9 |
d+6.6 |
6.2 |
5.6 |
0.4 |
0.25 |
0.2 |
5 |
3.55 |
|
40~106.9 |
107~630.9 |
18~39.9 |
d+9.9 |
9.2 |
8.5 |
0.5 |
0.3 |
0.2 |
7 |
5.30 |
|
107~630.9 |
631~999 |
40~106.9 |
d+13.0 |
12.3 |
10.6 |
0.6 |
0.35 |
0.25 |
10 |
7.00 |
|
631~999 |
1000~1600 |
107~630.9 |
d+15.2 |
13.6 |
12 |
0.7 |
0.5 |
0.3 |
12 |
8.6 |
|
1000~1600 |
≥1600 |
631~999 |
d+18.5 |
16 |
14.5 |
0.8 |
0.6 |
0.4 |
15 |
10 |
|
≥1600 |
-- |
1000~1600 |
d+22 |
19 |
17 |
1.0 |
0.7 |
0.6 |
20 |
12.0 |
Cathetan: 1. Kanggo diameter batang ≤ 70mm, segel alur mbukak dianjurake. Kanggo instalasi segel alur integral (ditutup), waca pandhuan instalasi.
2. Kanggo meksa> 40MPa, area ROOT Smax segel kudu nggunakake toleransi pas H8 / f8.
Cocog O-ring GB1235 Bisa gawé produk saka sembarang ukuran kadhaptar ing tabel specification.
|
Kisaran diameteripun poros d f8 |
diameteripun alur D H9 |
Jembaré parit L+0.2 |
Dhuwur segel L1 |
sudhut bunder Rmax |
Reresik radial Smax |
Chamfer Zmin |
diameteripun kabel O-ring d0 |
|
|
<20MPA |
<40MPA |
|||||||
|
5~21 |
d+4.5 |
4.5 |
4 |
0.4 |
0.25 |
0.15 |
4 |
2.4 |
|
22~39 |
d+6.5 |
6.2 |
5.6 |
0.4 |
0.25 |
0.2 |
5 |
3.5 |
|
40~154 |
d+10.4 |
9.8 |
8.9 |
0.5 |
0.3 |
0.2 |
7 |
5.7 |
|
155~1500 |
d+15.2 |
13.6 |
12 |
0.7 |
0.5 |
0.3 |
12 |
8.6 |
Tuladha pesenan RC07—80*90.4*9.8-PTFE3-R01
