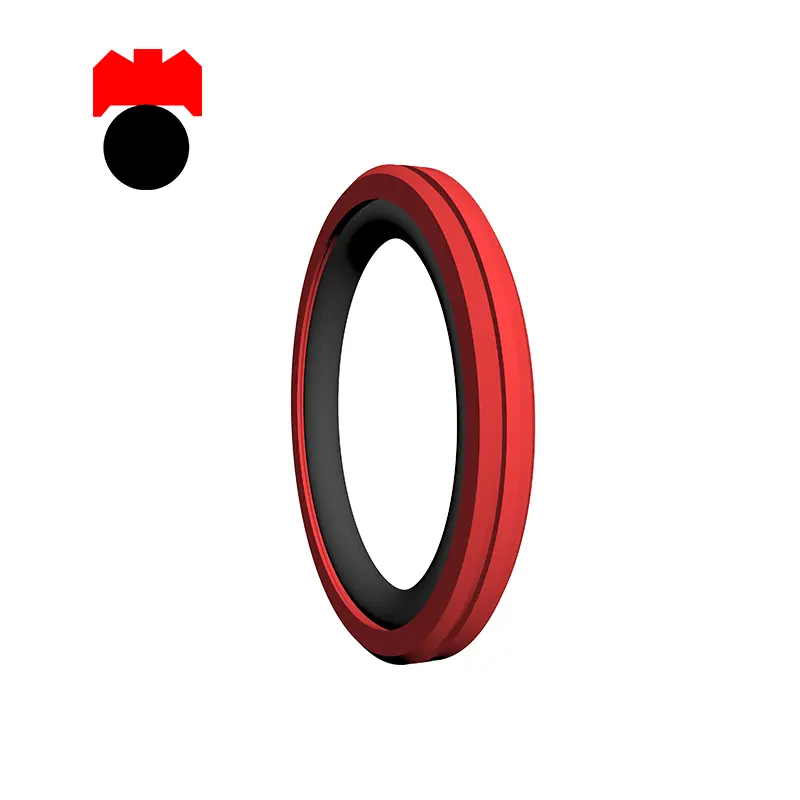

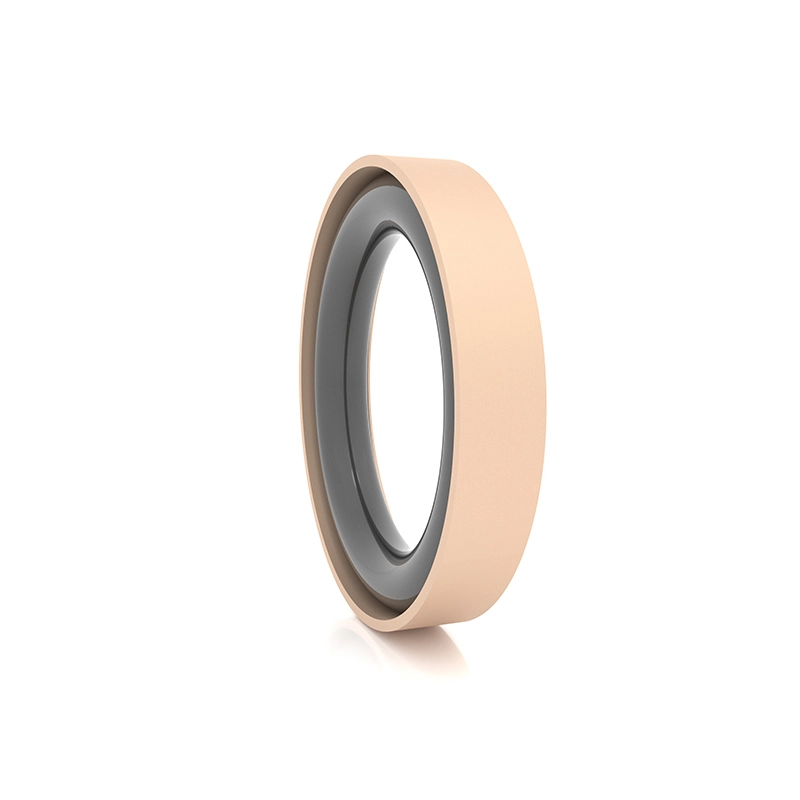

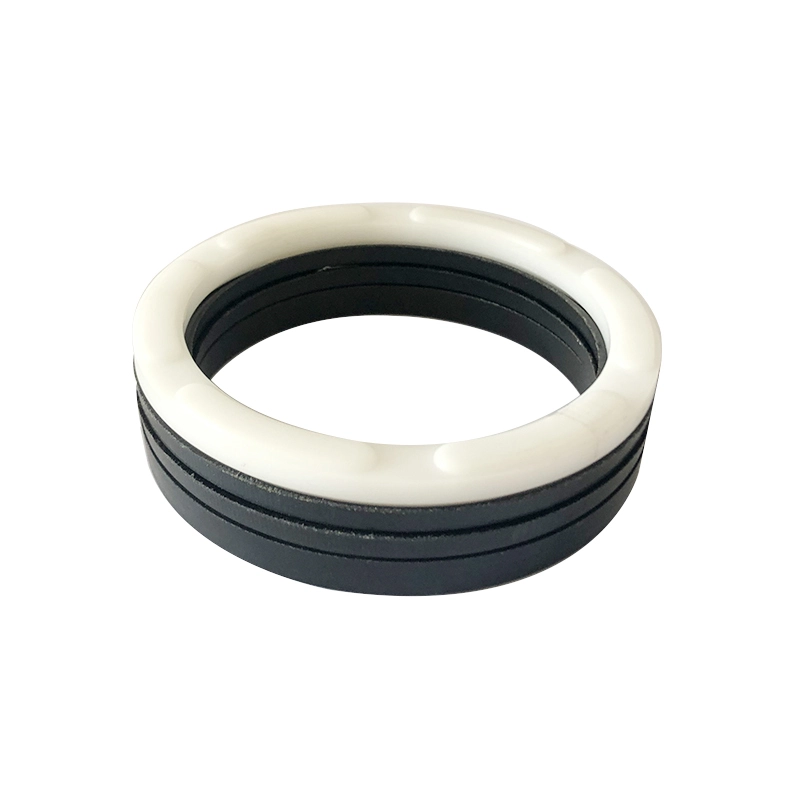

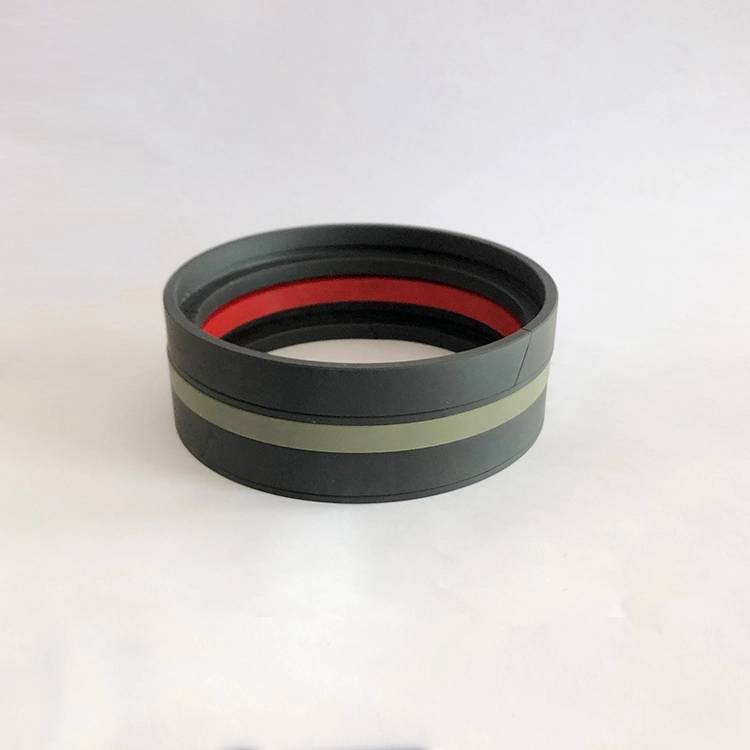

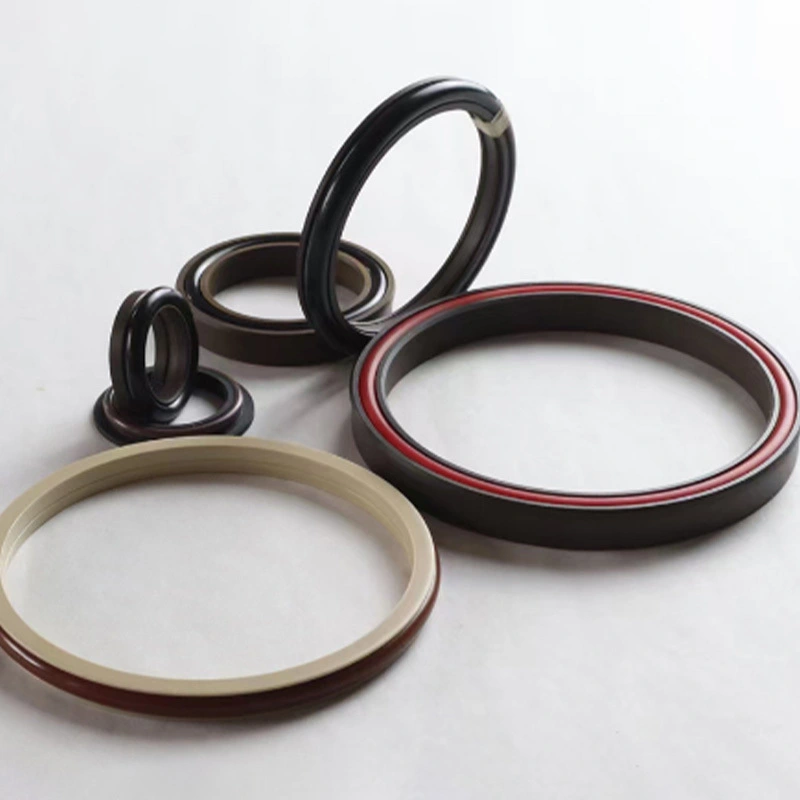

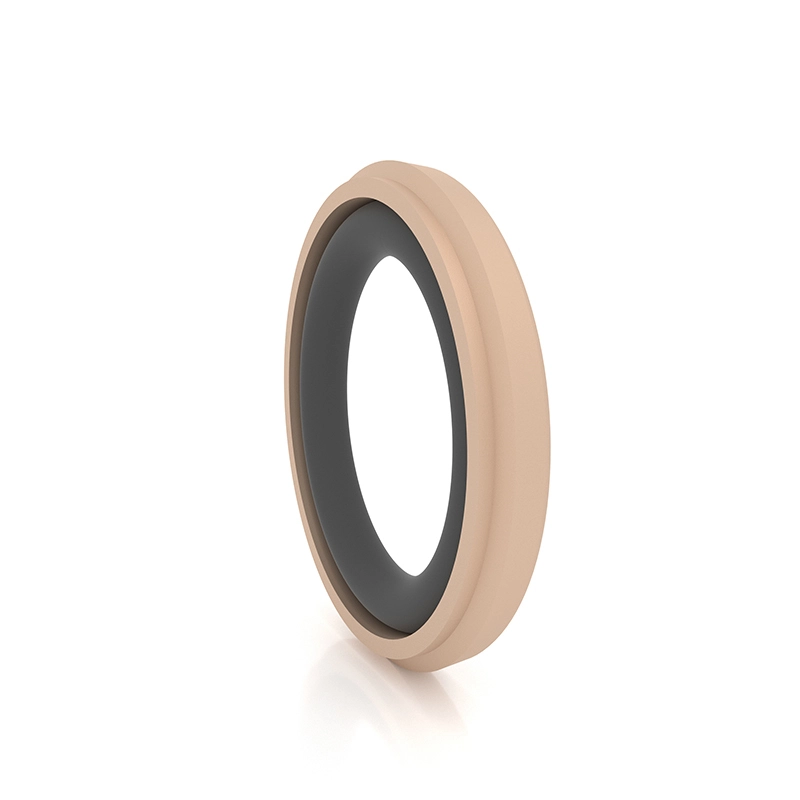

Segera hidraulik kanggo bolongan piston, ing pabrik lan Pusat R & D, ana model lan jinis sing dipérang, saben duwe ciri, nanging kita wis entuk kontrol kualitas.

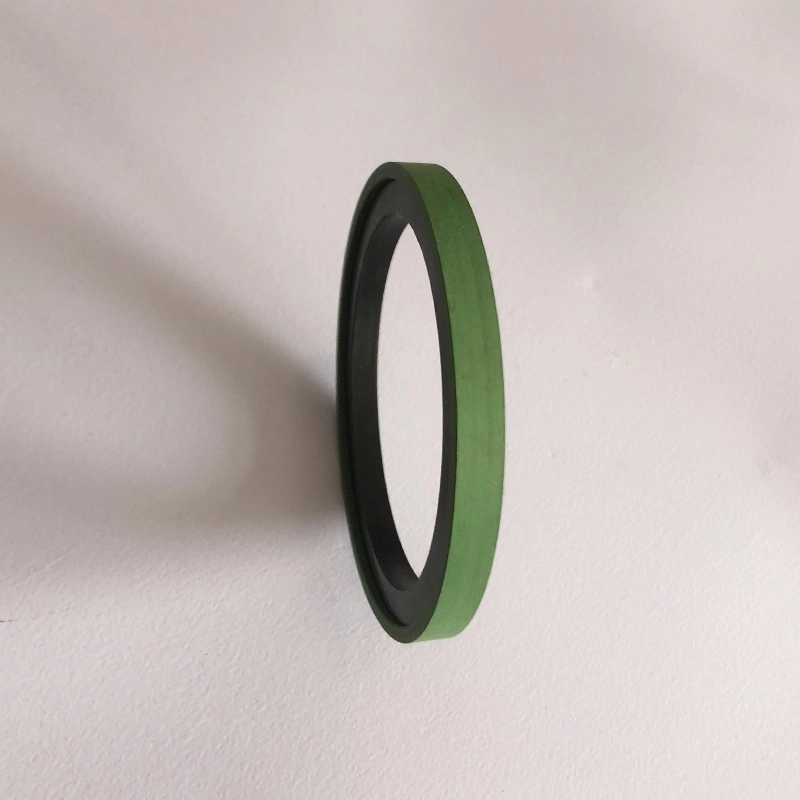

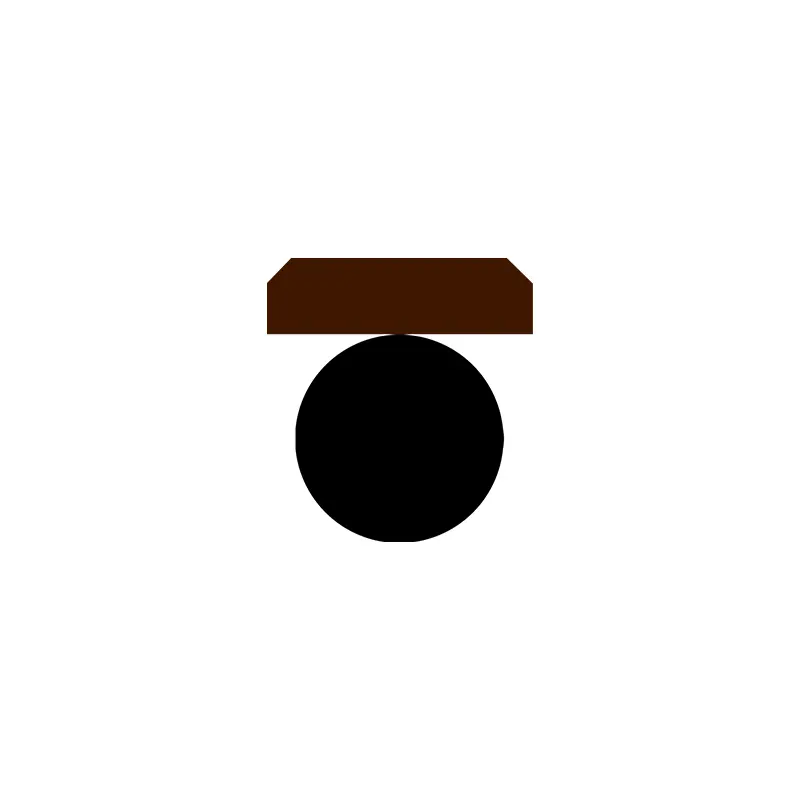

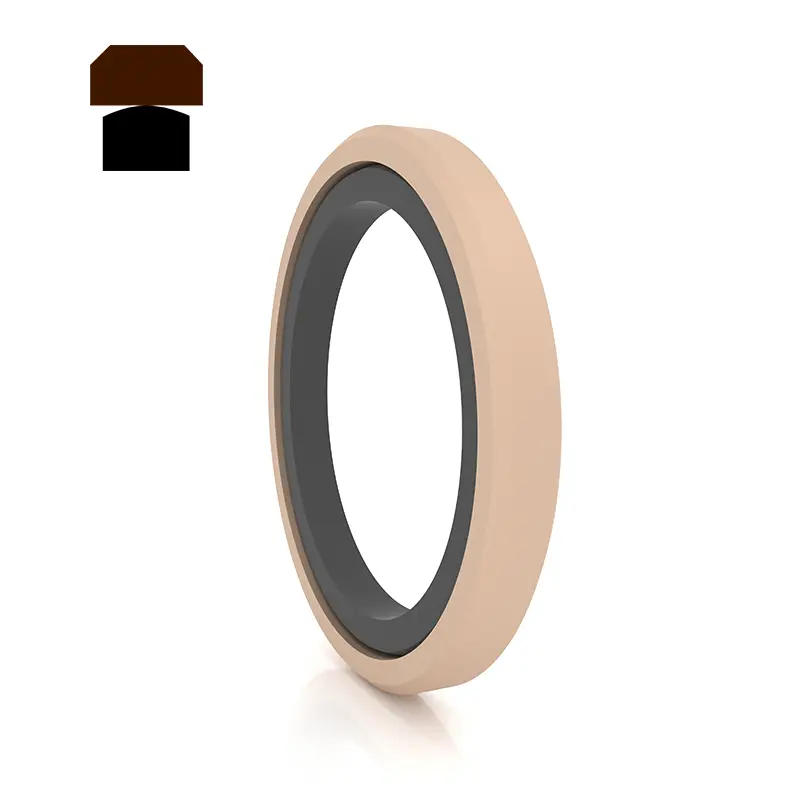

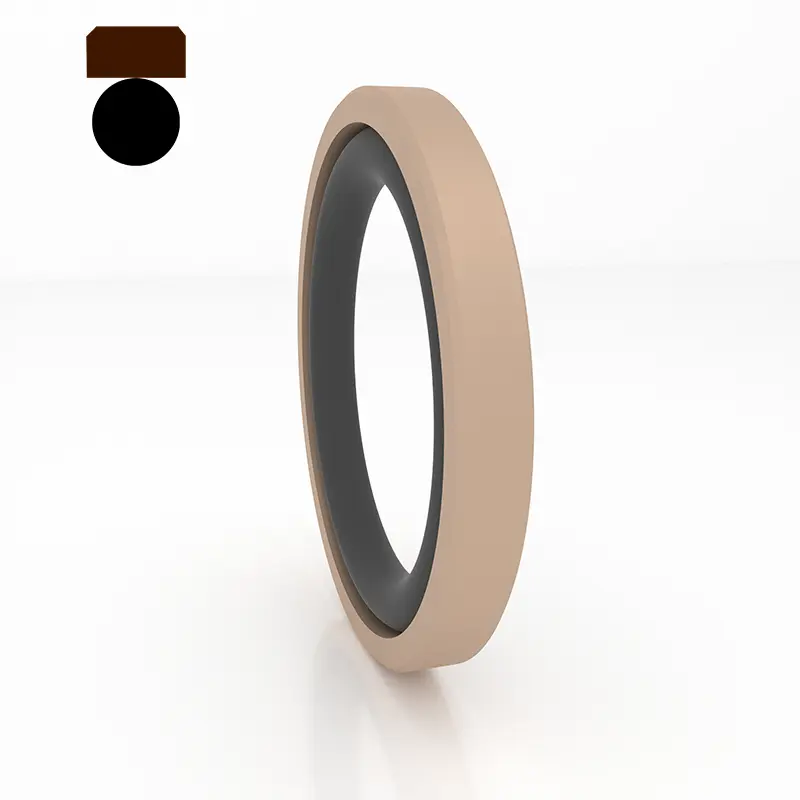

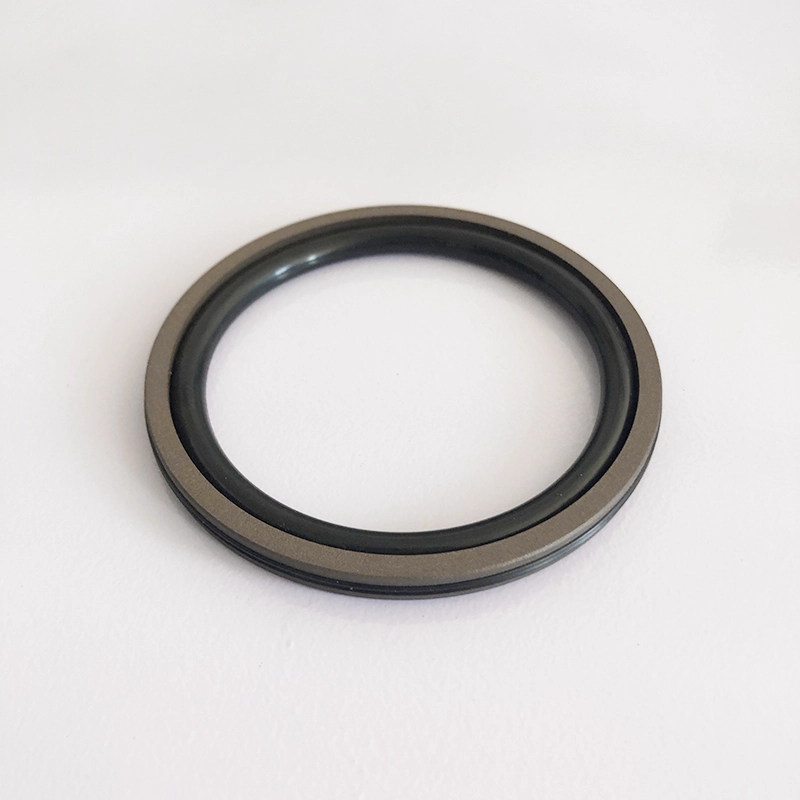

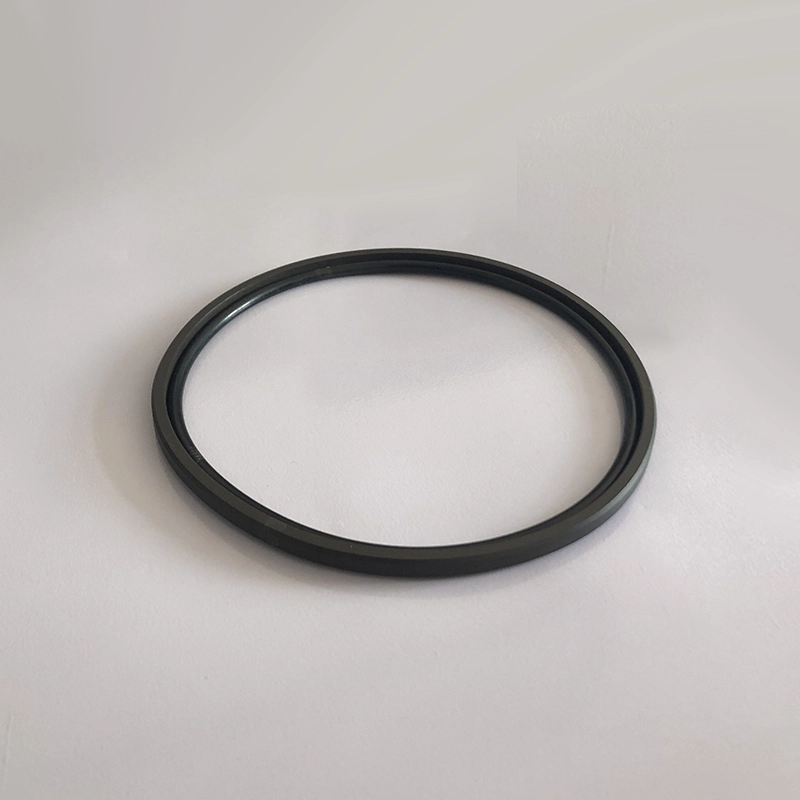

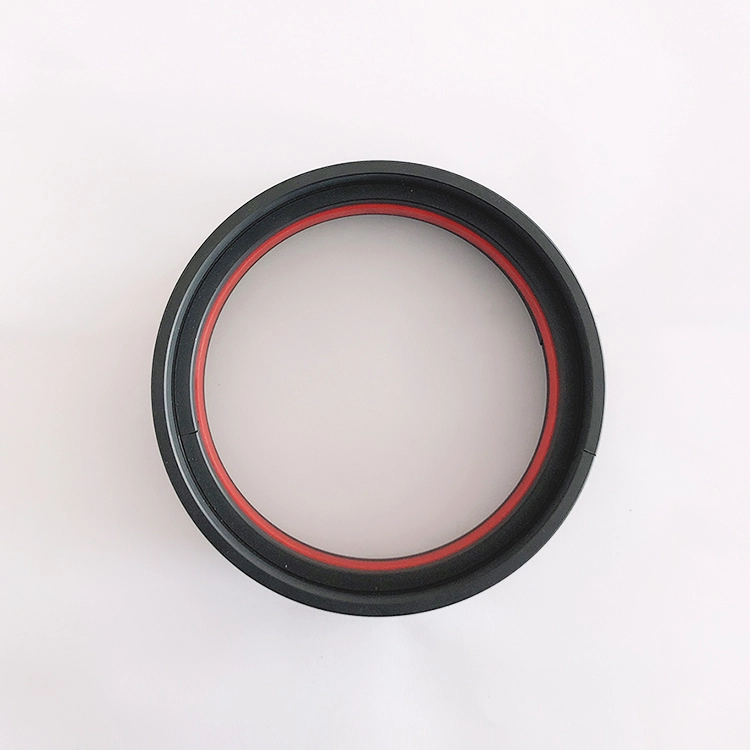

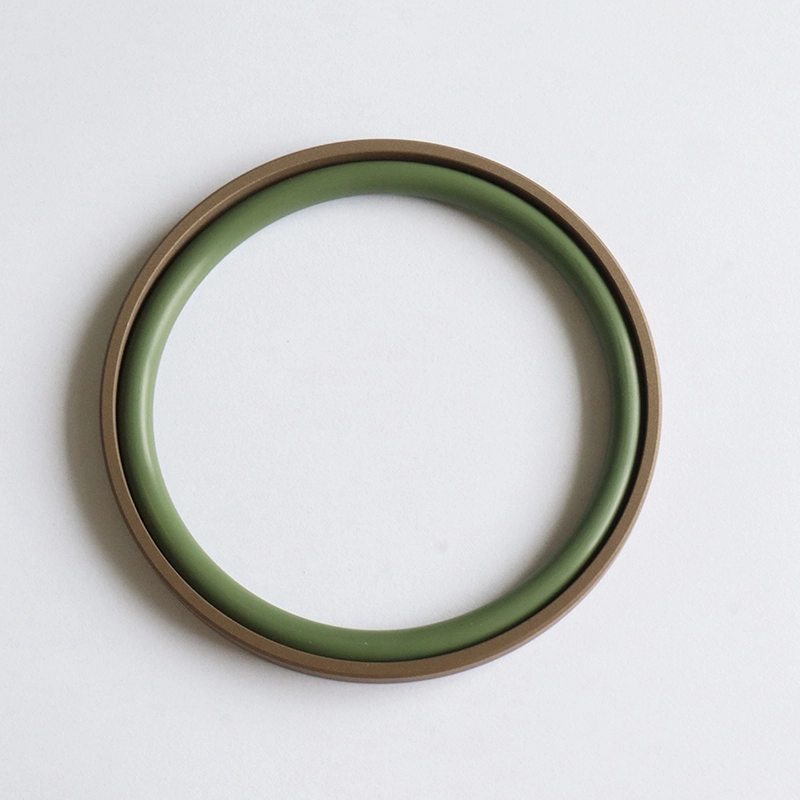

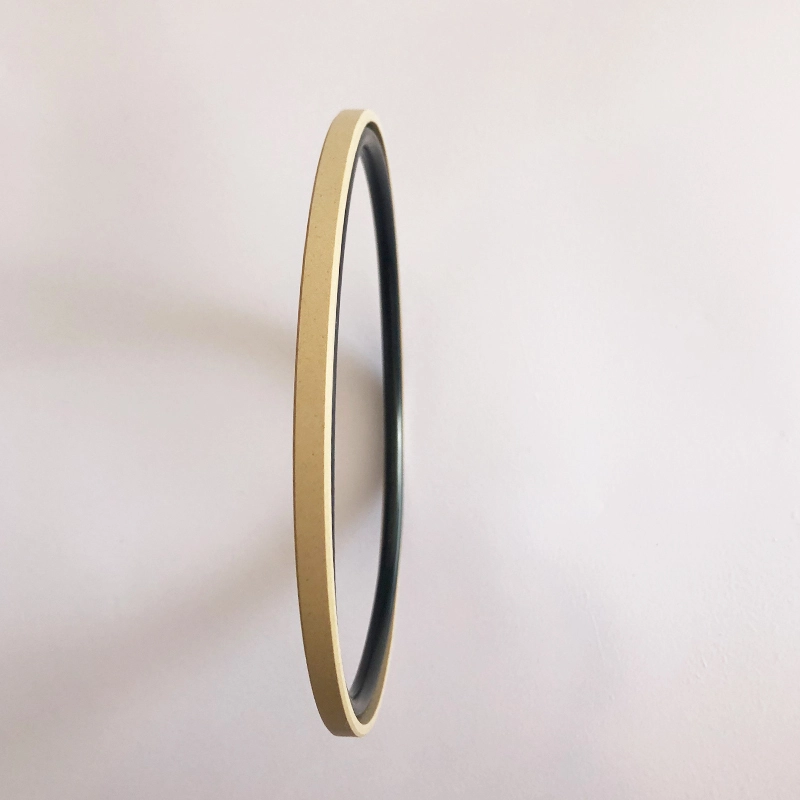

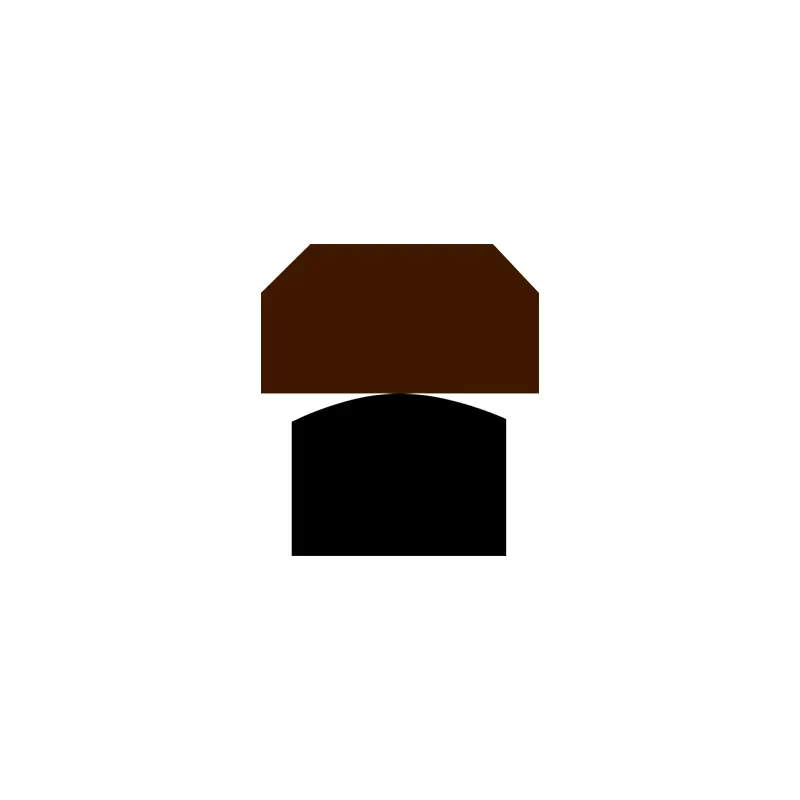

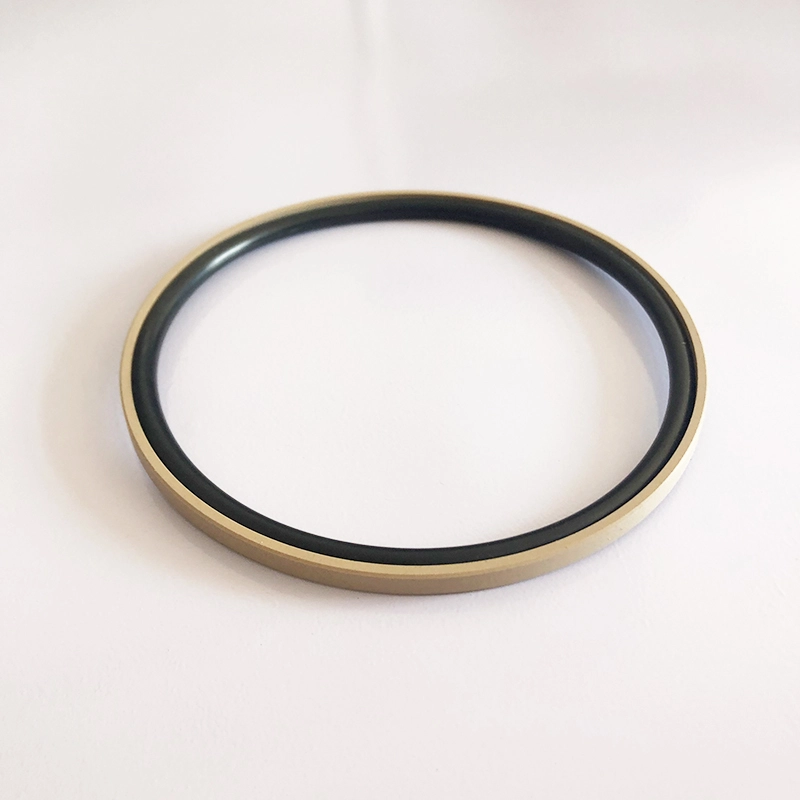

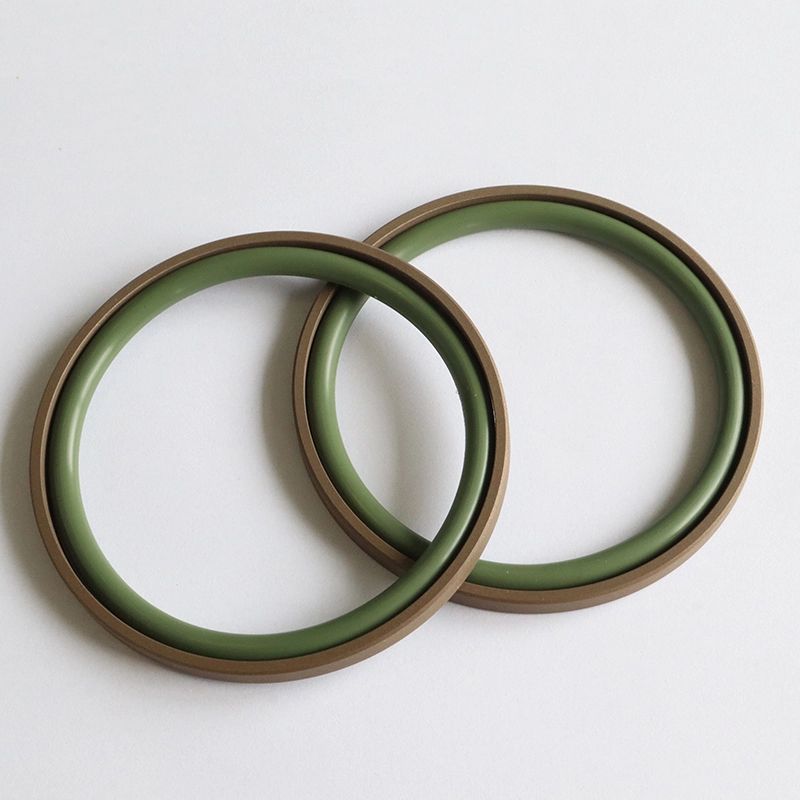

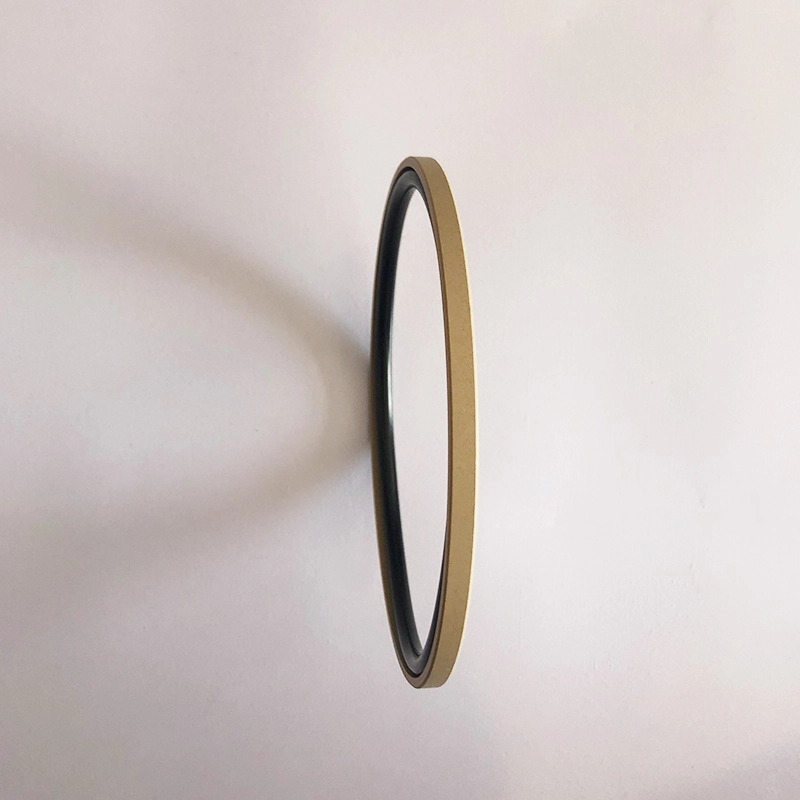

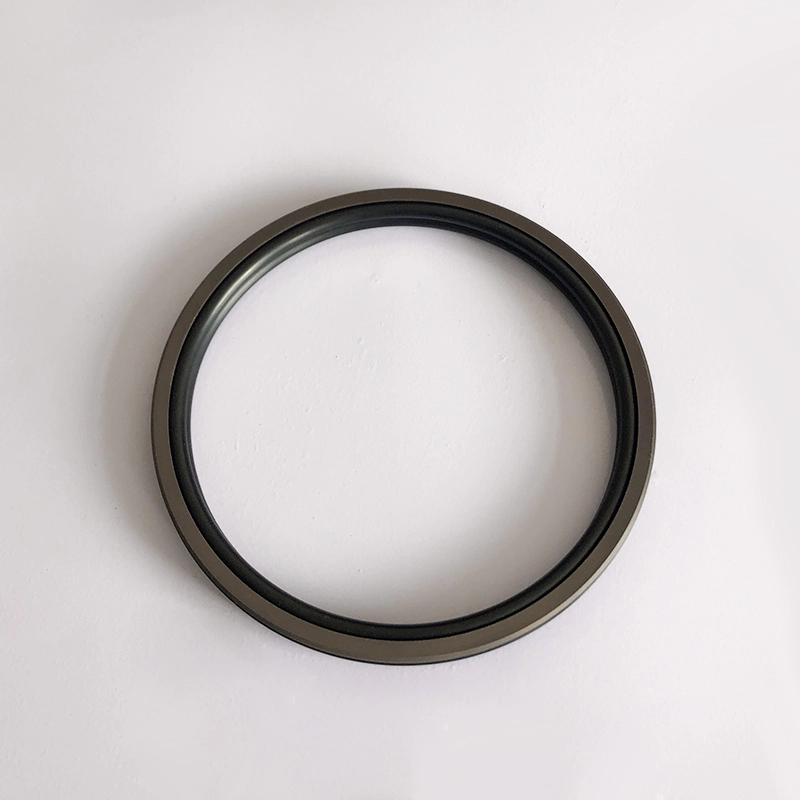

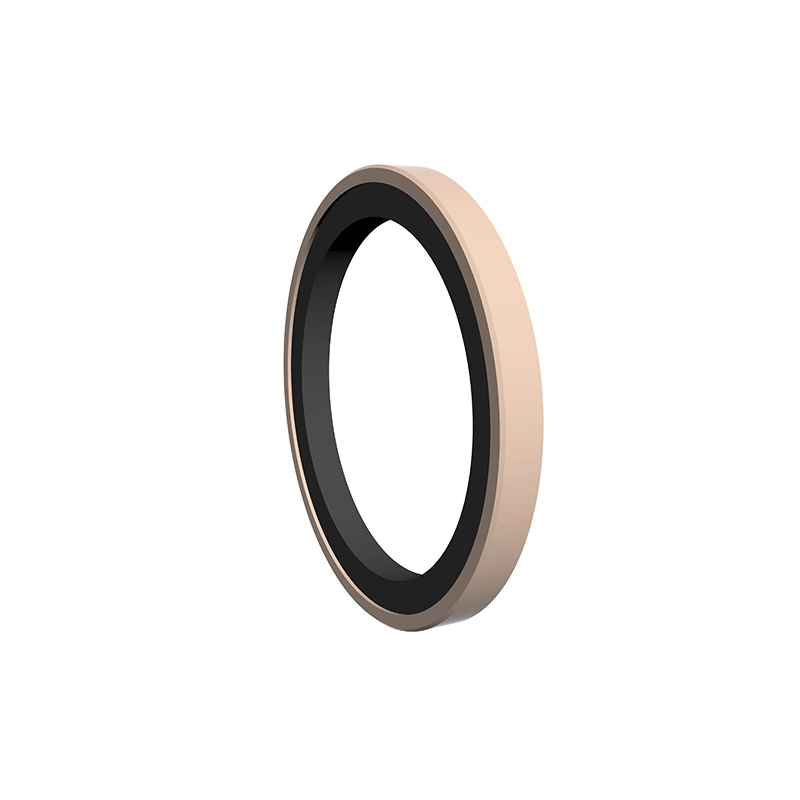

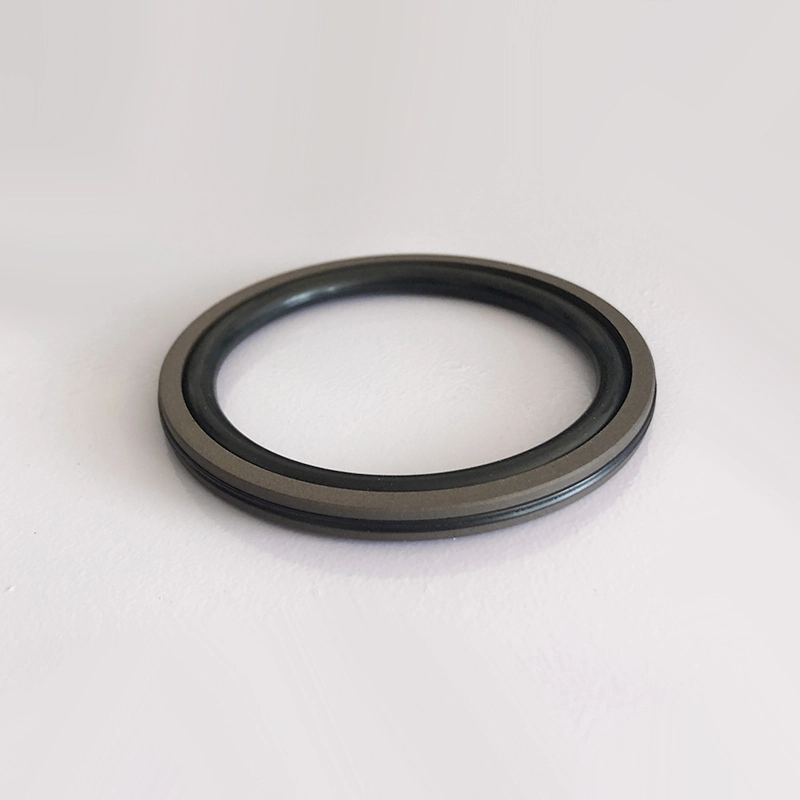

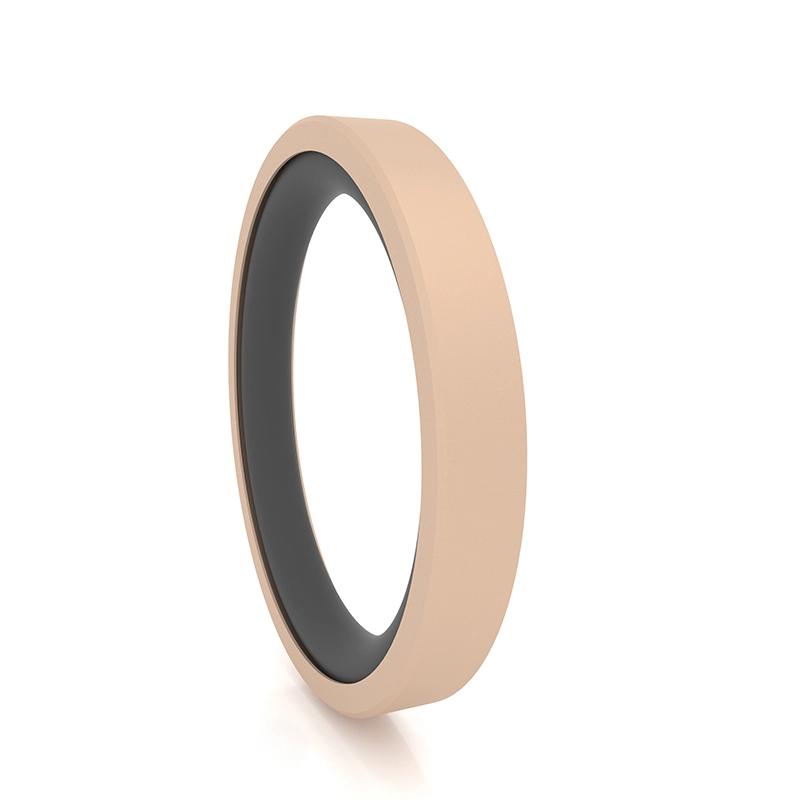

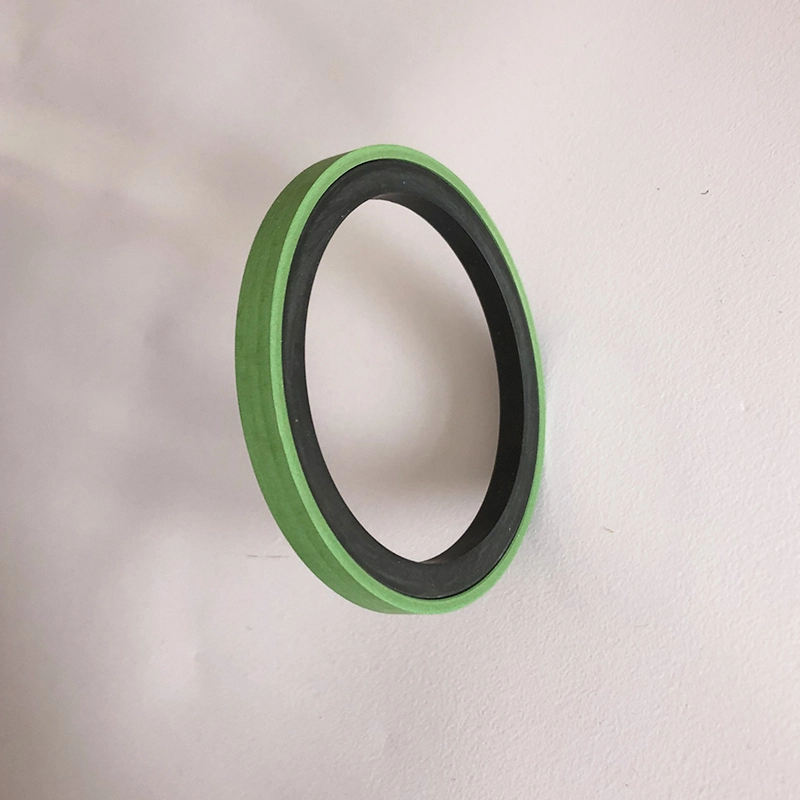

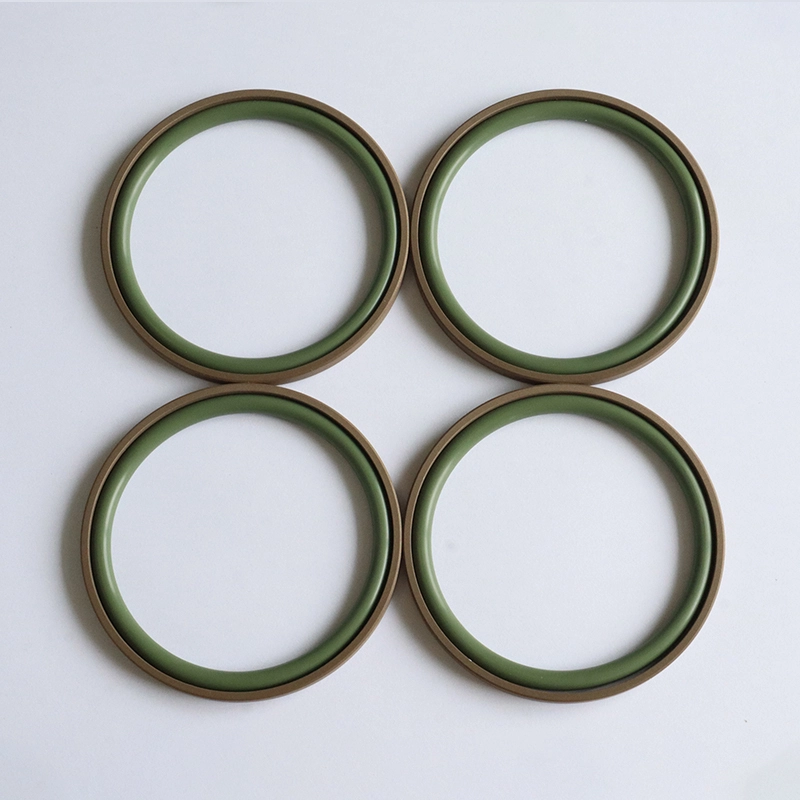

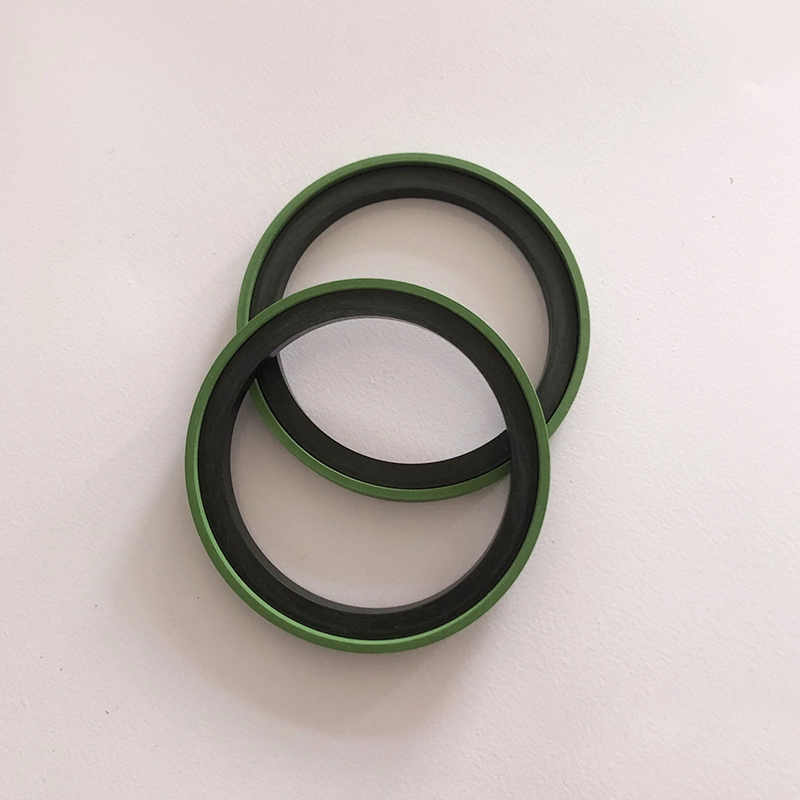

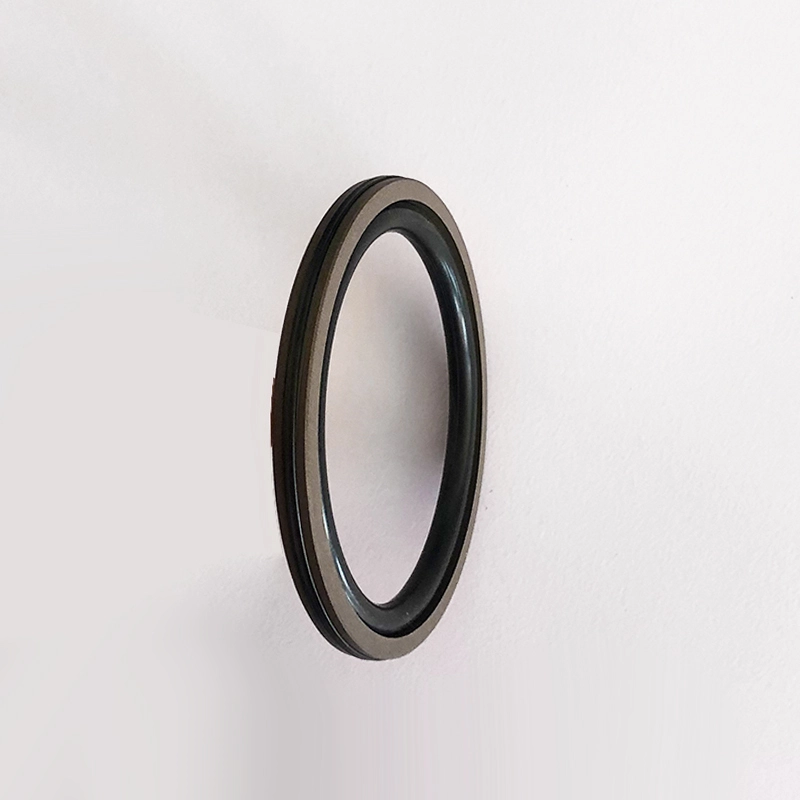

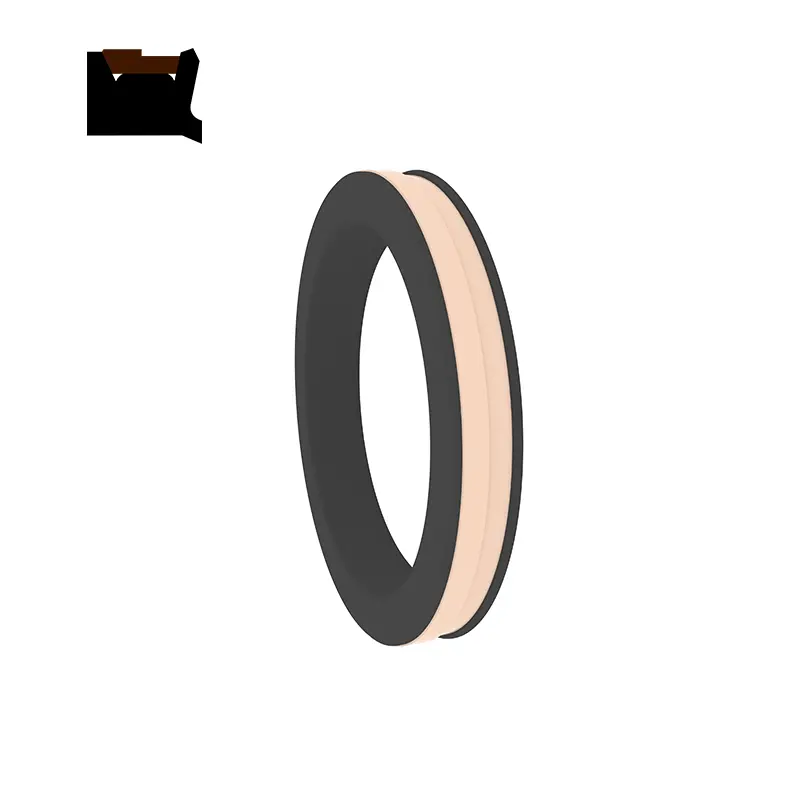

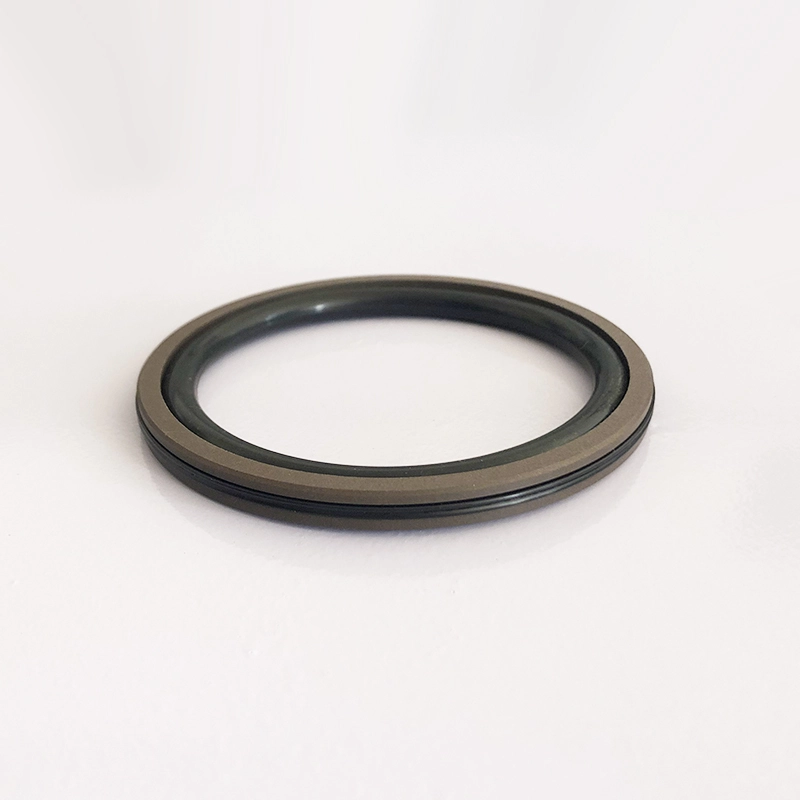

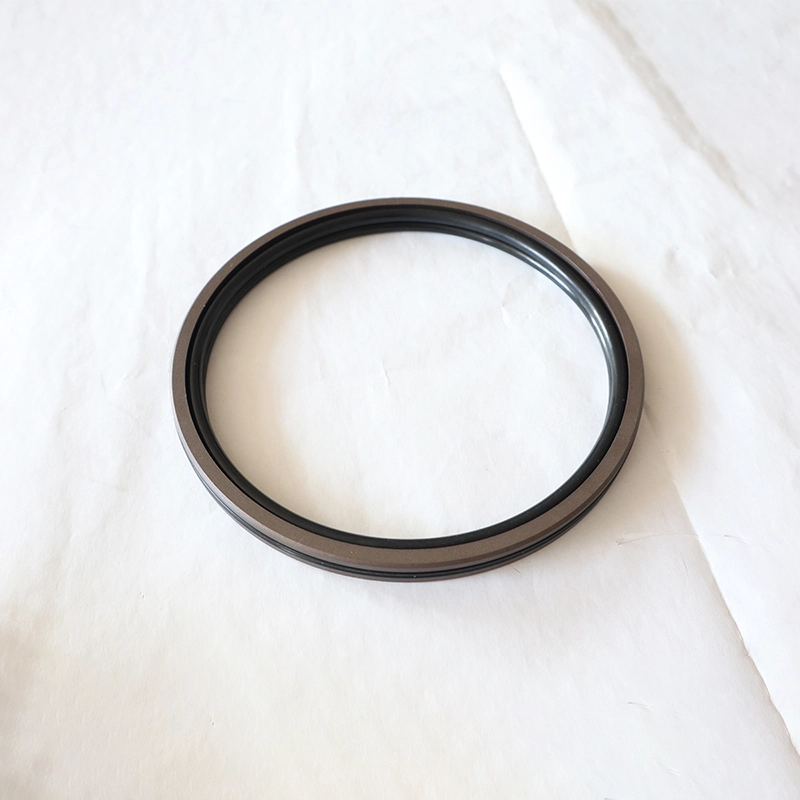

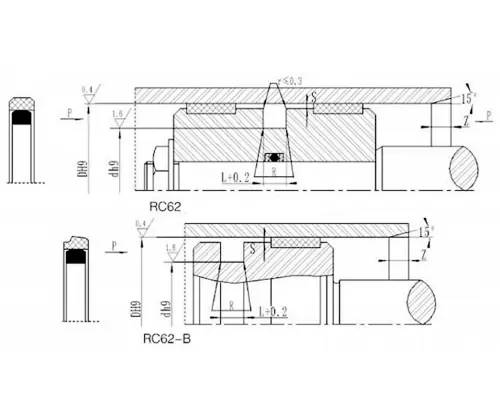

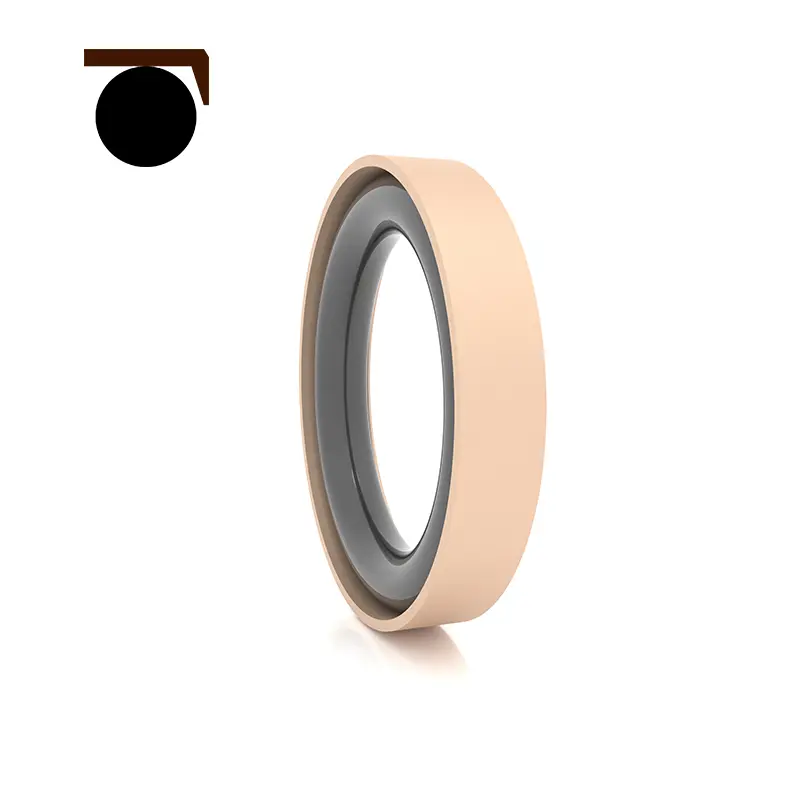

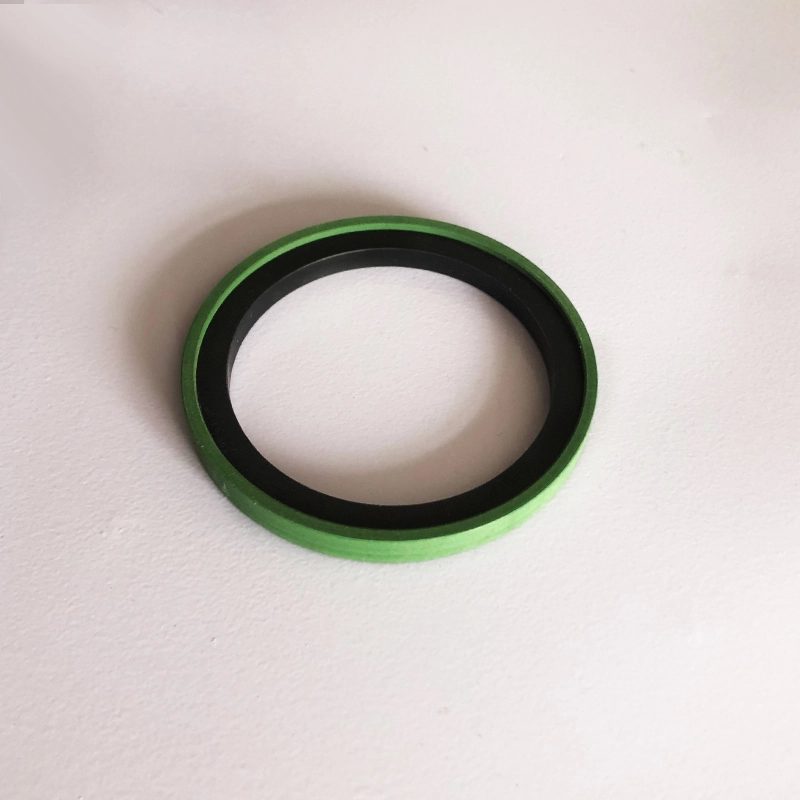

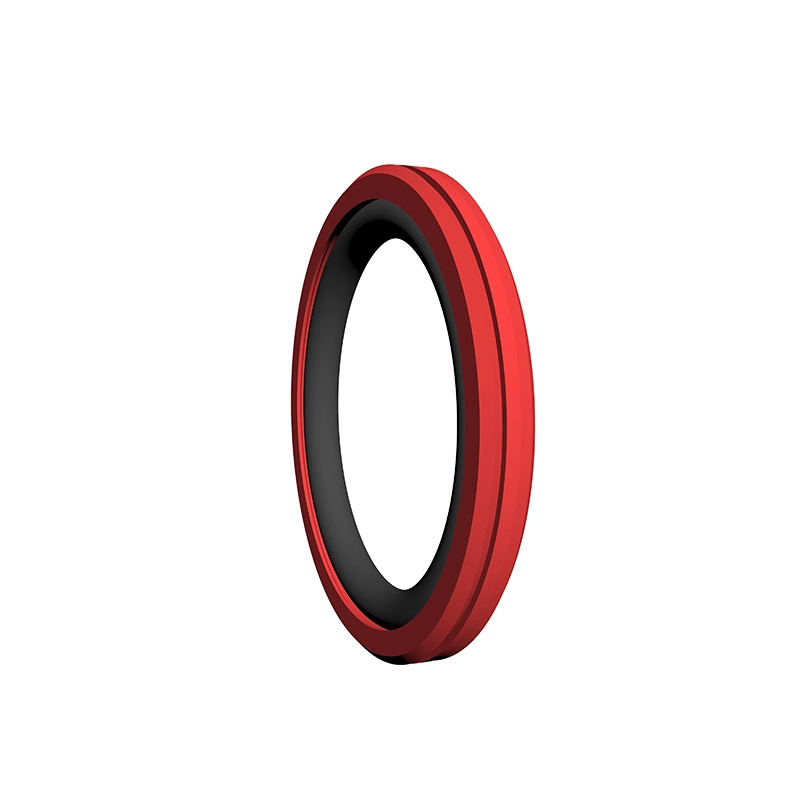

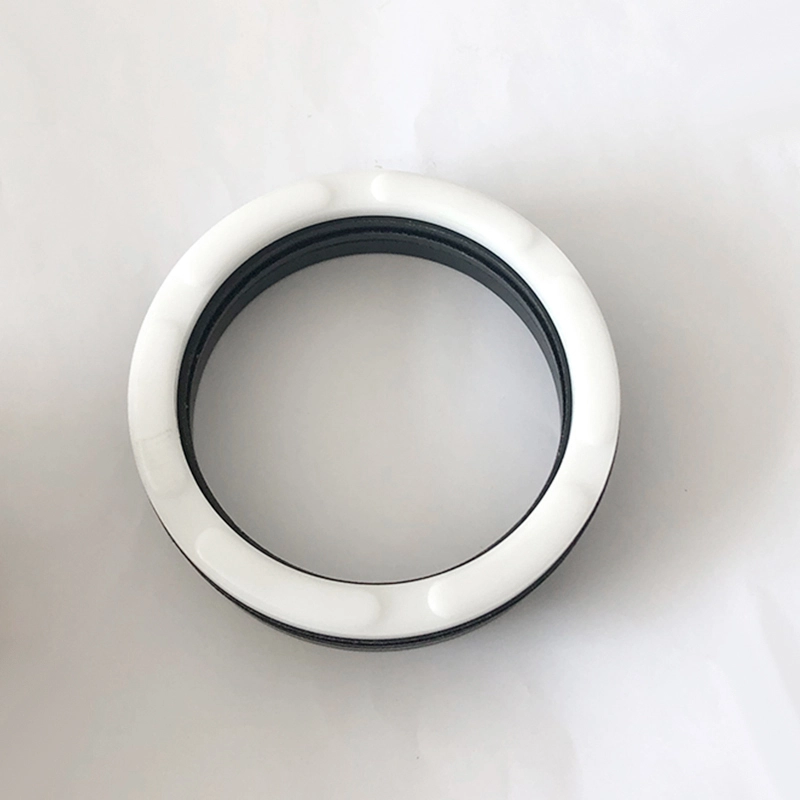

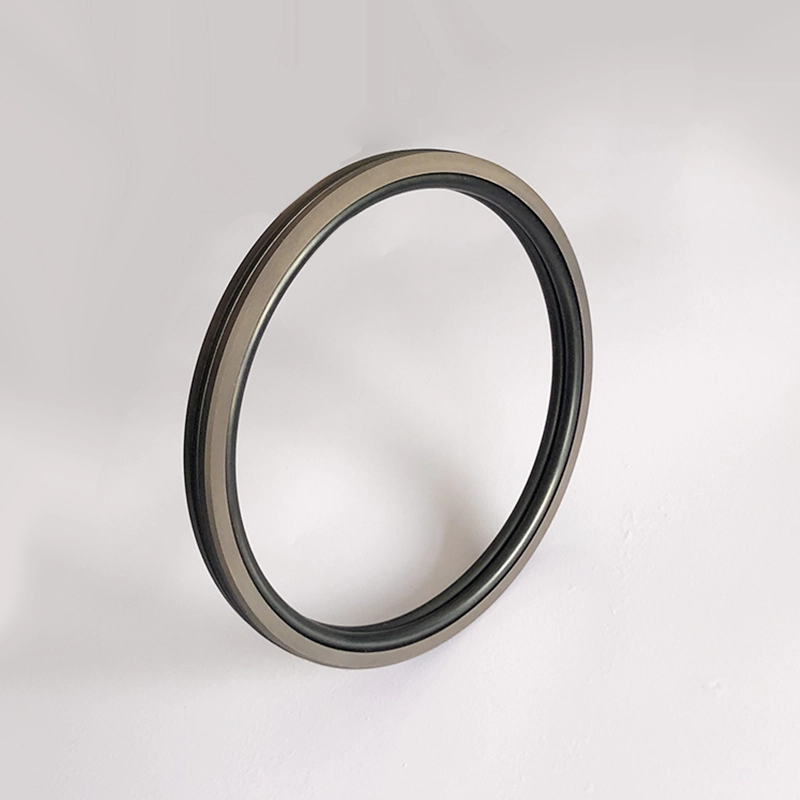

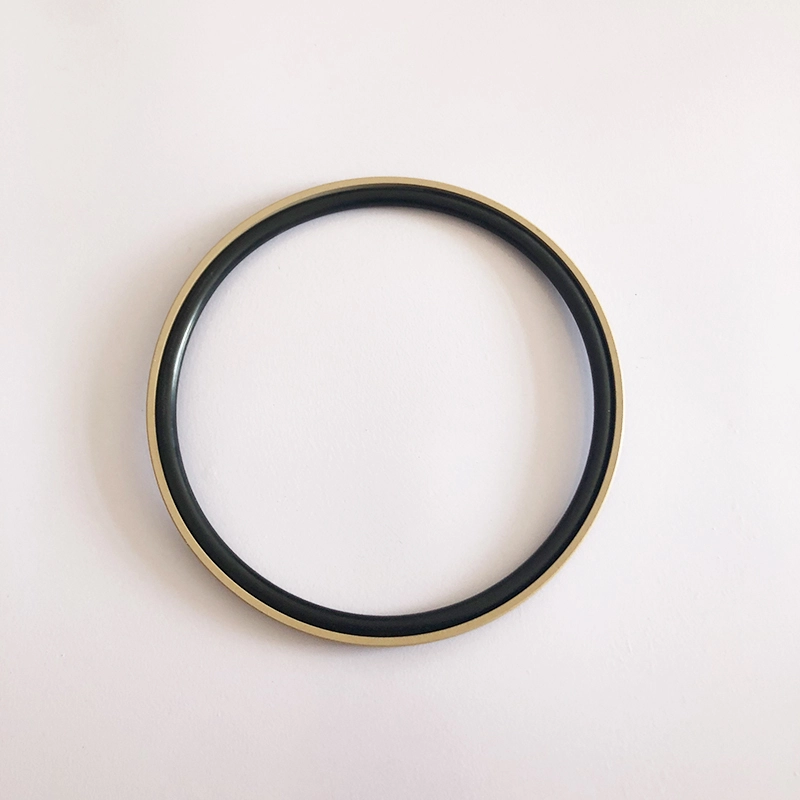

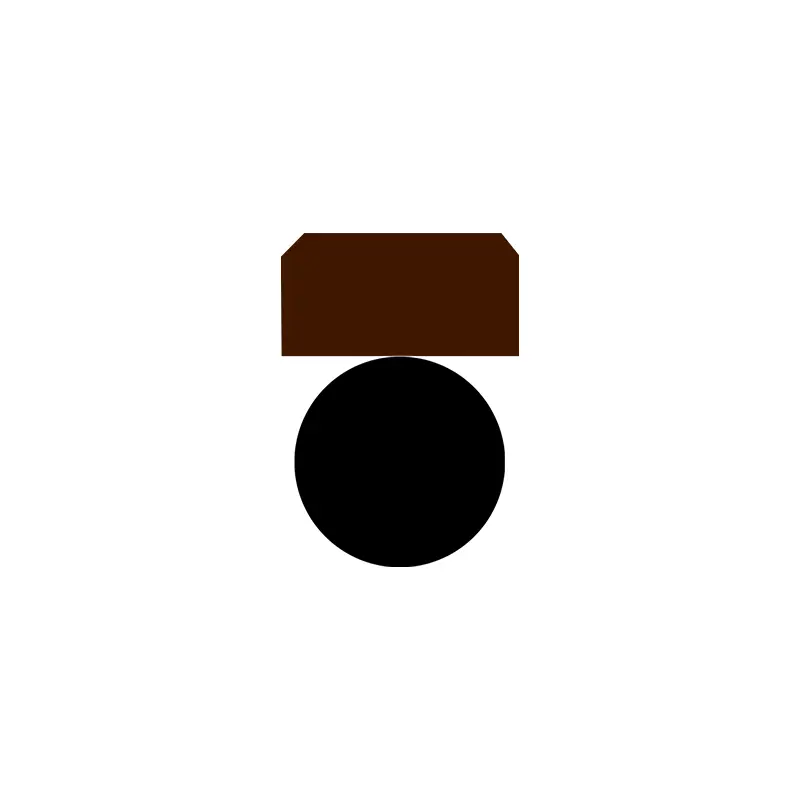

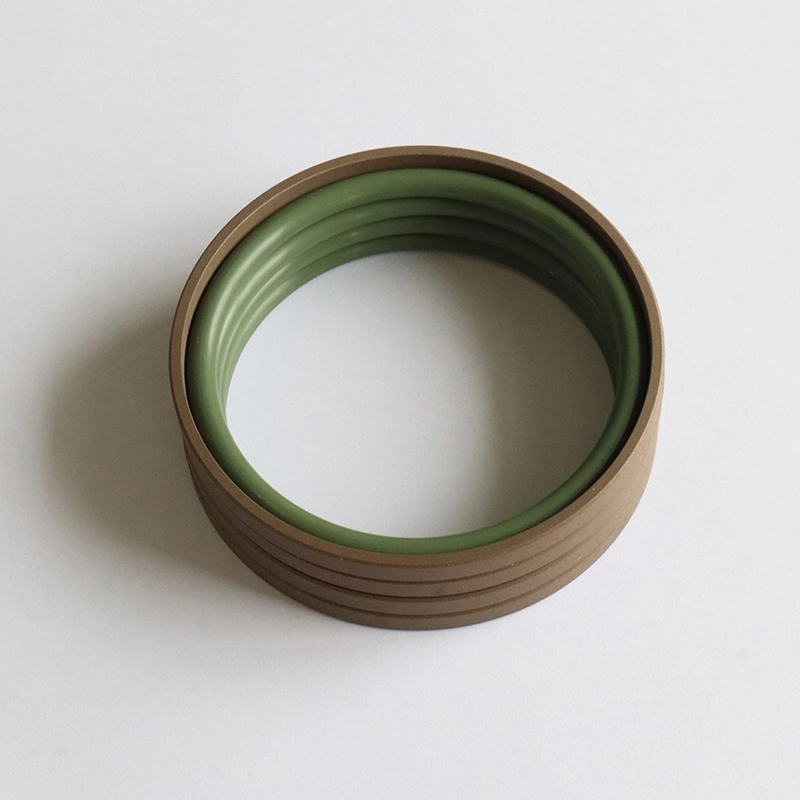

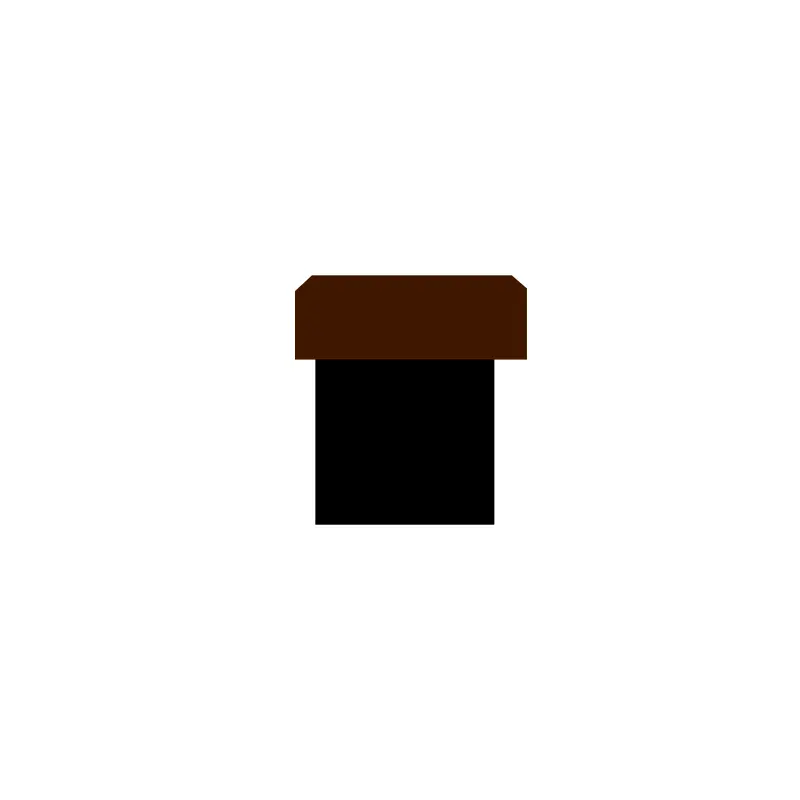

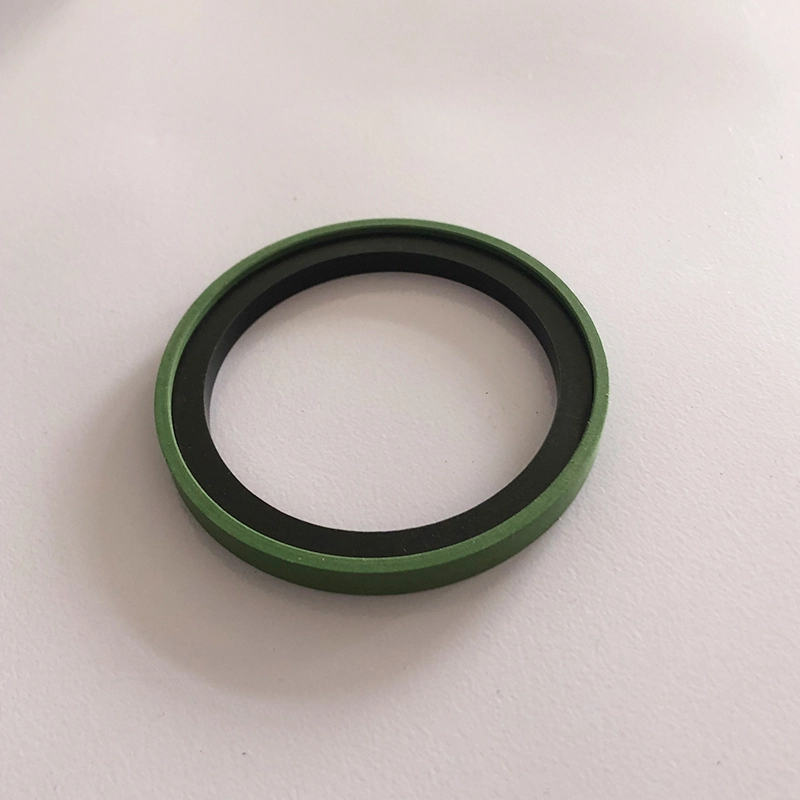

RC61 lan RC62 dumadi saka ring sealing persegi panjang ptfe sing diisi lan cincin karet berbentuk o-bertiran hydraulic. Rc61-B dumadi saka cincin sealing ptfe sing diisi lan cincin karet berbentuk O-berbentuk, cocog kanggo nyuda tekanan tekanan hidrolik. RC62-B minangka segel langkah mbalikke sing dibalikake abot, cocog kanggo nyolong tekanan unidirectional. O-ring nyedhiyakake kekuwatan radial lan menehi ganti rugi kanggo nyandhang dering segel. Umume digunakake magepokan karo pandhuan pandhuan kanggo peralatan hidrolik abot. Grooves pamisah (mbukak) kudu digunakake kanggo silinder kanthi diameter kurang saka 30mm. Fitur:
1. Gesekan rendah, resistensi wiwitan cilik, gerakan lancar, gesekan dinamis lan statis sing padha, ora ana sing creeping;
2. Stabilitas tekanan sing dhuwur banget ing kahanan tekanan lan kasar;
3 .. Urip dawa, bisa digunakake kanggo segel pelumasan tanpa minyak;
4. Bisa digunakake kanggo nutup media viskositas sing nyolong kayata banyu;

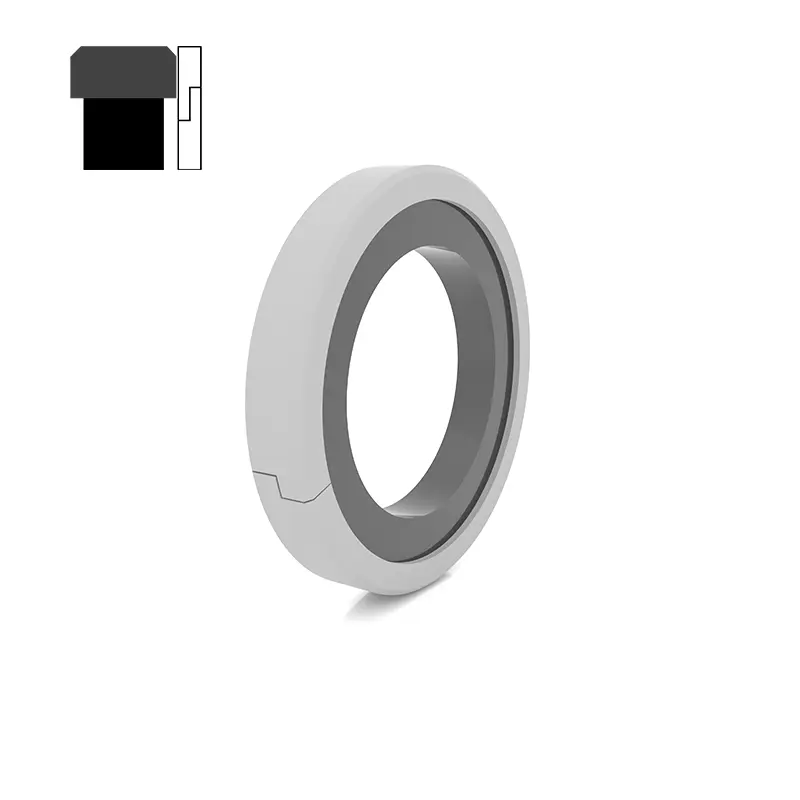

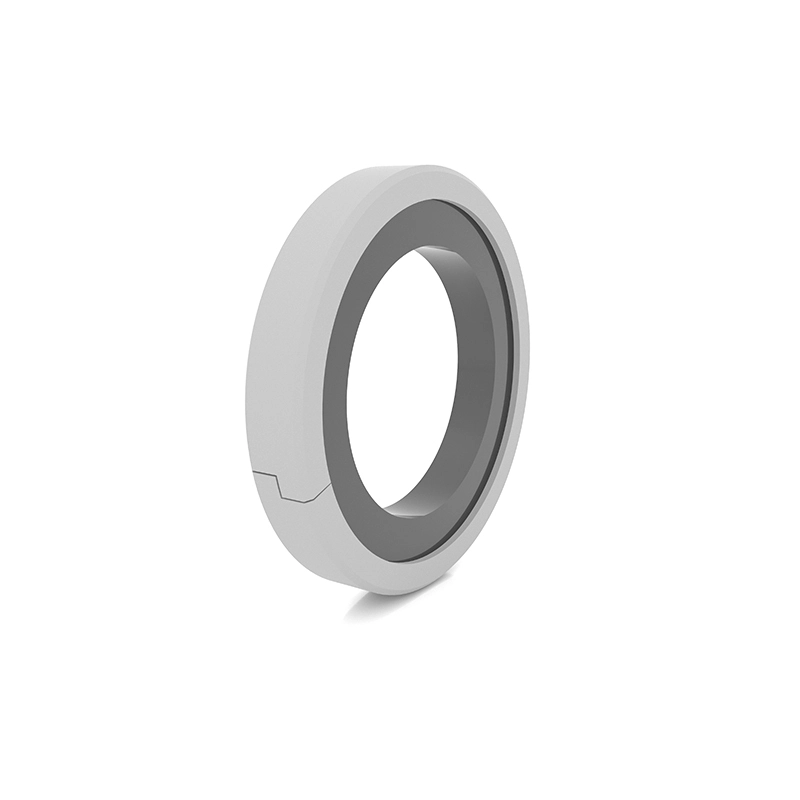

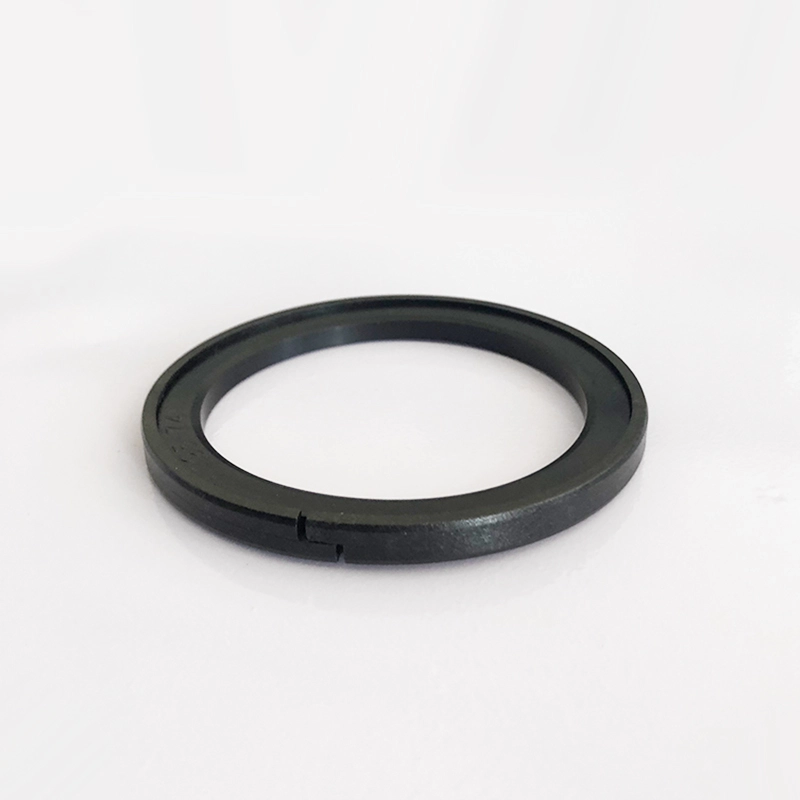

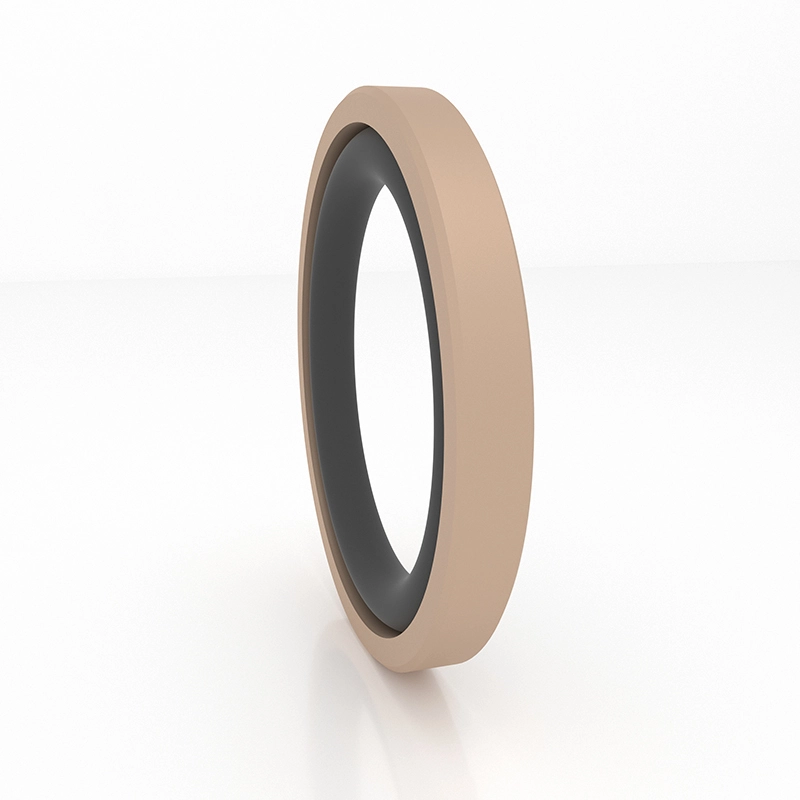

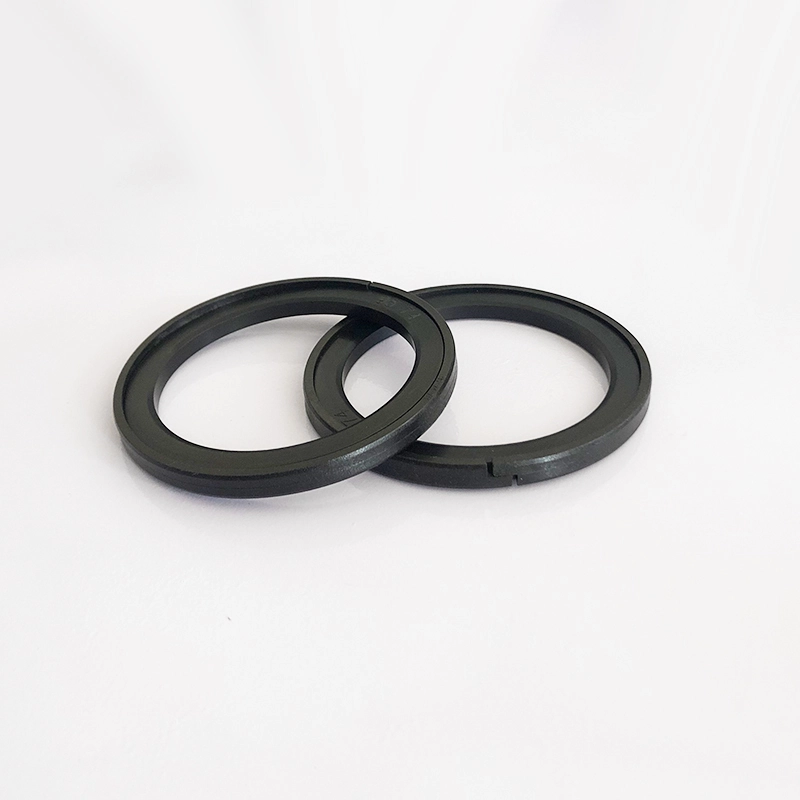

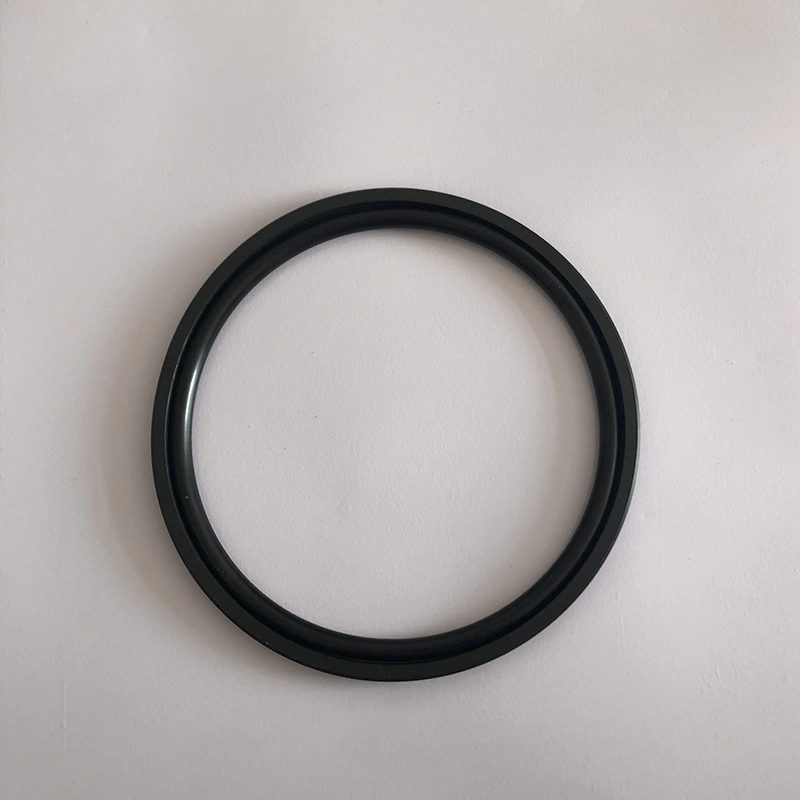

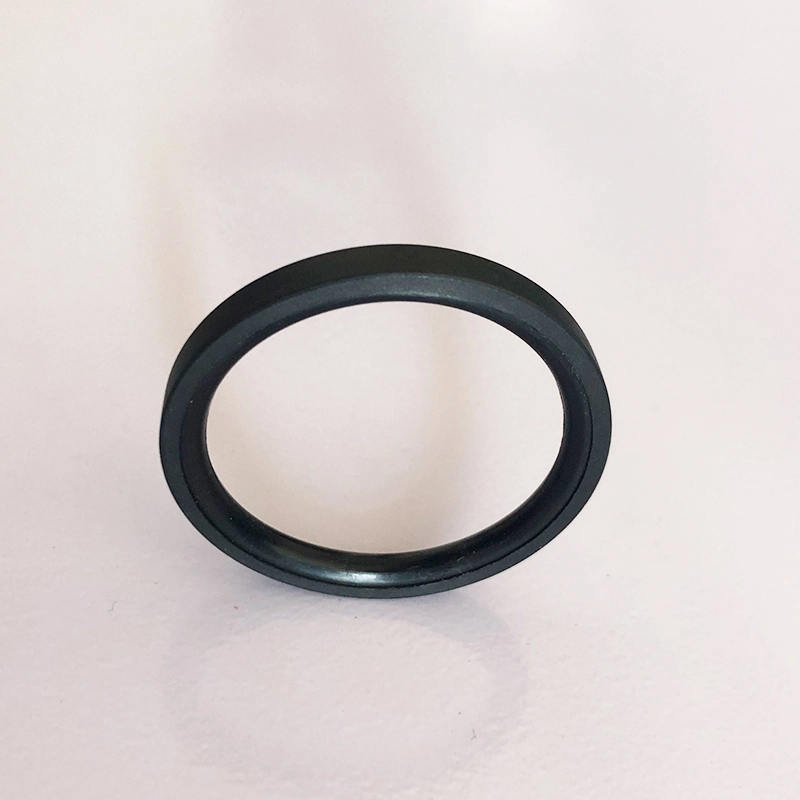

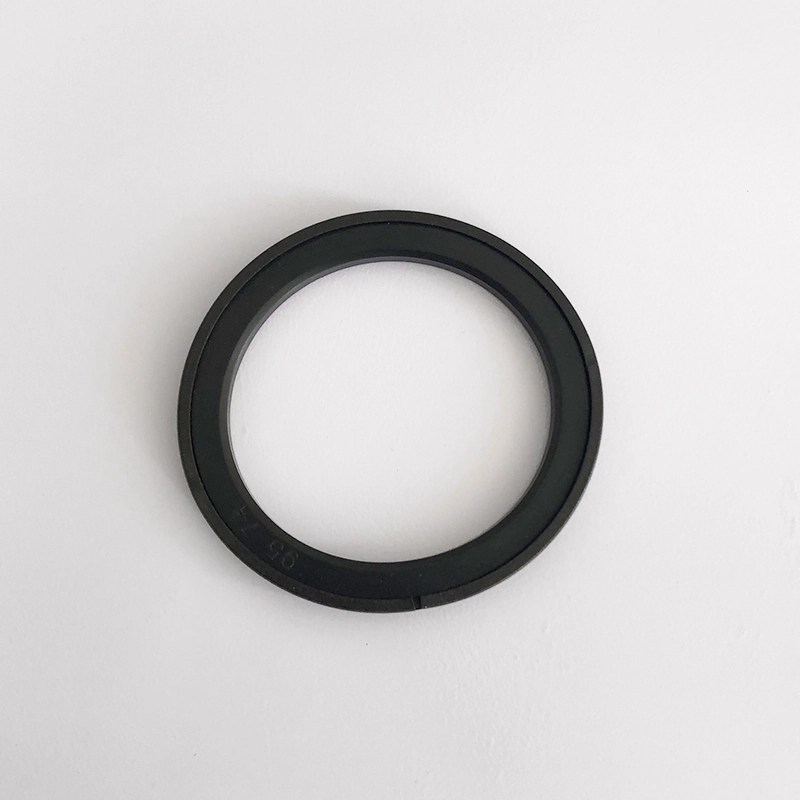

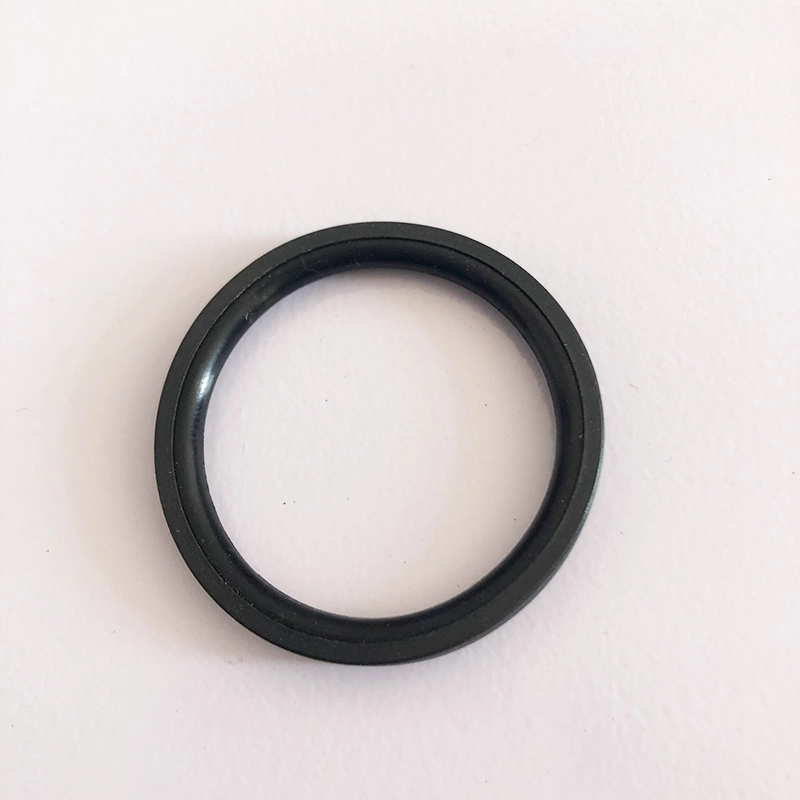

OK dumadi saka cincin segel terbuka thermoplastic sing digawe saka bahan khusus lan cincin karet persegi, sing cocog kanggo nyuda pengujian tekanan tekanan hidraulik. Cincin karet nyedhiyakake kekuwatan radial lan menehi ganti rugi kanggo nyandhang dering segel. Wiwit dering Sealing ngagem struktur terbuka, masalah sing kudu diinstal khusus kanggo diselehake. Fitur:
1. Gesekan rendah, resistensi wiwitan cilik, gerakan sing lancar, ora ana sing creeping;
2. Stabilitas tekanan sing dhuwur banget ing kahanan tekanan lan kasar;
3. Instalasi sing gampang lan trep, ora ana alat sing dibutuhake;
4. Bisa digunakake kanggo nutup media viskositas sing nyolong kayata banyu;
5 .. kinerja anti-ekstrusi anti-ekstrusi sing apik, ngidini longkangan ekstrem sing luwih gedhe.

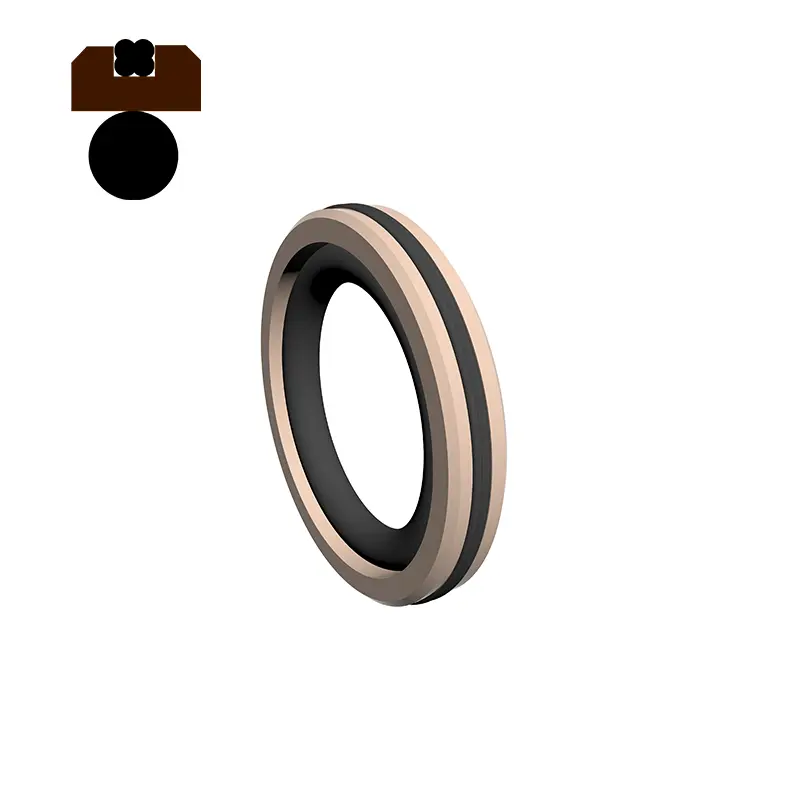

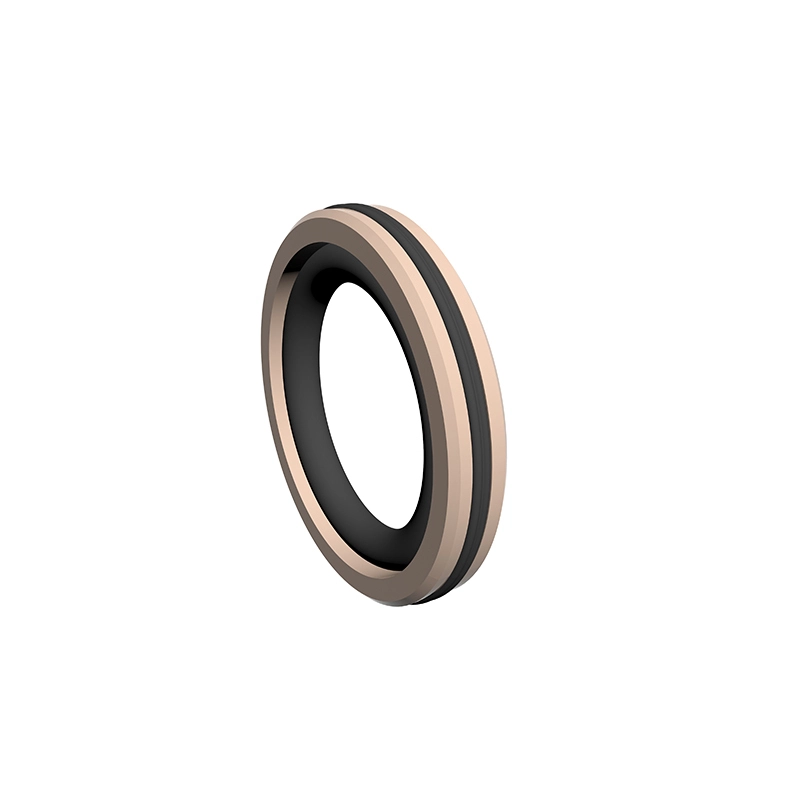

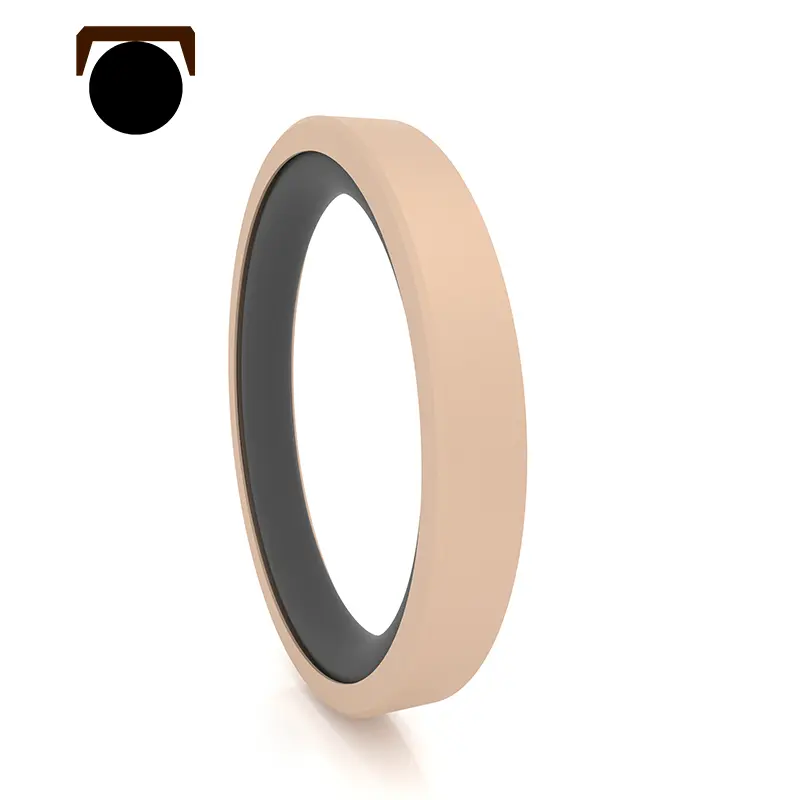

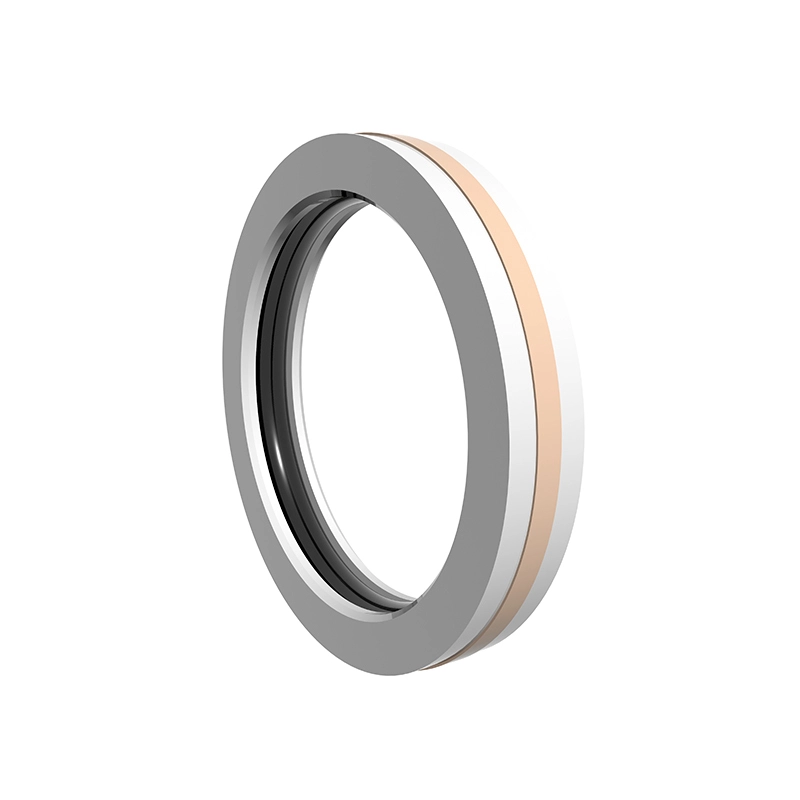

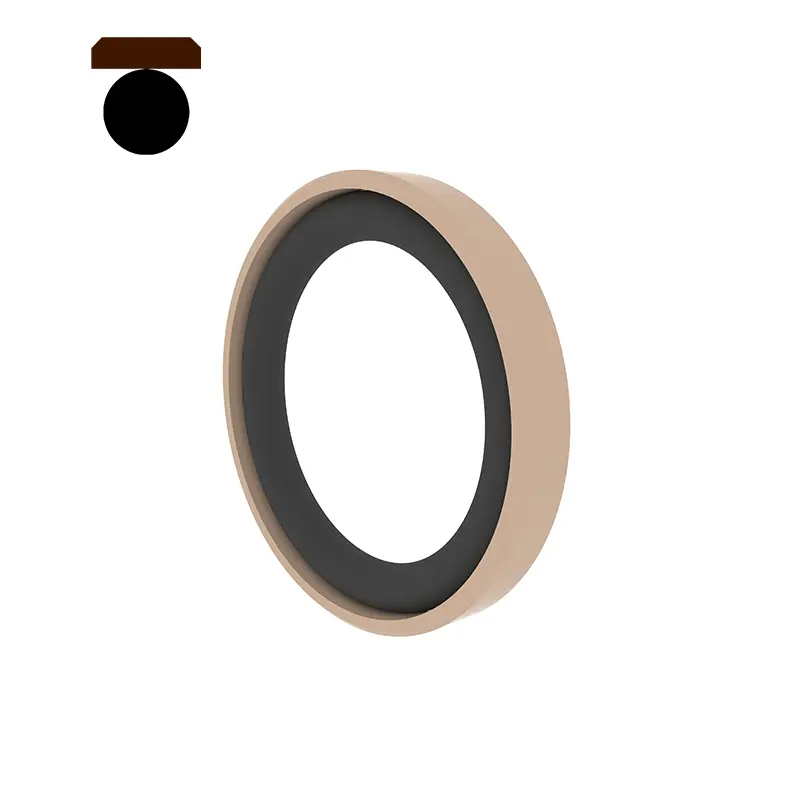

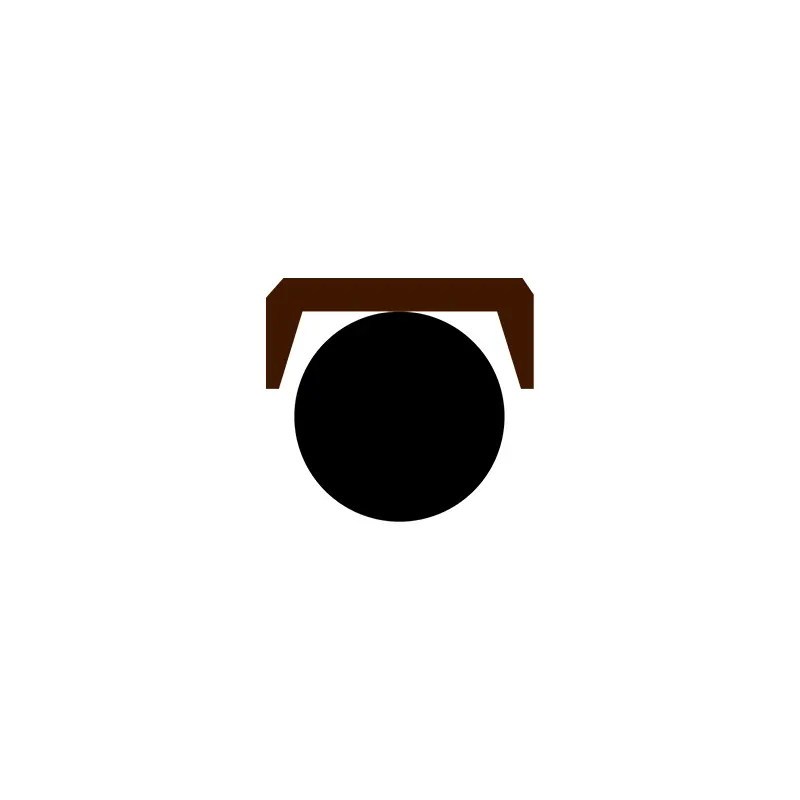

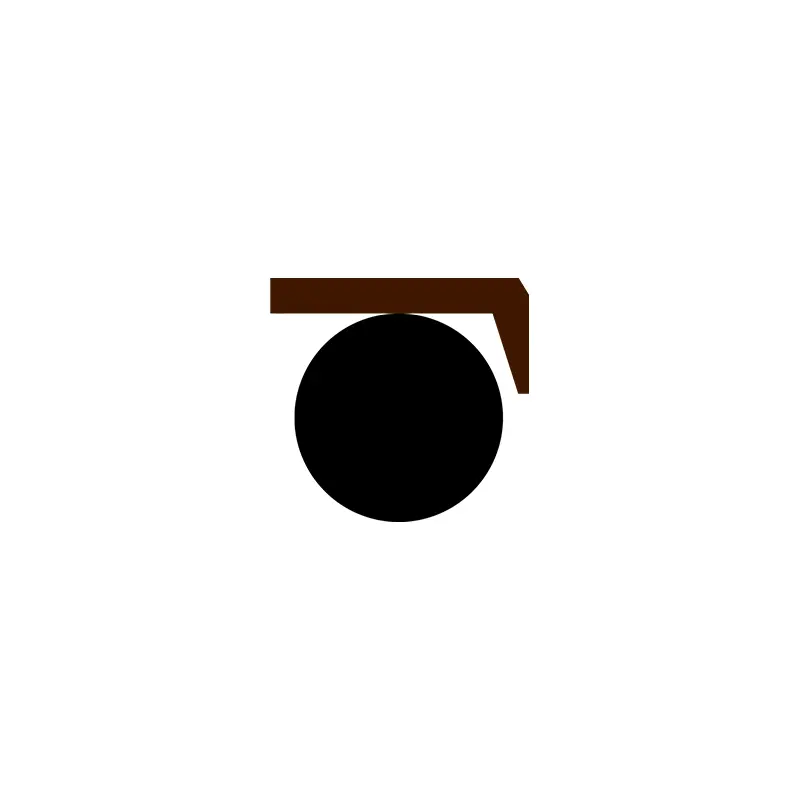

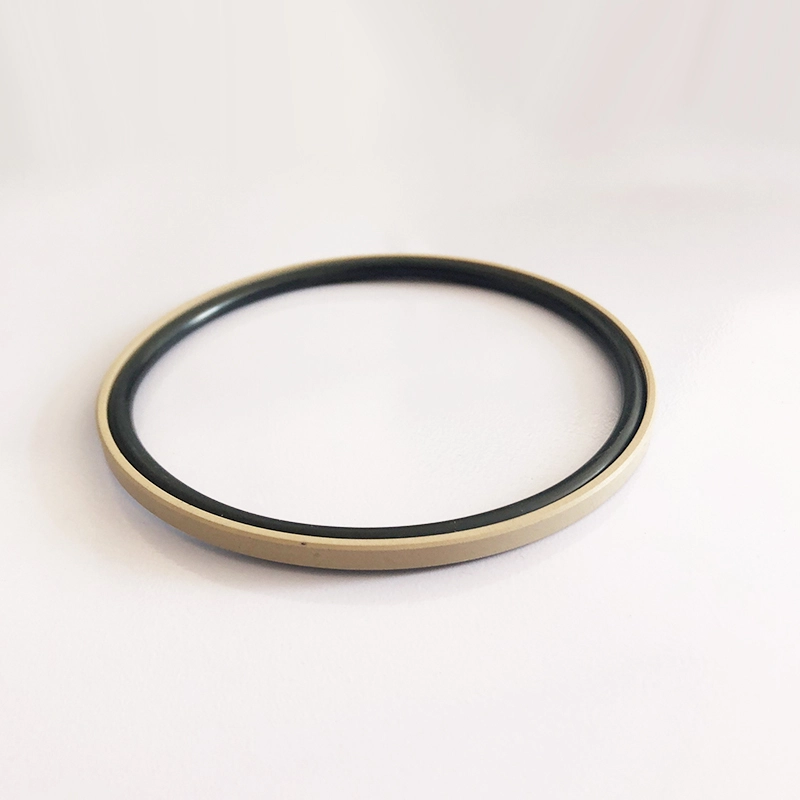

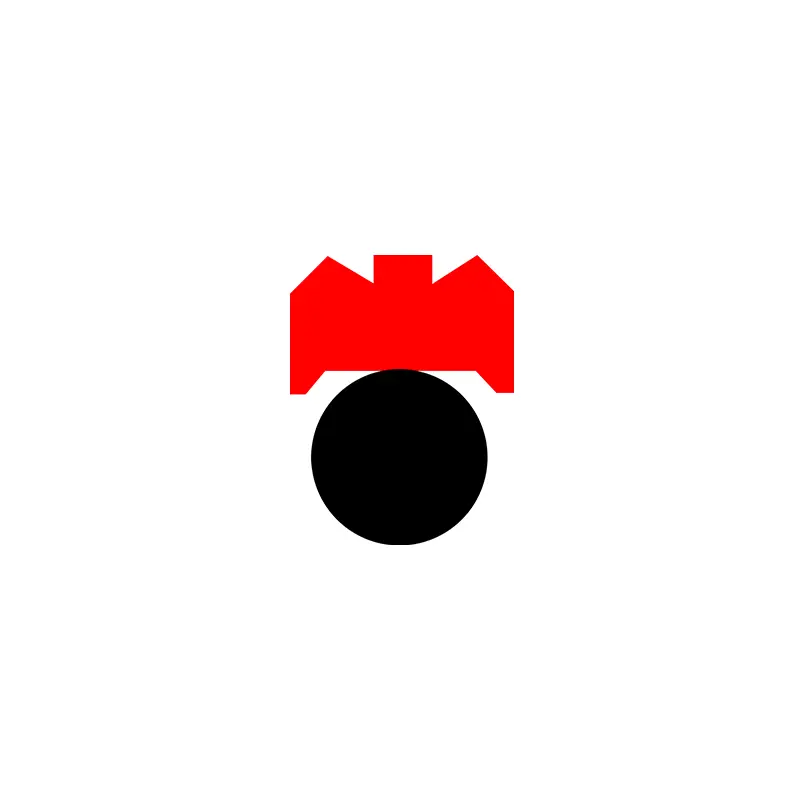

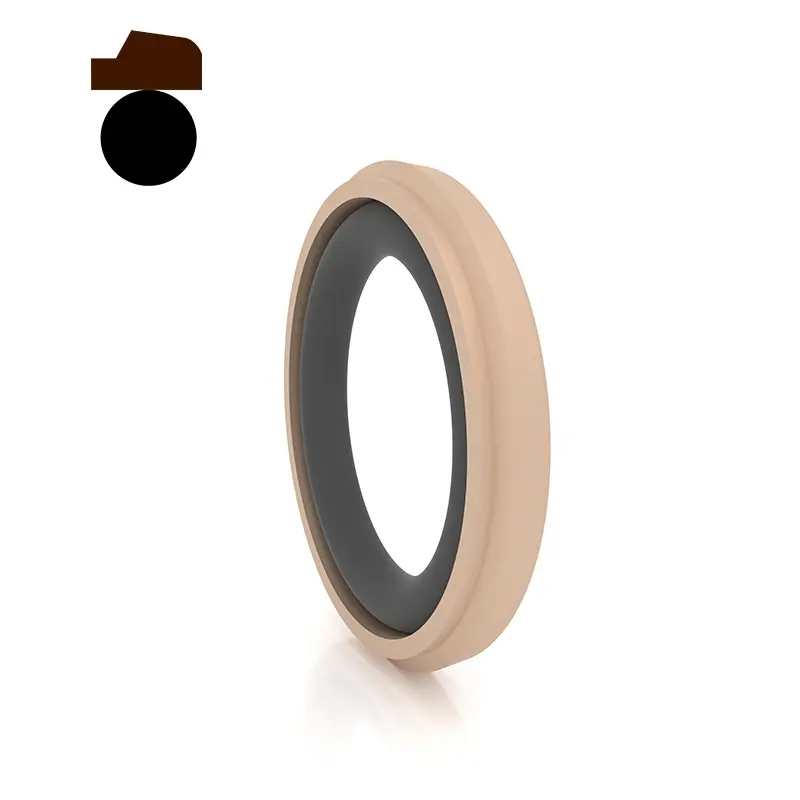

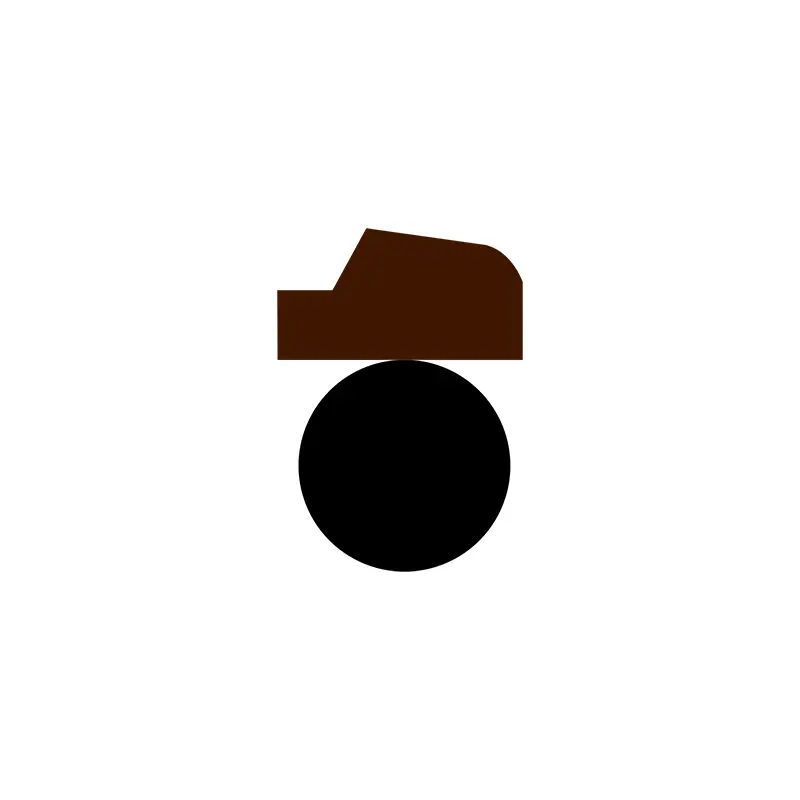

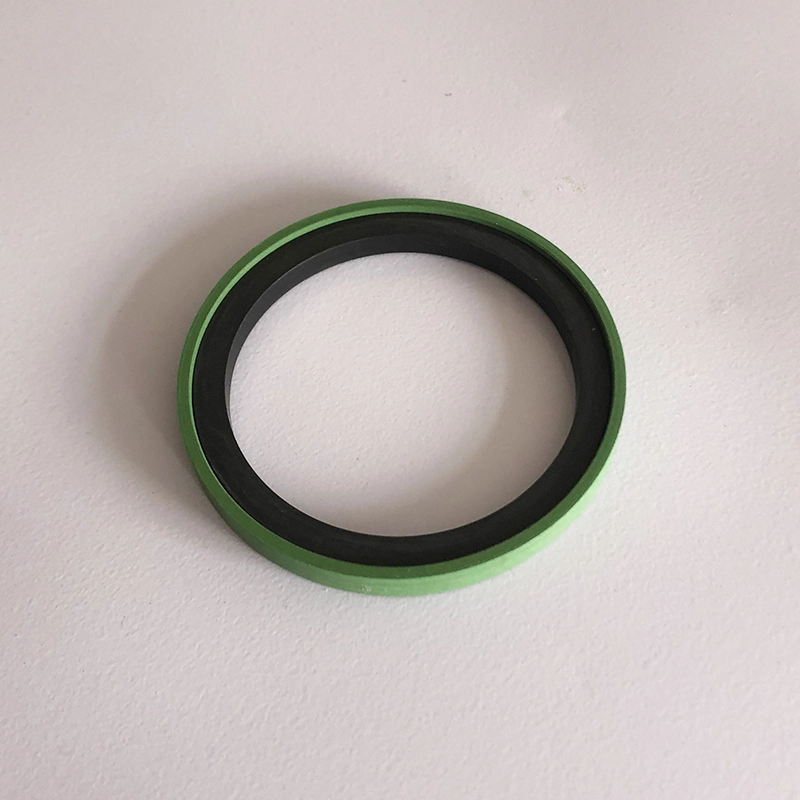

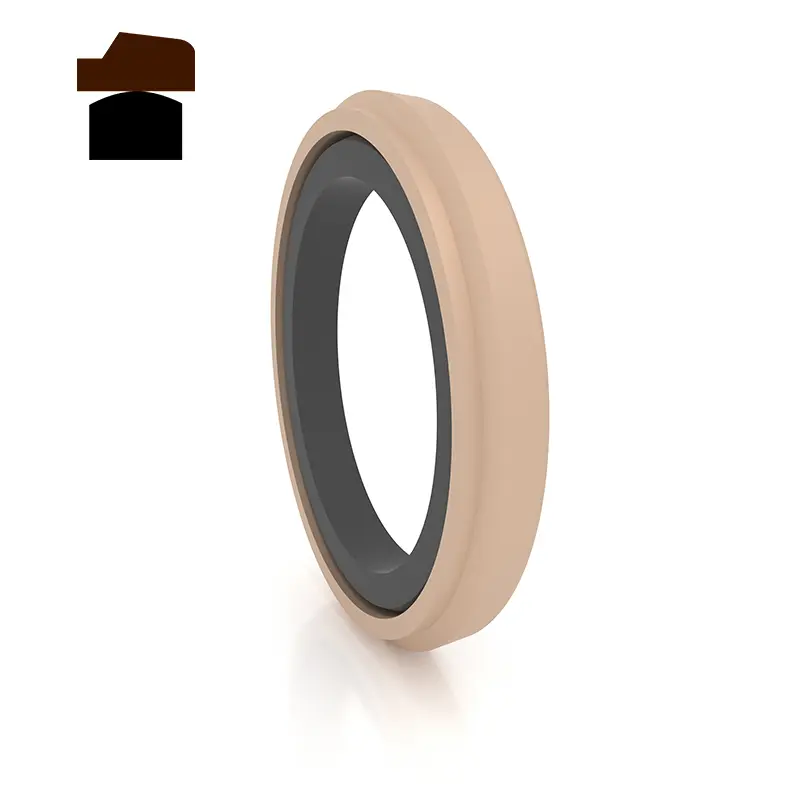

RC63 dumadi saka cuping berbentuk tutup ptfe lan cincin karet berbentuk O-berbentuk, sing cocog kanggo panyegel tekanan tetesan gergunaan tekanan tekanan tetesan. Cincin berbentuk o nyedhiyakake kekuwatan radial lan menehi ganti rugi kanggo nyandhang dering segel. Wiwit dering Sealing ngetrapake desain lambé lancip, kemampuan ganti rugi kanggo tindakake apik, saéngga kinerja sing cocog apik lan bisa diinstal ing GB12350 ring ring. Grooves pamisah (mbukak) kudu digunakake kanggo silinder diameter kurang saka 30mm. Fitur:
1. Bisa digunakake kanggo loro hidraulik lan radhang paru-paru, lan bisa digunakake kanggo sealing tekanan bidirectional;
2. Gesekan rendah, resistensi wiwitan cilik, gerakan lancar, gesekan dinamis lan statis sing padha, ora ana sing creeping;
3 .. Urip dawa, bisa digunakake kanggo segel pelumasan tanpa minyak;
Spasi struktural cilik, gampang instalasi lan pangopènan;

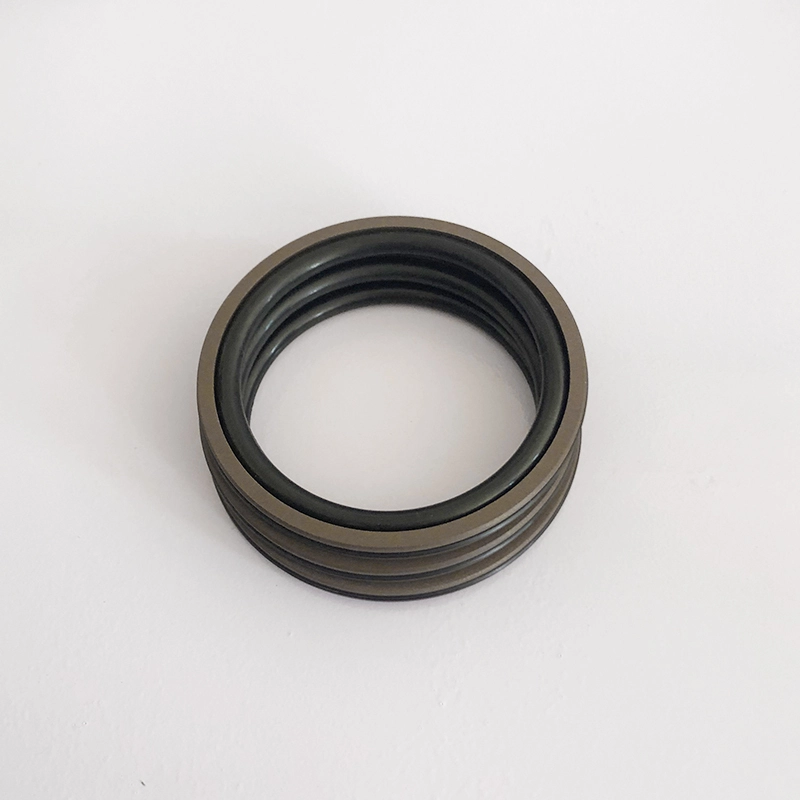

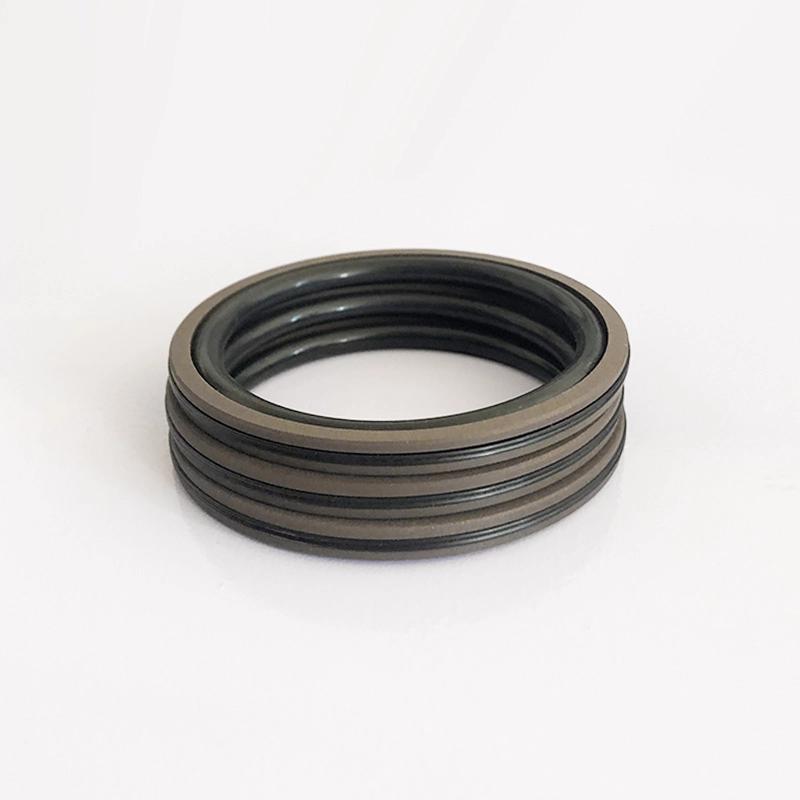

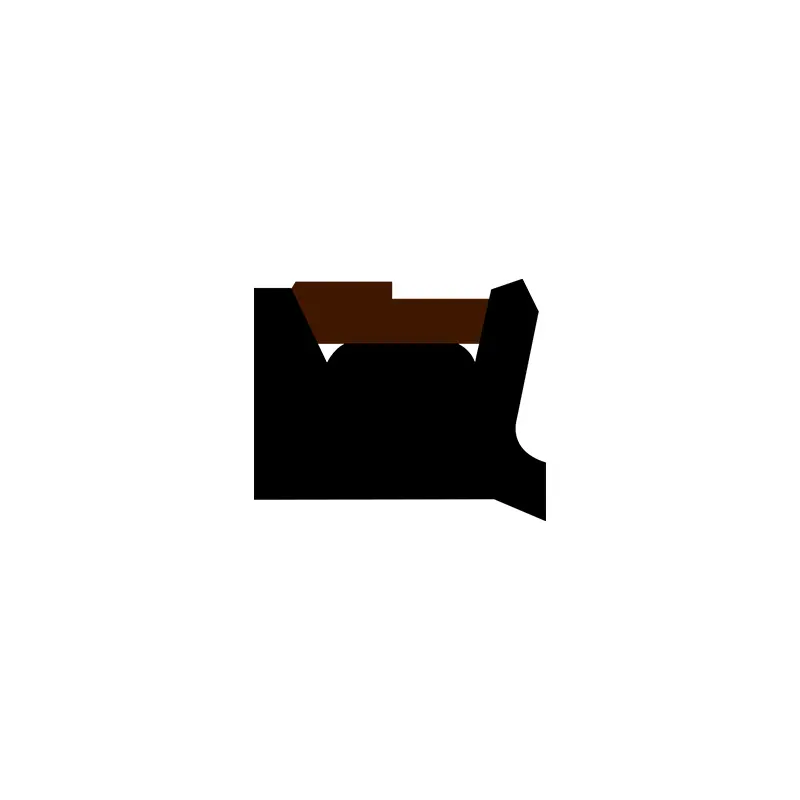

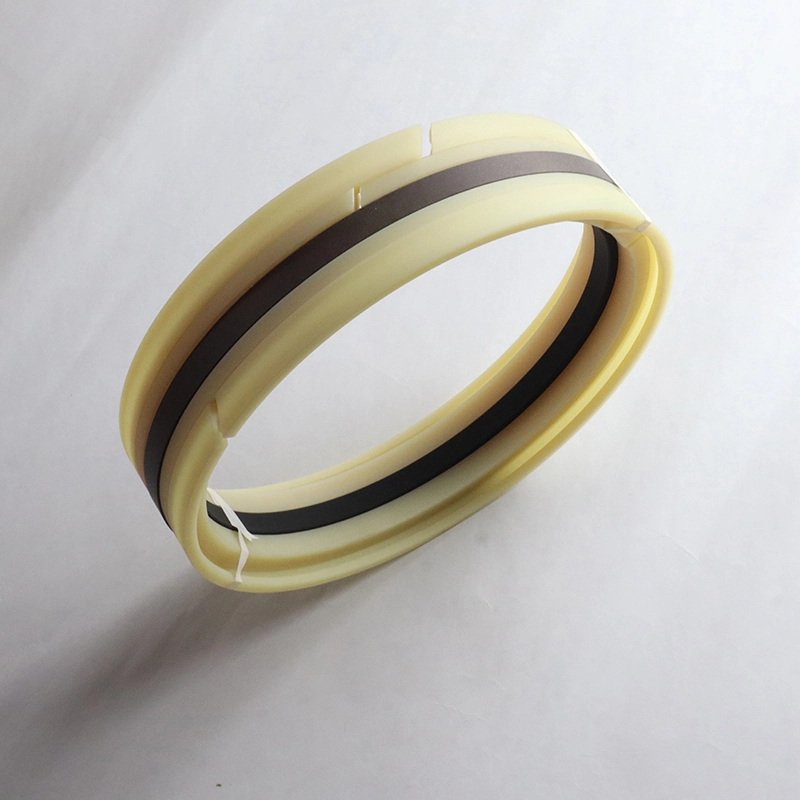

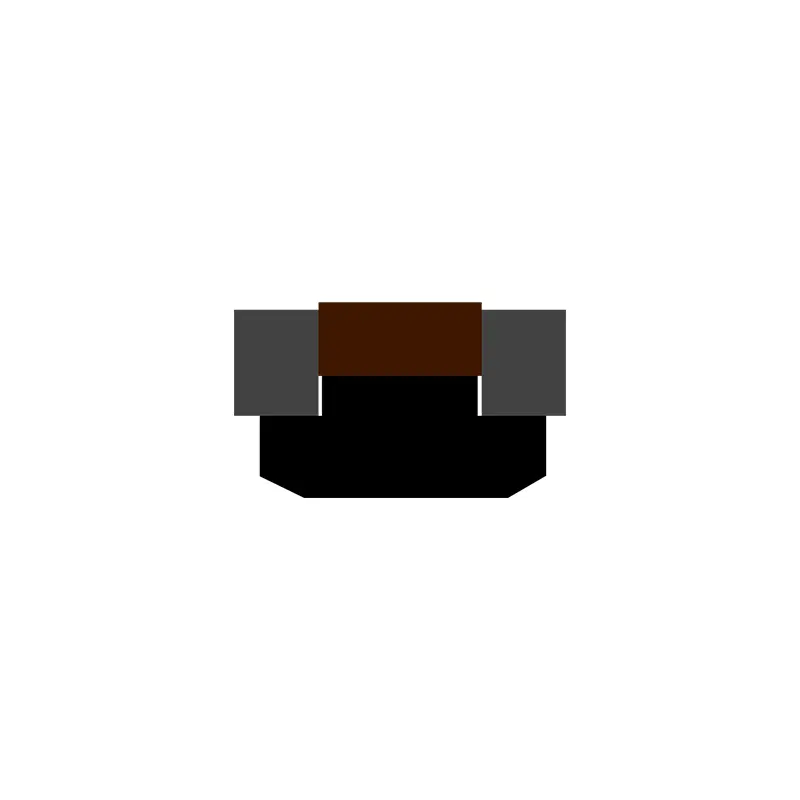

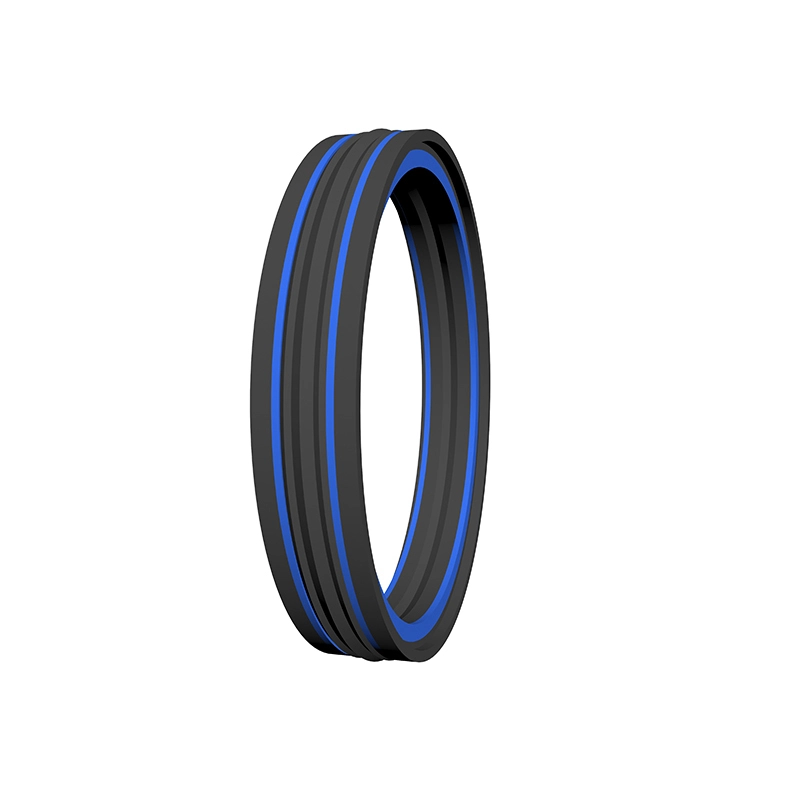

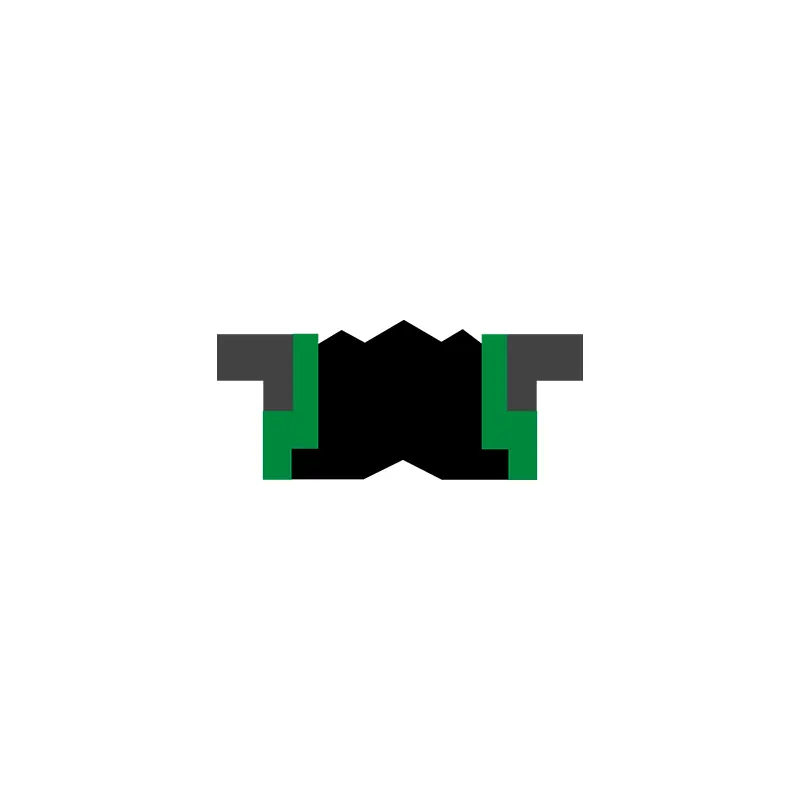

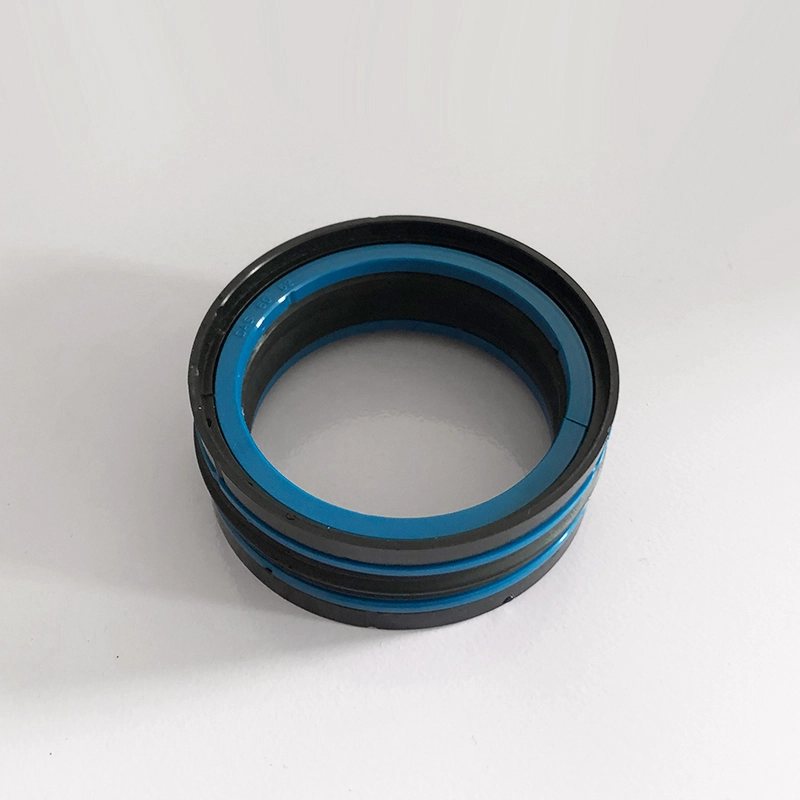

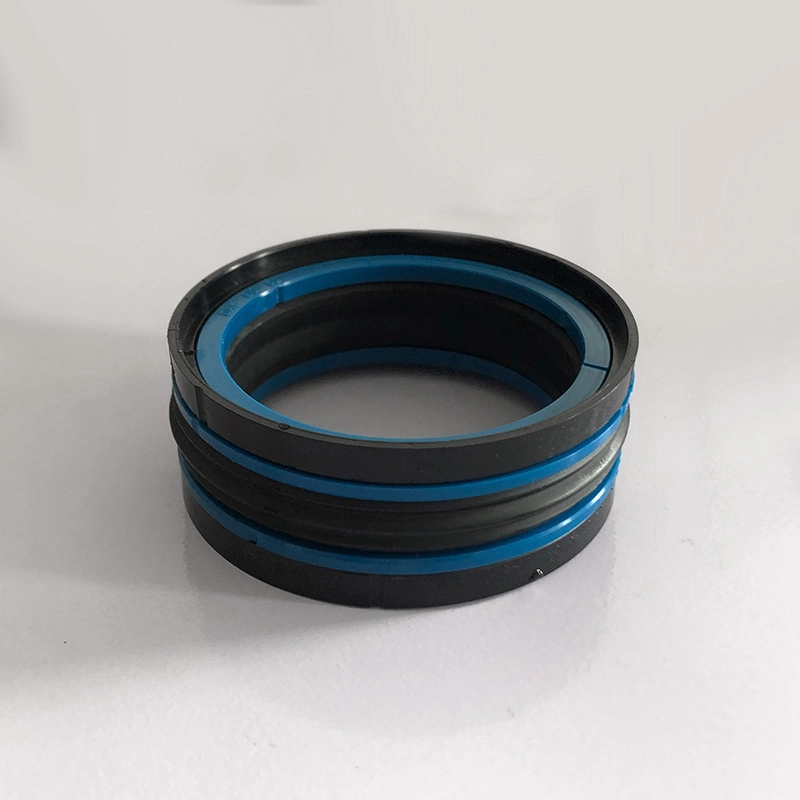

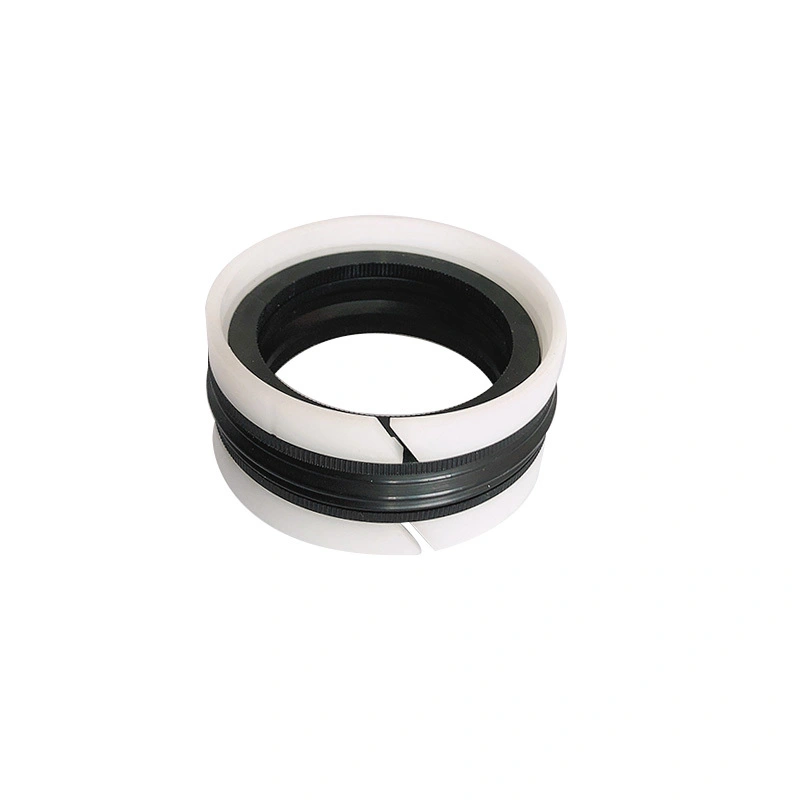

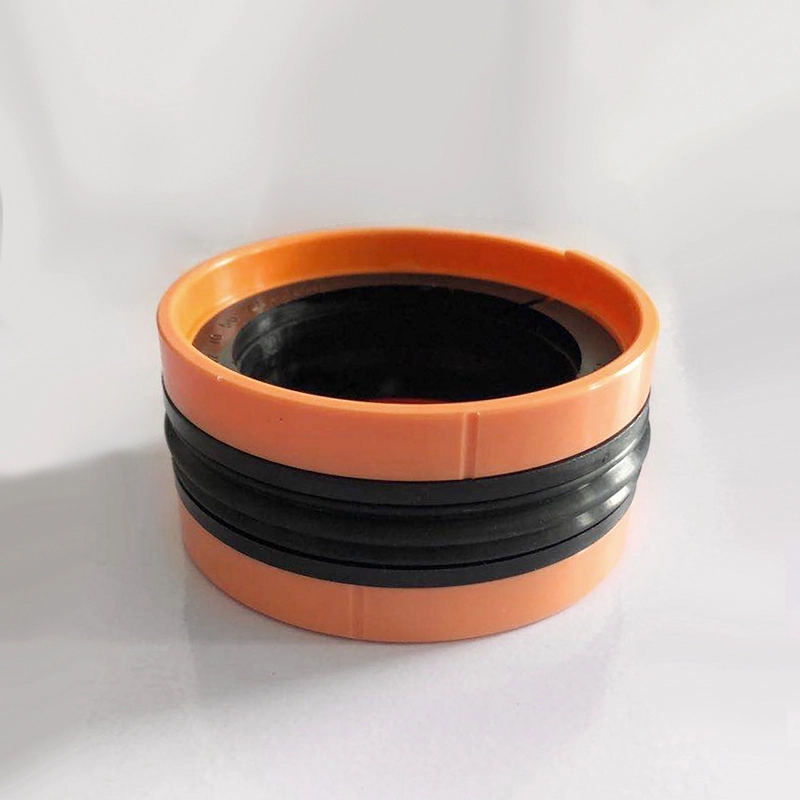

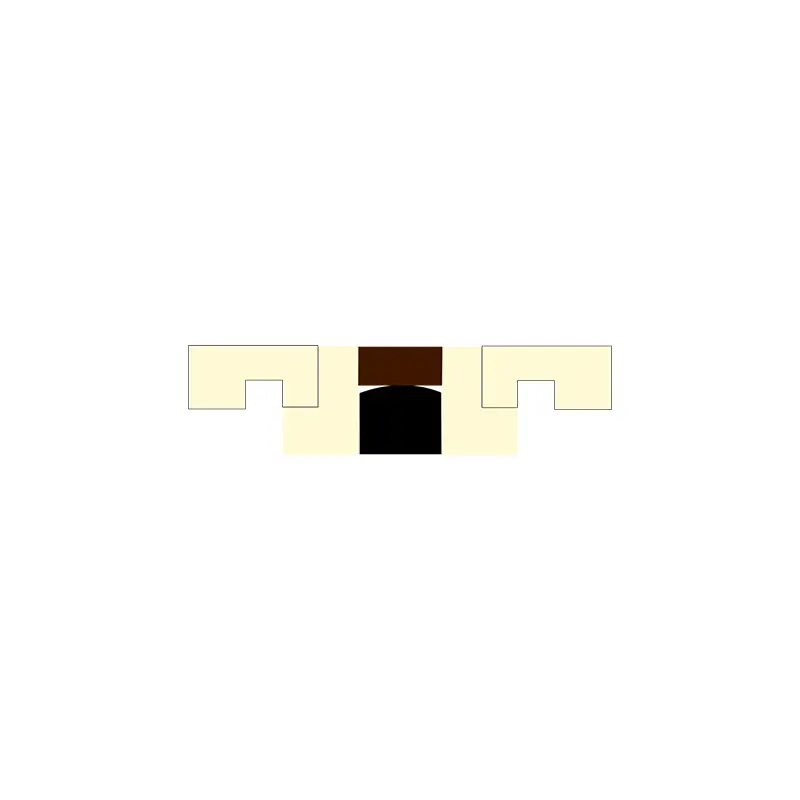

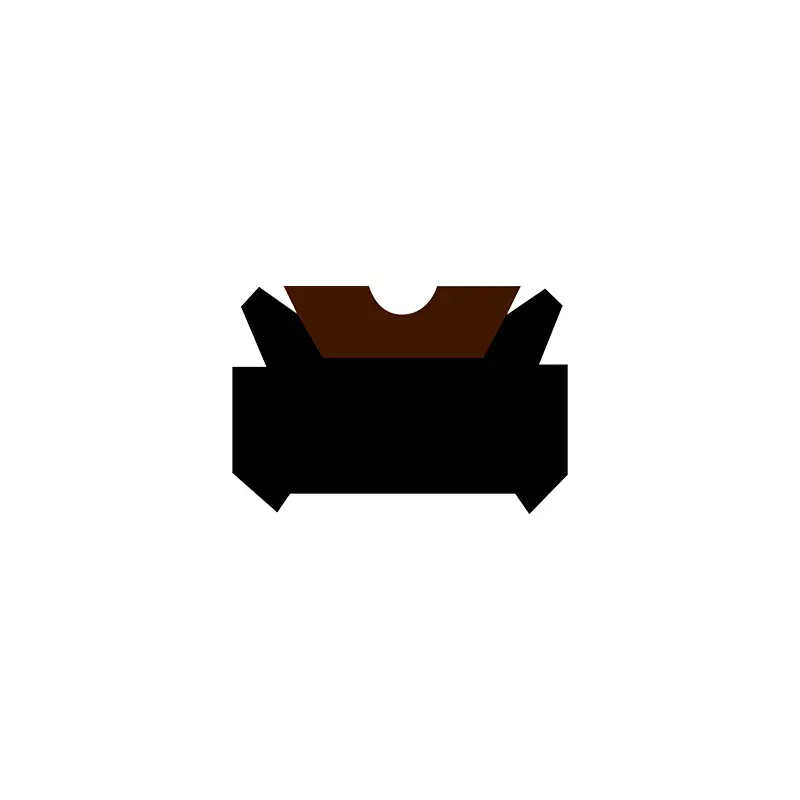

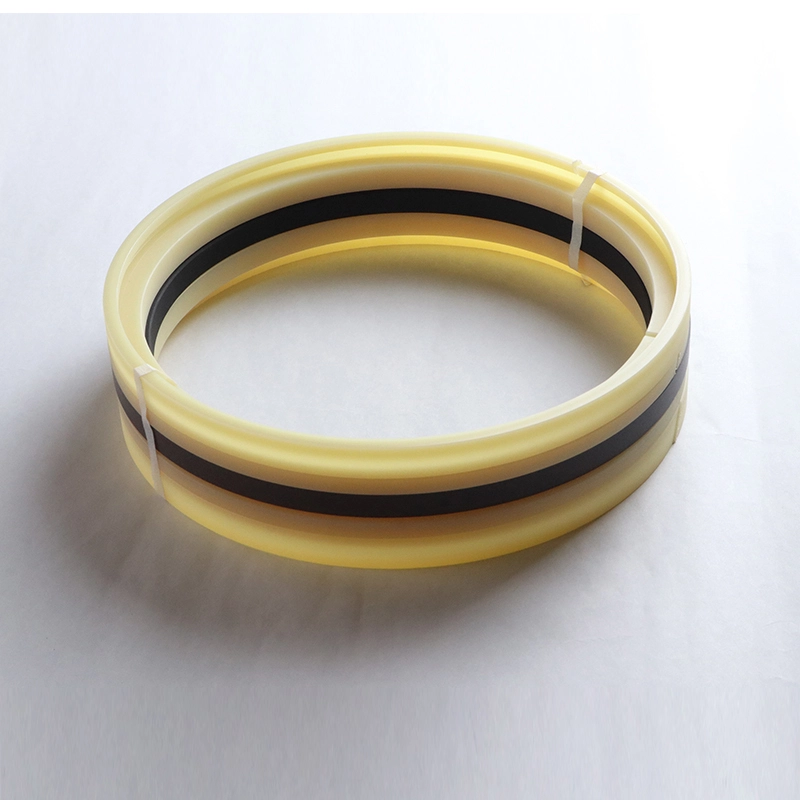

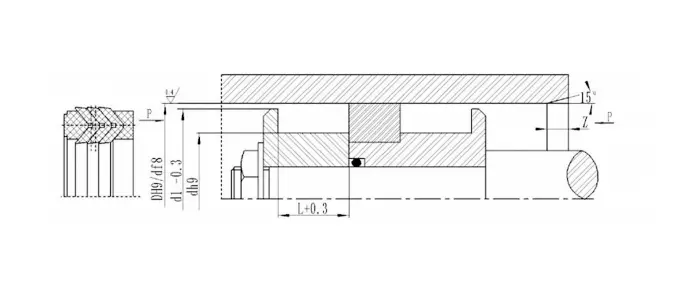

KDAS, TPM (bentuk khusus) yaiku komplek limang gabungan kompresi sega kompresi dumadi saka unsur panyunting karet, loro dering peningkatan lan tuntunan loro. Cocog kanggo sealing pistirectional tekanan. Fitur:
1. Sealing Good, linuwih dhuwur, struktur kompak;
2 .. ora bakal diremehake menyang celah radial;
3. Instalasi prasaja, instalasi piston integral;
Bentuk geometris unsur seumer nbr ngalangi supaya ora twisting ing alur sajrone instalasi.

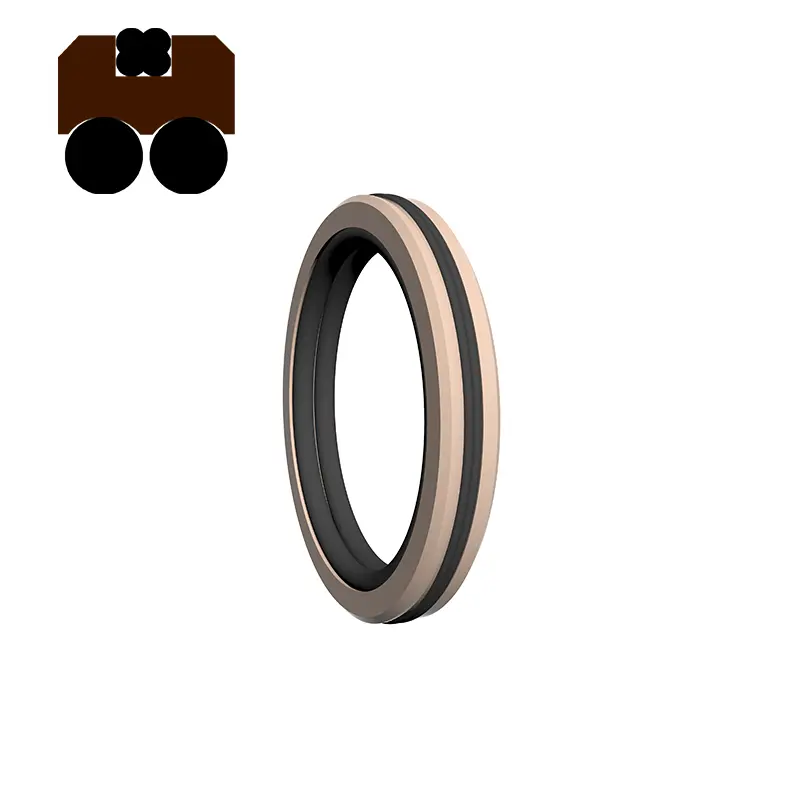

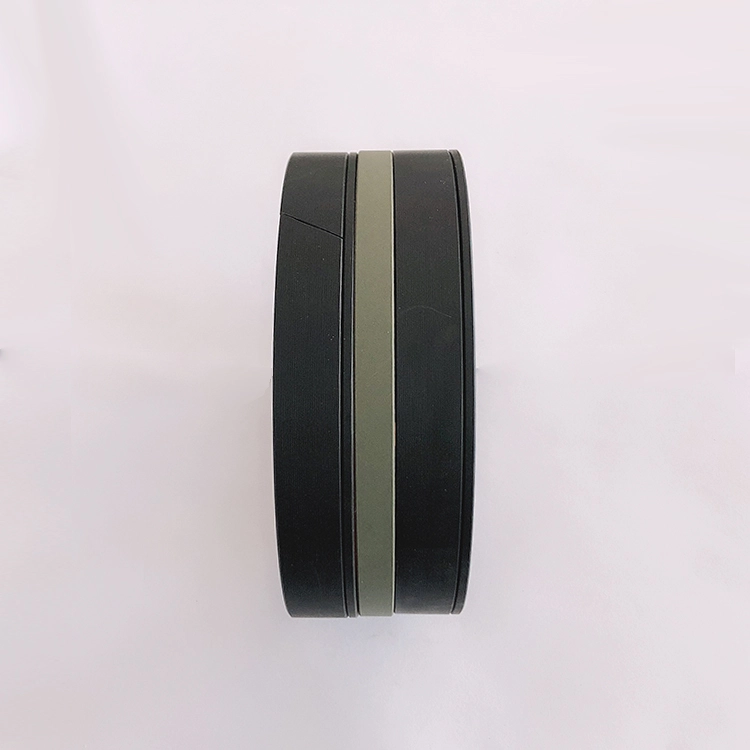

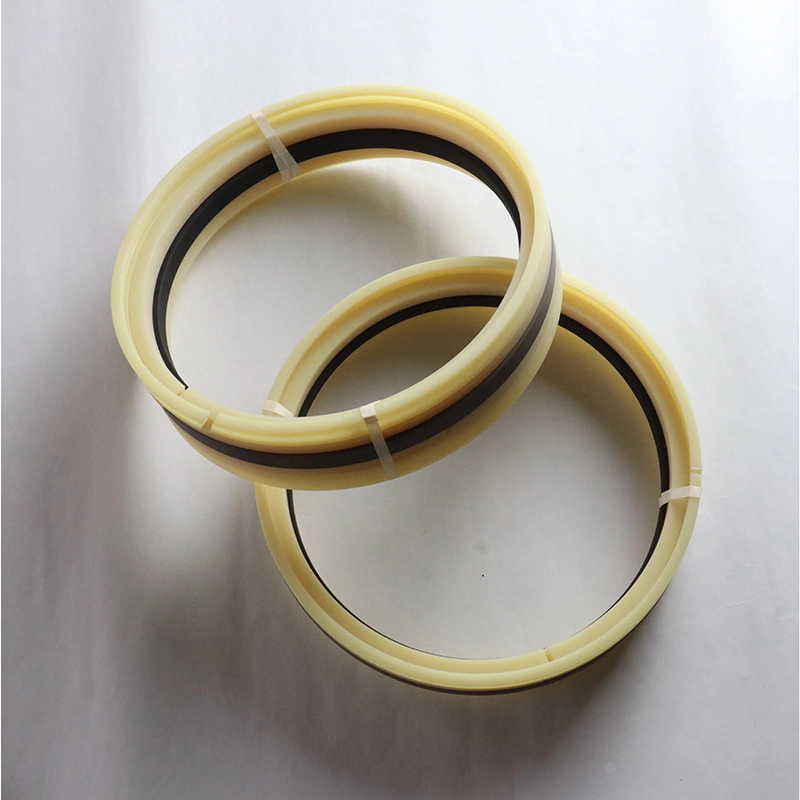

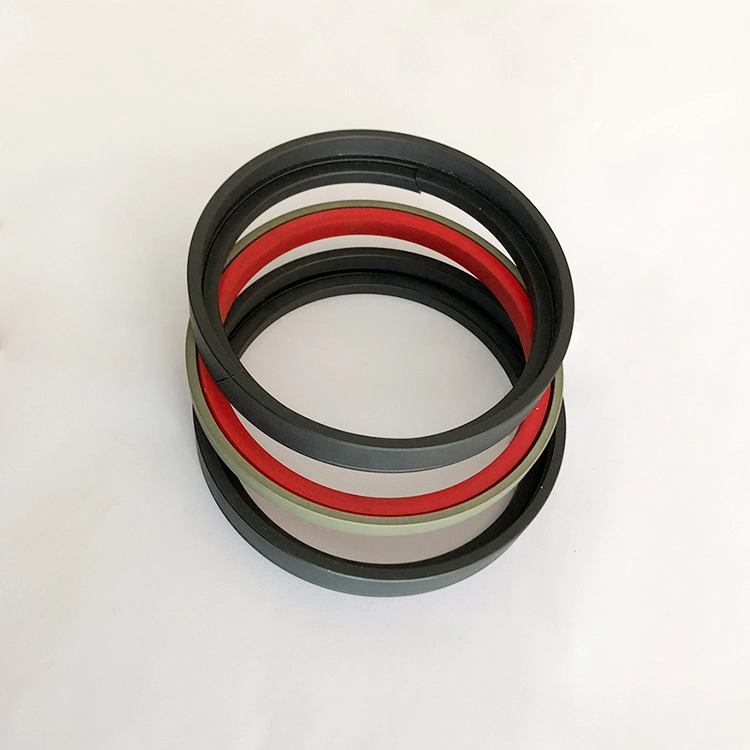

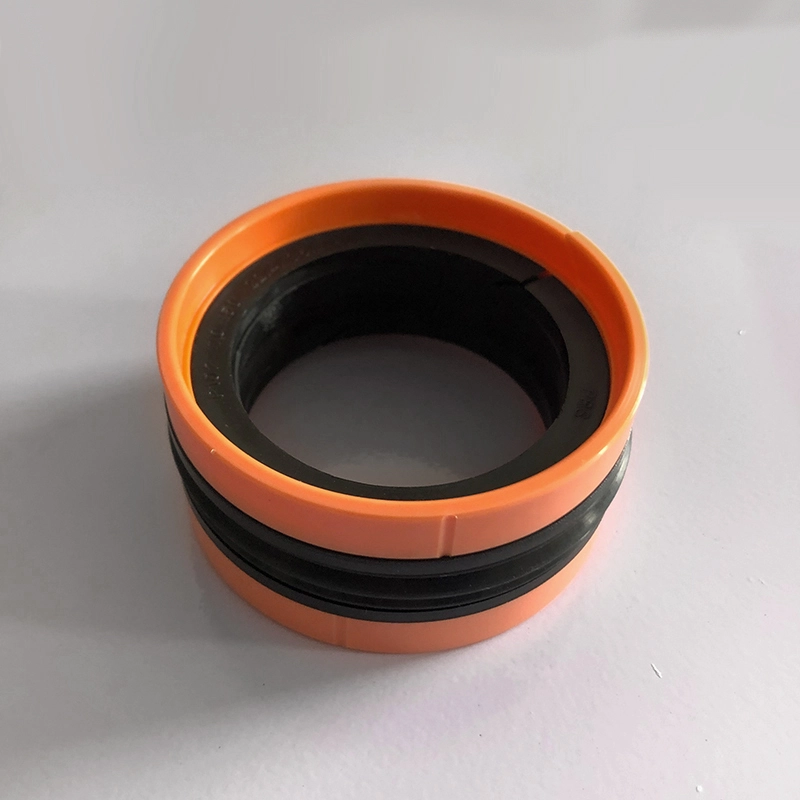

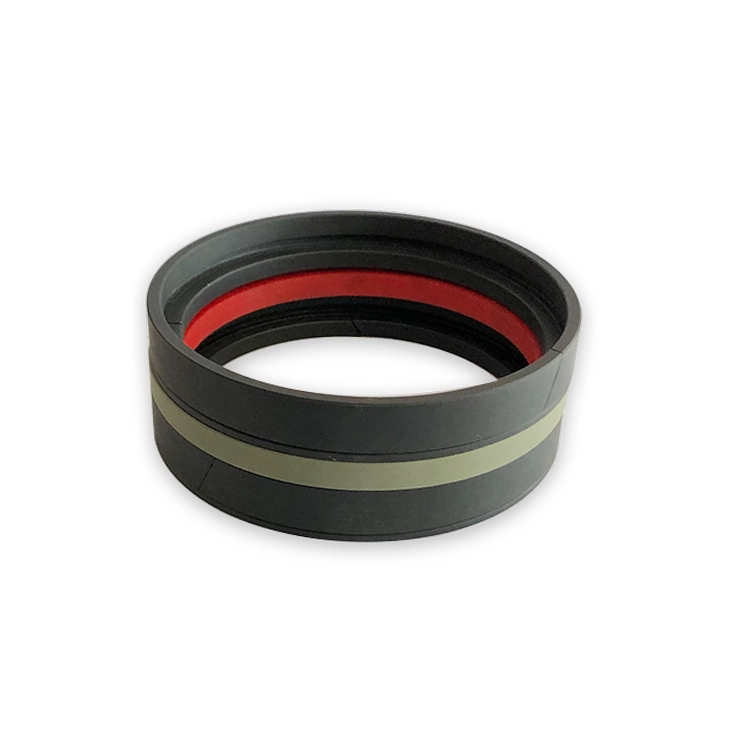

Gdkk kasusun saka rong pandhuan loro pandhuan, loro cincin pelet, cincin karet sing langka lan cincin segel. Pandhuan ring main posisi lan nuntun. Cincin sing bisa ditrapake kanthi dhukungan lan posisi, cincin karet sing dilengkapi kanthi menehi kekuwatan lan menehi ganti rugi kanggo ilang cincin segel. Dering sealing kerjo bareng karo bolongan batin silinder minyak kanggo ngasilake efek panyusun, sing cocog kanggo nyolong tekanan bidirectional saka piston silinder. Duwe efek panyegelan sing apik sanajan ing kahanan kerja keras. Fitur:
1. Gesekan rendah, resistensi wiwitan cilik, gerakan lancar, gesekan dinamis lan statis sing padha, ora ana sing creeping;
2. Stabilitas tekanan sing dhuwur banget ing kahanan tekanan lan kasar;
3 .. Urip sing dhuwur, bisa digunakake kanggo nyusup ing kahanan lubrication sing kurang;
4. Bisa digunakake kanggo nutup media viskositas sing nyolong kayata banyu;
Kinerja sing dhuwur banget lan tekanan sing apik banget.

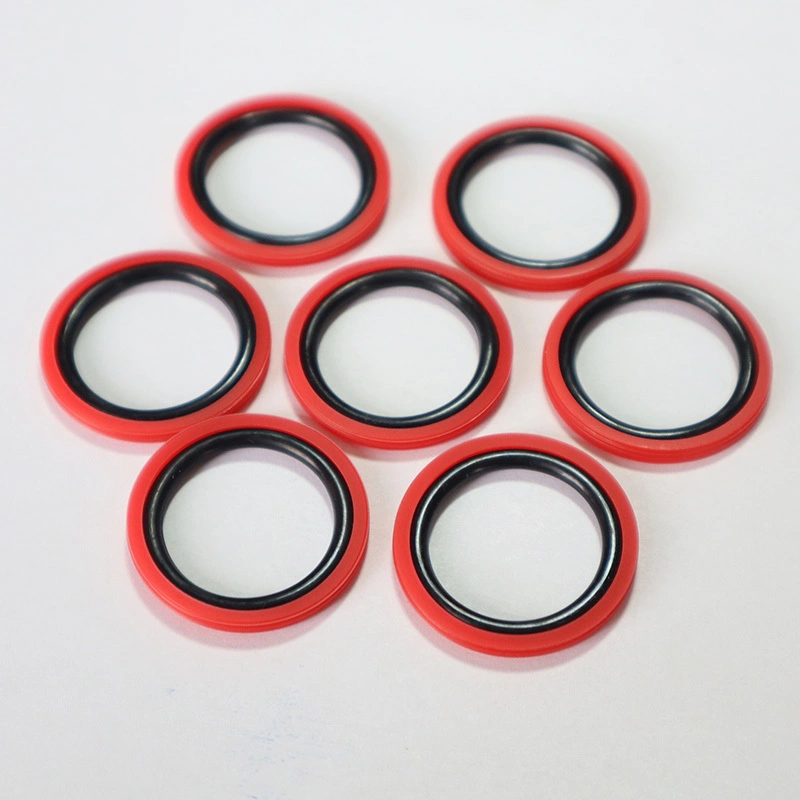

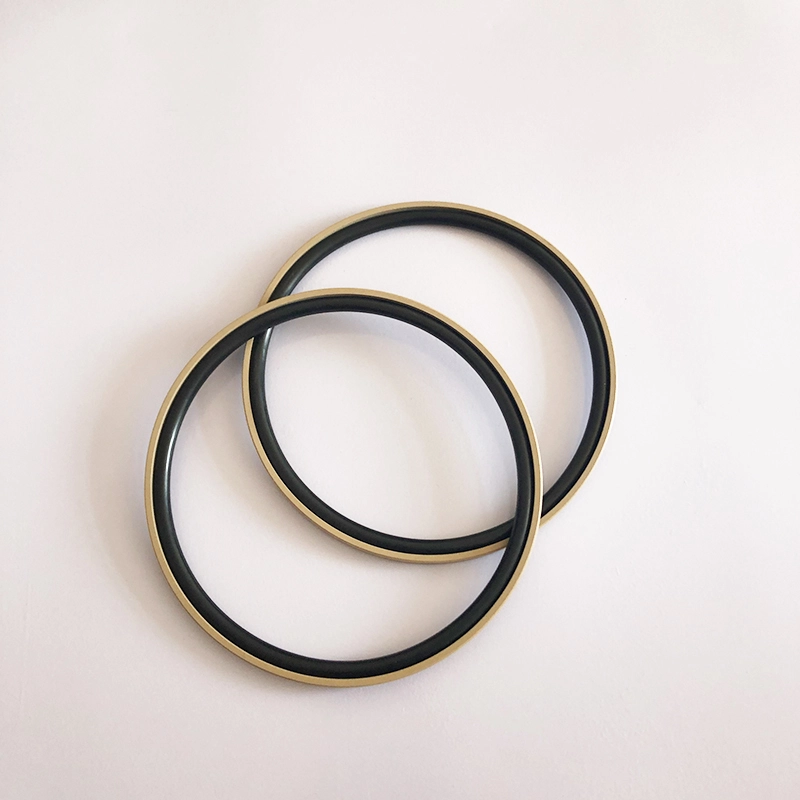

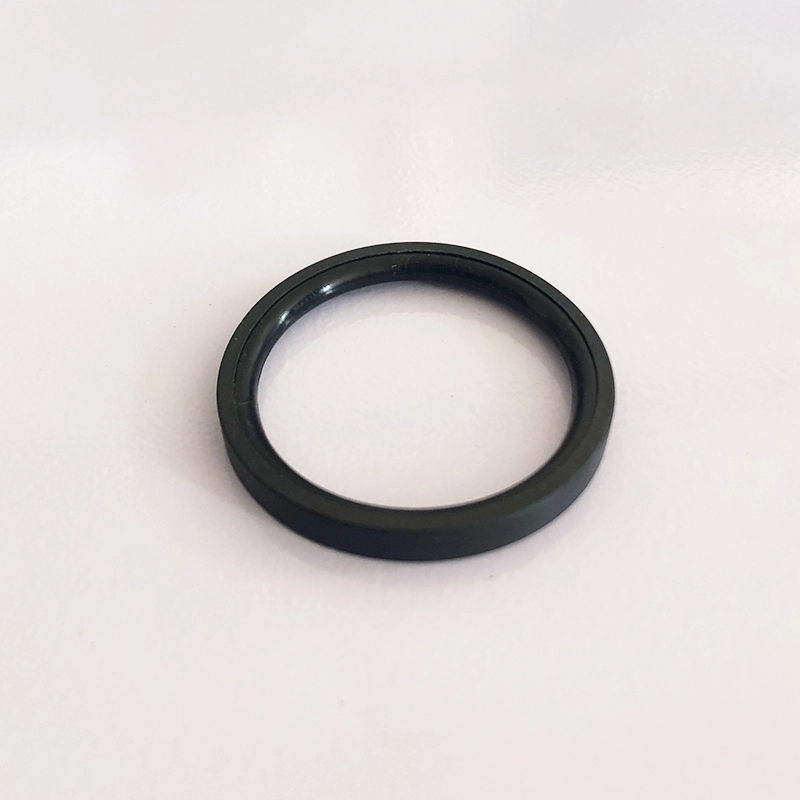

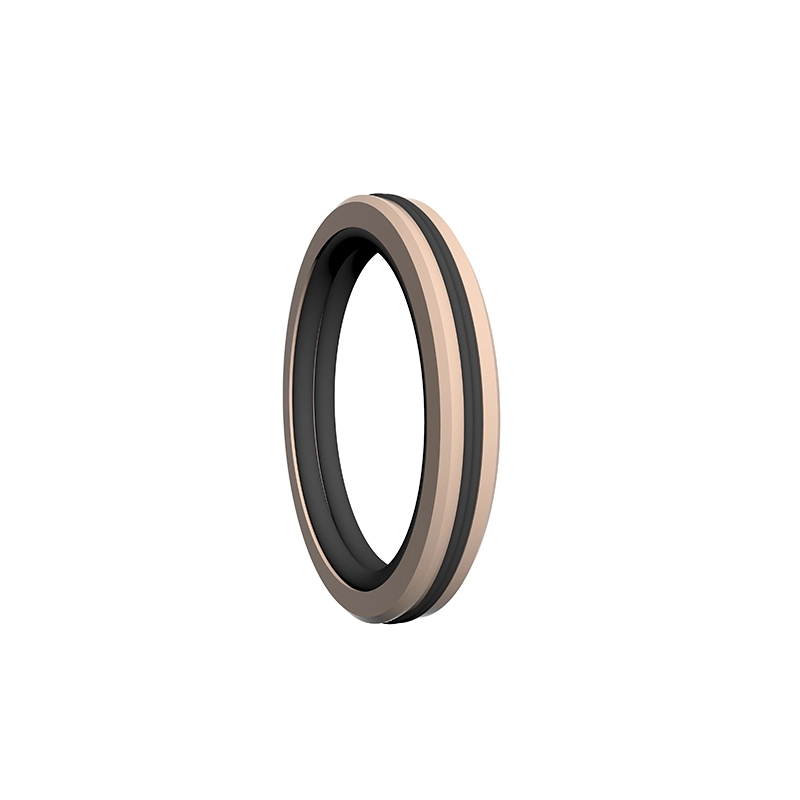

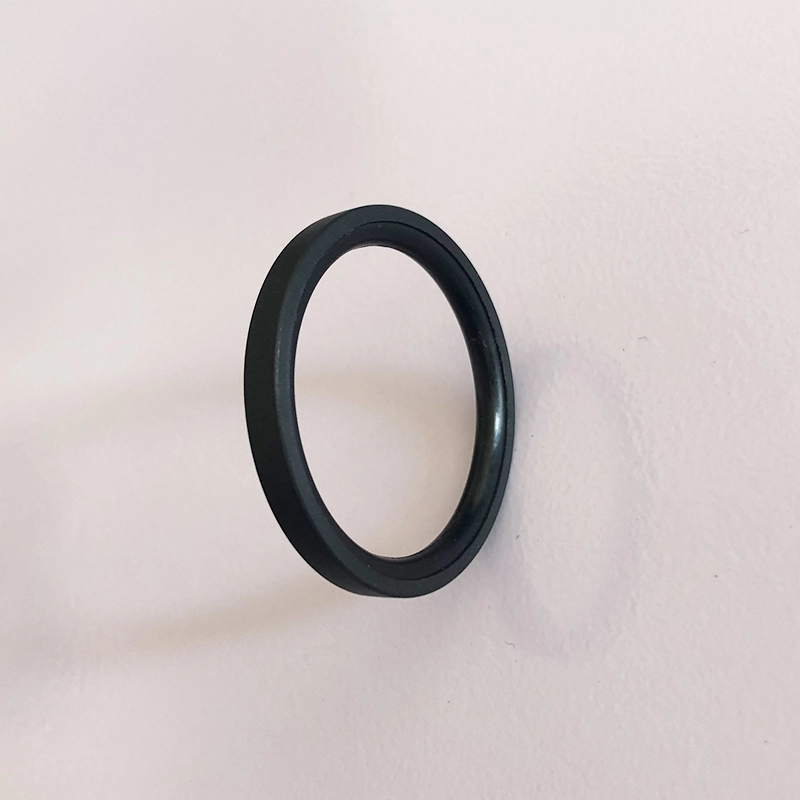

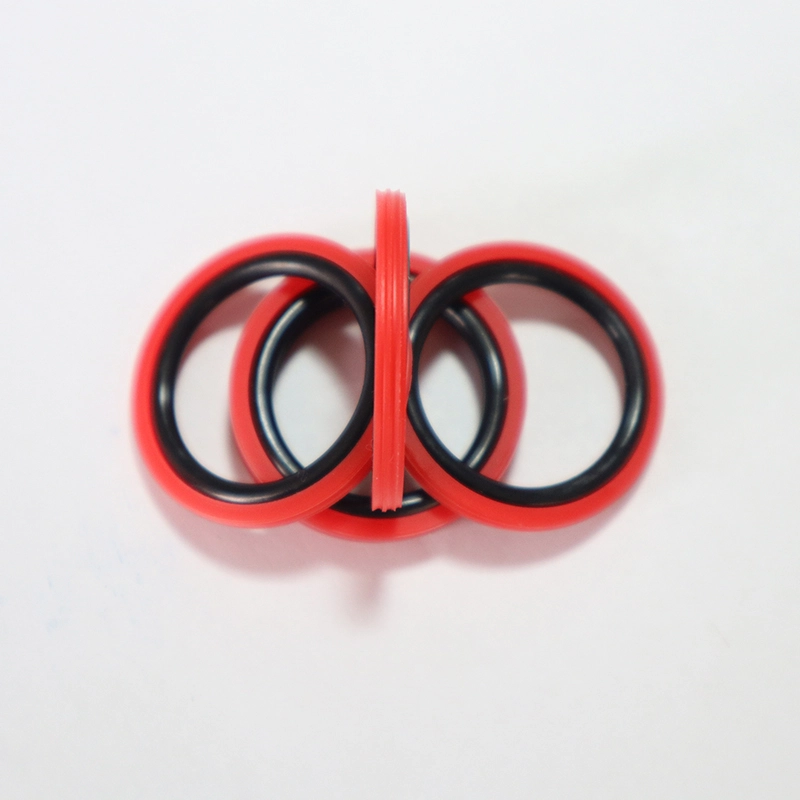

RC64 dumadi saka cincin sega segi telu PTFE lan cincin karet o-ring, cocog kanggo gerakan gerakan hidraulik lan reciprocating tekanan hidraulik lan pneumatic. O-ring nyedhiyakake kekuwatan radial lan menehi ganti rugi kanggo nyandhang dering segel. Wiwit dering Sealing ngetrapake desain lambé lancip, kemampuan ganti rugi kanggo tindakake luwih apik, saengga kinerja panyemparan apik. Groove pamisah (mbukak) kudu digunakake kanggo silinder diameter kurang saka 30mm. Fitur:
1. Bisa digunakake kanggo loro hidraulik lan pneumatik;
2. Gesekan rendah, resistensi wiwitan cilik, gerakan lancar, gesekan dinamis lan statis sing padha, ora ana sing creeping;
3 .. Urip dawa, bisa digunakake kanggo segel pelumasan tanpa minyak;
Spasi struktural cilik, gampang instalasi lan pangopènan;

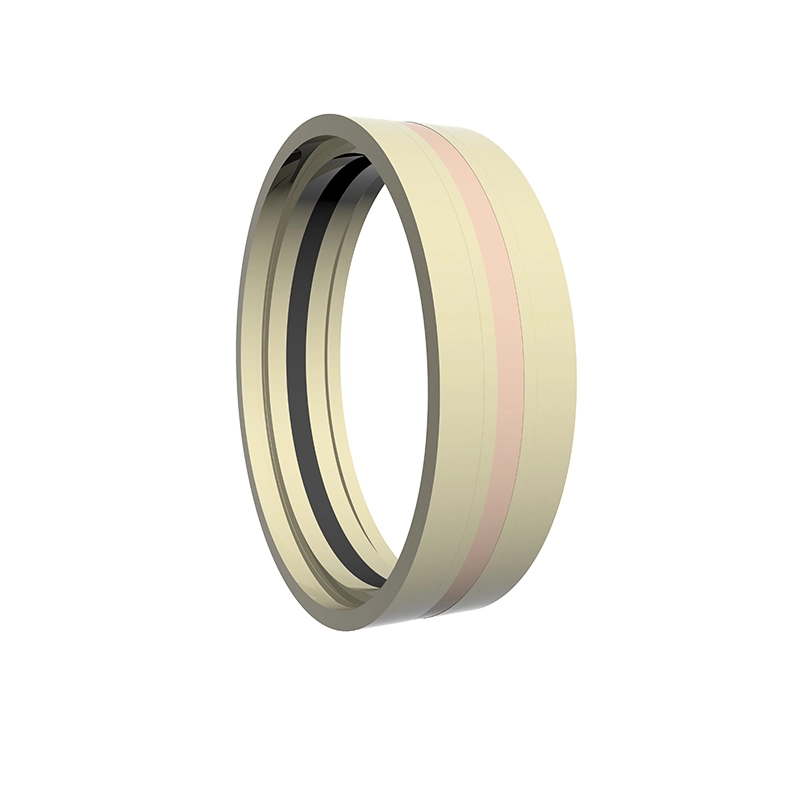

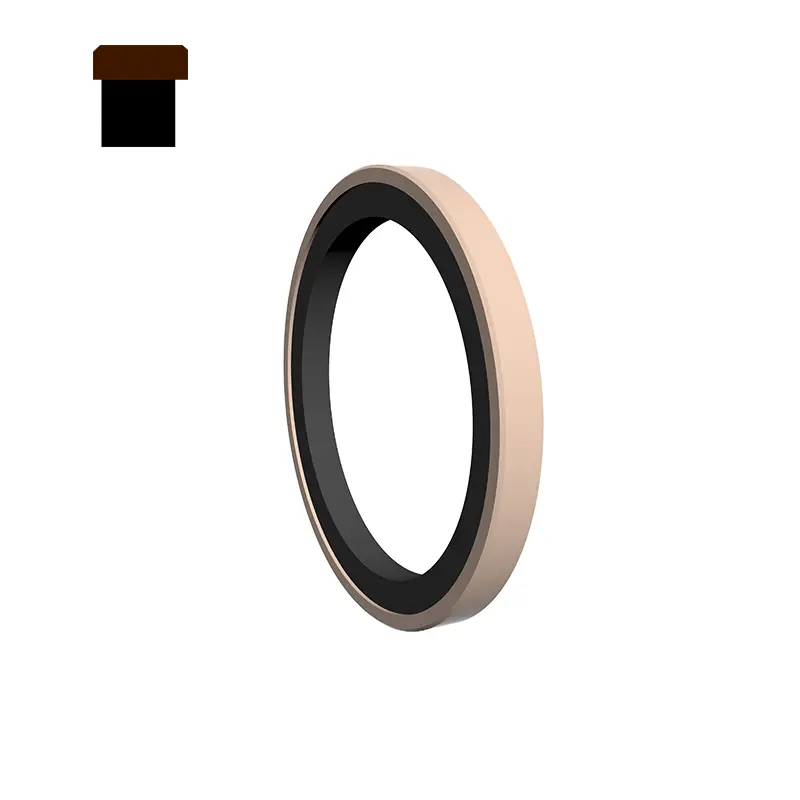

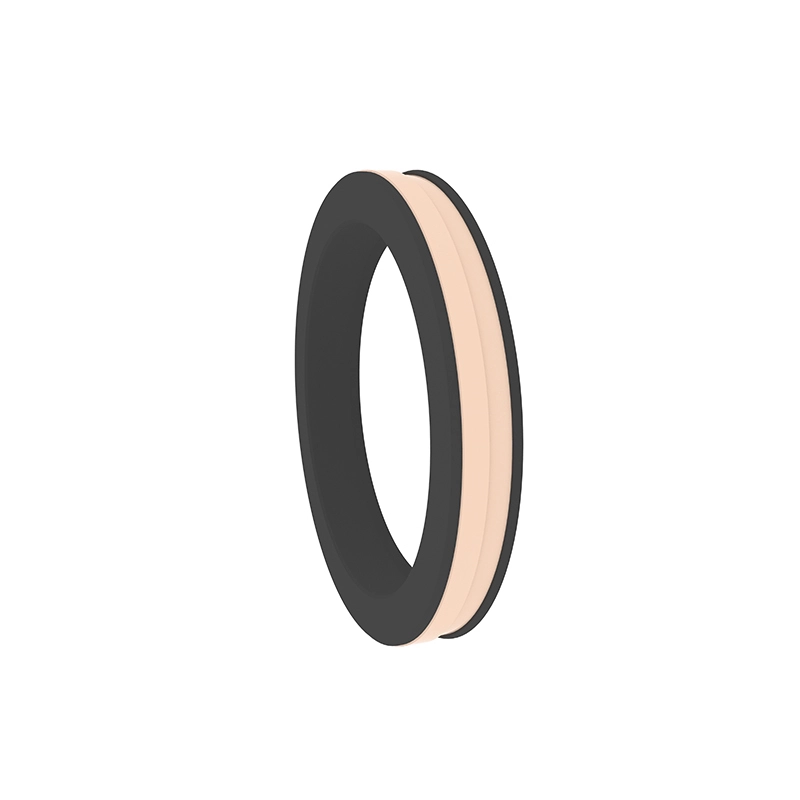

SPG minangka gabungan cincin sealing panyegelan PTFE lan cincin karet persegi minangka unsur preload. Nduwe ciri panyegel sing apik, gesekan rendah lan ruang struktural cilik.

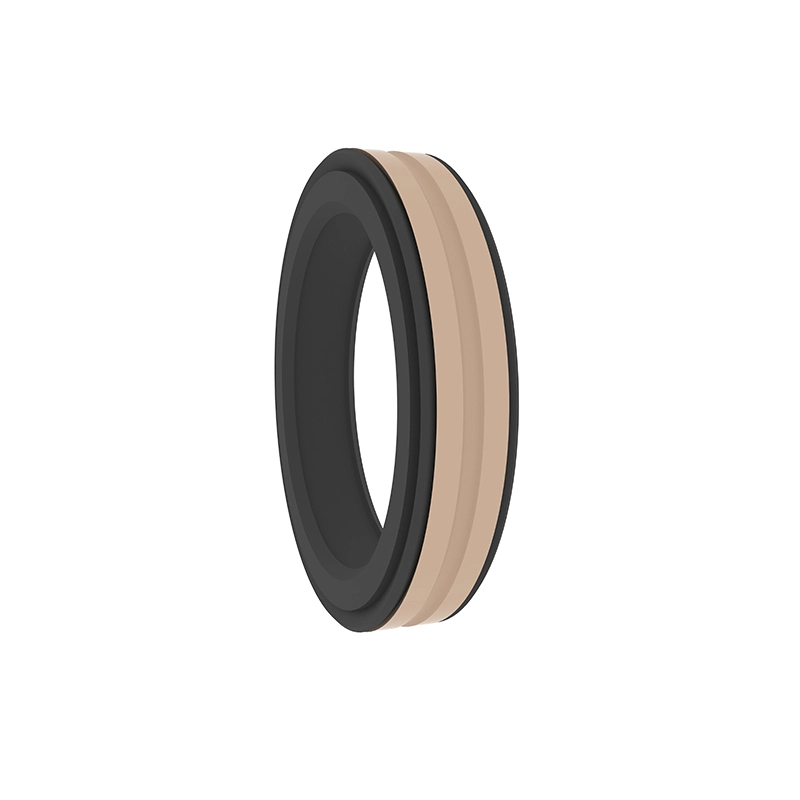

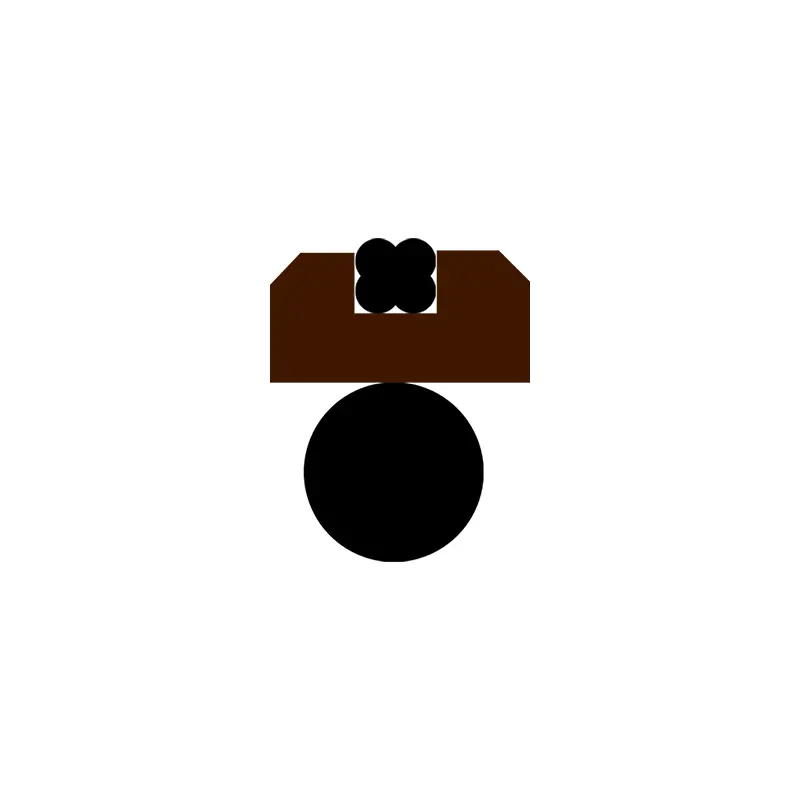

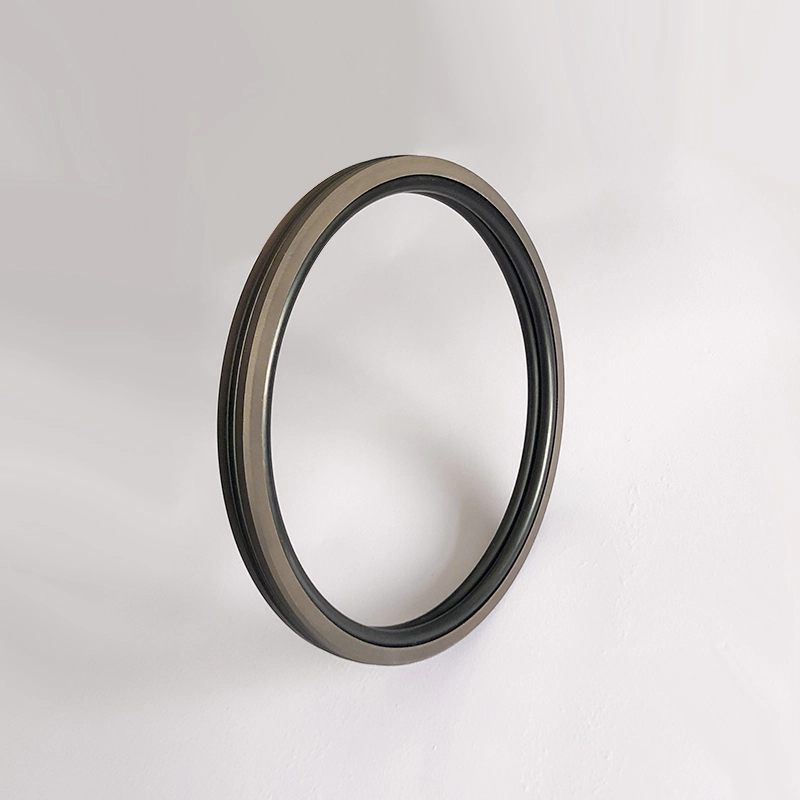

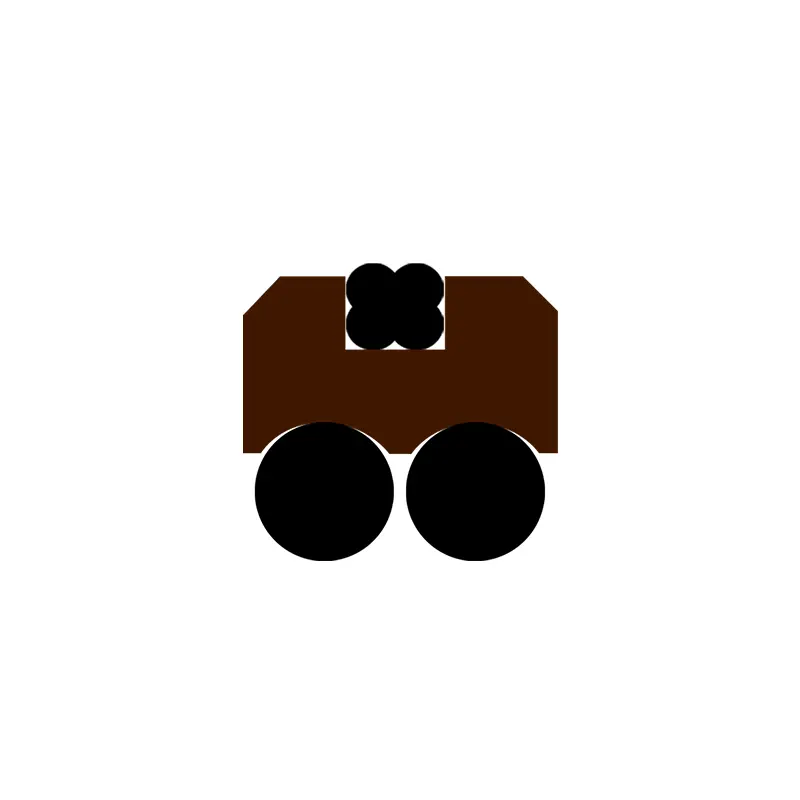

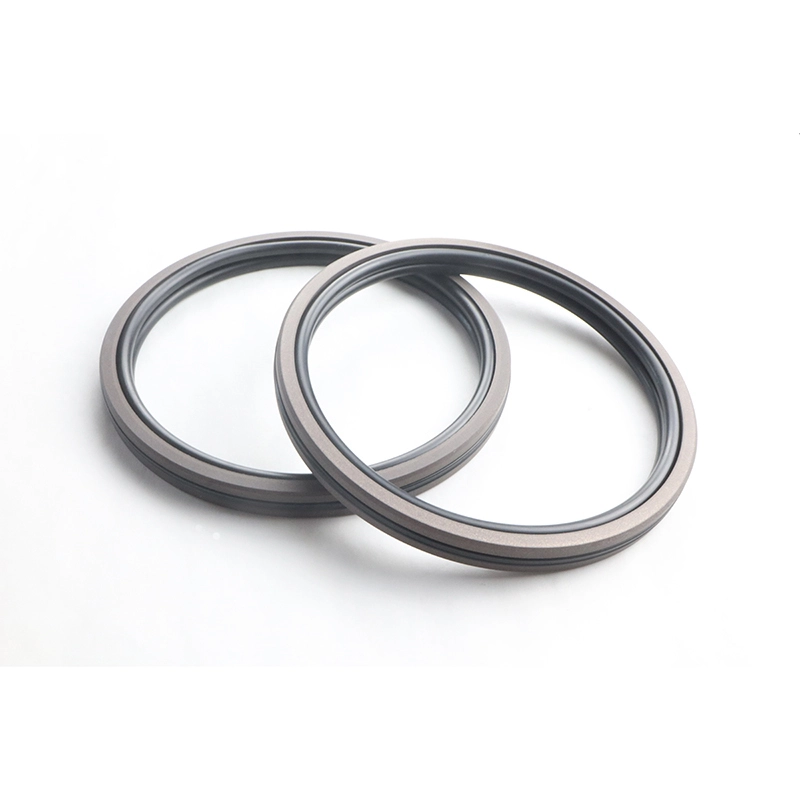

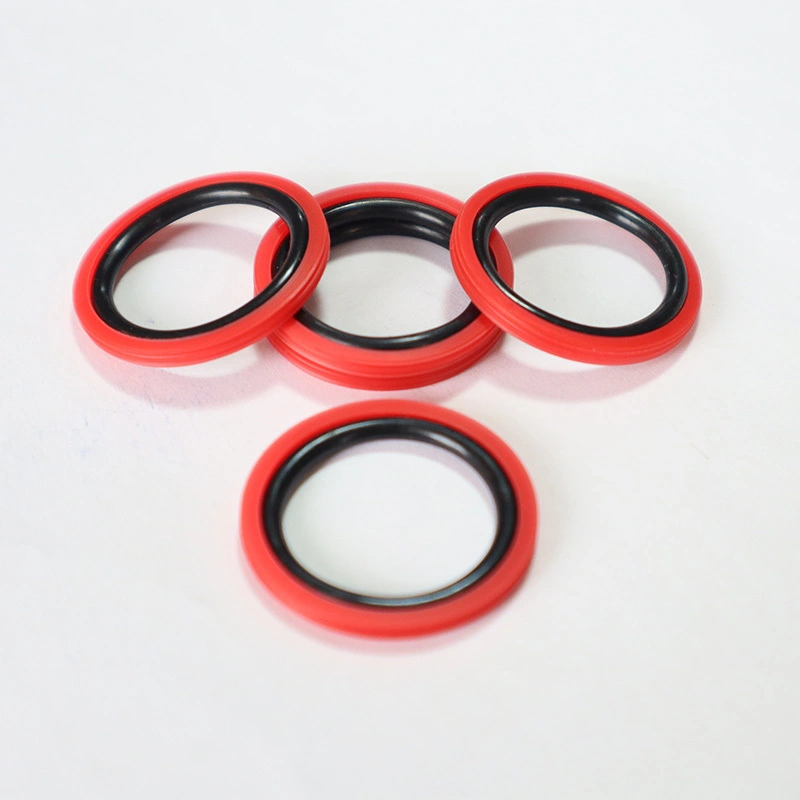

RC66 minangka gabungan saka ring sealing sealing sealing dering PTFE lan o-ring minangka unsur preload. Nduwe ciri panyegel sing apik, gesekan rendah, lan ruang struktural cilik. Iki cocog kanggo silinder minyak utawa silinder kanthi silinder kanthi dhuwur. RC67 dumadi saka ring sealing persegi panjang persepan, loro cincin sing ditahan, lan elastomer heterogen, sing cocog kanggo nyuda pengopènan tekanan hidrolik gerakan. Elastomer nyedhiyakake kekuwatan radial lan menehi ganti rugi kanggo nyandhang dering segel. Dering sing ana nglindhungi cincin sealing lan duwe efek panyegelan sing apik sanajan kahanan kerja keras. Fitur:
1. Gesekan rendah, resistensi wiwitan cilik, gerakan lancar, gesekan dinamis lan statis sing padha, ora ana sing creeping;
2. Stabilitas tekanan sing dhuwur banget ing kahanan tekanan lan kasar;
3 .. Urip Dhuwur, Bisa Digunakake Kanggo Segera Litur Lesi Bebas Gratis Minyak;
4. Bisa digunakake kanggo nutup media viskositas sing nyolong kayata banyu;
5. Kinerja sing dhuwur lan tekanan sing apik banget.

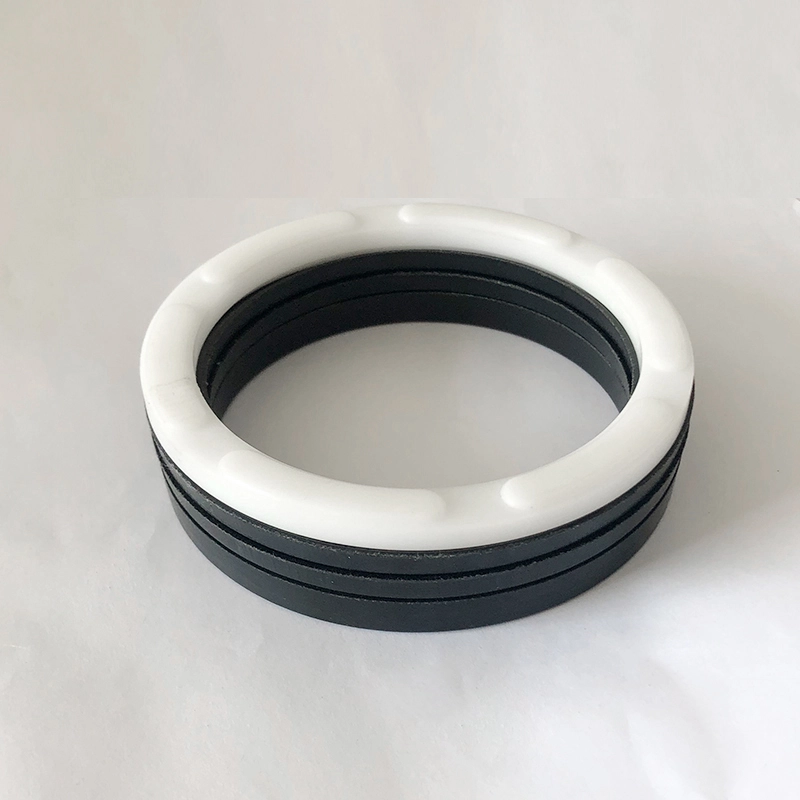

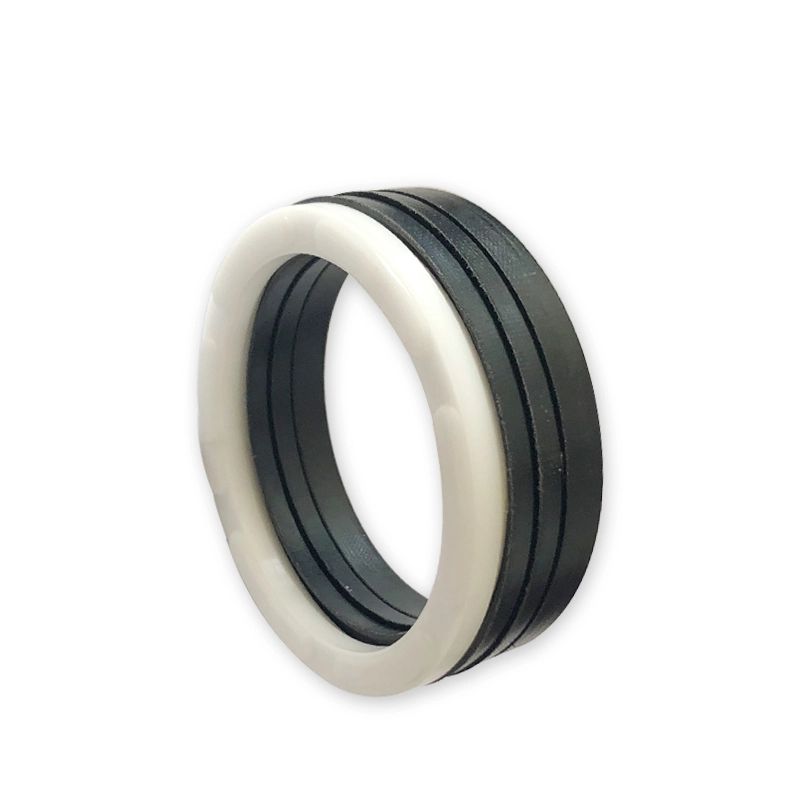

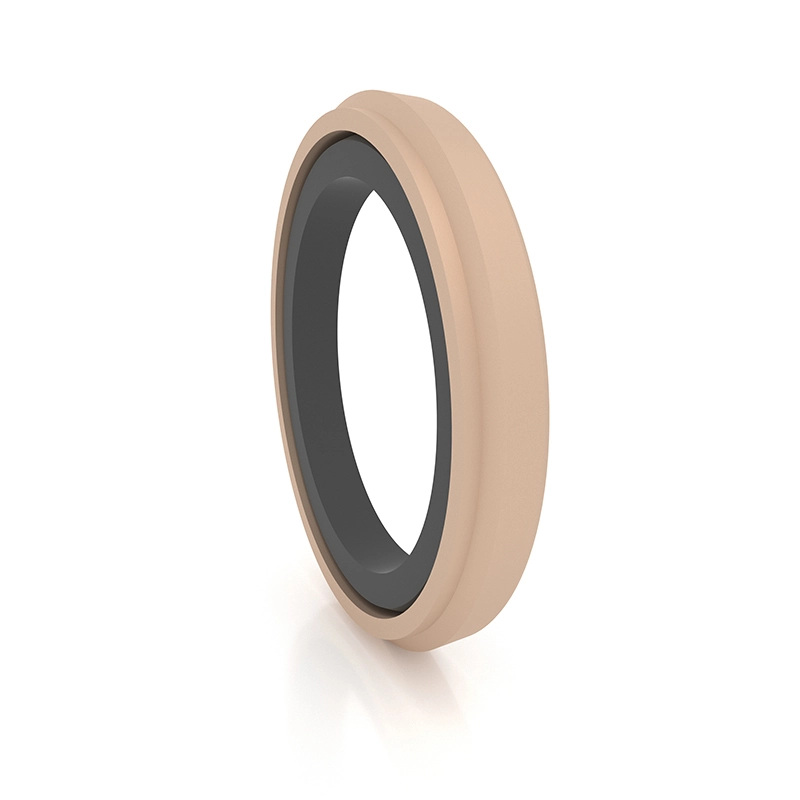

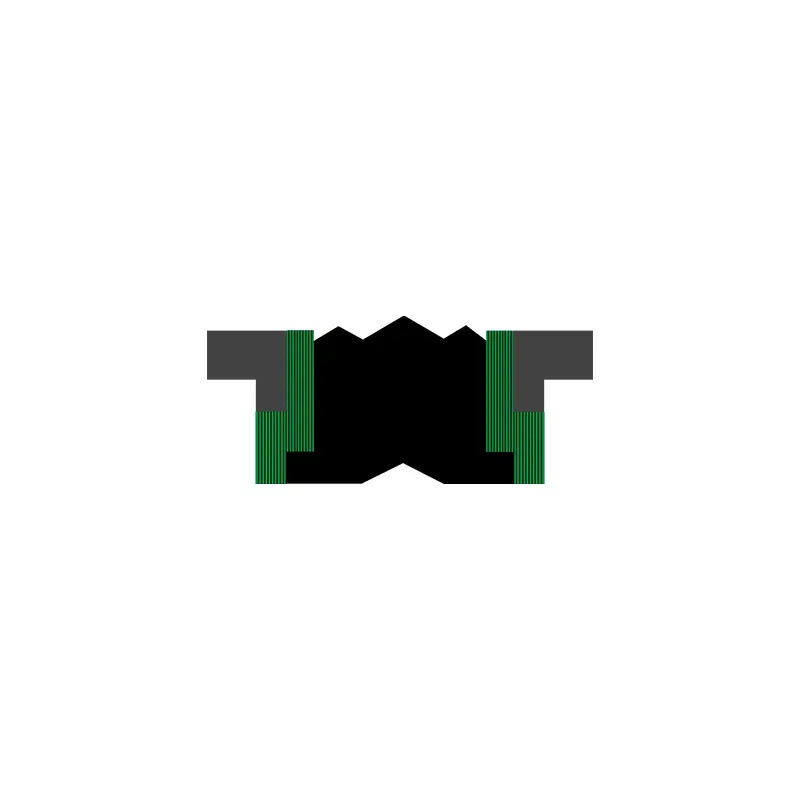

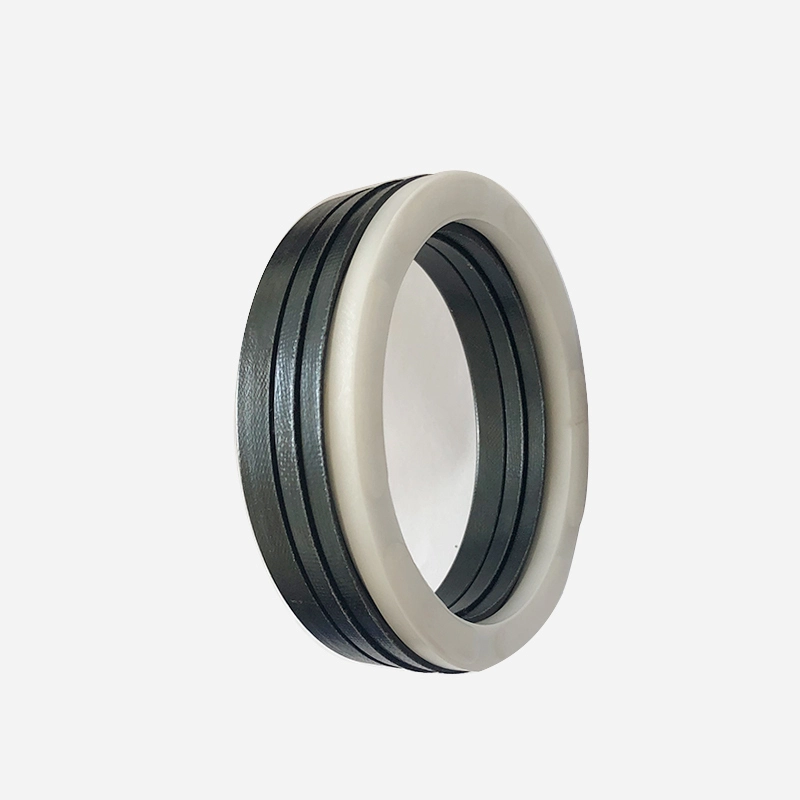

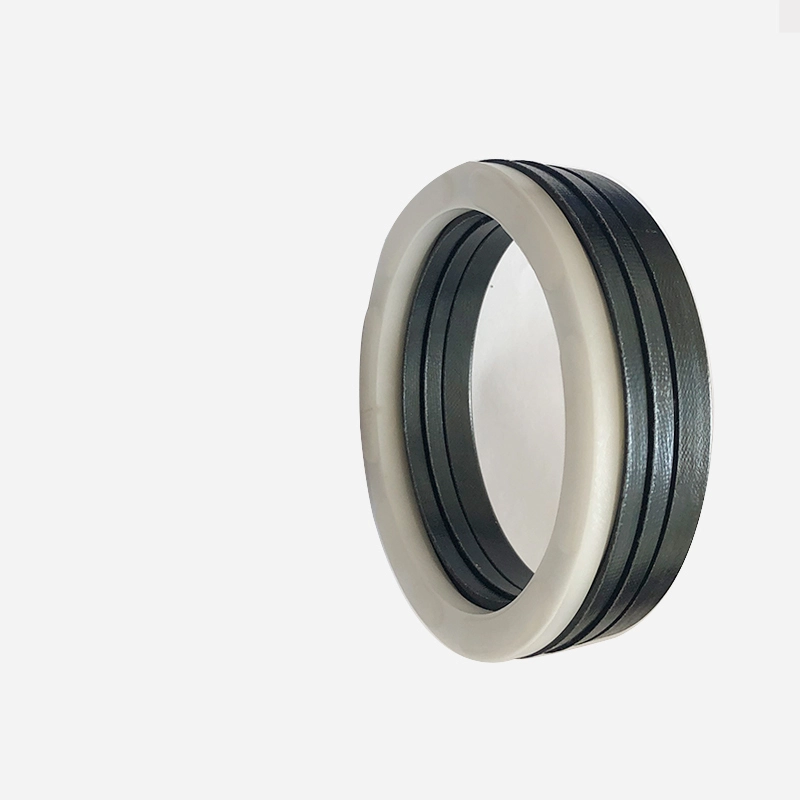

Rcek dumadi saka set cincin sealing V sing duwe, cincin tekanan lan cincin dhukungan, lan cocog kanggo gerakan timbal balesan hidraulik. Kompatibel karo materi panyebaran kudu ditrapake sajrone instalasi. Ora bisa diinstal ing Groove integral (ditutup). Iki digunakake kanggo segel piston ing beban medium lan abot. Fitur:
1. Macem-macem bahan kasedhiya, sing bisa diatur kanthi optimal kanggo cocog karo macem-macem tujuan;
2 .. Bisa digunakake ing kahanan kerja keras lan cocog kanggo meh kabeh media lan kahanan sing angel;
3 .. Nduwe urip layanan sing dawa lan bisa digunakake kanggo segel lubrication gratis minyak (pilihan materi sing cukup);
4. Kinerja panyunting bisa diatur, lan ukuran axial bisa diatur kanthi nambah utawa mbusak cincin sealing V-berbentuk V;
Bisa mlaku kanthi efektif sanajan kualitas permukaan sealing iku miskin.

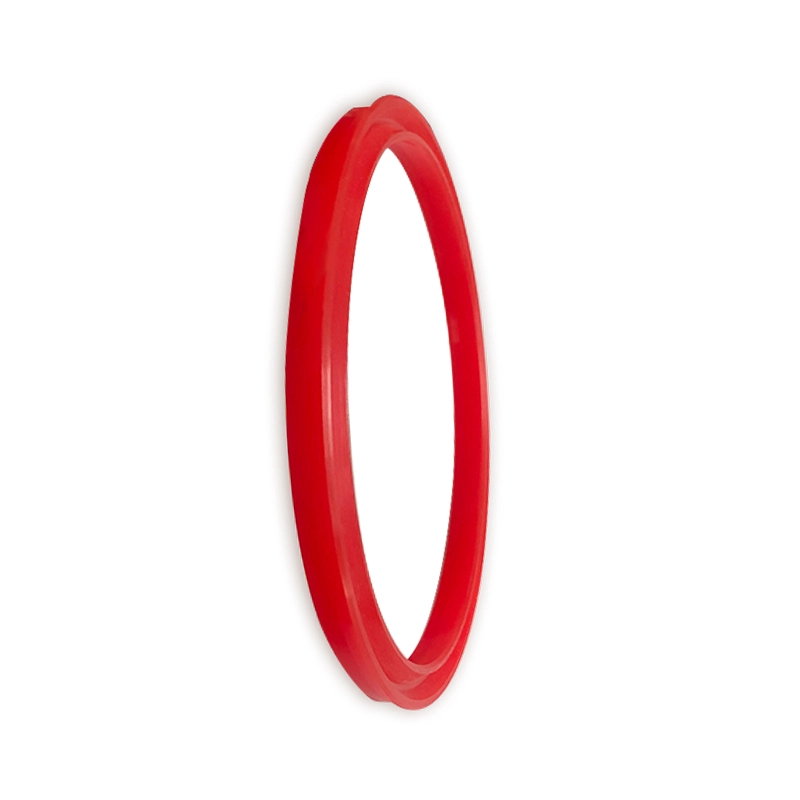

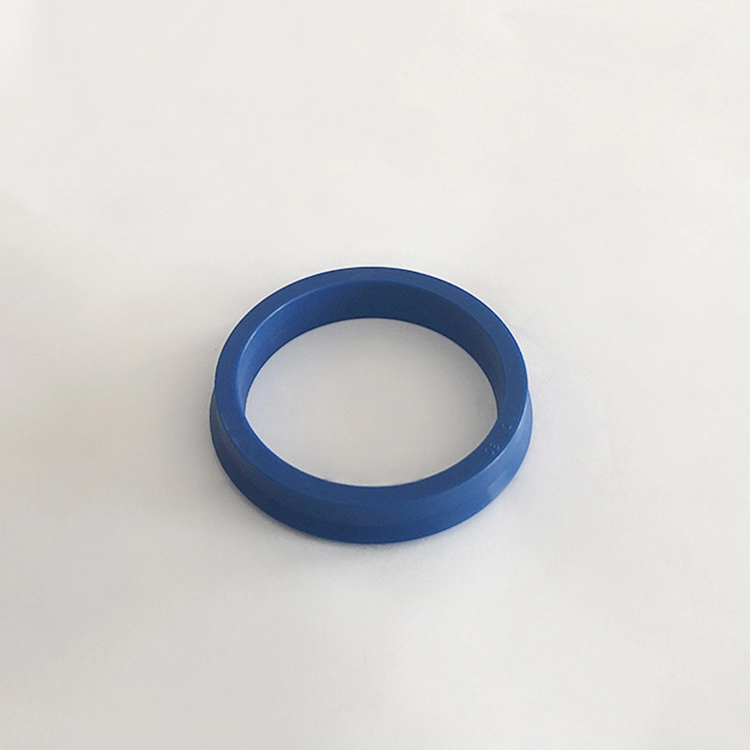

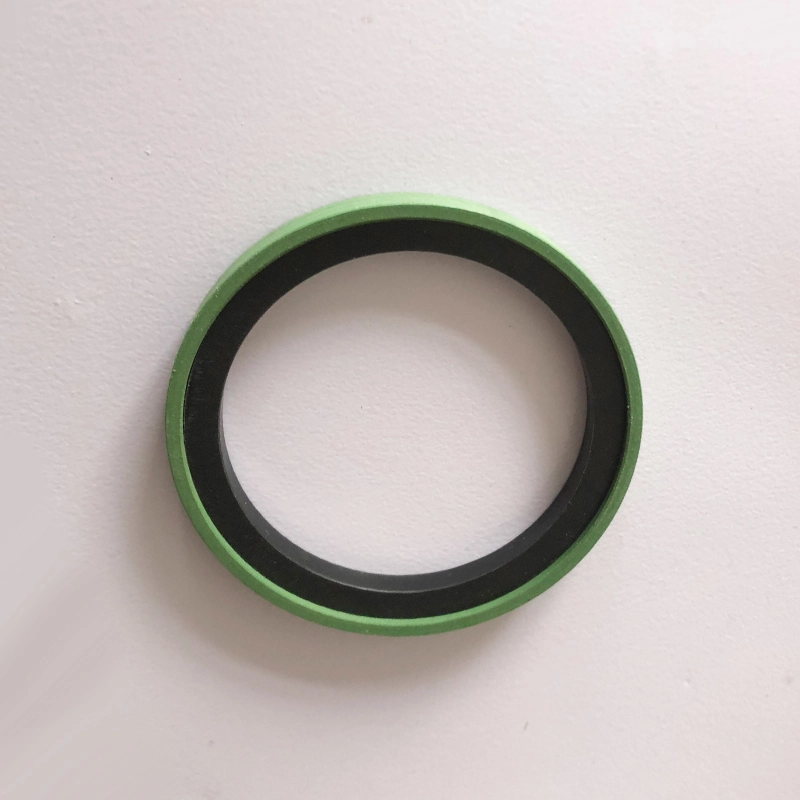

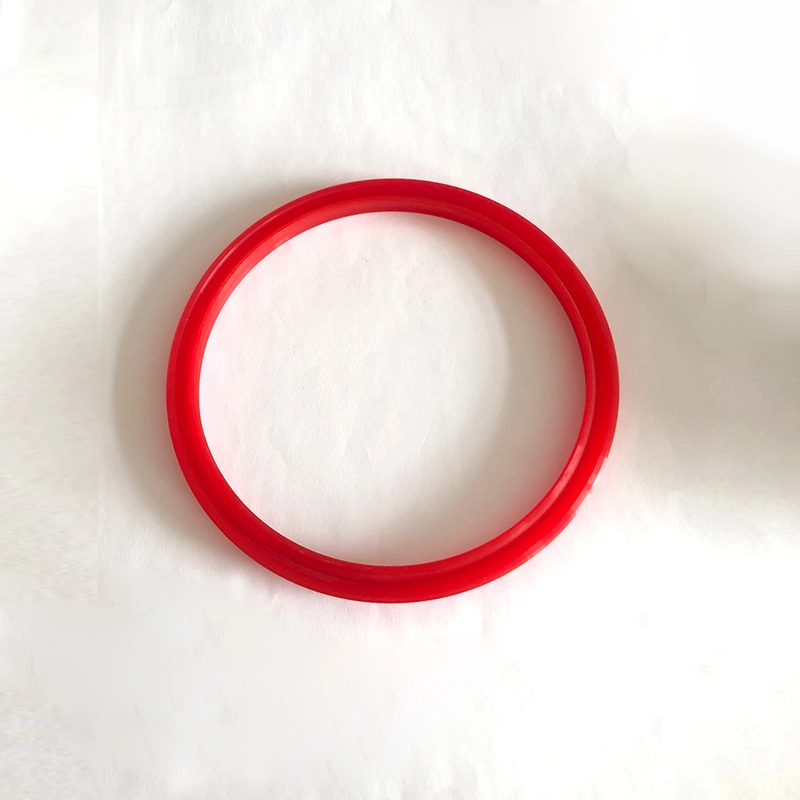

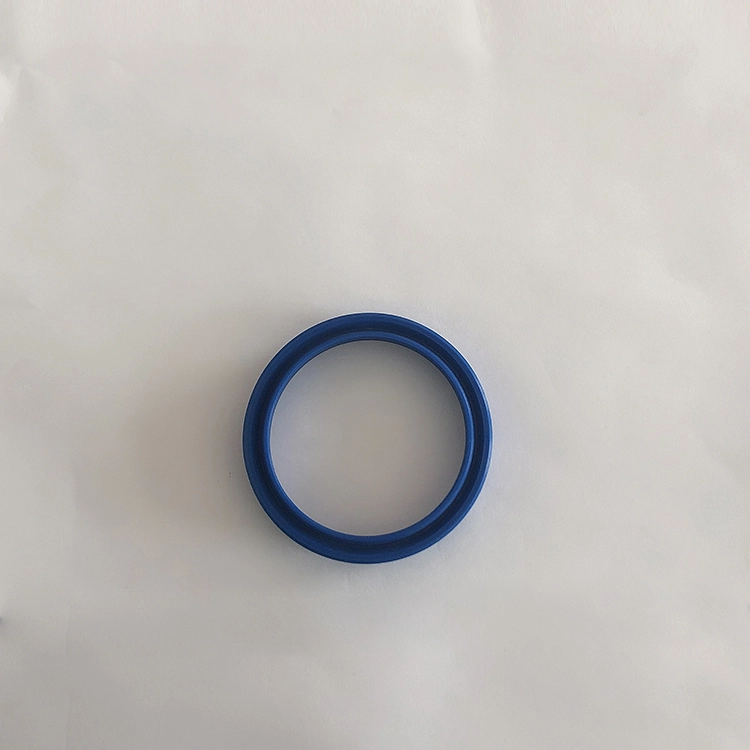

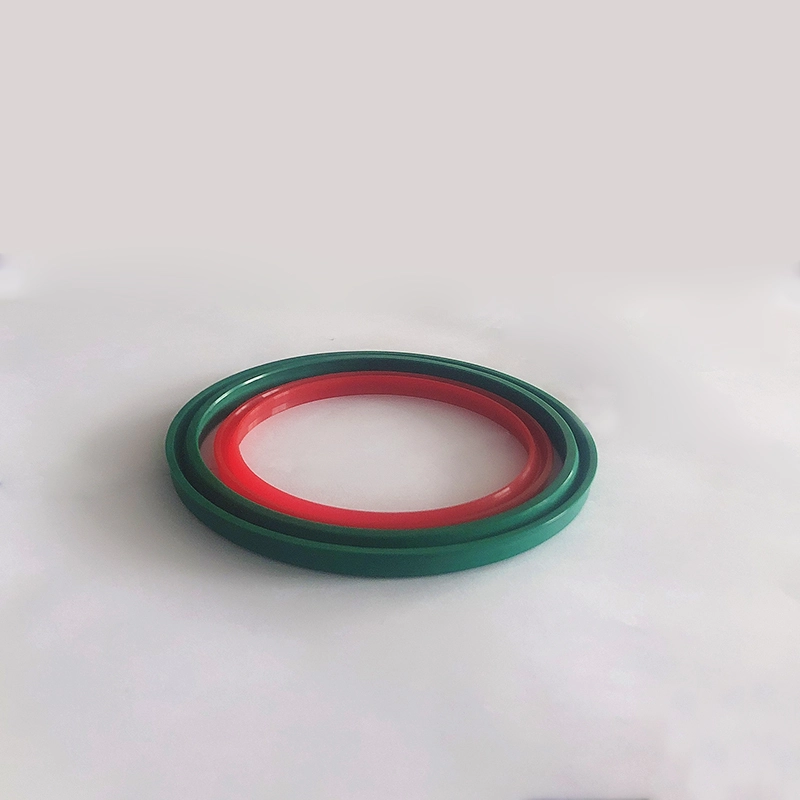

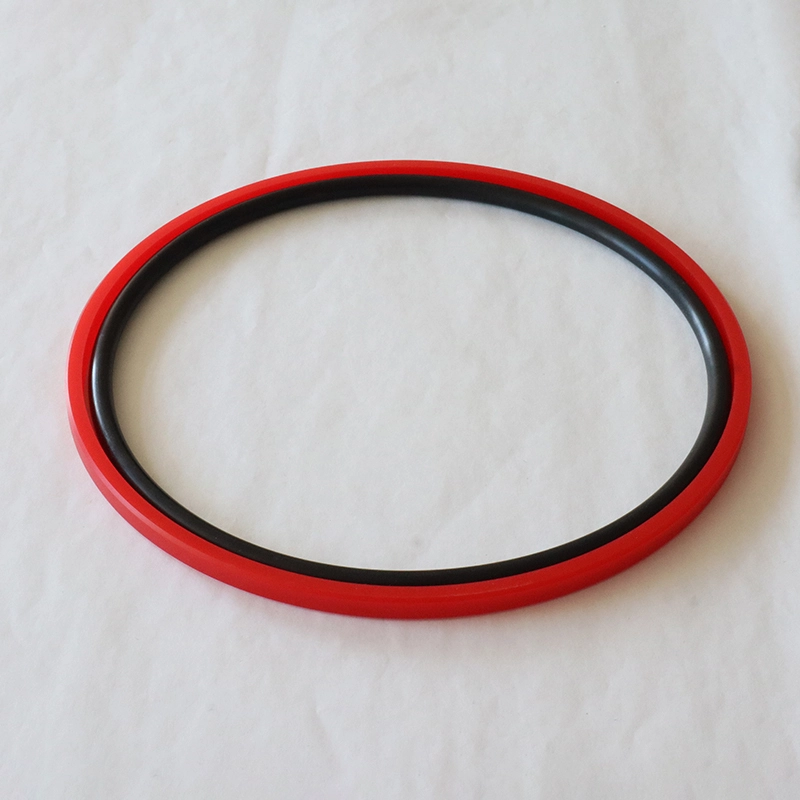

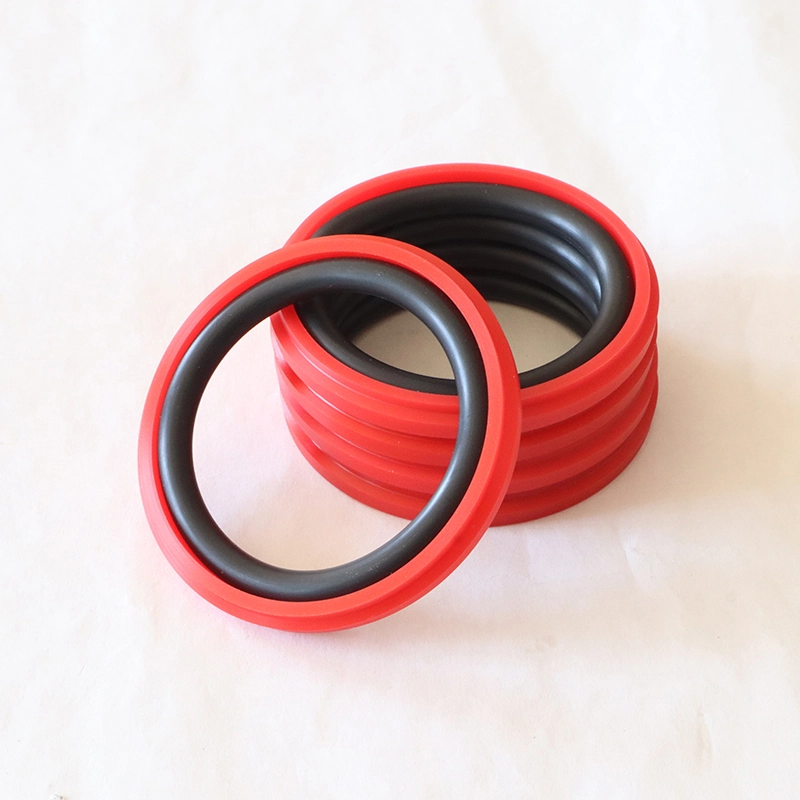

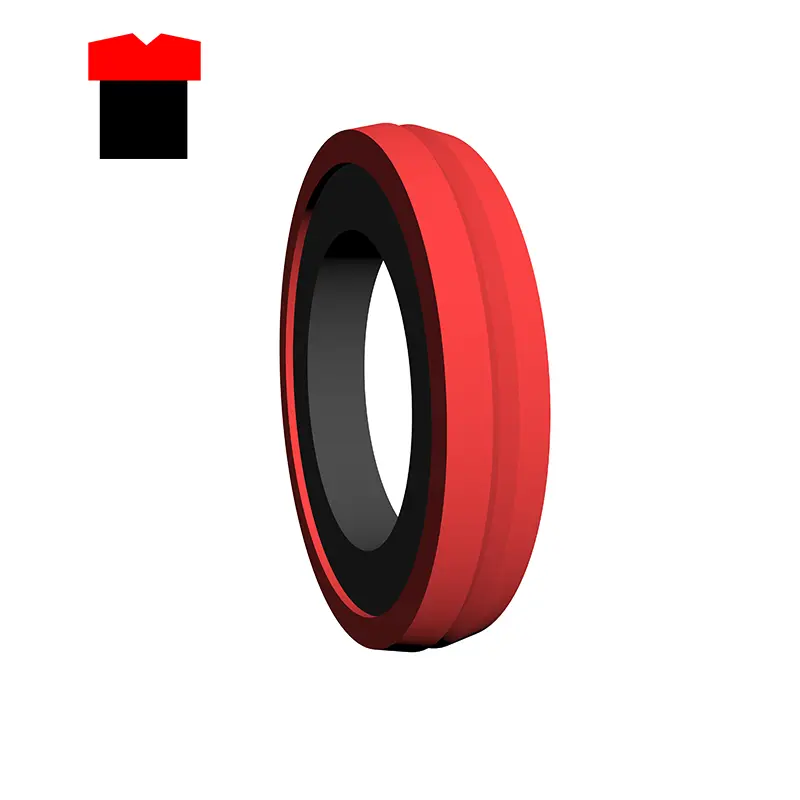

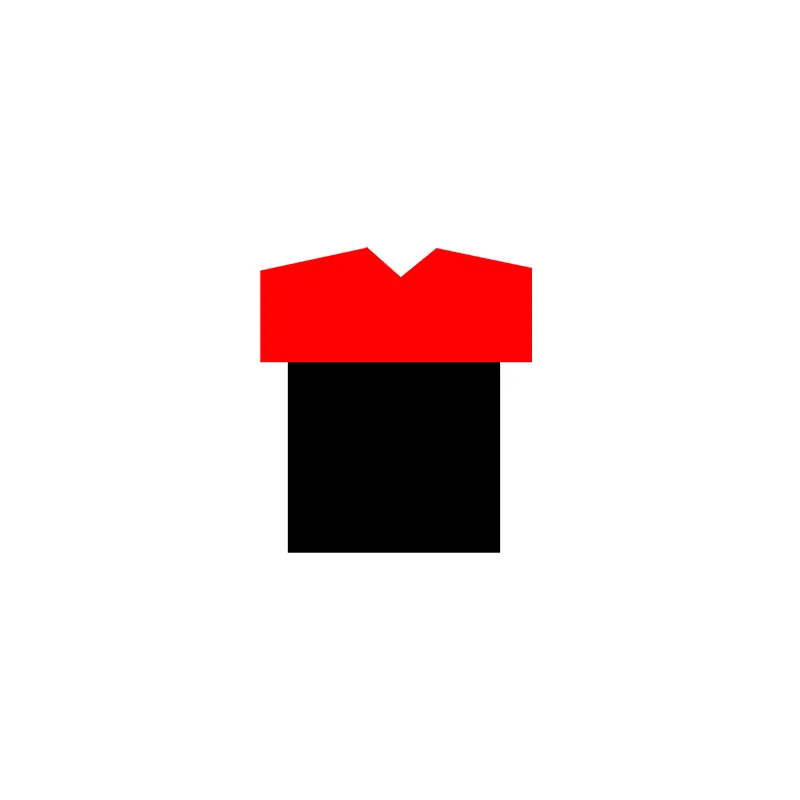

RCKR dumadi saka dering PU Sealing lan cincin karet persegi panjang, cocog kanggo SEALE Bidirectional Saling Estririk. Iki minangka produk pelengkap saka GLYD Produk, kanthi nyuda kemampuan sing luwih apik lan bisa njaga tekanan tinimbang cincin glyd, lan bisa diinstal tanpa bantuan alat instalasi. Fitur:
1. Kinerja dinamis lan statis sing apik;
2 .. kinerja tekanan rendah kurang tekanan luwih apik tinimbang cincin glyd, lan bisa diinstal tanpa alat instalasi;
3 .. Gesekan rendah, resistensi wiwitan cilik, lan gerakan lancar;
4. Urip dawa, bisa digunakake kanggo segel pelincak gratis minyak;
5. Bisa digunakake kanggo sealing tekanan bidirectional;
Groove instalasi salaras menyang Standard ISO7425 / 1.

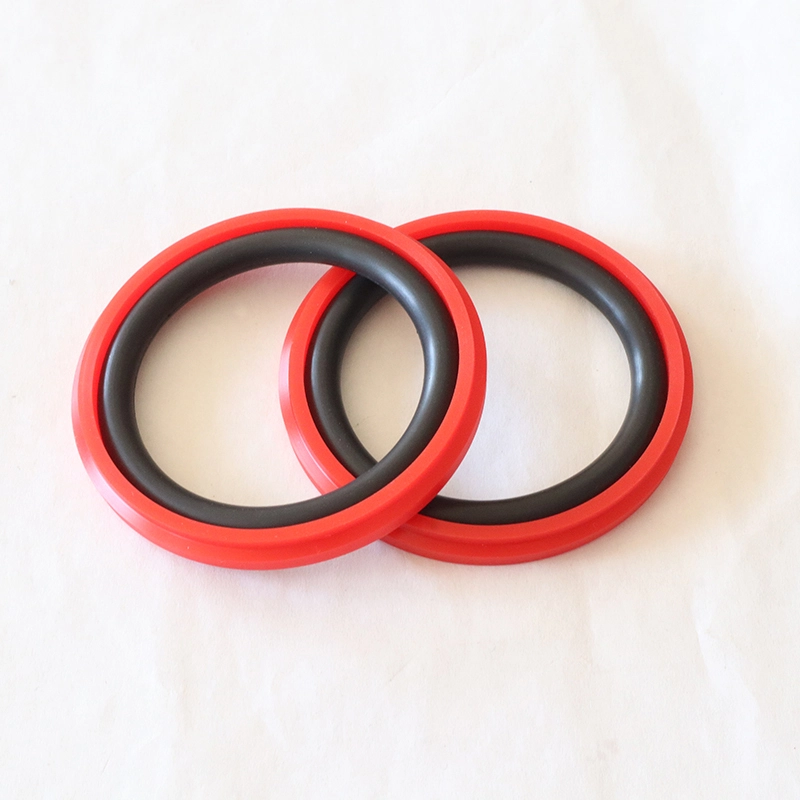

RPW dumadi saka cincin pu sing berbentuk khusus lan cincin karet berbentuk O-O-berbentuk, cocog karo panyegel Tekanan Bidirirection Motion Hidraulic. O-ring nyedhiyakake kekuwatan radial lan menehi ganti rugi kanggo nyandhang dering segel. Umume digunakake magepokan karo tuntunan cincin. Fitur:
1. Gesekan rendah, resistensi wiwitan cilik, gerakan sing lancar, ora ana sing creeping;
2. Stabilitas tekanan sing dhuwur banget ing kahanan tekanan lan kasar;
3 .. kinerja sing apik ing tekanan sing dhuwur lan sithik;
Ora dibutuhake alat instalasi kanggo instalasi.

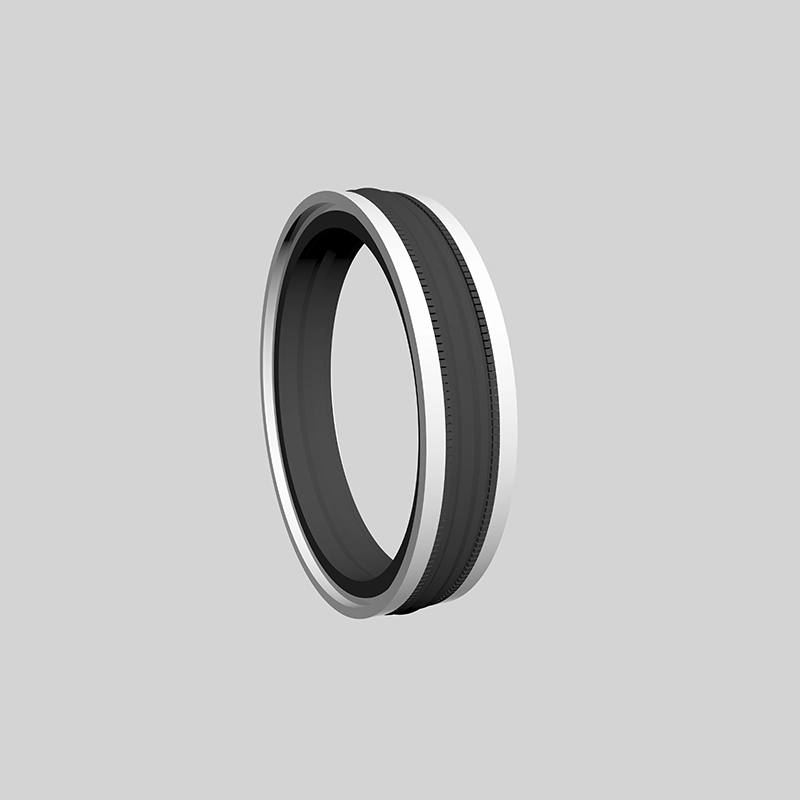

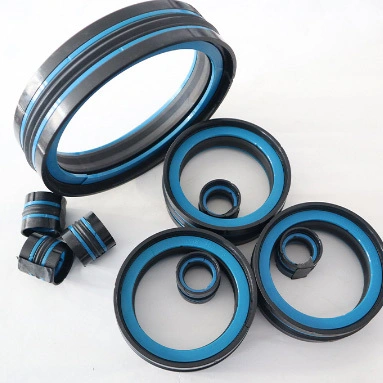

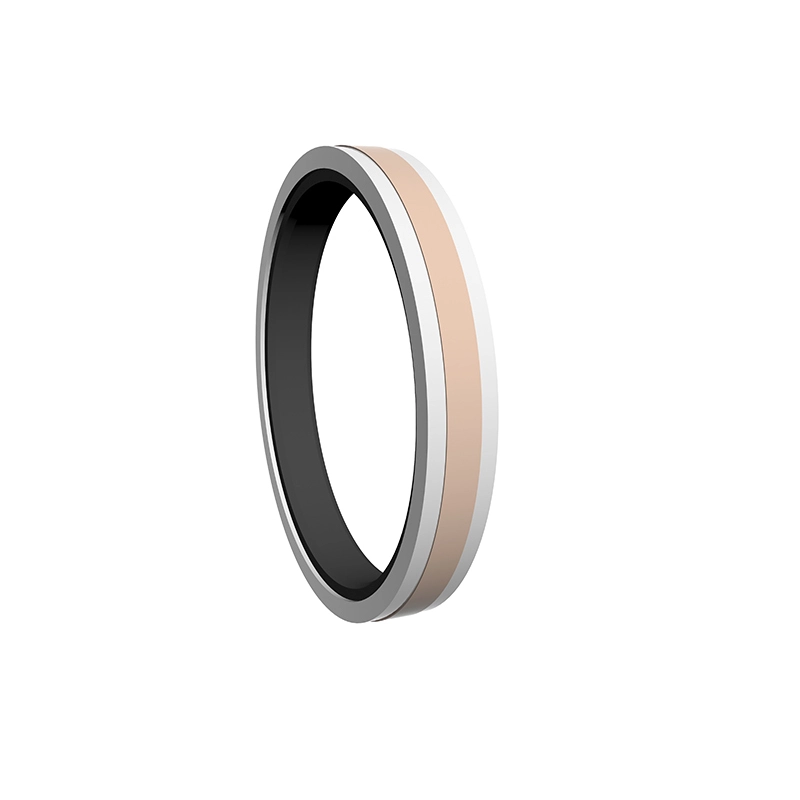

TDA lan TDMA dumadi saka karet khusus (utawa polyuretana) khusus lan cincin sealing sing wis diowahi, lan duwe ciri sealing sing wis diowahi, lan duwe gesekan sing apik, ora ana gesekan sing apik, ora ana sing nyiksa tekanan pistons. TDMA cocog kanggo nyolong rong cara piston.

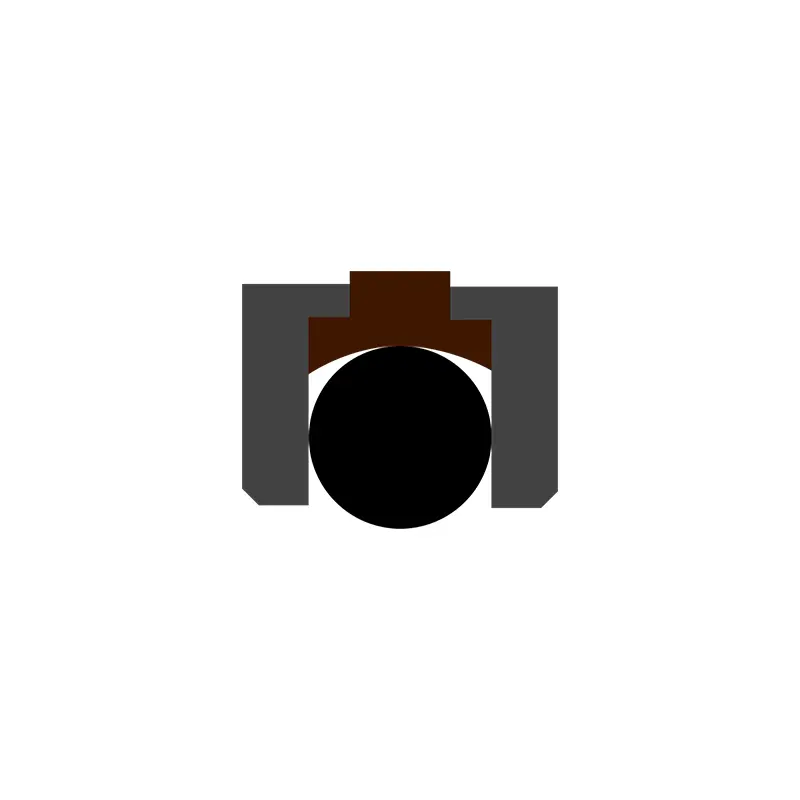

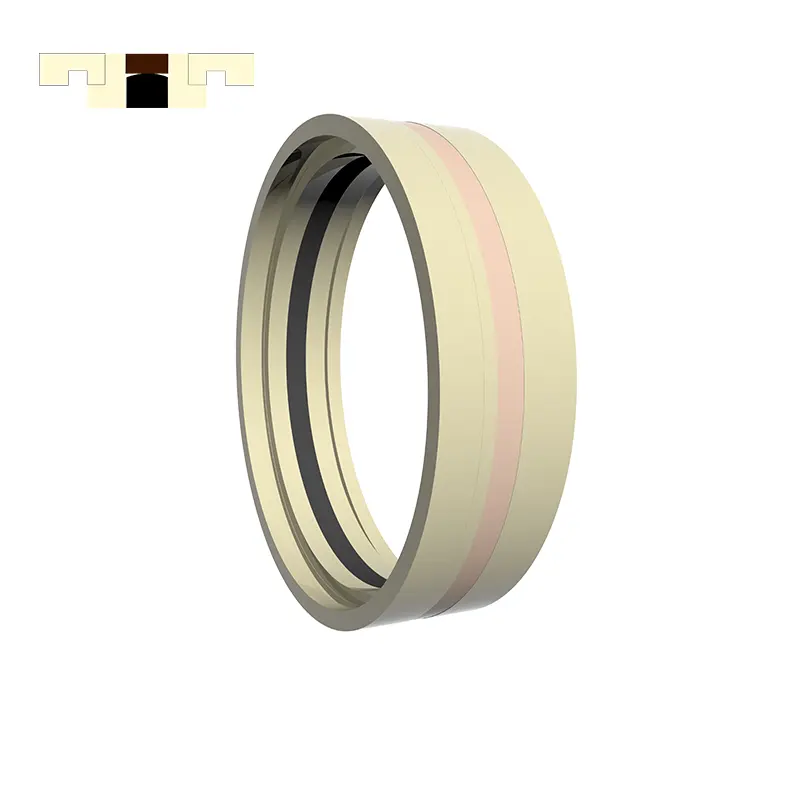

GGDA kalebu cincin sealing ptfe, rong dering tembok plastik lahan lan cincin sing lentur, kanthi sealing sing apik, urip dawa, gesekan rendah, ora ana creeping lan ciri liyane. Cocog kanggo Seukur Tekanan Bidestectional Piston.

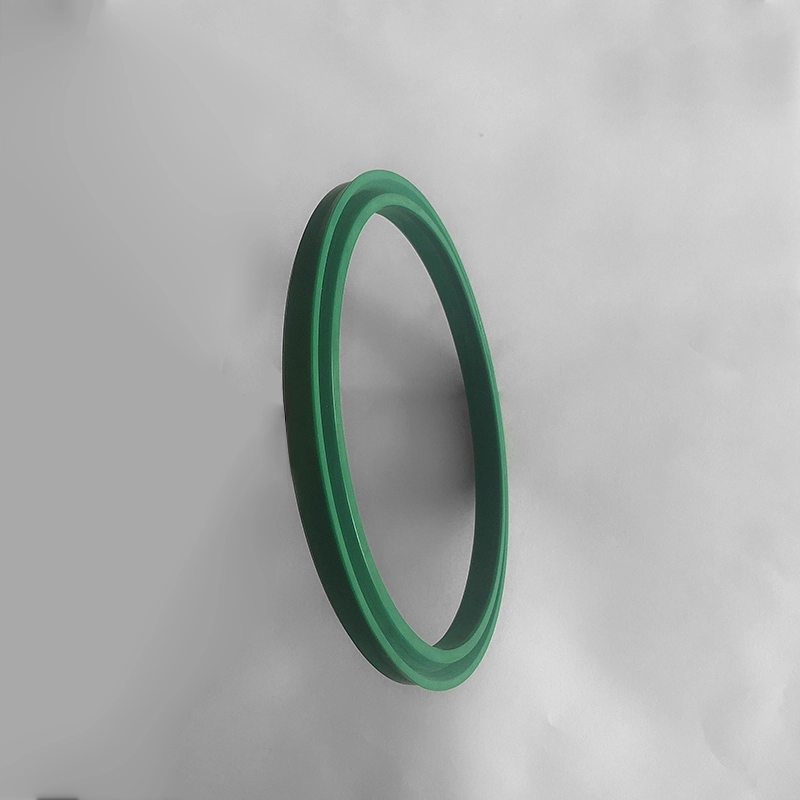

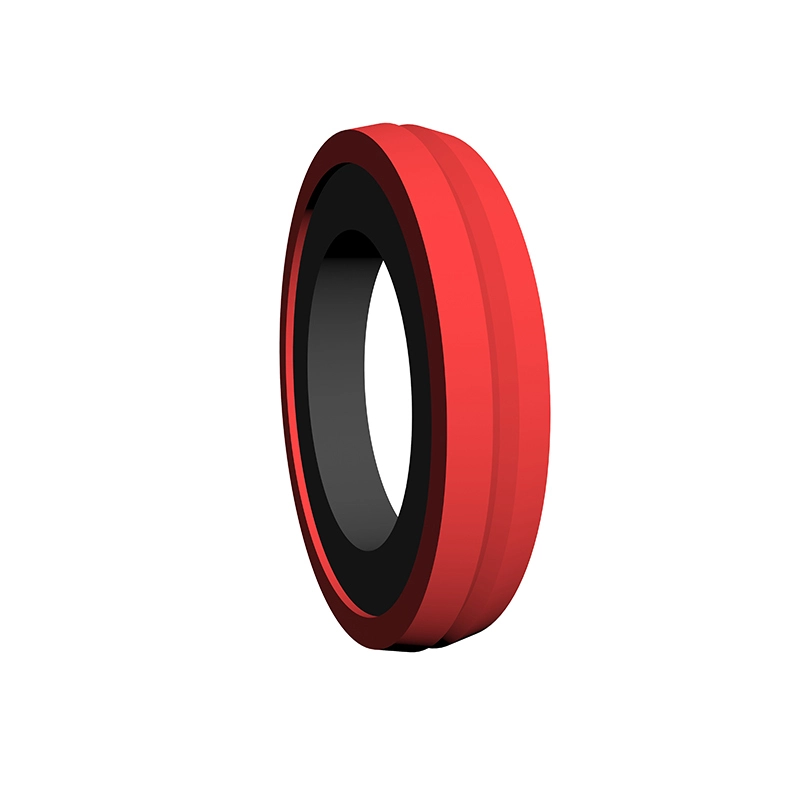

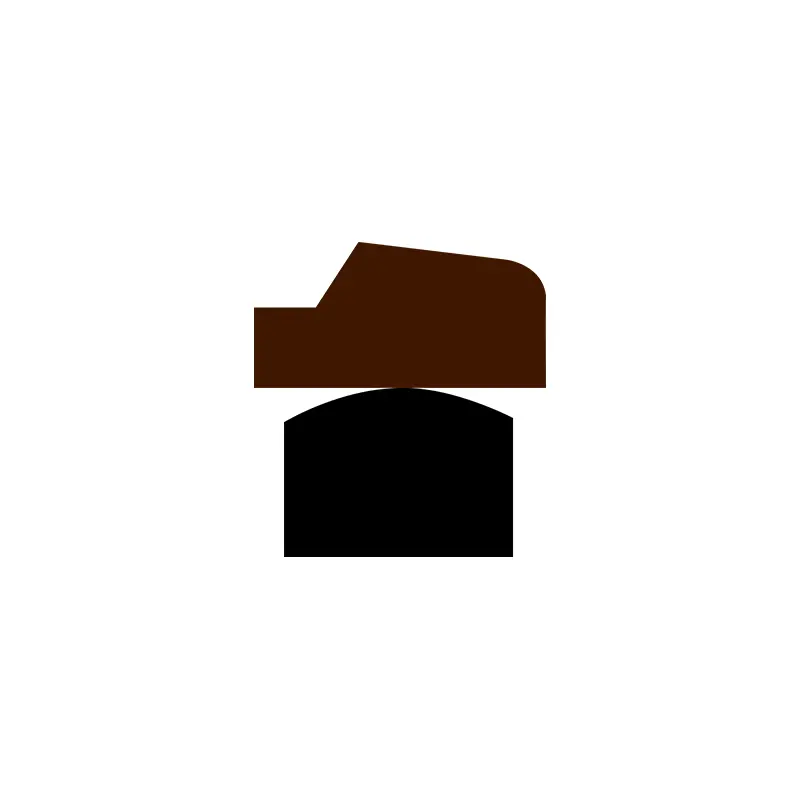

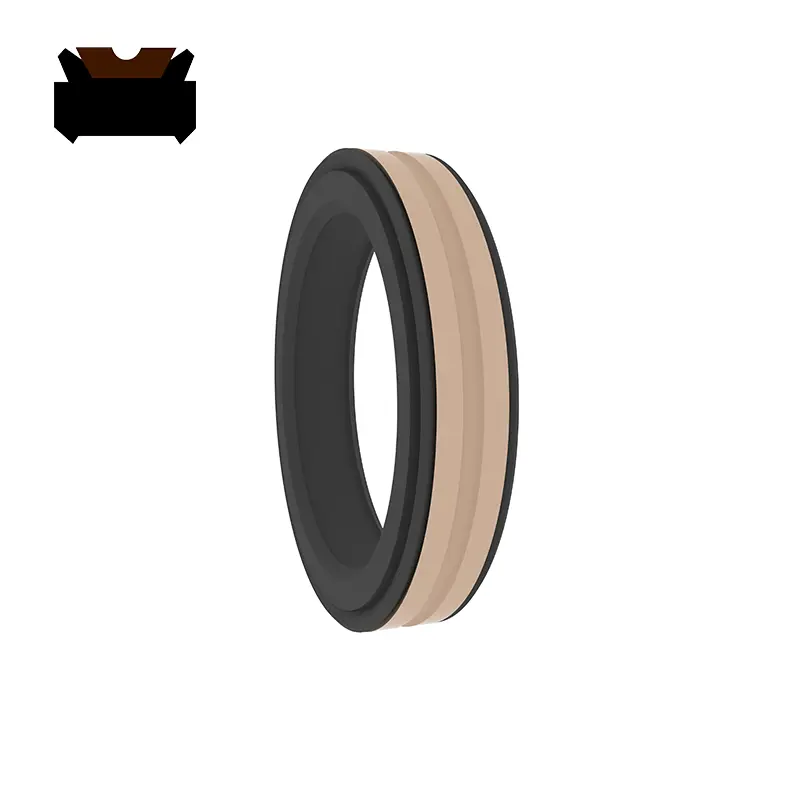

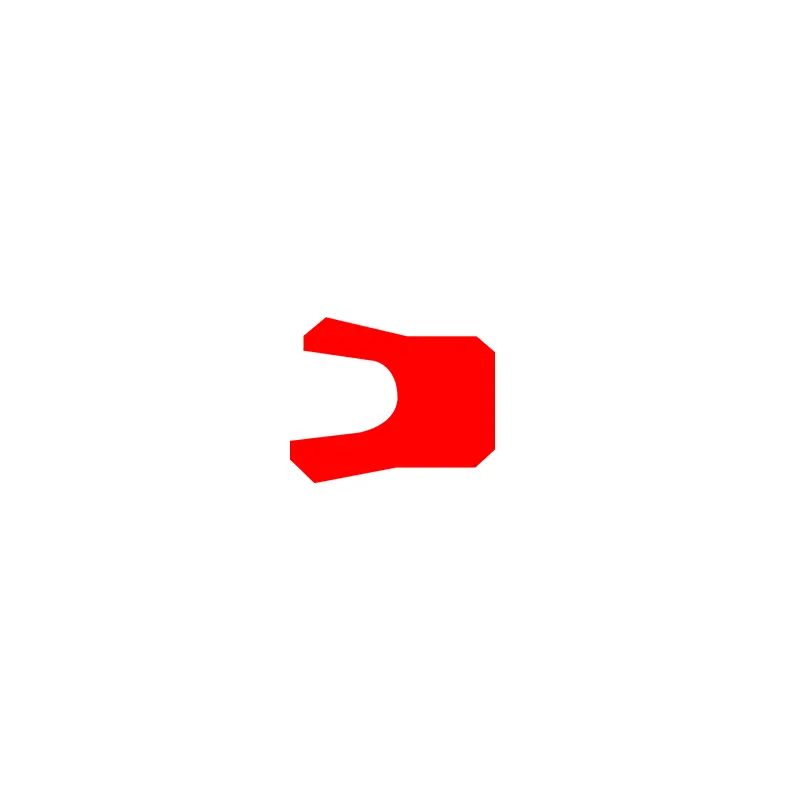

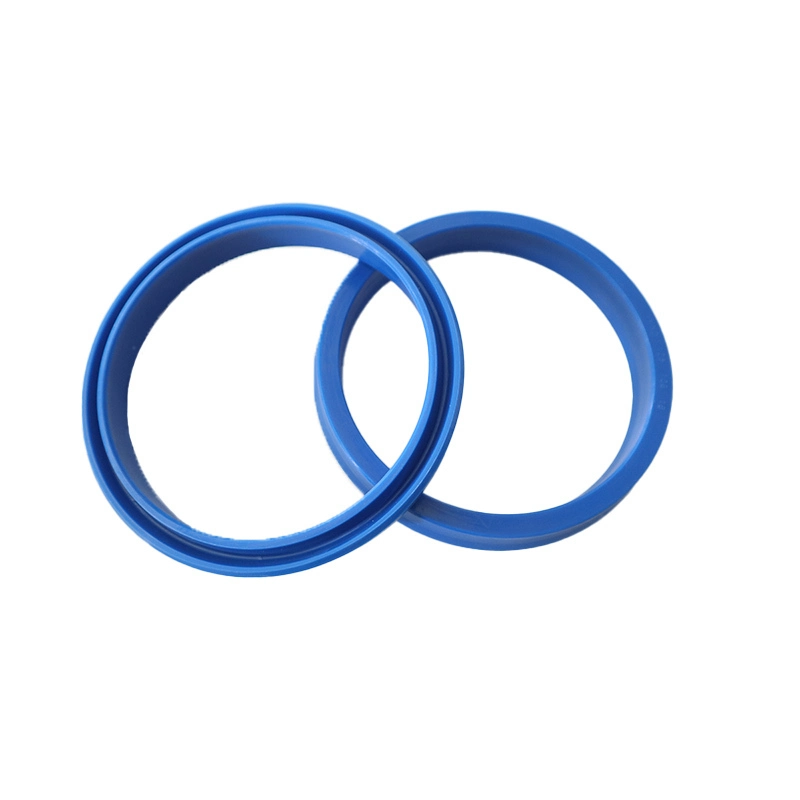

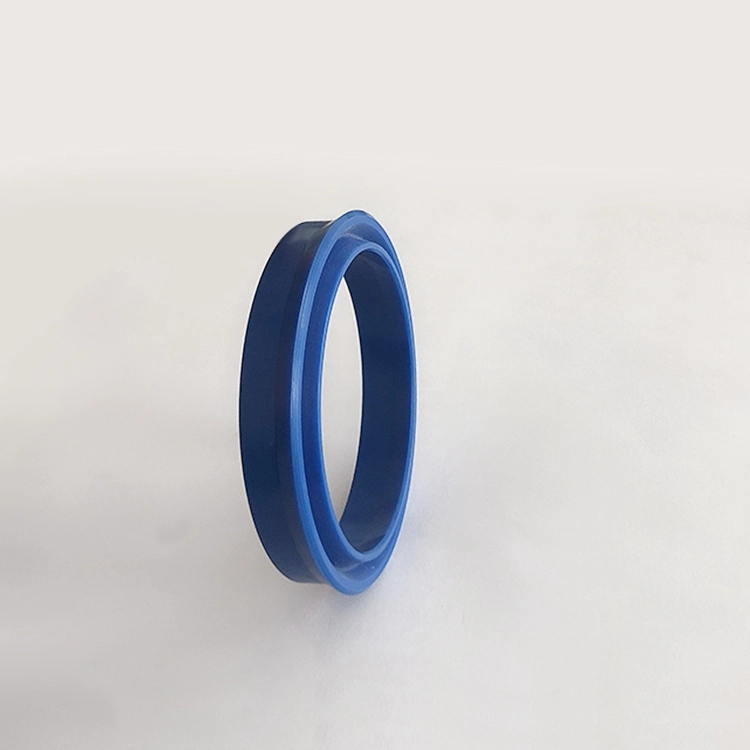

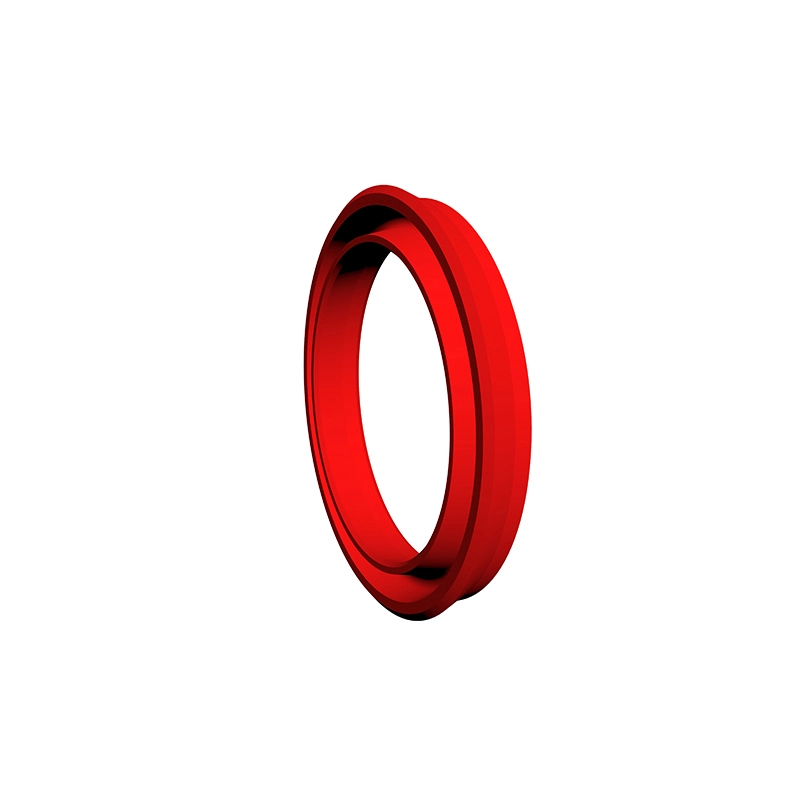

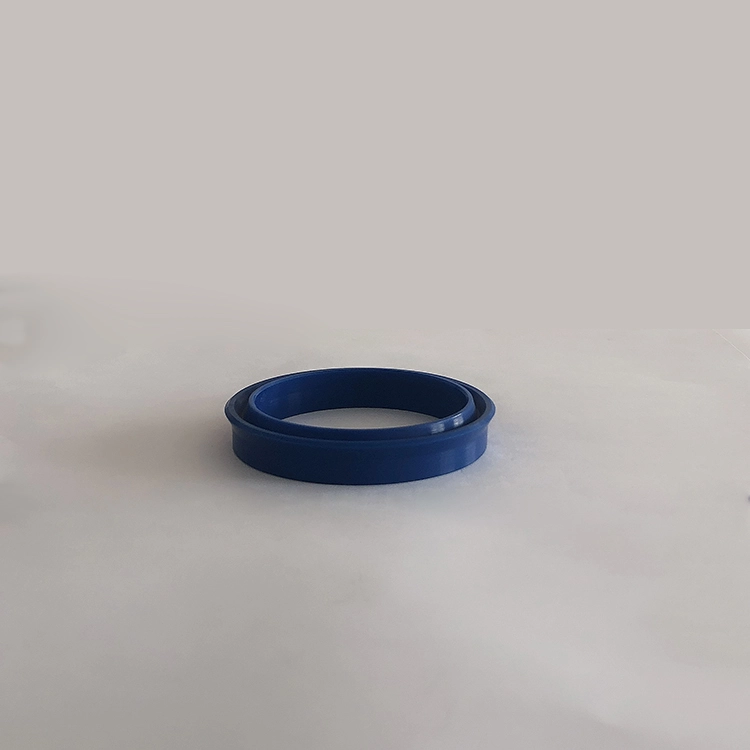

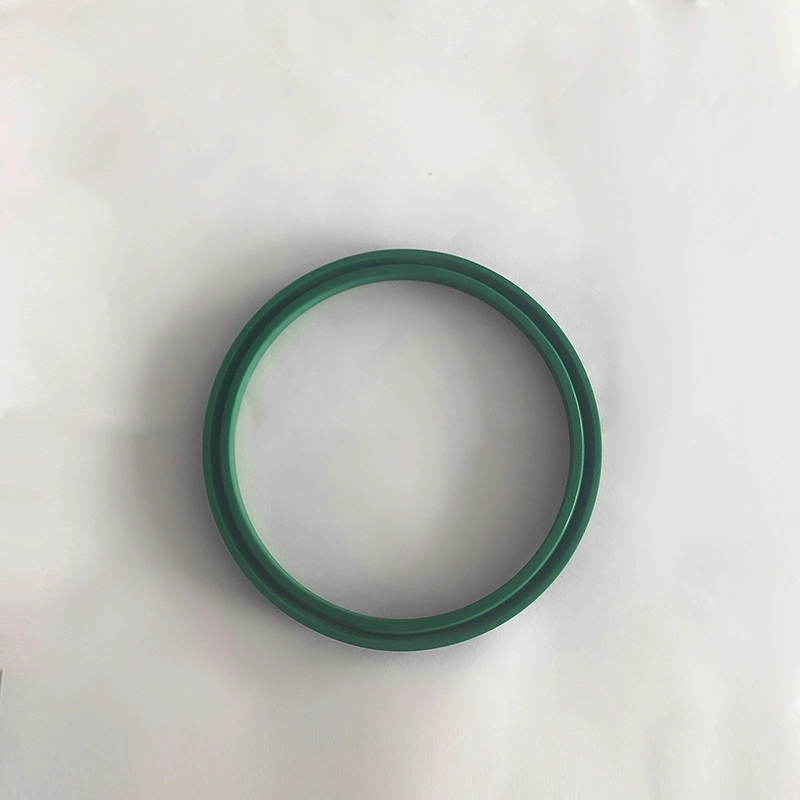

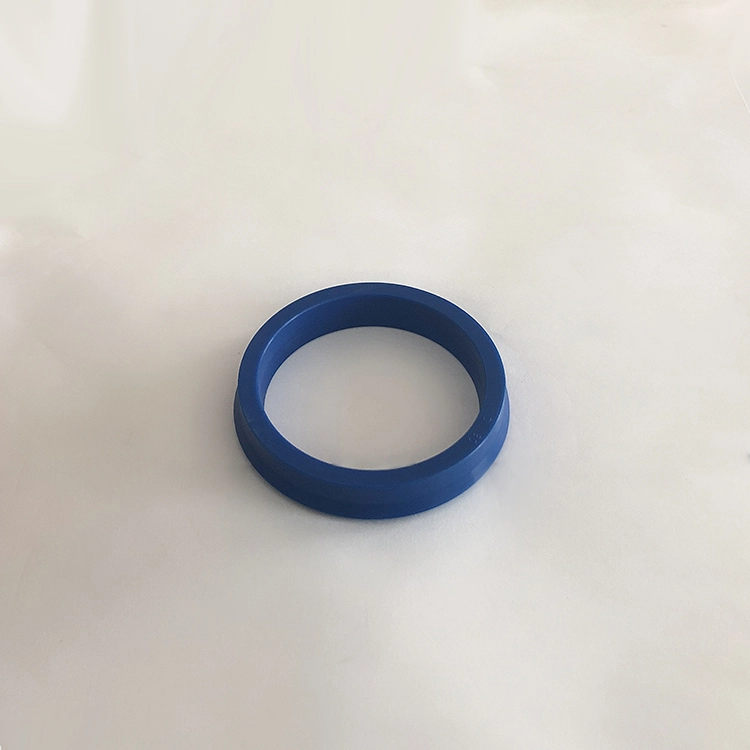

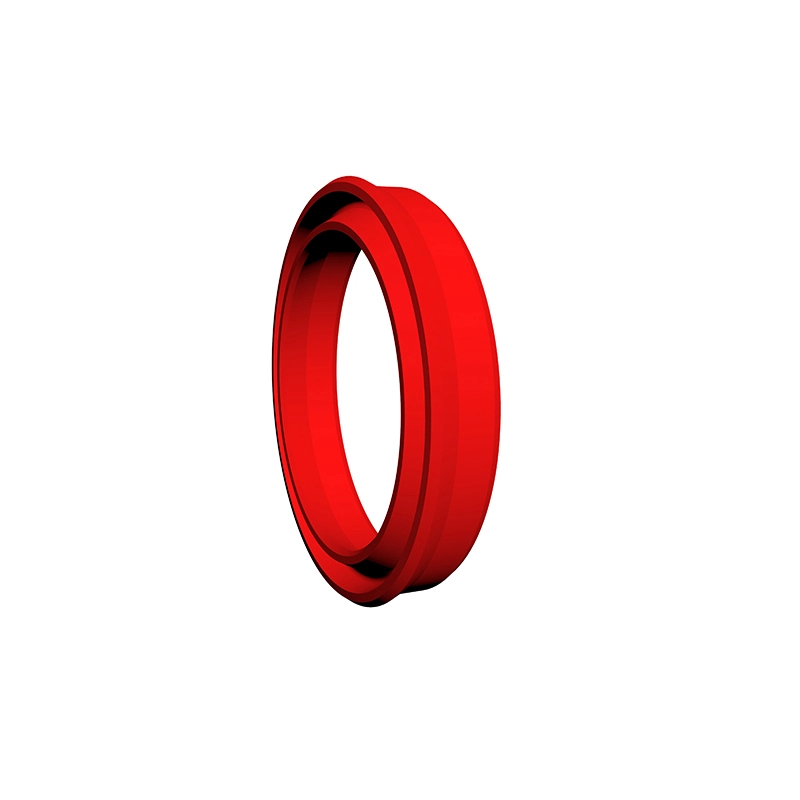

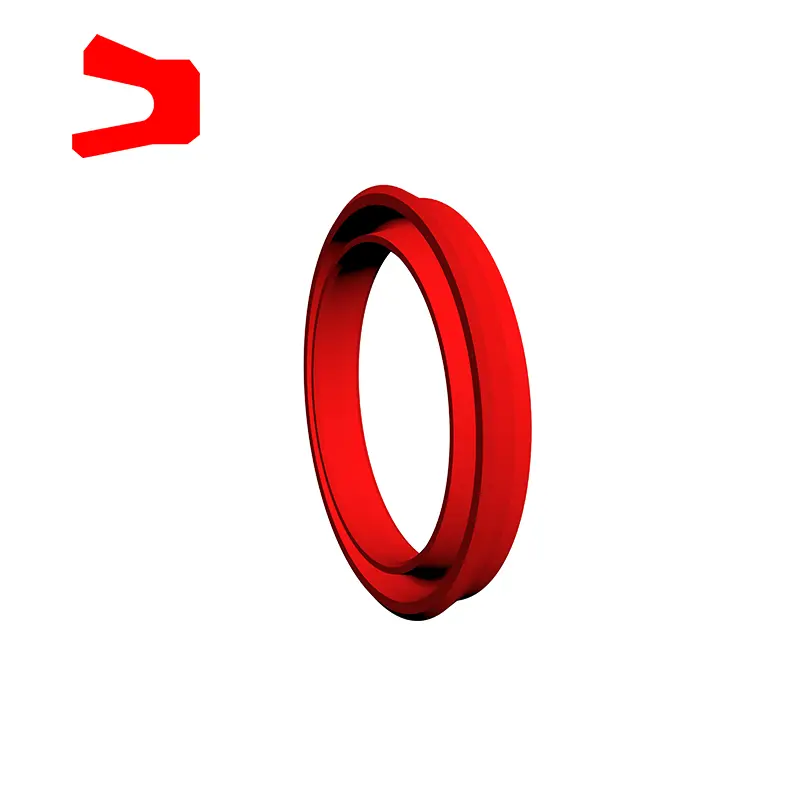

Ring Rcup Sealing minangka segel asimetris khusus ing piston, cocog kanggo gerakan tentrem hidraulik kanthi segel, kanthi kinerja sing apik. Groove salaras menyang standar ISO5597. Dering SEALING YXD kanggo Shaft minangka segel asimetris khusus ing piston, cocog kanggo gerakan timbal balik hidraulik, kanthi kinerja sing apik. Yen digunakake ing ngisor 12 ~ 32pa, cincin sing diasilake dibutuhake ing tumit. Groove Conforms menyang JB / ZQ4265-97 Standard. Fitur:
1. Ditrapake kanggo cahya sing entheng lan akeh medium;
2 .. kinerja sing apik kanggo segel tekanan tinggi lan tekanan rendah;
3. Macem-macem bahan kasedhiya, kanthi tahan resistensi media sing luwih wiyar;
4. Struktur sederhana lan gampang instalasi lan perawatan.
Fitur lan Aplikasi Produk:
Pilihan Bahan:
Rc61, rc62
1. Bahan-bahan O-Rings bisa: R01 Nitrile Karet (NBR), R02 Fluororubber (FKM), lsp.
Bahan-bahan Dering: Pakaian Material: PTFE standar, PTFE4, PTFE4, PU, lsp.
Ok
1. Bahan saka ring persegi panjang: R01 karet nitrile
2. Bahan dering sealing: bahan terapi terapi komposisi.
Rc63, rc64, spg, rc66, aq, aqf
1. Bahan-bahan O-Rings bisa: R01 Nitrile Karet (NBR), R02 Fluororubber (FKM), lsp.
Bahan Bahan-bahan 2. Sealing Ring Bahan: PTFE Standard PTFE3, Bahan opsional liyane PTFE1, PTFE2, PTFE4.
KDAS, TPM
1. Cocokake bahan ring karet karet: Karet R01 Nitrile
2 .. Ring Cincin: Nylon Pa / PolyoxyMethylene Pom
3. Pandhuan Ring: Nylon Pa / PolyoxyMethylene Pom / Polytetrafluoroethylene PTFE
Gdkk, Rc67
1. Kasedhiya Bahan Elastomer: R01 Nitrile Karet (NBR), R02 Fluororubber (FKM), lsp.
Bahan 2. Sealing Ring Bahan: PTFE STARATIONAL PTFE3, Bahan opsional liyane PTFFE2, PTFE4.
3 .. Ring Ring Material: Pom / Pa / Ptfe, Bahan Ptfe digunakake nalika suhu ngluwihi 100 derajat.
Rcek
1. Pencet Bahan Ring: poltetrafluoroethylene, kain nitrile, kain fluorororubber, nilon, polyoxyymethylene
2. Bahan V-ring: poltetrafluoroethylene, karet nitrile, kain nitrile, fluororubber, kain fluorororubber
3. Ndhukung Bahan Cincin: kain nitrile, kain fluorororubber, nilon, polyoxyymethylene, polyetetrafluoroethylene
RCKR, RPW
1. Cocog karo bahan cincin persegi panjang: ro1 nitrile karet (nbr)
2. SEALING CAN CERTERION: PU
YXD
Karet Nitrile Opsional (R01), Fluororubber (R02), polyurethane (PU), lsp.
Conto Conto:
Model pesenan rc61-40x299x4.2-PTFE3-R01ordering RC61-B-40X29x4.2-PTFE3-R02
RC61-GLYD Ring RC61-GLYD RC61-B-Hole segel DXDX L-Material
Rc62-80x60x10-ptfe3-r01 rc62-model dxdxl PTFE3, kode materi R01
Model Order OK-80X59x8 Diameter X Diameter X Groove Jembar
Model Pesenan RC63-80-PTFE3-R01 utawa SPGC-80-PTFE3-R01
RC63 / SPGC-model diameteripun 80-silinder d PTFE2-PTFE Code Material R01-O-RING
Model pesenan kdas-80X60X22.4 silinder diameter x diameter aliran x amba alur (l)
Model Pesenan TPM-80X60X22.4 silinder diameter x diameter alur x amba alur (l)
Conto Urutan: Gdkk-80 * 62 * 43 * 22.5-R01
Model Order RC64-80-PTFE3-R01
RC64-model 80-silinder diameter dtfe3-PTFE Code Material R01-O-RING
Conto Urutan: SPG-D * D * L-PTFE3-R01 (Diameterer Autter * DIAMETT * Width Groove) Ptfe3, kode R01-Bahan
Rc66
Model Order RC67-100X85X12.5-PTFE3-R01 utawa SPGW-100X85X12.5-PTFE3 -R01
Diameteripun model silinder x diameter ngisor x ptfe alat ptfe3-modifikasi kode materi ptfe r01 kode material f01 elastomer
Rcek
| model | Bahan | Kisaran sing ditrapake | SEALE |
| Rcek-a | V-ring: Kain Nbr, cincin tekanan, dering dhukungan: kain nbr / pa / pom / ptfe | Suhu normal, tekanan dhuwur | Apik |
| Rcek-b | V-ring: Kain FKM, cincin tekanan, RING Dhukungan: Kain FKM / PTFE | Suhu dhuwur, tekanan dhuwur | Apik |
| Rcek-c | V-ring: Ninggi Tekanan, Ring Dhukungan: Kain NBR / Pa / Pom / PTFE | Suhu normal, tekanan medium lan rendah | Banget |
| Rcek-d | V-RING: FKM, Cincin Tekanan, RING Dhukungan: Kain FKM / PTFE | Suhu dhuwur, tekanan medium lan rendah | Banget |
| Rcek-e | V-Ring: kombinasi kain NBR lan NBR, cincin tekanan, dering dhukungan: nrbr / pa / pom / ptfe | Suhu normal, tekanan medium lan dhuwur | Banget |
| Rcek-f | V-RING: Kandhang FKM lan FKM lan FKM, Cincin Tekanan, RING Dhukungan: Kain FKM / PTFE | Suhu dhuwur, tekanan medium lan dhuwur | Adil |
| Rcek-g | V-ring, cincin tekanan, ring dhukungan: ptfe1 / ptfe2 / ptfe3 / ptfe4 | Suhu dhuwur lan media corrosive tekanan tinggi | Banget |
| Rcek-h | V-ring: PU, Cincin Tekanan, Ring Dhukungan: Pu / Pa / Pa / Pom / PTFE | Suhu normal, tekanan medium lan dhuwur | SEALE |
| Model Order RCEK-A-120 × 95x25.3 Model-Diameter Diameter X Groove Bottom Diameter X Diameter Groove | |||
Aq
Aqf
Rckr
Rpw
Tdha
Dawane Chamfer
| Kisaran diameter silinder | Panjarwa Chamfer E≥ |
| 40-89 | 6 |
| 90-144 | 7 |
| 145-320 | 10 |
| 321-670 | 15 |
Tdma
Ggda
Rcup
Conto Conto: Model Pesenan Rcup D63 × 48 × 10 Sylinder Diameter × Groove Diameter × Seal High
YXD
Model Pesenan YXD63 × 51 × 14-r01 silinder diameter diameter × diameter × seal × Segel kode dhuwur

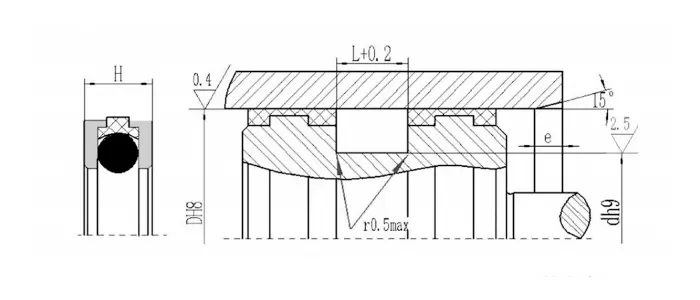

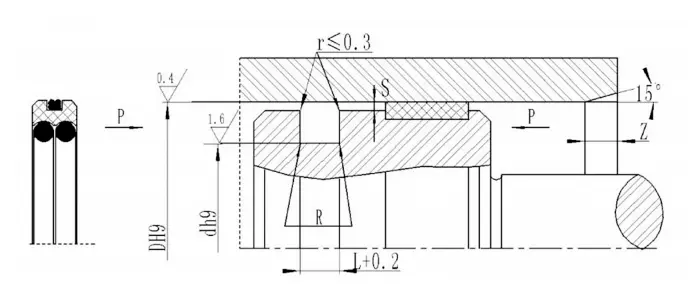

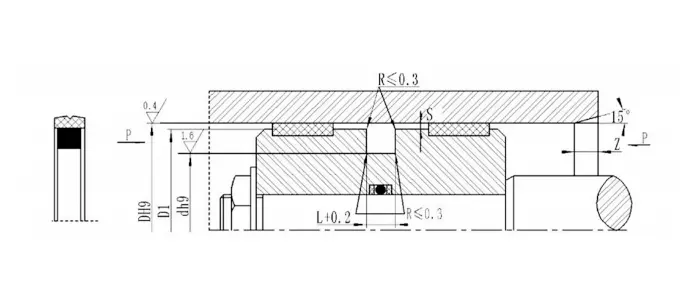

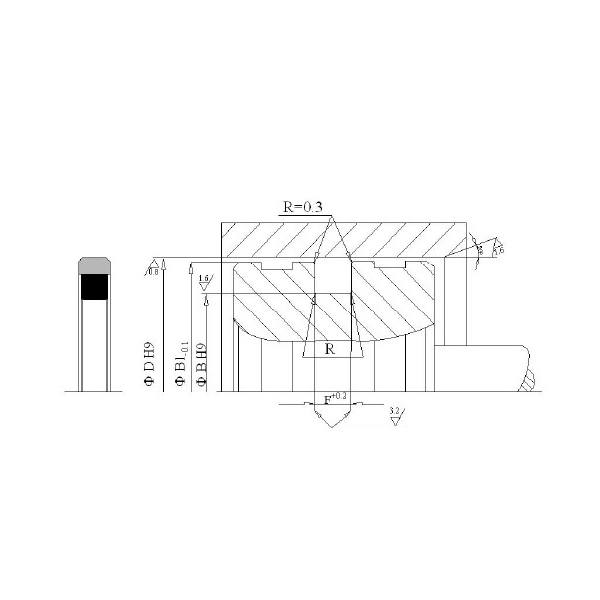

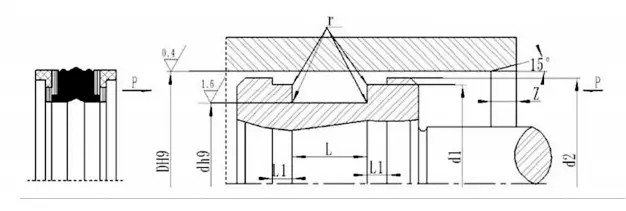

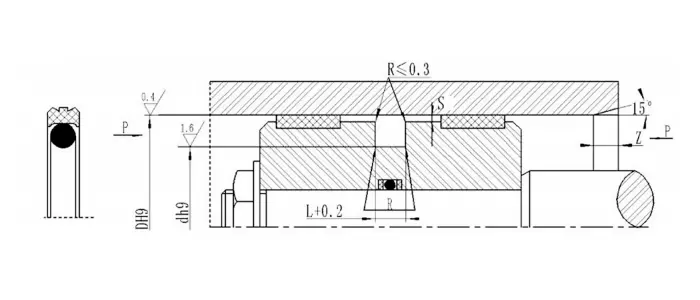

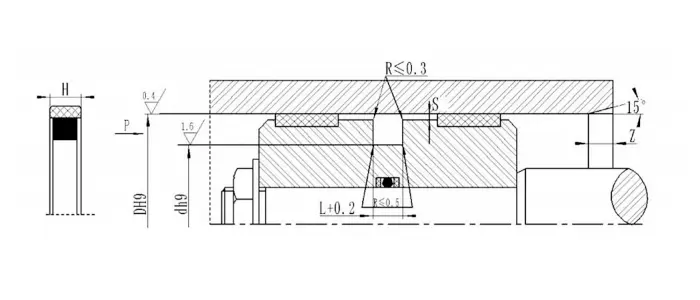

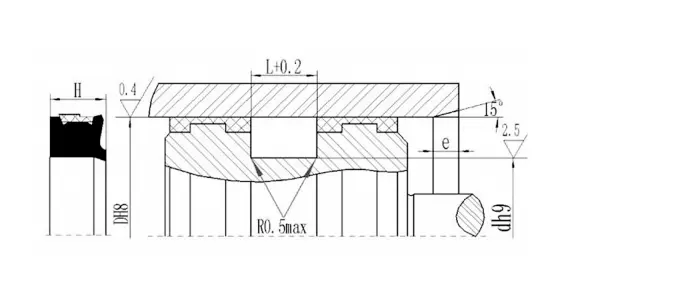

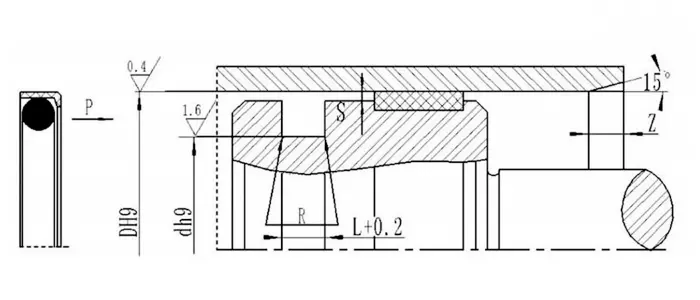

Spesifikasi:

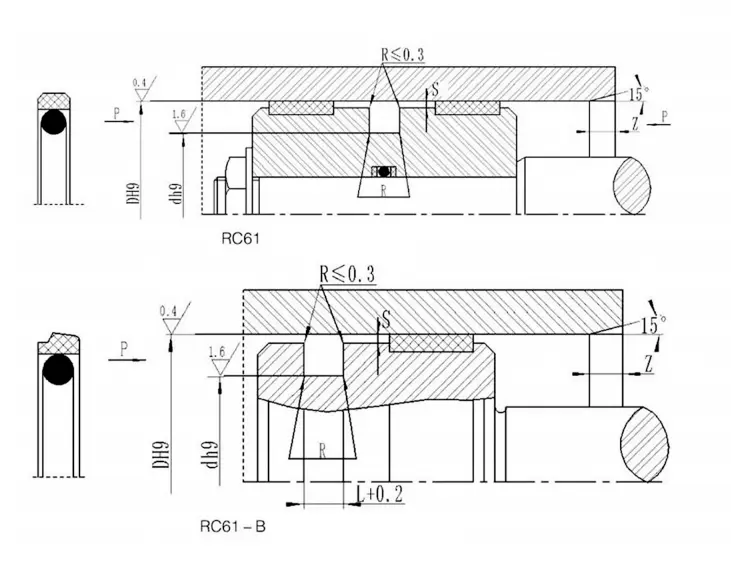

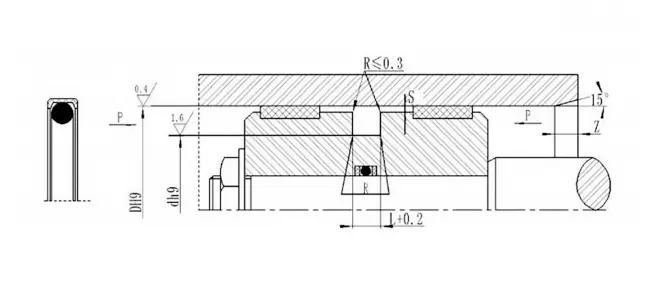

Rc61| Apenture kisaran D h9 |
Diameteripun alur D h9 |
Jembaré alur L+0.2 |
Reresik radial smx | Sudhut bunder Rmax |
Chamfer Zmin |
Diameter kabel o-ring | |||
| Jinis standar | Cahya mbukak | Beban abot | 0 ~ 20MPA | 20 ~ 40Mpa | |||||
| 8 ~ 14.9 | 15 ~ 39.9 | - | D-4.9 | 2.2 | 0.20 | 0.15 | 0.4 | 2 | 1.80 |
| 15 ~ 39.9 | 40 ~ 79.9 | - | D-7.5 | 3.2 | 0.25 | 0.15 | 0.6 | 3 | 2.65 |
| 40 ~ 79.9 | 80 ~ 132.9 | 15 ~ 39.9 | D-11.0 | 4.2 | 0.25 | 0.20 | 1.0 | 4 | 3.55 |
| 80 ~ 132.9 | 133 ~ 329.9 | 40 ~ 79.9 | D-15.5 | 6.3 | 0.30 | 0.20 | 1.3 | 5 | 5.30 |
| 133 ~ 329.9 | 330-669.9 | 80 ~ 132.9 | D-21.0 | 8.1 | 0.35 | 0.25 | 1.8 | 7 | 7.00 |
| 330 ~ 669.9 | 670 ~ 999.9 | 133 ~ 329.9 | D-24.5 | 8.1 | 0.35 | 0.25 | 1.8 | 7 | 7.00 |
| 670 ~ 999.9 | - | 330 ~ 669.9 | D-28.0 | 9.5 | 0.5 | 0.30 | 2.5 | 8 | 8.60 |
| > 1000 | D-38 | 13.8 | 0.7 | 0.60 | 3 | 10 | 12.0 | ||
| CATETAN: 1. Kanggo diameteripun bolongan ≤30mm, dianjurake kanggo nggunakake alur mbukak. | |||||||||
| 2. Kanggo tekanan> 40Mpa, area oyod saka segel nggunakake sx H8 / F8 toleransi | |||||||||
| Apenture kisaran D h9 |
Diameteripun alur D h9 |
Jembaré alur L+0.2 |
Reresik radial smx | Sudhut bunder Rmax |
Chamfer Zmin |
|
| 0-20pa | 20 ~ 40Mpa | |||||
| 20 ~ 49.9 | D-10 | 5 | 0.40 | 0.30 | 0.3 | 4 |
| 50 ~ 59.9 | D-15 | 7.5 | 0.40 | 0.30 | 0.4 | 5 |
| 60 ~ 149.9 | D-20 | 10 | 0.50 | 0.40 | 0.4 | 6 |
| 150 ~ 244.9 | D-25 | 12.5 | 0.60 | 0.50 | 0.4 | 8.5 |
| 245 ~ 519.9 | D-30 | 15 | 0.70 | 0.60 | 0.8 | 10 |
| 520 ~ 769.9 | D-35 | 17.5 | 0.80 | 0.70 | 1.2 | 13 |
| 770 ~ 1500 | D-40 | 20 | 0.80 | 0.70 | 1.2 | 15 |
| CATETAN: 1. Kanggo diameterasi bolongan ≤ 30mm, dianjurake kanggo nggunakake alur sing mbukak. | ||||||
| 2 .. Kanggo Tekanan> 40Mpa, area oyod saka segel nggunakake sx H8 / F8 toleransi. | ||||||
| model | DH9 | DH9 | L+0.2 | D1 | model | DH9 | DH9 | L+0.2 | D1 | model | DH9 | DH9 | L+0.2 | D1 |
| Ok-25 * 16 * 4.2 | 25 | 16 | 4.2 | 24.3 | OK-90 * 74.5 * 6.3 | 90 | 74.5 | 6.3 | 89.0 | OK-160 * 139 * 8.0 | 160 | 139 | 8.0 | 158.8 |
| Ok-32 * 21 * 4.2 | 32 | 21 | 4.2 | 31.3 | Ok-95 * 74 * 8.0 | 95 | 74 | 8.0 | 94.0 | Ok-170 * 149 * 8.0 | 170 | 149 | 8.0 | 168.8 |
| Ok-40 * 26.3 * 5.8 | 40 | 26.3 | 5.8 | 39.2 | OK-100 * 79 * 8.0 | 100 | 79 | 8.0 | 99.0 | Ok-180 * 159 * 8.0 | 180 | 159 | 8.0 | 178.8 |
| Ok-40 * 29 * 4.2 | 40 | 29 | 4.2 | 39.3 | OK-100 * 84.5 * 6.3 | 100 | 84.5 | 6.3 | 99.0 | Ok-190 * 169 * 8.0 | 190 | 169 | 8.0 | 188.8 |
| OK-50 * 34.5 * 6.3 | 50 | 34.5 | 6.3 | 49.0 | Ok-105 * 84 * 8.0 | 105 | 84 | 8.0 | 103.8 | Ok-200 * 179 * 8.0 | 200 | 179 | 8.0 | 198.8 |
| Ok-50 * 39 * 4.2 | 50 | 39 | 4.2 | 49.3 | Ok-110 * 89 * 8.0 | 110 | 89 | 8.0 | 108.8 | Ok-210 * 189 * 8.0 | 210 | 189 | 8.0 | 208.4 |
| OK-60 * 41.7 * 7 | 60 | 41.7 | 7.0 | 59.2 | Ok-110 * 94.5 * 6.3 | 110 | 94.5 | 6.3 | 109.0 | OK-220 * 199 * 8.0 | 220 | 199 | 8.0 | 218.4 |
| OK-60 * 49 * 4.2 | 60 | 49 | 4.2 | 59.3 | Ok-115 * 94 * 8.0 | 115 | 94 | 8.0 | 113.8 | Ok-230 * 209 * 8.0 | 230 | 209 | 8.0 | 228.4 |
| OK-63 * 44.7 * 7.0 | 63 | 44.7 | 7.0 | 62.2 | Ok-120 * 99 * 8.0 | 120 | 99 | 8.0 | 118.3 | Ok-240 * 219 * 8.0 | 240 | 219 | 8.0 | 238.4 |
| OK-63 * 47.5 * 6.3 | 63 | 47.5 | 6.3 | 62.0 | Ok-125 * 104 * 8.0 | 125 | 104 | 8.0 | 123.8 | Ok-250 * 229 * 8.0 | 250 | 229 | 8.0 | 248.4 |
| Ok-70 * 51.7 * 7.0 | 70 | 51.7 | 7.0 | 69.2 | Ok-125 * 109.5 * 6.3 | 125 | 109.5 | 6.3 | 124.0 | Ok-280 * 225.5 * 8.0 | 280 | 255.5 | 8.0 | 278.4 |
| Ok-70 * 59 * 4.2 | 70 | 59 | 4.2 | 69.3 | Ok-130 * 109 * 8.0 | 130 | 109 | 8.0 | 128.8 | Ok-300 * 272 * 9.5 | 300 | 272 | 9.5 | 297.8 |
| Ok-75 * 54 * 8.0 | 75 | 54 | 8.0 | 74.2 | Ok-130 * 114.5 * 6.3 | 130 | 114.5 | 6.3 | 129.0 | Ok-320 * 292 * 9.5 | 320 | 292 | 9.5 | 317.8 |
| Ok-75 * 59.5 * 6.3 | 75 | 59.5 | 6.3 | 74.0 | Ok-135 * 114 * 8.0 | 135 | 114 | 8.0 | 133.5 | Ok-330 * 302 * 9.5 | 330 | 302 | 9.5 | 327.8 |
| Ok-80 * 59 * 8.0 | 80 | 59 | 8.0 | 79.0 | Ok-135 * 119.5 * 6.3 | 135 | 119.5 | 6.3 | 134.0 | Ok-350 * 322 * 9.5 | 350 | 322 | 9.5 | 347.8 |
| Ok-80 * 64.5 * 6.3 | 80 | 64.5 | 6.3 | 79.0 | Ok-140 * 119 * 8.0 | 140 | 119 | 8.0 | 138.8 | Ok-370 * 342 * 9.5 | 370 | 342 | 9.5 | 367.8 |
| Ok-85 * 64 * 8.0 | 85 | 64 | 8.0 | 84.0 | Ok-145 * 124 * 8.0 | 145 | 124 | 8.0 | 143.8 | Ok-420 * 392 * 9.5 | 420 | 392 | 9.5 | 417.8 |
| Ok-90 * 69 * 8.0 | 90 | 69 | 8.0 | 89.0 | Ok-150 * 129 * 8.0 | 150 | 129 | 8.0 | 148.8 |
|
|
|
|
|
| Apenture kisaran D h9 |
Diameteripun alur d h9 | Jembaré alur L+0.2 |
Reresik radial Smax |
Sudhut bunder Rmax |
Chamfer Zmin |
Diameter kabel o-ring dO |
|
| Hydraulic | Gesekan rajap lan hidraulik | ||||||
| 6 ~ 13 | D-3 | D-3,5 | 2.5 | 0.2 | 0.4 | 3 | 1.9 |
| 14 ~ 26 | D-4 | D-4.6 | 3.2 | 0.3 | 0.6 | 4 | 2.4 |
| 27 ~ 56 | D-6 | D-6.6 | 4.7 | 0.3 | 1 | 5 | 3.5 |
| 57 ~ 169 | D-10 | D-10.6 | 7.5 | 0.35 | 1 | 6 | 5.7 |
| 170 ~ 1500 | D-15 | D-15.6 | 11.0 | 0.4 | 2.5 | 8 | 8.6 |
| model | ukuran | model | ukuran | ||||||||||
| D | d | D1 | D2 | L | L1 | D | d | D1 | D2 | L | L1 | ||
| KDAS-20 | 20 | 11 | 17 | 19 | 13.5 | 2.1 | KDAS-25/2 | 25 | 16 | 22 | 24 | 13.5 | 2.1 |
| KDAS-22 | 22 | 13 | 19 | 21 | 13.5 | 2.1 | Kdas-28 | 28 | 19 | 25 | 27 | 13.5 | 2.1 |
| KDAS-25/1 | 25 | 15 | 22 | 24 | 12.5 | 4 | KDAS-30 | 30 | 21 | 27 | 29 | 13.5 | 2.1 |

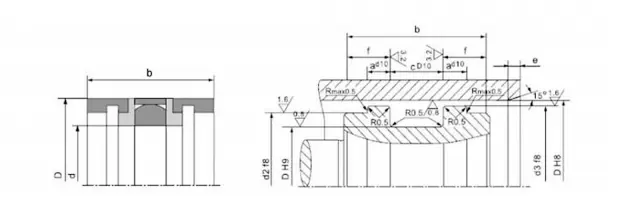

| Nomer Produk | D | d | b | d2 | d3 | a | c | f | e |
| Gdkk-40 | 40 | 26 | 32 | 32 | 36 | 3 | 15.5 | 8.25 | 7 |
| Gdkk-45 | 45 | 31 | 37 | 41 | |||||
| Gdkk-50 | 50 | 34 | 39 | 42 | 46 | 20.5 | 9.25 | ||
| Gdkk-56 | 56 | 40 | 48 | 52 | |||||
| Gdkk-63 | 63 | 47 | 55 | 59 | |||||
| Gdkk-65 | 65 | 49 | 57 | 61 | |||||
| Gdkk-70 | 70 | 54 | 62 | 66 | |||||
| Gdkk-75 | 75 | 59 | 67 | 71 | |||||
| Gdkk-80 | 80 | 62 | 43 | 72 | 76 | 22.5 | 10.25 | ||
| Gdkk-85 | 85 | 67 | 77 | 81 | |||||
| Gdkk-90 | 90 | 72 | 82 | 86 | |||||
| Gdkk-95 | 95 | 77 | 87 | 91 | |||||
| Gdkk-100 | 100 | 82 | 92 | 96 | 10 | ||||
| Gdkk-110 | 110 | 92 | 102 | 106 | |||||
| Gdkk-115 | 115 | 97 | 107 | 111 | |||||
| Gdkk-120 | 120 | 102 | 112 | 116 |

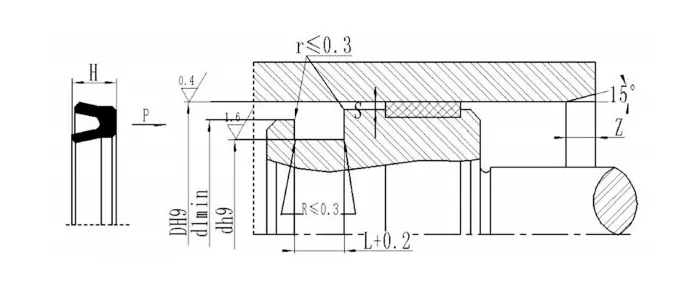

| Apenture kisaran D h9 |
Diameteripun alur DH9 |
Jembaré alur L+0.2 |
Sudhut bunder Rmax |
Reresik radial Smax |
Chamfer Zmin |
Diameter kabel o-ring dO |
| 14 ~ 22.9 | D-5.2 | 3.8 | 0.6 | 0.25 | 3 | 2.65 |
| 23 ~ 49.9 | D-6.6 | 4.8 | 1 | 0.3 | 4 | 3.55 |
| 50 ~ 119.9 | D-10.0 | 7.3 | 1.3 | 0.35 | 6 | 5.30 |
| 120 ~ 1500 | D-13.0 | 9.5 | 1.8 | 0.4 | 8 | 7.00 |
| CATETAN: Kanggo silinder diameter ≤30mm, alur mbukak disaranake. | ||||||
| D | d | H | L+0.2 |
|
D | d | H | L+0.2 |
|
D | d | H | L+0.2 |
|
D | d | H | L+0.2 |
| 30 | 20.5 | 4.3 | 4.5 | 95 | 80 | 7.3 | 7.5 | 224 | 202 | 10.8 | 11 | 800 | 785 | 12.7 | 13 | |||
| 31.5 | 22 | 4.3 | 4.5 | 100 | 85 | 7.3 | 7.5 | 225 | 203 | 10.8 | 11 | 900 | 870 | 24.5 | 25 | |||
| 32 | 22.5 | 4.3 | 4.5 | 108 | 92 | 7.3 | 7.5 | 230 | 208 | 10.8 | 11 | 930 | 890 | 19 | 20 | |||
| 35 | 25.5 | 4.3 | 4.5 | 110 | 94 | 7.3 | 7.5 | 240 | 218 | 10.8 | 11 | 935 | 920 | 12.7 | 13 | |||
| 35.5 | 26 | 4.3 | 4.5 | 112 | 96 | 7.3 | 7.5 | 250 | 228 | 10.8 | 11 | 950 | 925 | 17.7 | 18 | |||
| 40 | 30 | 4.3 | 4.5 | 120 | 104 | 7.3 | 7.5 | 260 | 236 | 11.7 | 12 | 1000 | 960 | 19.7 | 20 | |||
| 45 | 35 | 4.3 | 4.5 | 125 | 109 | 7.3 | 7.5 | 270 | 246 | 11.7 | 12 | 1060 | 1020 | 19.7 | 20 | |||
| 50 | 40 | 4.3 | 4.5 | 130 | 114 | 7.3 | 7.5 | 280 | 256 | 11.7 | 12 | 1120 | 1080 | 19.7 | 20 | |||
| 55 | 45 | 4.3 | 4.5 | 140 | 124 | 7.3 | 7.5 | 290 | 266 | 11.7 | 12 | 1150 | 1110 | 19.7 | 20 | |||
| 56 | 46 | 4.3 | 4.5 | 145 | 129 | 7.3 | 7.5 | 300 | 276 | 11.7 | 12 | 1180 | 1130 | 19.7 | 20 | |||
| 60 | 50 | 4.3 | 4.5 | 150 | 134 | 7.3 | 7.5 | 310 | 286 | 11.7 | 12 | 1210 | 1170 | 19.7 | 20 | |||
| 63 | 48 | 7.3 | 7.5 | 155 | 139 | 7.3 | 7.5 | 320 | 296 | 11.7 | 12 | 1250 | 1210 | 19 | 20 | |||
| 65 | 50 | 7.3 | 7.5 | 160 | 144 | 7.3 | 7.5 | 330 | 308 | 9.75 | 10 | 1260 | 1220 | 19.7 | 20 | |||
| 69 | 54 | 7.3 | 7.5 | 170 | 148 | 10.8 | 11 | 360 | 336 | 11.7 | 12 | 1400 | 1350 | 19.7 | 20 | |||
| 70 | 55 | 7.3 | 7.5 | 180 | 158 | 10.8 | 11 | 485 | 455 | 14.8 | 15 | 1500 | 1460 | 19.7 | 20 | |||
| 71 | 56 | 7.3 | 7.5 | 190 | 168 | 10.8 | 11 | 500 | 470 | 14.8 | 15 | 1650 | 1600 | 24 | 25 | |||
| 75 | 60 | 7.3 | 7.5 | 200 | 178 | 10.8 | 11 | 550 | 515 | 17.2 | 17.5 |
|
|
|
|
|||
| 80 | 65 | 7.3 | 7.5 | 204 | 182 | 10.8 | 11 | 600 | 570 | 14.8 | 15 |
|
|
|
|
|||
| 85 | 70 | 7.3 | 7.5 | 210 | 188 | 10.8 | 11 | 650 | 620 | 14.8 | 15 |
|
|
|
|
|||
| 90 | 75 | 7.3 | 7.5 | 220 | 198 | 10.8 | 11 | 720 | 690 | 14.8 | 15 |
|
|
|
|
| Conto Urutan: Rc66-D * D * L-PTFE3-R01 (Diameterer Lumber * Diameter * Width Groove) Ptfe3, R01- Kode Bahan | ||||||||||||||||||
| D | d | L |
|
D | d | L |
|
D | d | L |
|
D | d | L |
|
D | d | L |
| 15 | 10 | 2 | 32 | 24.8 | 4 | 55 | 45 | 5 | 80 | 66 | 6.5 | 125 | 111.2 | 7.5 | ||||
| 16 | 11 | 2 | 35 | 26.5 | 4 | 55 | 46.5 | 4 | 80 | 66.2 | 7.5 | 125 | 114 | 4 | ||||
| 18 | 13 | 2 | 35 | 27.5 | 3 | 56 | 46 | 5 | 80 | 70 | 4 | 130 | 116 | 6.5 | ||||
| 20 | 12.8 | 4 | 35 | 27.8 | 4 | 56 | 47.5 | 4 | 90 | 76 | 6.5 | 140 | 126 | 6.5 | ||||
| 20 | 14 | 3 | 36 | 28.5 | 3 | 60 | 50 | 4 | 90 | 76.2 | 7.5 | 140 | 126.2 | 7.5 | ||||
| 20 | 15 | 2 | 36 | 28.8 | 4 | 60 | 50 | 5 | 90 | 80 | 4 | 160 | 146 | 6.5 | ||||
| 25 | 17.8 | 4 | 40 | 30 | 5 | 60 | 51.5 | 4 | 100 | 86 | 6.5 | 180 | 160 | 10 | ||||
| 25 | 19 | 3 | 40 | 31.5 | 4 | 63 | 49 | 6.5 | 100 | 86.2 | 7.5 | 180 | 165 | 6 | ||||
| 25 | 20 | 2 | 40 | 32.5 | 3 | 63 | 53 | 4 | 100 | 89 | 4 | 200 | 180 | 10 | ||||
| 28 | 20.5 | 3 | 45 | 35 | 5 | 63 | 53 | 5 | 110 | 96 | 6.5 | 200 | 185 | 6 | ||||
| 28 | 20.8 | 4 | 45 | 36.5 | 4 | 65 | 51 | 6.5 | 110 | 96.2 | 7.5 | 250 | 230 | 10 | ||||
| 30 | 21.5 | 4 | 45 | 37.5 | 3 | 65 | 55 | 4 | 110 | 99 | 4 | 280 | 260 | 10 | ||||
| 30 | 22.5 | 3 | 50 | 40 | 4 | 65 | 55 | 5 | 120 | 106 | 6.5 | 320 | 300 | 10 | ||||
| 30 | 22.8 | 4 | 50 | 40 | 5 | 70 | 56 | 6.5 | 120 | 106.2 | 7.5 |
|
|
|
||||
| 32 | 23.5 | 4 | 50 | 41.5 | 4 | 70 | 60 | 4 | 120 | 109 | 4 |
|
|
|
||||
| 32 | 24.5 | 3 | 55 | 45 | 4 | 70 | 60 | 5 | 125 | 111 | 6.5 |
|
|
|
||||
| CATETAN: Ukuran ora kadhaptar ing tabel iki, hubungi kita. | ||||||||||||||||||

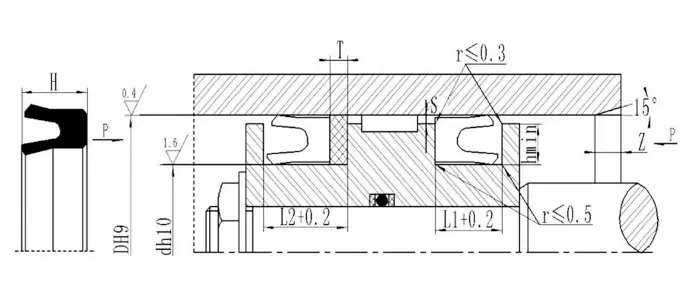

| DH9 | D h9 | L+0.2 | Z | R |
|
DH9 | D h9 | L+0.2 | Z | R |
| 50.0 | 36.0 | 9.0 | 5.0 | 0.3 | 115.0 | 100.0 | 12.5 | 5.0 | 0.5 | |
| 55.0 | 41.0 | 9.0 | 5.0 | 0.3 | 120.0 | 105.0 | 12.5 | 5.0 | 0.5 | |
| 60.0 | 46.0 | 9.0 | 5.0 | 0.3 | 125.0 | 102.0 | 16.0 | 6.5 | 0.6 | |
| 63.0 | 48.0 | 11.0 | 5.0 | 0.5 | 130.0 | 107.0 | 16.0 | 6.5 | 0.6 | |
| 65.0 | 50.0 | 11.0 | 5.0 | 0.5 | 135.0 | 112.0 | 16.0 | 6.5 | 0.6 | |
| 70.0 | 55.0 | 11.0 | 5.0 | 0.5 | 140.0 | 117.0 | 16.0 | 6.5 | 0.6 | |
| 75.0 | 60.0 | 11.0 | 5.0 | 0.5 | 145.0 | 122.0 | 16.0 | 6.5 | 0.6 | |
| 80.0 | 65.0 | 11.0 | 5.0 | 0.5 | 150.0 | 127.0 | 16.0 | 6.5 | 0.6 | |
| 85.0 | 70.0 | 11.0 | 5.0 | 0.5 | 155.0 | 132.0 | 16.0 | 6.5 | 0.6 | |
| 90.0 | 75.0 | 11.0 | 5.0 | 0.5 | 160.0 | 137.0 | 16.0 | 6.5 | 0.6 | |
| 95.0 | 80.0 | 12.5 | 5.0 | 0.5 | 165.0 | 142.0 | 16.0 | 6.5 | 0.6 | |
| 100.0 | 85.0 | 12.5 | 5.0 | 0.5 | 170.0 | 147.0 | 16.0 | 6.5 | 0.6 | |
| 105.0 | 90.0 | 12.5 | 5.0 | 0.5 | 180.0 | 157.0 | 16.0 | 6.5 | 0.6 | |
| 110.0 | 95.0 | 12.5 | 5.0 | 0.5 |
|
|
|
|
|
| Spesifikasi lan dimensi | ||||||||||
| Silinder DIAMETER | Diameter ngisor | Diameter dhasar | Jembaré | Pandhuan Min |
|
Silinder DIAMETER | Diameter ngisor | Diameter dhasar | Jembaré | Pandhuan Min |
| DH9 | D h9 | D 1 | L | Z | DH9 | D h9 | D 1 | L | Z | |
| 100 | 80 | 99 | 21.2 | 6 | 150 | 120 | 148.5 | 29 | 7.5 | |
| 110 | 90 | 109 | 21.2 | 6 | 160 | 130 | 158.5 | 29 | 7.5 | |
| 120 | 95 | 119 | 25.3 | 7.5 | 180 | 150 | 178.5 | 31.5 | 7.5 | |
| 140 | 115 | 139 | 25.8 | 7.5 | 200 | 170 | 198.5 | 33.5 | 7.5 | |
| Conto Conto AQ0800 80 × 64.5 × 6.3 (D × D × L) PTFE3-R01 PTFE3 R01-Bahan Bahan | ||||||||||||||||
| Nomer Produk | D | d | L+0.2 | RMax |
|
Nomer Produk | D | d | L+0.2 | RMax |
|
Nomer Produk | D | d | L+0.2 | RMax |
| AQ0160 | 16 | 5 | 4.2 | 0.8 | Aq0800l | 80 | 64.5 | 6.3 | 1.2 | Aq1500 | 150 | 129 | 8.1 | 1.6 | ||
| AQ0180 | 18 | 7 | 42 | 0.8 | AQ0800 | 80 | 59 | 8.1 | 1.6 | AQ1600 | 160 | 139 | 8.1 | 1.6 | ||
| AQ0200 | 20 | 9 | 4.2 | 0.8 | Aq0850l | 85 | 69.5 | 6.3 | 1.2 | AQ1700 | 170 | 149 | 8.1 | 1.6 | ||
| AQ0220 | 22 | 11 | 4.2 | 0.8 | AQ0850 | 85 | 64 | 8.1 | 1.6 | AQ1800 | 180 | 159 | 8.1 | 1.6 | ||
| AQ0250 | 25 | 14 | 4.2 | 0.8 | Aw0900L | 90 | 74.5 | 6.3 | 1.2 | AQ1900 | 190 | 169 | 8.1 | 1.6 | ||
| AQ0280 | 28 | 17 | 4.2 | 0.8 | AQ0900 | 90 | 69 | 8.1 | 1.6 | AQ2000 | 200 | 179 | 8.1 | 1.6 | ||
| AQ0300 | 30 | 19 | 4.2 | 0.8 | Aq0950l | 95 | 79.5 | 6.3 | 1.2 | AQ2100 | 210 | 189 | 8.1 | 1.6 | ||
| AQ0320 | 32 | 21 | 4.2 | 0.8 | AQ0950 | 95 | 74 | 8.1 | 1.6 | AQ2200 | 220 | 199 | 8.1 | 1.6 | ||
| AQ0350 | 35 | 24 | 4.2 | 0.8 | Aq1000l | 100 | 84.5 | 6.3 | 1.2 | AQ2300 | 230 | 209 | 8.1 | 1.6 | ||
| AQ0400 | 40 | 29 | 4.2 | 0.8 | Aq1000 | 100 | 79 | 8.1 | 1.6 | AQ2400 | 240 | 219 | 8.1 | 1.6 | ||
| Conto Conto AQF0800 80 × 67 × 8.3 (D × D × L) Kode Bahan PTFE3-R01 | ||||||||||||||||
| Nomer Produk |
D H9 |
d H9 |
L+0.2 | RMax |
|
Nomer Produk |
D H9 |
d H9 |
L+0.2 | RMax |
|
Nomer Produk |
D H9 |
d H9 |
L+0.2 | RMax |
| Aqf0400 | 40 | 30 | 6.3 | 1.2 | Aqf01150 | 115 | 102 | 8.3 | 1.6 | AQF3200 | 320 | 302 | 12.3 | 3 | ||
| Aqf0420 | 42 | 32 | 6.3 | 1.2 | Aqf01200 | 120 | 107 | 8.3 | 1.6 | AQF3500 | 350 | 332 | 12.3 | 3 | ||
| Aqf0450 | 45 | 35 | 6.3 | 1.2 | Aqf01250 | 125 | 112 | 8.3 | 1.6 | Aqf4000 | 400 | 382 | 12.3 | 3 | ||
| Aqf0480 | 48 | 38 | 6.3 | 1.2 | Aqf01300 | 130 | 117 | 8.3 | 1.6 | Aqf4200 | 420 | 402 | 12.3 | 3 | ||
| AQF0500 | 50 | 40 | 6.3 | 1.2 | AQF1550 | 135 | 117 | 12.3 | 3 | Aqf4500 | 450 | 432 | 12.3 | 3 | ||
| Aqf0520 | 52 | 42 | 6.3 | 1.2 | AQF1400 | 140 | 122 | 12.3 | 3 | AQF4800 | 480 | 449 | 16.3 | 3 | ||
| Aqf0550 | 55 | 45 | 6.3 | 1.2 | AQF1500 | 150 | 132 | 12.3 | 3 | AQF5000 | 500 | 469 | 16.3 | 3 | ||
| Aqf0600 | 60 | 50 | 6.3 | 1.2 | Aqf1600 | 160 | 142 | 12.3 | 3 | Aqf6000 | 600 | 569 | 16.3 | 3 | ||
| Aqf0630 | 63 | 53 | 6.3 | 1.2 | AQF1700 | 170 | 152 | 12.3 | 3 | AQF7000 | 700 | 669 | 16.3 | 3 | ||
| D | d | L | D1 |
|
D | d | L | D1 |
|
D | d | L | D1 |
| 20 | 12.5 | 3.2 | 19.7 | 63 | 50 | 6.3 | 62.6 | 100 | 79 | 8.1 | 99.5 | ||
| 25 | 17.5 | 3.2 | 24.7 | 65 | 52 | 6.3 | 64.6 | 105 | 84.5 | 6.3 | 104.6 | ||
| 25 | 14 | 4.2 | 24.7 | 70 | 59 | 4.2 | 69.7 | 105 | 89.5 | 6.3 | 104.6 | ||
| 32 | 24.5 | 3.2 | 31.7 | 70 | 54.5 | 6.3 | 69.6 | 110 | 89 | 8.1 | 109.5 | ||
| 32 | 21 | 4.2 | 31.7 | 70 | 57 | 6.3 | 69.6 | 115 | 94 | 8.1 | 114.5 | ||
| 40 | 32.5 | 3.2 | 39.7 | 75 | 59.5 | 6.3 | 74.6 | 120 | 99 | 8.1 | 119.5 | ||
| 40 | 29 | 4.2 | 39.7 | 75 | 62 | 6.3 | 74.6 | 125 | 109.5 | 6.3 | 124.6 | ||
| 45 | 34 | 4.2 | 44.7 | 80 | 69 | 4.2 | 79.7 | 125 | 104 | 8.1 | 124.5 | ||
| 45 | 32 | 6.3 | 44.6 | 80 | 64.5 | 6.3 | 79.6 | 140 | 119 | 8.1 | 139.5 | ||
| 50 | 39 | 4.2 | 49.7 | 85 | 71.5 | 6.3 | 84.6 | 160 | 139 | 8.1 | 159.5 | ||
| 50 | 34.5 | 6.3 | 49.6 | 90 | 74.5 | 6.3 | 89.6 | 200 | 179 | 8.1 | 199.5 |
| Apenture kisaran D h9 |
Diameteripun alur D h9 |
Jembaré alur L+0.2 |
Reresik radial smx | Sudhut bunder Rmax |
Chamfer Z |
Diameter kabel o-ring | |||
| Jinis standar Rpw |
Cahya mbukak Rpw-q |
Beban abot Rpw-z |
0 ~ 20MPA | 20-40MPA | |||||

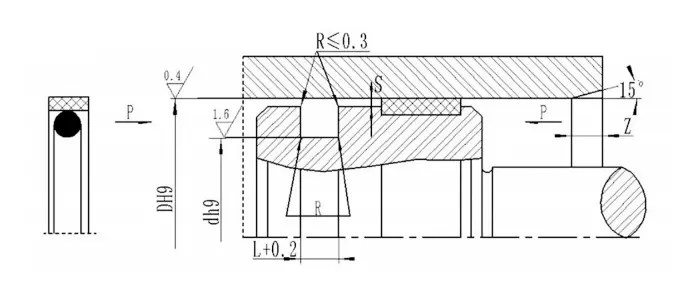

| 8 ~ 14.9 | 15 ~ 39.9 | - | D-4.9 | 2.2 | 0.20 | 0.15 | 0.4 | 2 | 1.80 |
| 15 ~ 39.9 | 40 ~ 79.9 | - | D-7.5 | 3.2 | 0.25 | 0.15 | 0.6 | 3 | 2.65 |
| 40 ~ 79.9 | 80 ~ 132.9 | 15 ~ 39.9 | D-11.0 | 4.2 | 0.25 | 0.20 | 1.0 | 4 | 3.55 |
| 80 ~ 132.9 | 133 ~ 329.9 | 40 ~ 79.9 | D-15.5 | 6.3 | 0.30 | 0.20 | 1.3 | 5 | 5.30 |
| 133 ~ 329.9 | 330 ~ 669.9 | 80 ~ 132.9 | D-21.0 | 8.1 | 0.35 | 0.25 | 1.8 | 7 | 7.00 |
| 330-669.9 | 670 ~ 999.9 | 133 ~ 329.9 | D-24.5 | 8.1 | 0.35 | 0.25 | 1.8 | 7 | 7.00 |
| 670 ~ 999.9 | - | 330 ~ 669.9 | D-28.0 | 9.5 | 0.5 | 0.30 | 2.5 | 8 | 8.60 |
| > 1000 | D-38 | 13.8 | 0.7 | 0.60 | 3 | 10 | 12.0 | ||
| CATETAN: 1. Kanggo diameterasi bolongan ≤ 30mm, dianjurake kanggo nggunakake alur sing mbukak. | |||||||||
| 2 .. Kanggo Tekanan> 40Mpa, area oyod saka segel nggunakake toleransi H8 / F8. | |||||||||
|
|
|||||||||||||
| Nomer pesenan | DH8 | DH9 | L + 0.2 |
|
Nomer pesenan | DH8 | DH9 | L + 0.2 |
|
Nomer pesenan | DH8 | DH9 | L + 0.2 |
| Tda0400 | 40 | 32 | 7.5 | Tda1150 | 115 | 100 | 13 | Tda2800 | 280 | 260 | 17 | ||
| Tda0450 | 45 | 37 | 7.5 | Tda1200 | 120 | 105 | 13 | Tda3000 | 300 | 280 | 17 | ||
| Tda0500 | 50 | 42 | 7.5 | Tda1250 | 125 | 110 | 13 | Tda3200 | 320 | 300 | 17 | ||
| Tda0550 | 55 | 45 | 7.5 | Tda1300 | 130 | 115 | 13 | Tda3500 | 350 | 320 | 21 | ||
| Tda0600 | 60 | 45 | 13 | TDA1400 | 140 | 120 | 13 | Tda3700 | 370 | 345 | 17 | ||
| Tda0630 | 63 | 53 | 8.5 | Tda1450 | 145 | 125 | 13 | Tda3800 | 380 | 350 | 21 | ||
| Tda0630a | 63 | 48 | 13 | Tda1500 | 150 | 130 | 13 | Tda3900 | 390 | 360 | 21 | ||
| Tda0650 | 65 | 50 | 8.5 | Tda1600 | 160 | 140 | 13 | Tda4100 | 410 | 380 | 21 | ||
| Tda0650a | 65 | 50 | 13 | Tda1600a | 160 | 140 | 17 | Tda4300 | 430 | 400 | 21 | ||
| Tda0700 | 70 | 55 | 13 | TDA1700 | 170 | 150 | 17 | Tda4500 | 450 | 420 | 21 | ||
| Tda0750 | 75 | 60 | 13 | Tda1800 | 180 | 160 | 17 | Tda4800 | 480 | 450 | 21 | ||
| Tda0800 | 80 | 65 | 13 | TDA1900 | 190 | 170 | 17 | Tda5000 | 500 | 475 | 17 | ||
| Tda0850 | 85 | 70 | 13 | Tda2000 | 200 | 180 | 17 | Tda5100 | 510 | 480 | 21 | ||
| Tda0900 | 90 | 75 | 13 | Tda2100 | 210 | 190 | 17 | Tda5900 | 590 | 560 | 21 | ||
| Tda0950 | 95 | 80 | 13 | Tda2200 | 220 | 200 | 17 | Tda6000 | 600 | 570 | 21 | ||
| Tda1000 | 100 | 85 | 13 | Tda2250 | 225 | 205 | 17 | Tda6700 | 670 | 640 | 21 | ||
| Tda1100 | 110 | 95 | 13 | Tda2500 | 250 | 230 | 17 |
|
|
|
|
||
| CATETAN: Yen spesifikasi sing dibutuhake ora ana ing tabel iki, hubungi kita. | |||||||||||||
| Ukuran Instalasi |
|
|
|
|
|
|
|
|
|
|
|
Dawane Chamfer | |||||
| Silinder Diameterdh8 | Groove ngisor diameterdh9 | Jembaré slot L + 0.2 | Dhuwur segel H |
|
|
Kisaran diameter silinder | Dawane Chamfer e- | ||||||||||
| 40-120 | D-10 | 16 | 15 |
|
|
40-124 | 7 | ||||||||||
| 121-300 | D-12 | 16 | 15 |
|
|
125-299 | 10 | ||||||||||
| 301-380 | D-14 | 16 | 15 |
|
|
300-630 | 15 | ||||||||||
| > 380 | D-16 | 16 | 15 |
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
||||||||||
| Nomer pesenan | DH8 | DH9 | L+0.2 |
|
Nomer pesenan | DH8 | DH9 | L+0.2 |
|
Nomer pesenan | DH8 | DH9 | L+0.2 | ||||
| Tdma0400 | 40 | 30 | 16 | Tdma1150 | 115 | 105 | 16 | Tdma2500 | 250 | 238 | 16 | ||||||
| Tdma0450 | 45 | 35 | 16 | Tdma1200 | 120 | 110 | 16 | TDMA2800 | 280 | 268 | 16 | ||||||
| Tdma0500 | 50 | 40 | 16 | Tdma1250 | 125 | 113 | 16 | Tdma3000 | 300 | 288 | 16 | ||||||
| Tdma0550 | 55 | 45 | 16 | Tdma1300 | 130 | 118 | 16 | Tdma3200 | 320 | 306 | 16 | ||||||
| Tdma0560 | 56 | 46 | 16 | Tdma1350 | 135 | 123 | 16 | Tdma3500 | 350 | 336 | 16 | ||||||
| Tdma0600 | 60 | 50 | 16 | Tdma1400 | 140 | 128 | 16 | TDMA3800 | 380 | 366 | 16 | ||||||
| Tdma0630 | 63 | 53 | 16 | Tdma1500 | 150 | 138 | 16 | Tdma4000 | 400 | 384 | 16 | ||||||
| Tdma0650 | 65 | 55 | 16 | Tdma1600 | 160 | 148 | 16 | Tdma4200 | 420 | 404 | 16 | ||||||
| Tdma0700 | 70 | 60 | 16 | Tdma1700 | 170 | 158 | 16 | Tdma4500 | 450 | 434 | 16 | ||||||
| Tdma0750 | 75 | 65 | 16 | Tdma1800 | 180 | 168 | 16 | Tdma4800 | 480 | 464 | 16 | ||||||
| Tdma0800 | 80 | 70 | 16 | Tdma1900 | 190 | 178 | 16 | Tdma5000 | 500 | 484 | 16 | ||||||
| Tdma0850 | 85 | 75 | 16 | Tdma2000 | 200 | 188 | 16 | Tdma5600 | 560 | 544 | 16 | ||||||
| Tdma0900 | 90 | 80 | 16 | TDMA2100 | 210 | 198 | 16 | Tdma6000 | 600 | 584 | 16 | ||||||
| Tdma1000 | 100 | 90 | 16 | Tdma2200 | 220 | 208 | 16 | Tdma6300 | 630 | 614 | 16 | ||||||
| Tdma1100 | 110 | 100 | 16 | Tdma2250 | 225 | 213 | 16 |
|
|
|
|
||||||
| CATETAN: Spesifikasi sing dibutuhake ora ana ing tabel iki, nanging uga bisa diprodhuksi. Hubungi kita. | |||||||||||||||||

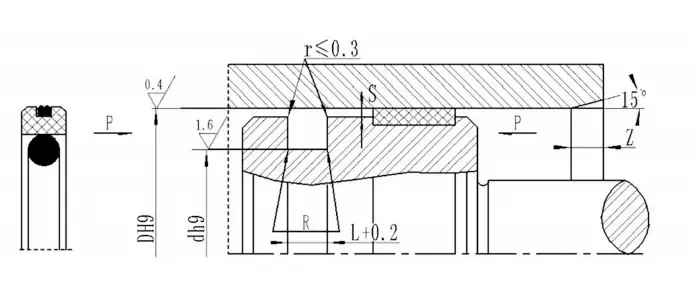

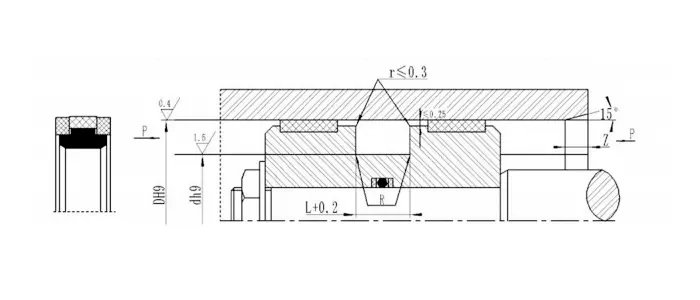

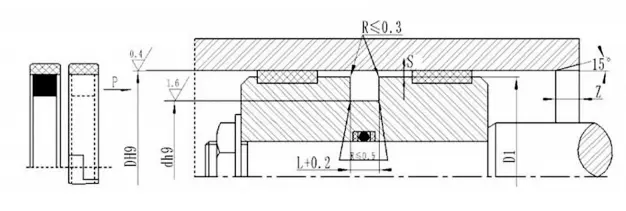

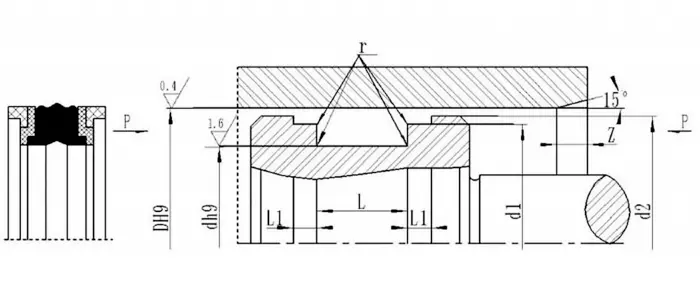

| Ukuran Instalasi |
|
|
|
|
|
|
Dawane Chamfer | |||||||
|
|
|
|
|
Kisaran diameter silinder | Dawane Chamfer e- | |||||||||
|
|
|
|
|
|
<99 | 7 | ||||||||
| Silinder DIAMETER DH8 | Diameter ngisor alur DH9 | Jembaré slot L+0.2 | Dhuwur segel H |
|
100-199 | 10 | ||||||||
| <96 | D-16.8 | 8 | 7.5 |
|
||||||||||
| 96-190 | D-20 | 10 | 9.5 |
|
200-309 | 12 | ||||||||
| 191-380 | D-28 | 13 | 12.5 |
|
310-559 | 15 | ||||||||
| > 380 | D-36 | 20 | 19.5 |
|
> 599 | 18 | ||||||||
|
|
|
|
|
|
|
|
||||||||
| Nomer pesenan | D h8 | D h9 | L+0.2 |
|
Nomer pesenan | D h8 | D h9 | L+0.2 |
|
Nomer pesenan | D h8 | D h9 | L+0.2 | |
| GGDA0400 | 40 | 23.2 | 8 | GGDA1050 | 105 | 85 | 10 | Ggda2500 | 250 | 222 | 13 | |||
| GGDA0450 | 45 | 28.2 | 8 | Ggda1100 | 110 | 90 | 10 | GGDA2800 | 280 | 252 | 13 | |||
| GGDA0500 | 50 | 33.2 | 8 | Ggda1150 | 115 | 95 | 10 | GGDA3000 | 300 | 272 | 13 | |||
| Ggda0550 | 55 | 38.2 | 8 | GGDA1200 | 120 | 100 | 10 | GGDA3200 | 320 | 292 | 13 | |||
| GGDA0560 | 56 | 39.2 | 8 | Ggda1250 | 125 | 105 | 10 | GGDA3500 | 350 | 322 | 13 | |||
| GGDA0600 | 60 | 43.2 | 8 | GGDA1300 | 130 | 110 | 10 | GGDA3800 | 380 | 352 | 13 | |||
| GGDA0630 | 63 | 46.2 | 8 | Ggda1350 | 135 | 115 | 10 | GGDA4000 | 400 | 364 | 20 | |||
| GGDA0650 | 65 | 48.2 | 8 | GGDA1400 | 140 | 120 | 10 | GGDA4200 | 420 | 384 | 20 | |||
| GGDA0700 | 70 | 53.2 | 8 | Ggda1500 | 150 | 130 | 10 | GGDA4500 | 450 | 414 | 20 | |||
| GGDA0750 | 75 | 58.2 | 8 | GGDA1600 | 160 | 140 | 10 | GGDA4800 | 480 | 444 | 20 | |||
| GGDA0800 | 80 | 63.2 | 8 | GGDA1700 | 170 | 150 | 10 | GGDA5000 | 500 | 464 | 20 | |||
| GGDA0850 | 85 | 68.2 | 8 | GGDA1800 | 180 | 160 | 10 | GGDA5600 | 560 | 524 | 20 | |||
| GGDA0900 | 90 | 73.2 | 8 | GGDA1900 | 190 | 170 | 10 | Ggda6000 | 600 | 564 | 20 | |||
| Ggda0950 | 95 | 78.2 | 8 | Ggda2000 | 200 | 172 | 13 | GGDA6300 | 630 | 594 | 20 | |||
| Ggda1000 | 100 | 80 | 10 | GGDA2200 | 220 | 192 | 13 |
|
|
|
|
|||
| CATETAN: Spesifikasi sing dibutuhake ora ana ing tabel iki, nanging uga bisa diprodhuksi. Hubungi kita. Produk maksimal sing kasedhiya yaiku 1600mm. | ||||||||||||||
| Ekstrus celah |
|
|
|
|
|
|
|
|
|
|
|
||
| Tekanan MPA | Extrusion Gap SMAX |
|
|
|
|||||||||
| Silinder diameter d≤60mm | Silinder diameter d> 60mm |
|
|
|
|||||||||
| ≤5 | 0.4 | 0.5 |
|
|
|
||||||||
| ≤10 | 0.3 | 0.5 |
|
|
|
||||||||
| ≤20 | 0.2 | 0.3 |
|
|
|
||||||||
| ≤30 | 0.15 | 0.2 |
|
|
|
||||||||
| ≤40 | 0.1 | 0.15 |
|
|
|
||||||||
| Chart Ukuran | |||||||||||||
| Nomer Produk | D | d | H | L | D1 |
|
Nomer Produk | D | d | H | L | D1 | |
| Rcup30 * 15 * 9.5 | 30 | 15 | 9.5 | 10.5 | 18 | Rcup40 * 32 * 5.5 | 40 | 32 | 5.5 | 6.5 | 35 | ||
| Rcup30 * 15 * 10 | 30 | 15 | 10 | 11 | 19 | Rcup40 * 32 * 8 | 40 | 32 | 8 | 9 | 35 | ||
| Rcup30 * 20 * 8 | 30 | 20 | 8 | 9 | 24 | Rcup40 * 33 * 8 | 40 | 33 | 8 | 9 | 36 | ||
| Rcup30 * 22 * 6.5 | 30 | 22 | 6.5 | 7 | 25 | Rcup45 * 30 * 10 | 45 | 30 | 10 | 11 | 35 | ||
| Rcup35 * 20 * 10 | 35 | 20 | 10 | 11 | 25 | Rcup50 * 30 * 12 | 50 | 30 | 12 | 13 | 35 | ||
| Rcup35 * 25 * 8 | 35 | 25 | 8 | 9 | 29 | Rcup50 * 32 * 10 | 50 | 32 | 10 | 11 | 35 | ||
| Rcup35 * 27 * 10 | 35 | 27 | 10 | 11 | 30 | Rcup50 * 35 * 8.5 | 50 | 35 | 8.5 | 9.5 | 40 | ||
| Rcup40 * 25 * 10 | 40 | 25 | 10 | 11 | 30 | Rcup50 * 35 * 10 | 50 | 35 | 10 | 11 | 40 | ||
| Rcup40 * 30 * 6.5 | 40 | 30 | 6.5 | 7.5 | 34 | Rcup50 * 40 * 5 | 50 | 40 | 5 | 5.5 | 44 | ||
| Rcup40 * 30 * 10 | 40 | 30 | 10 | 11 | 34 | Rcup50 * 40 * 8 | 50 | 40 | 8 | 9 | 43 | ||
| Nomer Produk | D | d | H | L1 | L2 | T |
|
Nomer Produk | D | d | H | L1 | L2 | T |
| Yxd11 * 5 * 8 | 11 | 5 | 8 | 9 | 10.5 | 1.5 | YXD55 * 47 * 10 | 55 | 47 | 10 | 12 | 13.5 | 1.5 | |
| YXD12 * 6 * 8 | 12 | 6 | 8 | 9 | 10.5 | 1.5 | YXD56 * 48 * 10 | 56 | 48 | 10 | 12 | 13.5 | 1.5 | |
| YXD14 * 8 * 8 | 14 | 8 | 8 | 9 | 10.5 | 1.5 | YXD60 * 48 * 14 | 60 | 48 | 14 | 16 | 18 | 2 | |
| YXD16 * 10 * 8 | 16 | 10 | 8 | 9 | 10.5 | 1.5 | YXD63 * 51 * 14 | 63 | 51 | 14 | 16 | 18 | 2 | |
| YXD18 * 12 * 8 | 18 | 12 | 8 | 9 | 10.5 | 1.5 | YXD65 * 53 * 14 | 65 | 53 | 14 | 16 | 18 | 2 | |
| YXD20 * 14 * 8 | 20 | 14 | 8 | 9 | 10.5 | 1.5 | YXD70 * 58 * 14 | 70 | 58 | 14 | 16 | 18 | 2 | |
| YXD22 * 16 * 8 | 22 | 16 | 8 | 9 | 10.5 | 1.5 | YXD75 * 63 * 14 | 75 | 63 | 14 | 16 | 18 | 2 | |
| YXD24 * 18 * 8 | 24 | 18 | 8 | 9 | 10.5 | 1.5 | YXD78 * 66 * 14 | 78 | 66 | 14 | 16 | 18 | 2 | |
| YXD25 * 19 * 8 | 25 | 19 | 8 | 9 | 10.5 | 1.5 | YXD80 * 68 * 14 | 80 | 68 | 14 | 16 | 18 | 2 | |
| YXD28 * 22 * 8 | 28 | 22 | 8 | 9 | 10.5 | 1.5 | YXD85 * 73 * 14 | 85 | 73 | 14 | 16 | 18 | 2 | |
| YXD30 * 22 * 10 | 30 | 22 | 10 | 12 | 13.5 | 1.5 | YXD90 * 78 * 14 | 90 | 78 | 14 | 16 | 18 | 2 | |
| Yxd32 * 24 * 10 | 32 | 24 | 10 | 12 | 13.5 | 1.5 | YXD95 * 83 * 14 | 95 | 83 | 14 | 16 | 18 | 2 | |
| YXD35 * 27 * 10 | 35 | 27 | 10 | 12 | 13.5 | 1.5 | Yxd100 * 88 * 14 | 100 | 88 | 14 | 16 | 18 | 2 |
alamat
No.1 Ruichen Road, Taman Perindustrian Dongliuting, Kabupaten Chengyang, Qingdao City, Provinsi Shandong, China
Telp
