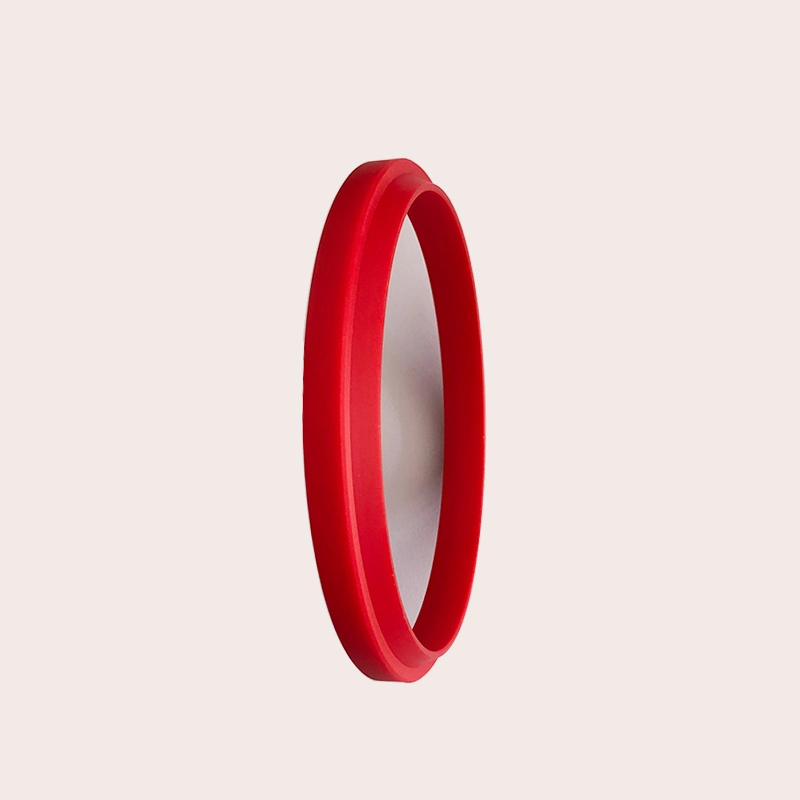

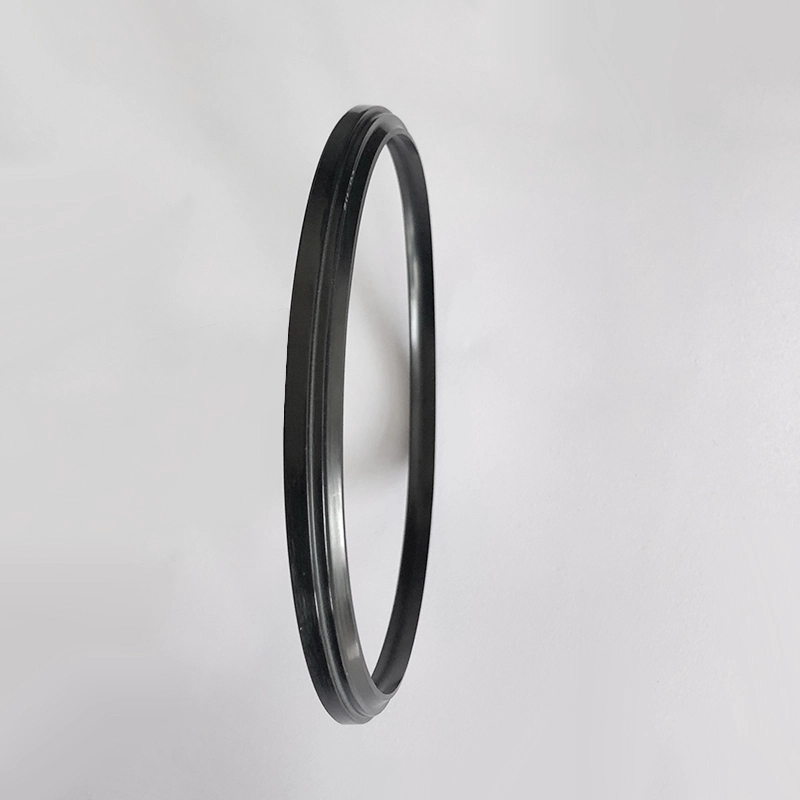

Segel Debu Hydraulic minangka salah sawijining produk panyegel sing bisa nyolong segel. Sampeyan bisa sinau babagan macem-macem model ing jinis produk lan uga bisa nggawe kombinasi struktural. Yen perlu, sampeyan uga bisa hubungi kita kanggo menehi pitulung utawa solusi sing disesuaikan, utawa hubungi kita kanggo entuk buku conto.

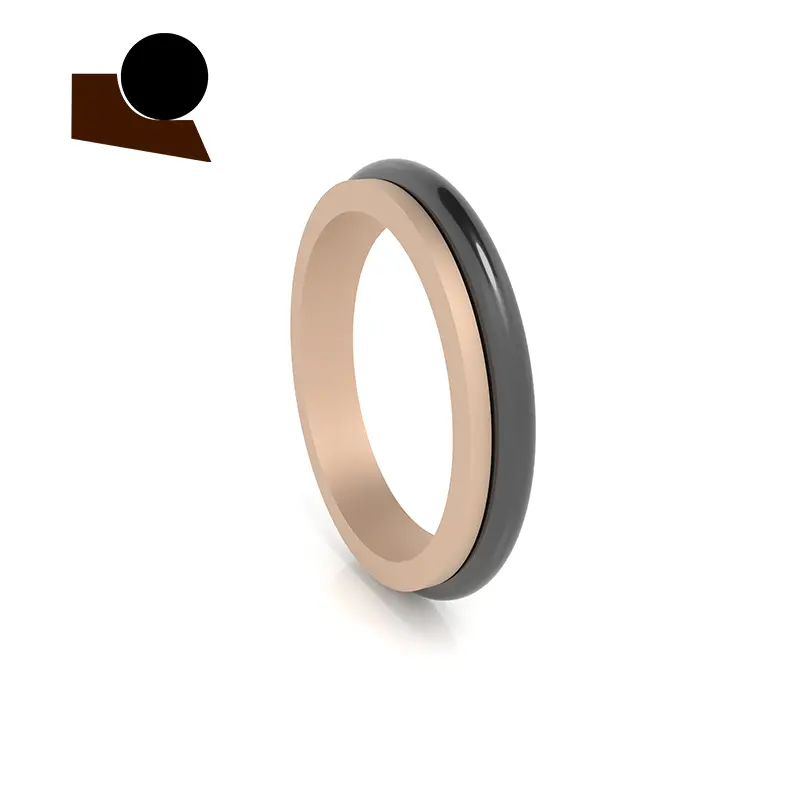

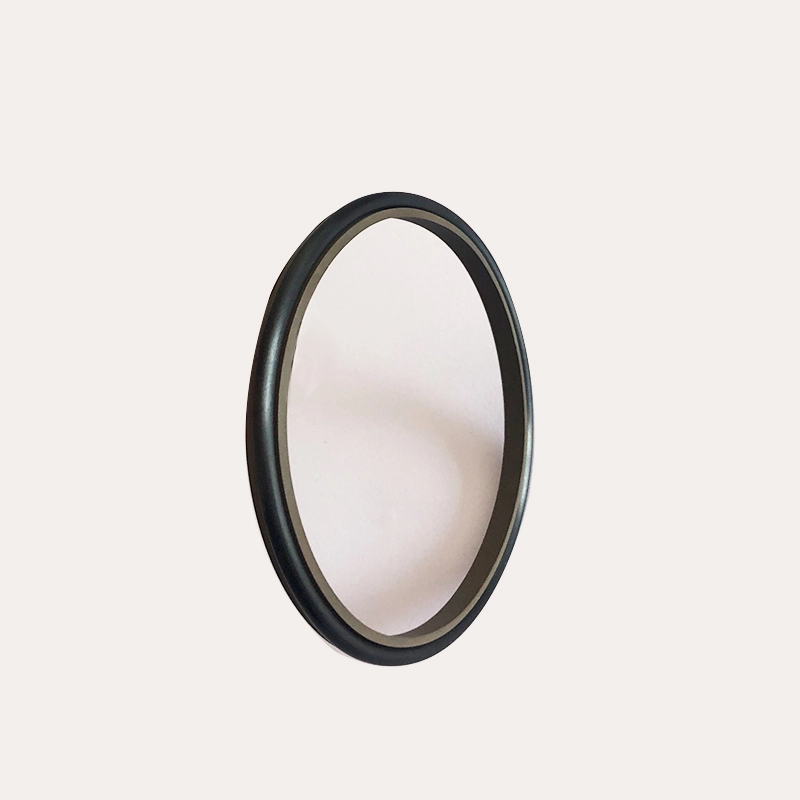

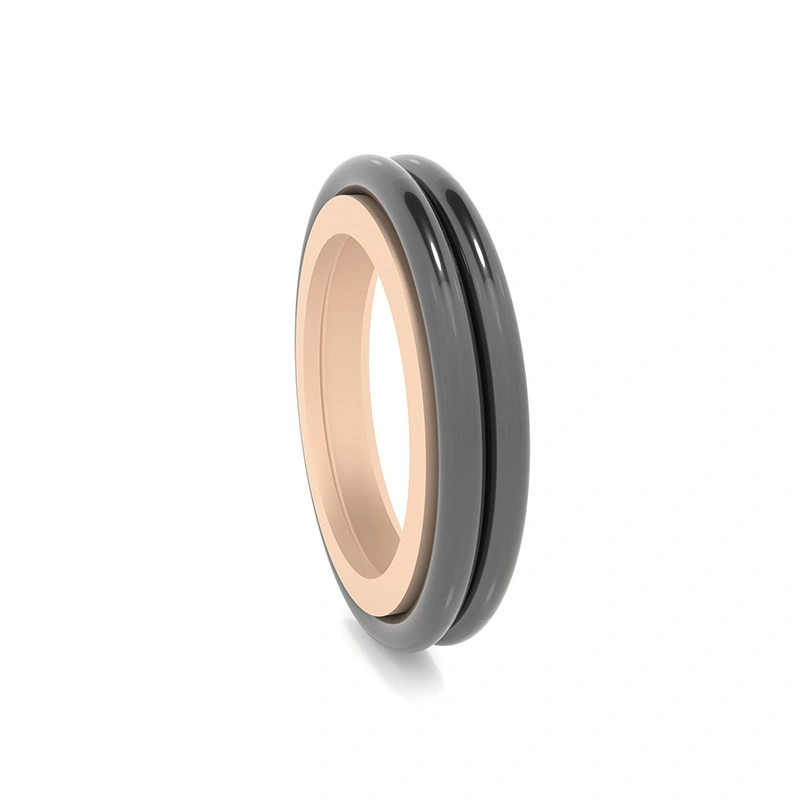

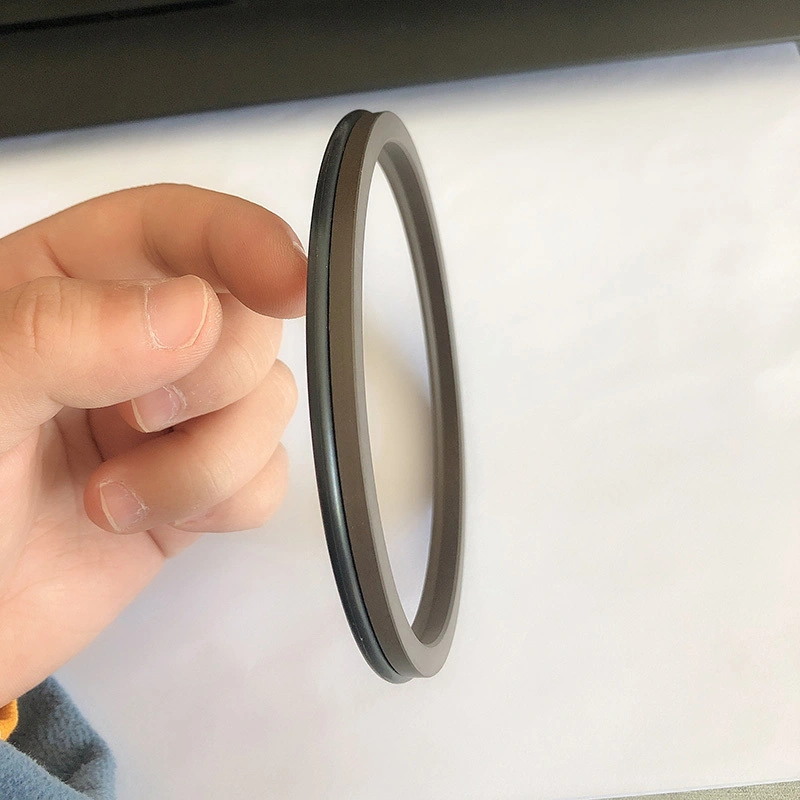

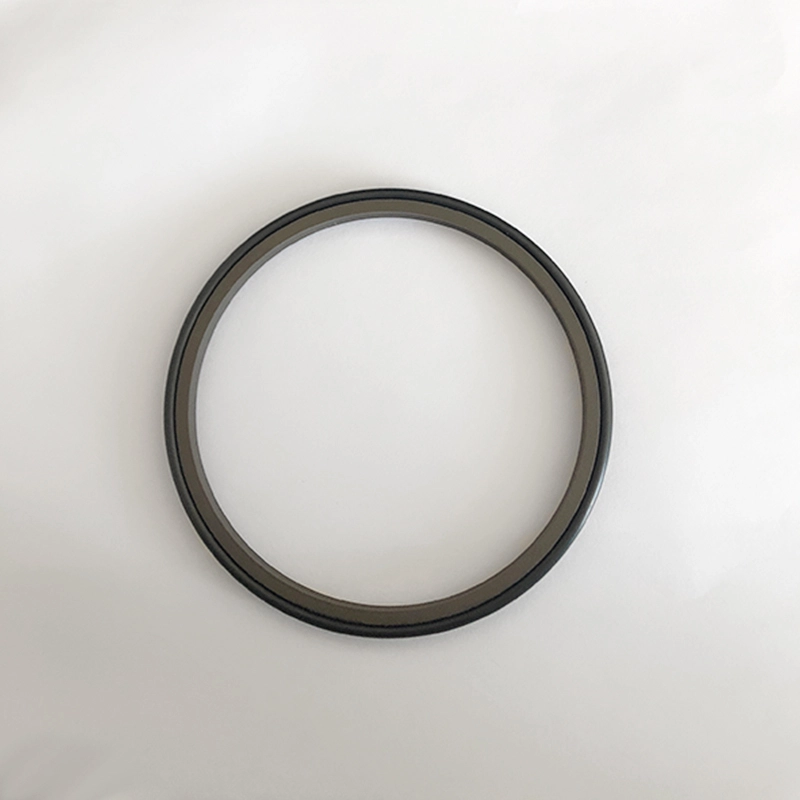

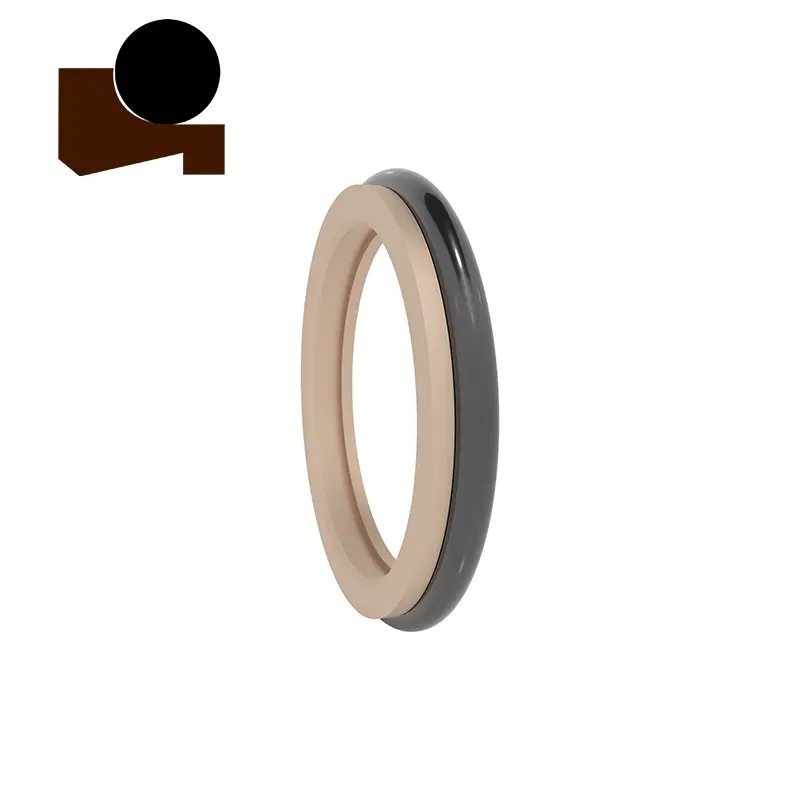

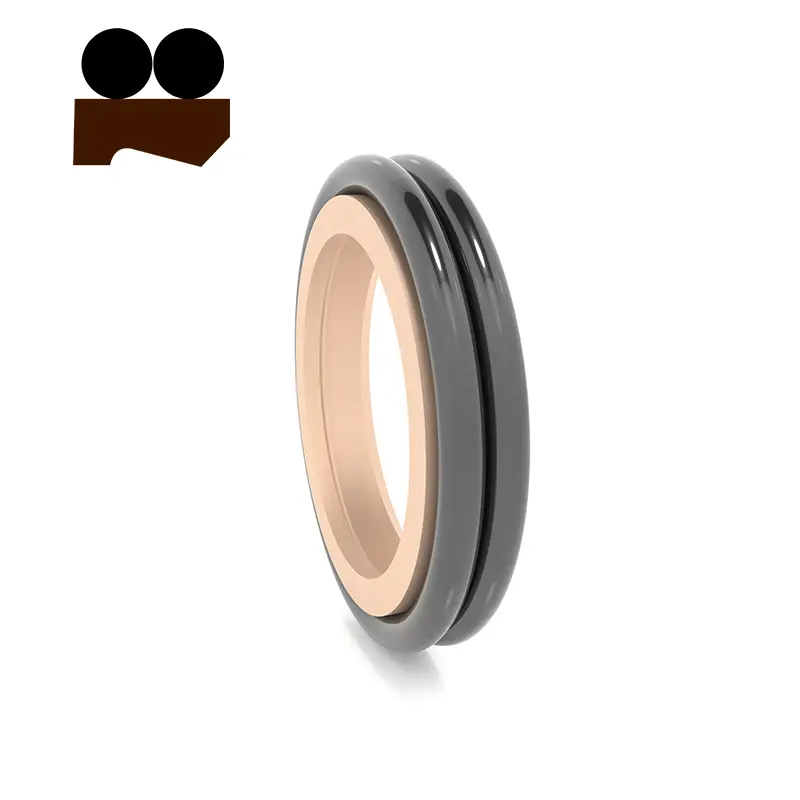

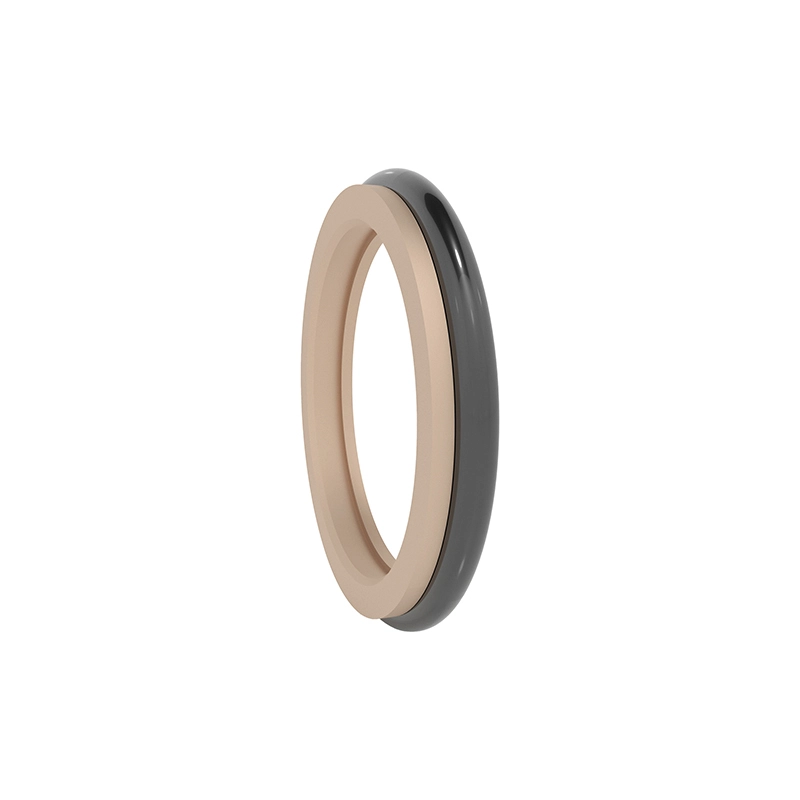

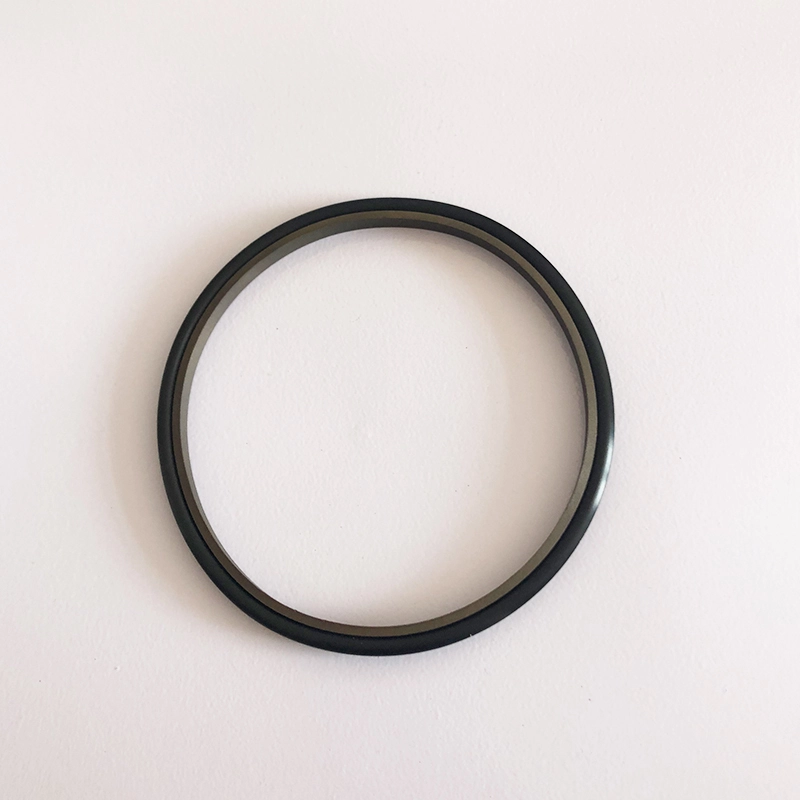

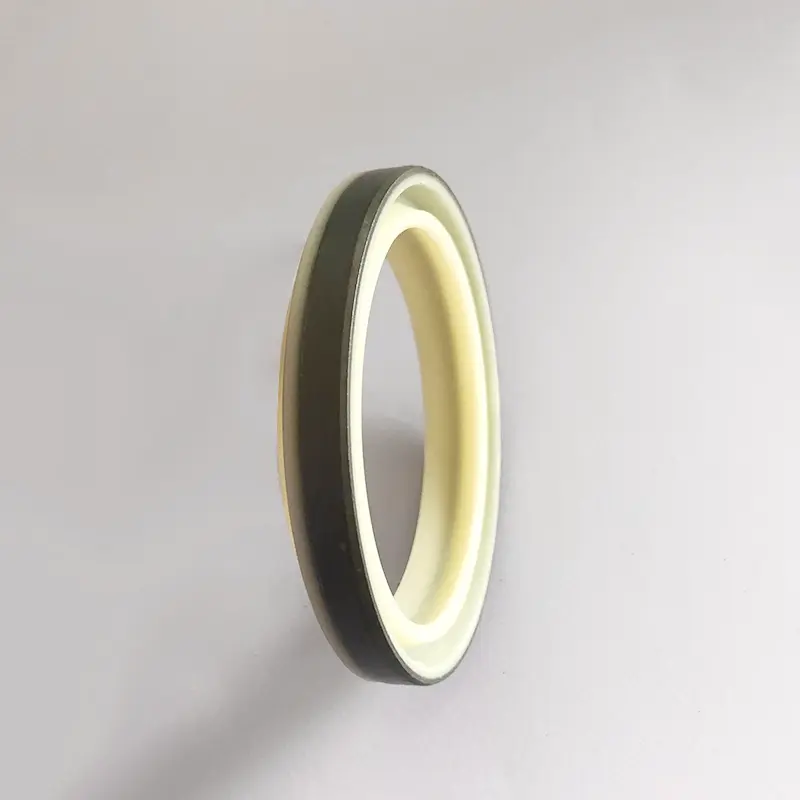

RcF01 lan RCF02 minangka segel bledug rong cara dumadi saka dering segel debu sing debu sing diisi karo bahan karang PTFE lan cincin karet o-shaped. O-ring nyedhiyakake pasukan preload kanggo menehi kompensasi kanggo nyandhang dering PTFE. RCF01 cocog kanggo kesempatan sing abot, kayata lingkungan dandam utawa adhem lan gerakan timbal balik kanthi frekuensi tinggi. Alur pamisah kudu digunakake kanggo diameter batang kurang saka 30mm. RCF02 cocog kanggo gerakan timbal balik, swing utawa gerakan gerakan gerakan.

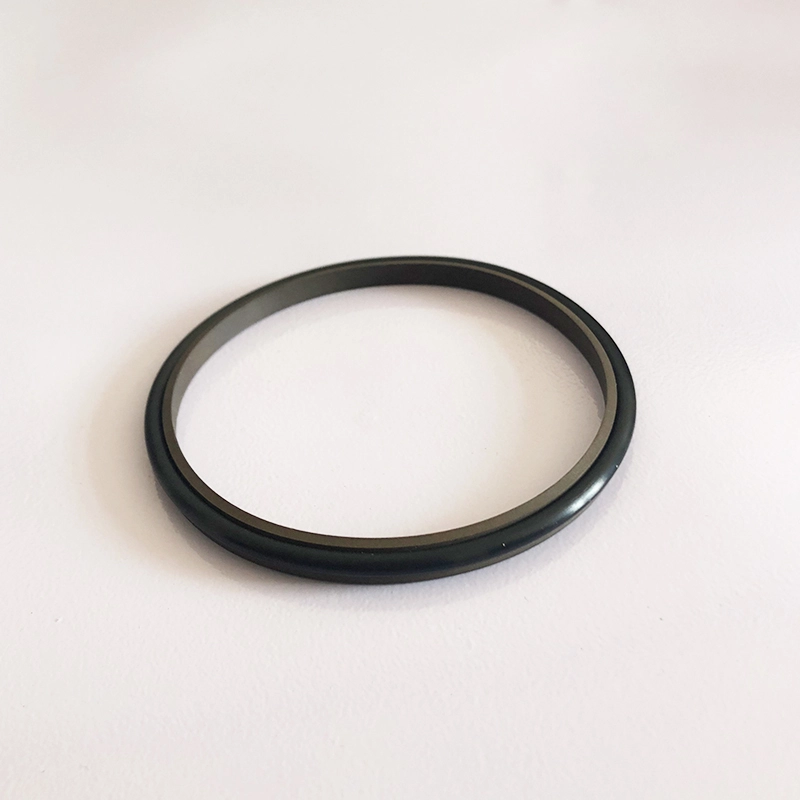

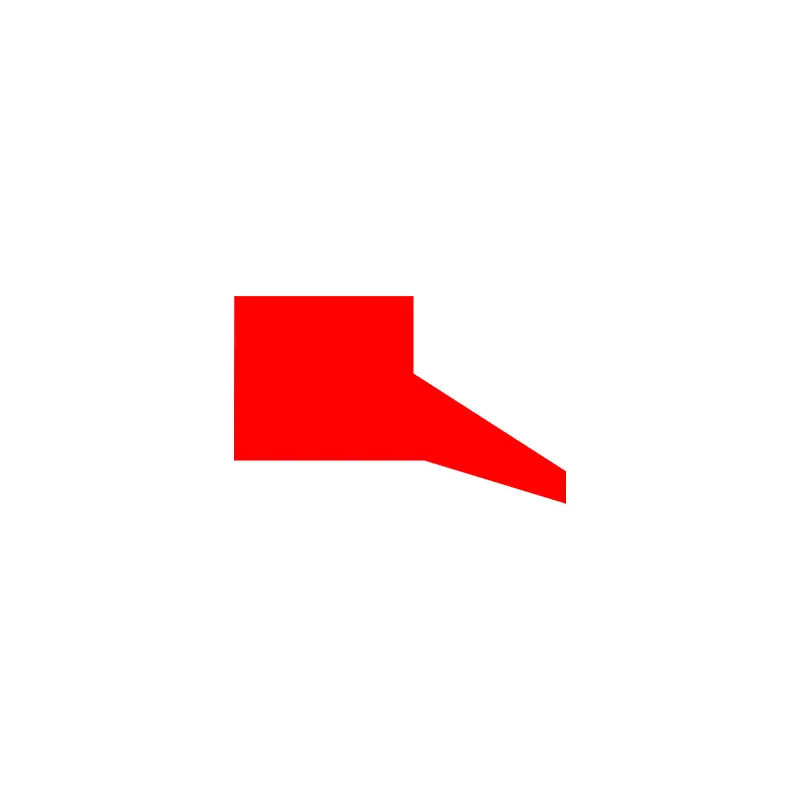

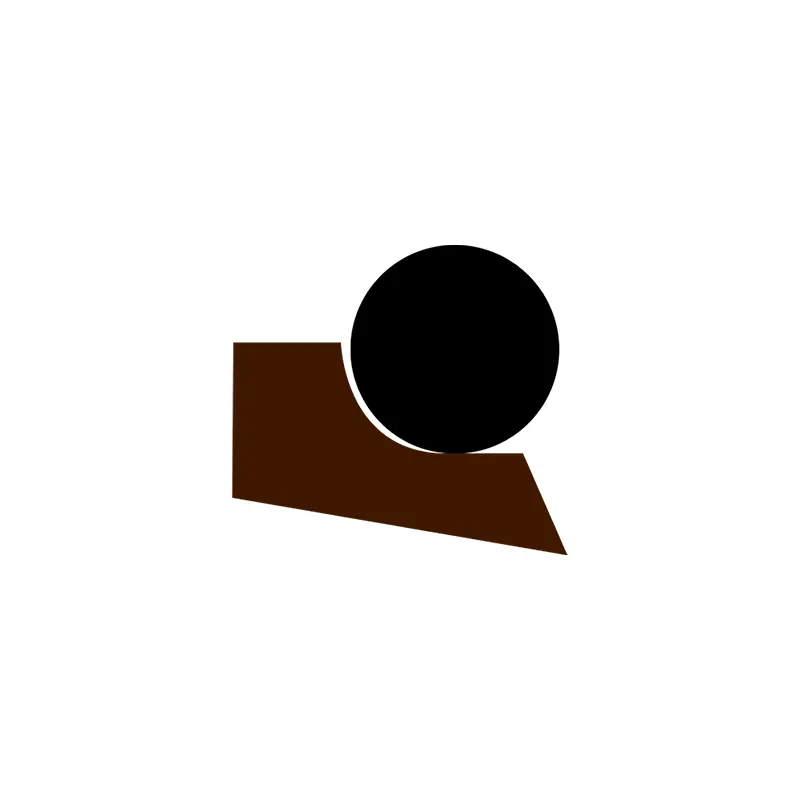

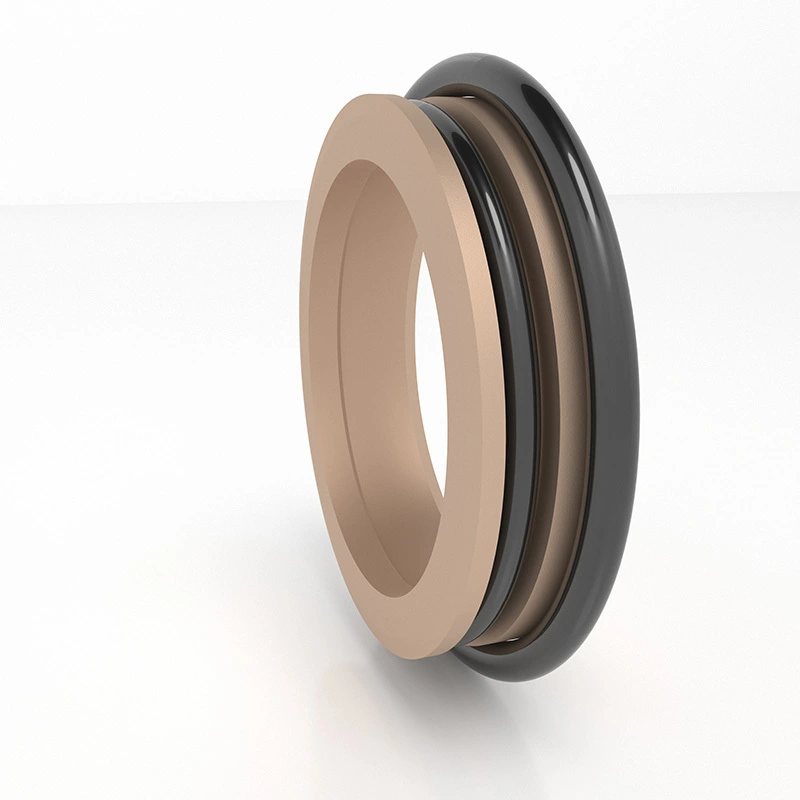

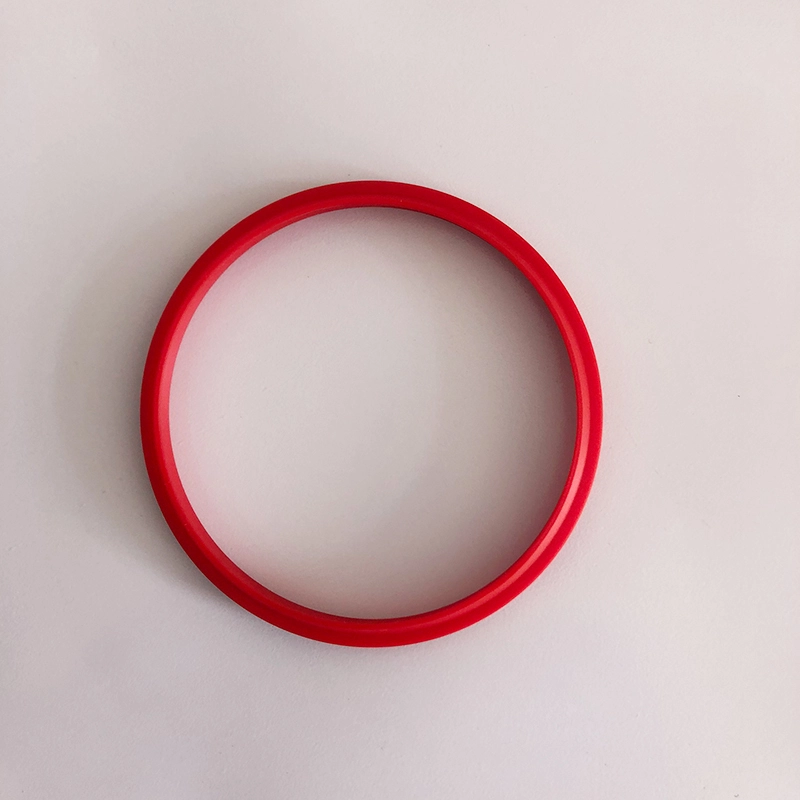

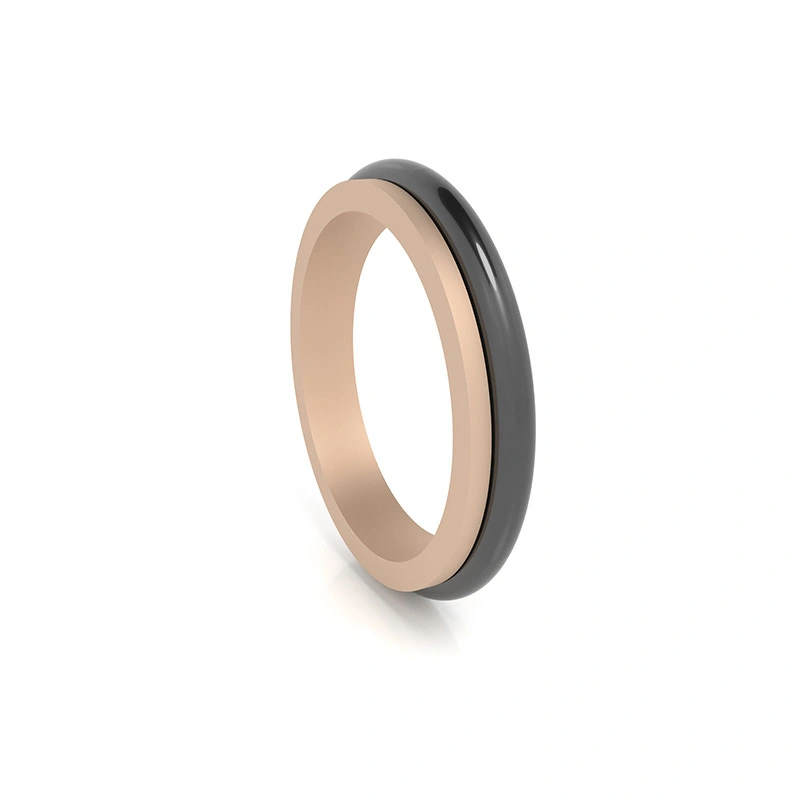

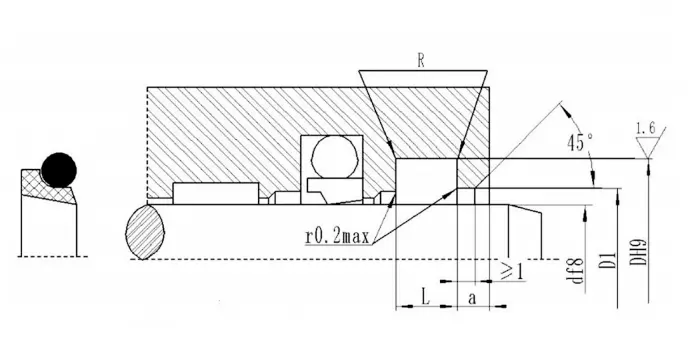

RCF03 minangka dering bledug siji-awu sing dumadi saka cincin scraper bledug tunggal sing kapenuhan karo materi ptfe lan cincin karet o-shaped. Fungsine yaiku ngikis bledug lan nyegah sistem ora kontaminasi. Cocog kanggo gerakan timbal balik, ngayun utawa gerakan gerakan.

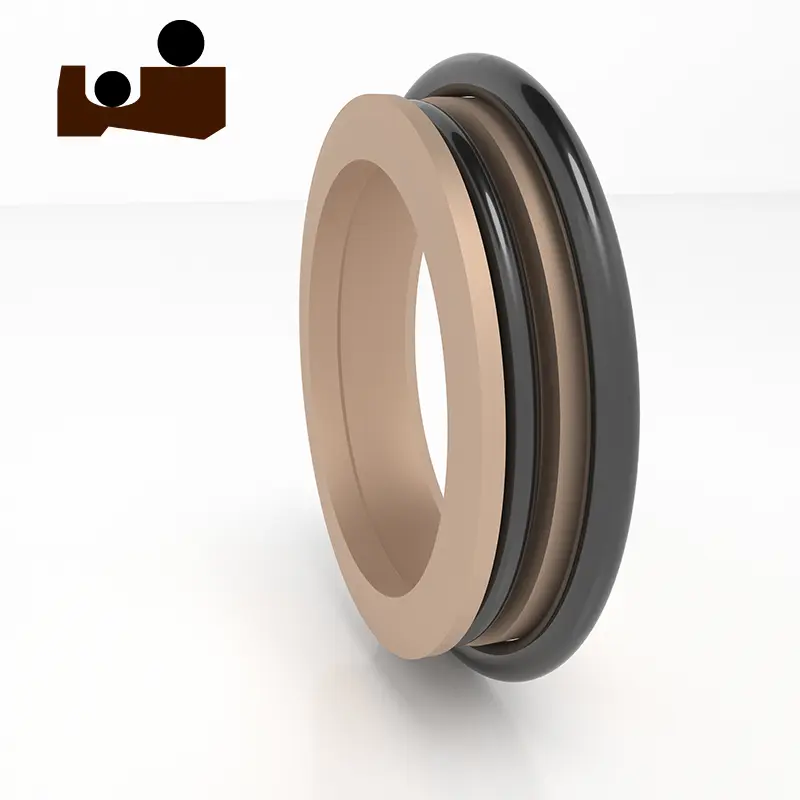

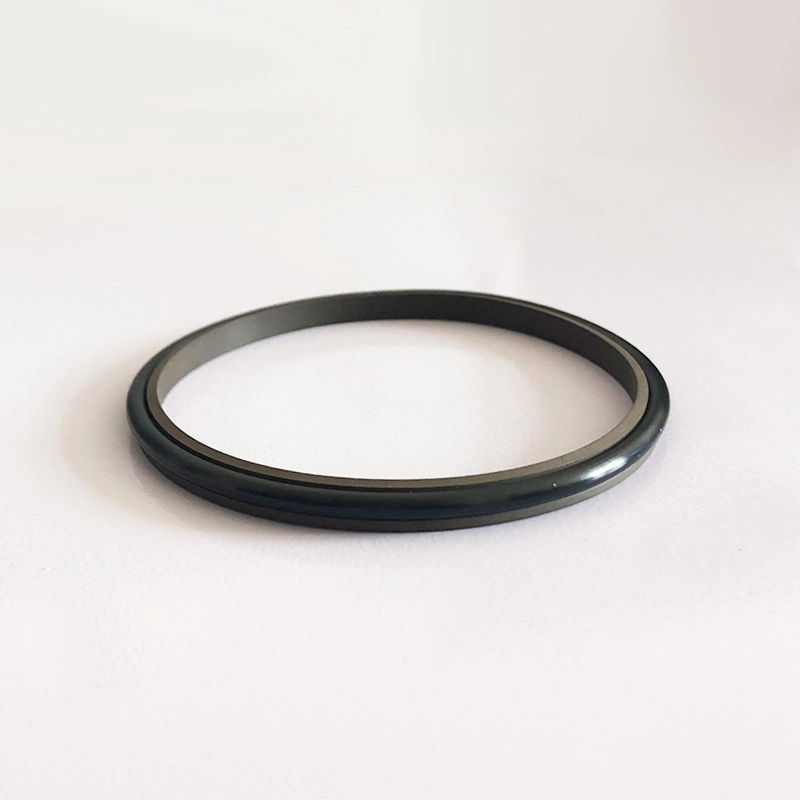

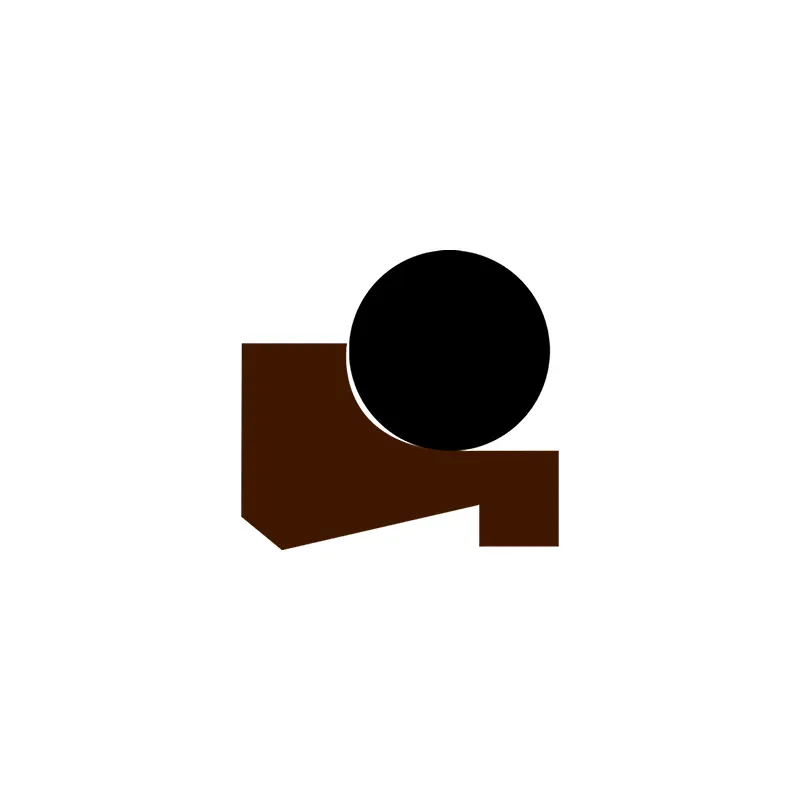

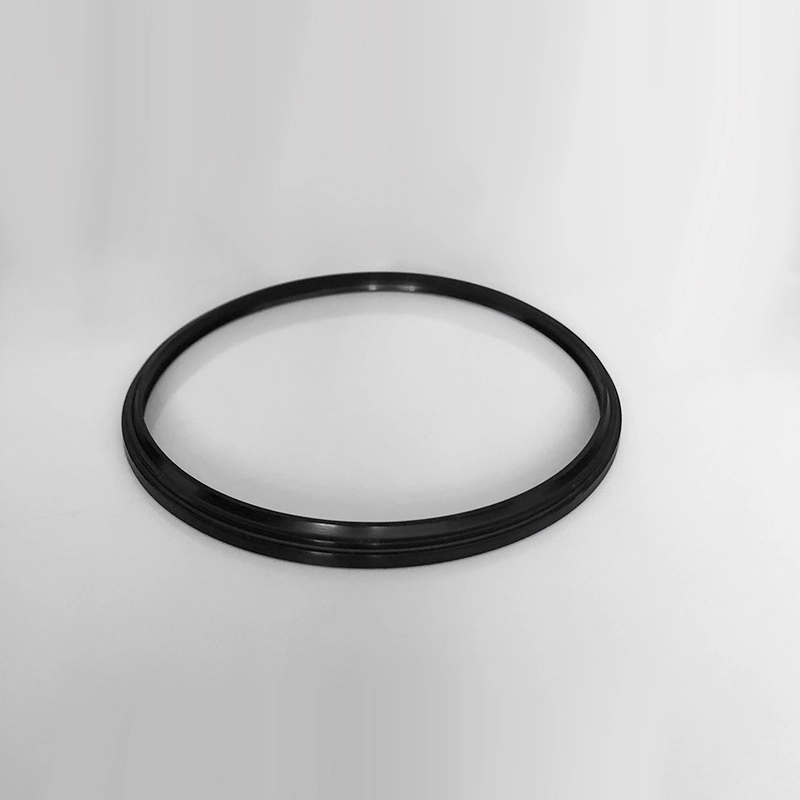

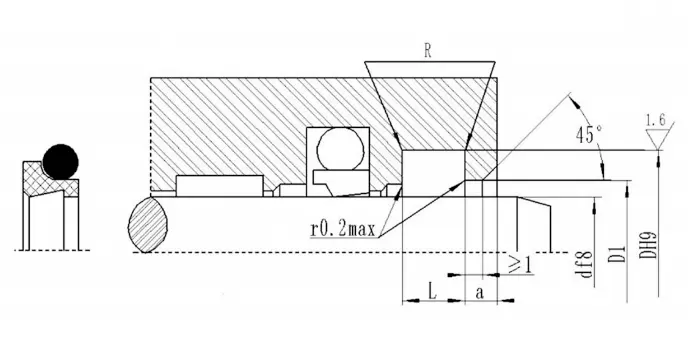

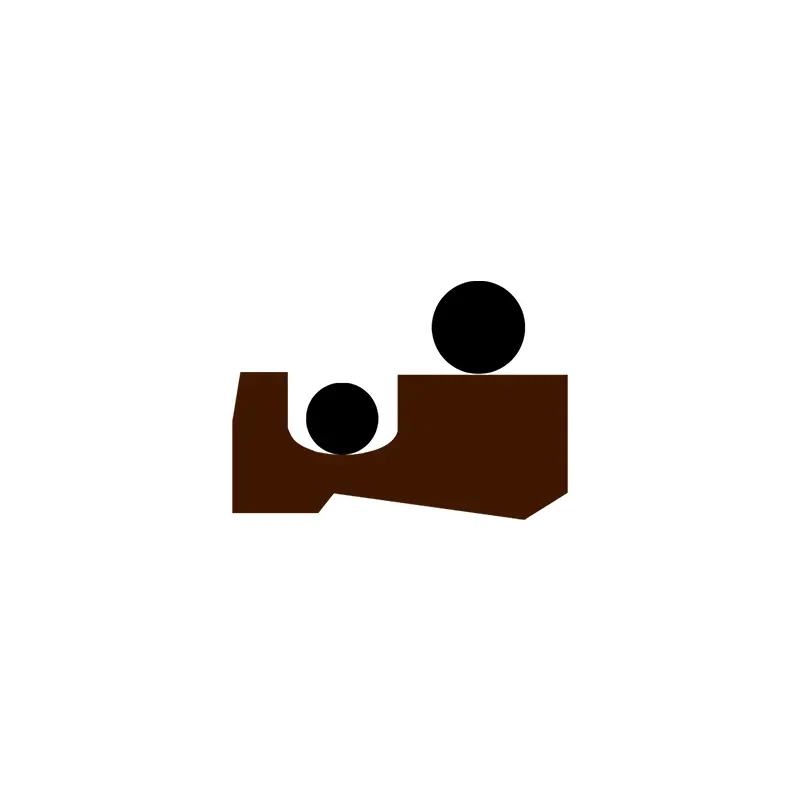

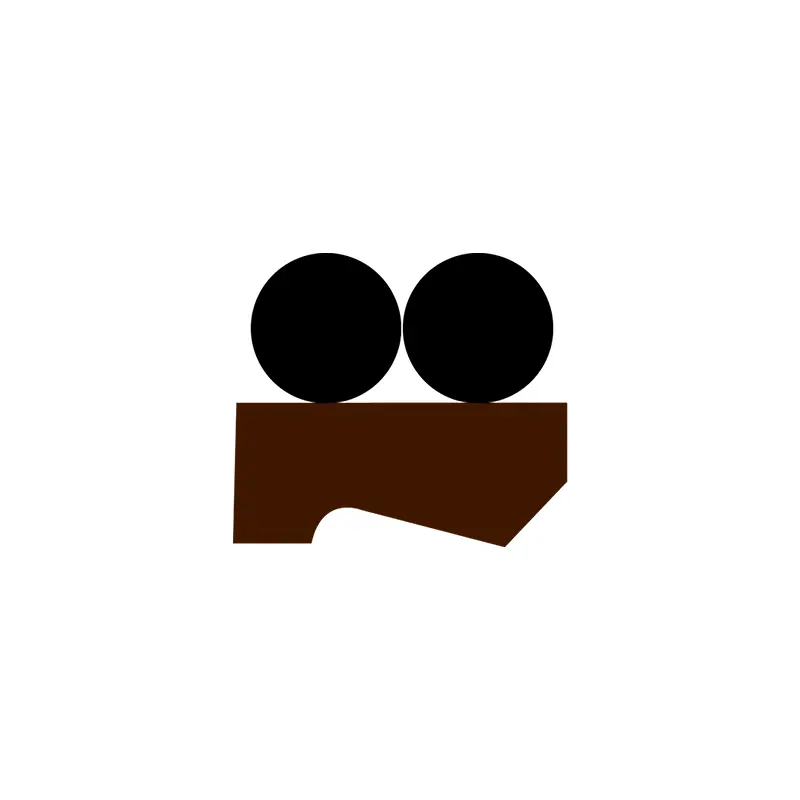

RCF04 lan RCF05 minangka cincin debu lipbang kaping pindho dumadi saka cincin sing bentuk khusus kanthi lambe sealing lan lambe dustroof lan rong dada minangka unsur preload, sing digunakake kanggo nambah panyegihan sakabehe. Nduwe karakteristik umur dawa, gesekan rendah, ora ana viskositas, lan linuwih sing dhuwur. RCF04 utamane digunakake ing mesin pertanian, pers hidraulik, mesin cetakan injeksi, sistem kontrol hidraulik, forklift, mesin rol, krenjang, lan mbukak mesin. RCF05 utamane digunakake ing pusing hidraulik, mesin cetakan injeksi, mesin gulung, mesin bola-bali metalurgi, lsp.

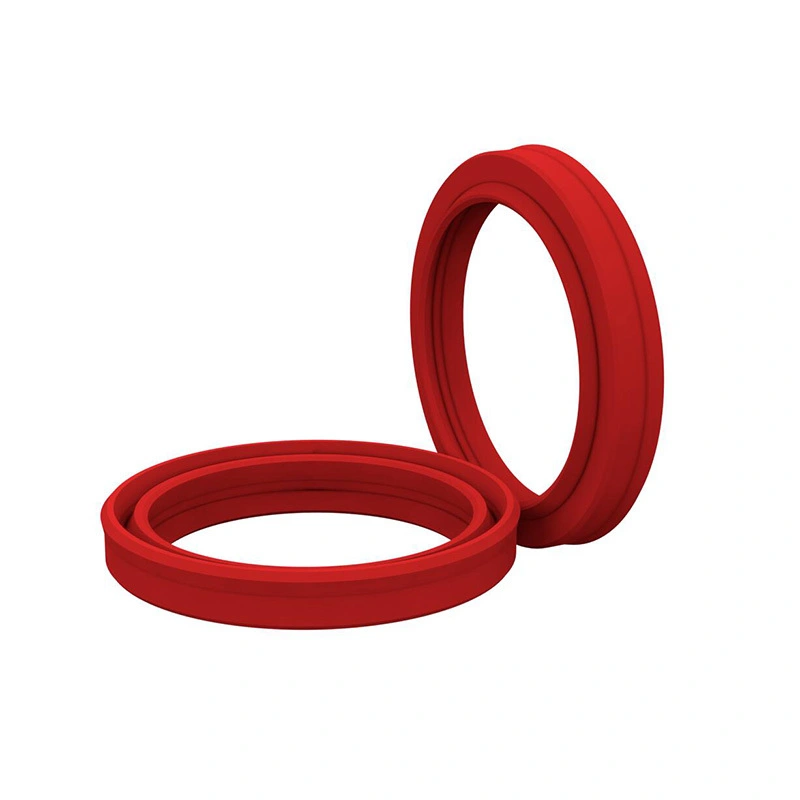

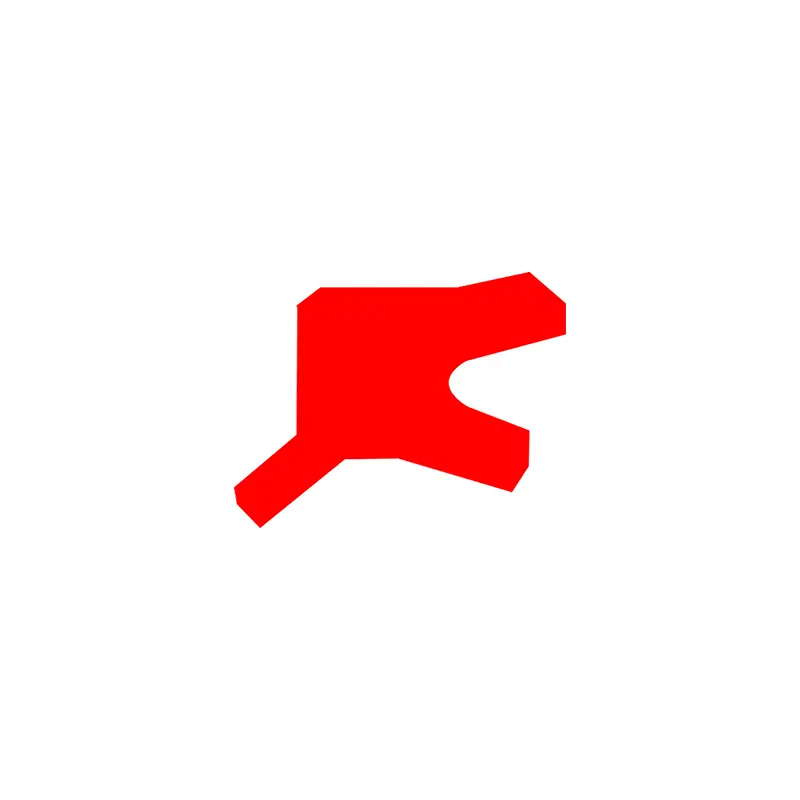

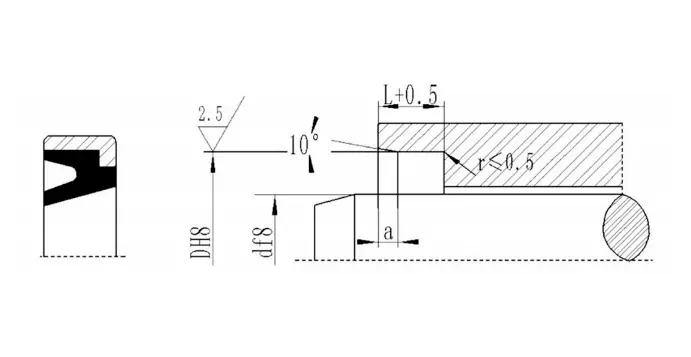

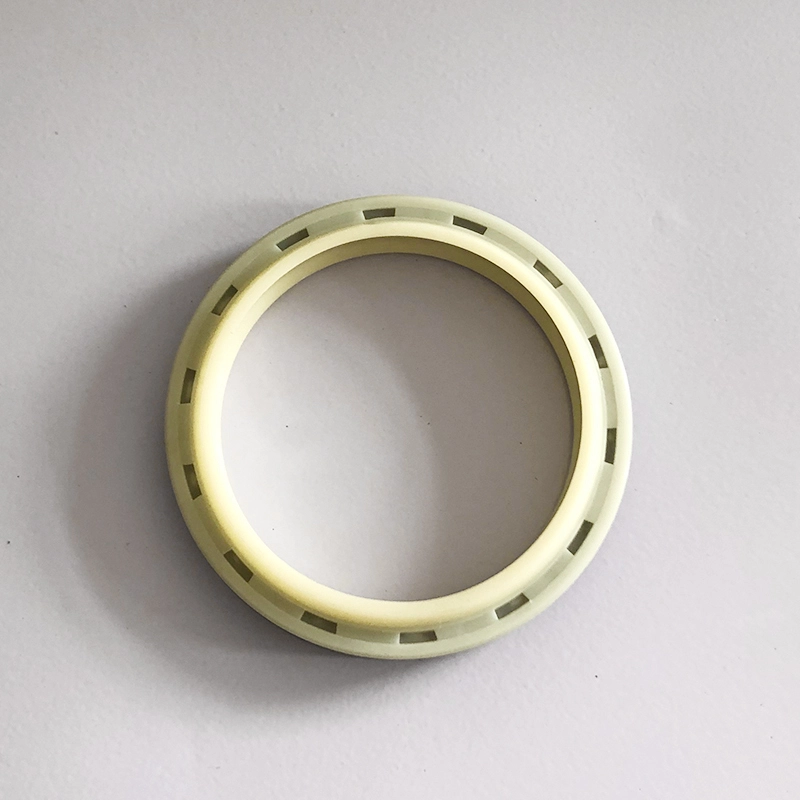

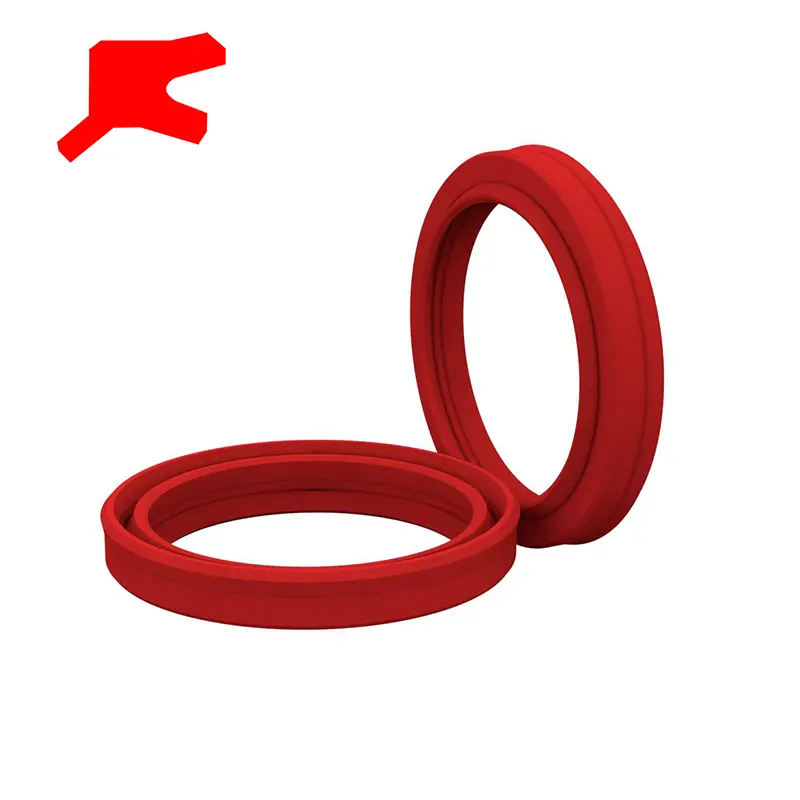

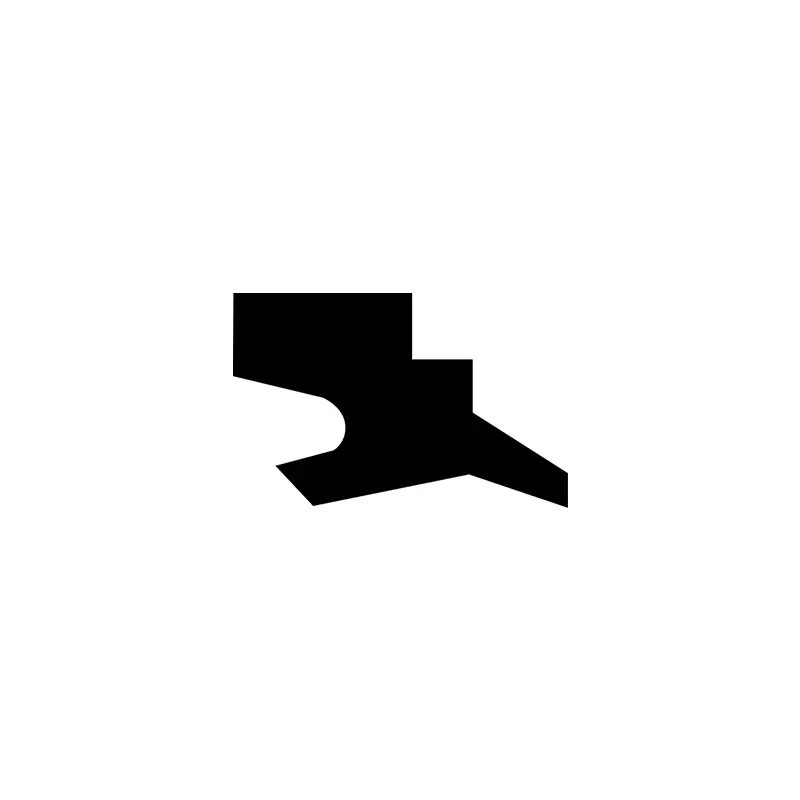

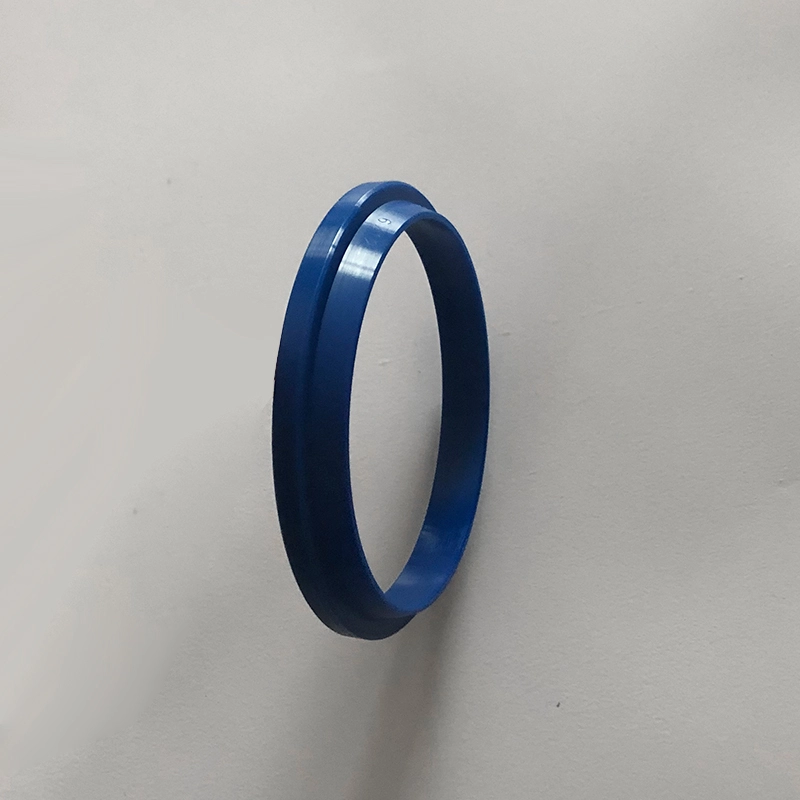

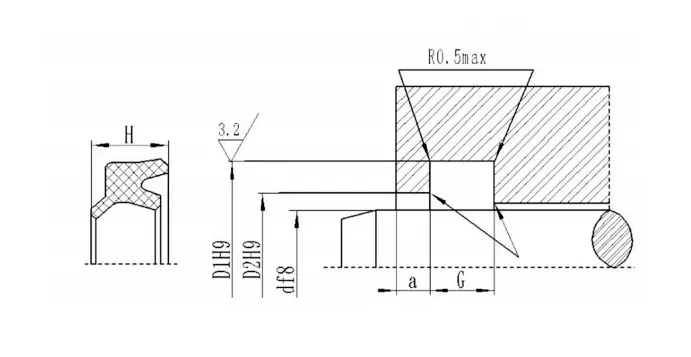

Dering DHS minangka cincin bledug funcis kanggo dual, sing duwe efek bledug lan fungsi film sealing tartamtu. Bahan kasebut minangka polyuretana dhuwur, karet nitrile, lan fluororubber.

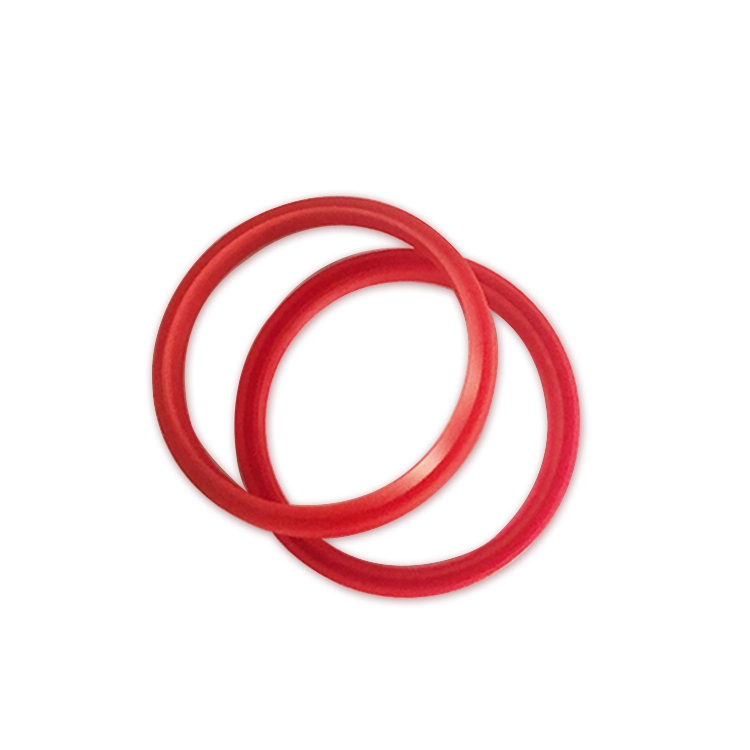

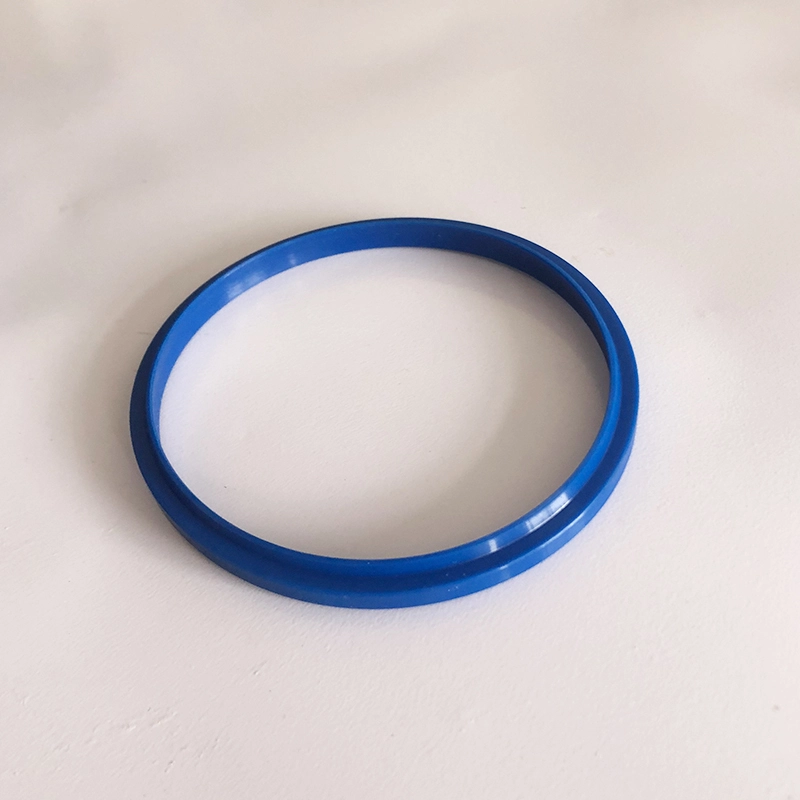

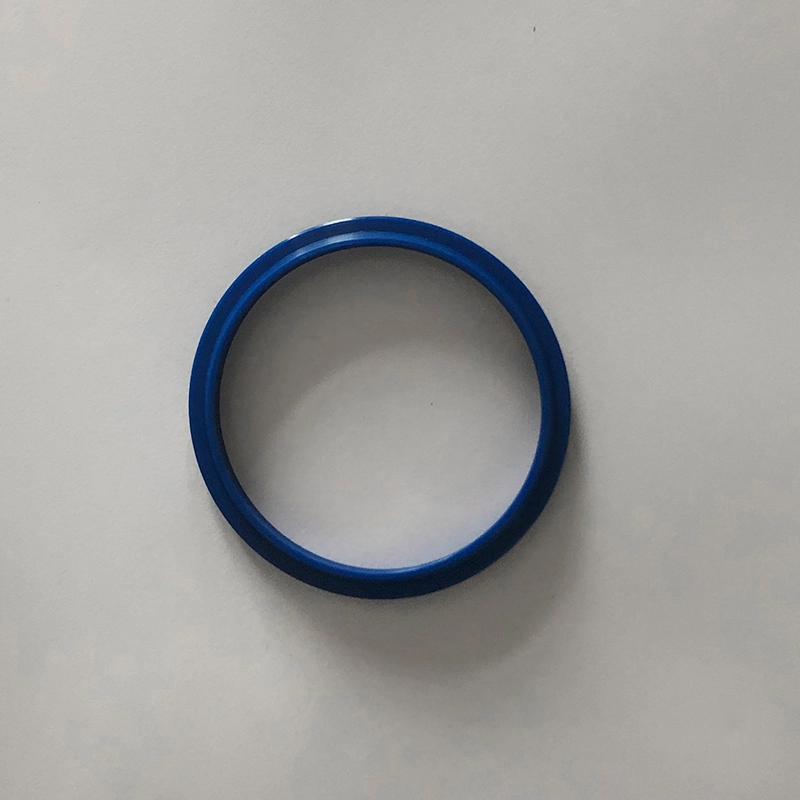

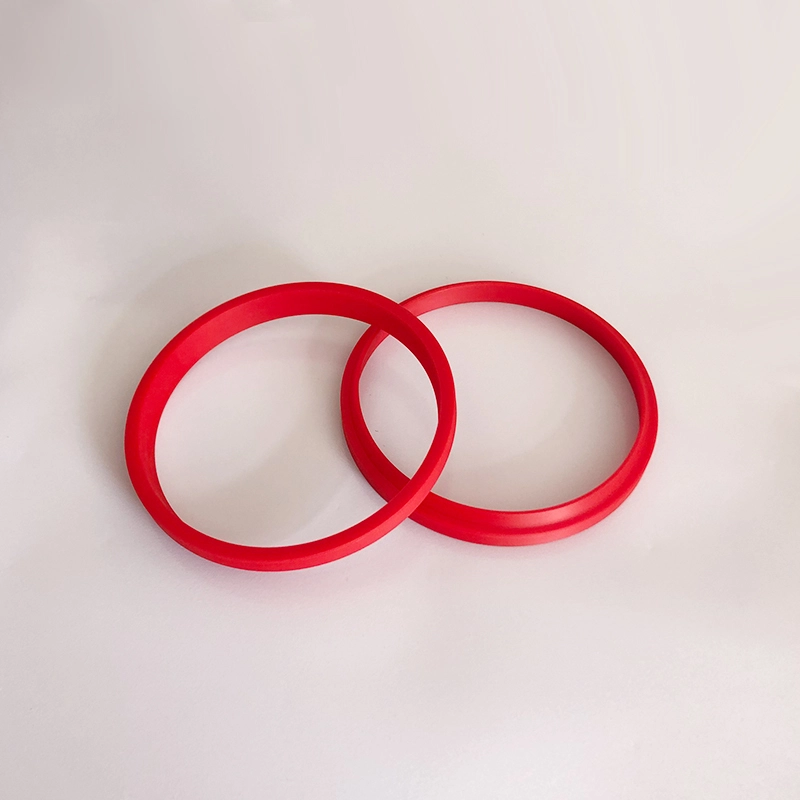

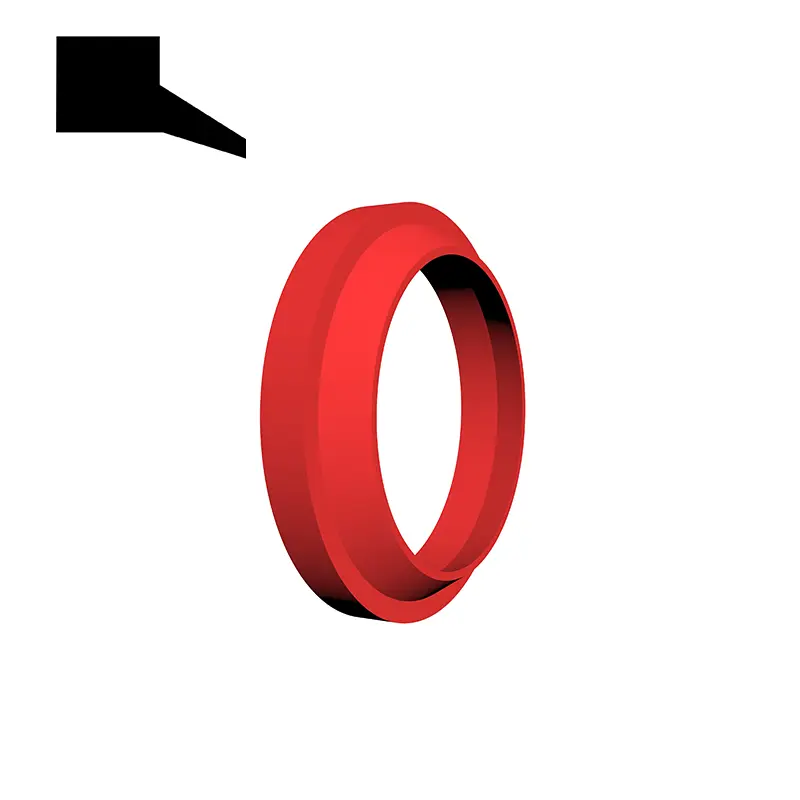

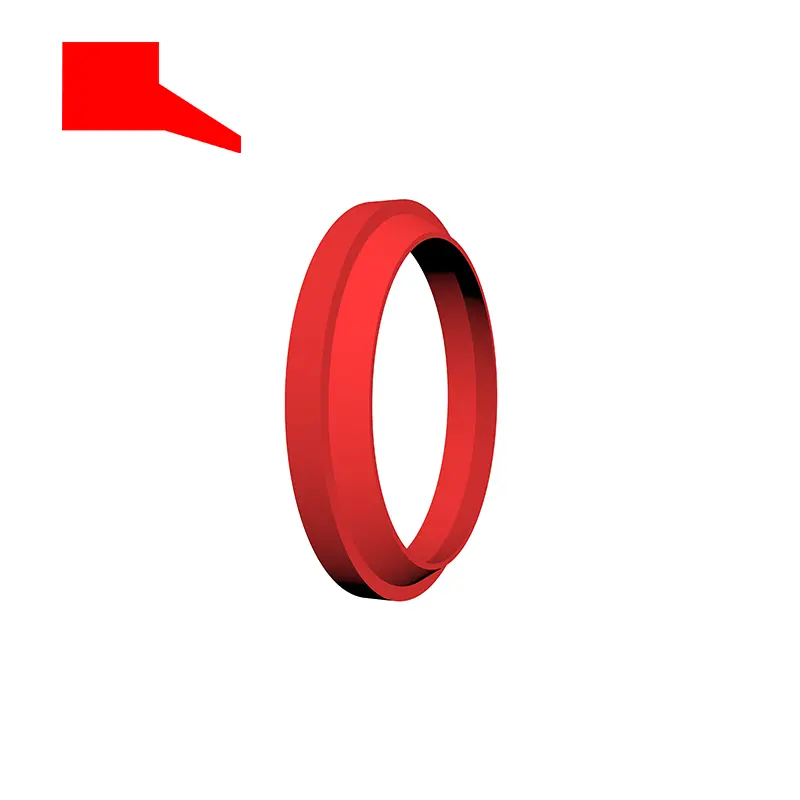

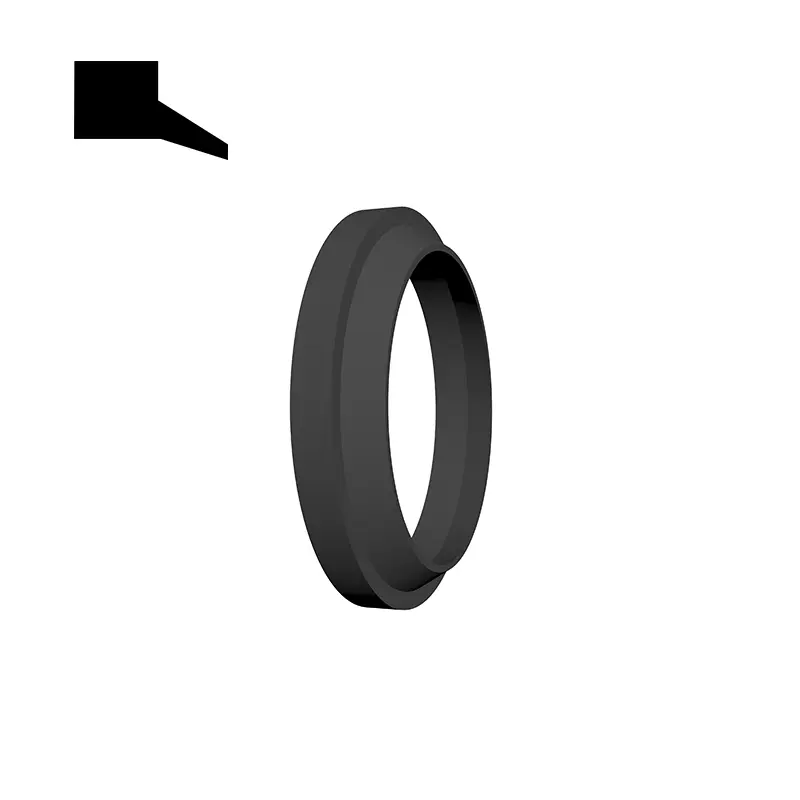

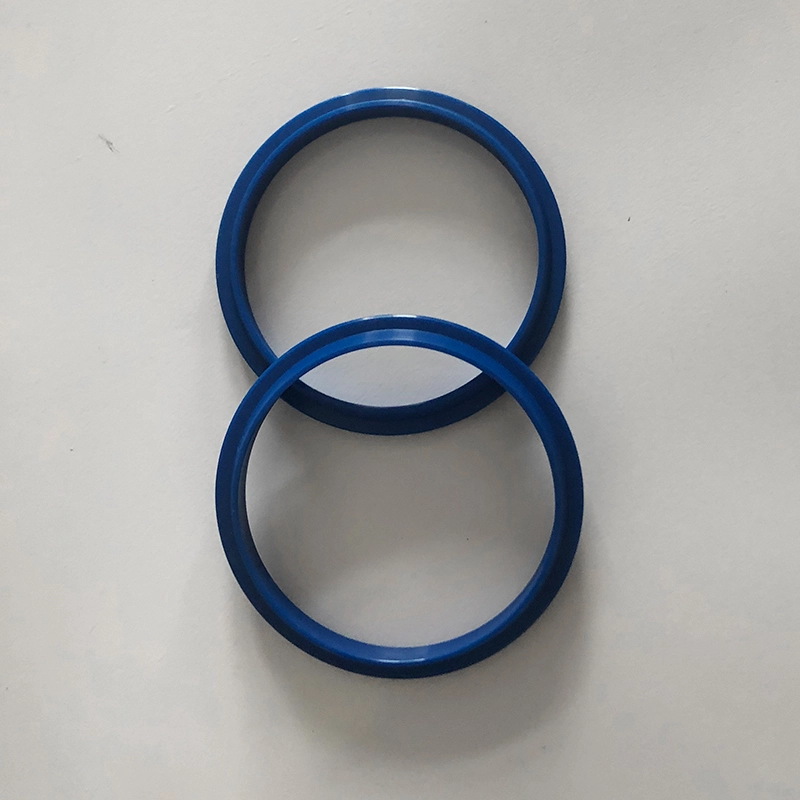

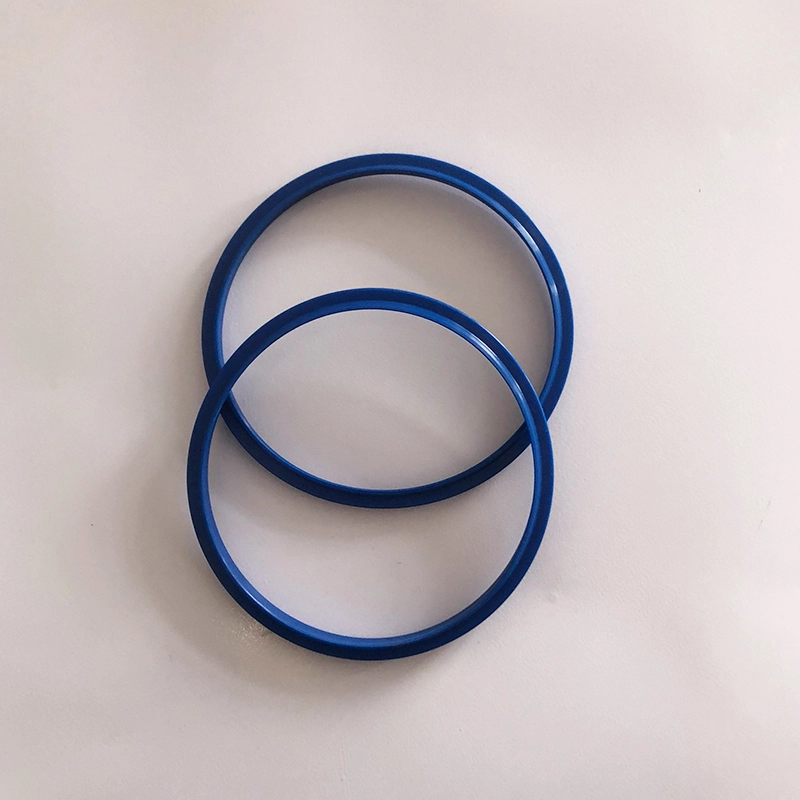

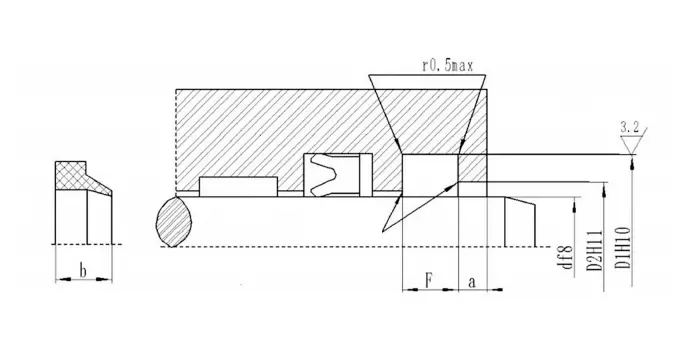

J-berbentuk J berbentuk digunakake kanggo mbebasake rod silinder hidraulik utawa batang katup kanggo bledug scrape. Bahan kasebut yaiku polyurethane (TPU / CPU) lan karet. Alur lan dimensi produk lan toleransi tundhuk karo JB / t6657-93 lan jb / t6656-93.

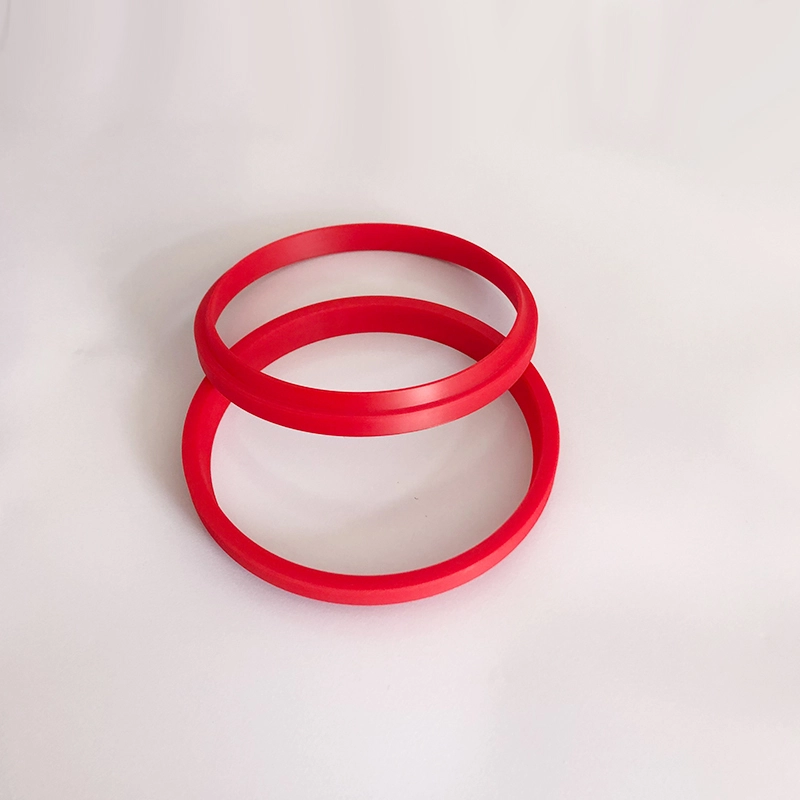

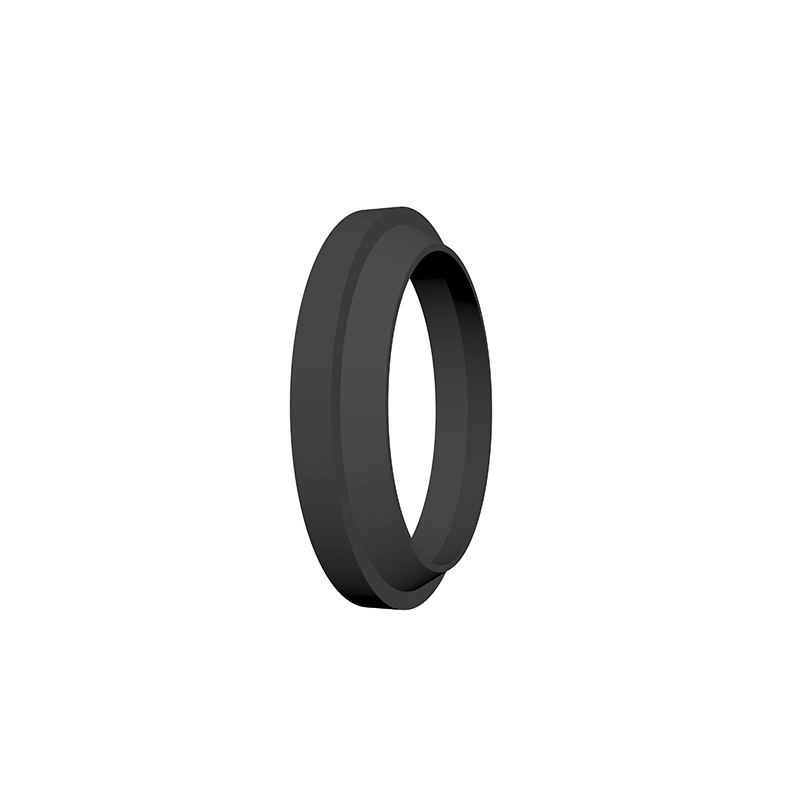

Cincin bledug GSM digunakake kanggo nyegah polutan eksternal kanggo nyampur menyang sistem hidrolik lan sistem panyegel, lan bisa ngasilake minyak hidraulik, lan bisa ngasilake minyak hidraulik menyang sistem pelumas tanpa ngilangi sisa bantu. Bahan kasebut minangka karet nitrile, fluorororubber, lan polyurethane.

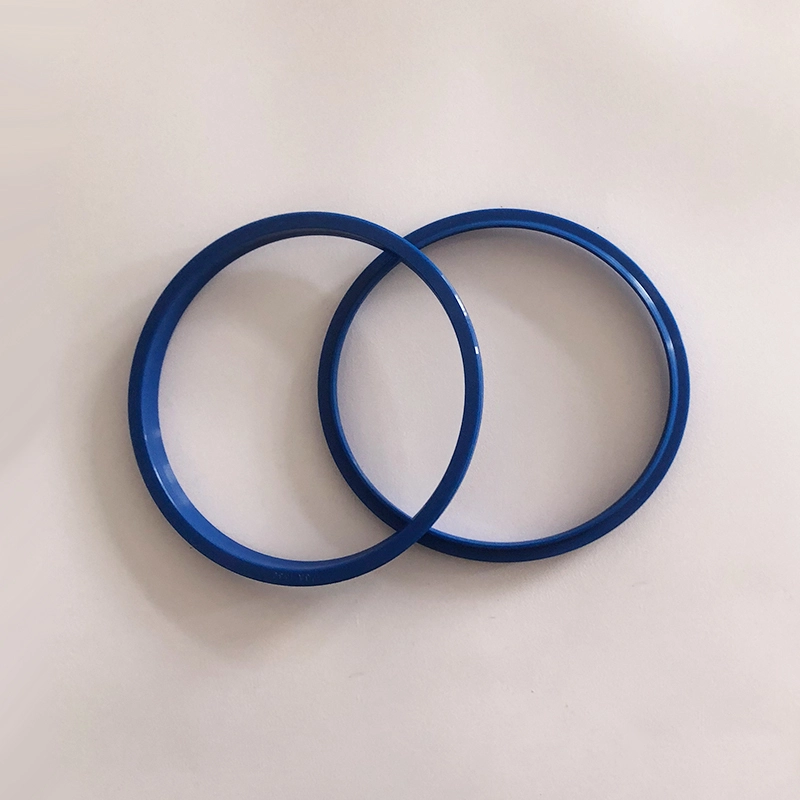

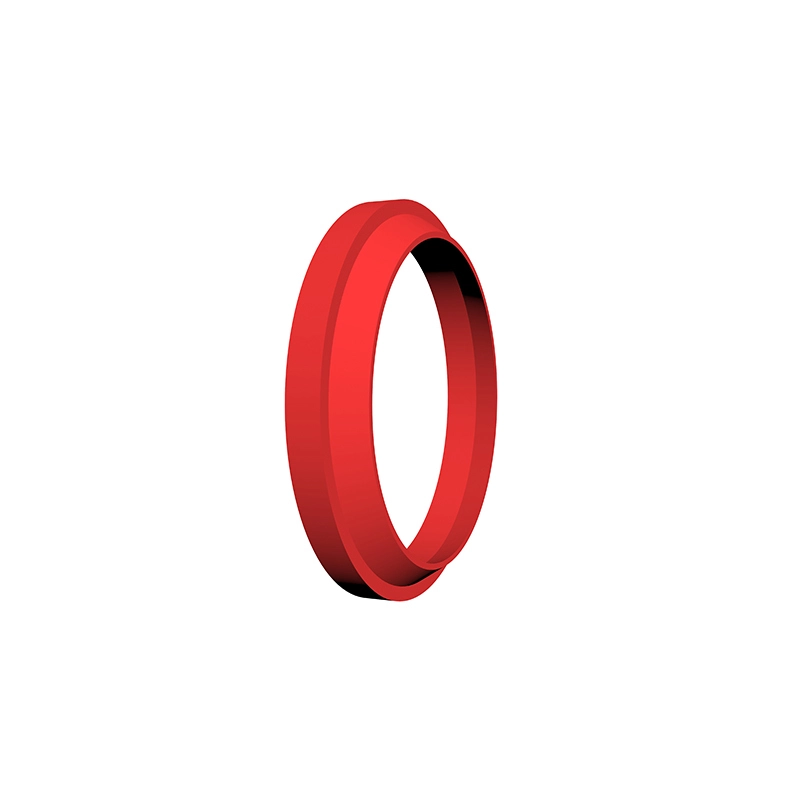

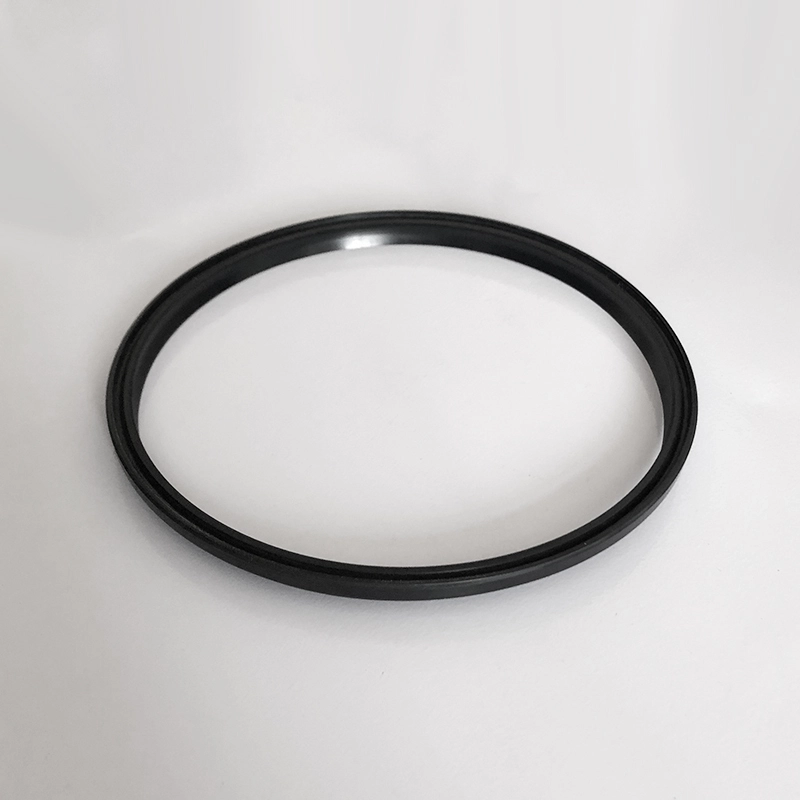

Cincin bledug GP1 lan GP6 digunakake kanggo nyegah polutan supaya bisa nyampur menyang sistem sistem lan sistem panyegel. Bahan kasebut yaiku nitrile karet nbr, lan fluororubber FKM dipilih kanthi suhu sing dhuwur. GP6 utamane digunakake kanggo segel bledug saka rod saka rod diston gedhe.

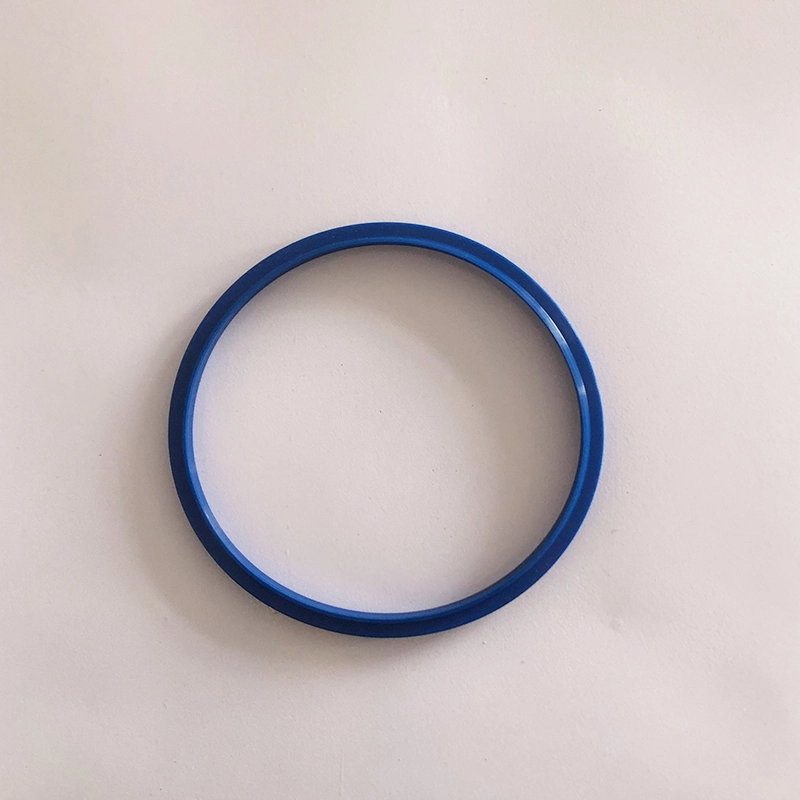

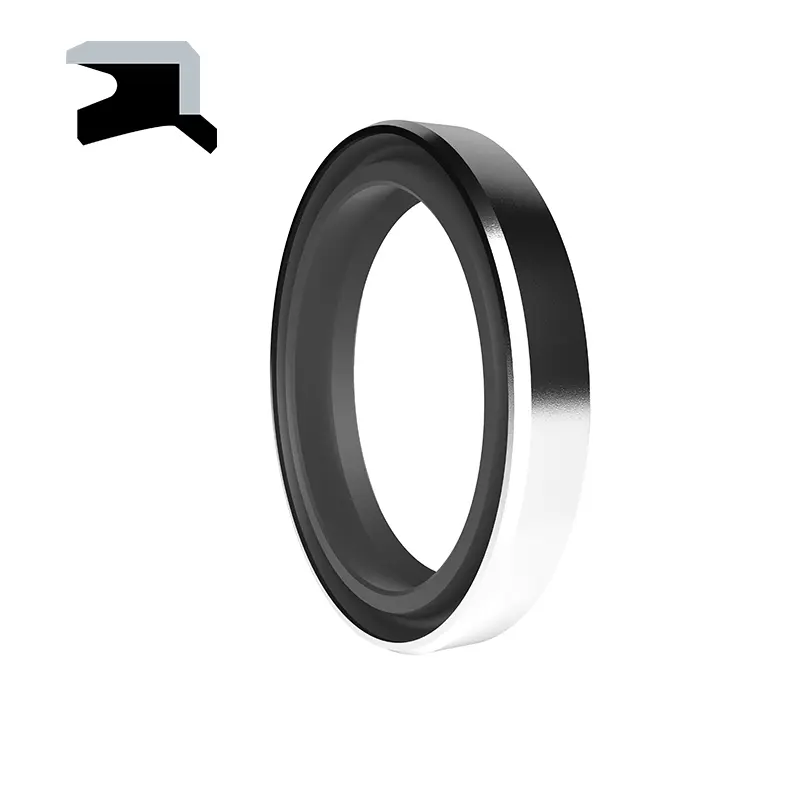

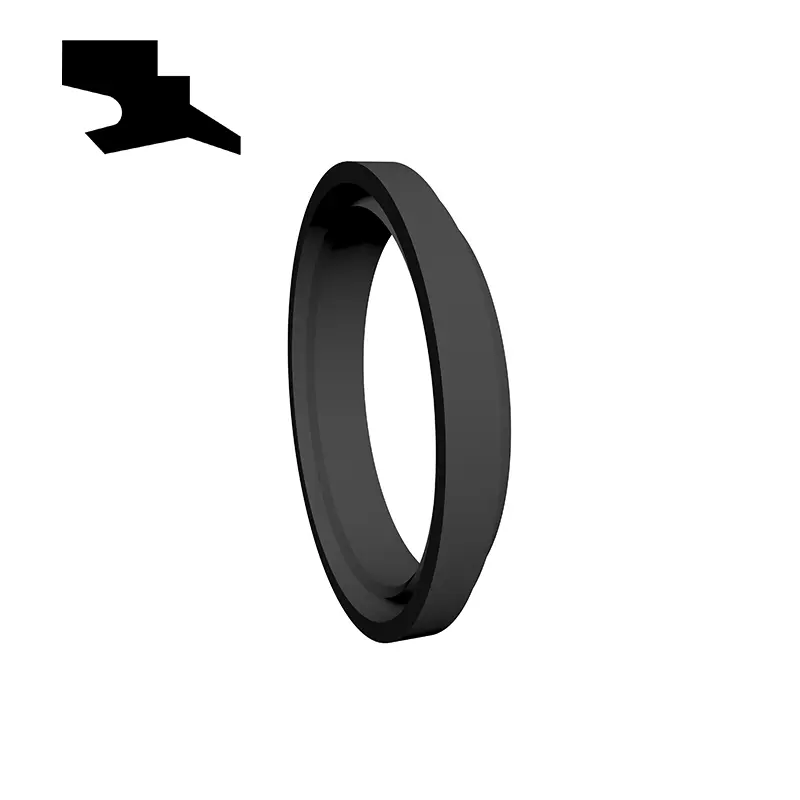

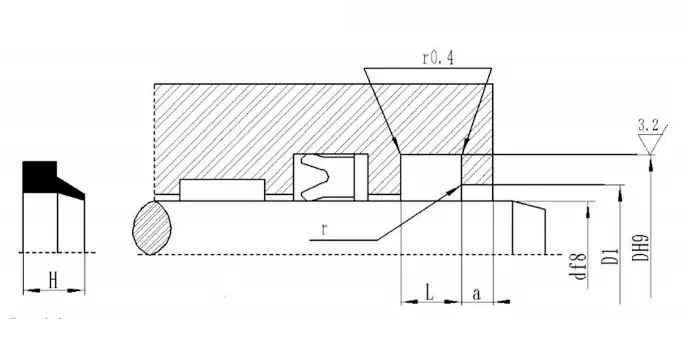

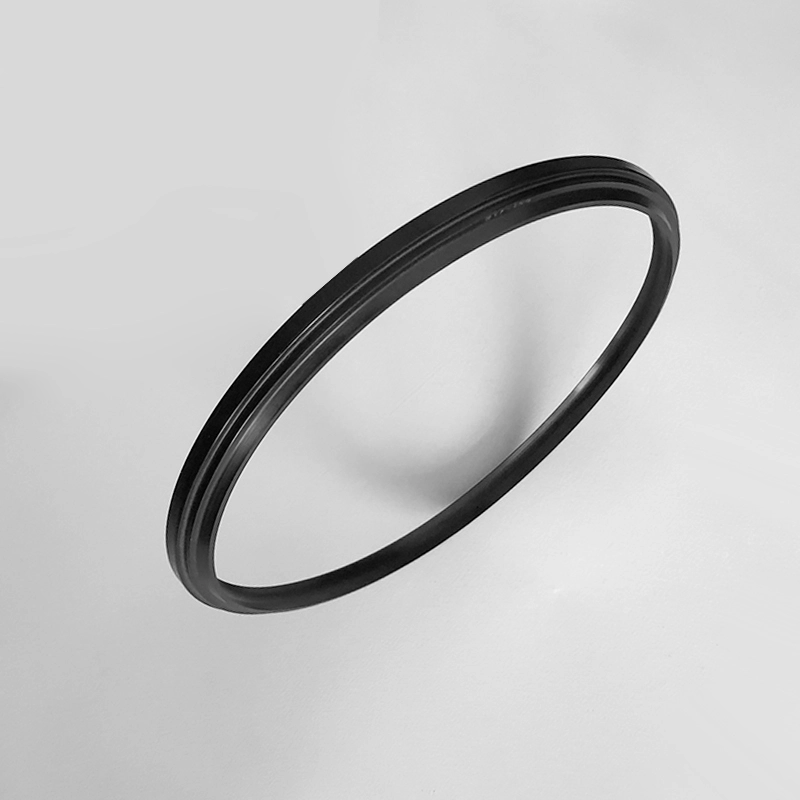

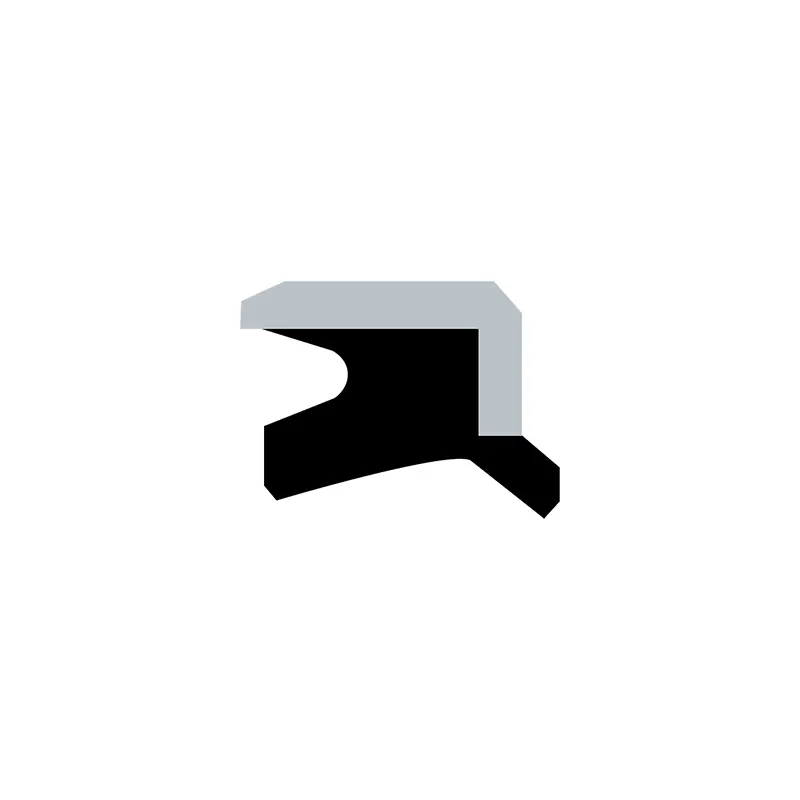

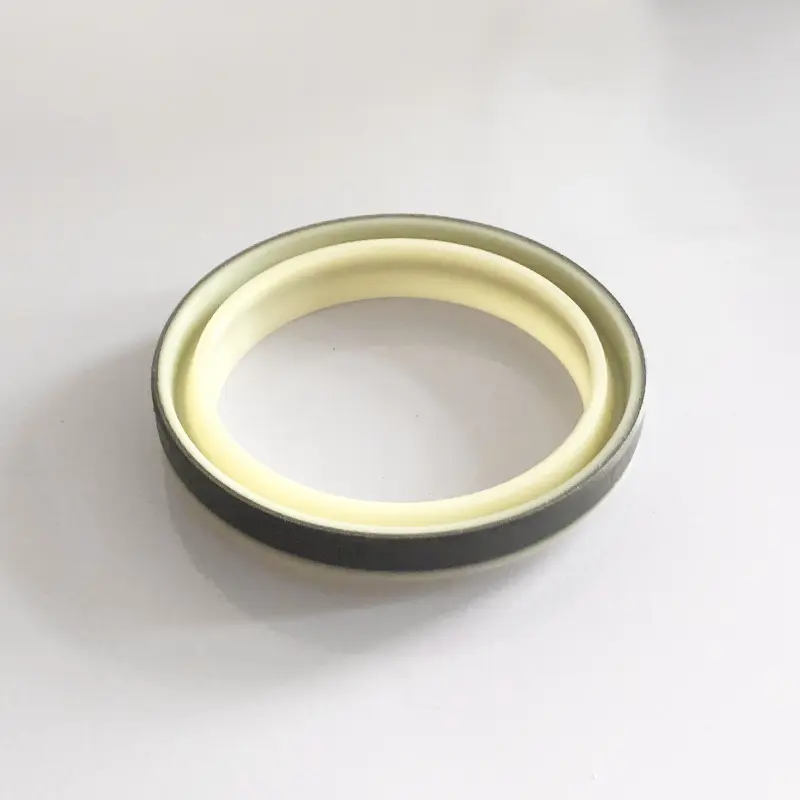

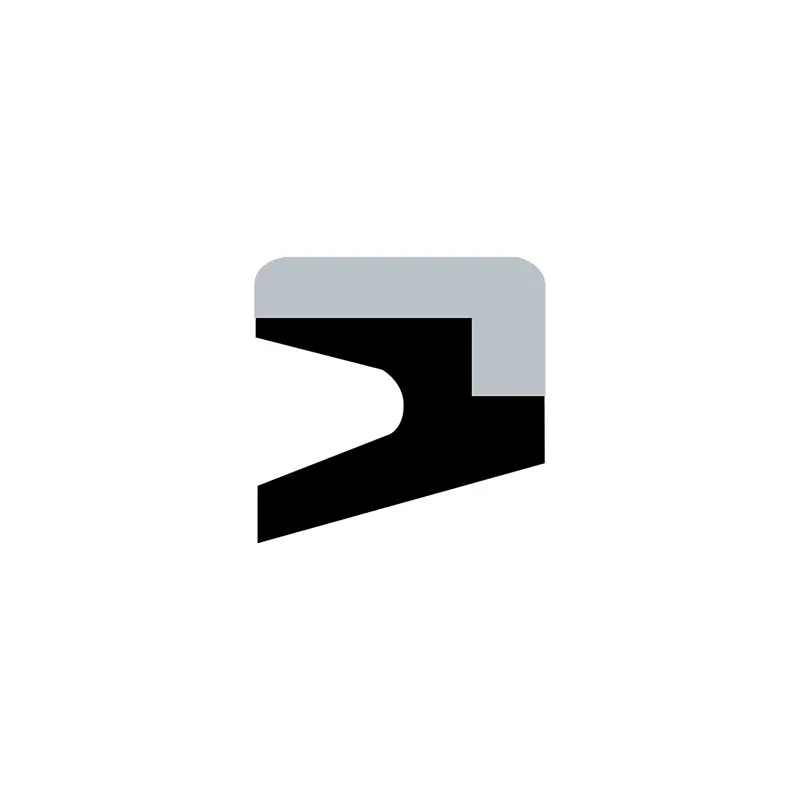

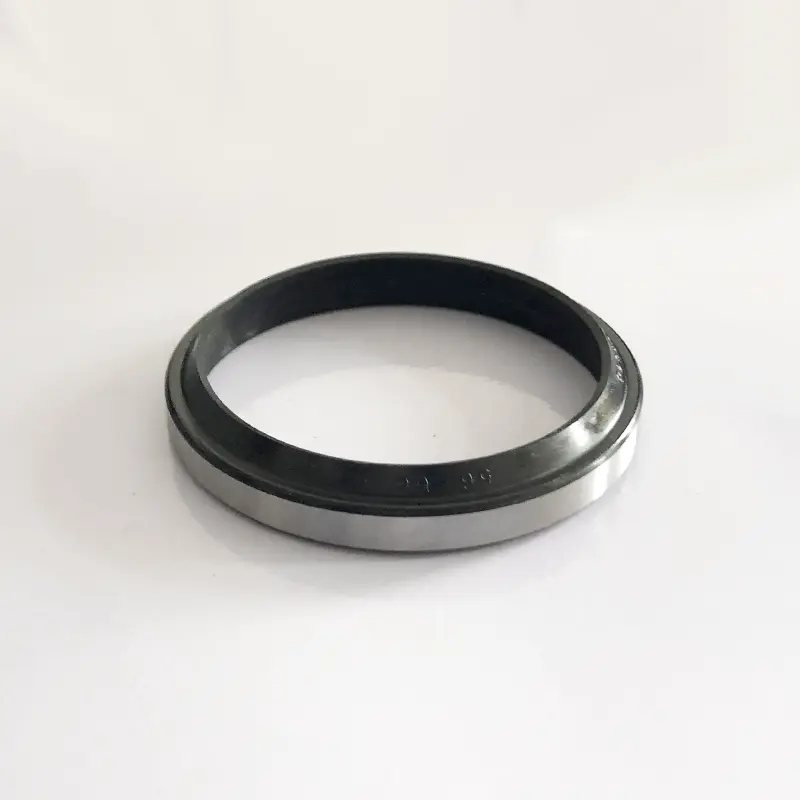

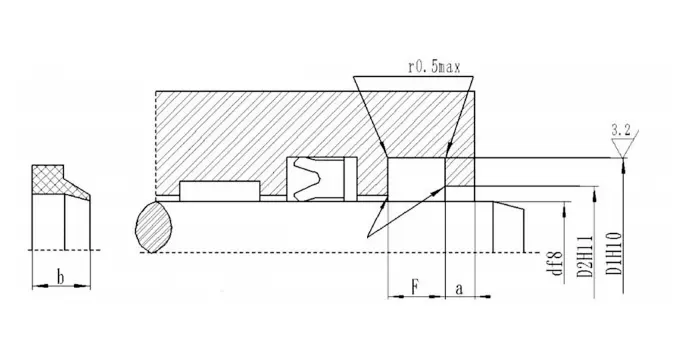

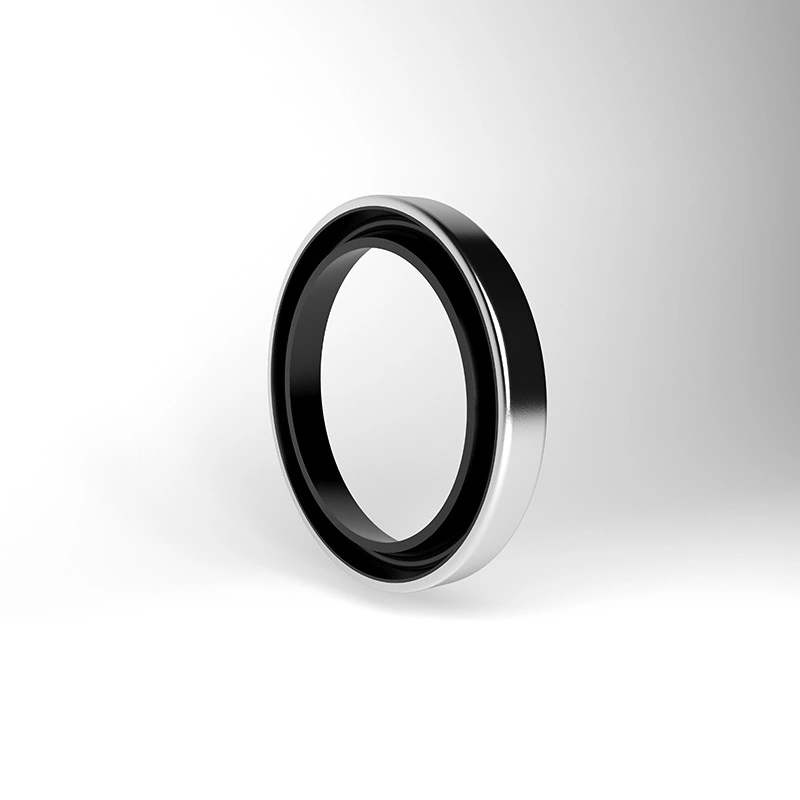

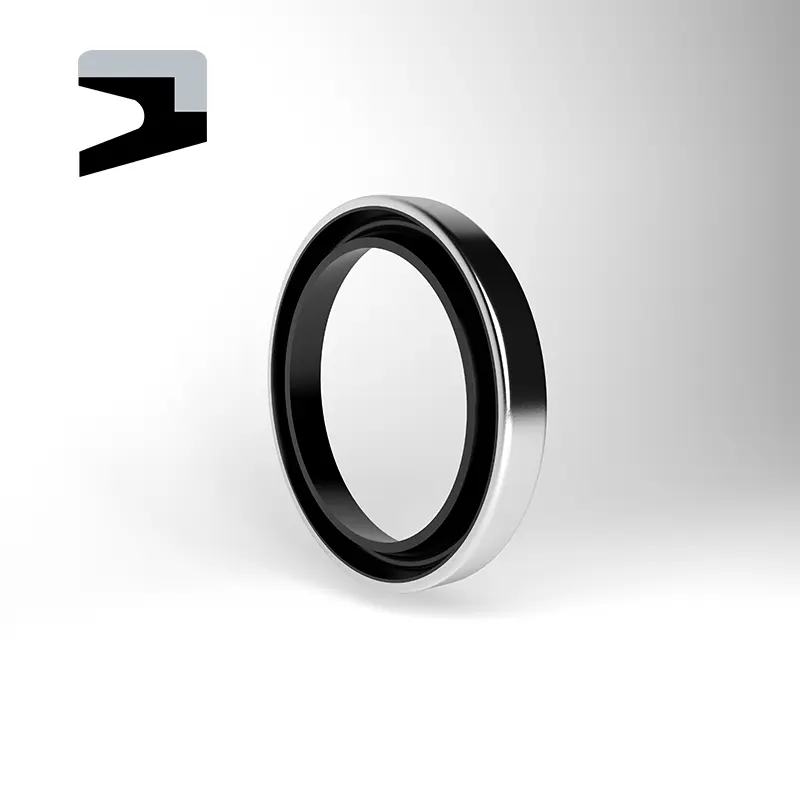

Cincin jinis bledos digunakake kanggo nyegah bledug, rereget, wedhi, lan logam chip kanggo mlebu silinder hidrolik. Ngurangi risiko goresan sing disebabake dening kontaminasi njaba sing dipasang ing unsur geser. Efek bledug sing apik banget bisa digayuh liwat desain khusus saka lambe dustproof. Cincin kasebut duwe ciri resistensi nyandhang kuwat, deformasi permanen, lan resistensi pengaruh mekanik eksternal. Cincin dustproof bisa diinstal kanthi kuat ing posisi sing cocog karo axial kanthi nggunakake gangguan ing antarane diameter njaba alur alur lan logam. Cocog yaiku siram, saengga lambe protèktif banget marang karusakan sing disebabake amarga ana alesan eksternal. Saka perspektif teknik, cincin dustroof jinis jenis minangka piranti panyusun silinder sirah silinder sing cocog.
Fitur lan Aplikasi Produk:
Conto Conto:
Model Pesenan RCF01-80-PTFE3-R01
RCF01-model diameteripun 80-shaft PTFE3-Umum Modified PTFE R01 Kode Karet Karet
Karet Nitrile (NBR) - R01 Fluororubber (FKM) -R02
Model Order RCF02-80-PTFE3-R01
RCF02-model diameteripun 80-shaft ptfe3-universal sing diowahi ptfe r01-sing cocog karo ptfe r01-sing cocog
Karet Nitrile (NBR) - R01 Fluororubber (FKM) -R02
Model pesenan rcf03-80-ptfe3-r01
RcF03-model diameter 80-shaft PTFE3-universal sing diowahi PTFE R01-Cocokake Kode Bahan Karet
Karet Nitrile (NBR) - R01 Fluororubber (FKM) -R02
Model Order RCF04-80-PTFE3-R01
RcF04-model diameteripun 80-shaft ptfe3-universal sing diowahi ptfe r01-cocog karet karet
Fluororubber nitrile (nbr01 fluorororubber (fkm) (fkm) -r02
Model Order RCF05-80-PTFE3-R01
RCF05-model diameterer 80-shaft ptfe3-umum kode karet karet karet ptfe r1-sing cocog
Fluororubber nitrile (nbr01 fluorororubber (fkm) (fkm) -r02
Model Pesenan: DHS-130 * 143 * 8 / 9.5-R01 D * D1 * G / H
Segel bledug j-jinis
Ja Type Debu
GSM
GSM segel bledug ditandhani nganggo nomer pesenan, contone: diameteripun gsm4048 40-shaft d 48 diameteripun groove ngisor d
GP1
Tandha Tandha: GP1-70 * 82 * 4/8 Model-D * l / h
GP6
Cara menehi tandha: GP6-70 * 80.6 * 5.3 / 7 Model-D * l / h
Saka
DKB

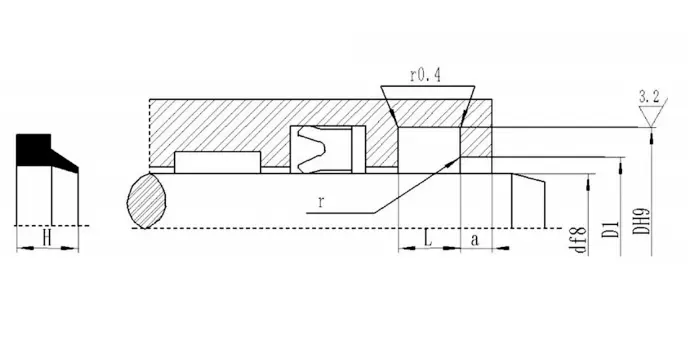

Spesifikasi

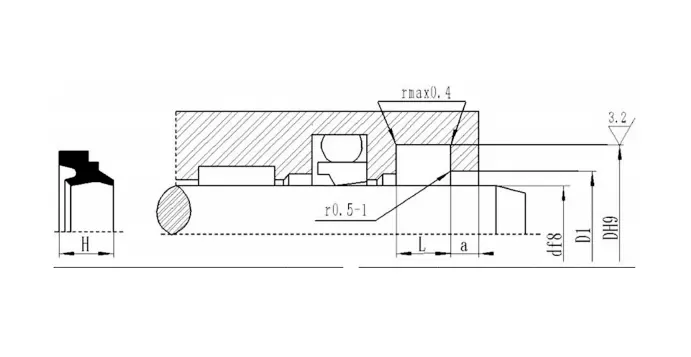

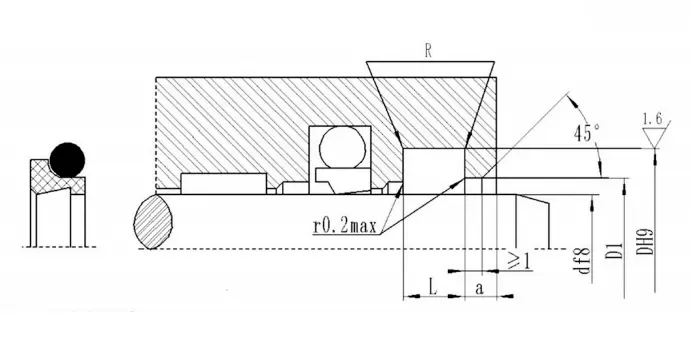

Rcf01| Range Diameter Shaft D F8 |
Diameteripun alur D h9 |
Jembaré alur L+0.2 |
Diameter bolongan mbukak D1H11 | Ambane bolongan mbukak A≥ |
Sudhut bunder R≤ |
Diameter kabel o-ring dO |
| 19 ~ 39 | D + 7,6 | 4.2 | D + 1.5 | 3 | 0.8 | 2.65 |
| 40 ~ 69 | D + 8.8 | 6.3 | D + 1.5 | 3 | 0.8 | 2.65 |
| 70 ~ 139 | D + 12.2 | 8.1 | D + 2.0 | 4 | 0.8 | 3.55 |
| 140 ~ 399 | D + 16.0 | 9.5 | D + 2.5 | 5 | 1.5 | 5.30 |
| 400 ~ 649 | D + 24.0 | 14.0 | D + 2.5 | 8 | 1.5 | 7.00 |
| 650 ~ 1500 | D + 27.3 | 16.0 | D + 2.5 | 10 | 2.0 | 8.60 |
| Range Diameter Shaft D F8 |
Diameteripun alur D h9 |
Jembaré alur L+0.2 |
Diameter bolongan mbukak D1H11 | Ambane bolongan mbukak A≥ |
Sudhut bunder R≤ |
Diameter kabel o-ring dO |
| 4 ~ 11 | D + 4.8 | 3.7 | D + 1.5 | 2 | 0.4 | 1.80 |
| 12 ~ 64 | D + 6.8 | 5.0 | D + 1.5 | 2 | 0.7 | 2.65 |
| 65 ~ 250 | D + 8.8 | 6.0 | D + 1.5 | 3 | 1.0 | 3.55 |
| 251 ~ 420 | D + 12.2 | 8.4 | D + 2.0 | 4 | 1.5 | 5.30 |
| 421 ~ 650 | D + 16.0 | 11.0 | D + 2.0 | 4 | 1.5 | 7.00 |
| 651 ~ 1500 | D + 20.0 | 14.0 | D + 2.5 | 5 | 2.0 | 8.60 |

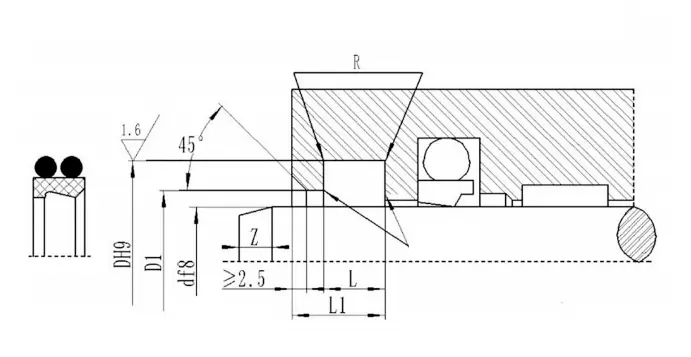

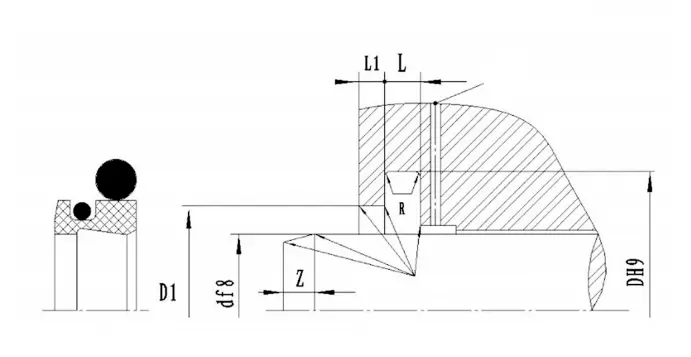

| Range Diameter Shaft D F8 |
Diameteripun alur DH9 |
Diameteripun langkah D1 H11 |
Jembaré alur L+0.2 |
Ambane sakabèhé L1 |
Sudhut bunder Rmax |
Dawane Chamfer Zmin |
| 20 ~ 39.9 | D + 7,6 | D + 1 | 4.2 | 8.2 | 0.4 | 3 |
| 40 ~ 69.9 | D + 8.8 | D + 1.5 | 6.3 | 10.3 | 1.2 | 4 |
| 70 ~ 139.9 | D + 12.2 | D + 2.0 | 8.1 | 12.1 | 2 | 6 |
| 140 ~ 399.9 | D + 16.0 | D + 2.0 | 11.5 | 15.5 | 2 | 8 |
| 400 ~ 649.9 | D + 24.0 | D + 2.5 | 15.5 | 19.5 | 2 | 10 |
| 650 ~ 1000 | D + 27.3 | D + 2.5 | 18.0 | 23.0 | 2 | 12 |
| Range Diameter Shaft D F8 |
Diameteripun alur DH9 |
Diameteripun langkah D1 H11 |
Jembaré alur L+0.2 |
Jembaré sisih L1 |
Sudhut bunder Rmax |
Dawane Chamfer Zmin |
| 100 ~ 229 | D + 22.2 | D + 10.7 | 6.3 | 4.2 | 1.2 | 6 |
| 230 ~ 299 | D + 24.2 | D + 10.7 | 6.3 | 4.2 | 1.2 | 8 |
| 300 ~ 629 | D + 33.0 | D + 15.1 | 8.1 | 6.3 | 1.2 | 10 |
| 630 ~ 1000 | D + 36,5 | D + 15.1 | 9.5 | 6.3 | 2 | 12 |

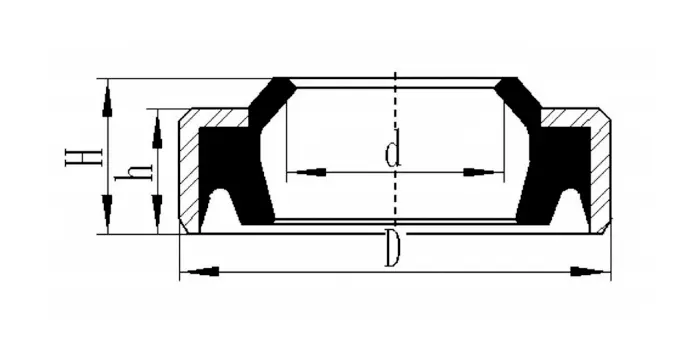

| Nomer Produk | d | D1 | H | G+0.3 | D2 | a |
| DHS 12 | 12 | 20 | 6 | 5 | 16.3 | 2 |
| DHS 14 | 14 | 22 | 6 | 5 | 18.3 | 2 |
| DHS 16 | 16 | 24 | 6 | 5 | 20.3 | 2 |
| DHS 18 | 18 | 26 | 6 | 5 | 22.3 | 2 |
| DHS 20 | 20 | 28 | 6 | 5 | 24.3 | 2 |
| Dhs 22 | 22 | 30 | 6 | 5 | 26.3 | 2 |
| DHS 25 | 25 | 33 | 6 | 5 | 29.3 | 2 |
| DHS 28 | 28 | 36 | 6 | 5 | 32.3 | 2 |
| DHS 30 | 30 | 38 | 6.5 | 6 | 34 | 2 |
| DHS 32 | 32 | 40 | 6.5 | 6 | 36 | 2 |
| DHS 35 | 35 | 43 | 6.5 | 6 | 39 | 2 |
| DHS 38 | 38 | 46 | 6.5 | 6 | 42 | 2 |
| Dhe 40 | 40 | 48 | 6.5 | 6 | 44 | 2 |
| DHS 45 | 45 | 53 | 6.5 | 6 | 49 | 2 |
| DHS 48 | 48 | 56 | 6.5 | 6 | 52 | 2 |
| DHS 50 | 50 | 58 | 6.5 | 6 | 54 | 2 |
| DHS 55 | 55 | 63 | 6.5 | 6 | 59 | 2 |
| DHS 56 | 56 | 64 | 6.5 | 6 | 60 | 2 |
