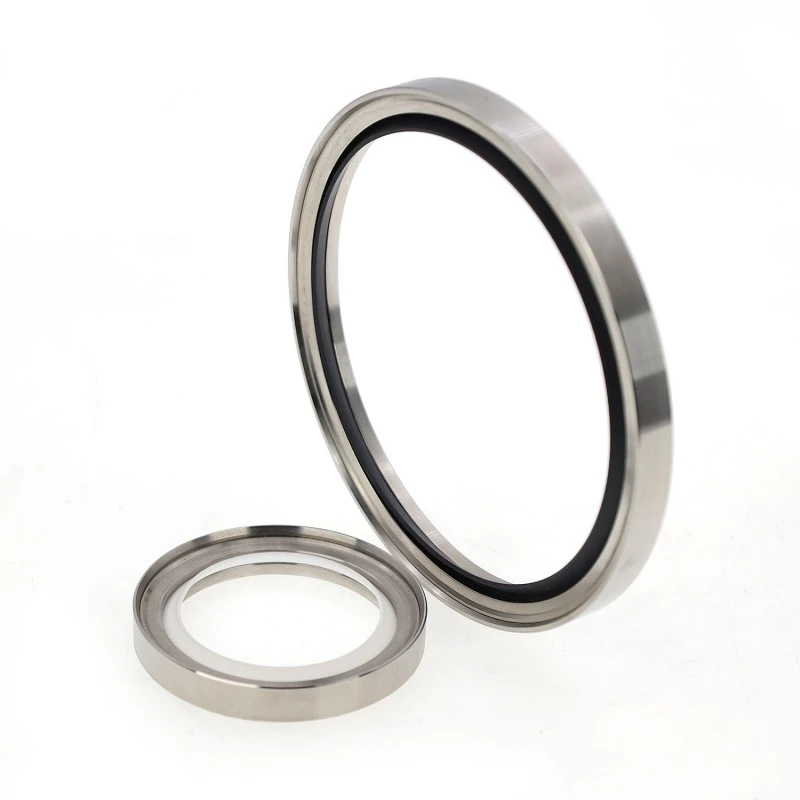

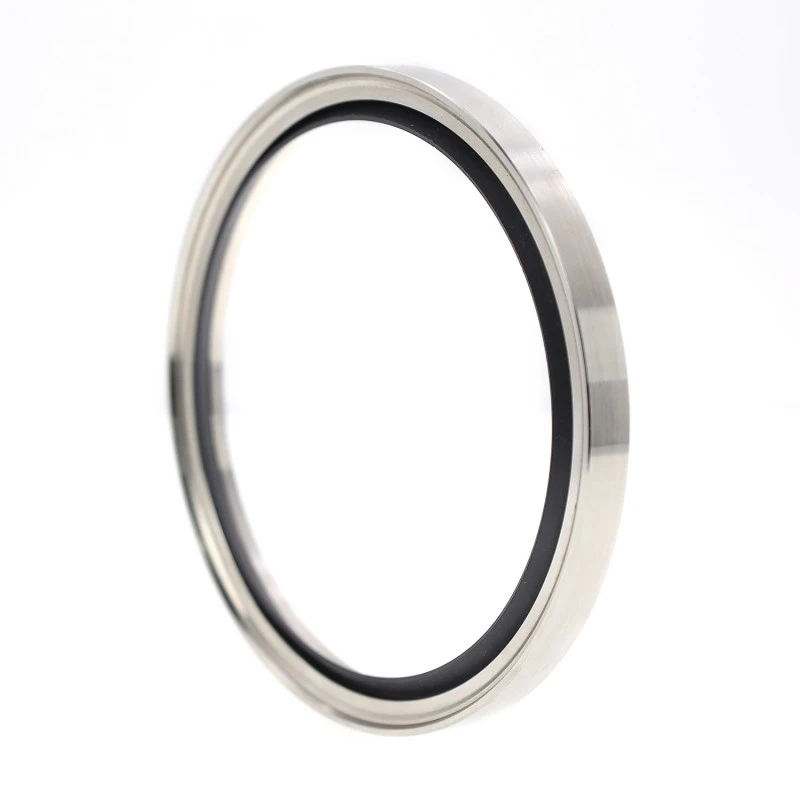

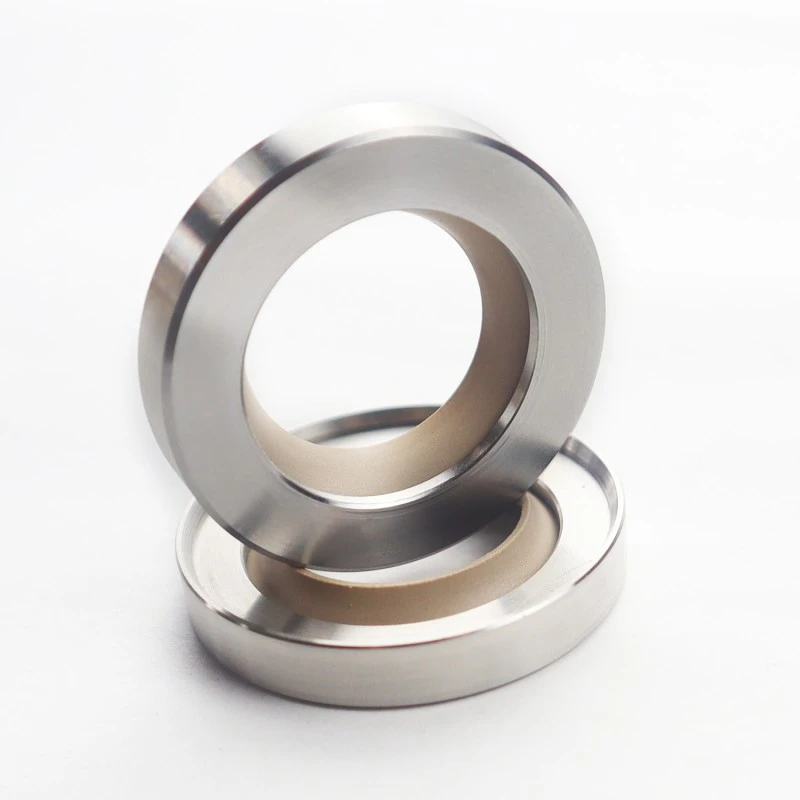

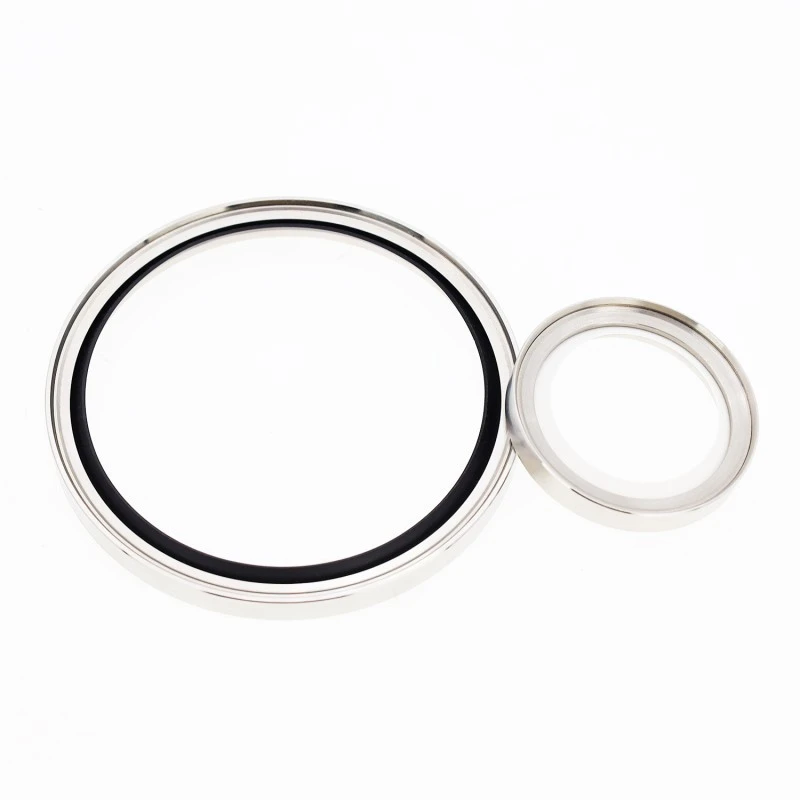

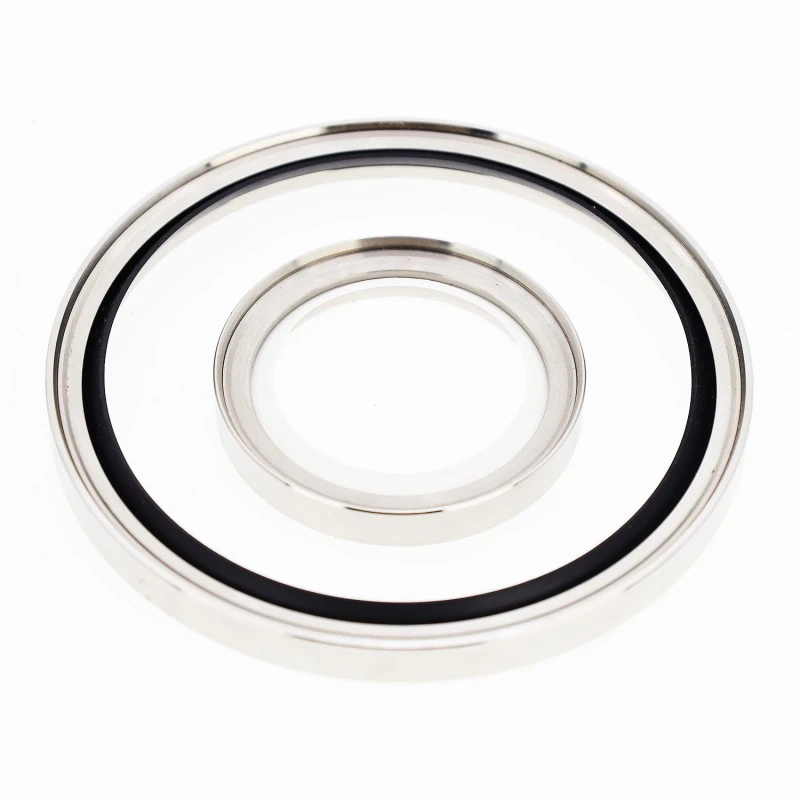

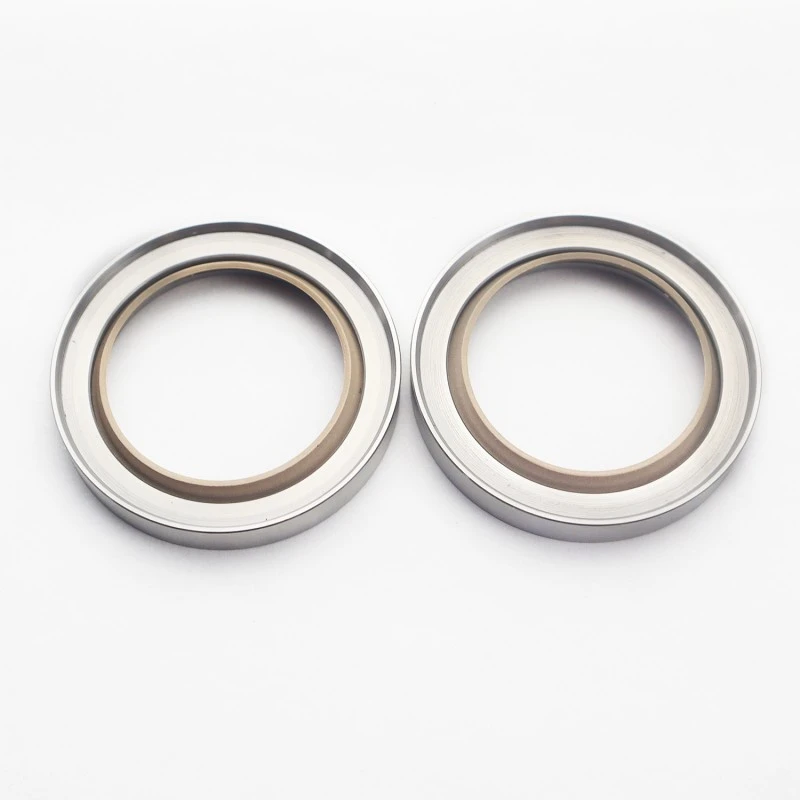

1. Resistance kimia banget
2. Wide sawetara suhu operasi
3. Cocog kanggo pelumasan kurang lan pelumasan tanpa lenga
4. Gesekan kurang kanggo konsumsi daya minimal
5. Cocog kanggo kacepetan linear dhuwur
6. Ora efek kelet-slip, resistance wiwitan kurang sawise downtime ingkang dipun danguaken
7. Cocog kanggo unhardened puteran shafts (karo pilihan cocok PTFE lip segel)
8. Cocog kanggo aplikasi tekanan dhuwur
Aplikasi khas kalebu: kompresor rotary, kompresor sekrup, transmisi / gearbox, blower, mesin, alat mesin, pompa, motor hidrolik, centrifuge, lsp.
Syarat atose kanggo lumahing kawin
Kekerasan sing disaranake: HRC ≥ 58. Kekerasan sing dibutuhake gumantung saka akeh faktor; kanggo meksa kurang lan aplikasi kacepetan kurang, shafts puteran alus uga cocok. Kanggo logam alus, segel lambe PTFE6 dianjurake.
Syarat kualitas kanggo lumahing kawin Ra=0,2-0,63 um Rz=1-3um Rmax=1-4um
|

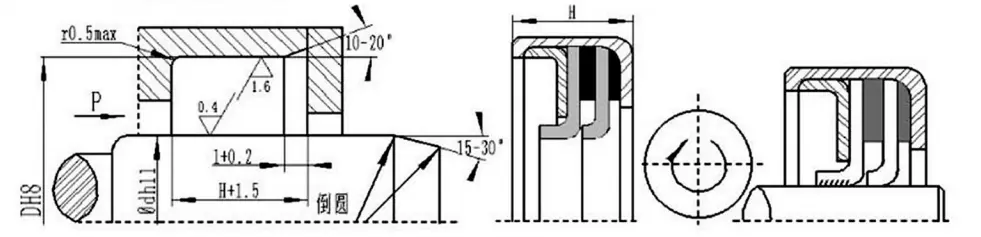

Bentuk cross-sectional |
Model |
Tekanan |
Suhu |
Kacepetan |
Sedheng |
|
|
RCS-A |
0.5 |
-35~+200 |
40 |
Lenga, gas, banyu, lsp. |
|
|
RCS-B |
2 |
-35~+200 |
20 |
Lenga, gas, banyu, lsp. |
|
|
RCS-C |
1 |
-35~+200 |
20 |
Lenga, gas, banyu, lsp. |
|
|
RCS-D |
2 |
-35~+200 |
20 |
Lenga, gas, banyu, lsp. |
Fluid Dynamic Spiral Recirculation Seal: Tipe RCS-D nggunakake segel lambe kanthi pola recirculation spiral, ningkatake kinerja sealing. Poros puteran mung diijini muter ing siji arah.
Syarat lokasi instalasi
Tuladha pesenan: RCS-A-65×85×10 Model - d×D×H
|
d*D*H |
d*D*H |
d*D*H |
d*D*H |
d*D*H |
d*D*H |
d*D*H |
d*D*H |
|
7*20*6 |
18*30*6 |
25*40*10 |
35*50*7 |
50*68*8 |
70*85*10 |
100*120*10 |
150*180*12 |
|
7*20*7 |
18*30*7 |
25*42*6 |
35*50*8 |
50*70*10 |
70*90*7 |
100*125*12 |
150*180*14 |
|
8*18*7 |
18*32*6 |
25*42*10 |
35*52*6 |
50*72*7 |
70*90*10 |
100*125*13 |
160*185*8.5 |
|
8*20*6 |
18*32*8 |
25*45*11 |
35*54*6 |
50*72*12 |
70*95*13 |
105*130*7.5 |
160*185*12 |
|
8*22*6 |
18*35*6 |
25*47*6 |
35*55*11 |
52*68*10 |
75*95*7 |
105*130*12 |
160*190*15 |
|
8*22*7 |
18*35*8 |
26*40*6 |
38*50*6 |
52*70*10 |
75*95*10 |
105*135*14 |
160*200*10 |
|
10*22*6 |
19*35*6 |
26*42*8 |
38*52*8 |
52*75*12 |
75*100*11 |
110*135*12 |
170*195*12 |
|
10*22*7 |
19*35*8 |
27*47*11 |
38*58*11 |
55*70*7 |
75*100*13 |
110*140*14 |
170*200*12 |
|
10*25*7 |
20*30*7 |
28*40*6 |
40*52*7 |
55*72*7 |
80*95*10 |
110*150*8 |
170*200*14 |
|
12*22*6 |
20*32*7 |
28*40*7 |
40*52*8 |
55*72*8 |
80*100*7 |
115*145*14 |
170*200*16 |
|
12*22*7 |
20*32*8 |
28*40*8 |
40*55*6 |
55*75*7 |
80*100*10 |
120*140*7.5 |
180*205*12 |
|
12*24*6 |
20*35*6 |
28*40*9 |
40*55*7 |
55*75*10 |
80*105*7.5 |
120*140*10 |
180*210*8.5 |
|
12*25*8 |
20*35*8 |
28*45*8 |
40*55*8 |
55*78*12 |
80*105*13 |
120*145*12 |
190*215*12 |
|
12*32*7 |
20*40*7 |
28*48*11 |
40*58*8 |
55*83*7 |
85*105*7.5 |
120*150*10 |
190*225*16 |
|
14*26*6 |
20*40*7 |
30*42*6 |
40*62*6 |
58*80*12 |
85*105*10 |
120*150*12 |
200*225*12 |
|
14*28*7 |
20*40*10 |
30*42*7 |
40*62*8 |
60*72*7 |
85*110*8 |
120*150*14 |
200*230*13 |
|
14*30*8 |
20*40*11 |
30*42*8 |
40*62*12 |
60*75*8 |
85*110*12 |
125*150*12 |
240*265*12 |
|
15*25*6 |
22*32*6 |
30*45*8 |
42*62*7 |
60*75*10 |
85*110*13 |
125*155*14 |
240*270*8.5 |
|
15*30*7 |
22*35*6 |
30*50*11 |
42*65*12 |
60*80*7 |
85*120*8 |
130*150*7.5 |
260*280*10 |
|
15*30*7 |
22*35*8 |
30*52*7 |
45*58*7 |
60*80*10 |
90*110*7.5 |
130*155*12 |
260*285*12 |
|
15*32*7 |
22*38*8 |
32*44*8 |
45*62*10 |
60*82*12 |
90*110*10 |
130*160*14 |
300*330*15 |
|
15*32*8 |
22*42*11 |
32*47*6 |
45*65*7 |
60*85*8 |
90*110*12 |
135*160*12 |
300*340*20 |
|
15*35*6 |
24*40*6 |
32*47*8 |
45*65*8 |
60*85*10 |
90*115*10 |
135*165*14 |
|
|
16*26*7 |
24*40*7 |
32*48*7 |
45*65*10 |
62*85*7 |
90*115*12 |
140*160*10 |
|
|
16*30*7 |
24*40*8 |
32*50*8 |
47*62*7 |
62*85*10 |
90*115*13 |
140*160*12 |
|
|
16*35*8 |
25*35*6 |
32*52*6 |
48*65*10 |
62*85*12 |
90*120*10 |
140*165*12 |
|
|
16*40*10 |
25*37*6 |
32*52*11 |
48*70*12 |
65*85*10 |
95*115*10 |
140*170*14 |
|
|
17*30*6 |
25*38*8 |
34*54*11 |
50*65*7 |
65*90*7 |
95*120*12 |
140*170*15 |
|
|
17*35*7 |
25*40*7 |
35*47*6 |
50*65*8 |
65*90*12 |
95*120*13 |
140*180*12 |
|
|
17*35*8 |
25*40*8 |
35*47*8 |
50*68*7 |
65*95*13 |
100*120*7.5 |
150*180*8.5 |
|
Hubungi perusahaan kita; model RC2057 nawakake produk karo dawa maksimum 1600mm.
PTFE Oil Seal Guide Instalasi
1. Ngresiki lan lubricate segel lenga lan kabeh bagean instalasi;
2. Sadurunge instalasi, segel lenga kudu dipasang menyang batang Gamelan karo diameteripun padha poros kanggo nyegah over-tightening lan Gagal instalasi, lan supaya overheating sak operasi dhisikan;
3. Sadurunge instalasi, aplikasi sealant (kayata Loctite 601 utawa 641) kanggo circumference njaba lan pasuryan mburi segel lenga kanggo nyegah bocor ing diameteripun njaba;
4. Nalika pas lambe segel lenga PTFE dhateng batang, lambe segel lenga PTFE kudu direksa kanggo nyegah karusakan ing lambe sealing saka Utas, keyways, etc.;

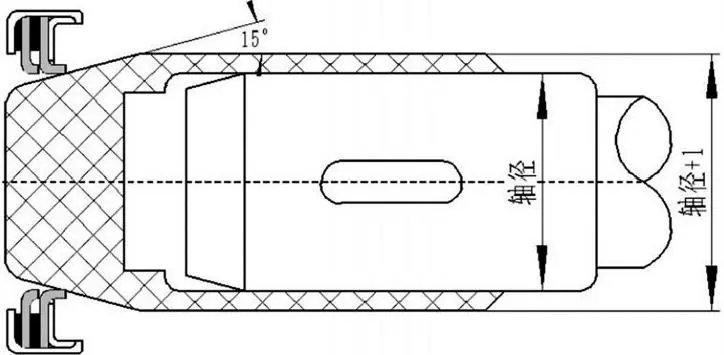

5. Lengan guide kudu digunakake kanggo nginstal segel lenga PTFE kanggo nglindhungi lambe saka karusakan. Lengan panuntun nduweni sudut lancip 15 derajat ing ujung panuntun, lan bolongan ing sisih liyane minangka sliding pas ing poros. Dhiameter njaba saka lengen pandhuan yaiku diameter poros + 1mm, kanthi permukaan sing alus lan pinggiran bunder. Waca Gambar 1 kanggo instalasi segel lenga PTFE;
6. Materi lengen pandhuan dianjurake kanggo plastik hard;

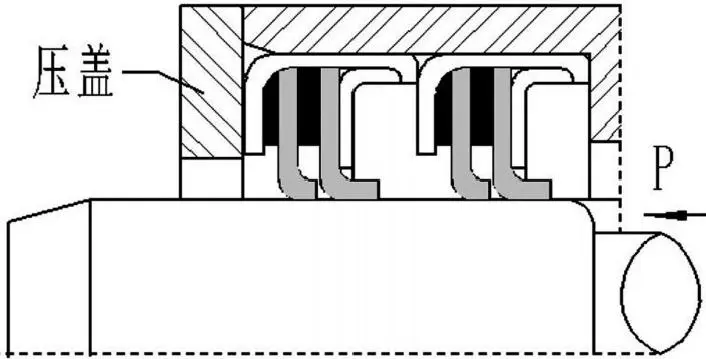

7. Sawise segel lenga wis diinstal, iku kudu didandani karo piranti clamping lan disegel karo sealant ing circumference njaba lan pasuryan mburi. Waca Gambar 2 kanggo mbenakake segel lenga PTFE.
Gambar 1. Instalasi segel lenga PTFE.
Gambar 2. Ndandani segel lenga PTFE.
