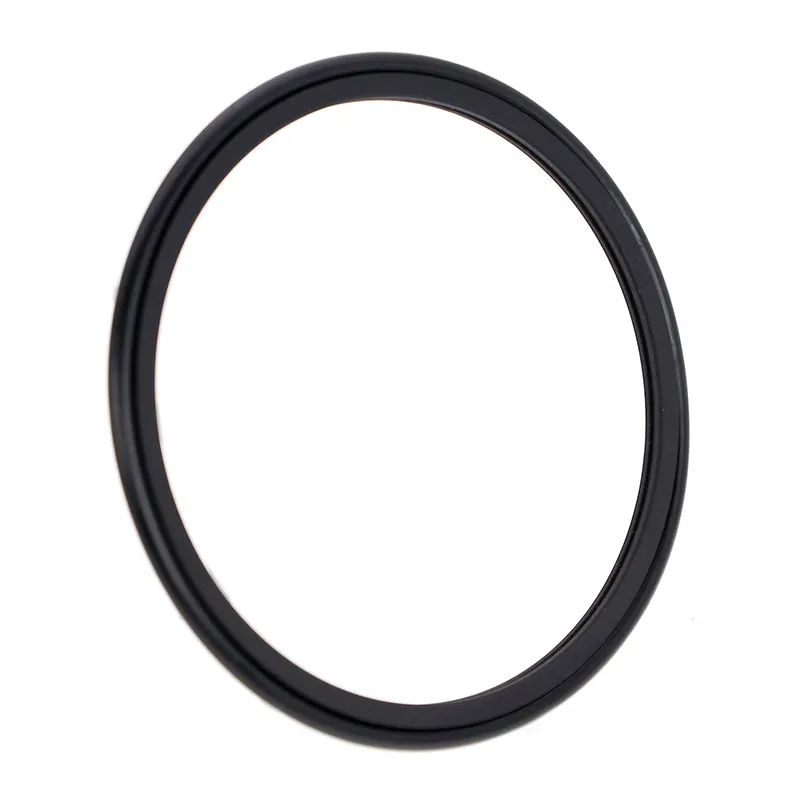

Tekanan/MPa |
Suhu / °C |
Kacepetan /m/s |
Sedheng |
|
≤40 |
-35~+100 (karo NBR O-ring) |
≤2 |
Minyak hidrolik, emulsi, banyu, gas, lsp. |
|
-20~+200 (karo FKM O-ring) |

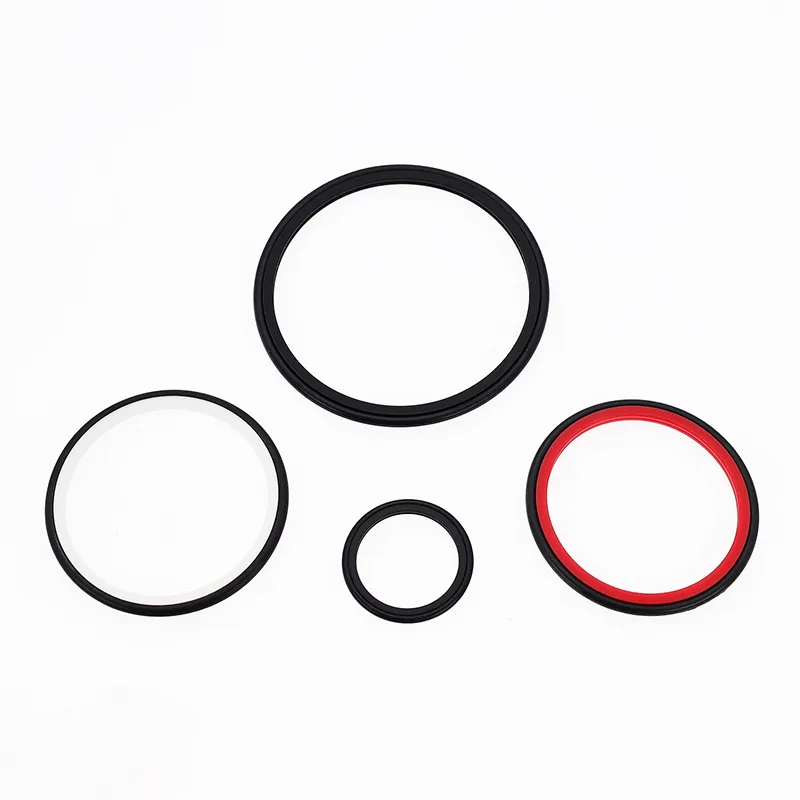

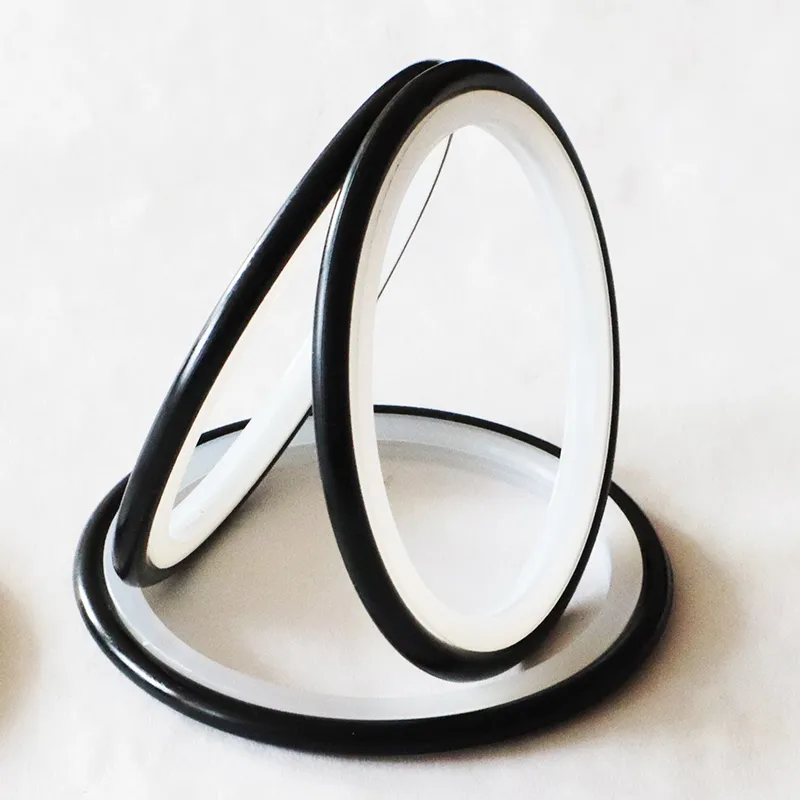

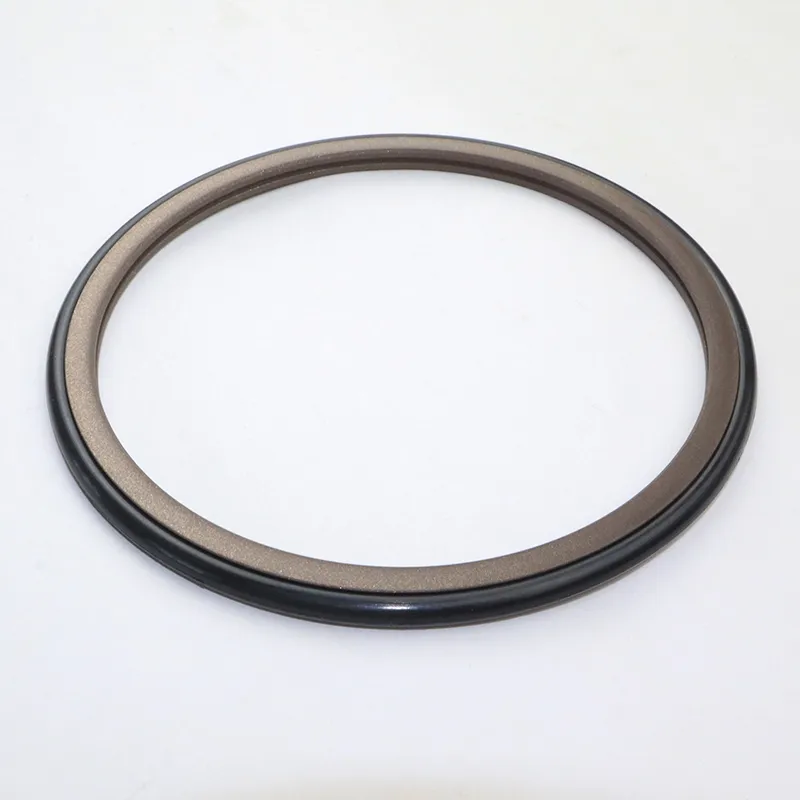

1. Bahan O-ring kasedhiya: R01 Nitrile Butadiene Rubber (NBR), R02 Fluororubber (FKM), etc.

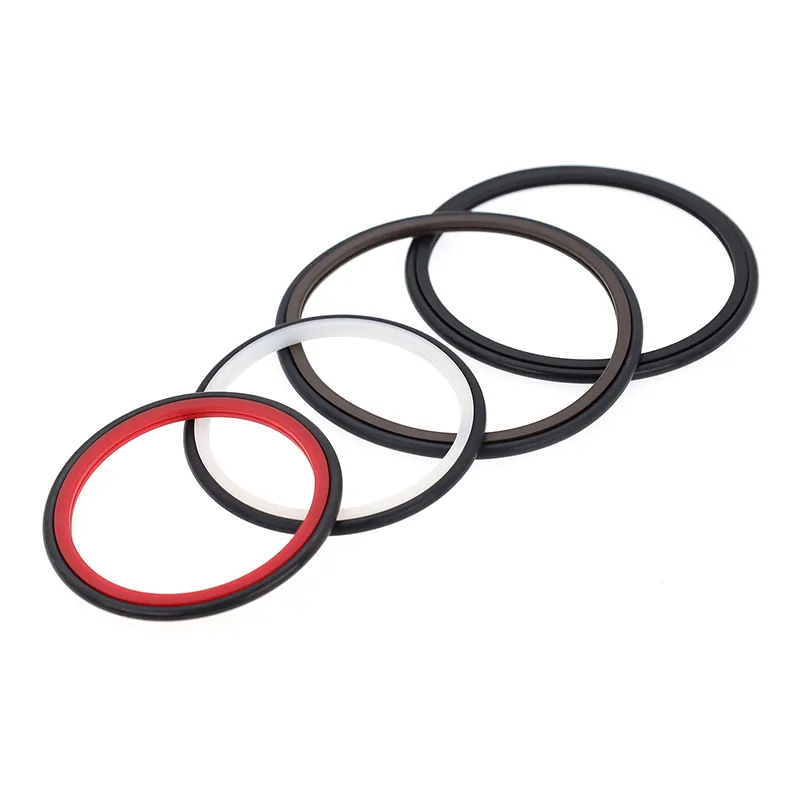

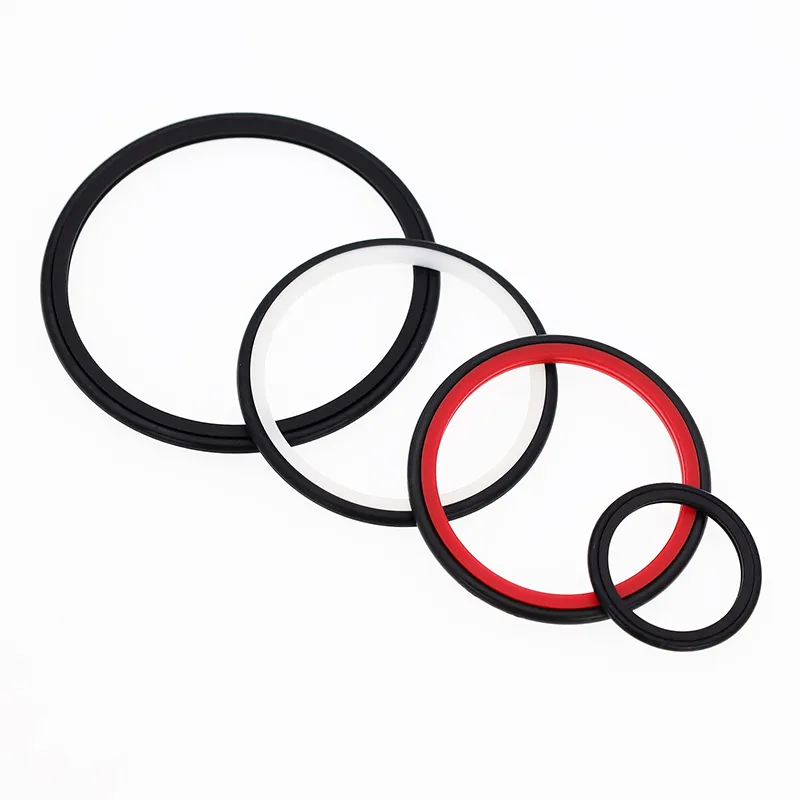

2. Bahan ring Sealing: Bahan standar PTFE3 lan PTFE4; bahan pilihan liyane kalebu PTFE1, PTFE2, lan PTFE5.
Tuladha Pesenan
Pesenan Model RC2052—80x91×4.2—PTFE3—R01 Model-dxDxL- Kode Bahan
Pesenan Model RCX17—80x91×4.2—Model HPU-dxDxL- Kode Bahan

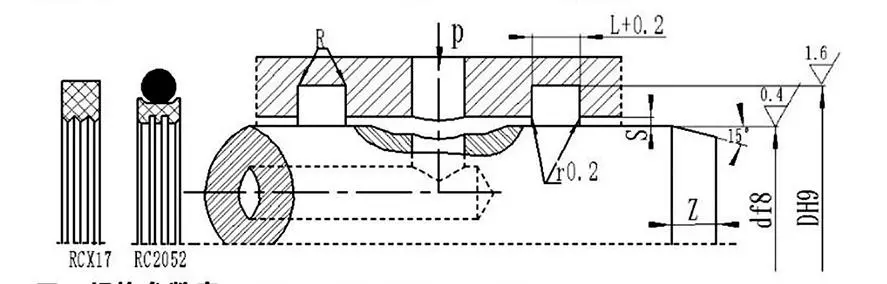

Tabel spesifikasi lan parameter (spesifikasi apa wae ing kisaran parameter kasedhiya)
|
Kisaran diameteripun poros d f8 |
Diameter parit DH9 |
Jembaré parit L+⁰.2 |
Reresik radial Smax |
sudhut bunder Rmax |
Chamfer Zmin |
|
|
0~10Mpa |
10~20Mpa |
|||||
|
6~18 |
d+49 |
2.2 |
0.15 |
0.1 |
0.4 |
2 |
|
19~37 |
d+7.5 |
3.2 |
0.2 |
0.15 |
0.6 |
3 |
|
38~199 |
d+11.0 |
4.2 |
0.25 |
0.2 |
1.0 |
4 |
|
200~255 |
d+15.5 |
6.3 |
0.3 |
0.25 |
1.3 |
5 |
|
256~649 |
d+21.0 |
8.1 |
0.3 |
0.25 |
1.8 |
7 |
|
650~1500 |
d+28.0 |
9.5 |
0.45 |
0.3 |
2.0 |
8 |
Cathetan: Kanggo diameter batang ≤ 30mm, alur mbukak dianjurake.
|
d |
D |
L |
d |
D |
L |
d |
D |
L |
d |
D |
L |
|
8 |
12.9 |
2.2 |
48 |
59.0 |
4.2 |
150 |
161.0 |
4.2 |
350 |
371.0 |
8.1 |
|
10 |
14.9 |
2.2 |
50 |
61.0 |
4.2 |
160 |
171.0 |
4.2 |
360 |
381.0 |
8.1 |
|
12 |
16.9 |
2.2 |
55 |
66.0 |
4.2 |
170 |
181.0 |
4.2 |
370 |
391.0 |
8.1 |
|
14 |
18.9 |
2.2 |
60 |
71.0 |
4.2 |
180 |
191.0 |
4.2 |
380 |
401.0 |
8.1 |
|
15 |
19.9 |
2.2 |
63 |
74.0 |
4.2 |
190 |
201.0 |
4.2 |
390 |
411.0 |
8.1 |
|
16 |
20.9 |
2.2 |
65 |
76.0 |
4.2 |
200 |
215.5 |
6.3 |
400 |
421.0 |
8.1 |
|
18 |
22.9 |
2.2 |
70 |
81.0 |
4.2 |
210 |
225.5 |
6.3 |
420 |
441.0 |
8.1 |
|
20 |
27.5 |
3.2 |
75 |
86.0 |
4.2 |
220 |
235.5 |
6.3 |
450 |
471.0 |
8.1 |
|
22 |
29.5 |
3.2 |
80 |
91.0 |
4.2 |
230 |
245.5 |
6.3 |
480 |
501.0 |
8.1 |
|
24 |
31.5 |
3.2 |
85 |
96.0 |
4.2 |
240 |
255.5 |
6.3 |
500 |
521.0 |
8.1 |
|
25 |
32.5 |
3.2 |
90 |
101.0 |
4.2 |
250 |
265.5 |
6.3 |
520 |
541.0 |
8.1 |
|
28 |
35.5 |
3.2 |
95 |
106.0 |
4.2 |
260 |
281.0 |
8.1 |
550 |
571.0 |
8.1 |
|
30 |
37.5 |
3.2 |
100 |
111.0 |
4.2 |
270 |
291.0 |
8.1 |
600 |
621.0 |
8.1 |
|
32 |
39.5 |
3.2 |
105 |
116.0 |
4.2 |
280 |
301.0 |
8.1 |
630 |
651.0 |
8.1 |
|
35 |
42.5 |
3.2 |
110 |
121.0 |
4.2 |
290 |
311.0 |
8.1 |
650 |
678.0 |
8.1 |
|
36 |
43.5 |
3.2 |
115 |
126.0 |
4.2 |
300 |
321.0 |
8.1 |
670 |
698.0 |
9.5 |
|
38 |
49.0 |
4.2 |
120 |
131.0 |
4.2 |
310 |
331.0 |
8.1 |
700 |
728.0 |
9.5 |
|
40 |
51.0 |
4.2 |
125 |
136.0 |
4.2 |
320 |
341.0 |
8.1 |
750 |
778.0 |
9.5 |
|
42 |
53.0 |
4.2 |
130 |
141.0 |
4.2 |
330 |
351.0 |
8.1 |
800 |
828.0 |
9.5 |
|
45 |
56.0 |
4.2 |
140 |
151.0 |
4.2 |
340 |
361.0 |
8.1 |
1000 |
1028.0 |
9.5 |
Cathetan: Spesifikasi sing dibutuhake ora ana ing kene; hubungi perusahaan kita. We offer produk karo diameteripun maksimum 2800mm.
Kabeh-babak instalasi lan nggunakake instruksi
Rui Chen ngerti yen instalasi sing bener minangka prasyarat pisanan kanggo njamin kinerja lengkap segel, kita uga bakal menehi pandhuan lengkap babagan panggunaan saben produk, utamane bagean khusus sing rumit utawa ora standar, bakal ana pandhuan instalasi grafis sing rinci.
Pandhuan kasebut diiringi diagram langkah-langkah kanthi definisi dhuwur lan instruksi teks sing nuduhake kanthi jelas titik pamriksa sadurunge instalasi, langkah-langkah instalasi sing bener, alat sing dibutuhake lan operasi sing salah sing kudu dihindari, kaya-kaya insinyur kita ana ing situs kasebut. Kajaba iku, kanggo kumpulan utawa sistem sing rumit, kita nggawe tutorial video profesional sing ngidini operator sampeyan bisa nguwasani teknik instalasi lan pancegahan kanthi intuisi lan cepet liwat demonstrasi dinamis, kanthi nyuda resiko kegagalan awal amarga instalasi sing ora bener.
