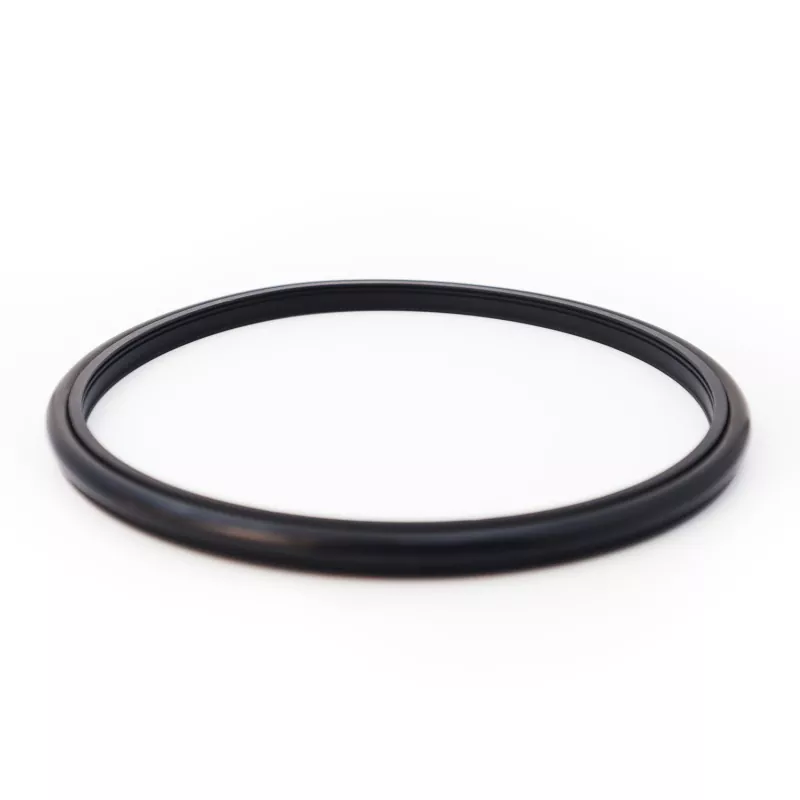

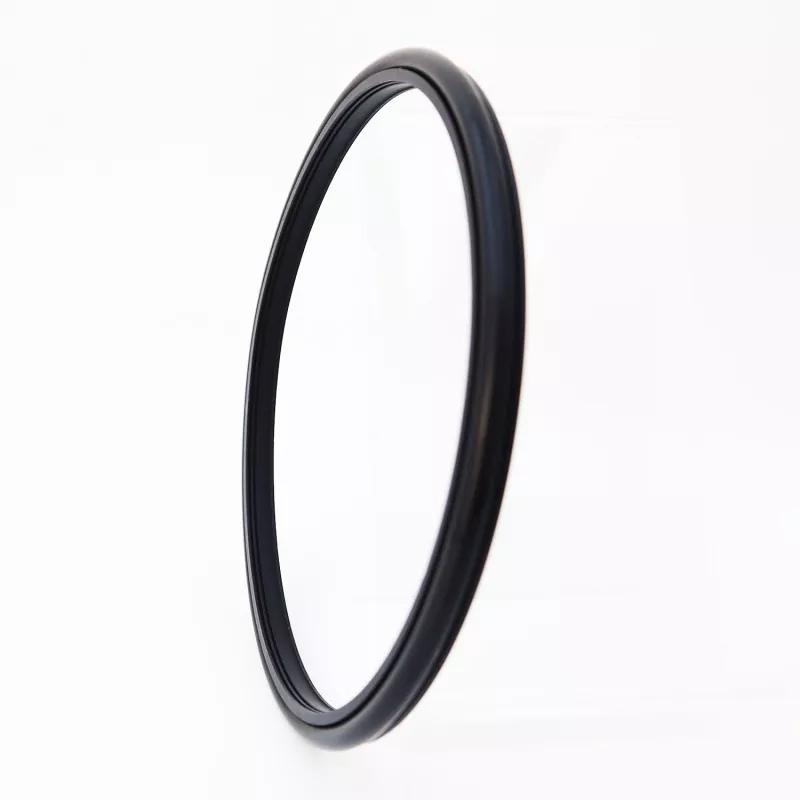

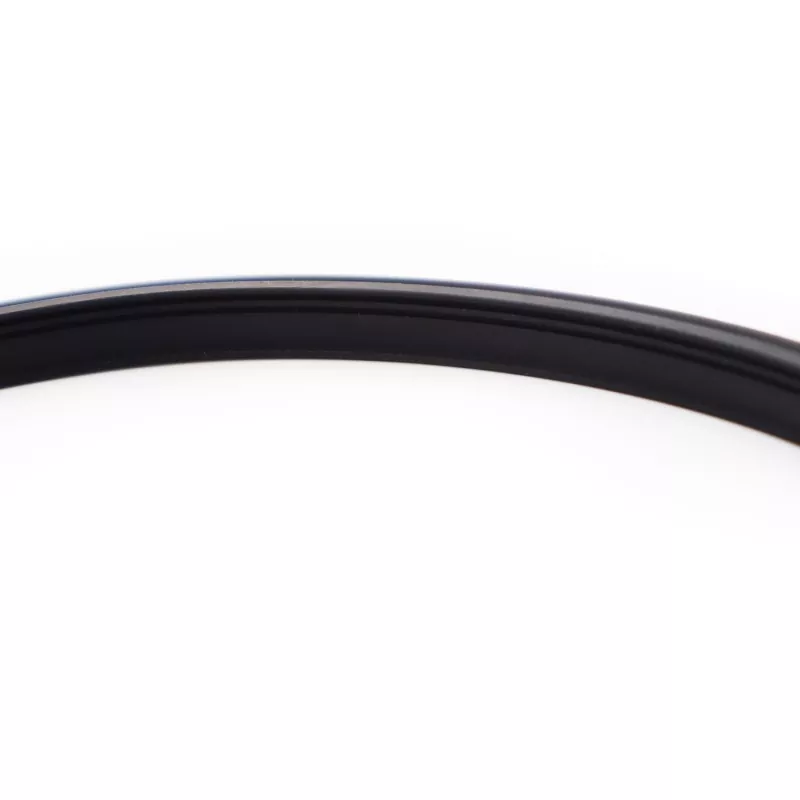

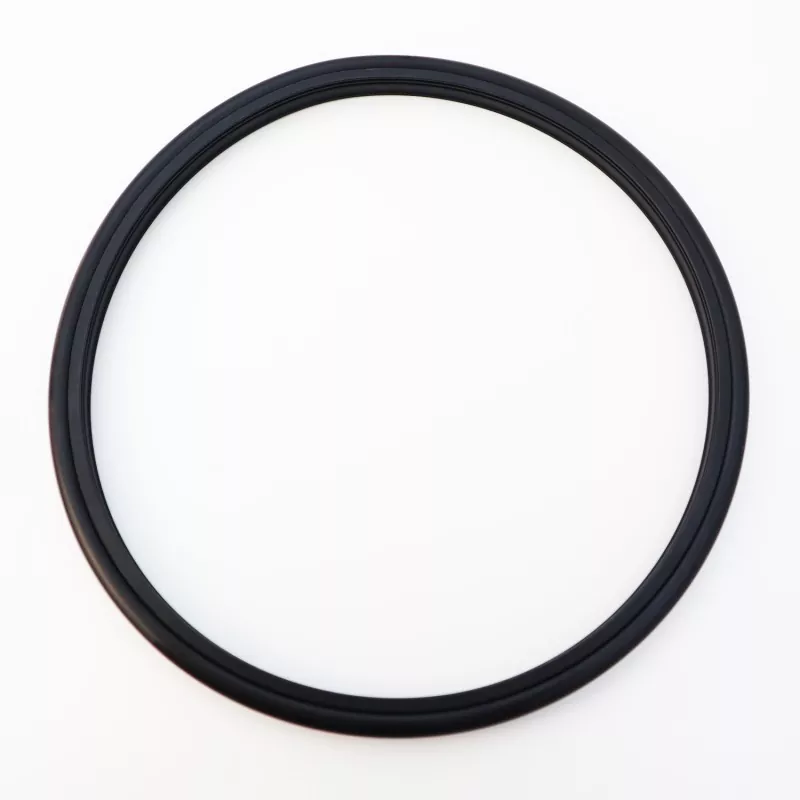

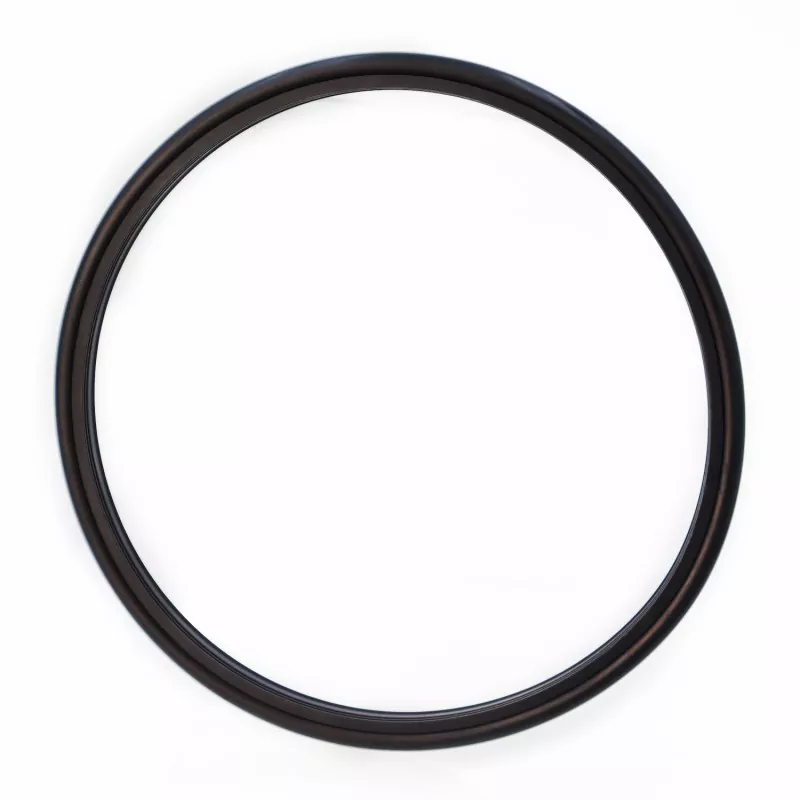

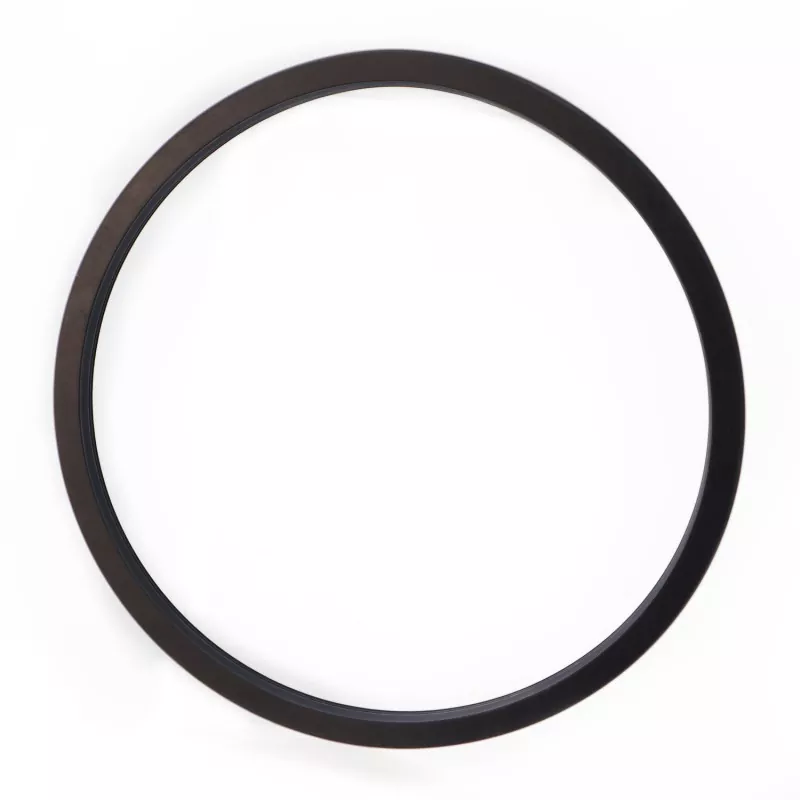

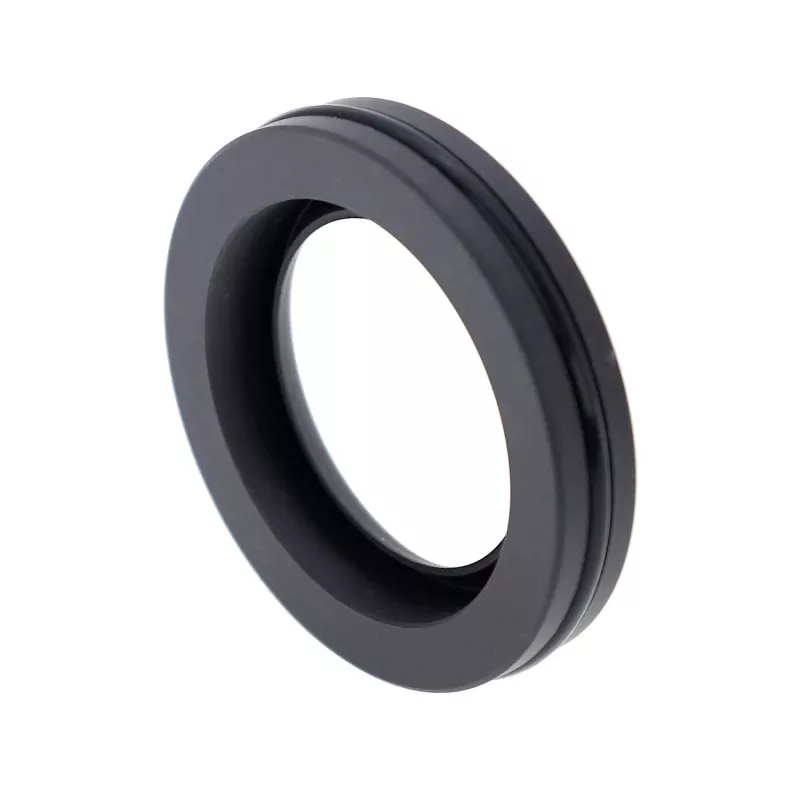

RC2061 Reinforced Toothed Combination Seal (dirancang kanggo sealing slurry semen) kasusun saka ring sealing toothed dirancang khusus digawe saka plastik engineering-kinerja dhuwur lan karet O-ring; iku cocok kanggo sealing unidirectional ing reciprocating hydraulic lan aplikasi Rotary. Kekandelan lambe sing dioptimalake tahan erosi saka slurry semen lan kotoran lendhut, njamin panyegelan sing dipercaya lan gesekan sing sithik nalika mbutuhake papan instalasi minimal. Desain nggampangake perakitan lan pangopènan sing gampang lan kanthi efektif nyuda degradasi segel kanthi cepet amarga partikel partikel ing medium.
Utamane digunakake ing aplikasi kayata pompa plunger, pompa lumpur, alat pengeboran sekrup, rig pengeboran, peralatan eksplorasi minyak, lan pabrik campuran beton. Fitur utama kalebu umur layanan sing dawa, gesekan sing sithik, kinerja sealing sing apik, tapak sikil sing kompak, lan gampang instalasi lan pangopènan.
Nalika digunakake kanggo nutup media kaya lendhut, dianjurake kanggo nyuntikake pelumas pelumas ing antarane loro (utawa luwih) unsur sealing.
Nilai matesi ngirim ora kedadeyan bebarengan.
|
Tekanan (MPa) |
Suhu (°C) |
Kacepetan (m/s) |
Sedheng |
|
|
Gerakan timbal balik |
Gerakan rotasi |
|||
|
≤100 |
-35 nganti +100 (karo NBR O-ring) |
≤6 |
≤2 |
Banyu, lendhut, lenga mentah, lenga hidrolik, emulsi |
|
-20 nganti +200 (karo FKM O-ring) |
||||
1. Bahan O-ring sing kompatibel kalebu: RO1 Nitrile Rubber (NBR), RO2 Fluoroelastomer (FKM), etc.
2. Bahan ring Sealing: Bahan standar PTFE4; bahan liyane kasedhiya kalebu PTFE2, PTFE3, PTFE5, UPE, PK1, PK2, etc.
Model Pesenan: RC2061-80*91.7*7.6-PTFE4-R01 (Model - Diameter Poros * Diameter Alur * Jembar Alur - Kode Bahan)
Kasedhiya ing ukuran apa wae ing kisaran sing ditemtokake.
|

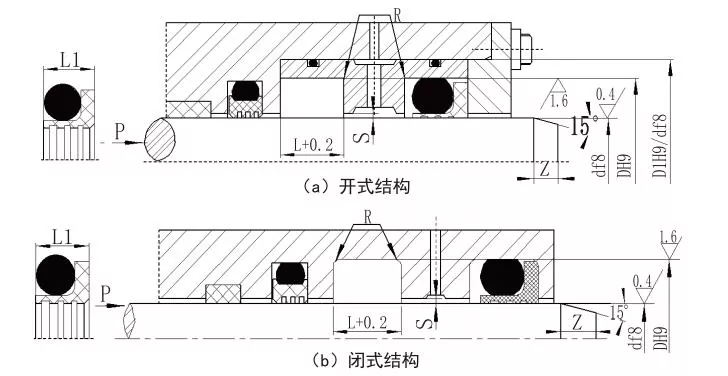

Kisaran diameteripun poros Tipe standar d f8 RC2061 |
Kisaran diameteripun poros Tugas abot d f8 RC2061-Z |
diameteripun alur D H9 |
Jembaré alur L+0.2 |
Jembaré segel L1 |
Radius pojok Rmax |
Reresik radial Smax |
Chamfer Zmin |
Diameter potongan O-ring |
||
|
<10MPA |
<20MPA |
<40MPA |
||||||||
|
5~15.9 |
- |
d+6.3 |
4.0 |
3.65 |
0.4 |
0.4 |
0.25 |
0.15 |
4 |
2.65 |
|
16~38.9 |
5~15.9 |
d+8.2 |
5.2 |
4.55 |
0.4 |
0.4 |
0.25 |
0.2 |
5 |
3.55 |
|
39~107.9 |
16~38.9 |
d+11.7 |
7.6 |
6.80 |
0.5 |
0.5 |
0.3 |
0.2 |
7 |
5.30 |
|
108~670.9 |
39~107.9 |
d+15.5 |
9.6 |
8.50 |
0.6 |
0.6 |
0.35 |
0.25 |
8 |
7.00 |
|
671~1600 |
108~670.9 |
d+19.4 |
12.1 |
11.1 |
0.7 |
0.7 |
0.5 |
0.3 |
10 |
8.60 |
Cathetan: 1. Kanggo diameter batang ≤30 mm, desain alur mbukak dianjurake.
2. Kanggo aplikasi sealing Rotary, atose lumahing poros HRC ≥58 dianjurake.
3. Kanggo meksa ngluwihi 30 MPa, cocok H8 / f8 dianjurake kanggo longkangan extrusion.
