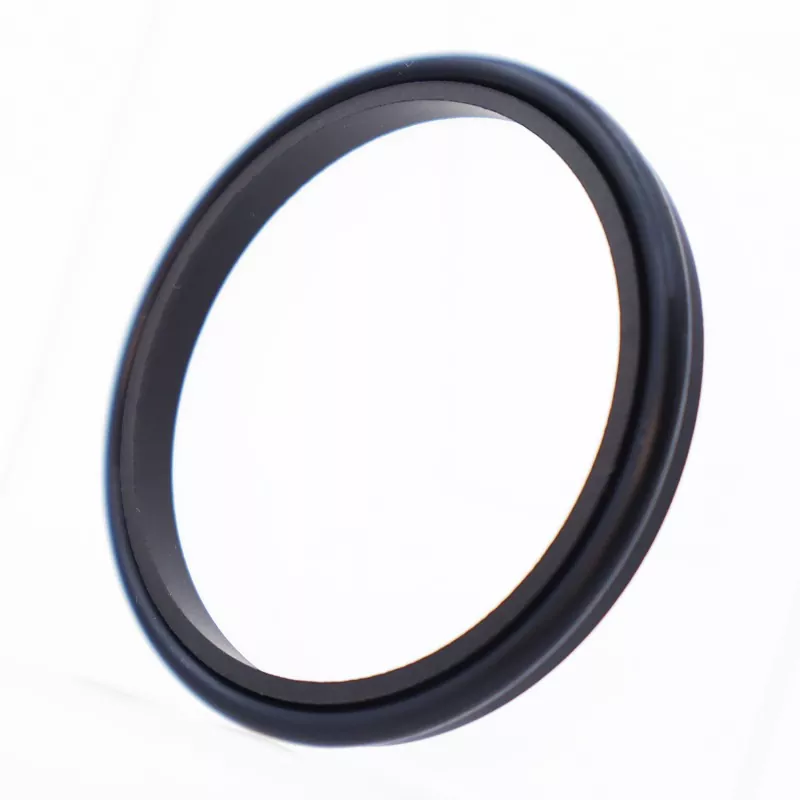

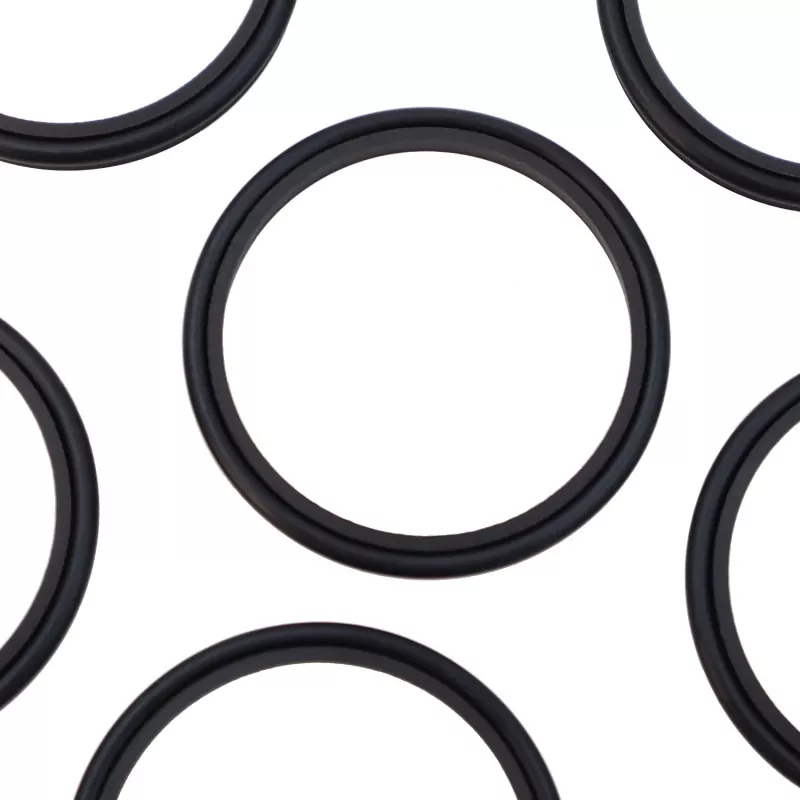

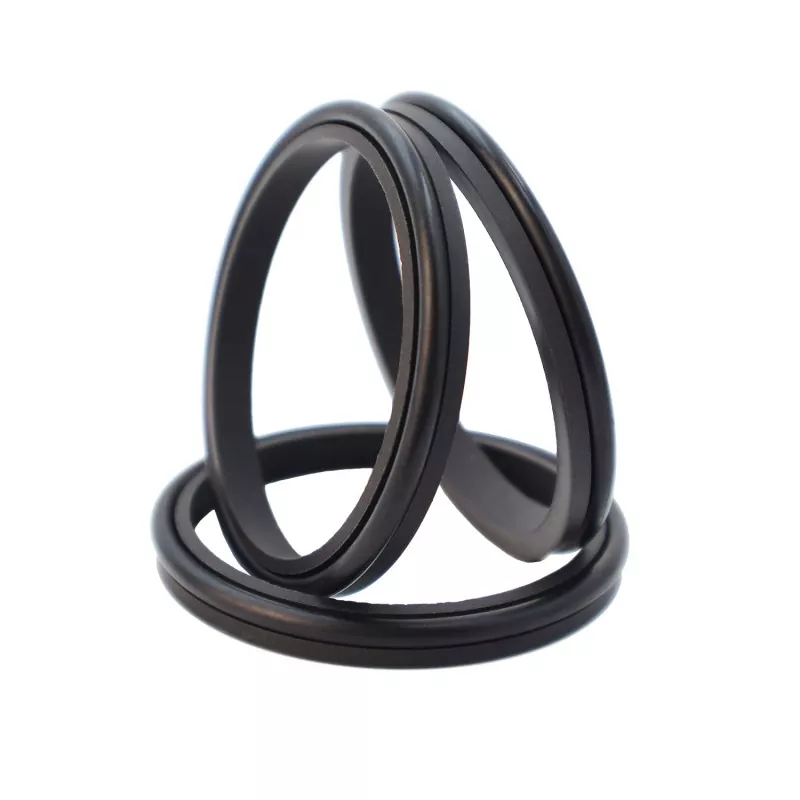

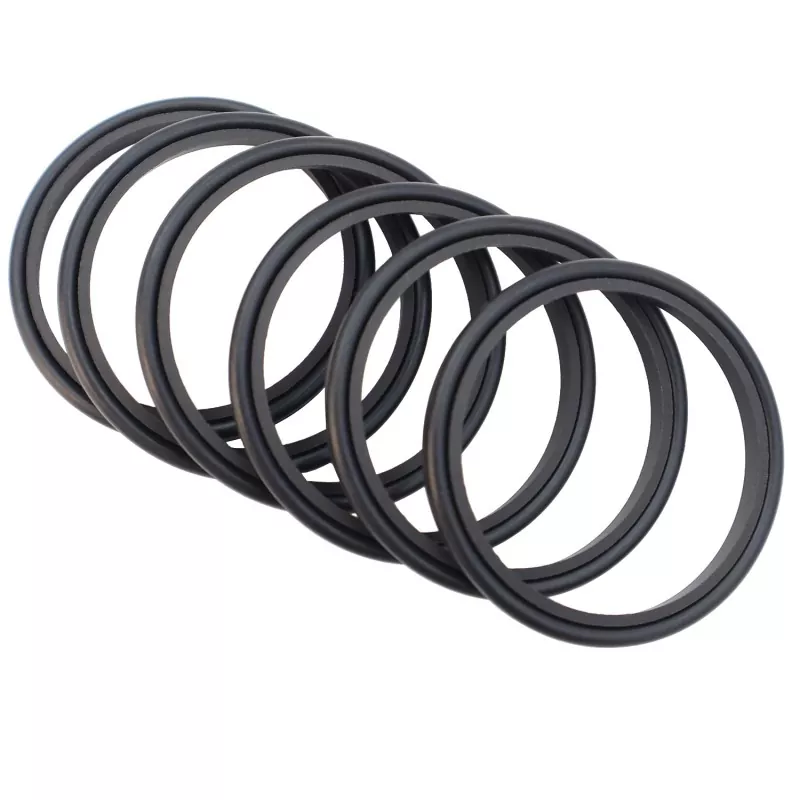

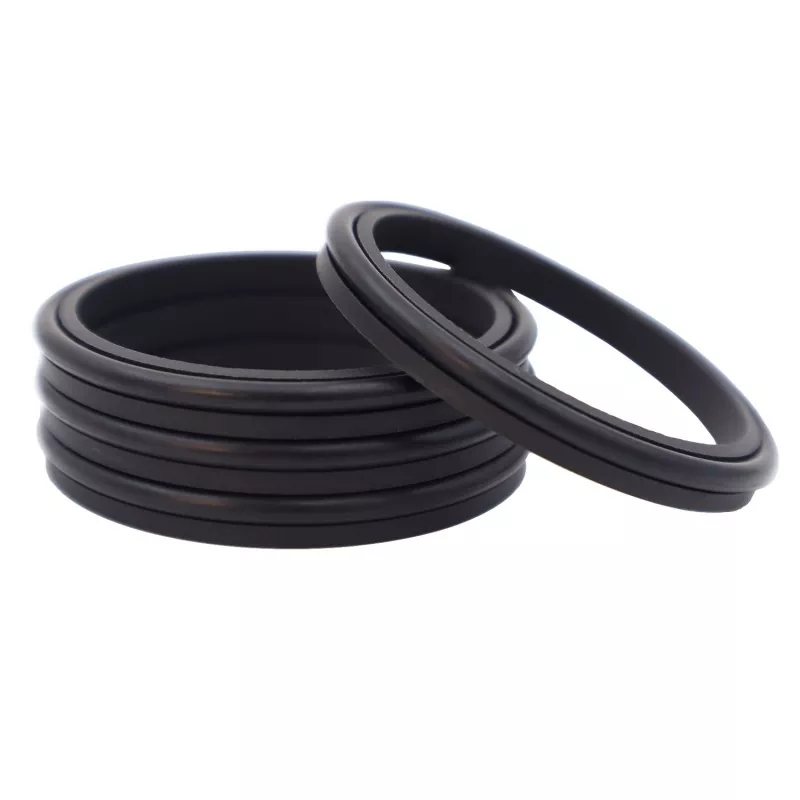

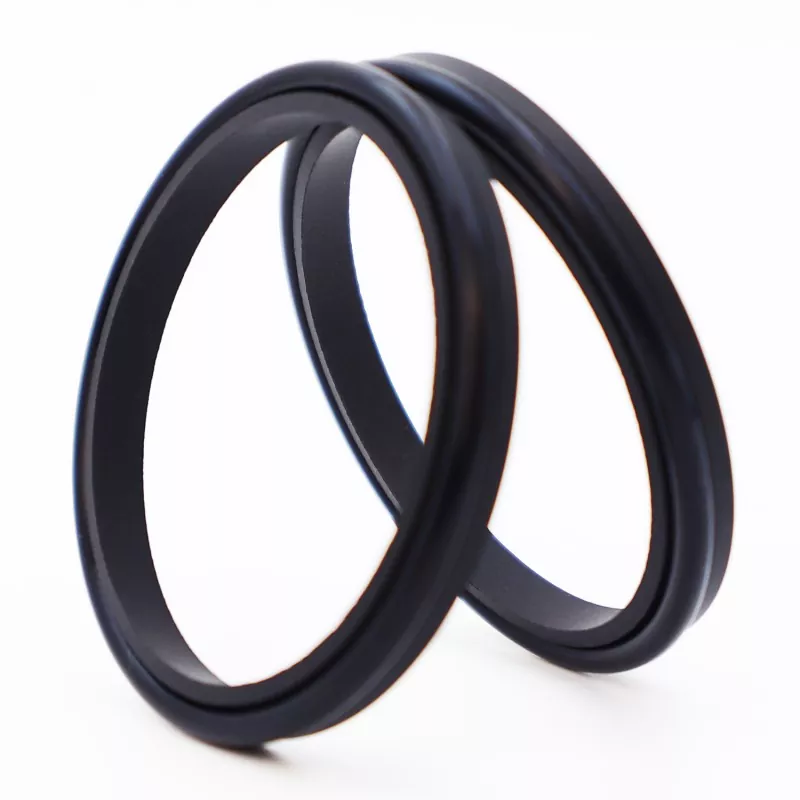

The Single Lip Combined Wiper Seal punika segel wiper siji-tumindak dumadi saka PTFE siji-lip ring wiper lan karet O-ring; iku fungsi kanggo scrape adoh bledug lan nyegah kontaminasi sistem. Cocog kanggo aplikasi gerakan bolak-balik, oscillating, utawa helical.
|
Tekanan (MPa) |
Suhu (°C) |
Kacepetan m/s |
Media |
|
- |
-35 nganti +100 (karo NBR O-ring) |
6 |
Minyak hidrolik, emulsi, banyu, lsp. |
|
-20 nganti +200 (karo FKM O-ring) |
Model Pesenan: RCF03—80-PTFE3—R01
RCF03 – Model | 80 – Dhiameter Poros | PTFE3 – Tujuan Umum Modified PTFE | R01 - Kode Material kanggo Komponen Karet
Karet Nitrile (NBR) – R01 | Fluororubber (FKM) – R02
Produk bisa diwenehake ing ukuran apa wae ing sawetara parameter sing ditemtokake.
|

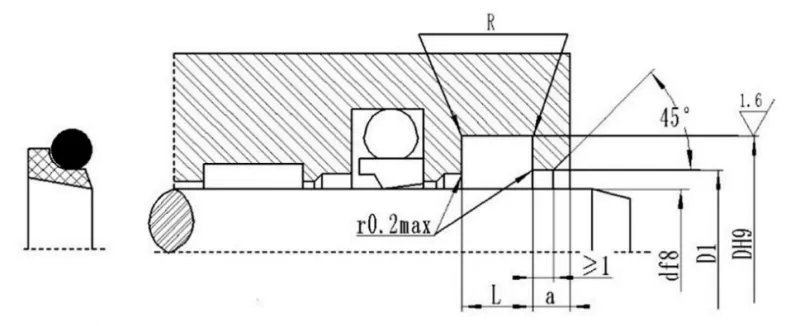

Kisaran diameteripun poros d f8 |
diameteripun alur D H9 |
Jembaré alur L+0.2 |
diameteripun bolongan Clearance D1 H11 |
Jembar bukaan sing cetha a ≥ |
Radius pojok R≤ |
O-ring diameteripun cross-bagean nindakake |
|
4~11 |
d+4.8 |
3.7 |
d+1.5 |
2 |
0.4 |
1.80 |
|
12~64 |
d+6.8 |
5.0 |
d+1.5 |
2 |
0.7 |
2.65 |
|
65~250 |
d+8.8 |
6.0 |
d+1.5 |
3 |
1.0 |
3.55 |
|
251~420 |
d+12.2 |
8.4 |
d+2.0 |
4 |
1.5 |
5.30 |
|
421~650 |
d+16.0 |
11.0 |
d+2.0 |
4 |
1.5 |
7.00 |
|
651~1500 |
d+20.0 |
14.0 |
d+2.5 |
5 |
2.0 |
8.60 |
