Sawise produksi lan riset, segel Ruichen wis ngluncurake rong produk statis, J03 lan J04, kanggo pelanggan anyar lan lawas. Loro-lorone minangka produk segal dhasar unik.

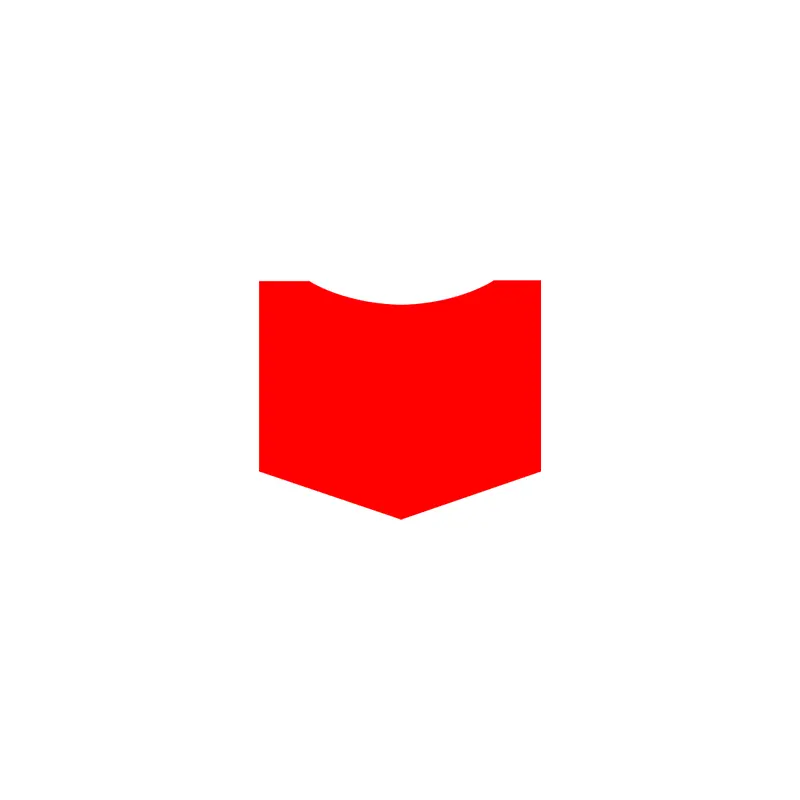

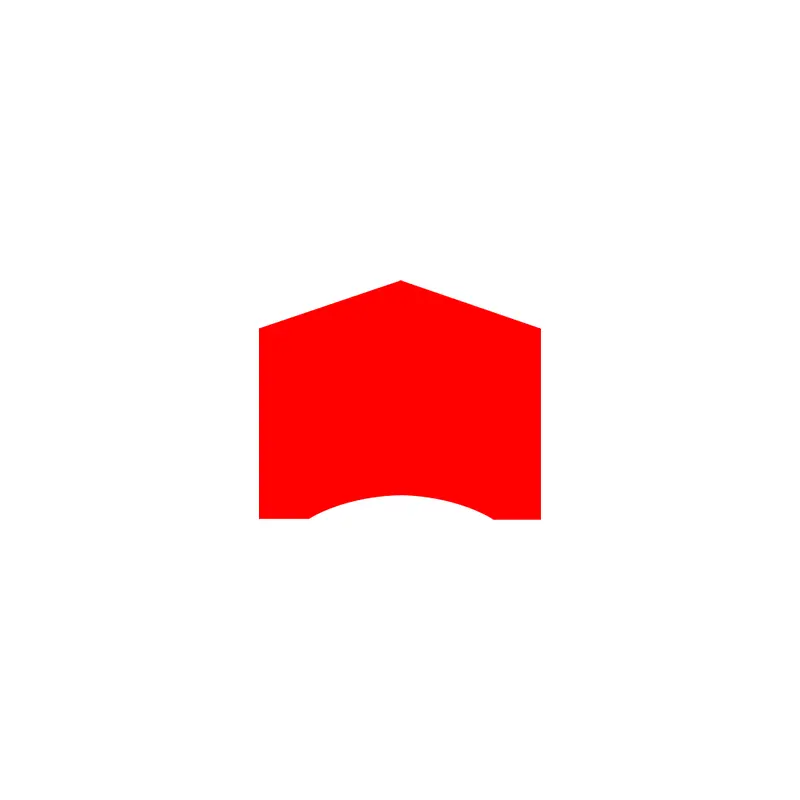

J03 lan J04 minangka segel statis diameteripun tliti sing abot. J03 persepan diadaptasi karo posisi silinder hidraulik piston, dene J04 dirancang kanggo sirah silinder hidraulik. Wilayah kontak sing nyusup bisa diatur kanthi tekanan, nyedhiyakake solusi profesional lan efisien kanggo masalah silinder statis hidrolik sampeyan, njamin operasi sing stabil tanpa bocor.
Fitur lan Aplikasi Produk:
Keuntungan:
(1) resistensi tekanan tinggi
(2) stabilitas dhuwur
(3) Diowahi karo o-cincin lan o-cincin kanthi cincin pelacakan
(4) prasaja lan trep
(5) resistensi nyandhang kuwat
Bahan
| Bahan Utama | Medium transmisi | Range suhu ℃ | Tekanan kerja | Gap Extrusi Extrusi maksimal | ||
| Hpu Polyurethane | Mineral Mineral | -30 | - | +100 | 600bar | Fs0.4mm |
| Cairan transmisi berbasis banyu / Banyu | +5 | - | +50 |
|
|
|

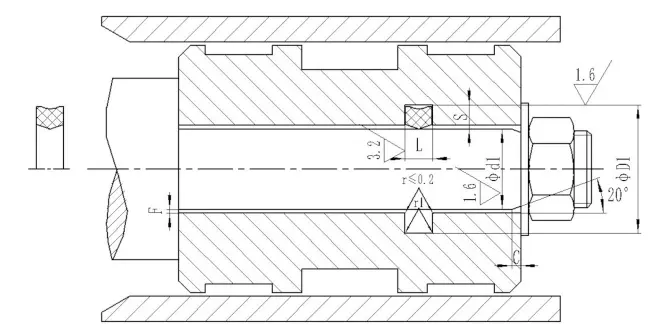

| Chamfers lan busur | Toleransi | Lumahing rampung | ||||||
| S≤ | 4 | 5 | 5.6 | 6.8 | μmRA | μmrt | ||
| R1 | 0.2 | 0.2 | 0.4 | 0.4 | FD1 | H8 | ≤1.6 | ≤10 |
|
|
|
|
|
|
FD1 | F7 | ≤1.6 | ≤10 |
|
|
|
|
|
|
L | +0.3 -0 | ≤3.2 | ≤16 |
Bahan
| Bahan Utama | Medium transmisi | Range suhu ℃ | Tekanan kerja | Gap Extrusi Extrusi maksimal | ||
| Hpu Polyurethane | Mineral Mineral | -30 | - | +100 | 600bar | Fs0.4mm |
| Cairan transmisi berbasis banyu / Banyu | +5 | - | +50 |
|
|
|
| Chamfers lan busur | Toleransi | Lumahing rampung | ||||||
| S≤ | 4 | 5 | 5.6 | 6.8 | μmRA | μmrt | ||
| R1 | 0.2 | 0.2 | 0.4 | 0.4 | FD1 | H8 | ≤1.6 | ≤10 |
|
|
|
|
|
|
FD1 | F7 | ≤1.6 | ≤10 |
|
|
|
|
|
|
L | +0.3 -0 | ≤3.2 | ≤16 |
