Kita setya nyedhiyakake "resistensi protasi-tekanan-long-jangka" Trinity Solusi kanggo saben skenario sing mbutuhake nyolong Rotary. Liwat formula material 200++ lan paten struktural, kita mbantu para pelanggan nyuda tarif sing gagal lan entuk Optimisasi TCO. Seri model produk kabeh macem-macem. Sampeyan bisa milih miturut kabutuhan nyata, utawa ngatur segel Rotary saka kita.

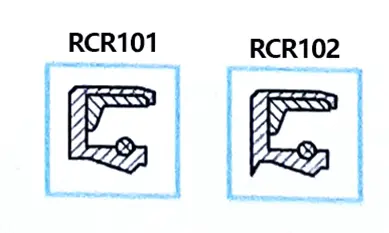

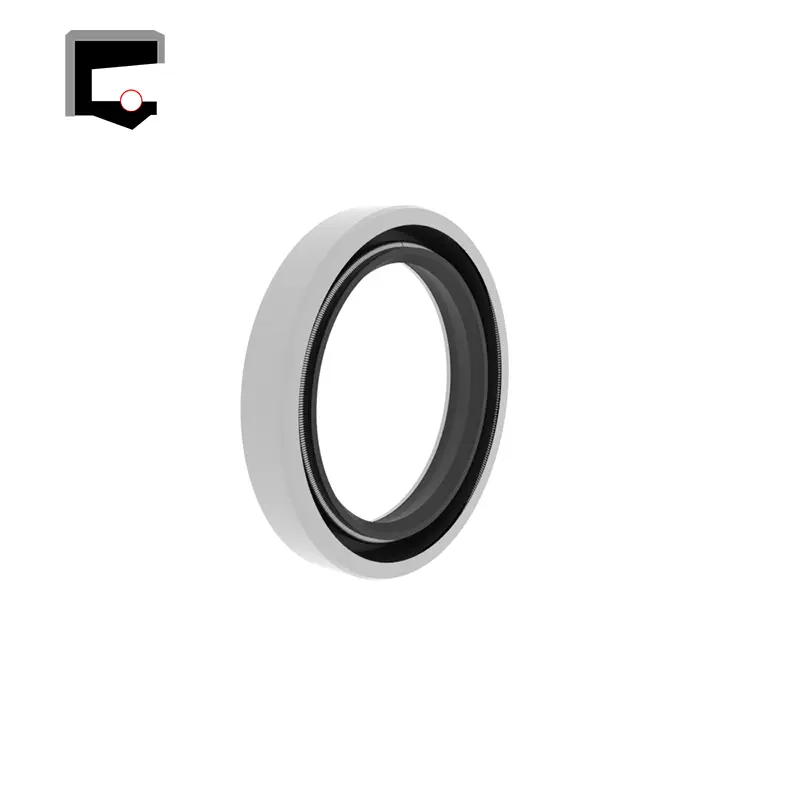

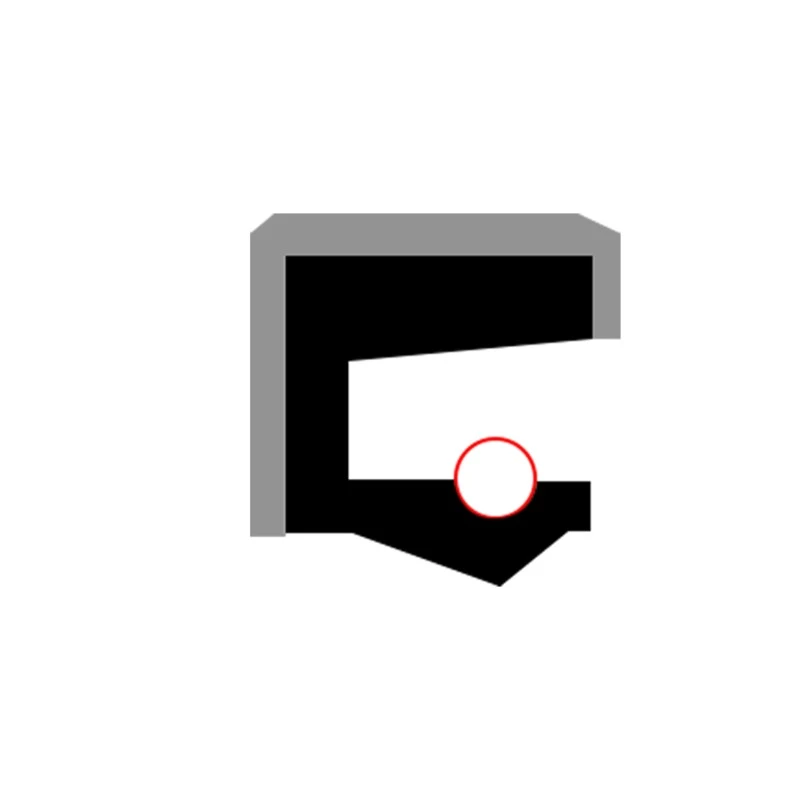

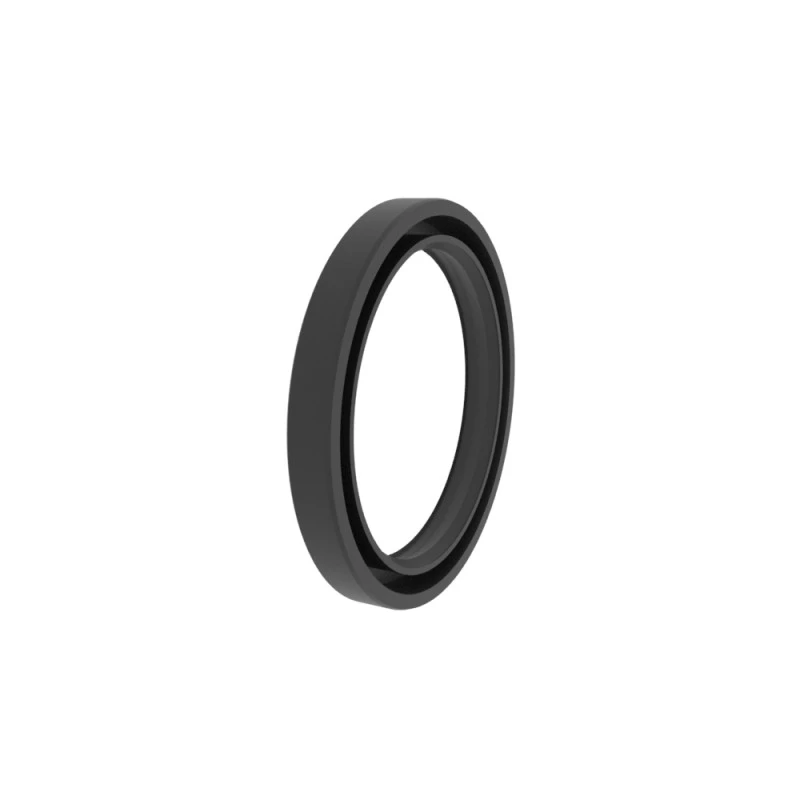

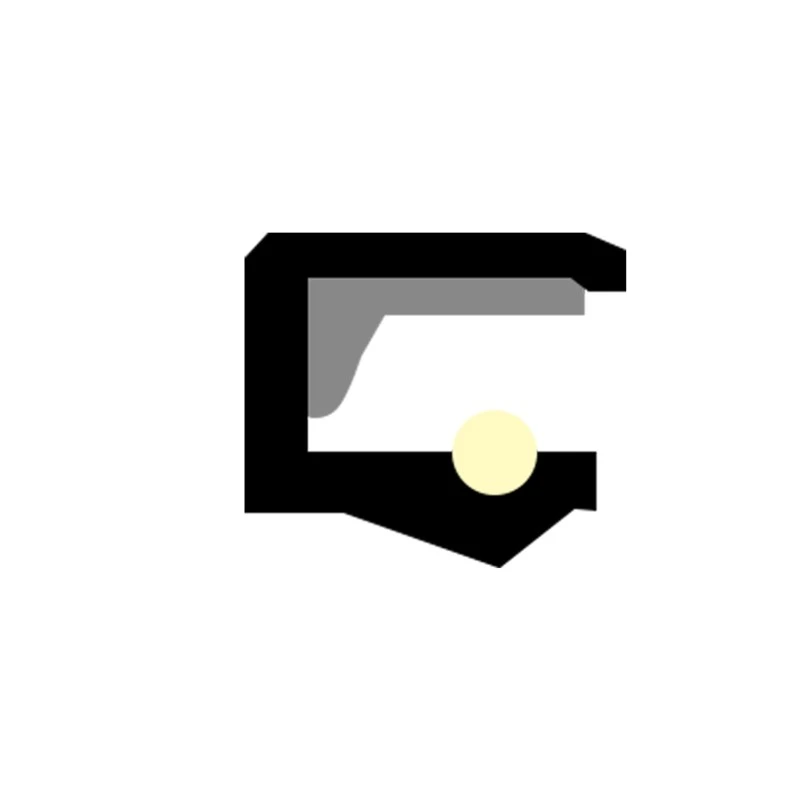

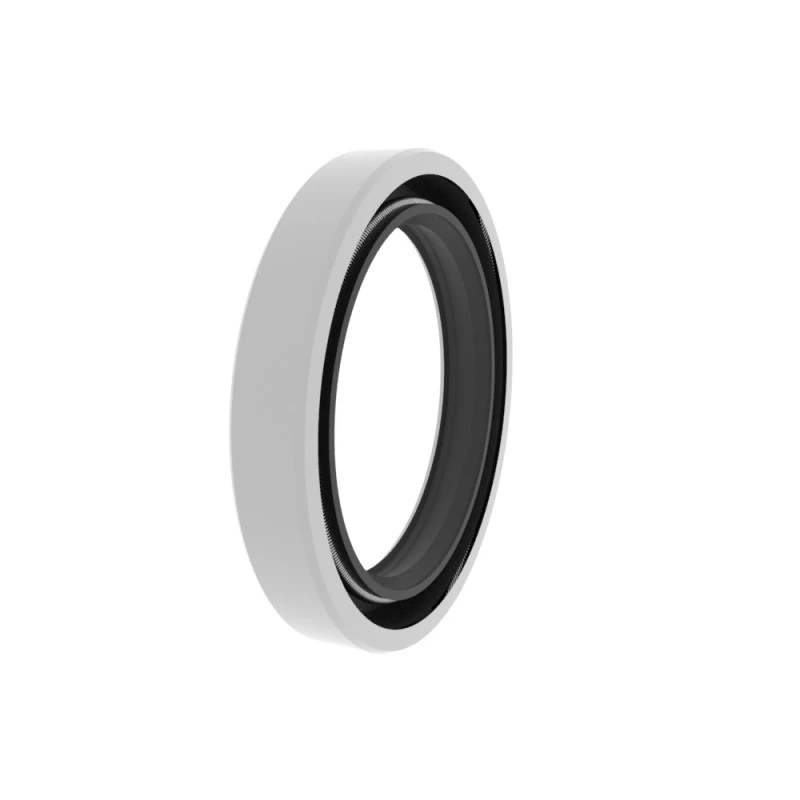

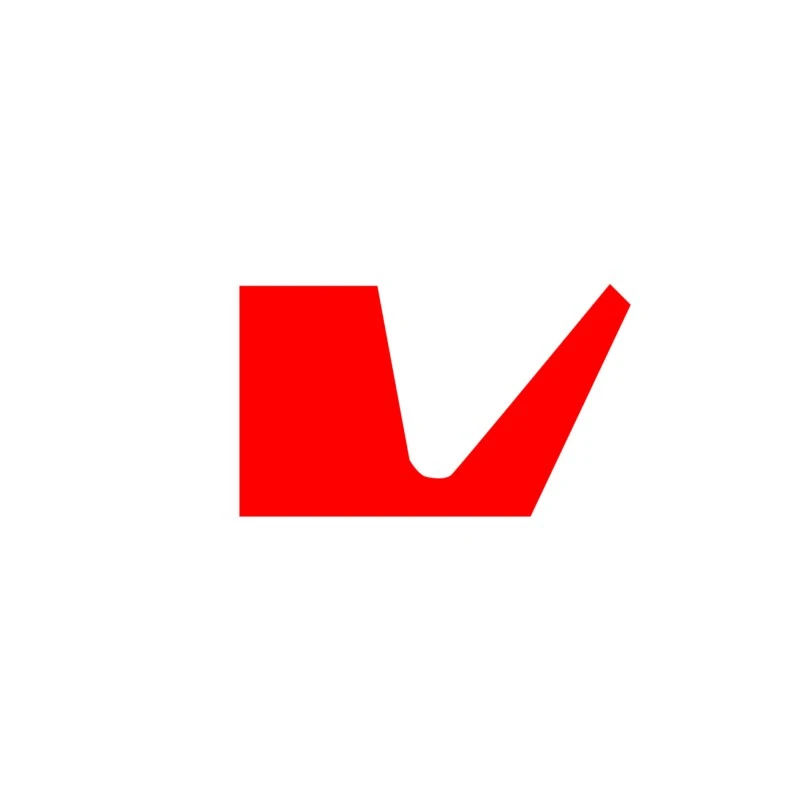

Rcr101 Skeleton Skeleton Lip Sinta, Tunggal tumindak, instalasi alat axial, digunakake digunakake, biasane digunakake minangka unsur pelindung kanggo bantalan.
RCR102 Rotary SKeleton Lip Sinte, tindakan tunggal, kanthi lambe bantu dustroof, instalasi pembukaan axial, digunakake digunakake, biasane digunakake minangka unsur pelindung kanggo bantalan.

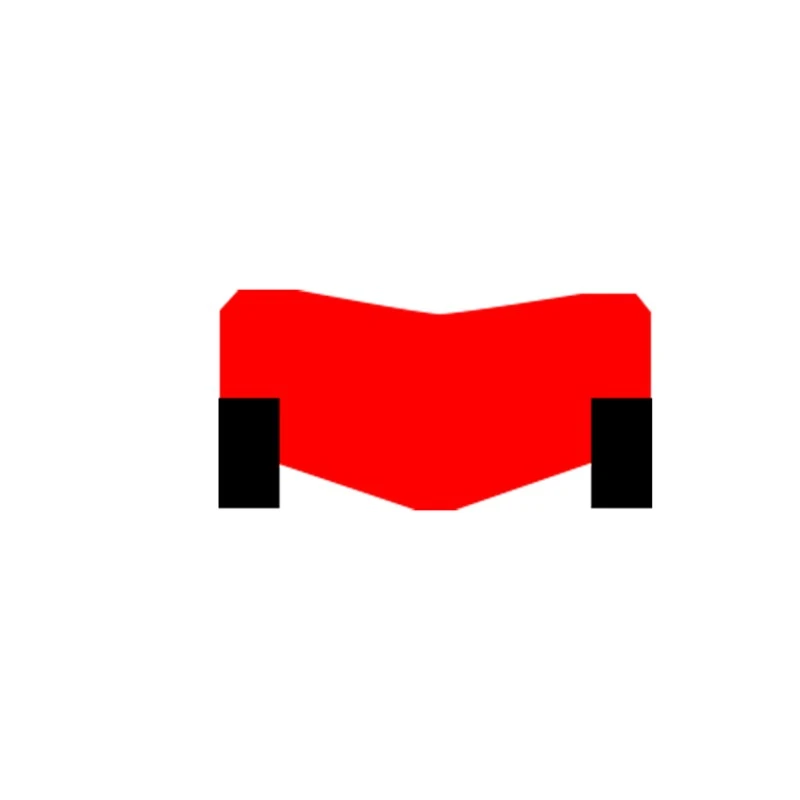

RCR103 Seal Rotary, tumindak kaping pindho, kanthi dering dhukungan, efek panyengkuyung luwih apik ing kahanan rotary tekanan tinggi.
RCR104, Segel Rotary Racr105, tumindak kaping pindho, alur sempit, groove embedding, lan permukaan panyegel banget.

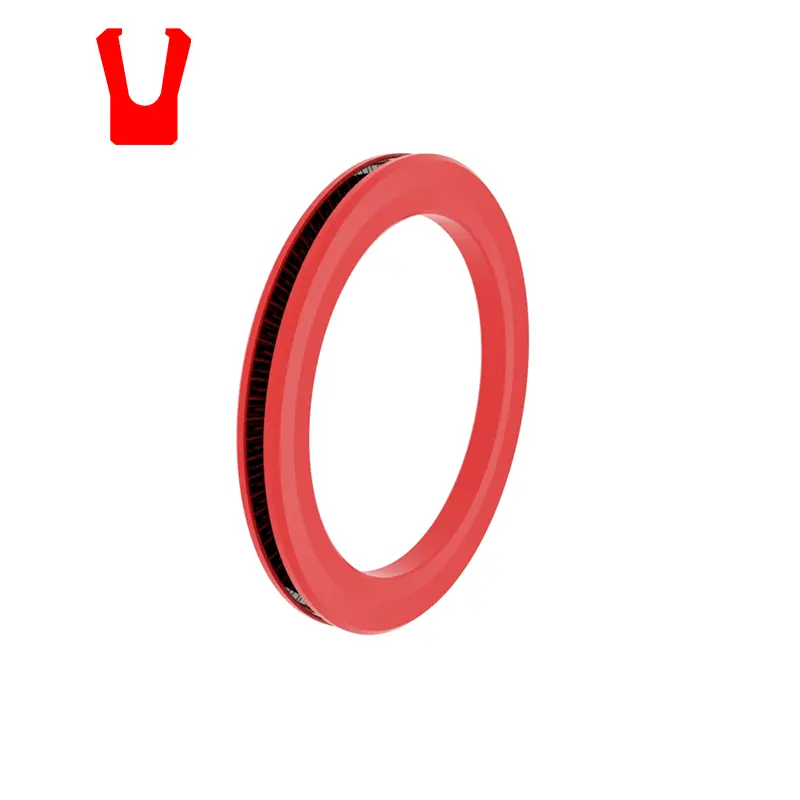

RCR106, RCR107 SALED Rotary Berbentuk, gerakan sumbu, rintangan gesekan, resistensi gesekan, bledug, polutan, banyu cipuran, lsp.
RCR108 seger Rotary Seal, tumindak tunggal, ora musim semi, gangguan njero batin lan njaba ditemtokake miturut kahanan kerja sing beda.

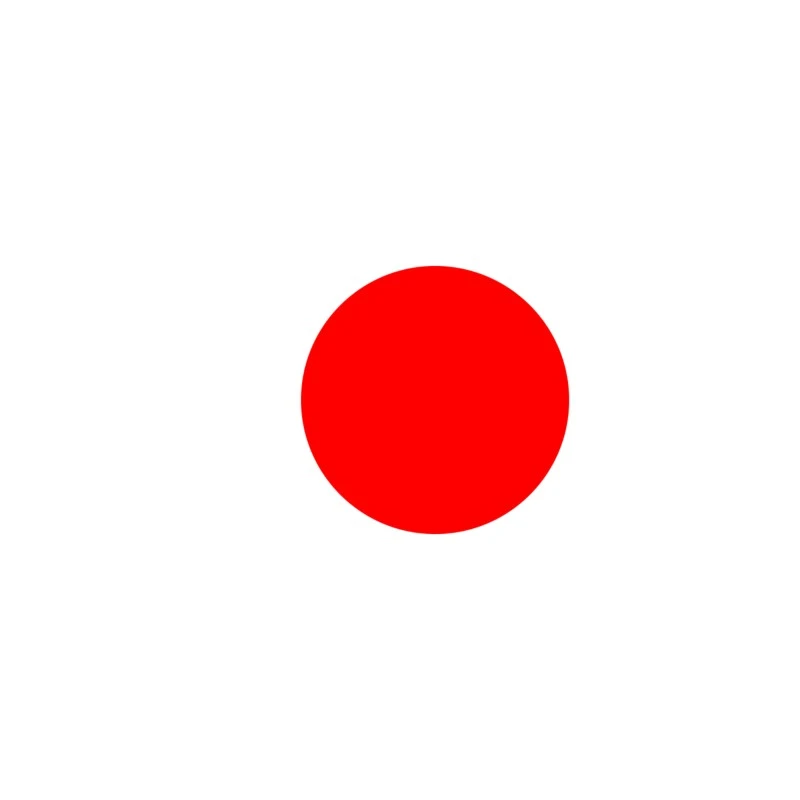

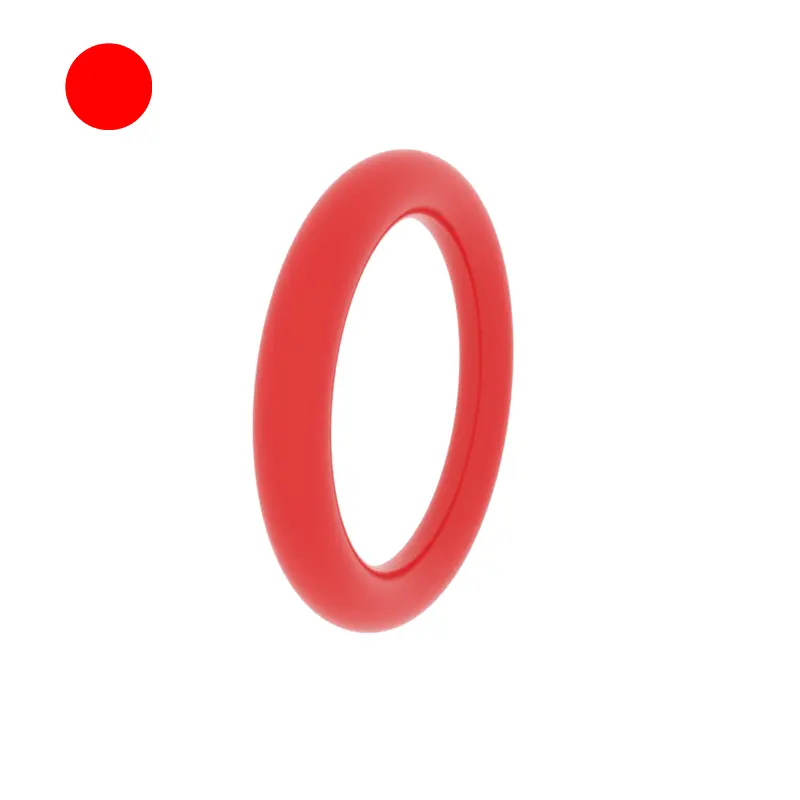

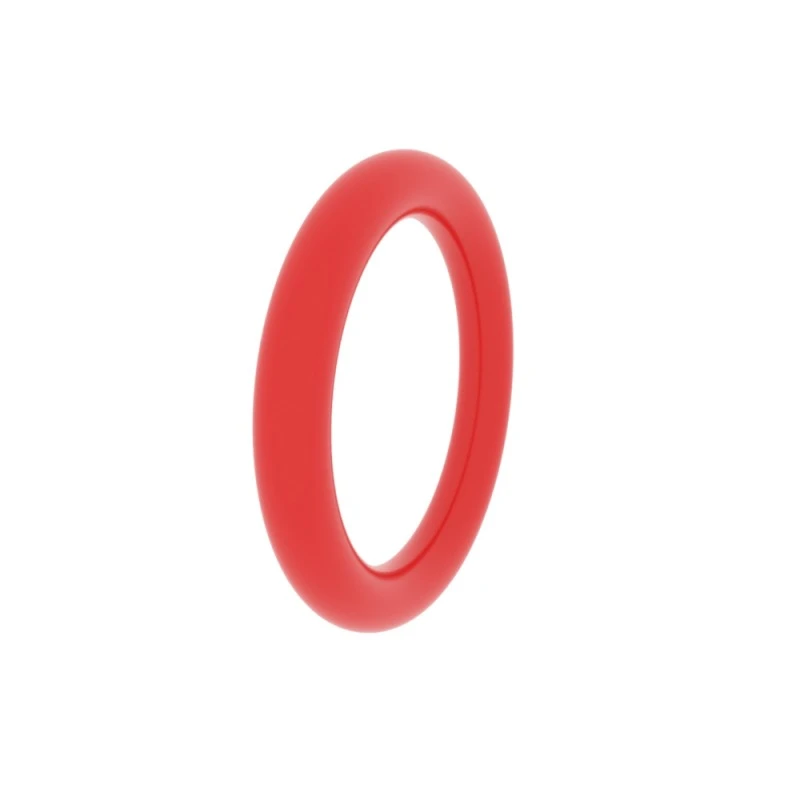

RCR109 O-RING, cincin elastis biasane digunakake kanggo panyegel statis utawa sealing dinamis, pilihan sederhana suhu fleksibel. Kanggo alur sing rinci, waca sampel O-ring.
Rotary Rotary Tetrafluoroethylene kanggo shaft, akting dobel, cocog kanggo alur sing sempit.
Tetrafluoroethylene Rotary Tetrafluoroethylene kanggo bolongan, akting kaping pindho, cocog kanggo alur sing sempit.

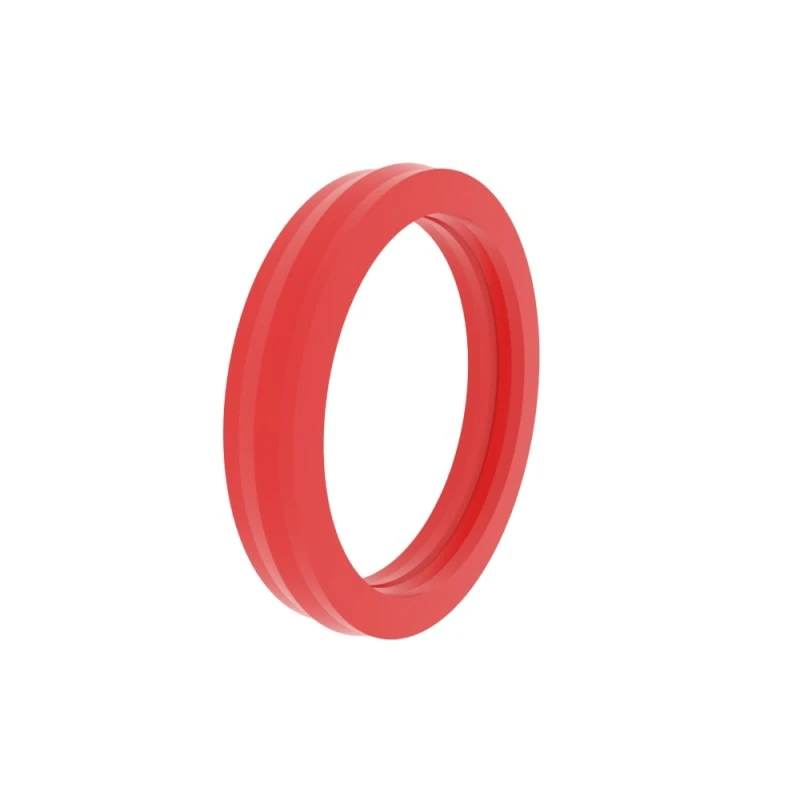

Segel Rotary RCR112, tumindak dobel, alur sempit, cocog kanggo kahanan kerja lubricated.

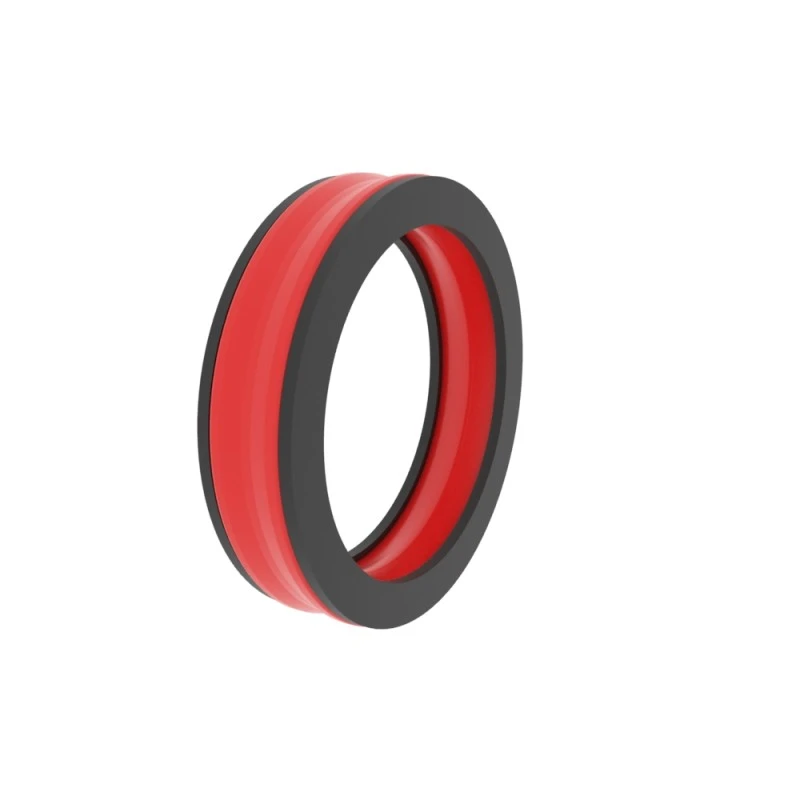

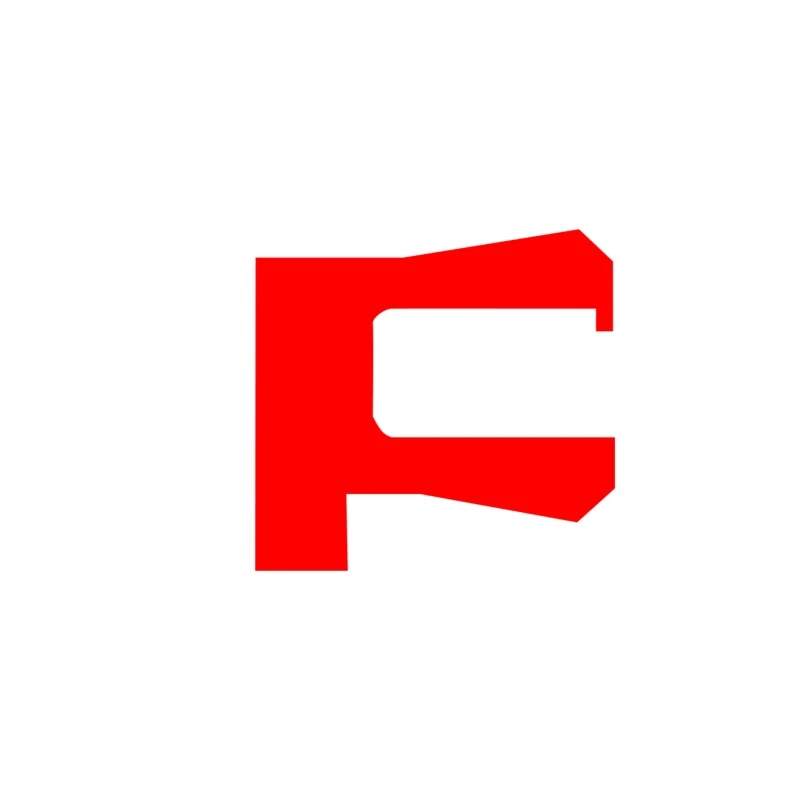

Rotary Seal Rotary, tumindak kaping pindho, kanthi double cincin, Embedding Groove nampilake, ngidini longkangan ekstrus lan tekanan sing luwih gedhe, biasane digunakake ing batang peralatan penggalian.

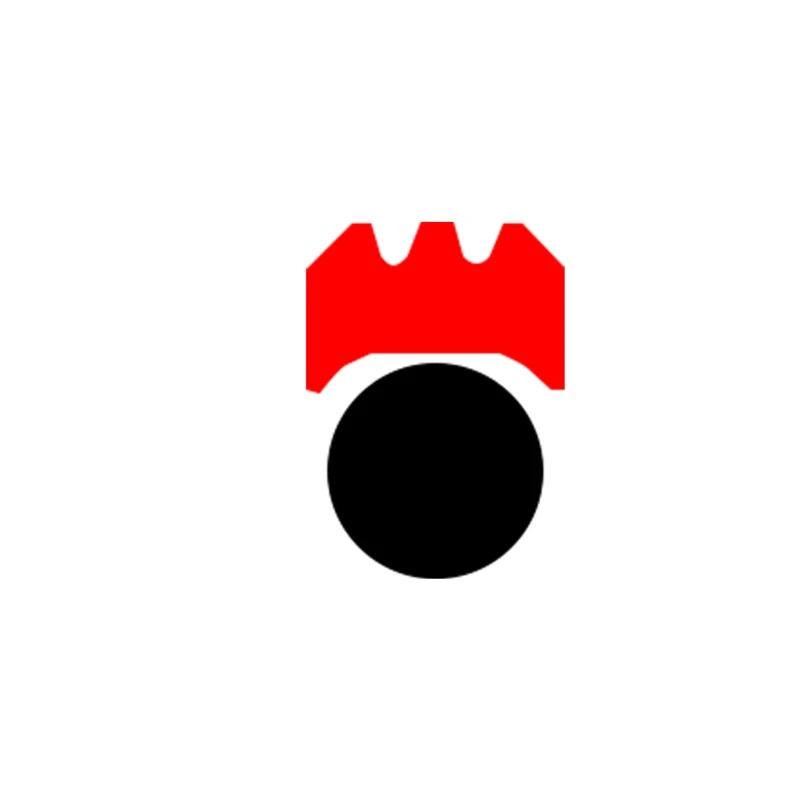

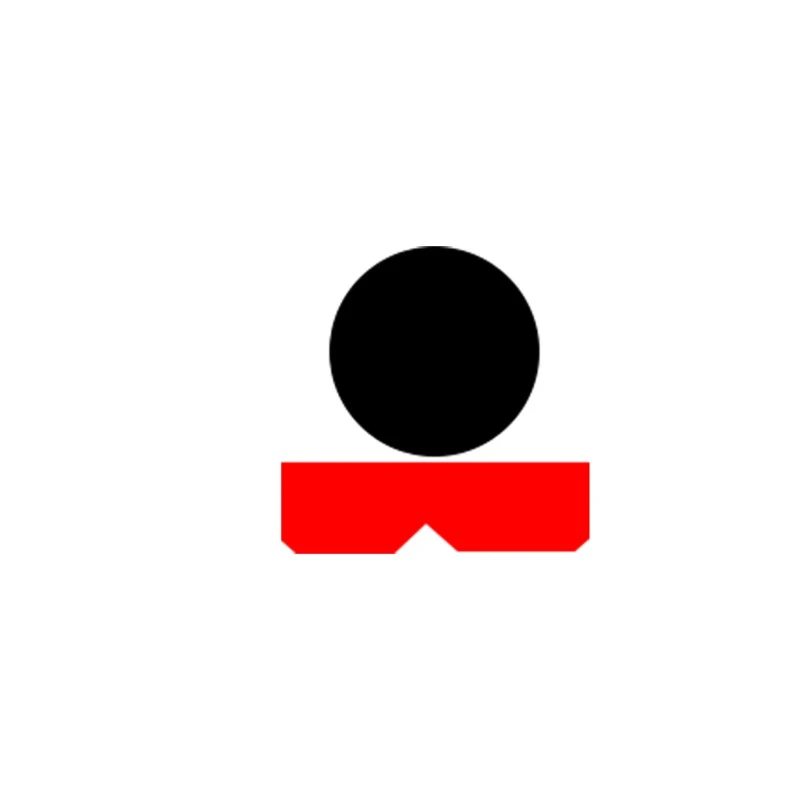

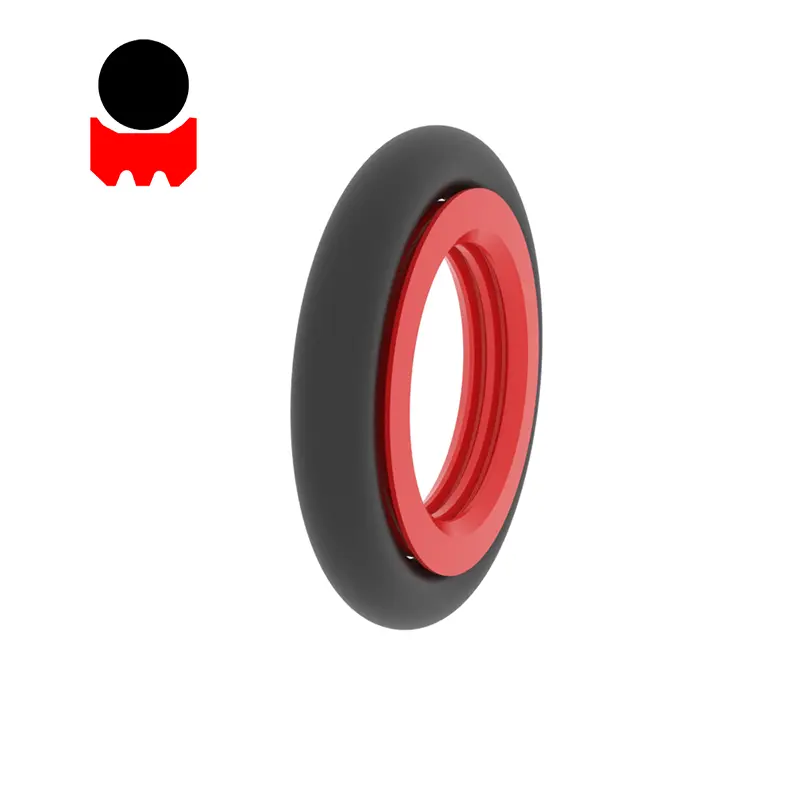

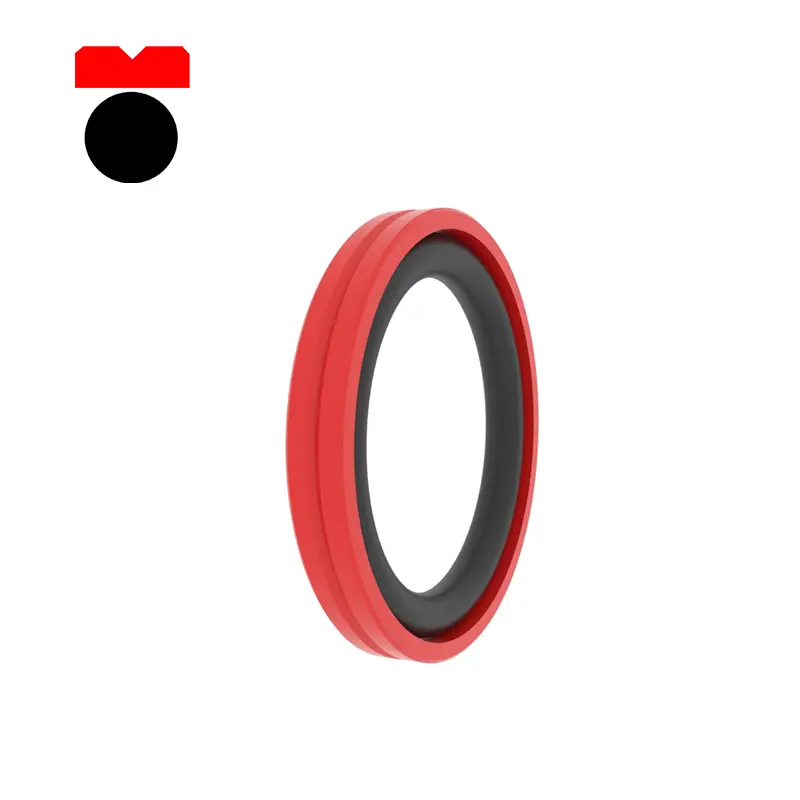

Segel TetrafluoroethLena Rotary Rotary kanggo Shaft, tikel kaping pindho, gesekan rendah, tekanan dhuwur anti-sisih, karat anti-dhuwur.

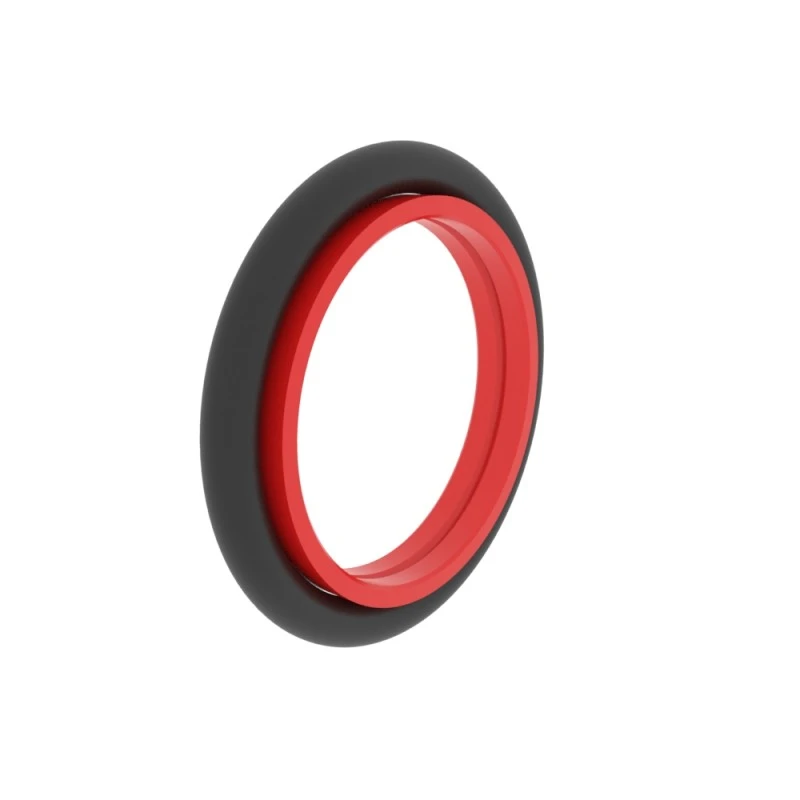

Tetrafluoroethylene Rotary Tetrafluoroethylen kanggo bolongan, tikel kaping pindho, gesekan rendah, tekanan dhuwur anti-sisih, karat anti-dhuwur.

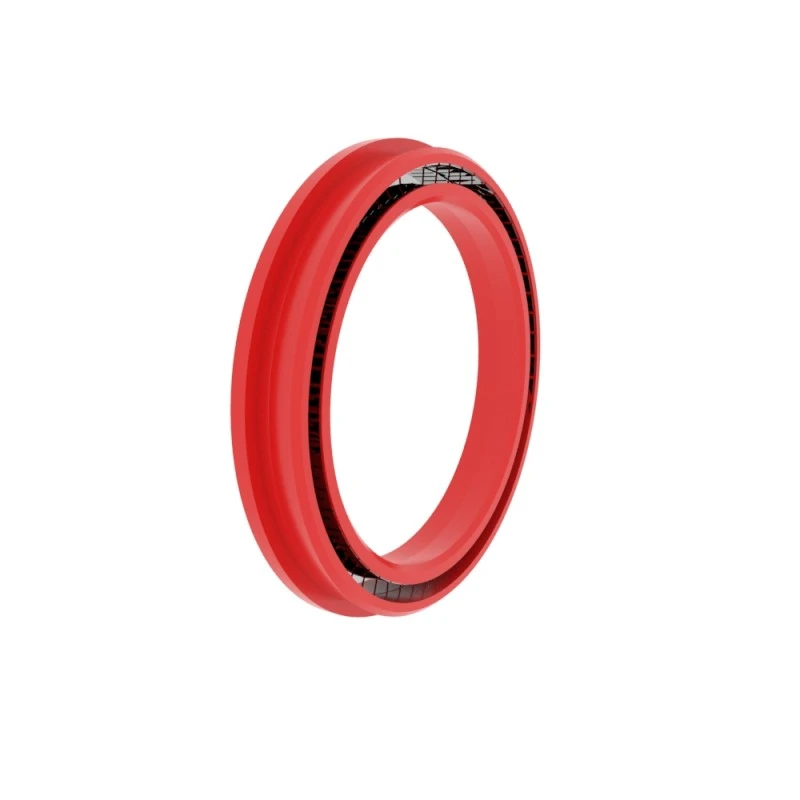

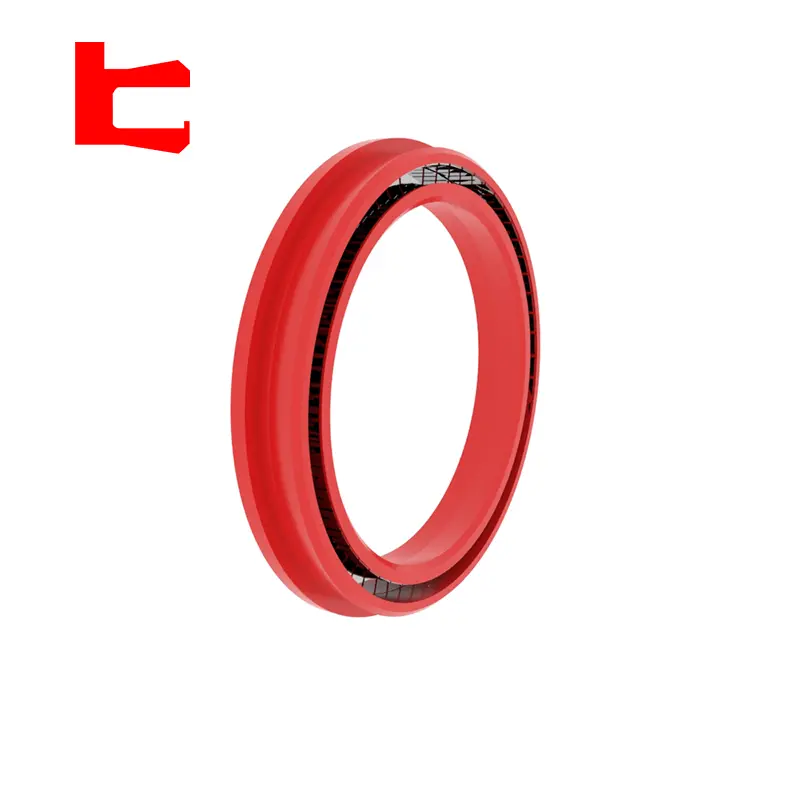

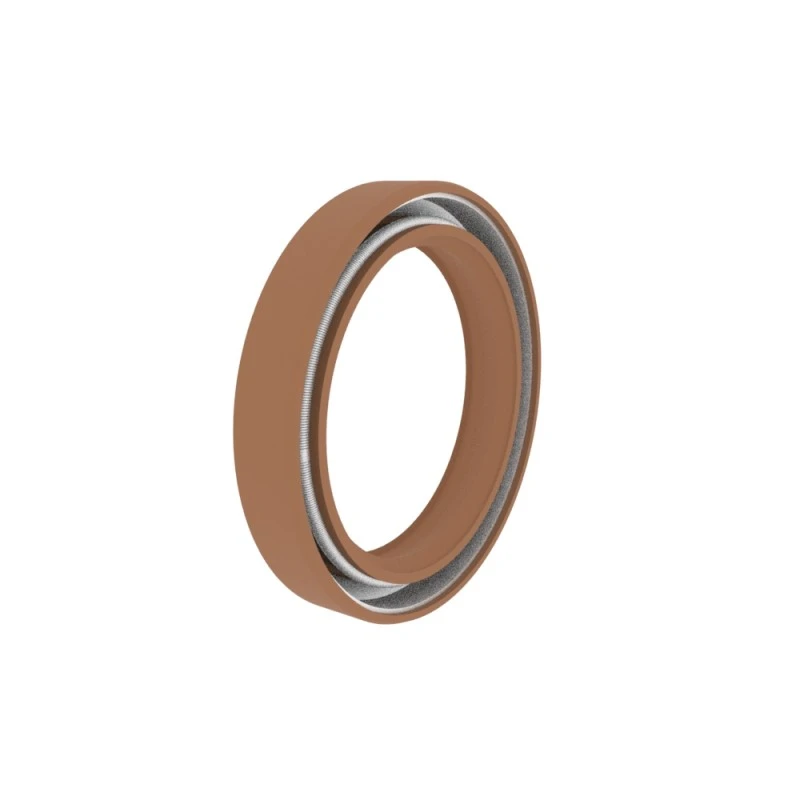

Rcr117, seger Rotary PTFE Rotary, kanthi tunggal tunggal, tahan tahan suhu suhu, cocog kanggo tekanan sing dhuwur lan dhuwur.

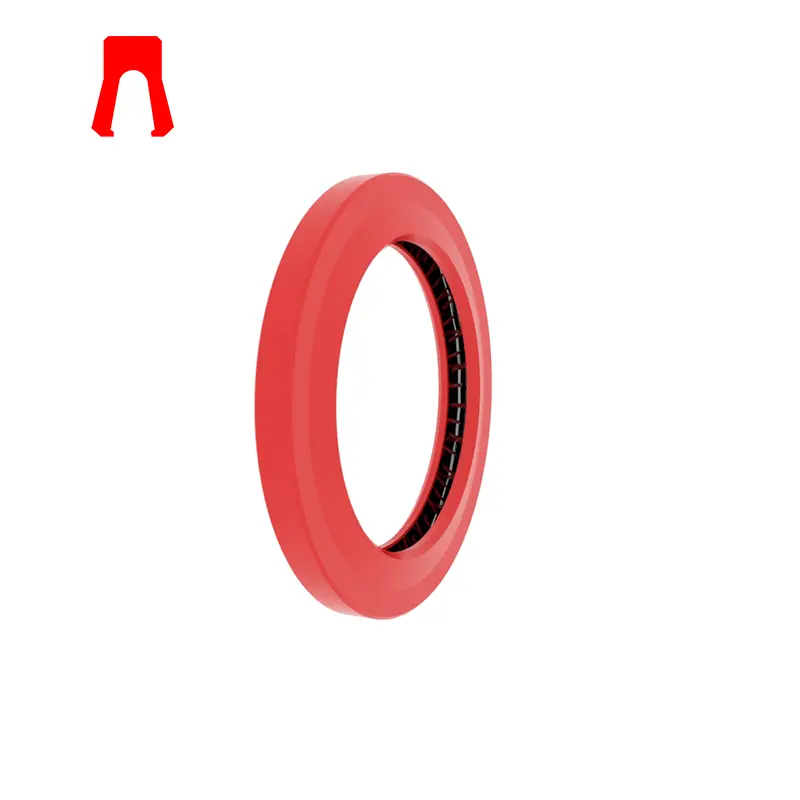

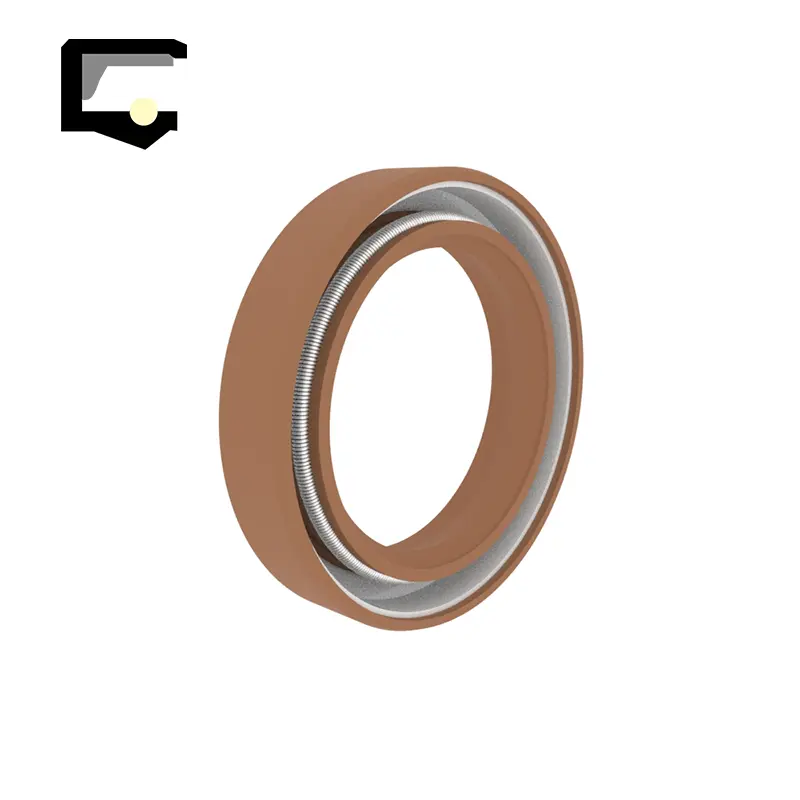

Rcr118 mungkasi segel Ptfe Rotse, kanthi musim semi, tumindak tunggal, resistansi karat suhu, biasane digunakake ing industri kimia.

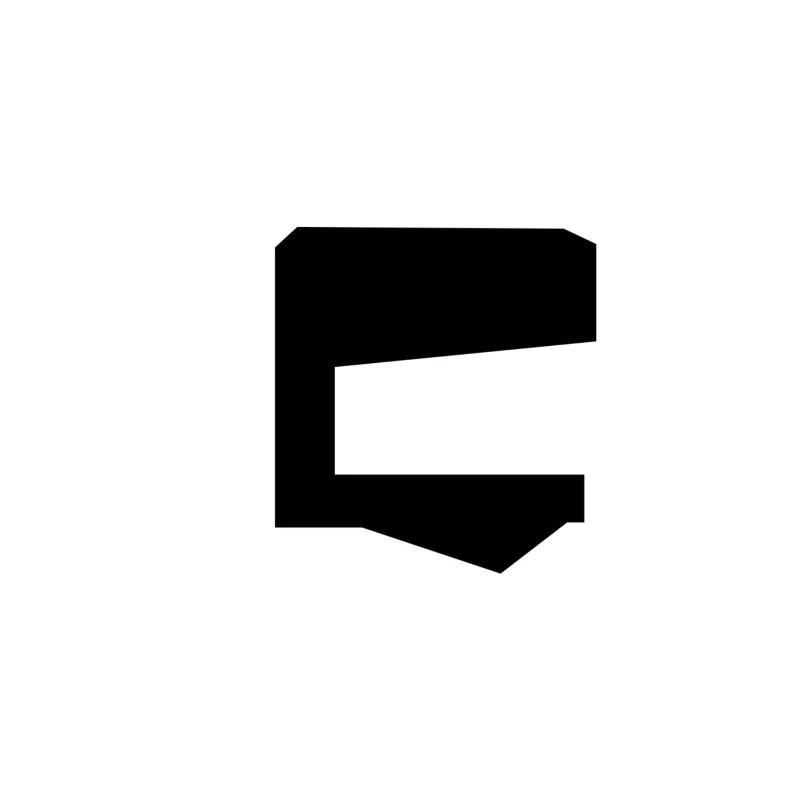

Segeleton Rotary Skeleton Single Lip, Tunggal, Instalasi Groove Open Axial, Digunakake, Umume digunakake minangka unsur pelindung kanggo bantalan.
Rcr201, Segelet Rotary SKeleton Double, tindakan bantu, kanthi lambe bantu debu, instalasi pembukaan axial, digunakake digunakake minangka unsur pelindung kanggo bantalan.

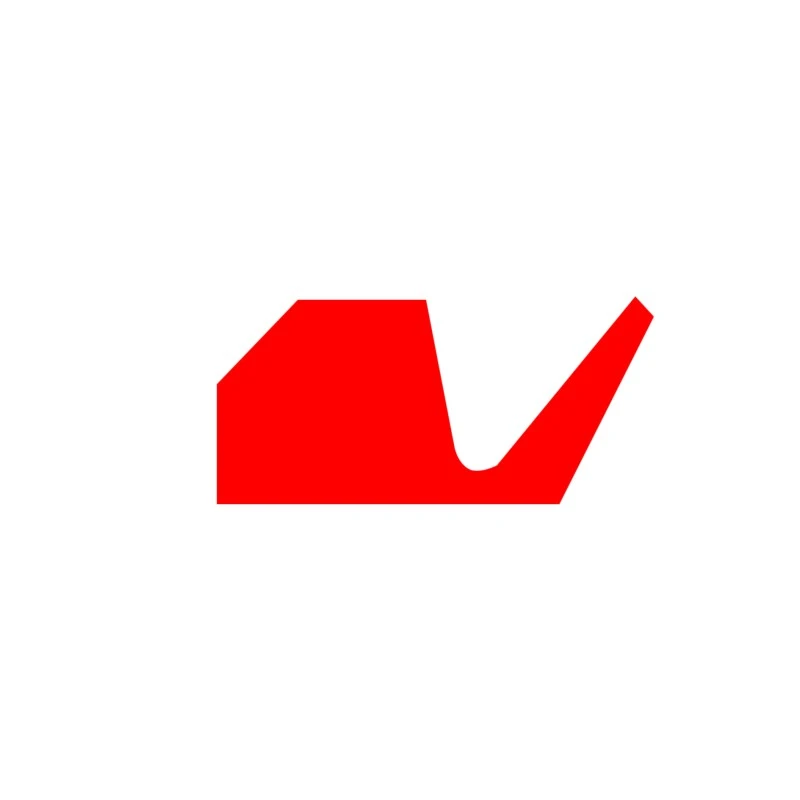

RCR203, Segelet Rotary-free Ritleton-gratis, tagalan tunggal, akting terbuka axial, biasane digunakake ing industri sing abot, kayata metalberg.
Rcr205 Motek tunggal Rotest Skeleton-gratis, tunggal tumindak, Axial mbukak, axial Open Fever instalasi tetep, biasane digunakake ing industri sing abot kayata metalbergy lan shipbuily.
RCR206, RCR207 Rotes-off Rotes-off Lip lip tunggal, tunggal tumindak, Axial mbukak instalasi sing wis rampung, biasane digunakake ing industri sing abot kayata metalberurgy lan shipbuily. Cocog kanggo Seaf Sealing Chact-rendah, medium Sealing yaiku Grease basis lithium.
Fitur lan Aplikasi Produk:
Aplikasi utama

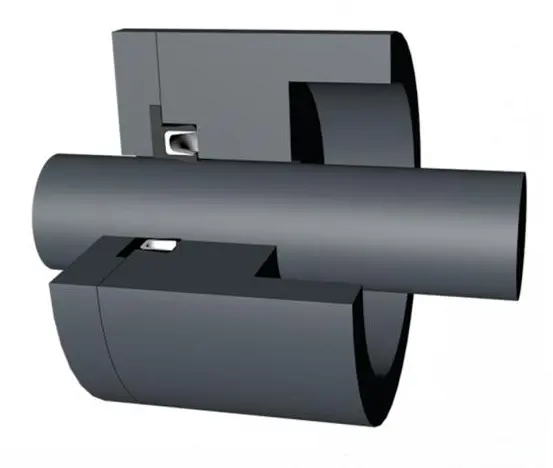

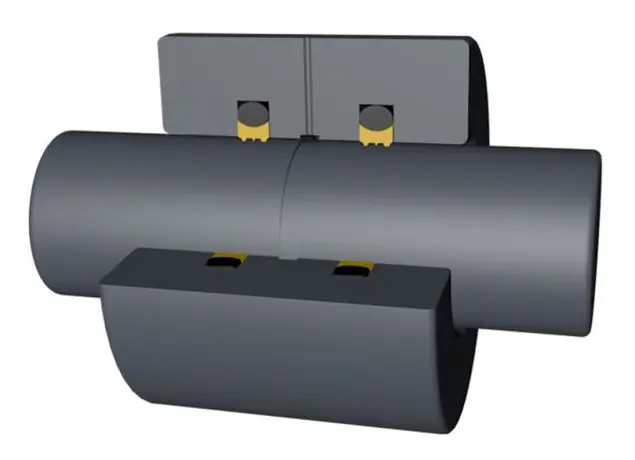

Nguripake Rotary Seger cocog kanggo panggang batang puteran, pemeran, penggali, sendi rotary, distributor rotary, lan jinis cilik iki asring digunakake ing industri minyak bumi
Keuntungan
Nguripake Rotary Seals duwe macem-macem media lan suhu sing cocog, efek tekanan sing apik, tahan minyak-secara cilik, gesekan lenga, lan ora ana fenomena kelet.
RCR101
Ukuran Pesenan
Φd ...... diameteripun njaba
Φd ...... diameteripun
L ...... amba alur
|
Lumahing rampung |
R tmax (μm) |
Ra (μm) |
|
Sliding permukaan karet / segel poliuretana Geser permukaan sing cocog karo PTFE |
≤2.5
≤2 |
≤0.1-0.5
≤0.05-0.3 |
|
Groove Bottom Sisih Groove |
≤6.3 ≤15 |
≤1.6 ≤3 |
|
Rasio Dhukungan TP |
50% -95% |
|
|
Toleransi |
|
|
Φd |
f8 |
|
Φd |
H8 |
Conto conto
Model: RCR101
Ukuran Groove: 100x115x8
Bahan: NBR / pom
Tipe segel: RCR101, RCR102
Aplikasi utama: Cocog kanggo Seaft End End Segat
Kaluwihan: cocog kanggo macem-macem media, sawetara suhu suhu, lan efek panyegelan sing apik
Bahan: poliuretana, karet / polyoxymethylene
|

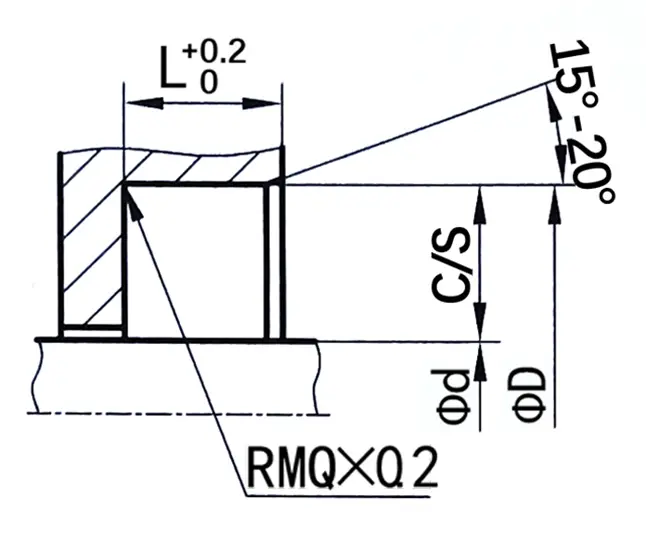

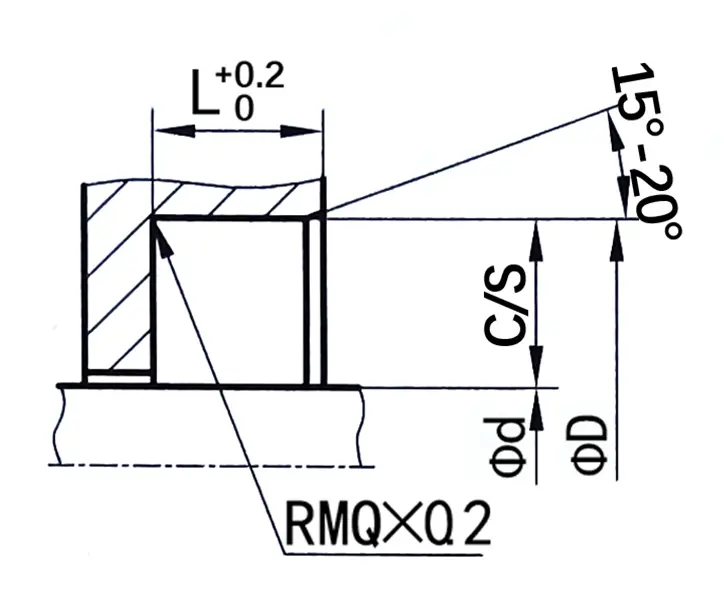

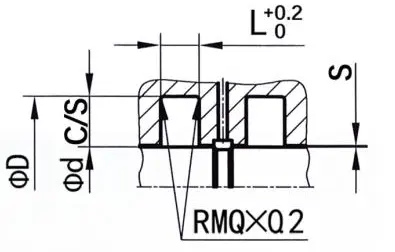

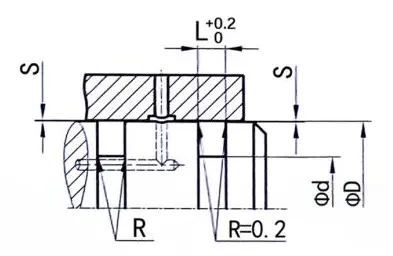

Conto segel alur |
Ing ngisor iki minangka dimensi aliran standar (garis rotary ukuran apa wae ukuran ukuran bisa diprodhuksi) |
|||||
|
|
|
Φd |
Φd |
L |
c / s |
|
|
6-59.9 |
Φd + 12 |
7 |
6 |
|||
|
60-139.9 |
Φd + 15 |
8 |
7.5 |
|||
|
140-299.9 |
Φd + 20 |
10 |
10 |
|||
|
300-499.9 |
Φd + 30 |
12 |
15 |
|||
|
500-800 |
Φd + 40 |
20 |
20 |
|||
|
> 800 |
Φd + 50 |
22 |
25 |
|||

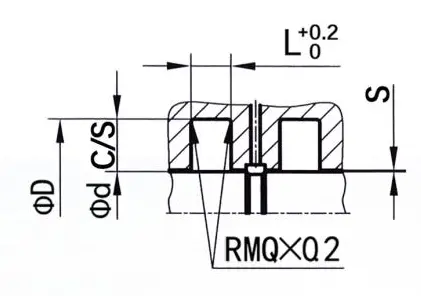

RCR115
Ukuran Pesenan
Φd ...... diameteripun njaba
Φd ...... diameteripun
L ...... amba alur
|
Lumahing rampung |
R tmax (μm) |
Ra (μm) |
|
Sliding permukaan karet / segel poliuretana Geser permukaan sing cocog karo PTFE |
≤2.5
≤2 |
≤0.1-0.5
≤0.05-0.3 |
|
Groove Bottom Sisih Groove |
≤6.3 ≤15 |
≤1.6 ≤3 |
|
Rasio Dhukungan TP |
50% -95% |
|
|
Toleransi |
|
|
Φd |
f8 |
|
Φd |
H8 |
Conto conto
Model: Rcr115
Ukuran Groove: 100x111x4.2
Bahan: PTFE4 + NBR
Tipe segel: RCR115
Aplikasi utama: Cocog kanggo segel shaft puteran, penggali, nyipta sendi Swivel.
Kaluwihan: Bisa nolak tekanan sing dhuwur, duwe ukuran siluman cilik, tahan minyak hidraulik, duwe fenomena kelet.
Bahan: Tetrafluoroethylene + Karet Nitrile utawa Fluorororubber
|
Conto segel alur |
Ing ngisor iki minangka dimensi aliran standar (garis rotary ukuran apa wae ukuran ukuran bisa diprodhuksi) |
||||||||
|
|
|
Φd |
Φd |
L |
R |
X |
Pinunjul pinus pinunjul maksimal |
||
|
100bar |
200bar |
||||||||
|
6-18.9 |
Φd + 4.9 |
2.2 |
0.4 |
1.78 |
0.15 |
0.10 |
|||
|
19-37.9 |
Φd + 7,5 |
3.2 |
0.6 |
2.62 |
0.20 |
0.15 |
|||
|
38-199.9 |
Φd + 11 |
4.2 |
1.0 |
3.53 |
0.25 |
0.20 |
|||
|
200-255.9 |
Φd + 15.5 |
6.3 |
1.3 |
5.33 |
0.30 |
0.25 |
|||
|
256-649.9 |
Φd + 21 |
8.1 |
1.8 |
7.00 |
0.30 |
0.25 |
|||
|
> 650 |
Φd + 28 |
9.5 |
2.5 |
8.40 |
0.45 |
0.30 |
|||

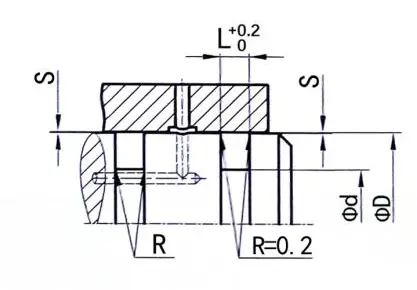

RCR116
Ukuran Pesenan
Φd ...... diameteripun njaba
Φd ...... diameteripun
L ...... amba alur
|
Lumahing rampung |
R tmax (μm) |
Ra (μm) |
|
Sliding permukaan karet / segel poliuretana Geser permukaan sing cocog karo PTFE |
≤2.5
≤2 |
≤0.1-0.5
≤0.05-0.3 |
|
Groove Bottom Sisih Groove |
≤6.3 ≤15 |
≤1.6 ≤3 |
|
Rasio Dhukungan TP |
50% -95% |
|
|
Toleransi |
|
|
Φd |
f8 |
|
Φd |
H8 |
Conto conto
Model: Rcr116
Ukuran Groove: 100x89x4.2
Bahan: PTFE4 + NBR
Tipe segel: rcr116
Aplikasi utama: Cocog kanggo segel mburi puteran, penggali, sendi palsu, distributor rotary.
Kaluwihan: cocog kanggo macem-macem media lan suhu, duwe efek panyeget sing apik, ukuran cross-sectional cilik, resistensi kuat kanggo minyak hidraulik, gesekan rendah, lan ora ana fenomena tongkat.
Bahan: Tetrafluoroethylene + Karet Nitrile utawa Fluorororubber
|
Conto segel alur |
Ing ngisor iki minangka dimensi aliran standar (garis rotary ukuran apa wae ukuran ukuran bisa diprodhuksi) |
||||||||
|
|
|
Φd |
Φd |
L |
R |
O-ring |
Pinunjul pinus pinunjul maksimal |
||
|
100bar |
200bar |
||||||||
|
8-39.9 |
Φd-4.9 |
2.2 |
0.4 |
1.78 |
0.15 |
0.10 |
|||
|
40-79.9 |
Φd-7,5 |
3.2 |
0.6 |
2.62 |
0.20 |
0.15 |
|||
|
80-132.9 |
Φd-11.0 |
4.2 |
1.0 |
3.53 |
0.25 |
0.20 |
|||
|
133-329.9 |
Φd-15.5 |
6.3 |
1.3 |
5.33 |
0.30 |
0.25 |
|||
|
330-669.9 |
Φd-21.0 |
8.1 |
1.8 |
7.00 |
0.30 |
0.25 |
|||
|
> 670 |
Φd-28.0 |
9.5 |
2.5 |
8.40 |
0.45 |
0.30 |
|||

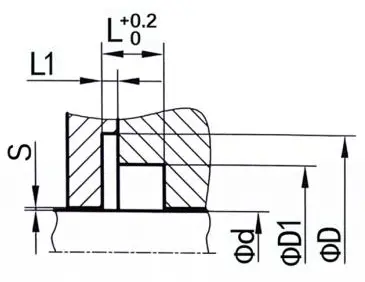

Rcr117
Ukuran Pesenan
Φd ...... diameteripun njaba
Φd1 ...... diameteripun njaba
Φd ...... diameteripun
L ...... amba alur
L1 ...... jembaré groofe
|
Lumahing rampung |
R tmax (μm) |
Ra (μm) |
|
Sliding permukaan karet / segel poliuretana Geser permukaan sing cocog karo PTFE |
≤2.5
≤2 |
≤0.1-0.5
≤0.05-0.3 |
|
Groove Bottom Sisih Groove |
≤6.3 ≤15 |
≤1.6 ≤3 |
|
Rasio Dhukungan TP |
50% -95% |
|
|
Toleransi |
|
|
Φd |
f8 |
|
Φd |
H8 |
Conto conto
Model: Rcr117
Ukuran Groove: 100x117.5x110.5x7.1x1.8
Bahan: PTFE4 + V
Tipe segel: rcr117
Aplikasi utama: Cocog kanggo Saham End End Segar, jinis iki asring digunakake ing industri minyak bumi lan kimia
Kaluwihan: gesekan murah, resistensi karat, tahan suhu dhuwur, cocog kanggo kacepetan dhuwur
Bahan: PTFE, Spring Stainless Steel
|

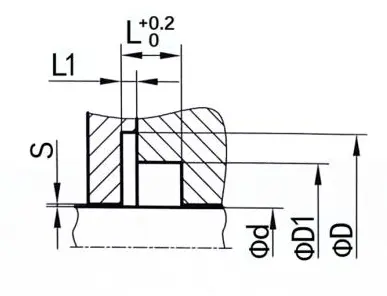

Conto segel alur |
Ing ngisor iki minangka dimensi aliran standar (garis rotary ukuran apa wae ukuran ukuran bisa diprodhuksi) |
|||||||||
|
|
|
Φd |
Φd |
FD1 |
L |
L1 |
Pinunjul pinus pinunjul maksimal |
|||
|
20bar |
100bar |
200bar |
||||||||
|
5-19.9 |
Φd + 9 |
Φd + 5 |
3.6 |
0.85 |
0.25 |
0.15 |
0.10 |
|||
|
20-39.9 |
Φd + 12,5 |
Φd + 7 |
4.8 |
1.35 |
0.35 |
0.20 |
0.15 |
|||
|
40-399.9 |
Φd + 17.5 |
Φd + 10.5 |
7.1 |
1.8 |
0.50 |
0.25 |
0.20 |
|||
|
≥400 |
Φd + 22 |
Φd + 14 |
9.5 |
2.8 |
0.60 |
0.30 |
0.25 |
|||
